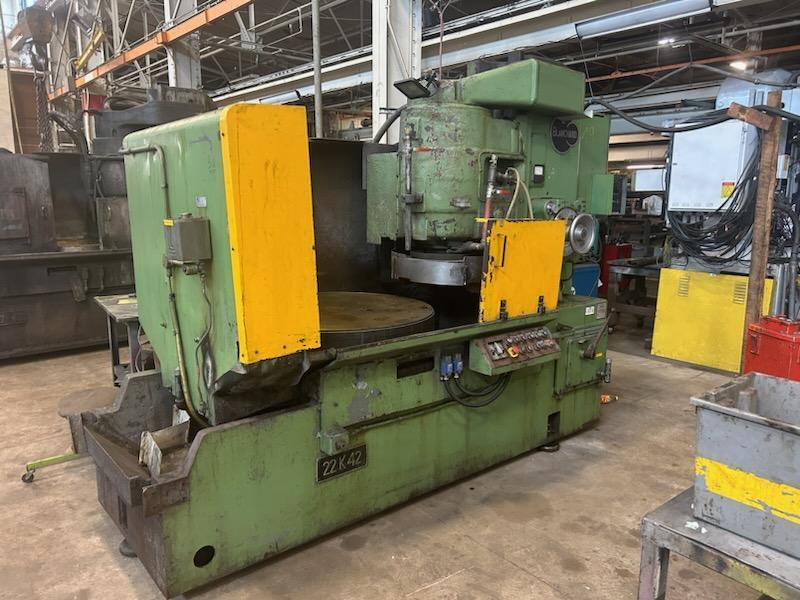

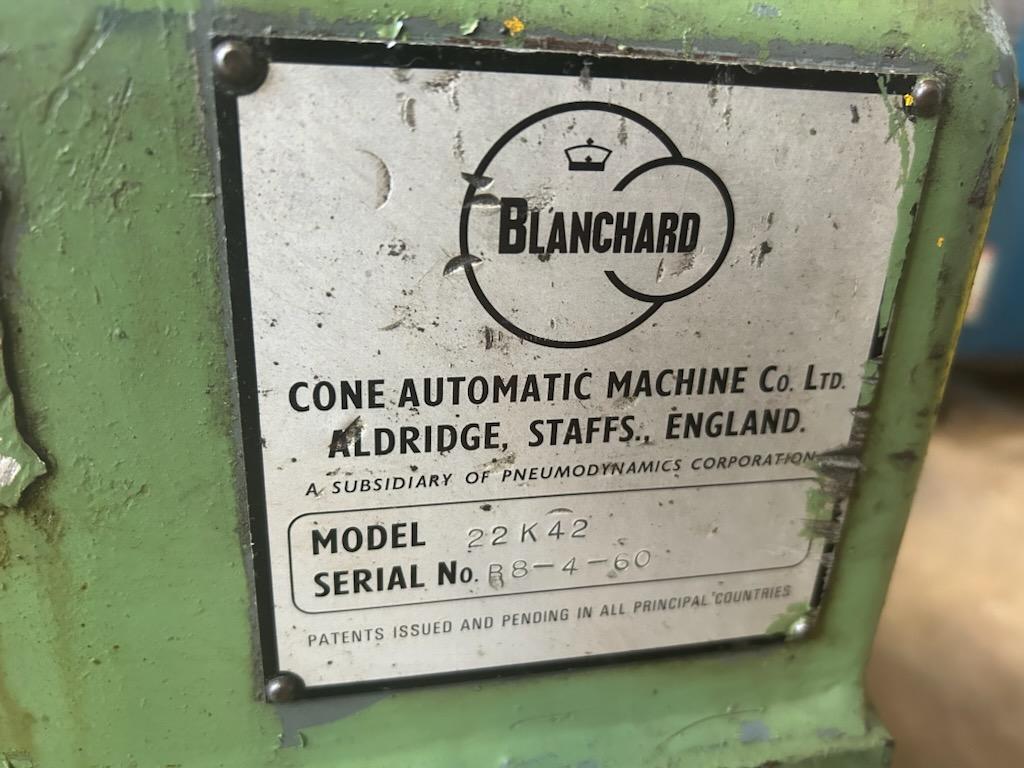

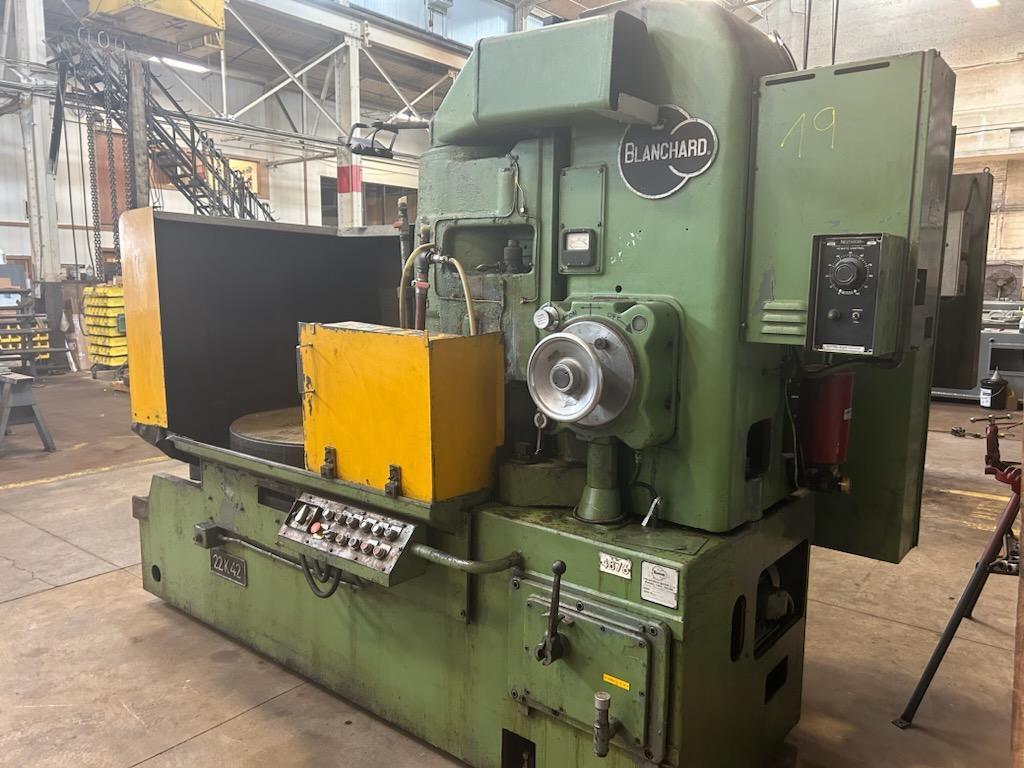

Used "Certified" Blanchard #22K-42, 42" Vertical Spindle Rotary Surface Grinder, Serial #12811

Manufacturer

BLANCHARD

Category

Grinding Machines

Type

GRINDERS, SURFACE, ROTARY TYPE, (Horizontal Spindle)

Stock

17260

Model

22K-42

Dealer Location

Michigan

Request a Quote
View Contact Information

Spec Sheet



42" Magnetic Chuck Diameter,
22 to 24" Approximate Range Over Chuck With New Wheel
22" Diameter of Wheel Chuck,
Cortland 5 Segment Wheel
48" Swing Inside Water Guards
720 RPM Wheel Speed
(6) Ranges of Chuck Speeds 5,7,10,15,20 & 27 RPM
Automatic Downfeeds Feed 0 to 70 IN/MIN
50 HP, 3 Phase, 60 Cycle, 440 Volt, 705 RPM
Floor Space: 13.5"L x 8.4"W
Height: 8.7" Min., 9.1" Max.
Approx. Weight: 14,250 lbs.

Scope of Work:

Rebuild Spindle.

Add new grease lube system.

Wire all components in panel for new grease lube system.

Run all new grease lube lines.

Remove and repair upper feed box.

Complete rebuild of table drive transmission.
Rebuild Saddle Traverse Gear Box
New Rack & Pinion

Replace base ways.

Scrape saddle way surfaces to new ways.

Replace way wipers.

Run new lube lines on saddle.

New water guards.

Clean up electrical panel.

Paint machine.

Check table flatness.

Tram spindle to table.

Grind table flat.

Test grind parts.

Run machine for 8 hr.

Run-off machine.
