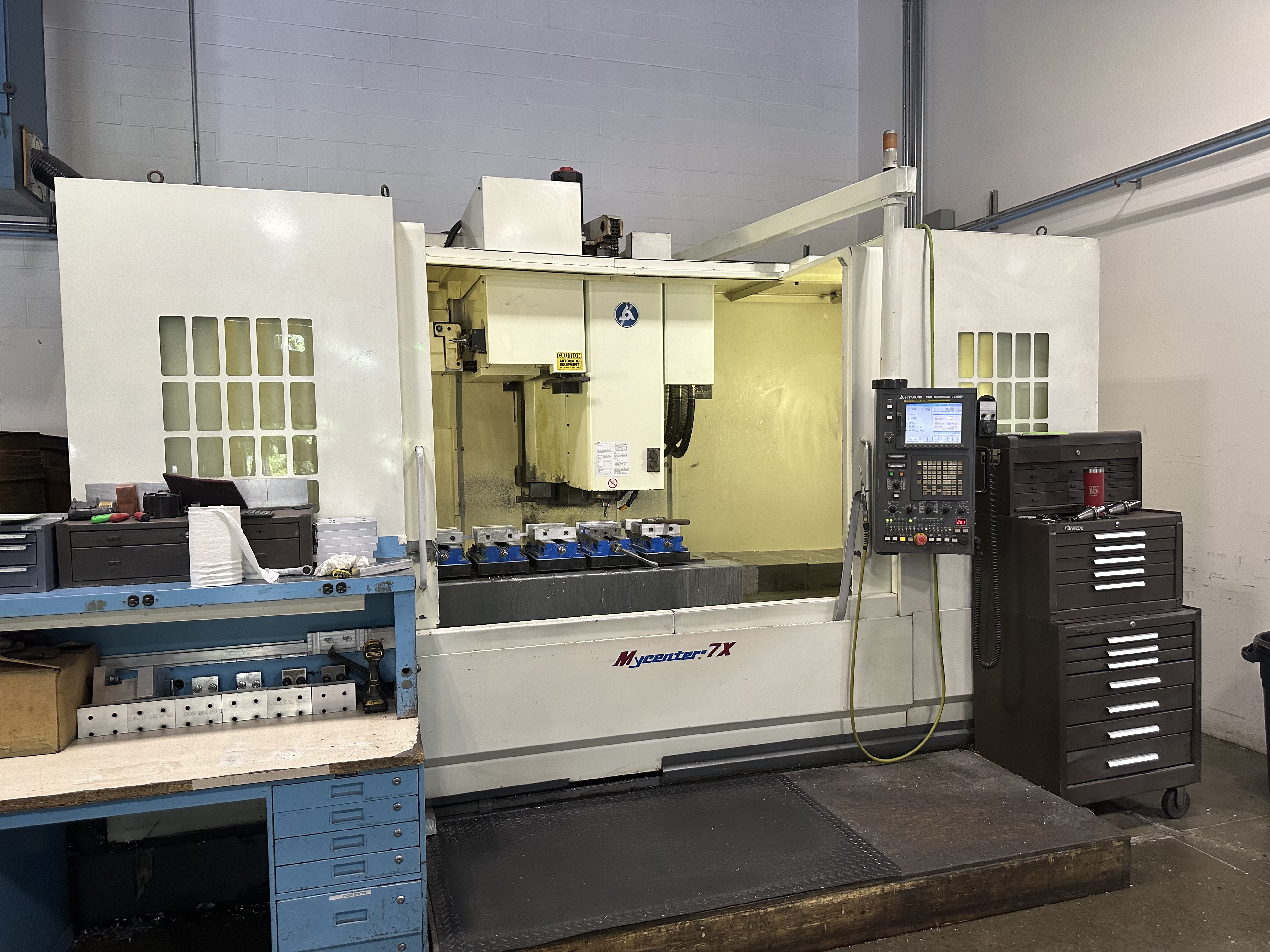

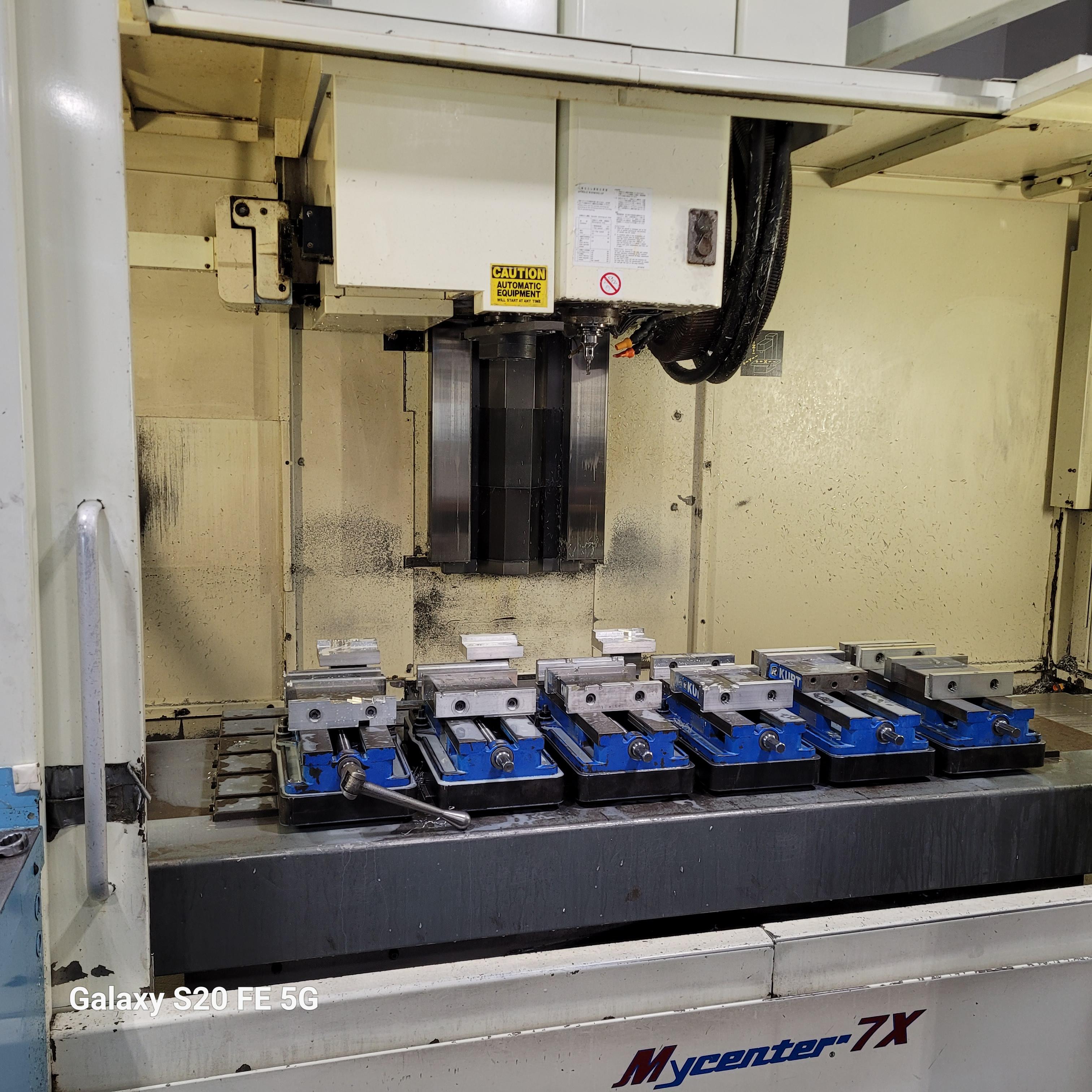

Kitamura Mycenter 7X Vertical Machining Center, Mfg. 2006, 60.2" X, 25.6" Y, 27" Z, 66.9" x 25.6" Table, CAT-40, 15,000 RPM, 30 HP, 30 ATC, Fanuc 16iMB Control, Spindle Chiller, Chip Conveyor, Geared Head

Manufacturer

Kitamura

Category

Machining Centers

Type

MACHINING CENTERS, VERTICAL, CNC (Incl. Pallet Changers)

Stock

4371

Model

Mycenter 7X

Dealer Location

Massachusetts

Request a Quote
View Contact Information

Spec Sheet

Specifications
Table Size - 66.9" x 25.6"
Maximum Table Load - 4,851 lbs.
X-Axis Travel - 60.2"
Y-Axis Travel - 25.6"
Z-Axis Travel - 27"
Distance from Table Top to Spindle Nose - 7.9" - 34.9"
Distance from Table Center to Column Slideway - 12.8" - 38.4"
Spindle Taper - CAT-40
Spindle Speeds - 40 - 15,000 RPM
Spindle Motor - 30HP
Side Mount Tool Changer - 30 Positions
Rapid Traverse Rates - 945 IPM X&Y / 787 IPM Z
Approximate Dimensions - 209.3" W x 141.3" D
Approximate Machine Weight - 30,500 lbs.


Equipped With
- Fanuc 16iMB CNC Control
- Remote Jog Handle
- Box Way Construction
- Geared Head
- Spindle Chiller
- Double Arm, Side Mount Automatic Tool Changer
- Double Augers
- Chip Conveyor
