2002 Haas Model VF-2D Vertical Machining Center, 20 HP, 7,500 RPM, 24 ATC, Rigid Tap, Chip Auger

Manufacturer

HAAS

Category

Air Compressors

Type

AIR COMPRESSOR ACCESSORIES

Stock

4372

Model

VF-2D

Dealer Location

Massachusetts

Request a Quote
View Contact Information

Spec Sheet

Specifications
Table Size: 36" x 14"
X-Axis Travel: 30"
Y-Axis Travel: 16"
Z-Axis Travel: 20"
Spindle Nose to Table: 4 - 24"
Maximum Weight on Table: 1,800 lbs.
Spindle Power: 20 HP
Spindle Speeds: 0 - 7,500 RPM
Spindle Taper: CAT-40

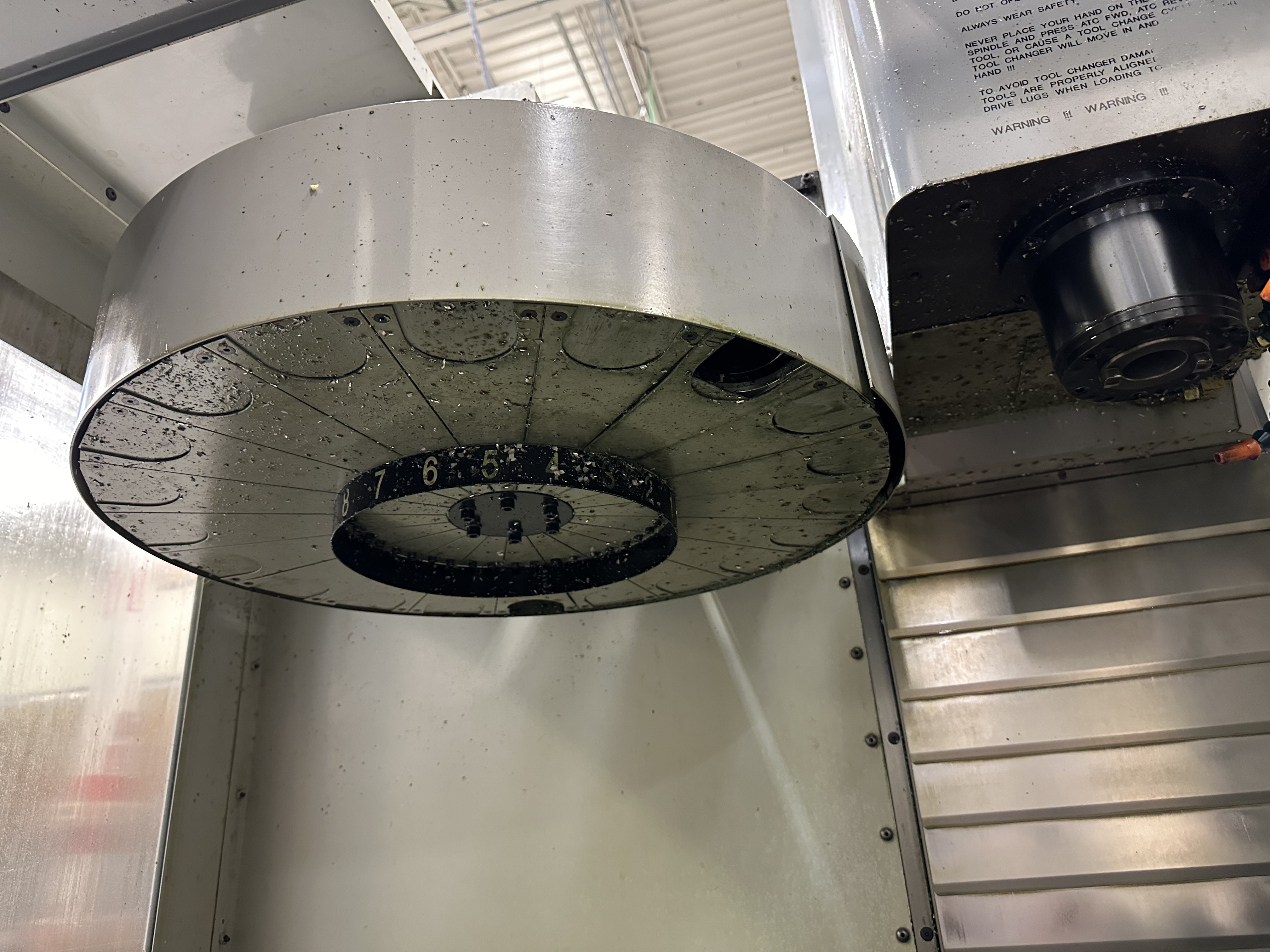

Tool Changer Capacity: 24 Positions
Rapid Traverse Rates (X, Y, Z Axes): 1,000 / 1,000 / 1,000 IPM
Approximate Dimensions: 90" x 80" x 100"
Approximate Weight: 9,500 lbs.

Equipped With
- Haas CNC Control (Ver M11.19N MOCON 11.04)
- 20 HP Vector Dual Drive
- Brushless Servos
- Rigid Tapping
- Programmable Coolant
- Quick Code
- Floppy Disk
- Chip Auger
