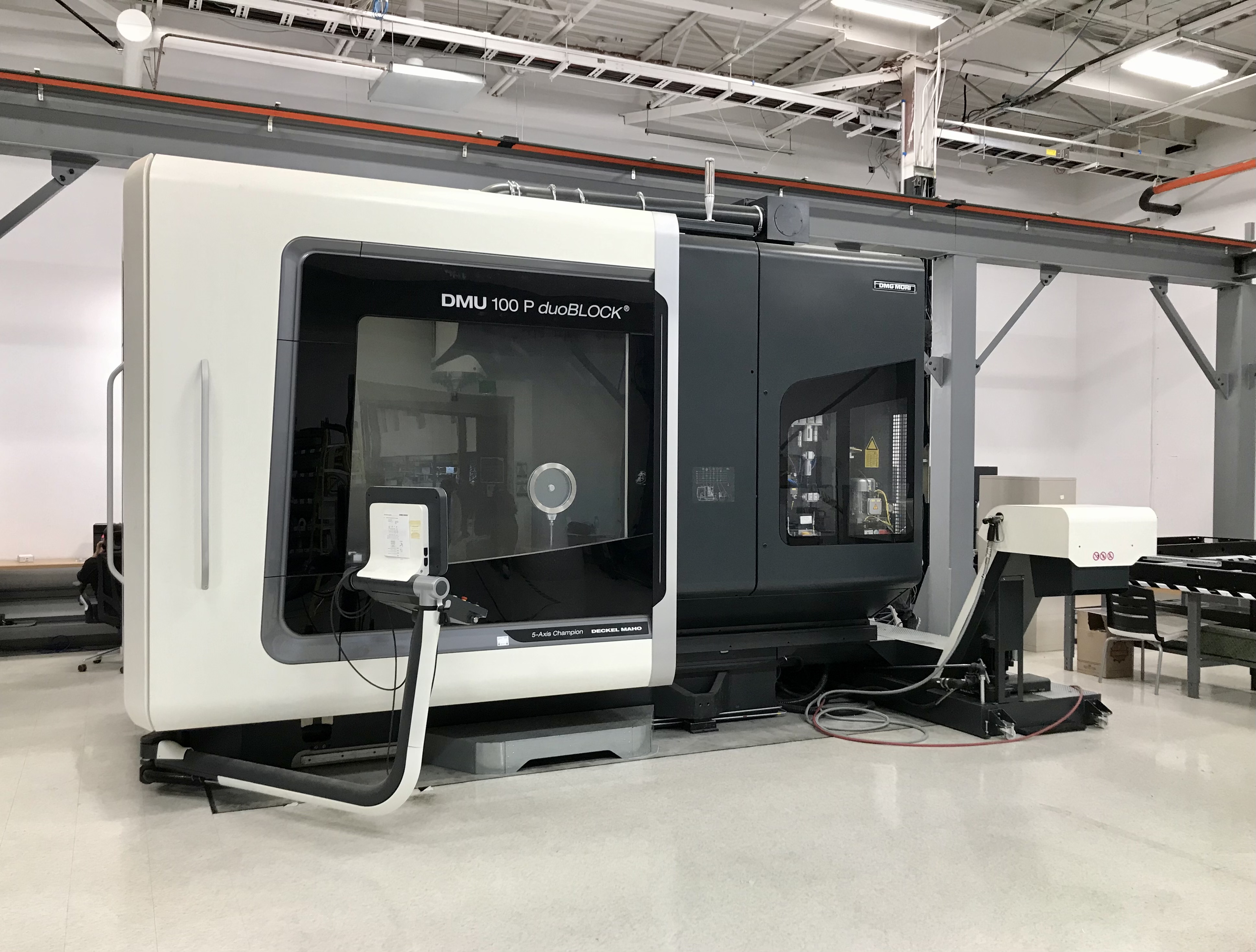

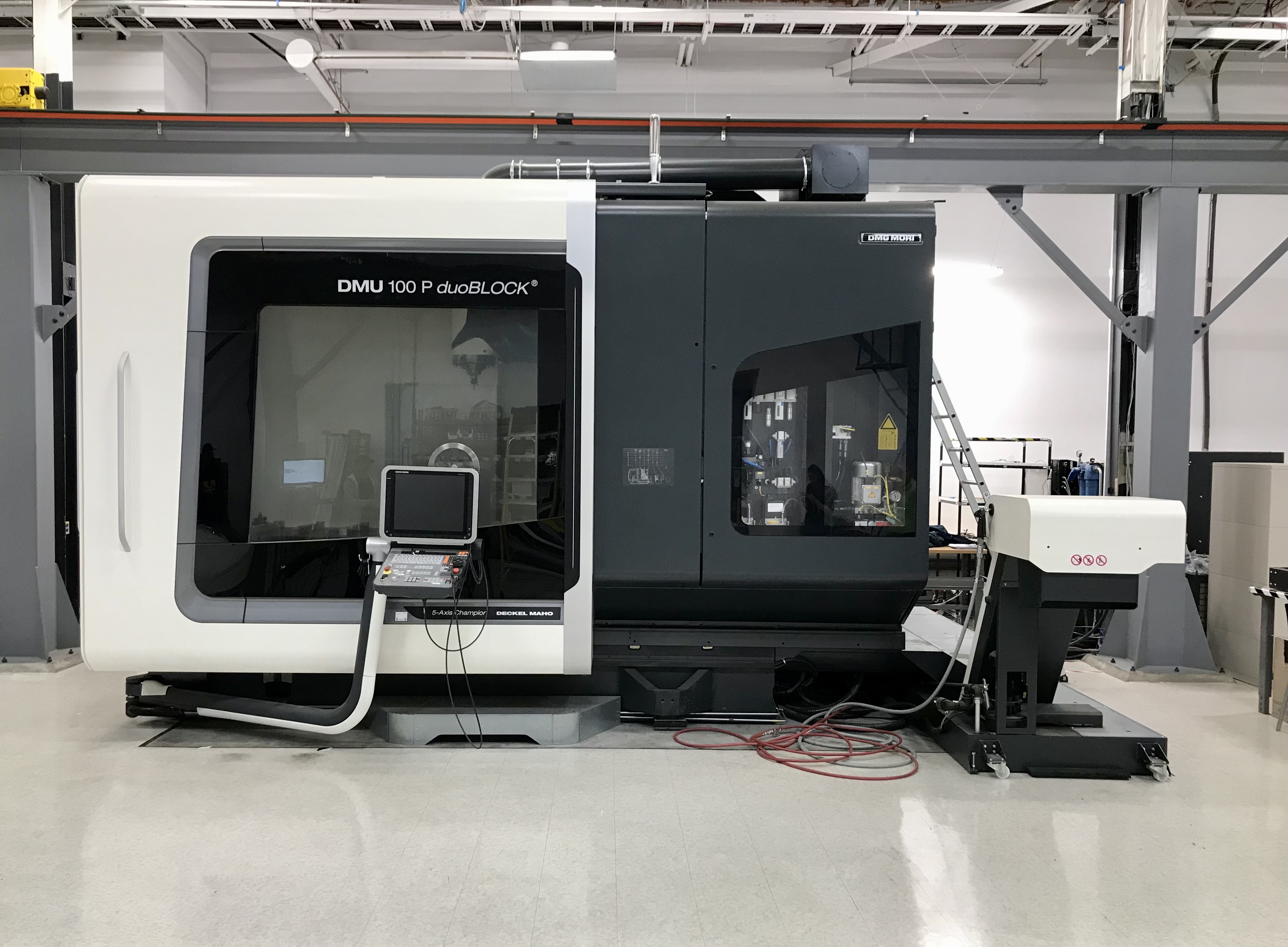

DMG Model DMU-100P 5-Axis Machining Center, Mfg. 2018, 12,000 RPM, HSK-A 100 Taper, 63 ATC, Heidenhain TNC-640 Control, Low Hours

Manufacturer

DMG

Category

Machining Centers

Type

MACHINING CENTERS, CNC, 5-AXIS or MORE

Stock

4312

Model

DMU-100P

Dealer Location

Massachusetts

Request a Quote
View Contact Information

Spec Sheet

Specifications;
Working Area - X/Y/Z Axes: 39.4" x 49.2" x 39.4"
Table Size: 43.3" x 35.4"
Table Speeds: 35 RPM
Maximum Table Load: 4,900 lbs

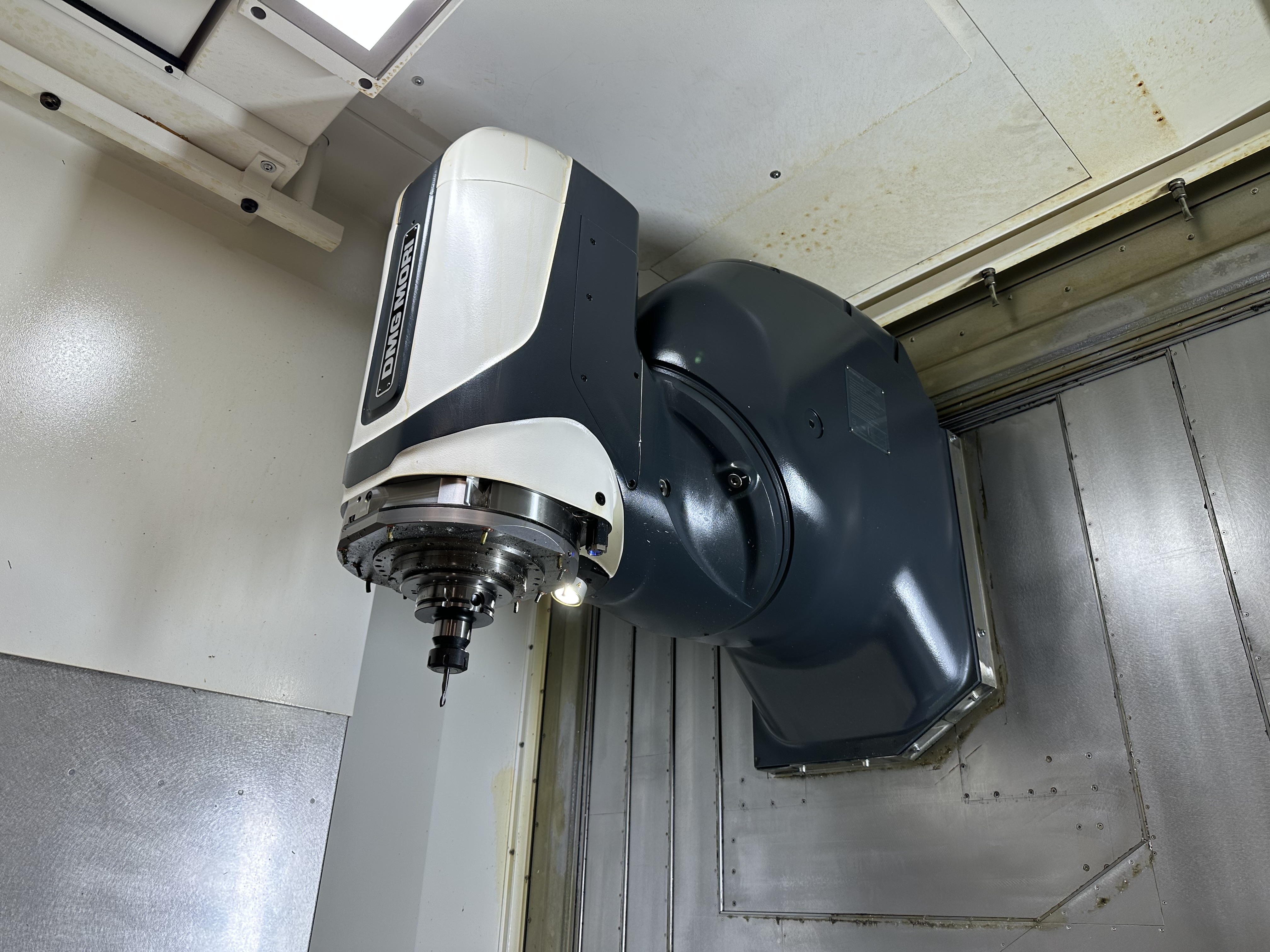

B-Axis Swiveling Milling Head Swivel Range: -30 to 180 Degrees
Spindle Speeds: 0 - 12,000 RPM
Spindle Motor: 69 HP
Spindle Taper: HSK-A 100
Tool Changer Capacity: 63 Positions
Floor Space Requirement: 258.3 Square Feet
Approximate Machine Height: 142 Inches
Approximate Machine Weight: 54,100 Pounds

Equipped With;

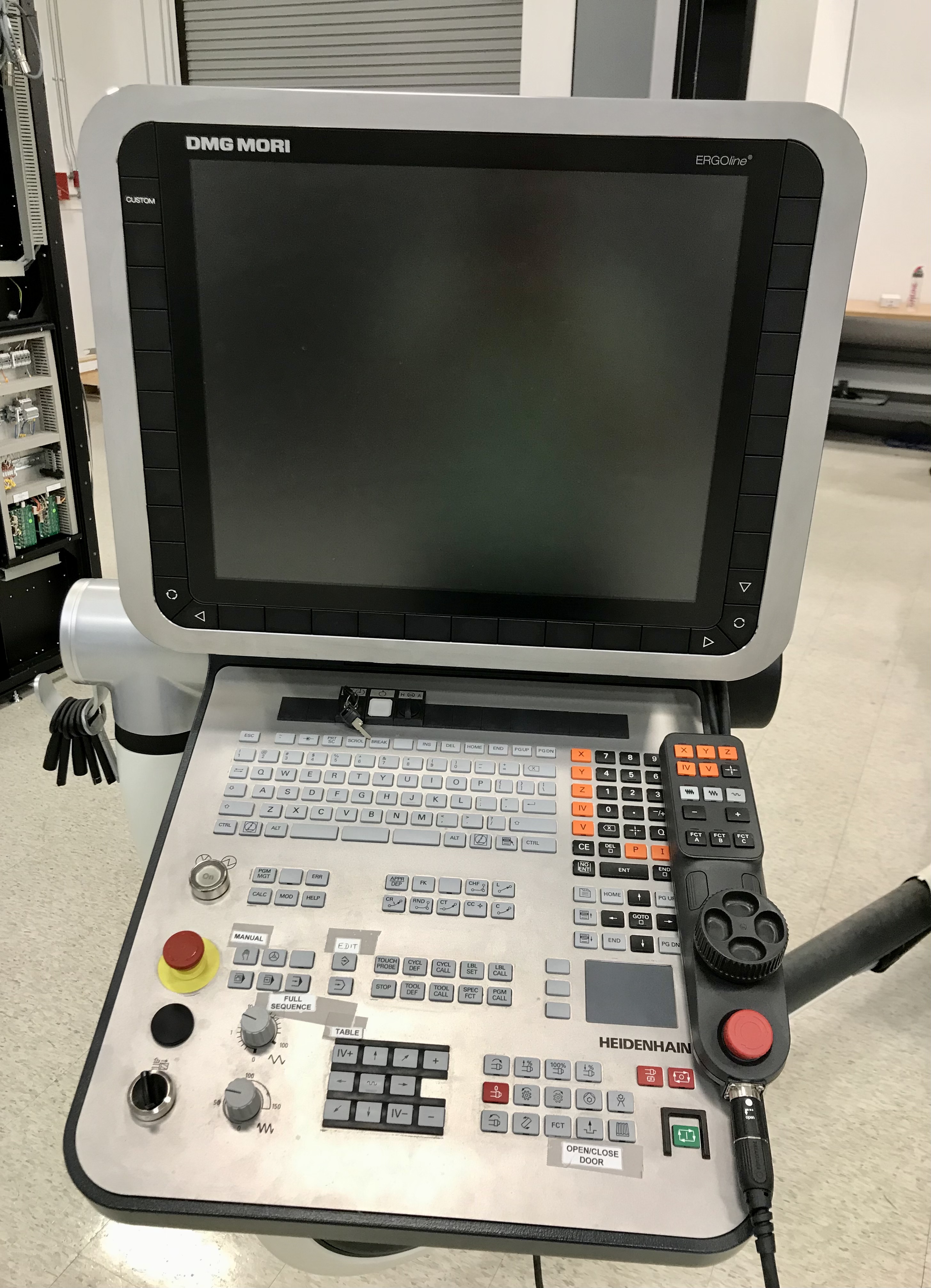

- Heidenhain TNC-640 3D Control
- Universal Head with Controlled B-Axis
- Coolant Thru-Spindle (80 Bar)
- Probing
- Tool Measurement
- 3D Quickset
- Chip Conveyor
