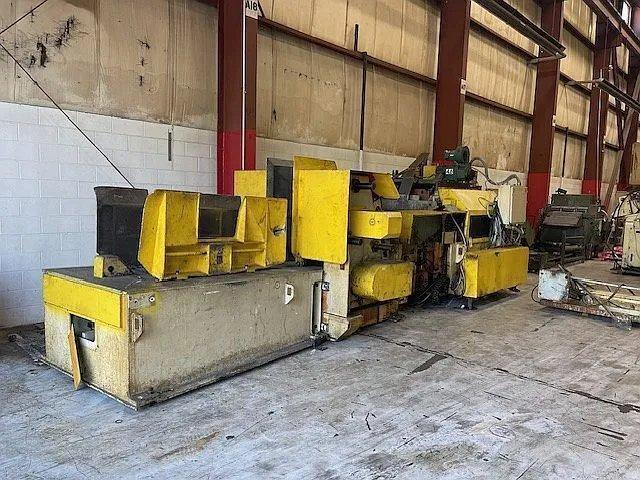

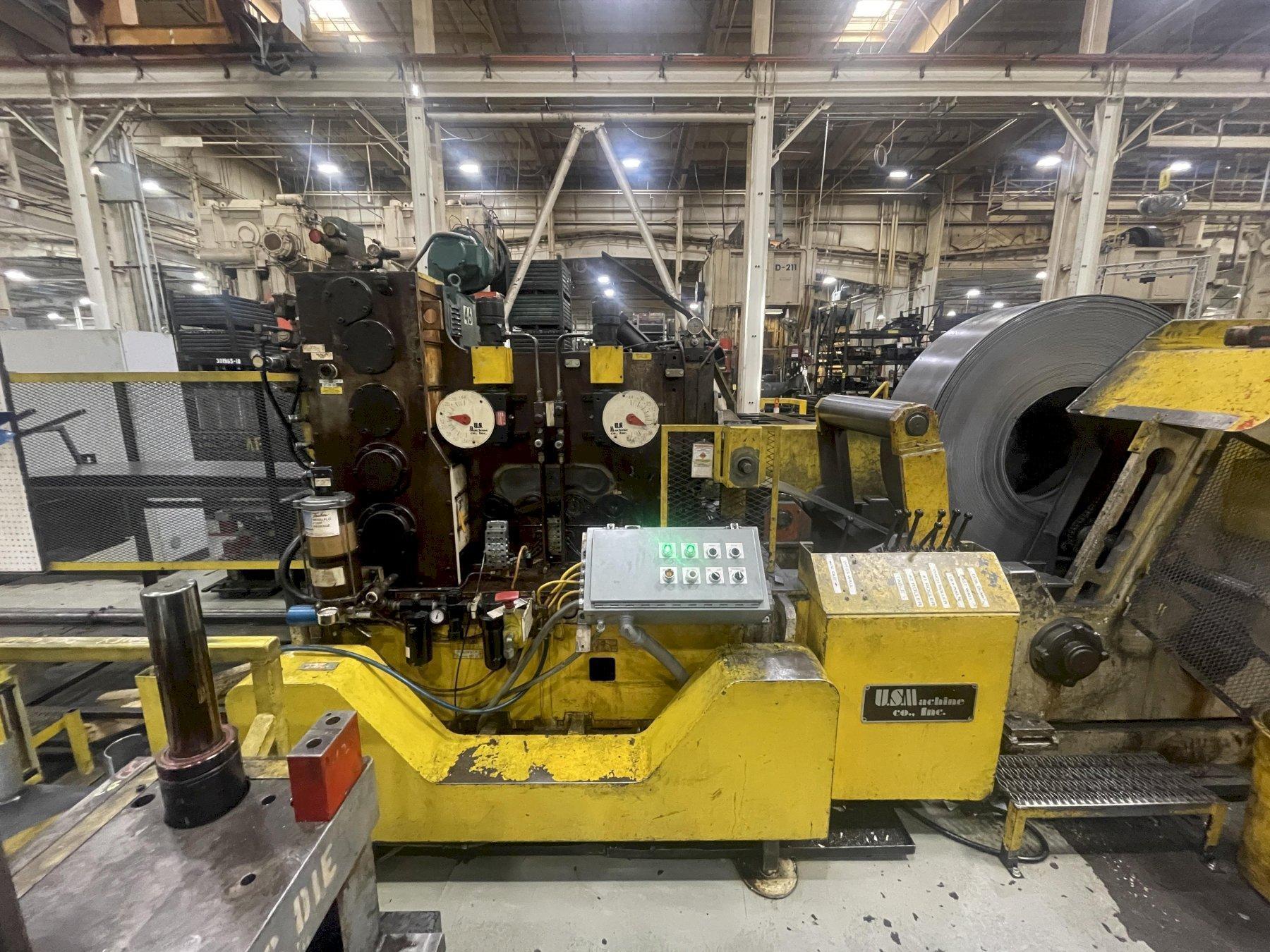

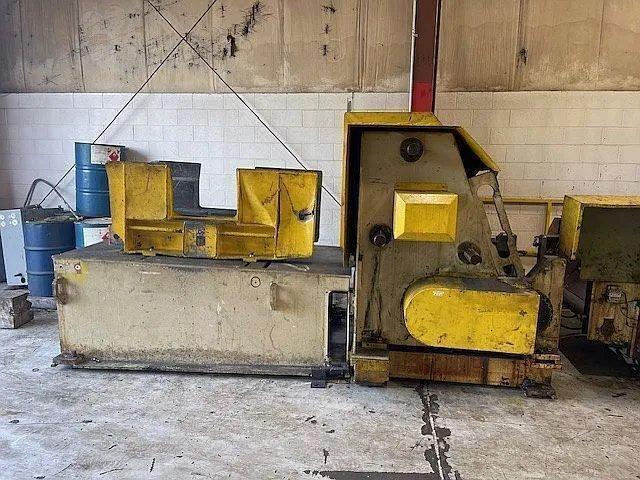

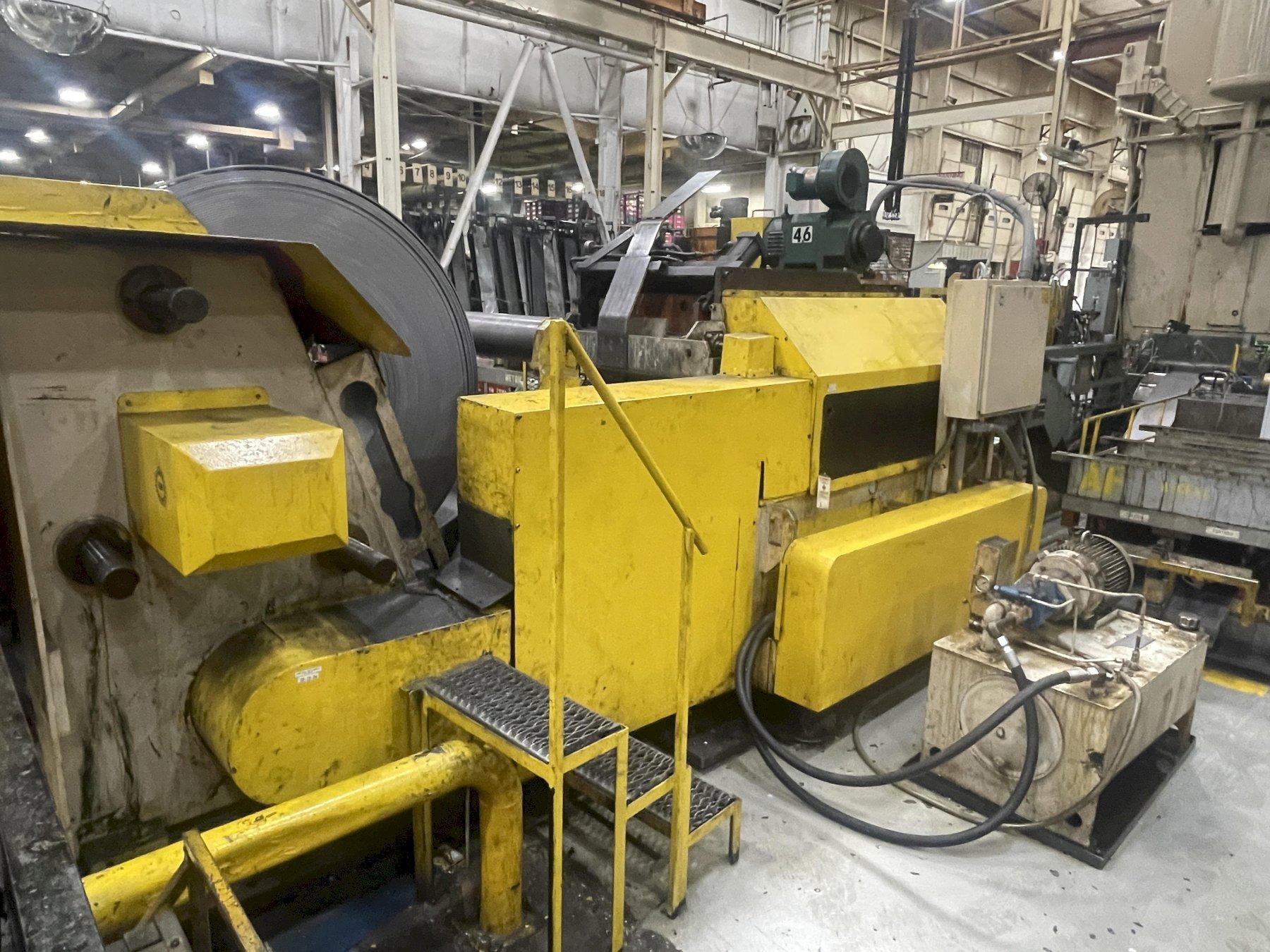

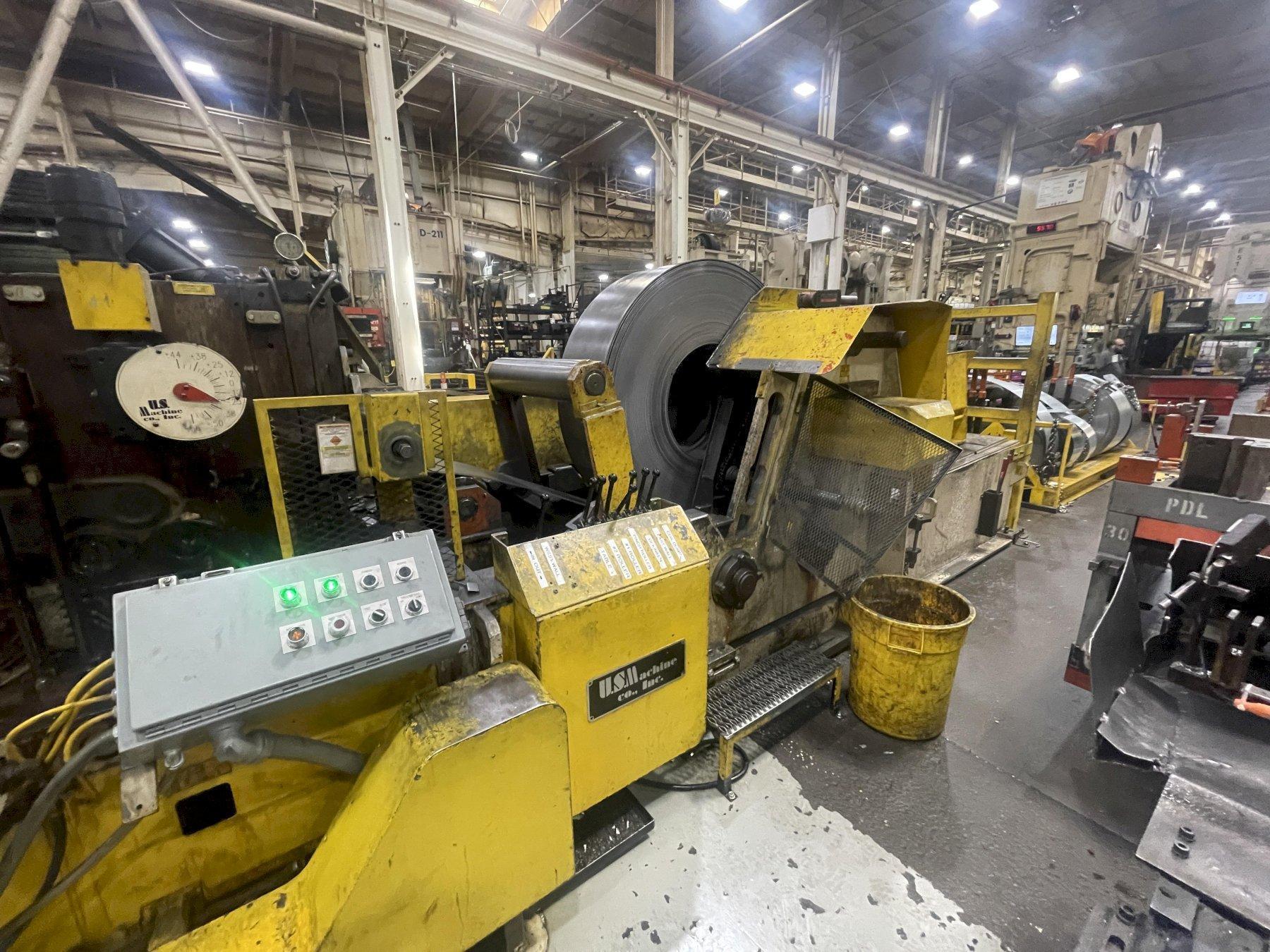

20,000 lbs. x 30" US Machine Heavy Duty Coil Cradle - Straightener and Servo Feed Coil Feed Line

Manufacturer

US MACHINE

Category

Coil Processing Equipment

Type

COIL FEED LINES

Stock

2905

Model

HD 30" Coil Feed Line

Dealer Location

Michigan

Request a Quote
View Contact Information

Spec Sheet

Coil Weight - 20000 pounds
Coil Width - 30 inches
Coil Thickness - .150 inches


Standard Specifications

US Machine Heavy Duty Coil Cradle Straightener Combination Servo Feed
Coil weight capacity: 20,000 Lbs.
Coil width capacity: 30"
Stock thickness capacity: .150" @ 30" Wide
Stock thickness capacity: .187" @ 24" Wide
Stock thickness capacity: .300" @ 12" Wide
Stock thickness capacity: .380" @ 10" Wide
Coil O.D. Capacity: 72"


US Machine Heavy Duty Coil Cradle Straightener Combination

Equipment and Features:
Entry pinch rolls
Air operated entry pinch roll adjustments

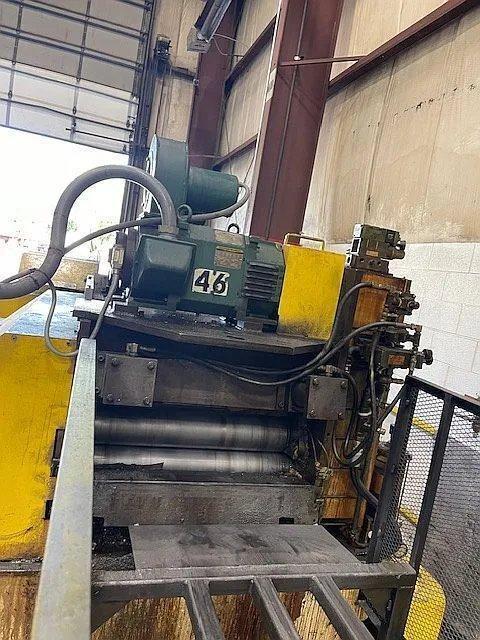

Seven straightening rolls

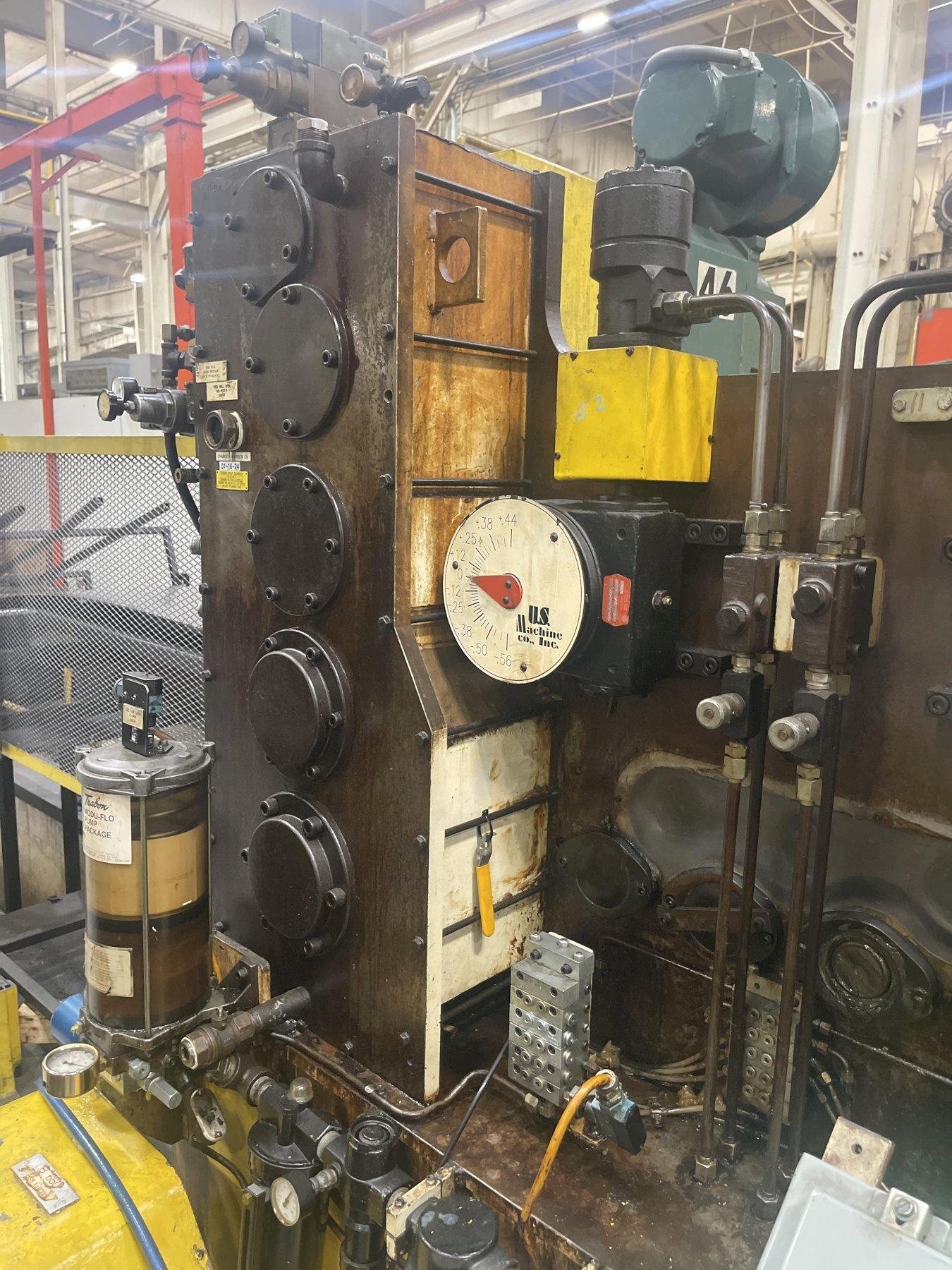

Dial indicators for upper straightening roll position
Motorized upper straightening roll adjustment
Heavy duty stock width edge guides
Powered nest rolls in coil cradle
Coil restrictor side plates
Coil restrictor side plate adjustments
Combination Coil stop peeler threading assist and de-kinker assembly
Coil storage / load ramp
Automatic lubrication system
Self contained hydraulic pump unit
Existing Updated AC VFD control system
Laser loop control
Unit offered cleaned and cycling

Pricing includes new Dallas Industries Servo Feed with Controls Techniques Controls.
