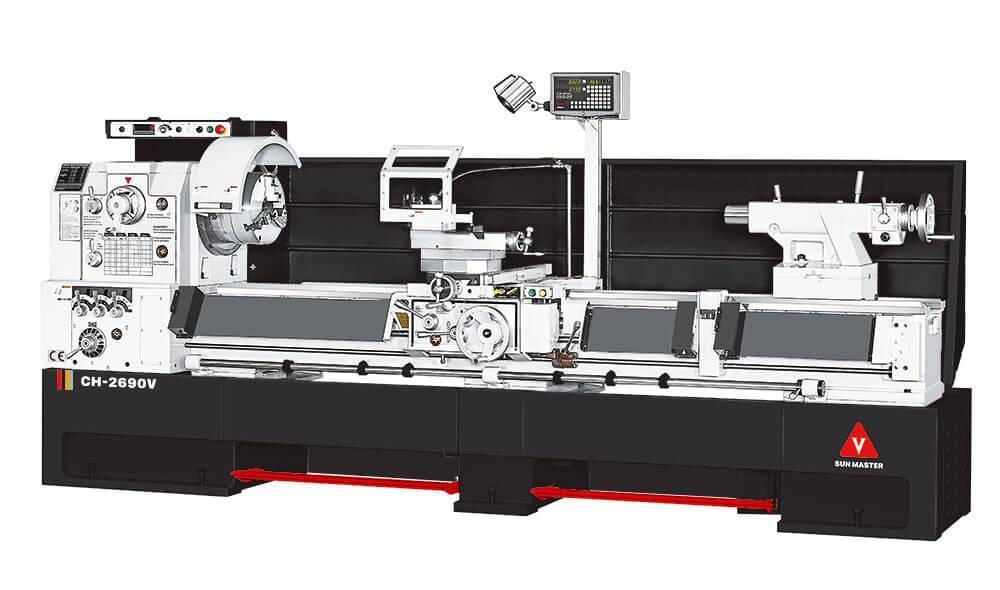

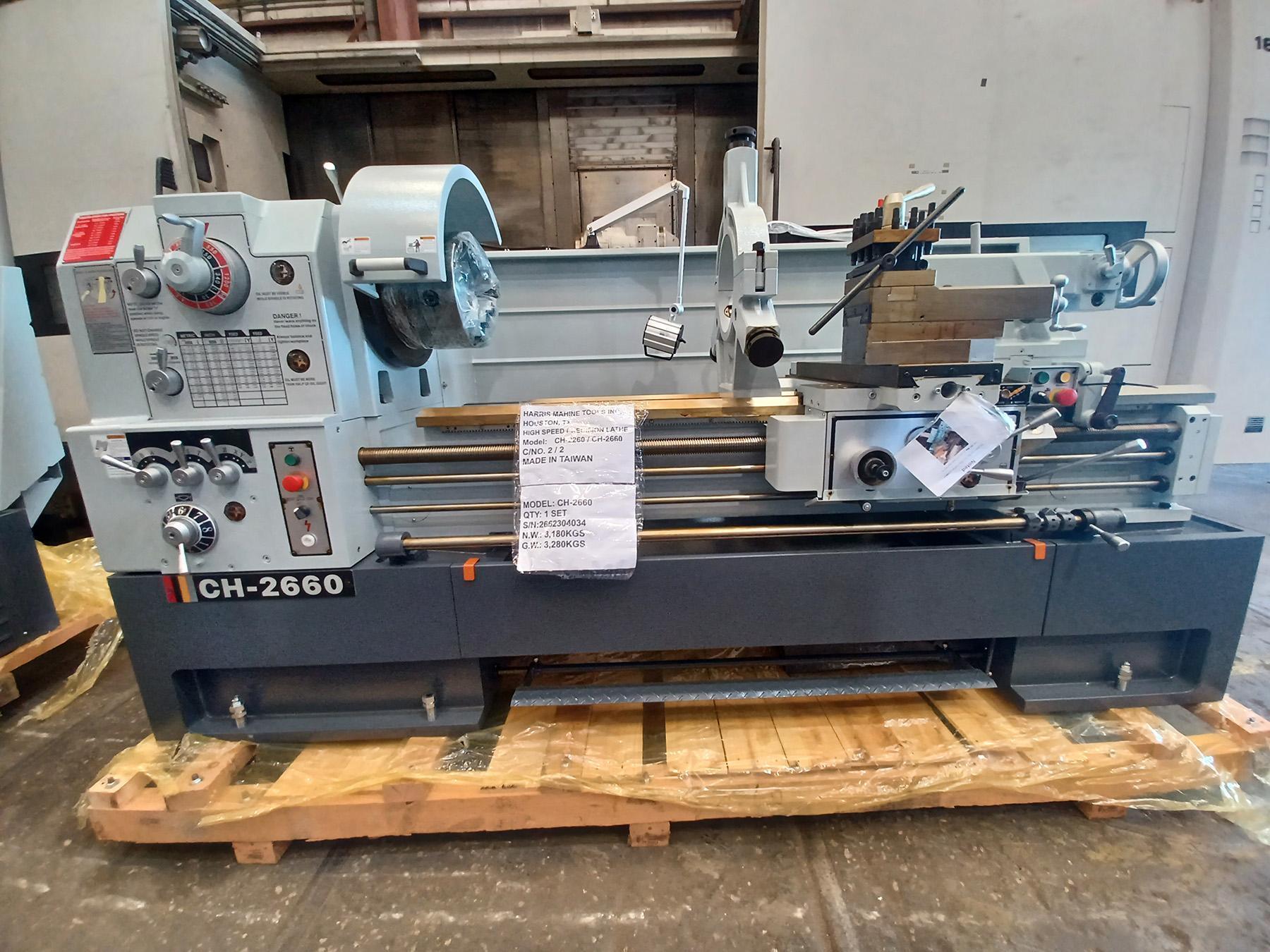

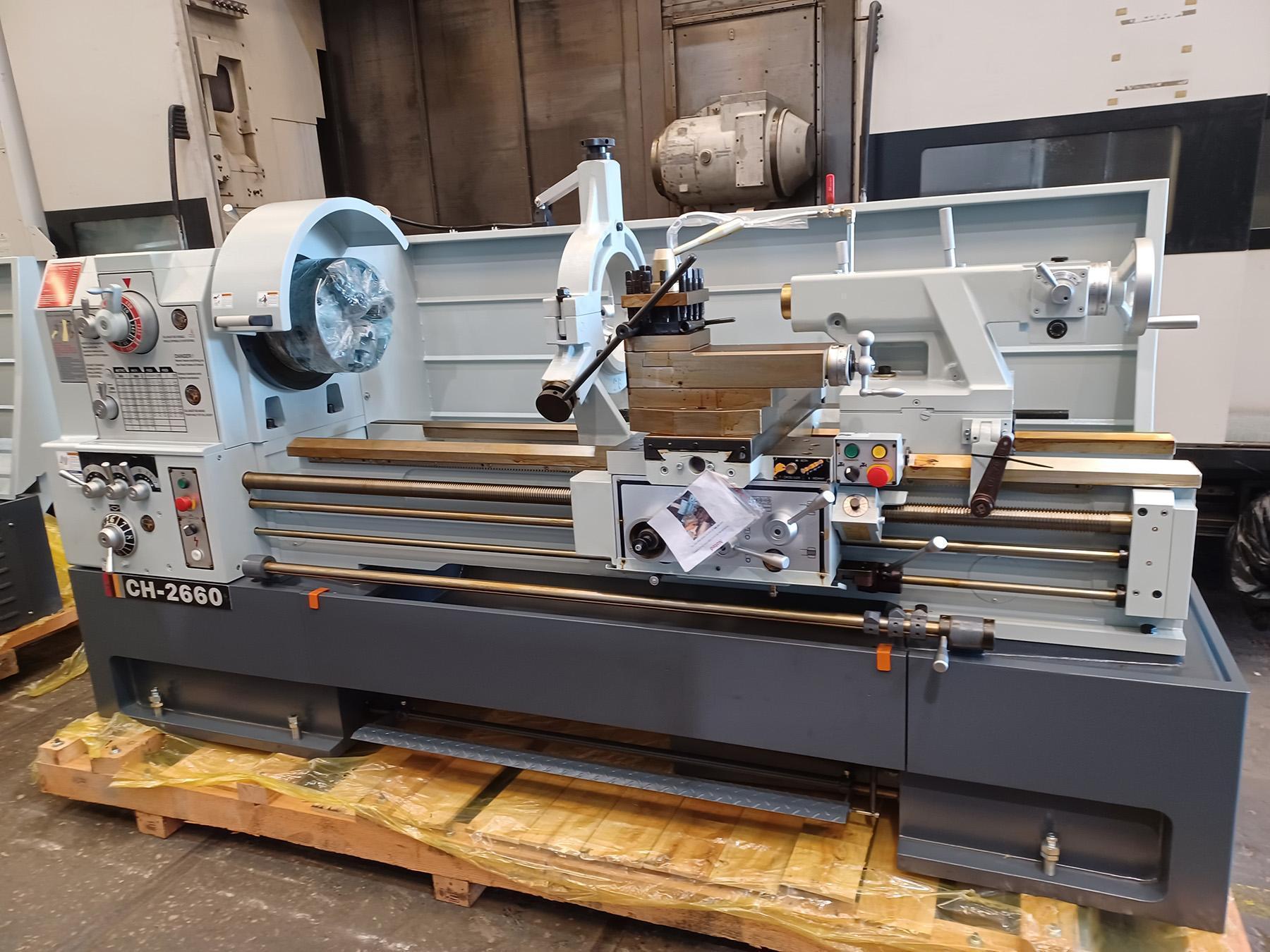

30" x 120" Sunmaster Engine Lathe

Manufacturer

Category

Lathes

Type

LATHES, ENGINE

Stock

20441

Model

CH30120

Dealer Location

Texas

Request a Quote
View Contact Information

Spec Sheet

Weight - 8200 pounds
Main Motor - 15
Swing in Gap - 39 inches
Swing - 30 inches
Dimensions - 187" X 45"
Swing Over Cross Slide - 21.5 inches
RPM - 1200
Spindle Bore - 4 inches
Centers - 120 inches


Swing Over Bed: 30"
Swing Over Cross Slide: 21.5"
Swing in Gap: 39"
Gap Width: 10.6"
Distance Between Centers: 120"
Bed Width: 15.7"
Spindle Speeds: (12) 13 - 1200 RPM
Spindle Motor: 15 HP
Spindle Bore: 4-1/16"
Spindle Taper and Center: MT-7 / MT-5
Spindle Nose: D1-11
Feed Ranges: 16
Longitudinal Feeds: 0.0012 - 0.039
Cross Feeds: 0.0004 - 0.0117
Leadscrew Diameter / Pitch:  1.77" / 4
Inch Threads: (44) 2 - 72 TPI
Metric Threads: (39) 0.2 - 14 MM
Compound Travel: 9"
Cross Slide Travel: 15.8"
Tailstock Quill Travel: 10"
Tailstock Quill Diameter: 3.15"
Tailstock Taper: MT-5
Coolant Pump Motor: 1/8 HP
OAD (Approximate): 187" x 45" x 67"
Weight (Approximate): 8,200 Lbs.

Note: All Specifications Subject to Verification

Machine Priced Equipped with the Following Options:
  • Taper Turning Attachment - 10 Deg., 12" Travel
  • Newall DRO System
  • 12" 3-Jaw Chuck
  • Longitudinal Rapid Traverse
  • Steady Rest
  • Carriage Micro Stop
Standard Equipment:
  • 12" Back Plate
  • MT-7 to MT-5 Headstock Spindle Center Adaptor
  • Chuck Guard
  • 4-Way Tool Post
  • Automatic Longitudinal Feed Stop Bar
  • Thread Chasing Dial
  • LED Work Light
  • Two-Speed Drive Tailstock Spindle
  • Foot Brake System
  • Coolant System with Pump and Piping
  • Pull Drawer Chip Pan
  • Full Length Splash Guard

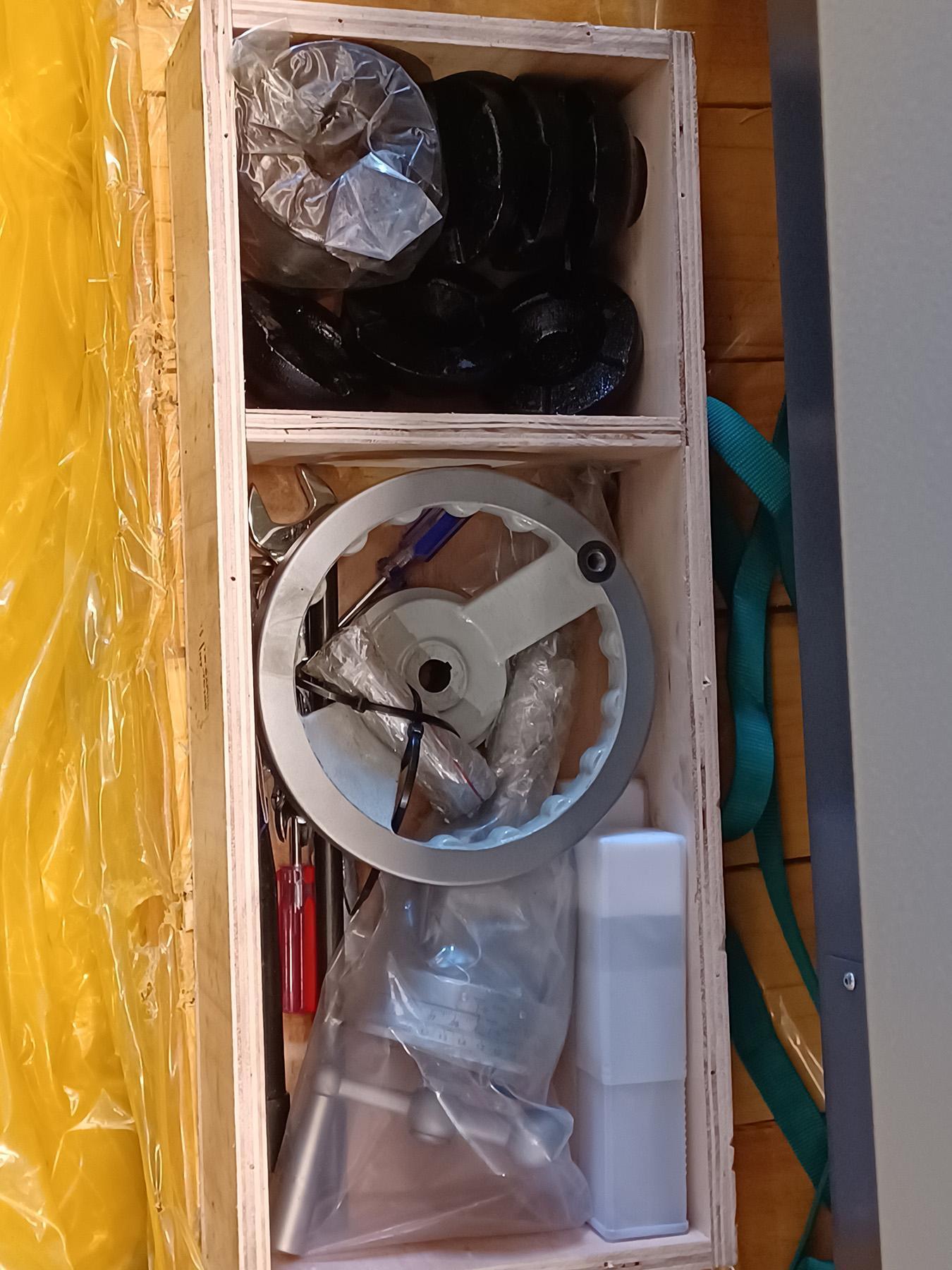

  • Tool Box with Tools
