33 Ton Finn Power C5 Compact Express Load/Unload, 50"x100", Siemens CNC, 20 Sta. Turret, 2006 #43723

Manufacturer

FINN POWER

Category

Punches

Type

PUNCHES, TURRET, CNC (incl. PUNCH PRESSES)

Stock

43723

Model

C5-Compact Express

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43723

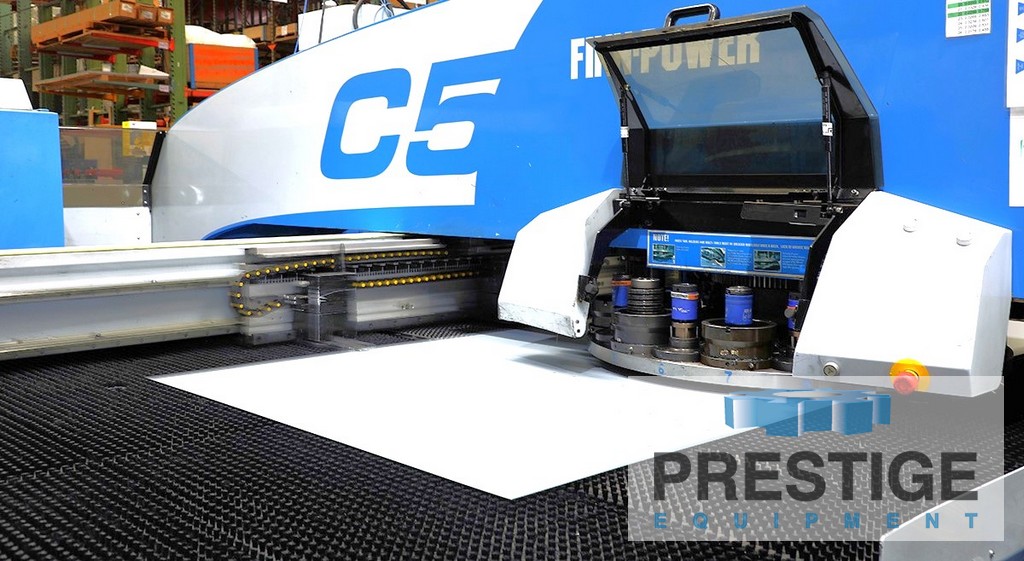

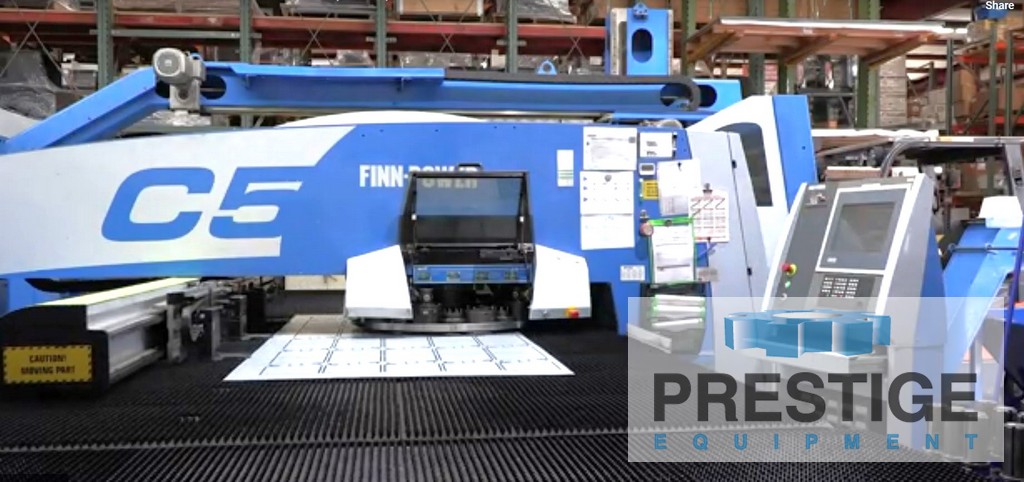

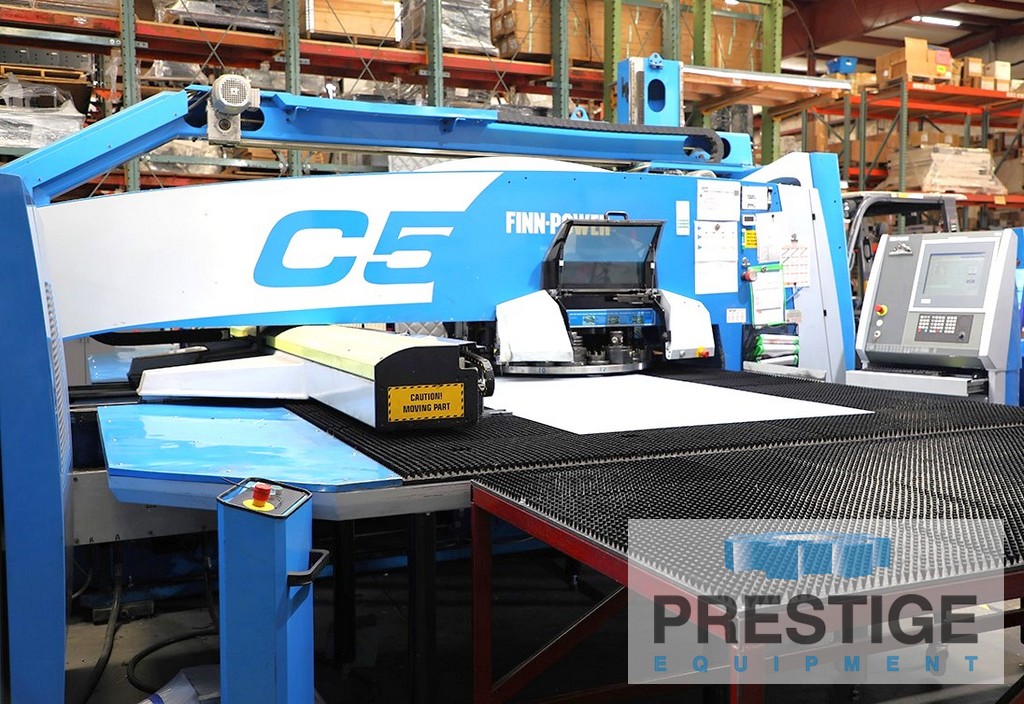

Finn Power C5 33 Ton CNC Turret Punch Press With Compact Express Load & Unload

FEATURES:

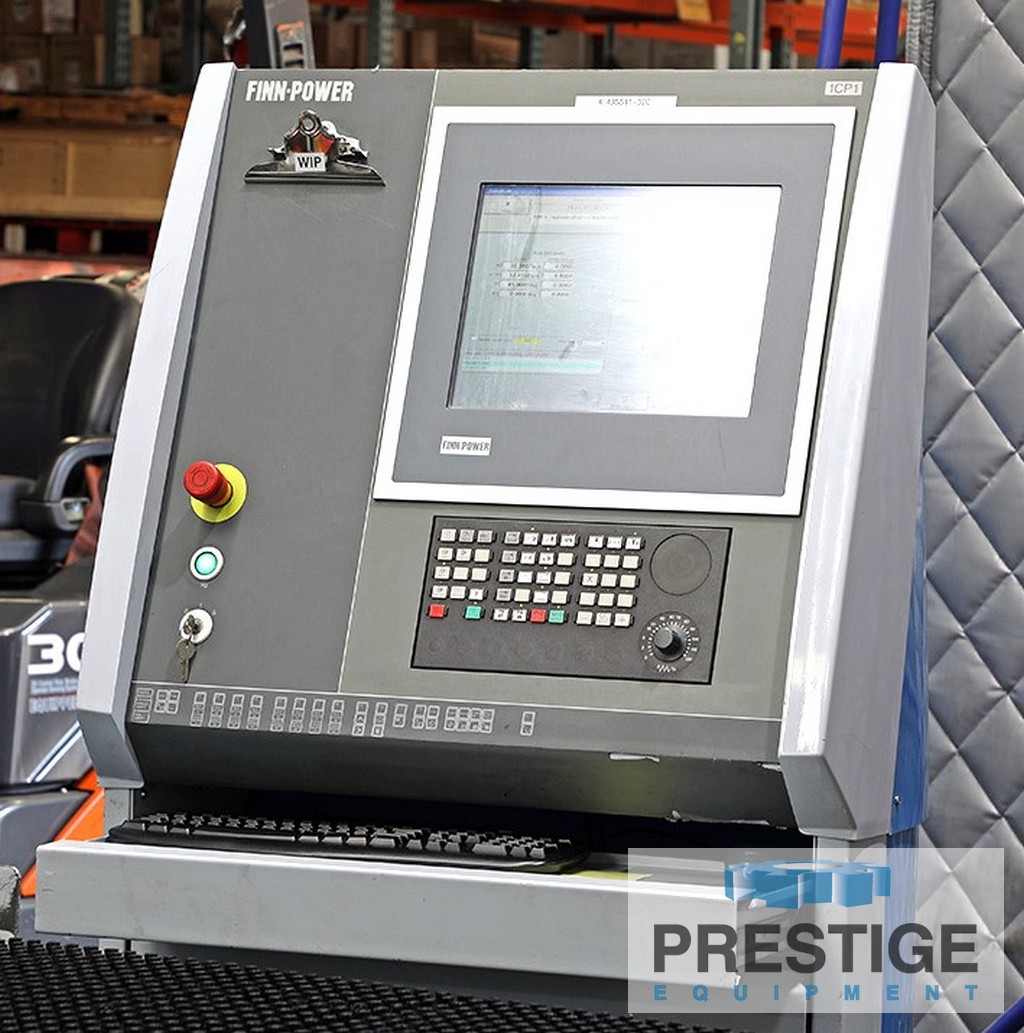

Siemens 840D CNC Control

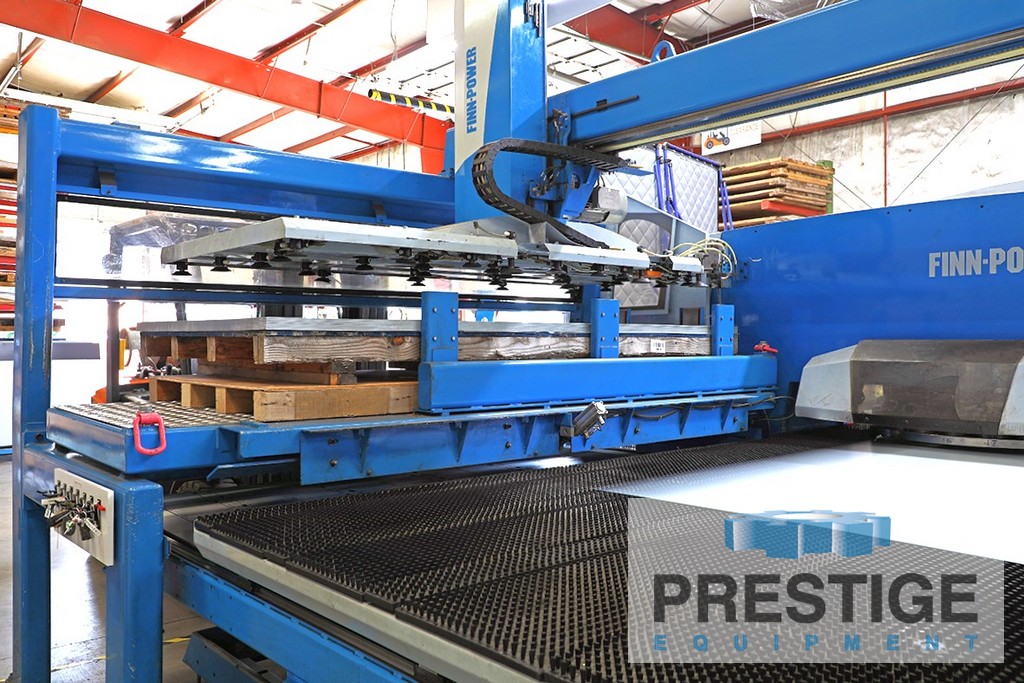

Compact Express Load & Unload Cell

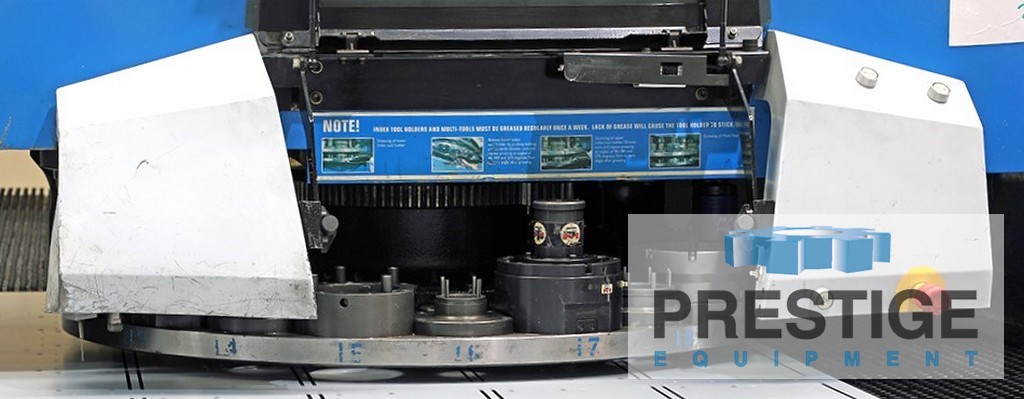

20 Station Turret (Amada Style Thick)
(6) Auto-Index Stations
(3) Multi-Tool Stations
Brush Table Design

CAPACITY:
Tonnage Capacity ...................... 33 Tons
Max. Material Thickness ............... .31"
Max. Punch Diameter ................... 3.5"
Maximum Sheet Size .................... 50" x 100"
Y-Axis Travel ......................... 51"
X-Axis Travel ......................... 101.7"
Hits Rate, Nibbling (.039" Moves) ..... 1100 SPM
Hits Per Min (.98" Moves) ............. 420 SPM
Max. Positioning Speed ................ 354 IPM
Machine Weight ........................ 23,132 Lbs

EQUIPPED WITH:
Siemens 840D CNC Control
Compact Express Load & Unload Cell
20 Station Turret (Amada Style Thick)
(6) Auto-Index Stations
(3) Multi-Tool Stations (Holders Included)
Pneumatic Programmable Clamps
Brush Table Design

NOTE:
Holders & Tooling not included
Inspect In Plant Under power

No Video Available
