Mazak Variaxis i800 Dual 31" Pallet VMC w/ APC

Manufacturer

MAZAK

Category

Machining Centers

Type

MACHINING CENTERS, VERTICAL, CNC (Incl. Pallet Changers)

Stock

33727

Model

Variaxis i800

Dealer Location

California

Request a Quote
View Contact Information

Spec Sheet



Mazak Variaxis i800  5-Axis Dual 31" Pallet Vertical Machining Center With APC
New 2014
Control: Matrix 2

Specifications:
 Vertical Machining Center with 19” Color LCD,

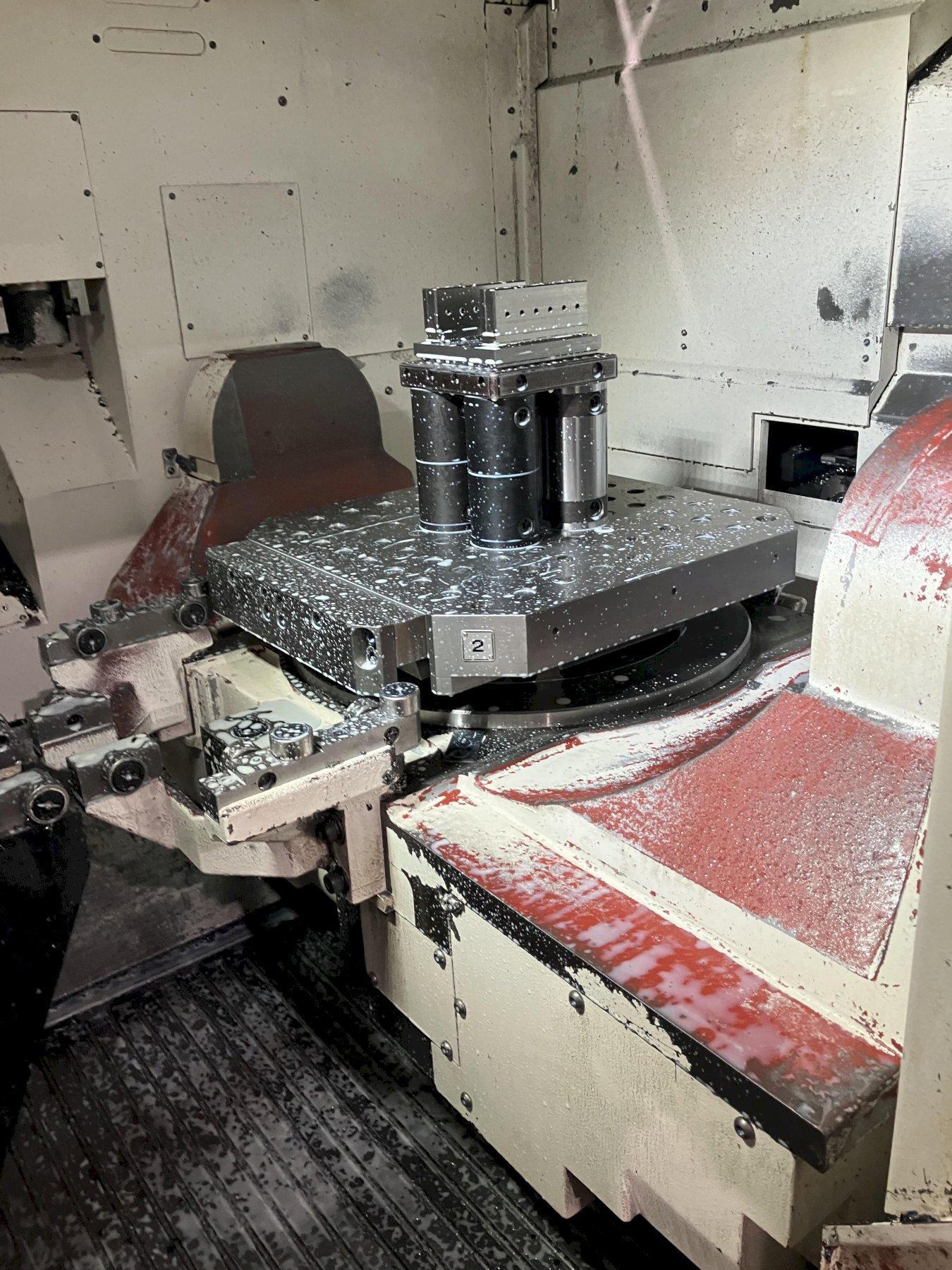

 5-Axis Machining Package Trunion Type Dual Support Bearing
 Auto Tool Length Measurement and Breakage Detection,
 Coolers for Ball Screw (X,Y,Z-Axis),
 Coolant through Spindle System (5KG, 71 PSI),
 Spindle Speed 10,000 RPM
 HSK 100A Taper
 120 Tool Double Magazine (60 X 2)
 Max Workpiece size: 28.74” Dia X 19.69” Height
 X-Axis Travel (Saddles longitudinal movement): 28.74”
 Y-Axis Travel (Column’s transverse movement): 33.46”
 Z-Axis Travel (Spindle head’s vertical movement): 22.05”
 A-Axis Travel (Table Tilting)(Indexing in units of 0.0001Deg): -120° to +30° (axis control)
 C-axis travel (Table rotation)[Indexing in units of 0.0001Deg): ±360°(axis control)
 Distance between spindle nose and top of the table: 9.06” to 31.10”
 (positioned horizontally)
 Distance between spindle nose and center of the table: 7.09” to 29.13”
 (positioned vertically)
 Max. load on the table (uniformly distributed load): 1102 lbs
 Spindle speed: 7,000 RPM
 Motor output: 50 / 40 HP
 Rapid traverse X/Y/Z: 1653 IPM
 A/C Deg/min: 18000
 Cutting feed X/Y/Z: 1653 IPM
 A/C Deg/min: 9000
 Number of axes controlled simultaneously: 5
 Table size: 19.69” x 19.69”
 Table surface Height: 40.16”
 Magazine capacity: 120
 Tool shank type CAT50
 Max. tool diameter With adjacent pockets occupied: 4.92” / 8.27”
 Max. tool length: 15.75”
 Machine Size Height: 141”
 Machine Size Width: 140”
 Machine Size Depth: 235”
 Weight: 46,297 lbs

Equipped With:
 Mazak Matrix 2 CNC Control
 Additional Work Light
 Work Measuring System RMP600 Ready
 2-Pallet Changer
 Manual Pulse Generator (1 Dial) Palm Size
 Mayfran Consep 2000 Chip Conveyor Side Disposal
 Pressure Switch for Spindle Thru Coolant
 Flood Coolant
 Workpiece Cleaning Coolant
 Mazak Super Flow T8 High Pres. Coolant Unit (1000PSI/8GPM)
