Peddinghaus PCD1100/3B, 40" Beam Drill, Meba 1100DG Saw, Siemens 840Di , In & Out Conveyor, 2012 #43675

Stock

43675

Model

PCD1100/3B

Dealer Location

New York

Spec Sheet

Reference #43675

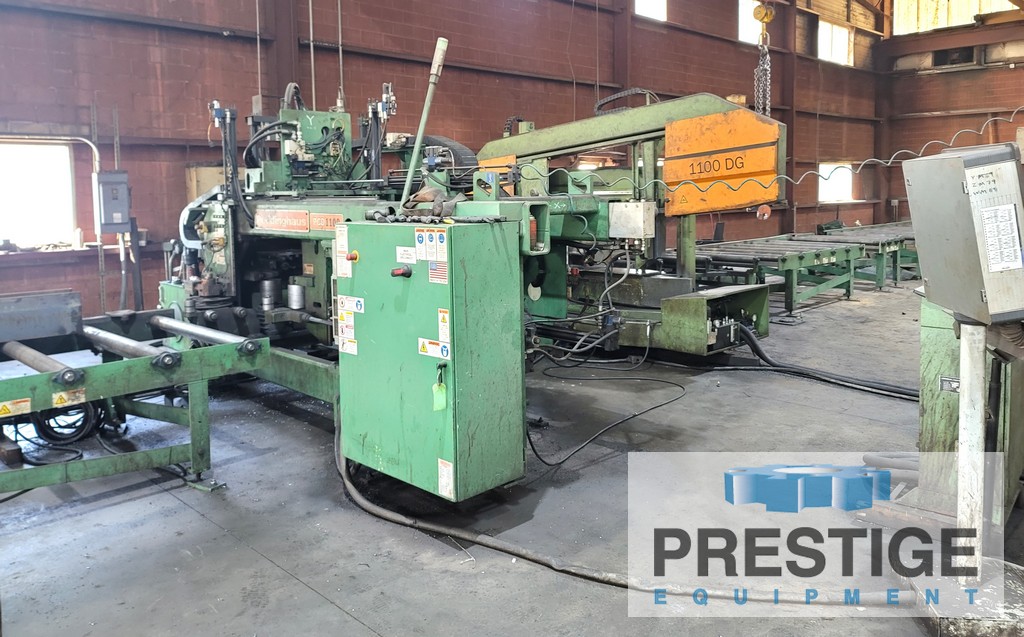

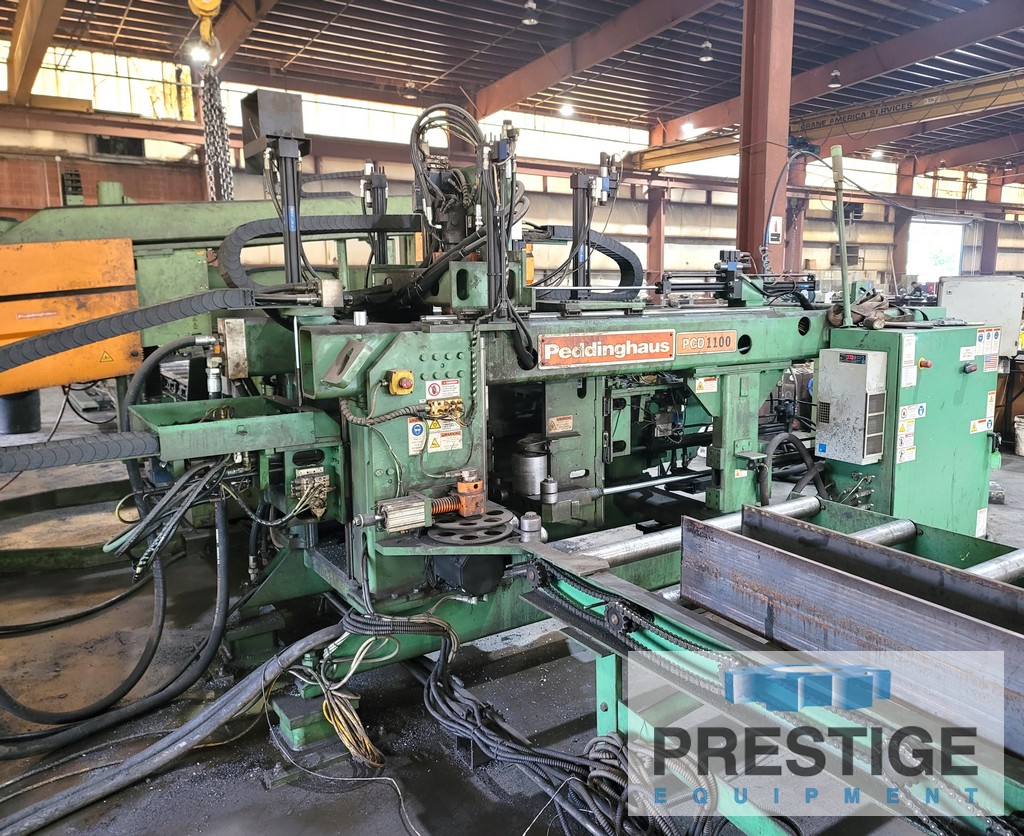

Peddinghaus PCD1100/3B 3-Spindle Beam Drill, Saw & Conveyor

FEATURES:
Siemens 840Di CNC Control
In & Out Conveyor
Meba 1100DG Horizontal Band Saw

CAPACITY:
Maximum Machining Width ............... 43.31"
Maximum Machining Height .............. 18"
Minimum Machining Width ............... 3"
Minimum Length Piece Part ............. 62"
Minimum Bar Stock Thickness ........... 3/4"
Number of Drill Spindles .............. 3
Drill Diameter ....................... 1-9/16"
Power per Spindle ..................... 13.5 HP
Spindle Speeds ........................ 200 - 850 RPM
Spindle Stroke ........................ 13"
Positioning Stroke on Flange Drills ... 0 - 18"
Positioning Stroke on Web Drill ....... 0 - 43.31"
X-Axis Feed ........................... 130 FPM
Maximum Work Piece Weight ............. 18,000 Lbs

EQUIPPED WITH:

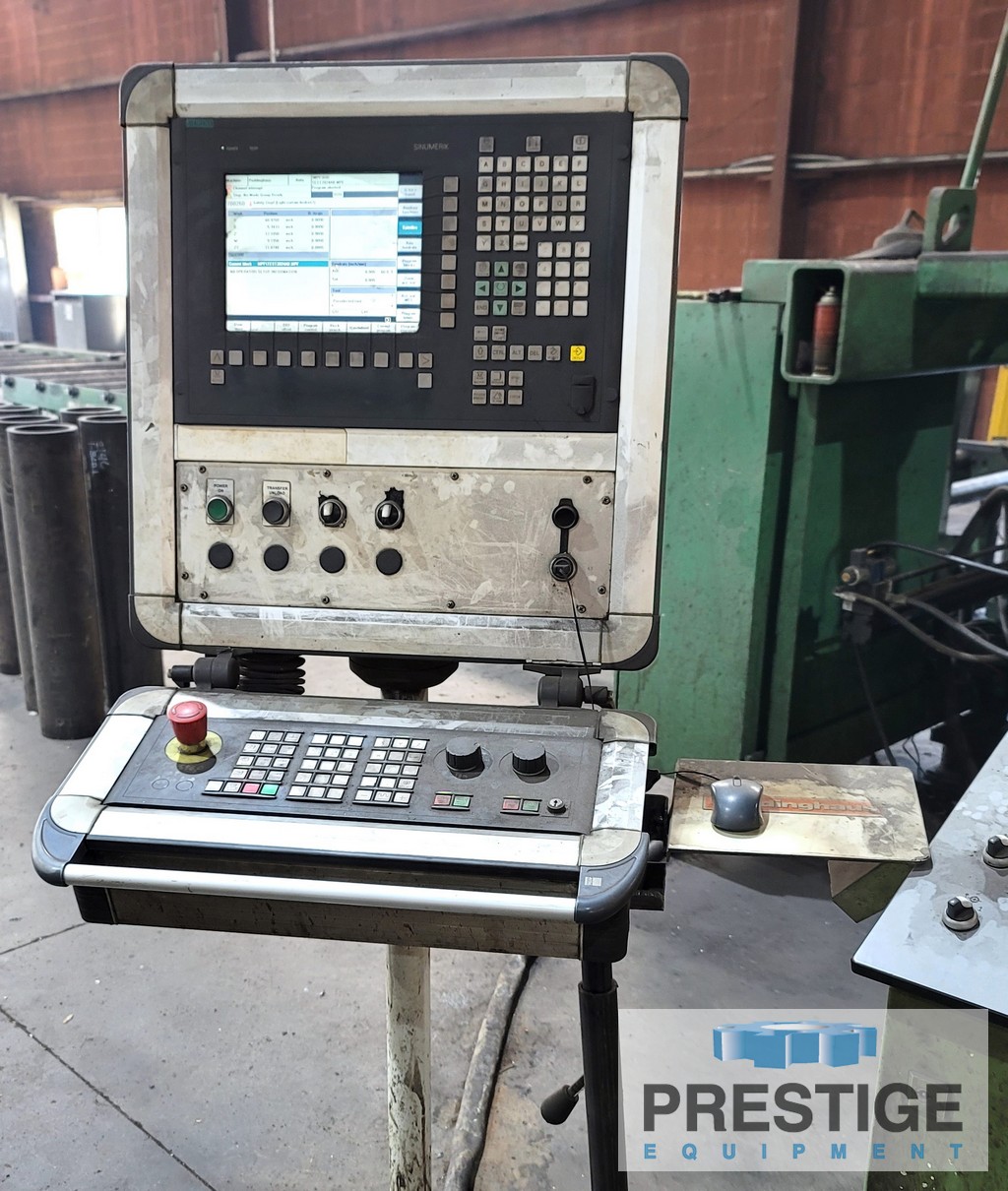

Siemens 840Di CNC Control
Programmable Spindle Feeds
Infinitely Variable Spindle Speeds
60' 300 Lbs/ft Infeed Conveyor
60' 300 Lbs/ft Outfeed Conveyor

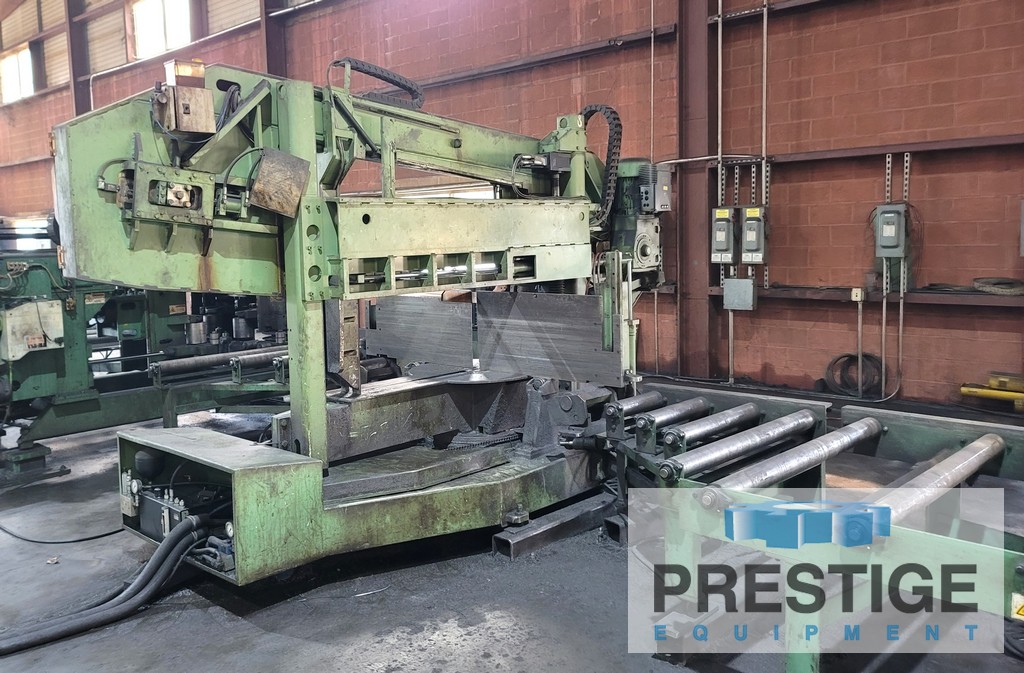

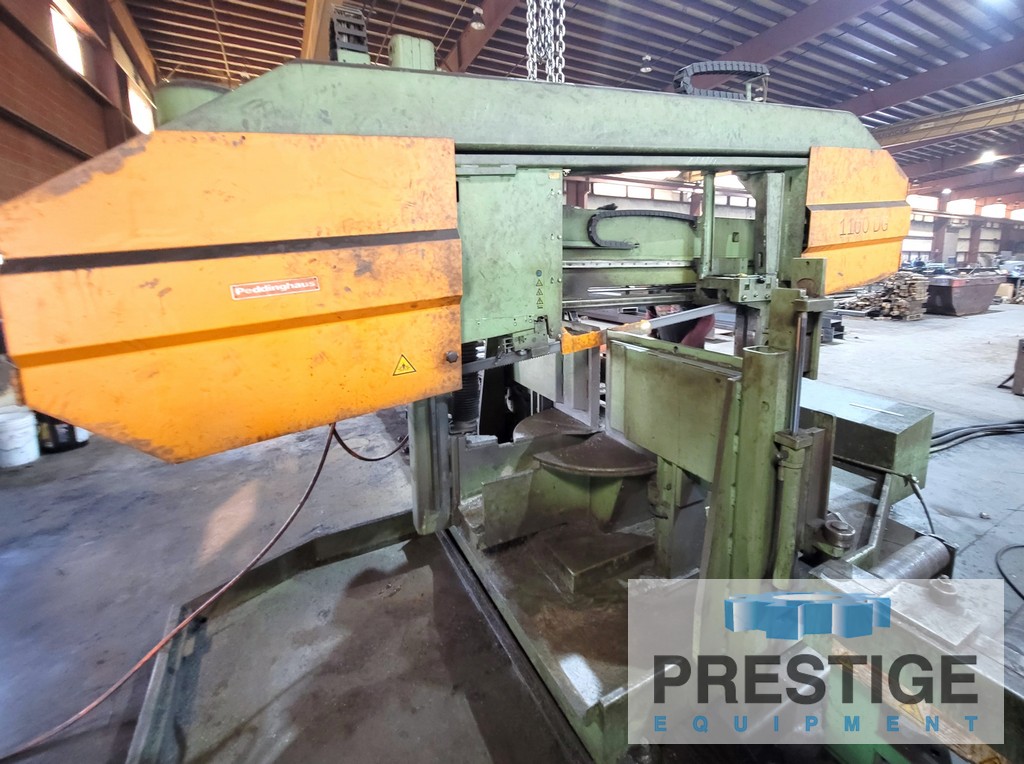

Meba 1100DG Mitering Horizontal Band Saw

NOTE:
Inspect in a Plant Under Power

No Video Available
