Trumpf Trubend 3180, 198 Ton, 163" OA, 145" BH, TASC 6000 CNC, 4-Axis B.G., Light Curtains, New 2008, #43644

Manufacturer

TRUMPF

Category

Brakes (including Press Brakes)

Type

BRAKES, PRESS, HYDRAULIC (Inch/Ton)

Stock

43644

Model

3180

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43644
Trumpf Trubend 3180 198 Ton CNC Press Brake

FEATURES:

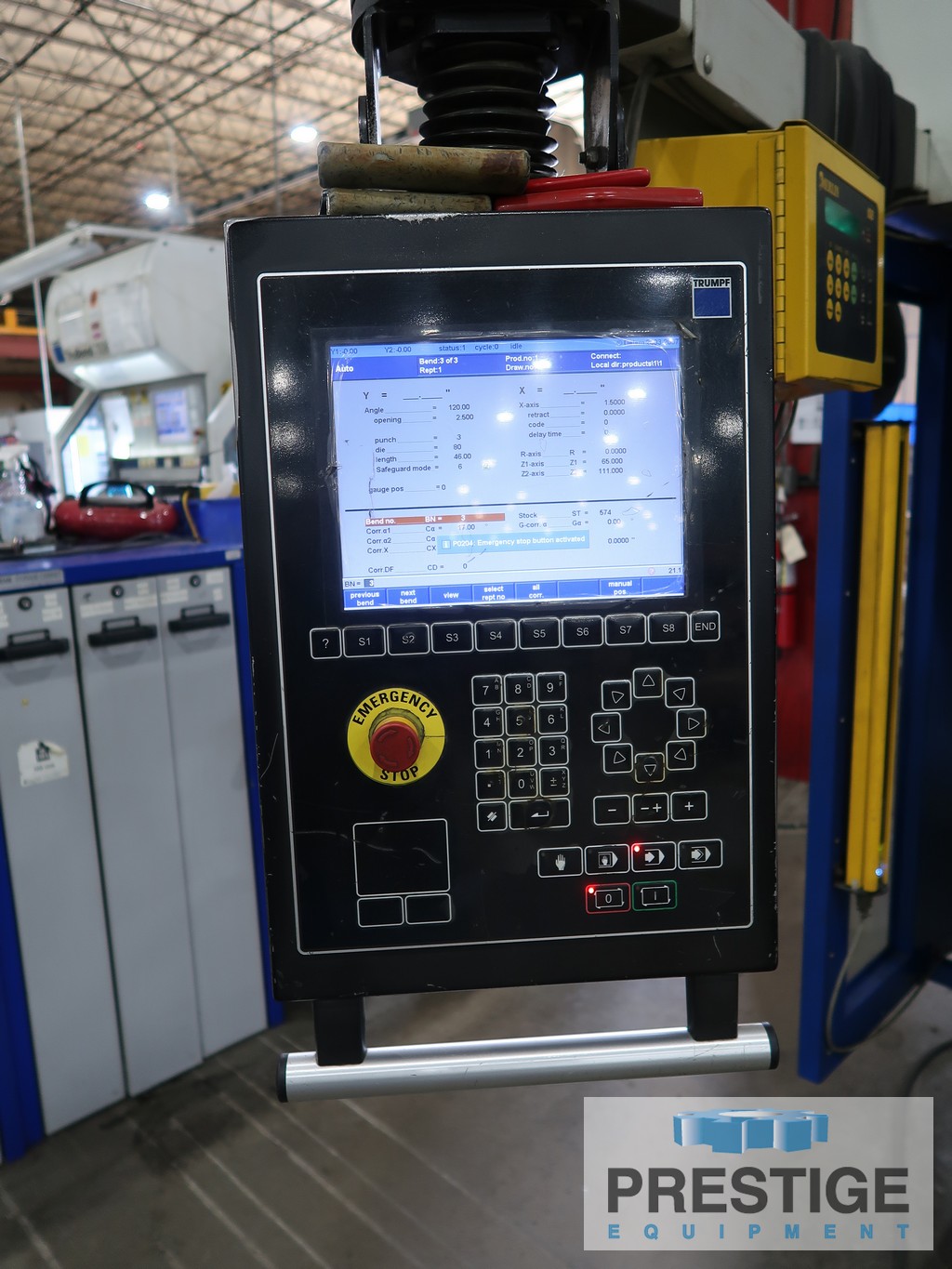

Trumpf TASC 6000 CNC Control
2-Axis Programmable Ram

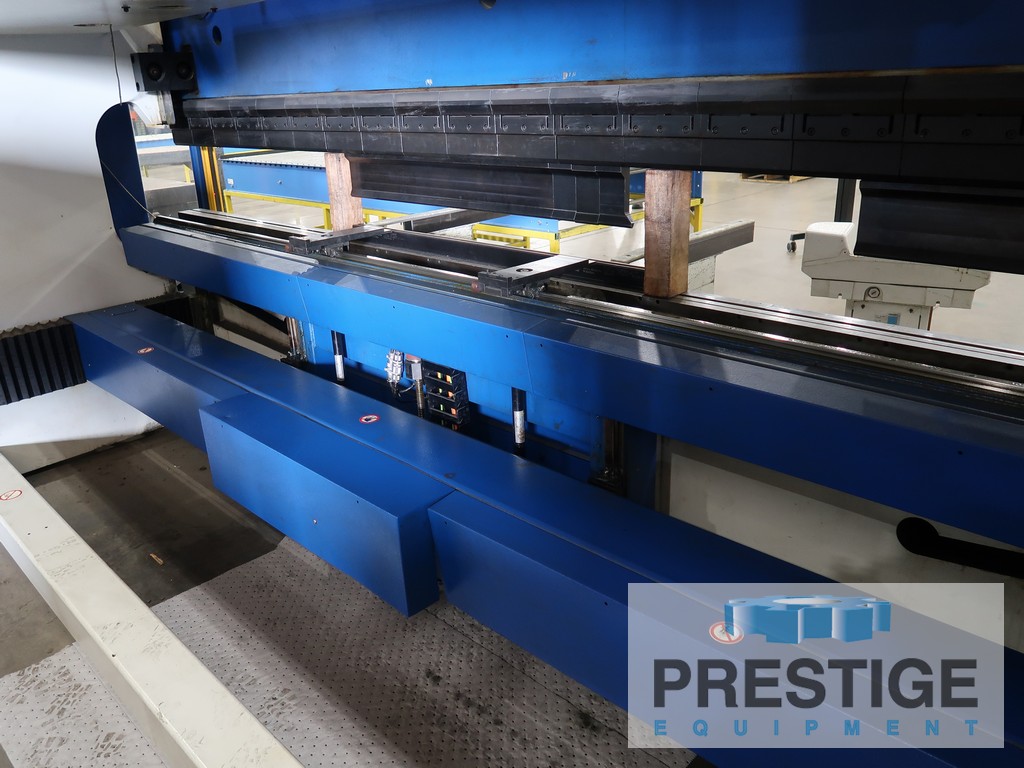

4-Axis CNC Back Gauge, R,X,Z1,Z2
Electric Light Curtains

CAPACITY:
Tonnage Capacity ...................... 198 Ton
Maximum Bending Length ................ 163"
Distance Between Housings ............. 145"
Stroke ................................ 7.87"
Open Height ........................... 24.2"
Throat Depth .......................... 16.5"
Speed, Rapid Traverse ................. 520 IPM
Speed, Working ........................ 23.5 IPM
Speed, Return Traverse ................ 520 IPM
Speed, X & Z-Axes ..................... 2,362 IPM
Speed, R-Axis ......................... 780 IPM
Main Motor Power ...................... 25 HP
Approx. Machine Weight ................ 35,280 Lbs
Electrics ............................. 460 V, 3 PH, 60 HZ

EQUIPPED WITH:
Trumpf TASC 6000 CNC Control
2-Axis Programmable Ram
4-Axis CNC Back Gauge, R,X,Z1,Z2
Electric Light Curtains
Safety Enclosure Including Rear Electric Roller Door
