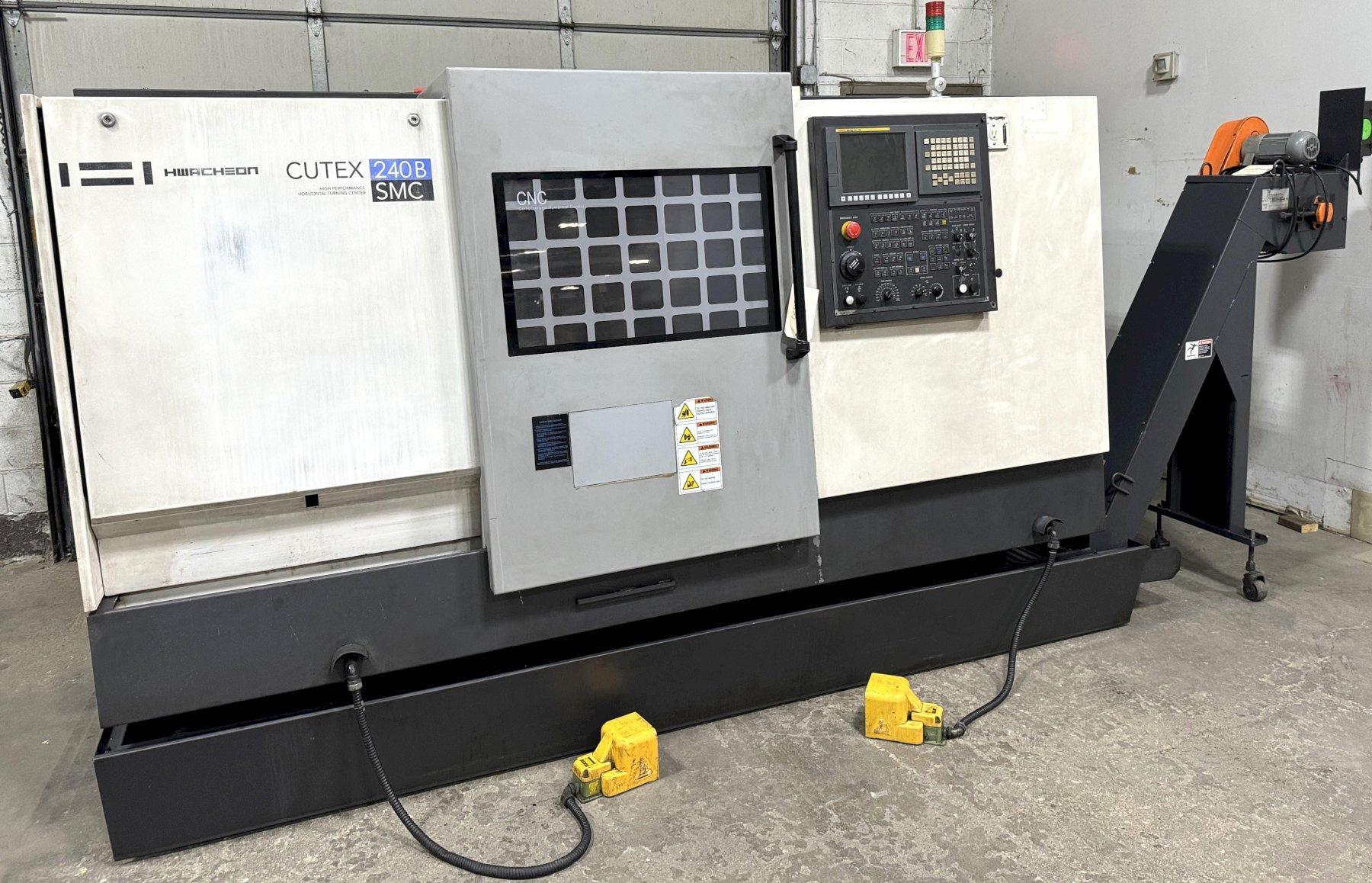

Hwacheon Cutex-240B SMC CNC Turning and Milling Center with Sub Spindle

Manufacturer

HWACHEON

Category

Lathes

Type

TURNING CENTERS, CNC

Stock

CNC505

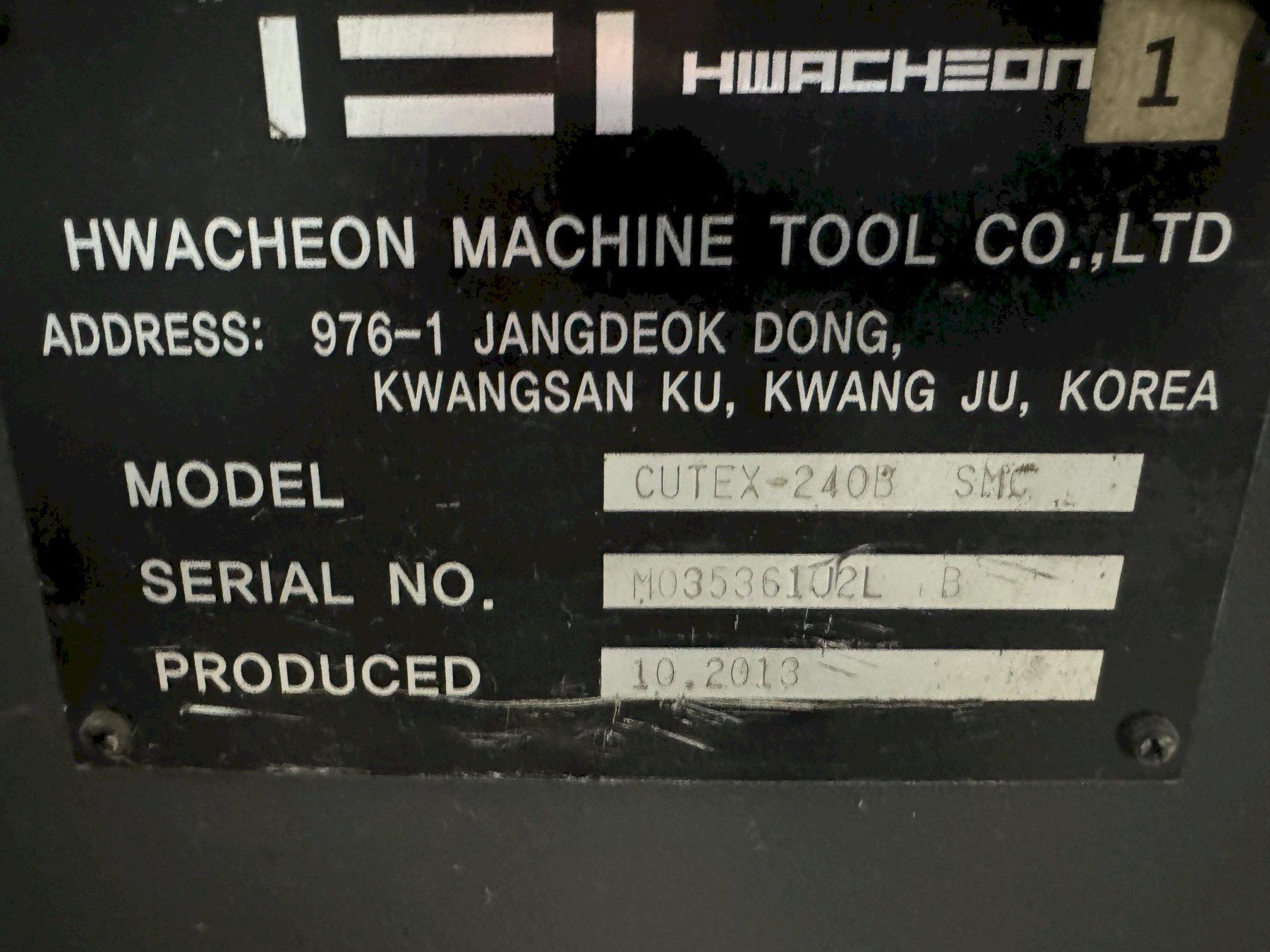

Model

Cutex-240B SMC

Dealer Location

Illinois

Request a Quote
View Contact Information

Spec Sheet

Swing Over Bed - 22.8”/580mm
Maximum Turning Diameter - 15”/380mm
Standard Turning Diameter - 8.3”/210mm
Maximum Turning Length - 22.2”/565mm
Main Spindle Chuck Diameter - 8”
Sub Spindle Chuck Diameter - 6”
Main Spindle Speed - 5000 RPM
Sub Spindle Speed - 6000 RPM
Main Spindle Nose - A2-6
Sub Spindle Nose - A2-5
Main Spindle Thru Hole - 3”/75mm
Sub Spindle Thru Hole - 2.2”/55mm

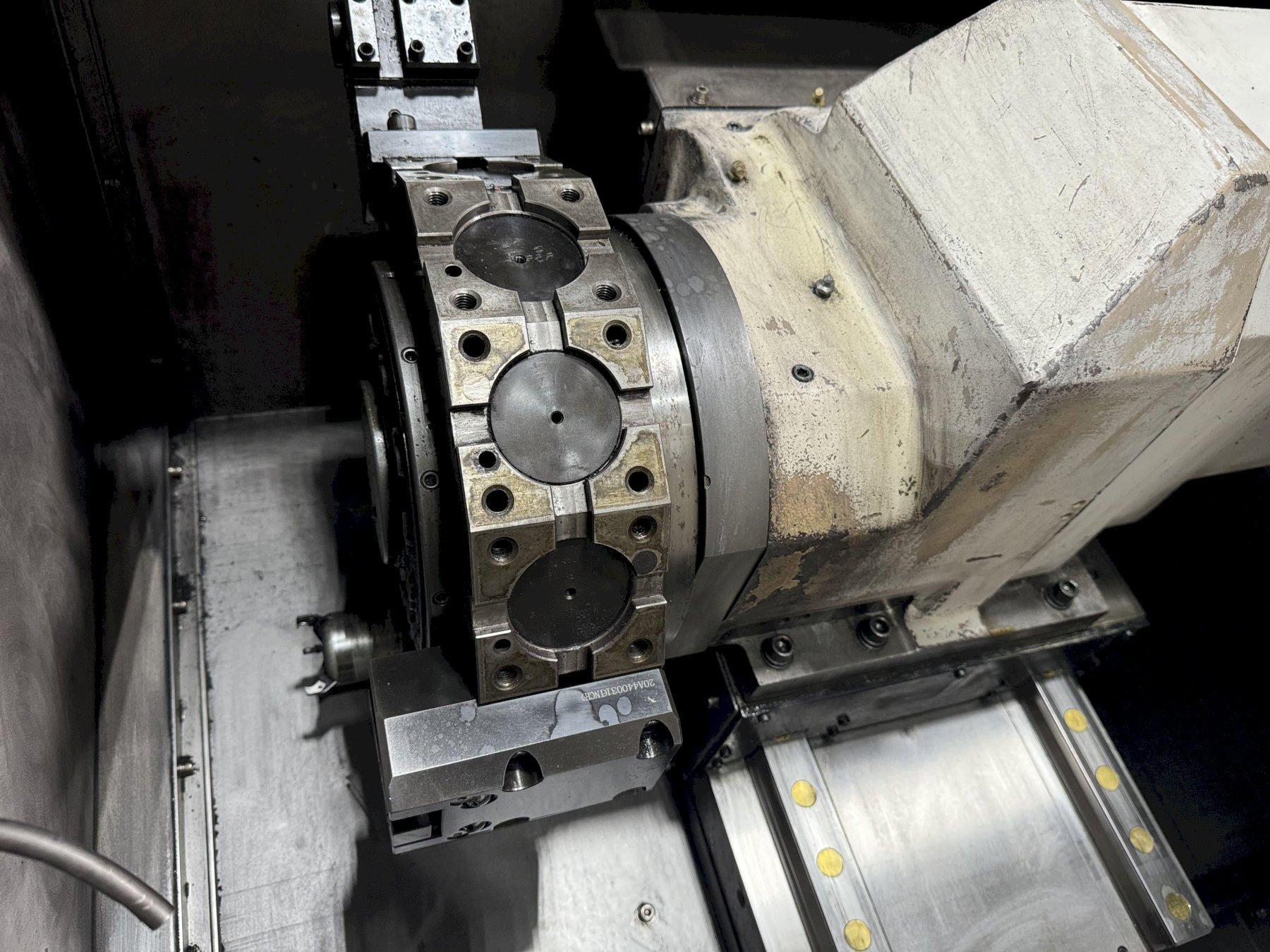

Turret - 12-Positions
Rapid Traverse Rate (X-axis) - 1417 IPM
Rapid Traverse Rate (Z-axis) - 1417 IPM
Rapid Traverse Rate (B-axis) - 1181 IPM
Maximum Traverse (X-axis) - 8.5”/215mm
Maximum Traverse (Z-axis) - 26.2”/665mm
Maximum Traverse (B-axis) - 25.6”/650mm
Maximum Turning Milling Speed - 5000 RPM
Maximum Tool Size (Drill&Tap) - .8”/20mm/M16
C-axis Index on both Spindles - .001°
Main Spindle Drive - 25/20 HP 18.5/15 kW
Sub Spindle Drive - 10/7.5 HP 7.5/5.5 kW
Turning Milling Drive - 5/3 HP 3.7/2.2 kW
Approximate Dimensions - 128” LR x 72” FB x 78” Height
Approximate Weight - 9700 Lbs./4400 kg


EQUIPPED WITH:

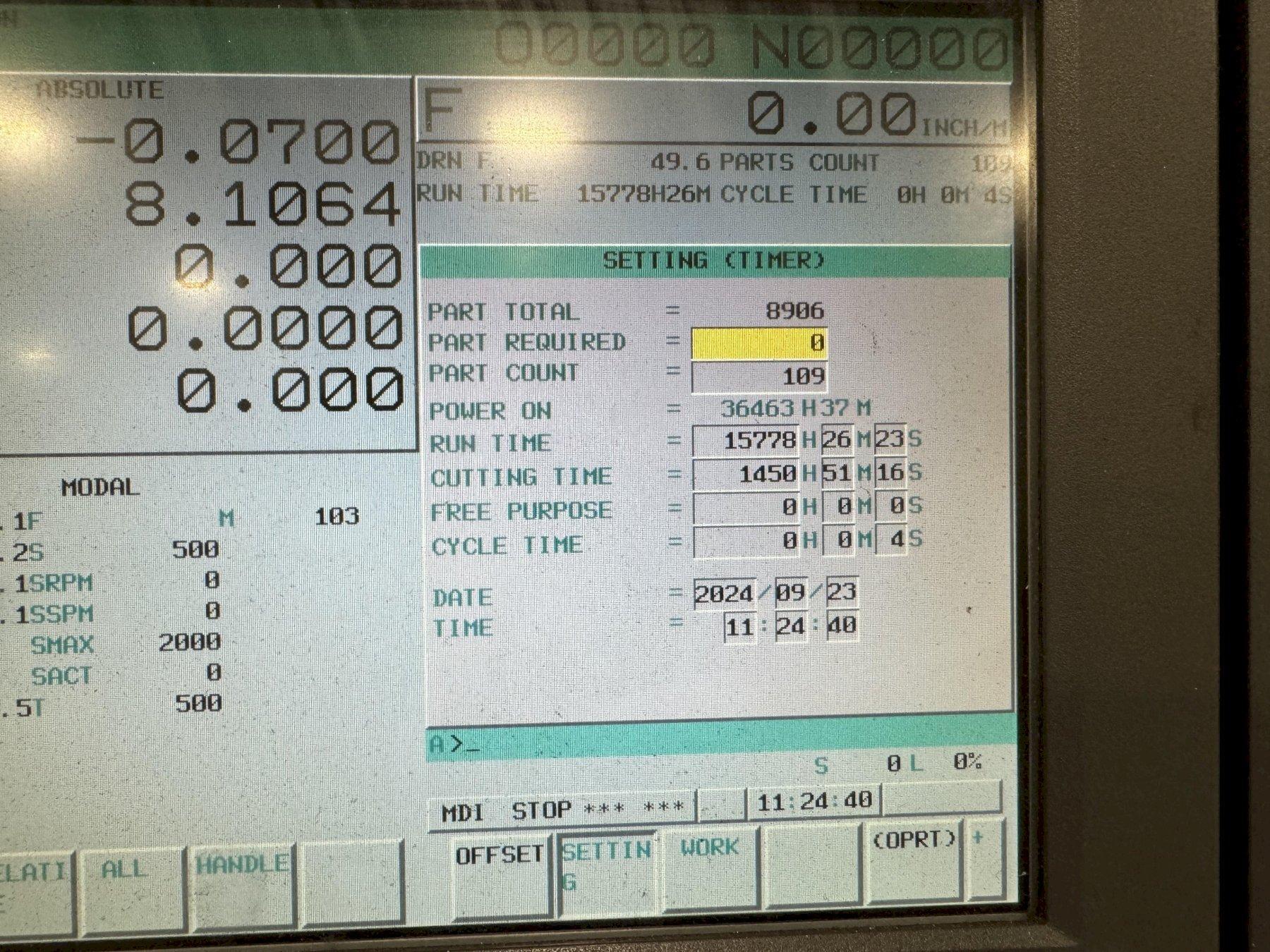

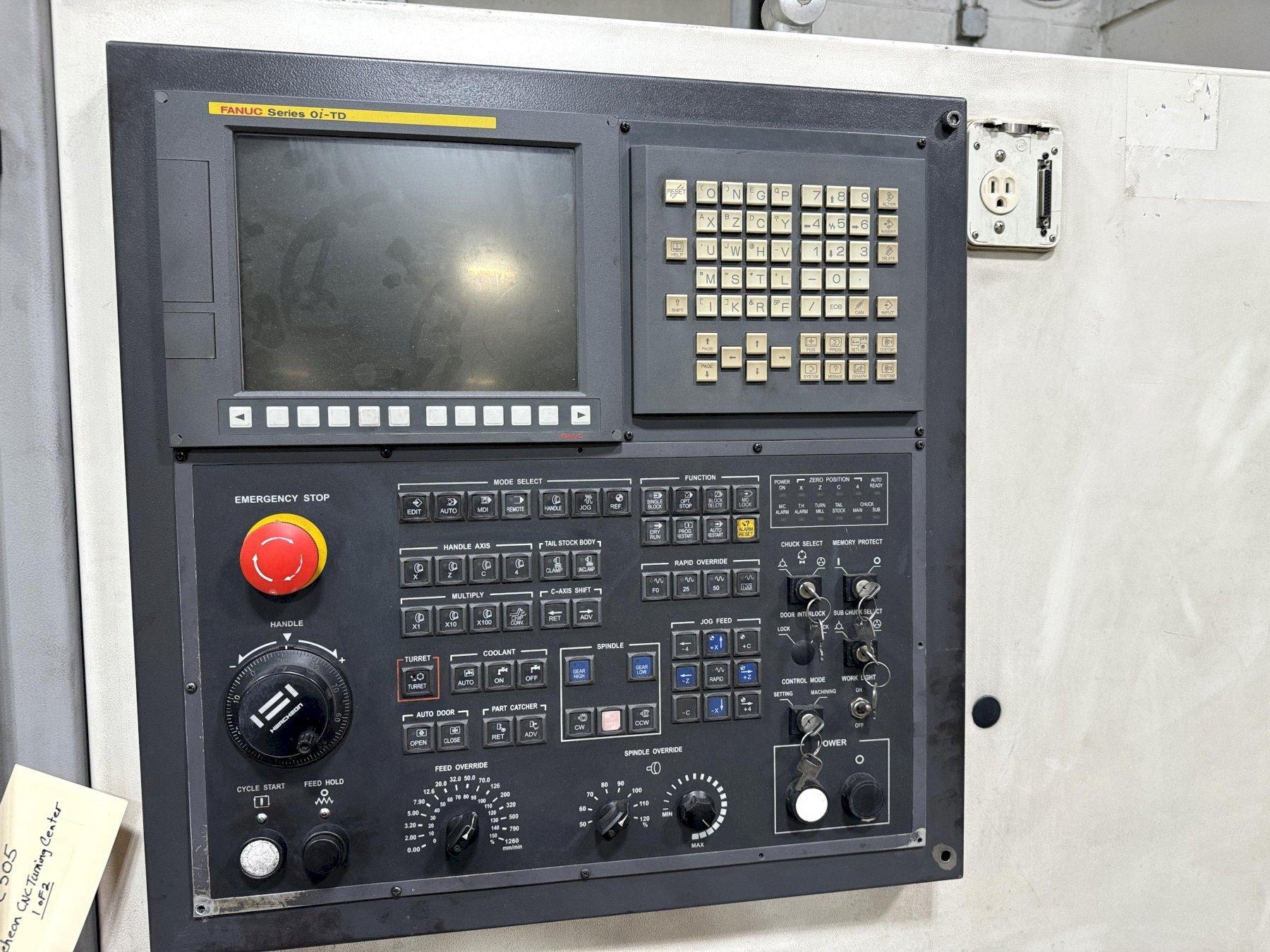

Fanuc Oi-TD CNC Control.

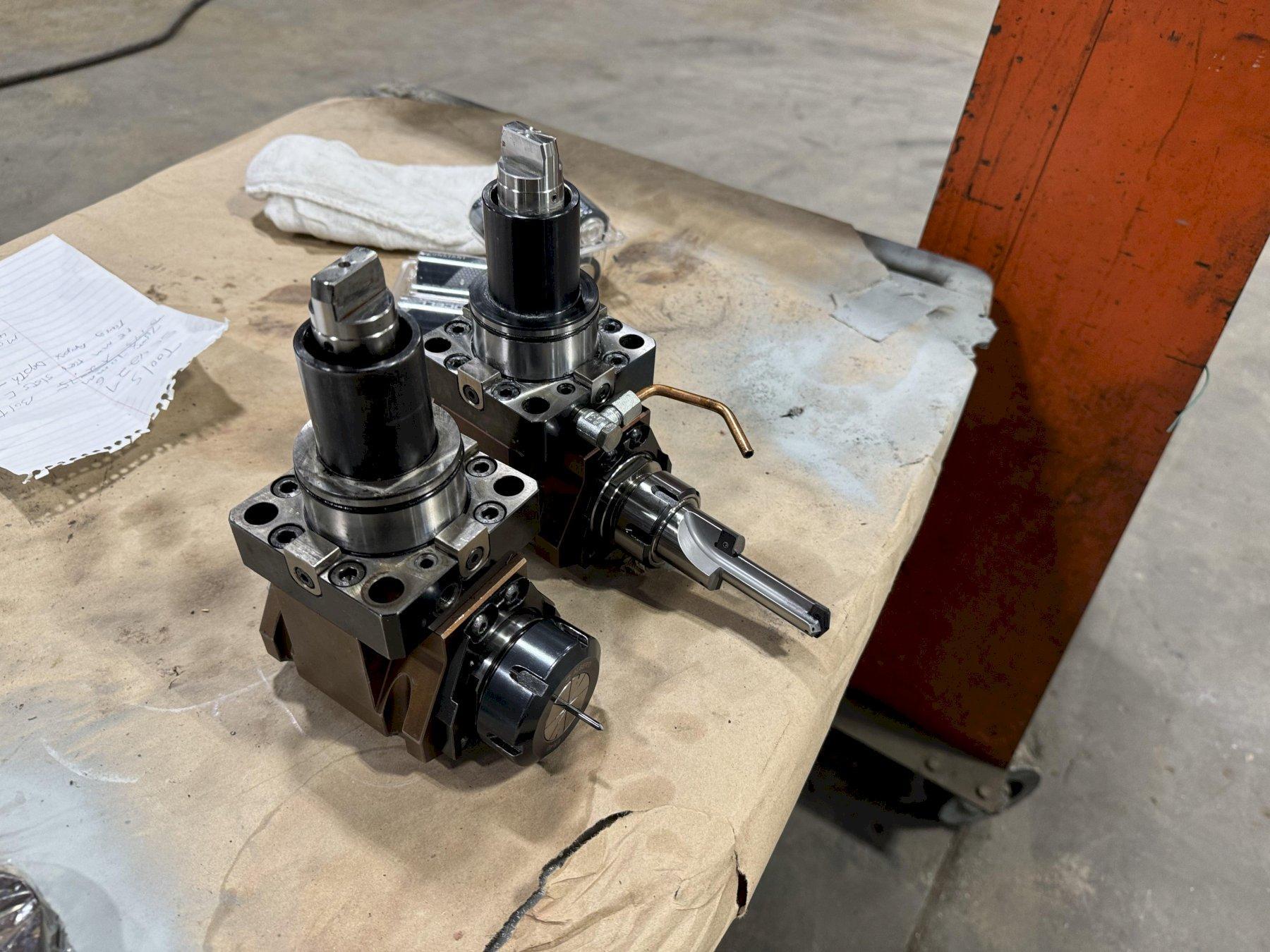

Live Milling.
Sub Spindle.

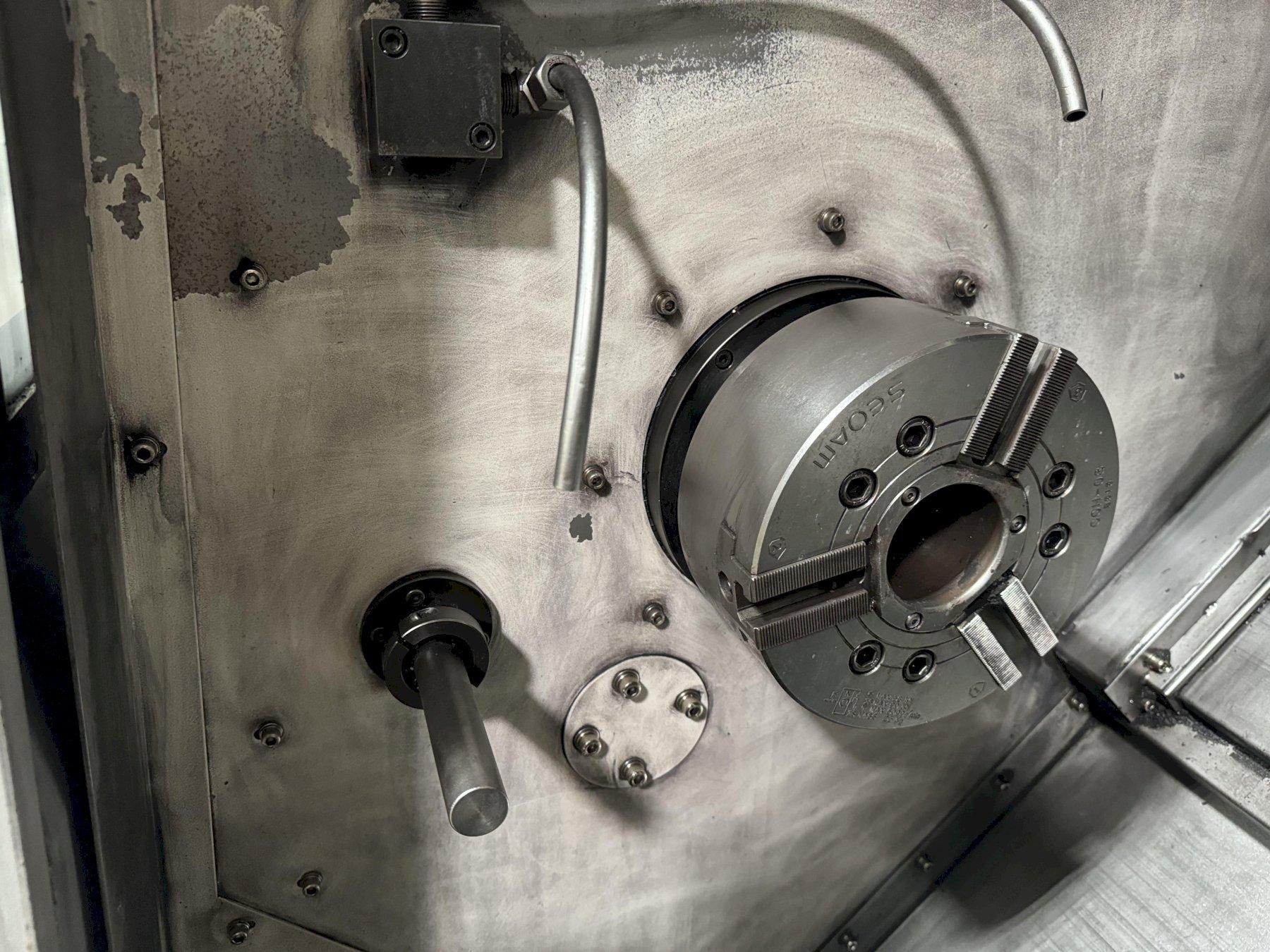

8” 3-Jaw Chuck on Main Spindle.

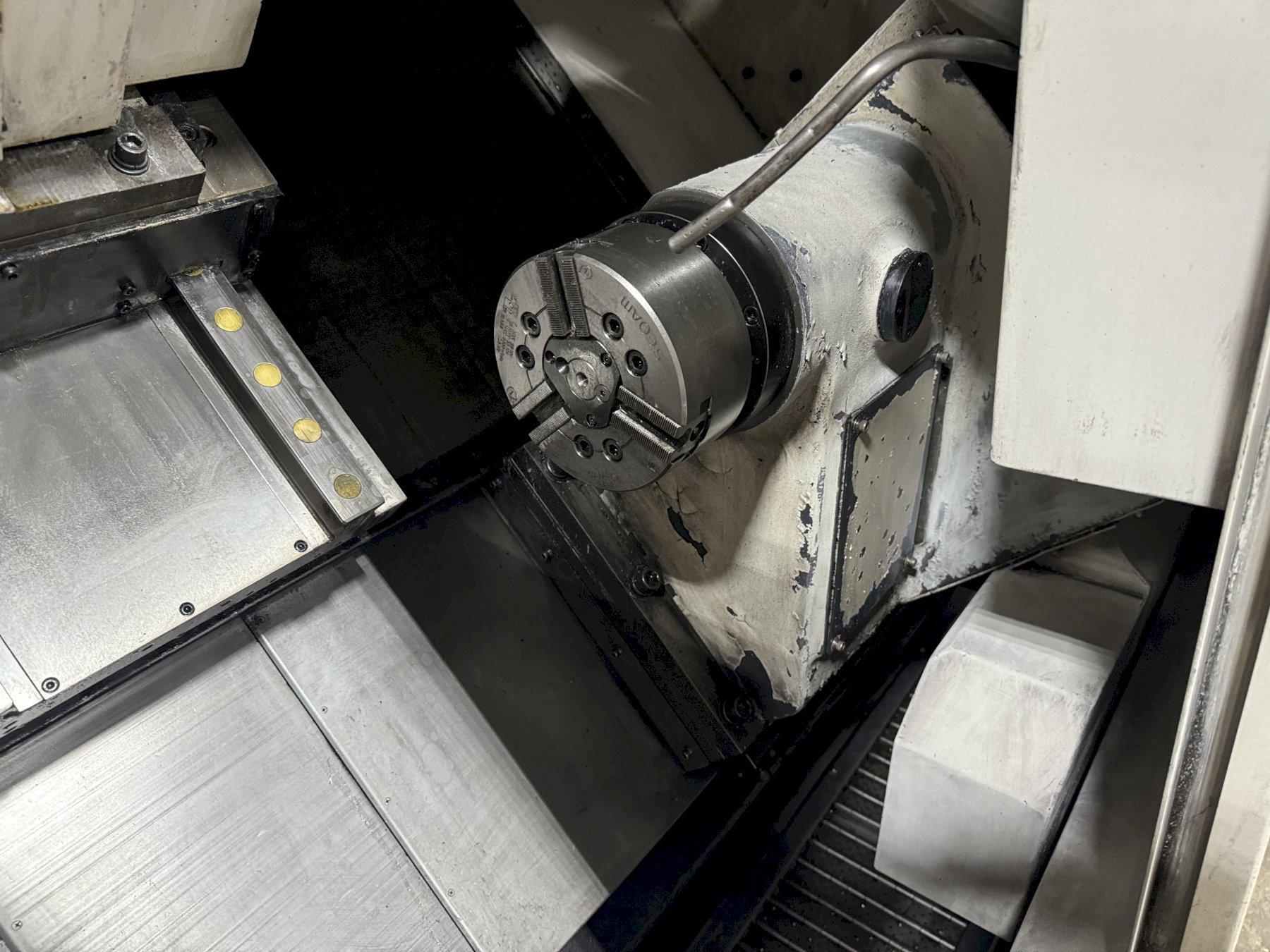

6” 3-Jaw Chuck on Sub-Spindle.
Automatic Lubrication.
Coolant System.

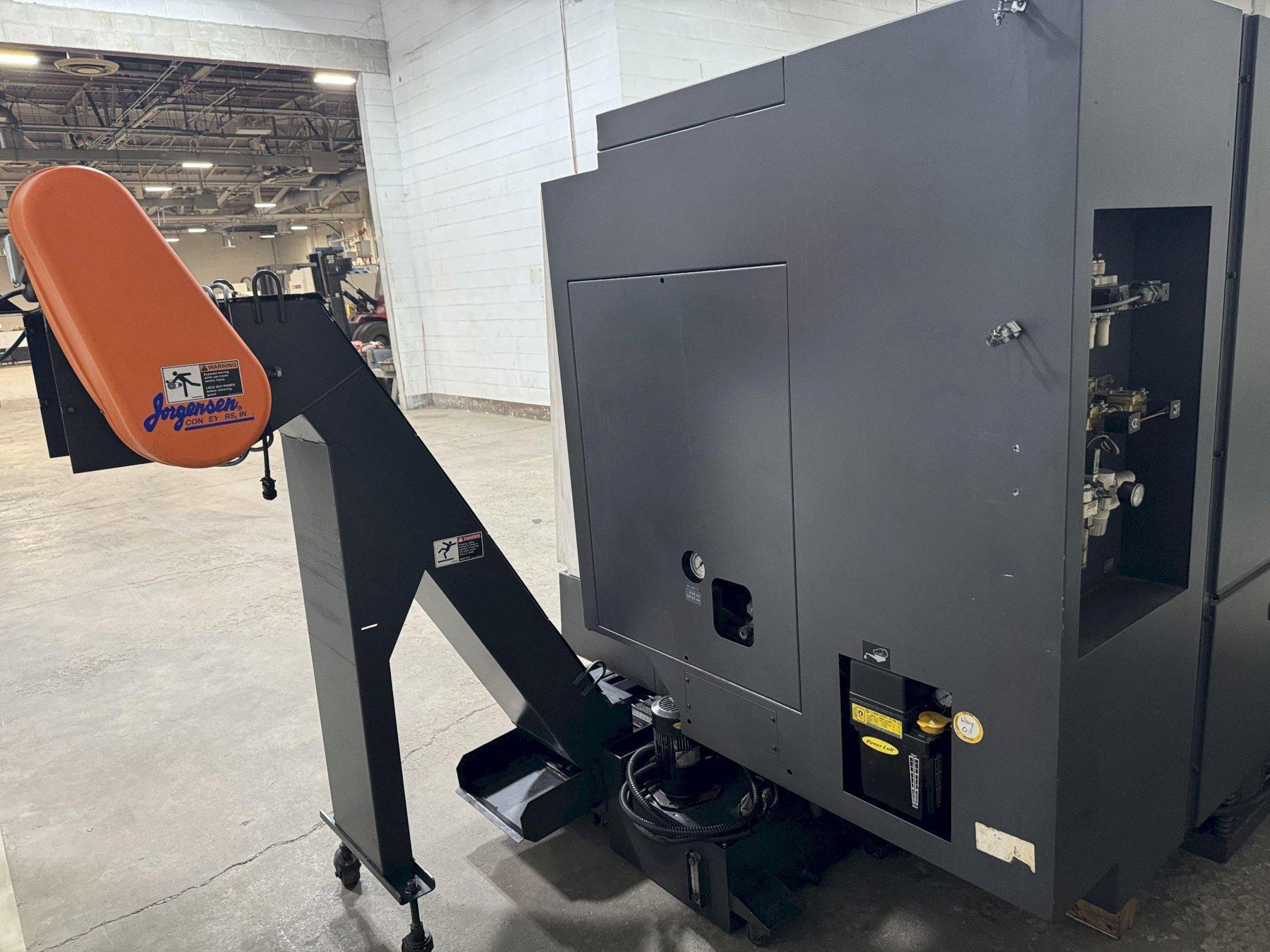

Chip Conveyor.
Manuals and Drawings.
