Trumpf TruPunch 3000 Servo Electric Punch, 22 Ton, 50" x 100", 18 Station Tool Changer, Multi-Tool, Tooling, 2014 #43643

Manufacturer

TRUMPF

Category

Punches

Type

PUNCHES, TURRET, CNC (incl. PUNCH PRESSES)

Stock

43643

Model

TruPunch 3000

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43643

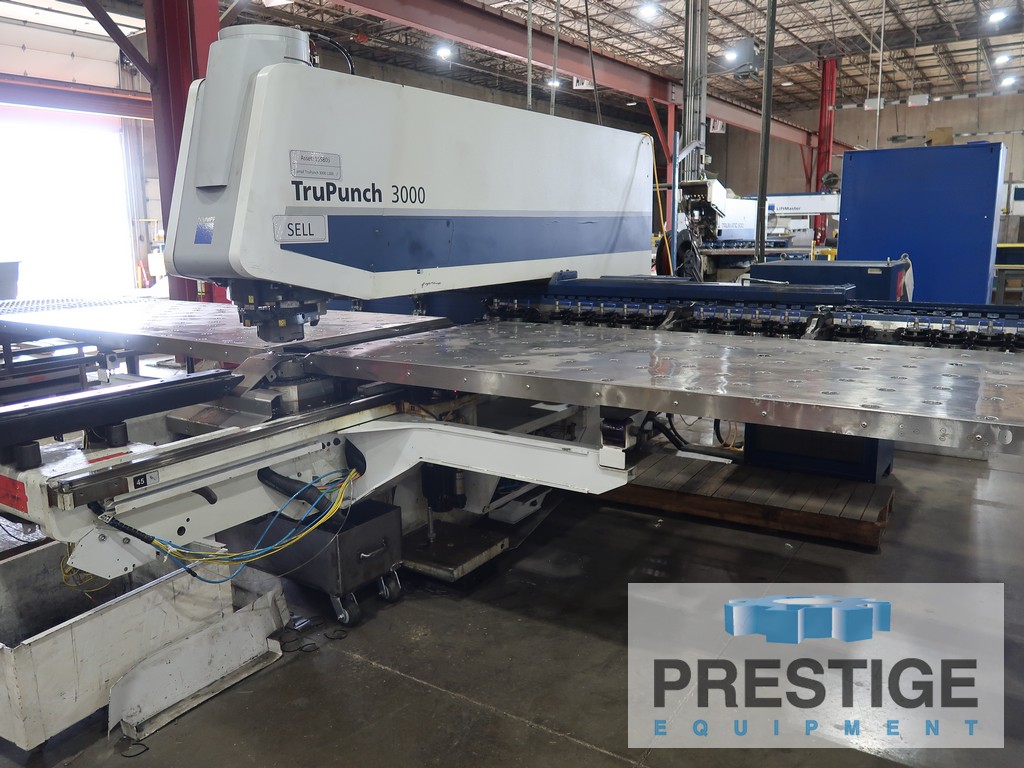

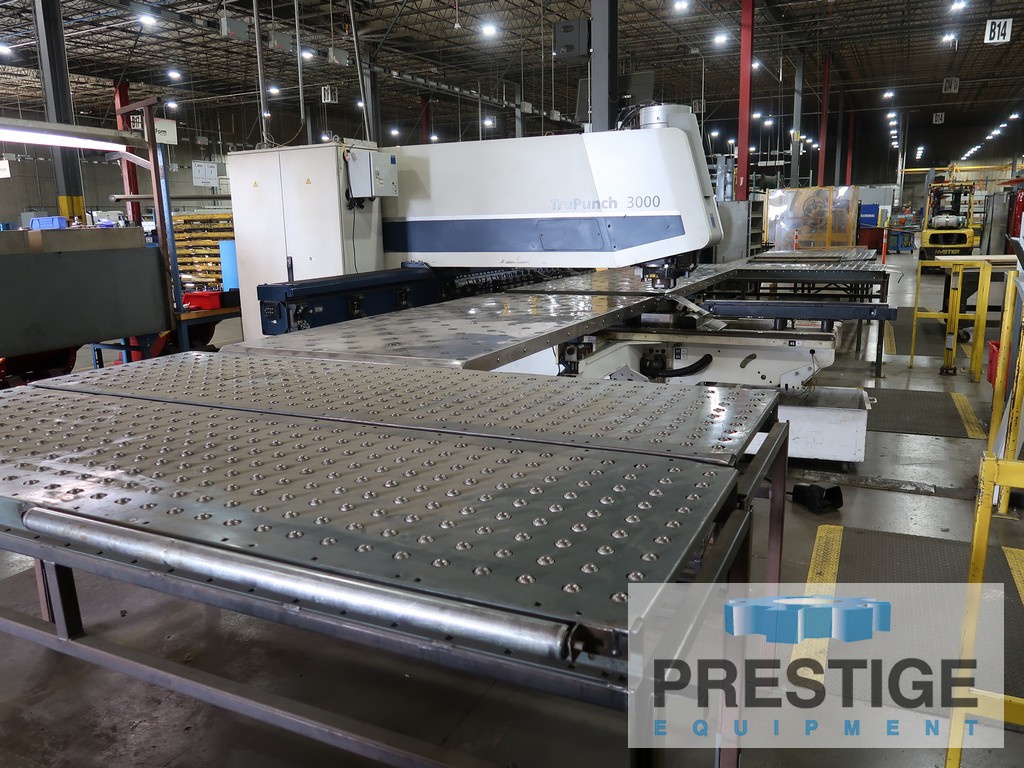

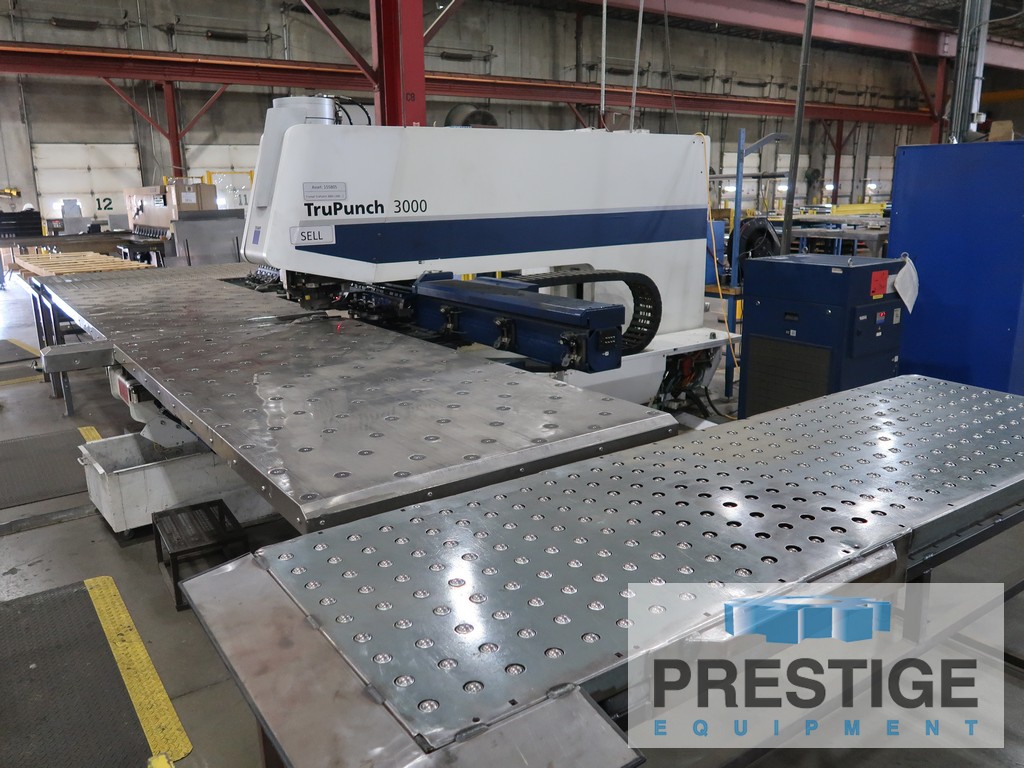

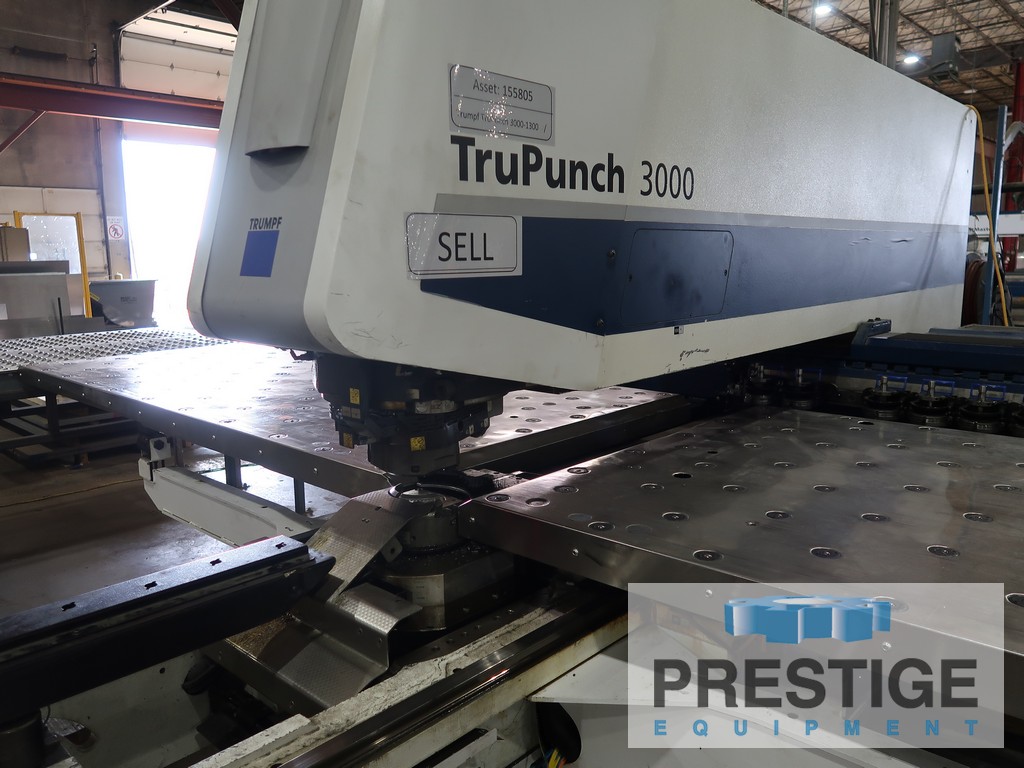

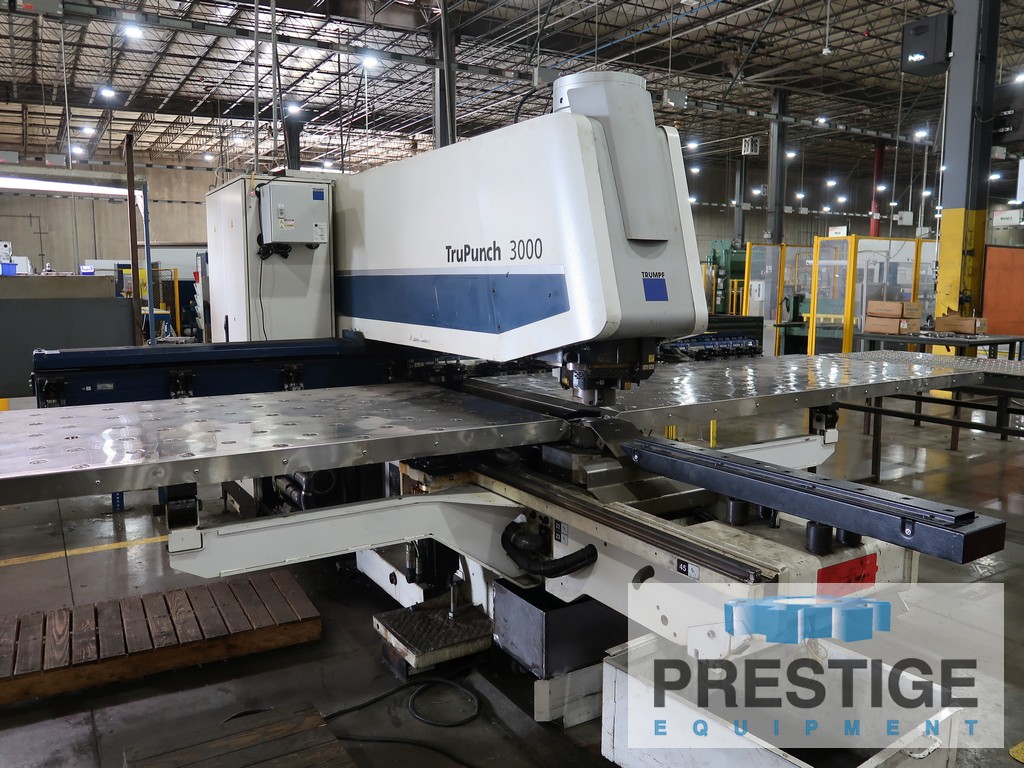

Trumpf TruPunch 3000 22 Ton Servo Electric CNC Punch

FEATURES:
Bosch MTX CNC Control, 17" Touch Panel

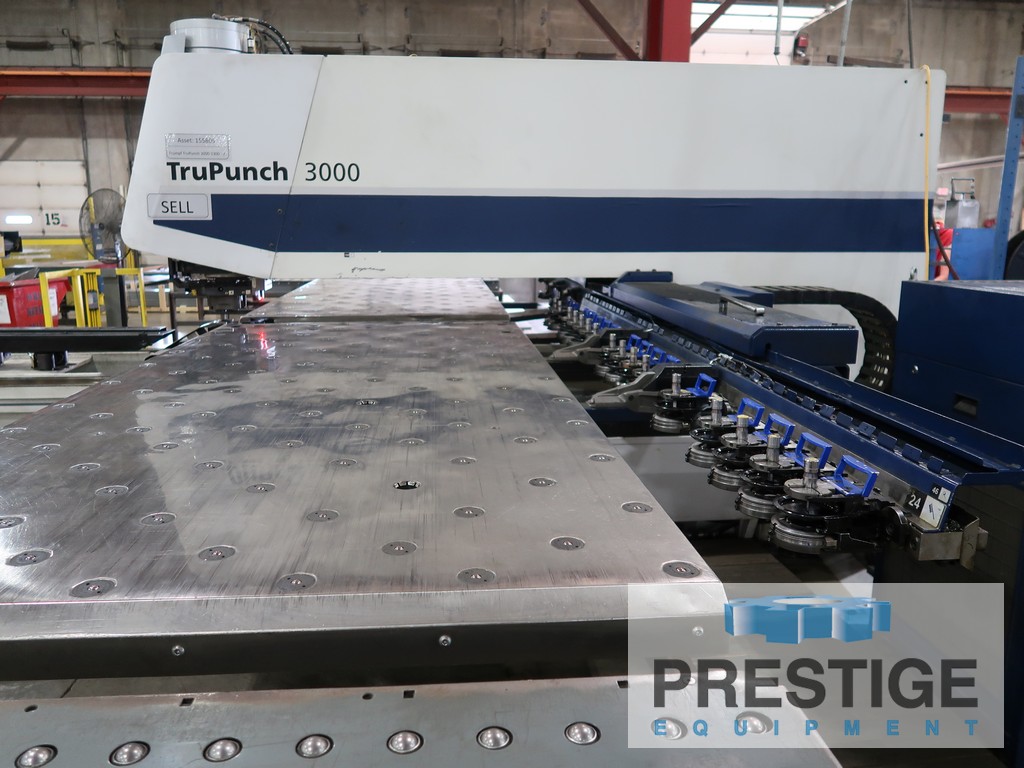

18-Station Linear Tool Changer (All With Full Rotation)

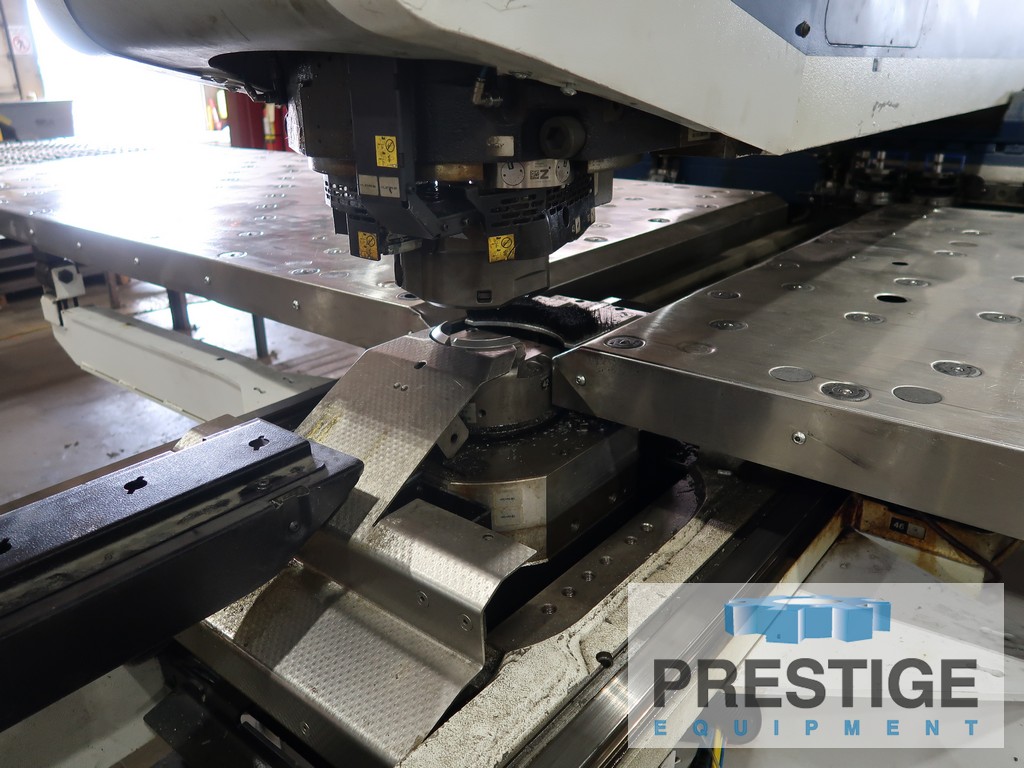

Multi-Tool Drive 5 & 10

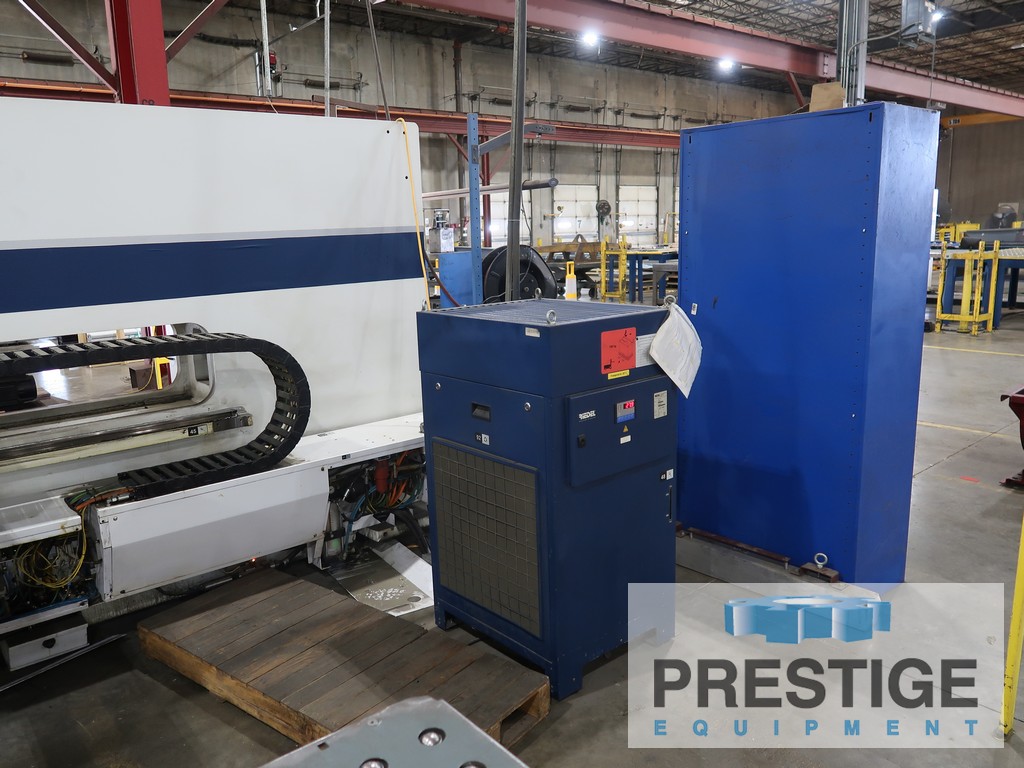

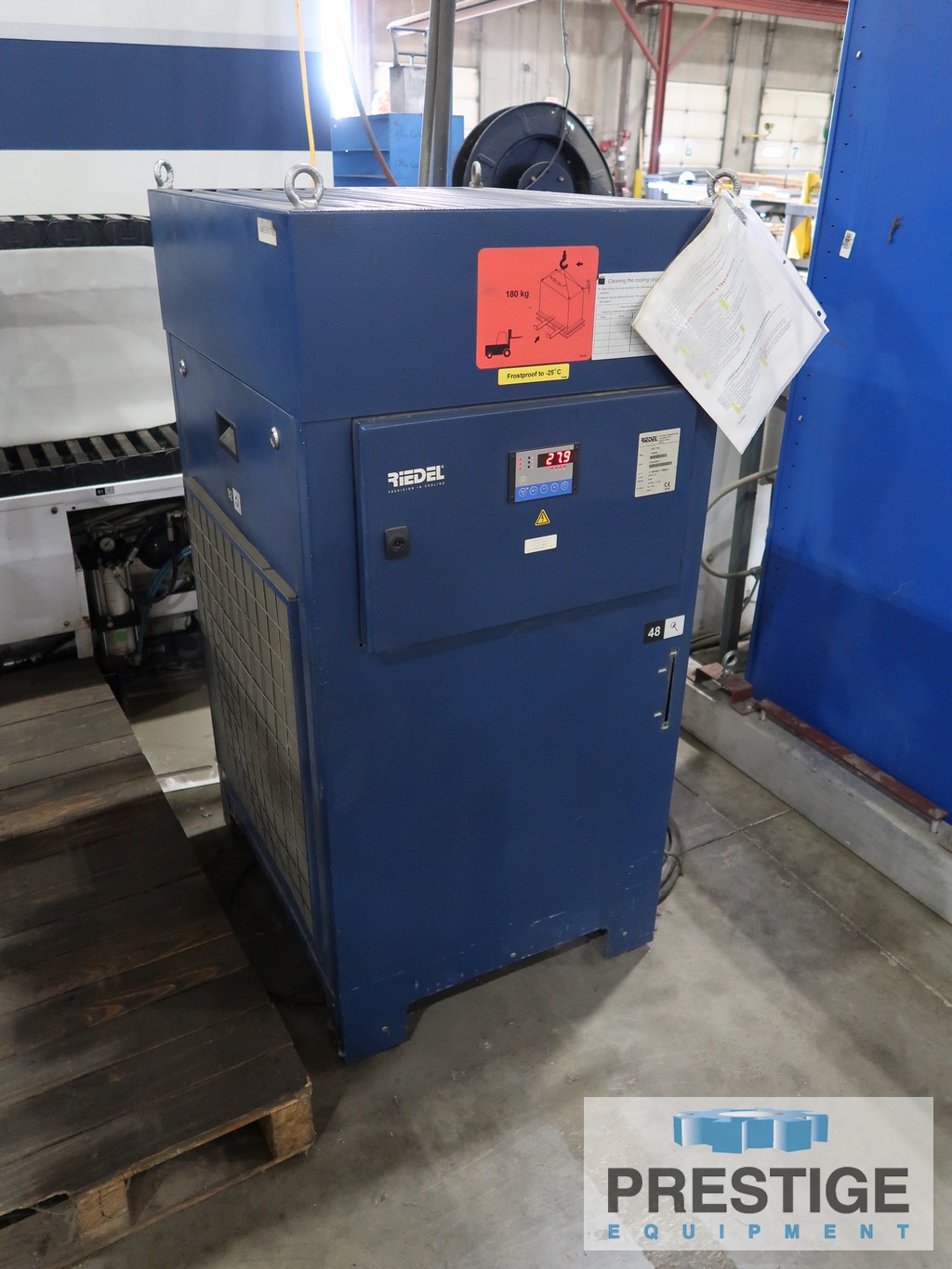

Riedel Chiller

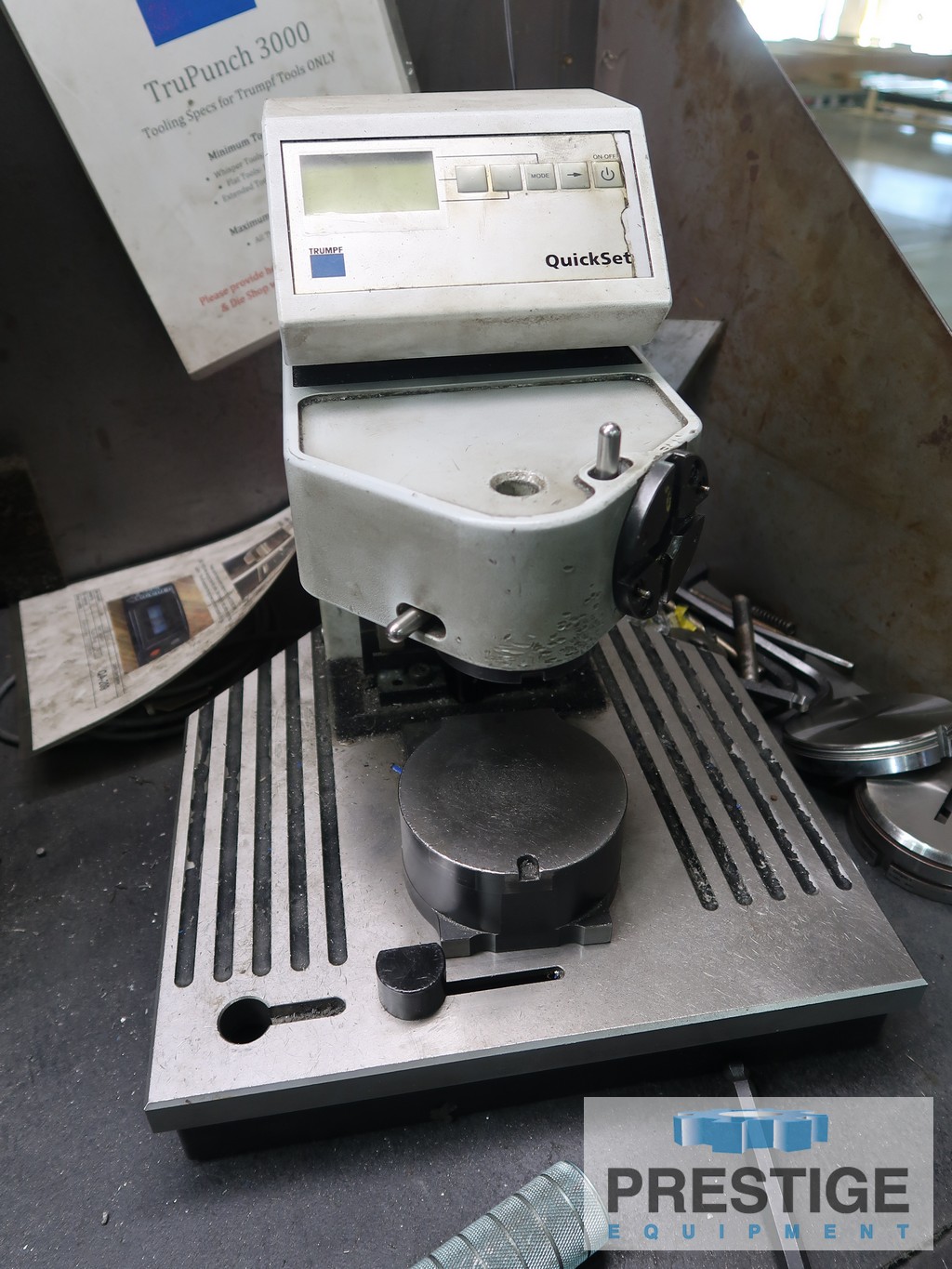

Trumpf Quick Set

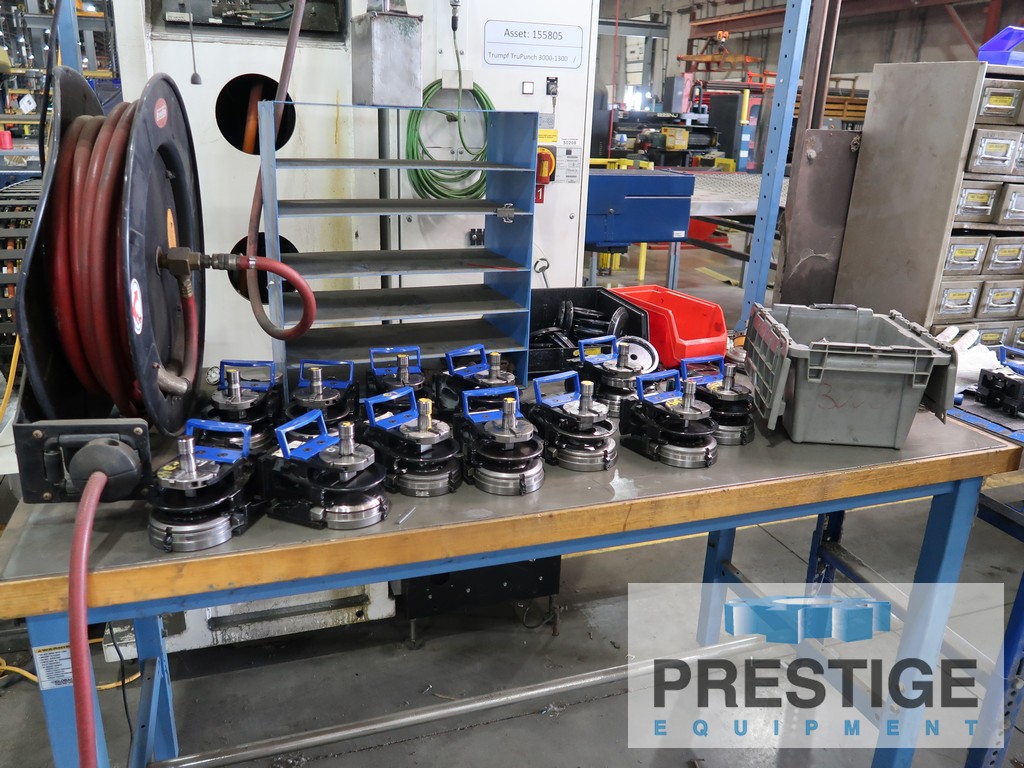

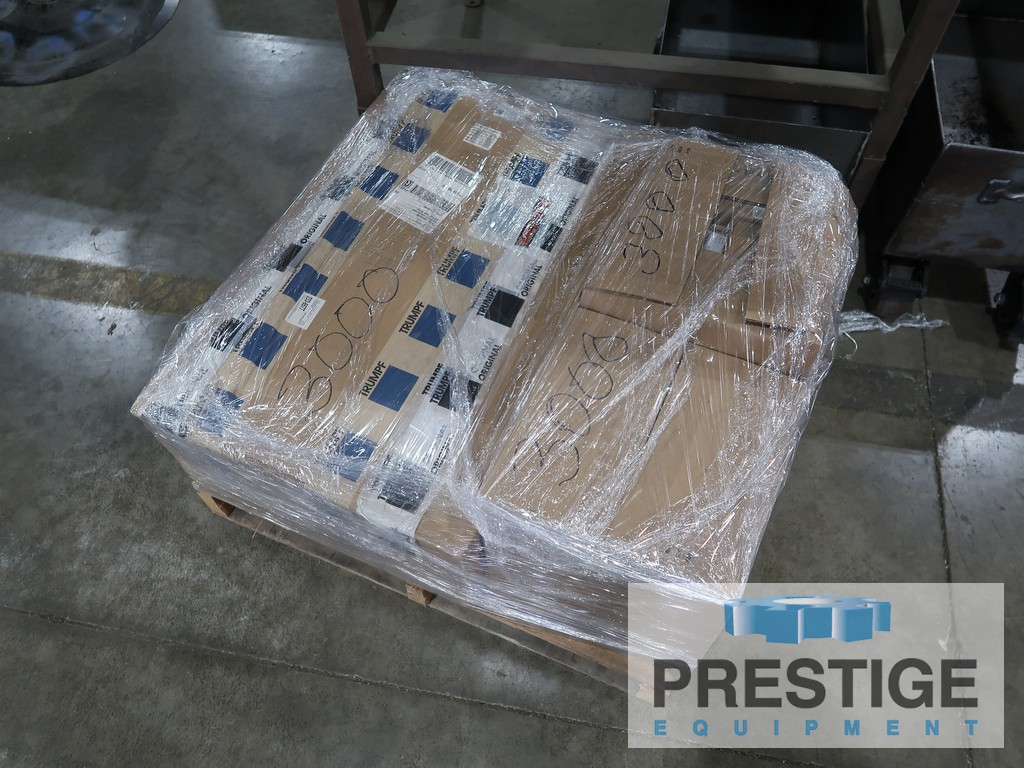

Cartridges & Tooling

CAPACITY:
Tonnage Capacity ...................... 22 Tons
Maximum Sheet Thickness ............... .25"
Maximum Punch Diameter ................ 3"
Y-Axis Table Travel ................... 50"
X-Axis Table Travel ................... 100"
Stroke Rate (.0404" Pitch) ............ 1000 /Min
C-Axis ................................ 5.5 Rotations / Sec
Maximum Positioning Speed (Y-Axis)..... 2236 IPM
Maximum Positioning Speed (X-Axis)..... 3543 IPM
Simultaneous (X & Y) Axis ............. 4242 IPM
Part Chute Size ....................... 7" x 20"
Maximum Forming Height ................ 1"
Approximate Dimensions ................ 204" x 252"
Approximate Weight .................... 24,000 Lbs

EQUIPPED WITH:
Bosch MTX CNC Control, 17" Touch Panel
18-Station Linear Tool Changer (All With Full Rotation)
Multi-Tool Drive 5 & 10
Riedel Chiller
Trumpf Quick Set
Cartridges & Tooling

NOTE:
Inspect in Plant Under Power
