4.3" Toshiba BTH-110R18, 30 ATC, X-98", Y-78", Z-20", W-59", B-Axis RTab, TSC, Tosnuc 999,'12 #43587

Manufacturer

TOSHIBA

Category

Boring Mills

Type

BORING MILLS, HORIZONTAL, TABLE TYPE, CNC

Stock

43587

Model

BTH-110R18

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43587

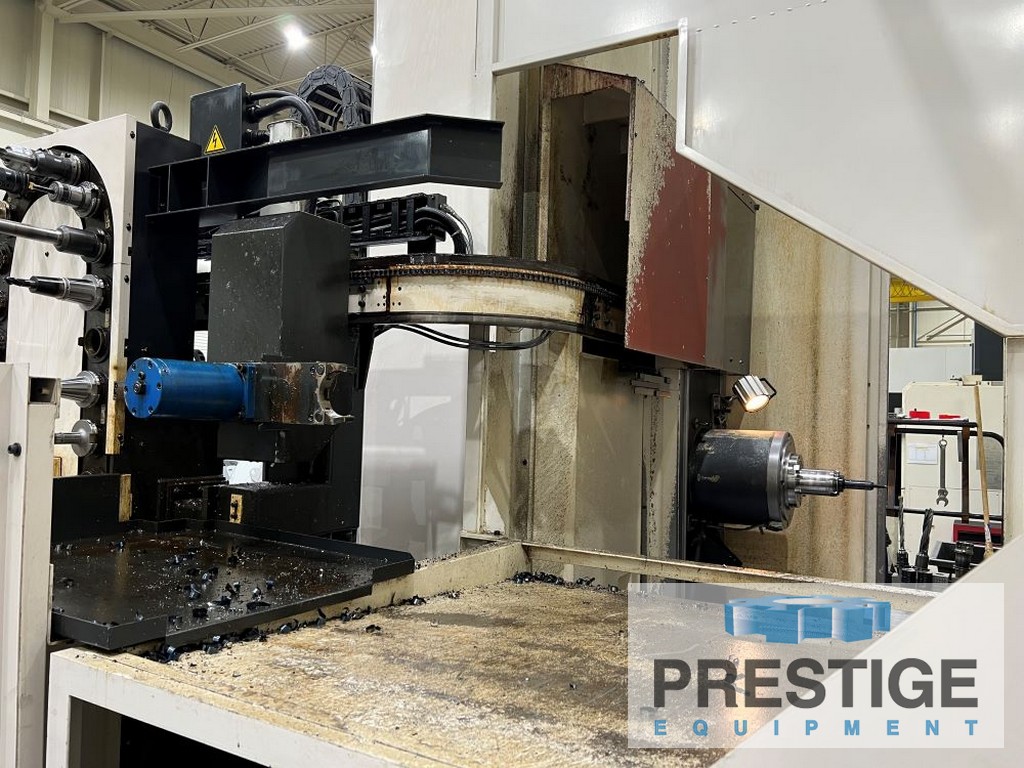

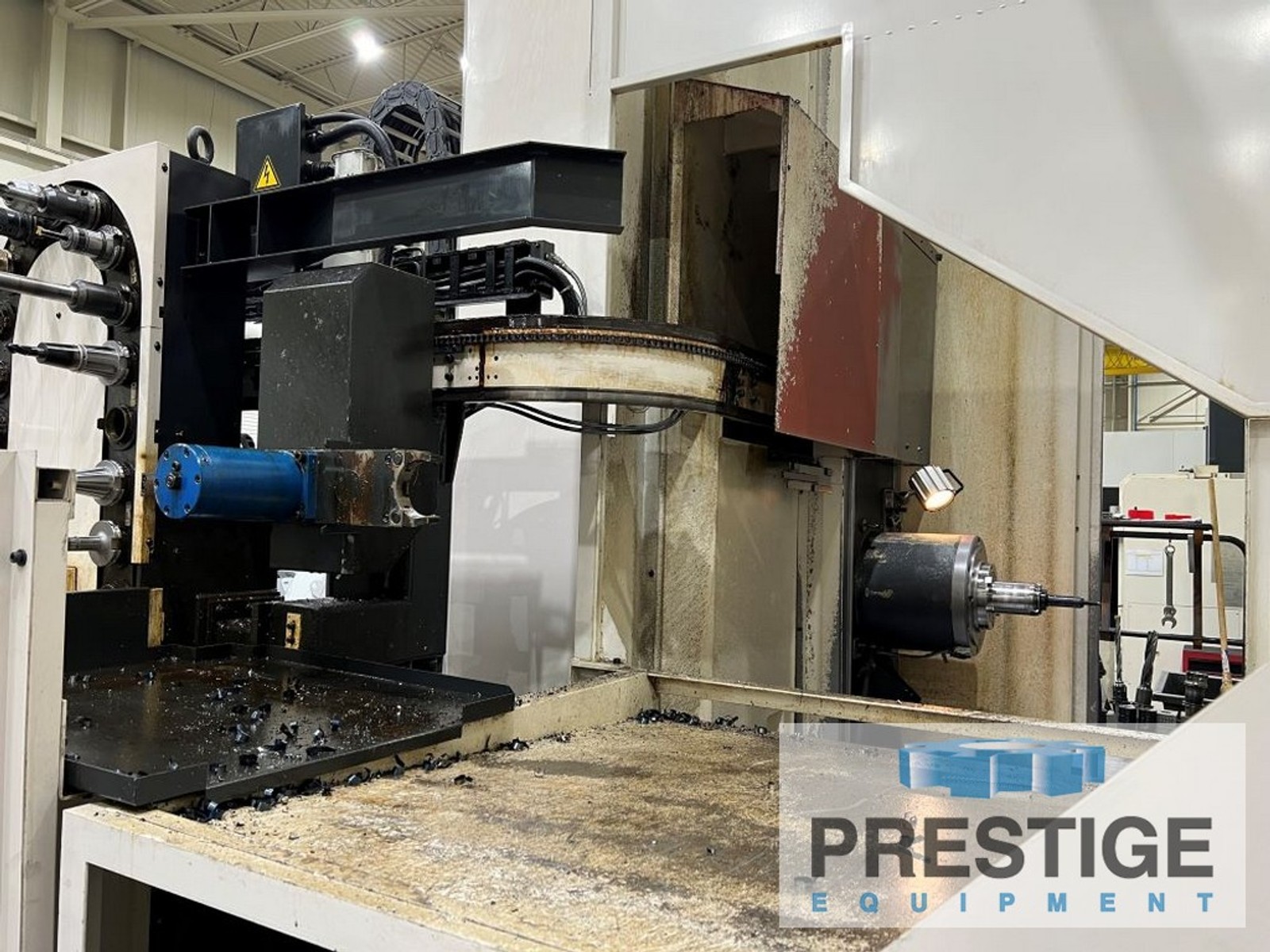

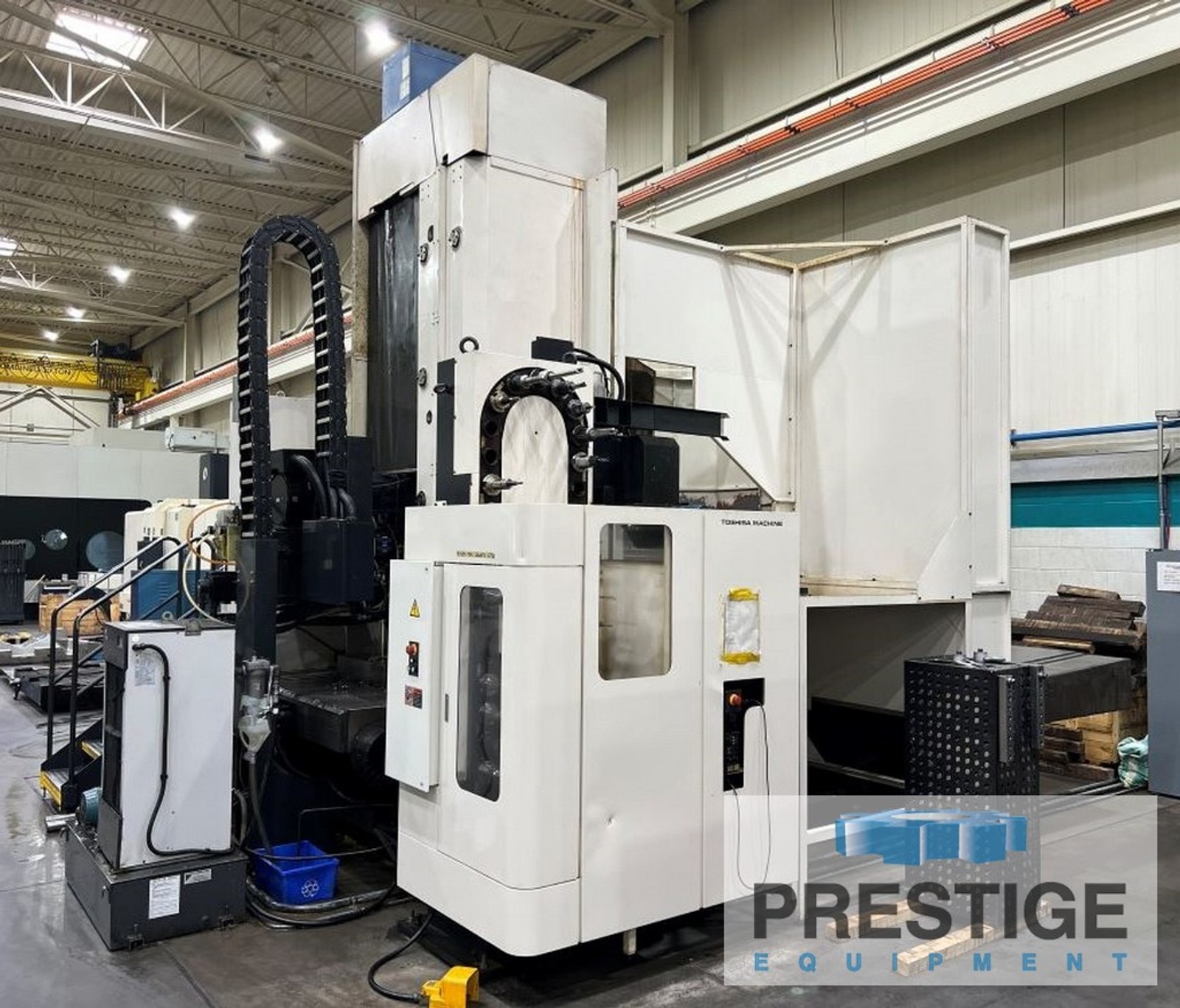

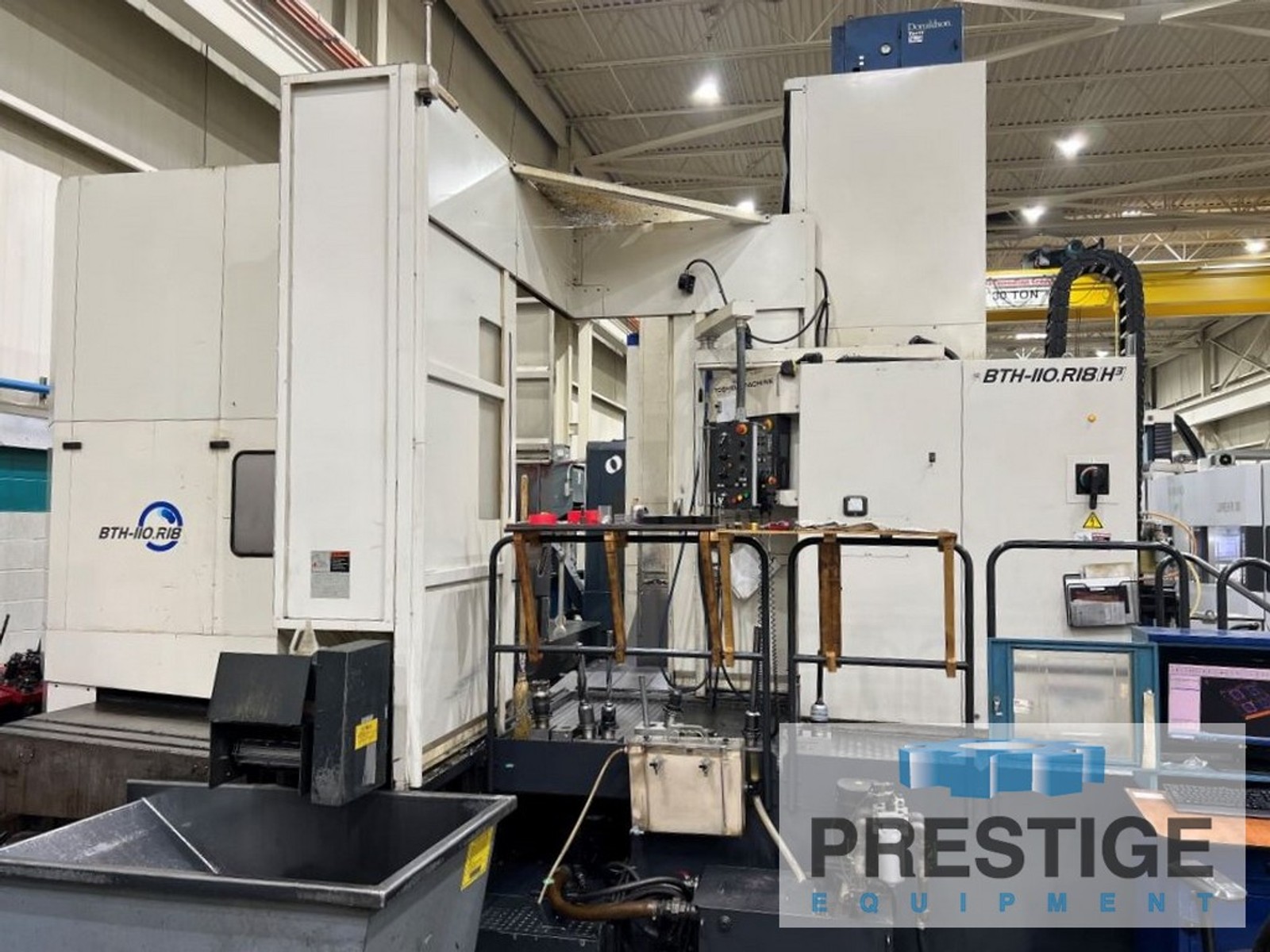

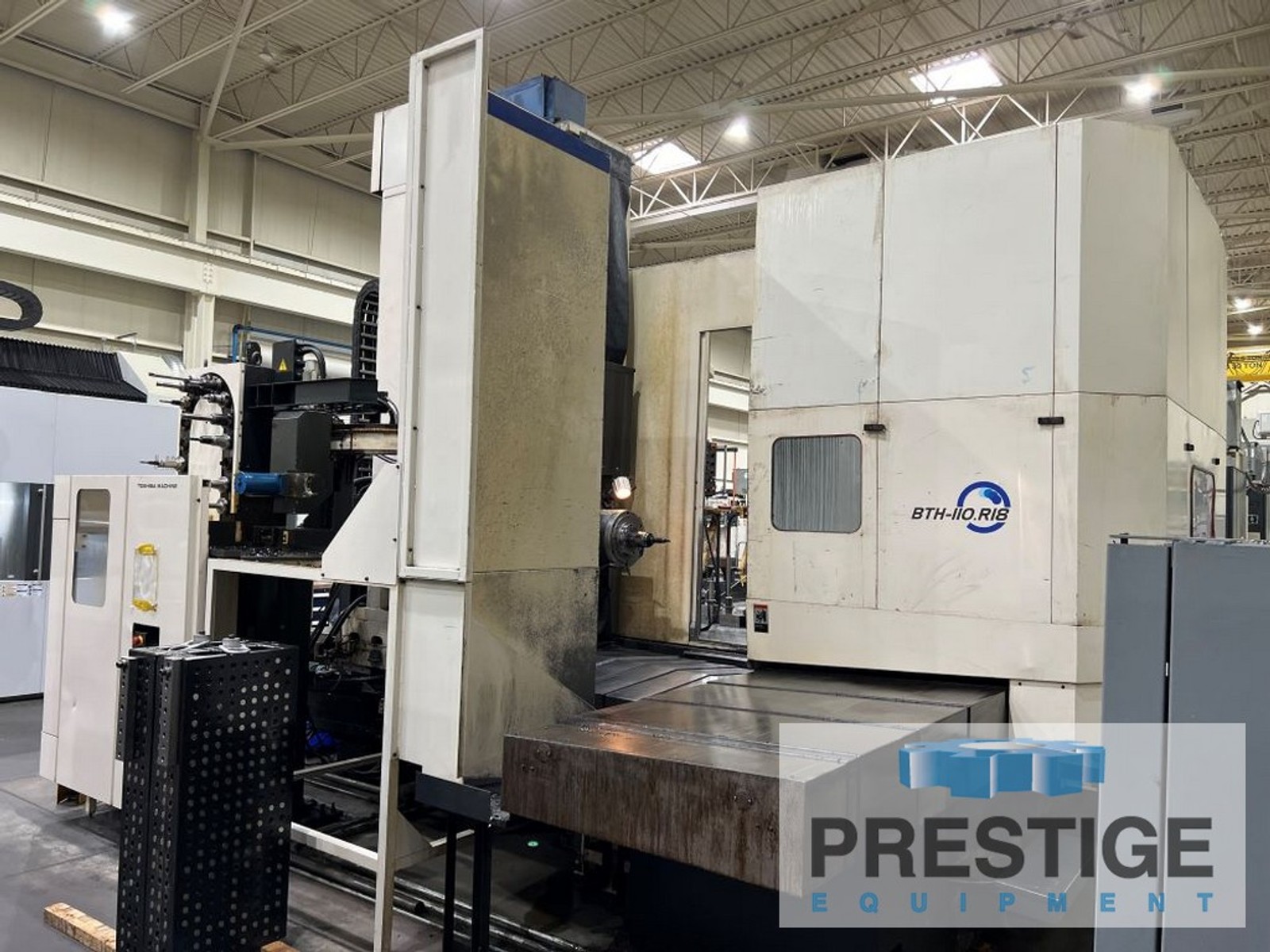

Toshiba Machine BTH-110.R18 4.3" CNC Table Type Boring Mill

FEATURES:

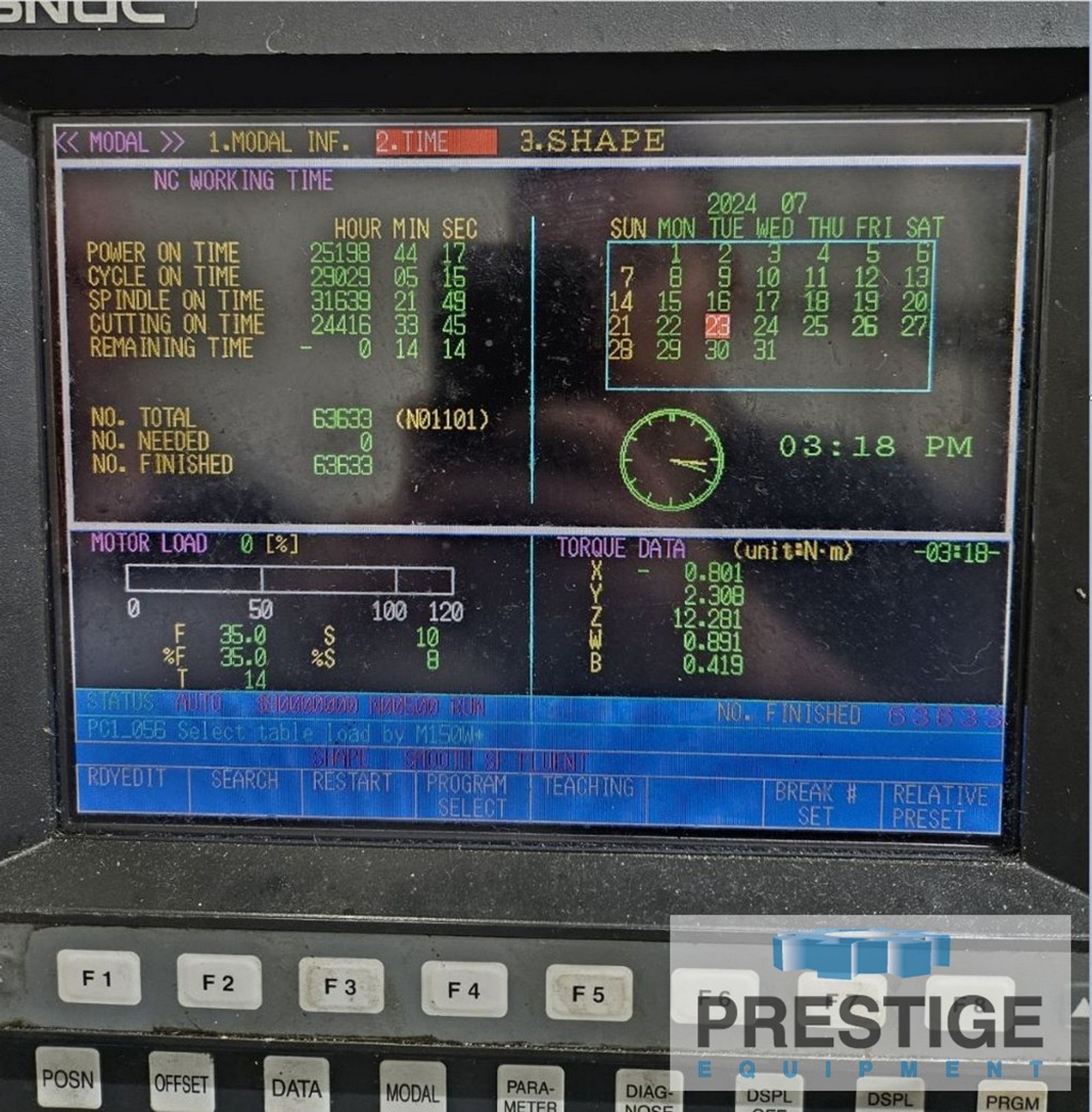

Tosnuc 999 CNC Control
32 Position Automatic Tool Changer

SPECIFICATIONS:

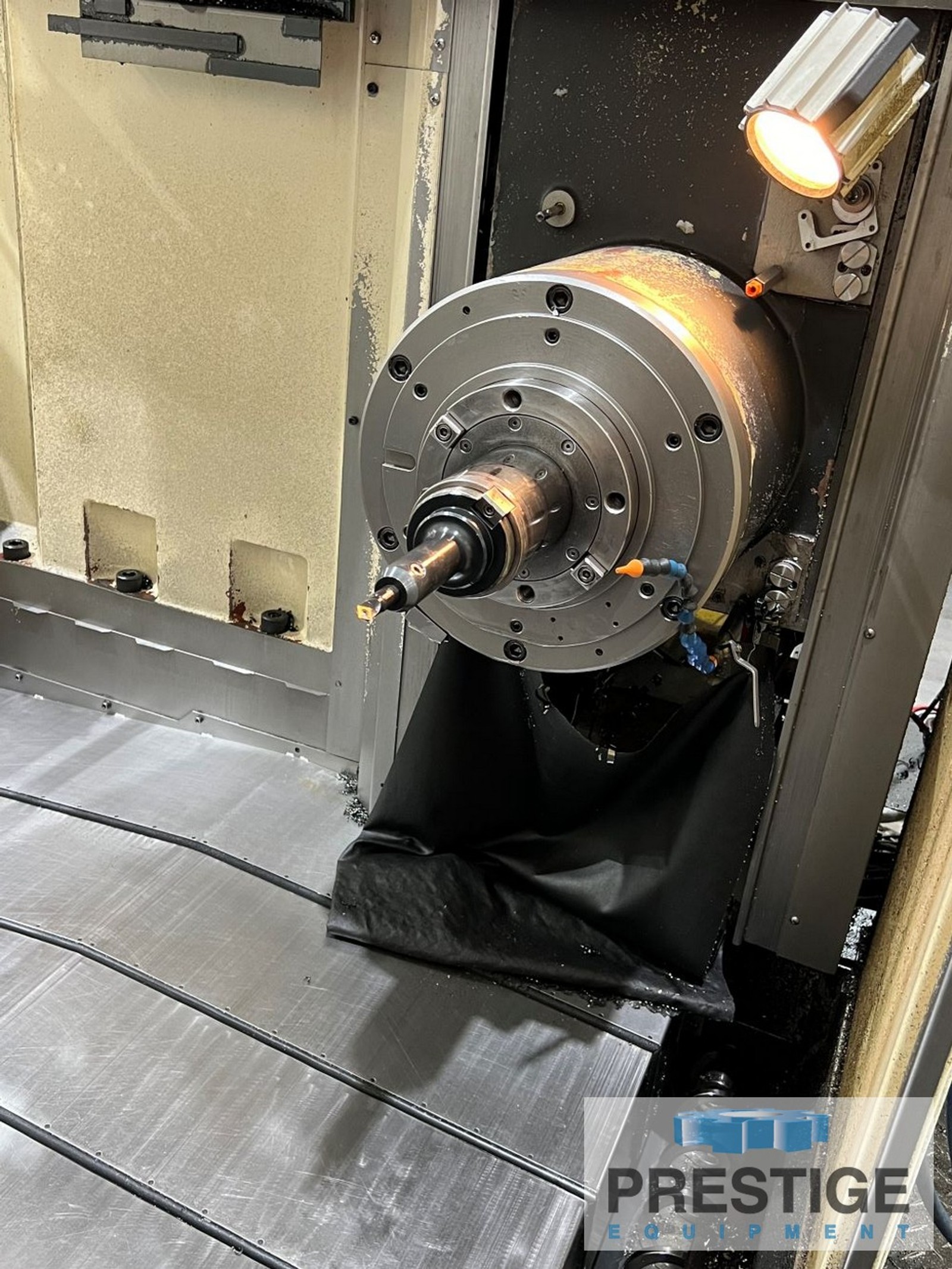

Spindle Diameter ...................... 4.33"
Taper In Spindle ...................... #50
Vertical Head Travel, Y-Axis .......... 78.74"
Table Cross Travel, X-Axis ............ 98.42"
Spindle Travel, Z-Axis ................ 19.68"
Saddle Travel, W-Axis ................. 59.05"
Table Size, Built-In Rotary ........... 55.11" x 70.86"
Table Indexing ........................ 0.0001 Degree
Feed Rates ............................ 0.04-393 IPM
Rapid Traverse: X,Y, & Z Axes ......... 708 IPM
Rapid Traverse: W-Axis ................ 236 IPM
Rapid Traverse: B-Axis ................ 720 Degrees/Minute
Table Load Capacity ................... 22,000 Lbs.
Spindle Speeds ........................ 6-4000 RPM
Floor Space, L x W x H ................ 240" x 240" X 181"
Machine Weight ........................ 66,000 lbs.

EQUIPPED WITH:

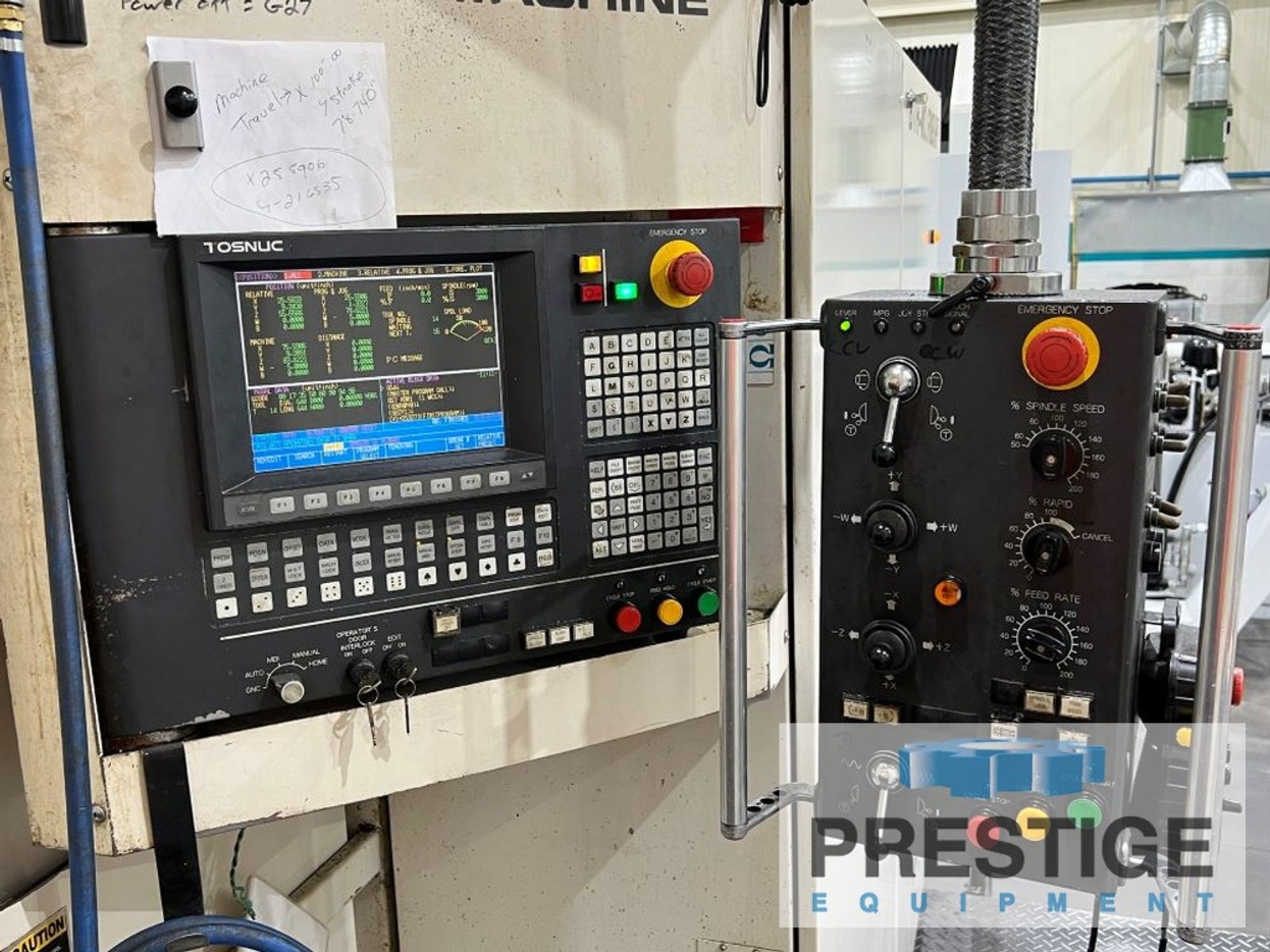

Tosnuc 999 CNC Controls

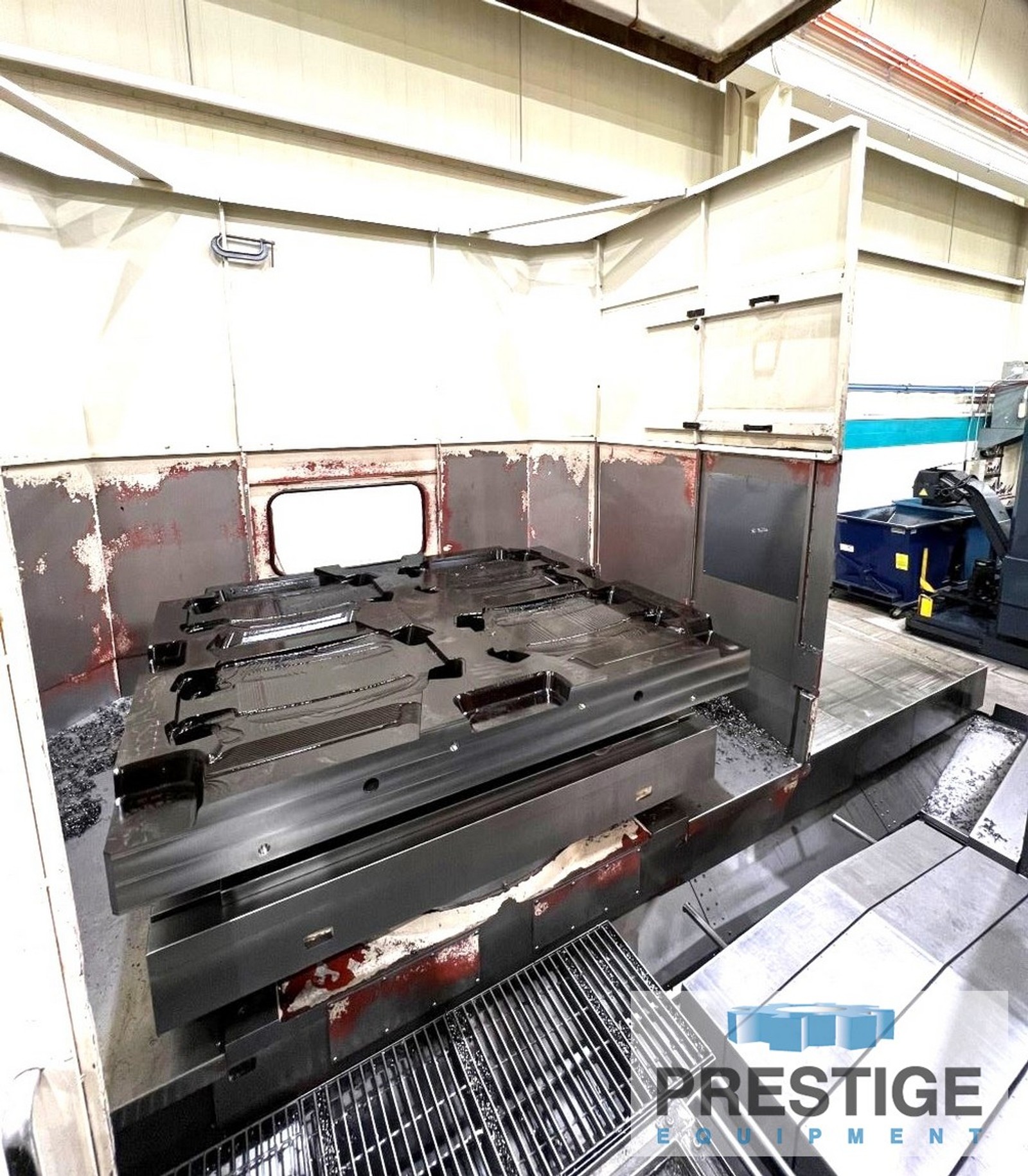

Full B-Axis Rotary Table
32 Position Automatic Tool Changer
Thru Spindle Coolant
Chip Conveyor
Flood Coolant
40 HP Spindle Motor
