Hermle C60U MT 5-Axis Turning & Milling Center, Siemens 840D sl, (4) Pallet System, 18K Spindle, 70 ATC, 2015, #32763

Manufacturer

HERMLE

Category

Machining Centers

Type

MACHINING CENTERS, VERTICAL, CNC (Incl. Pallet Changers)

Stock

32763

Model

C60 UP MT Dynamic

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #32763

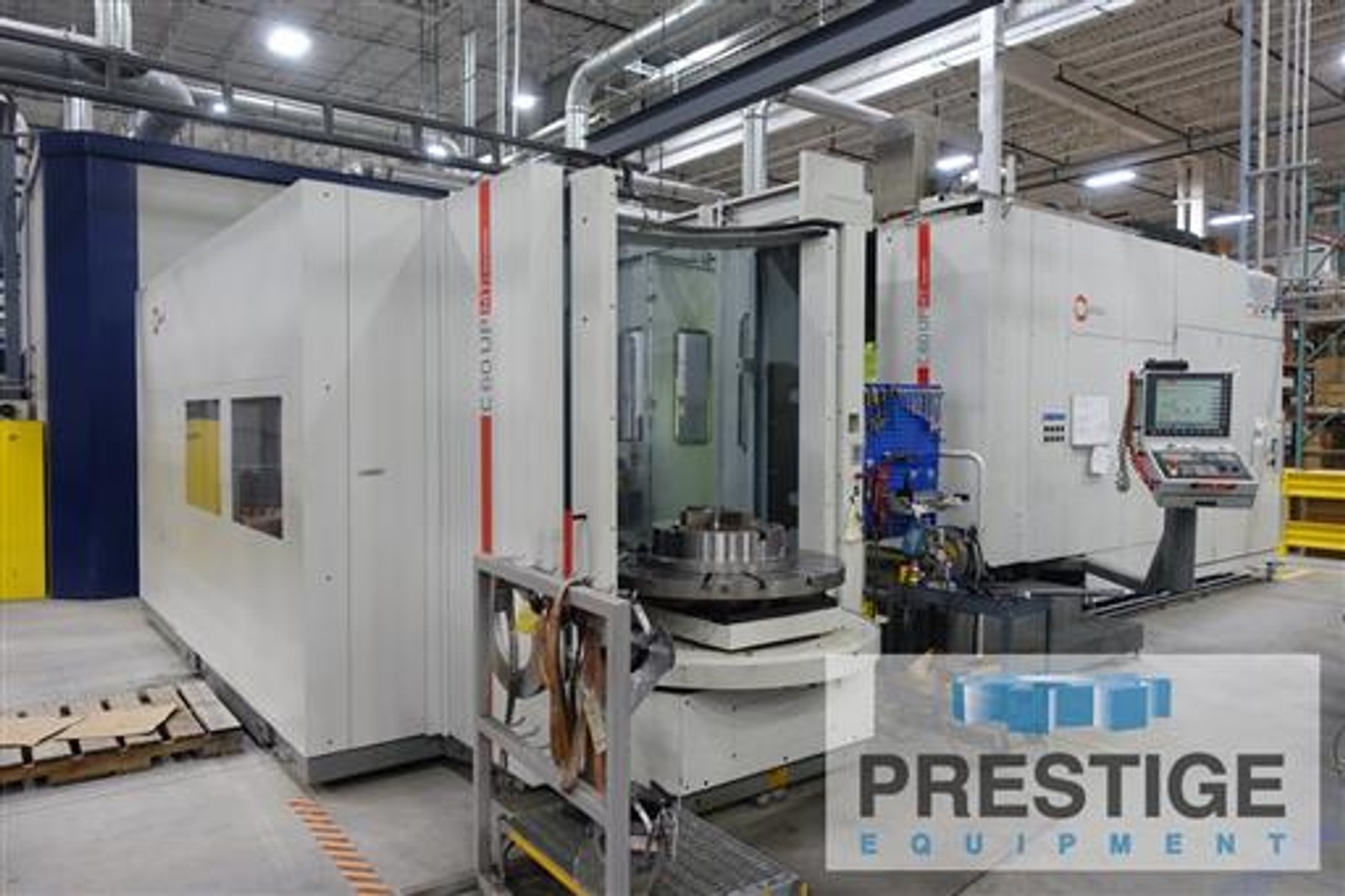

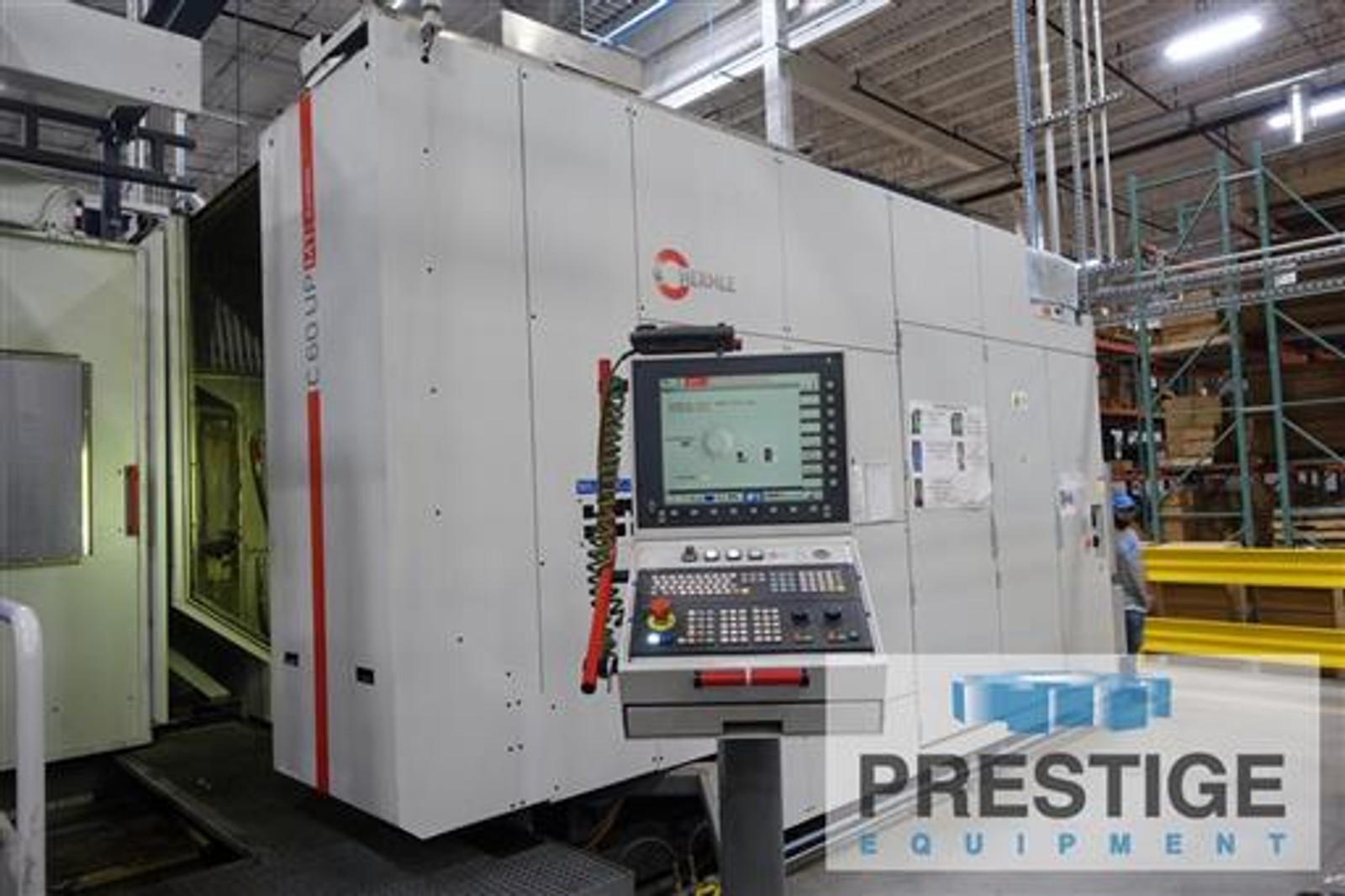

Hermle C60U MT Dynamic 5-Axis CNC Milling & Turning Center with Pallet System

FEATURES:

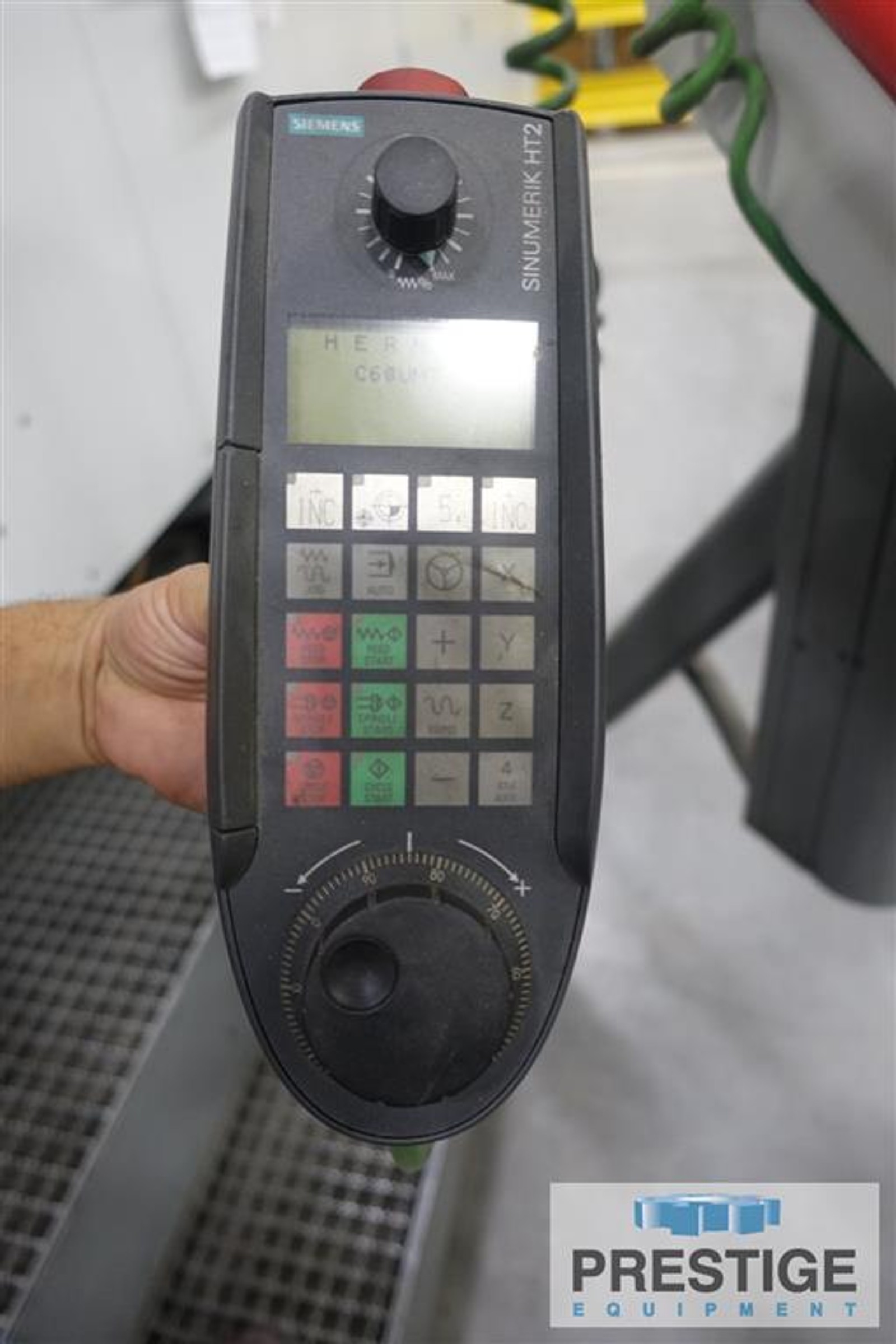

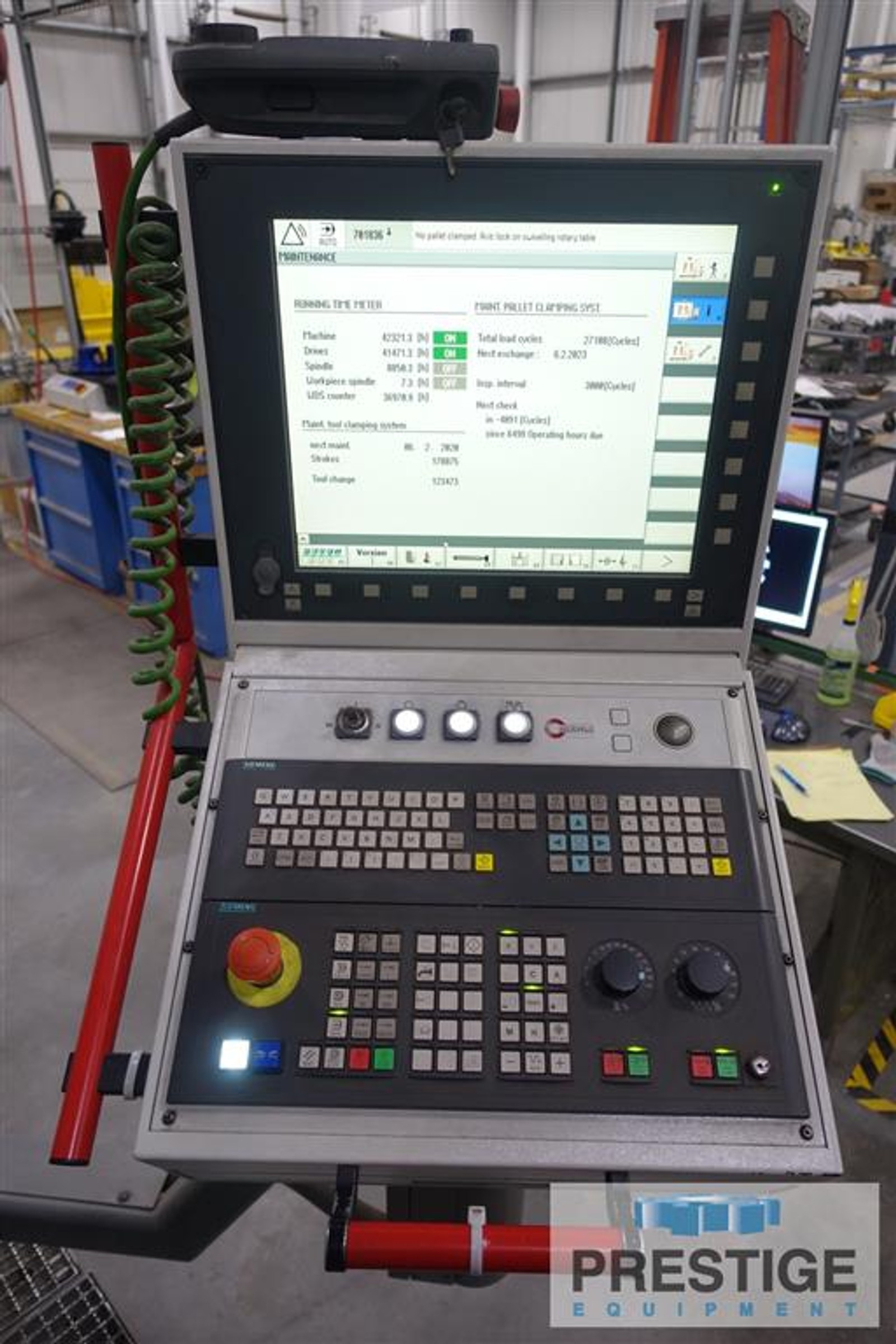

Siemens 840D sl 5-Axis CNC Control

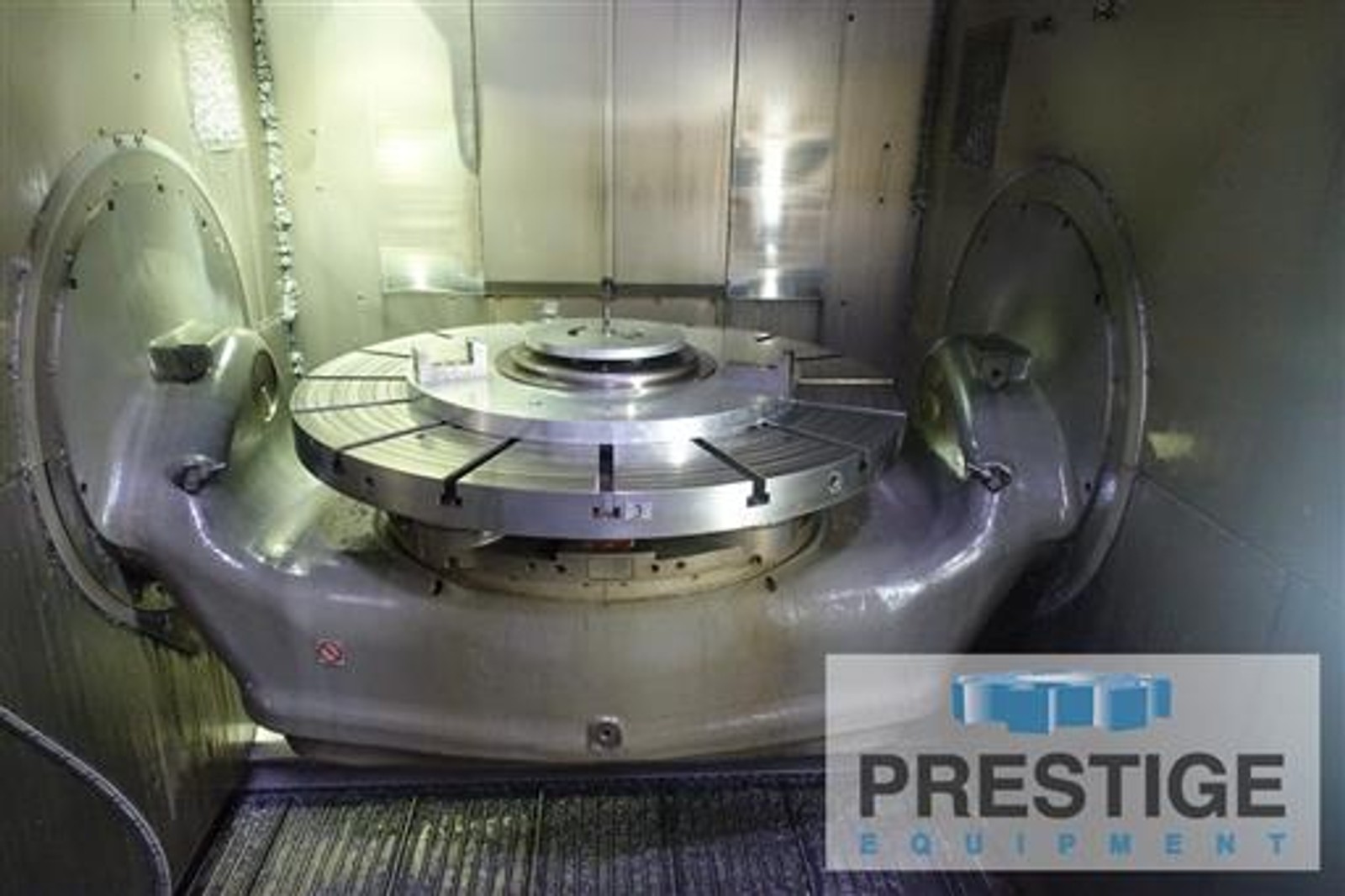

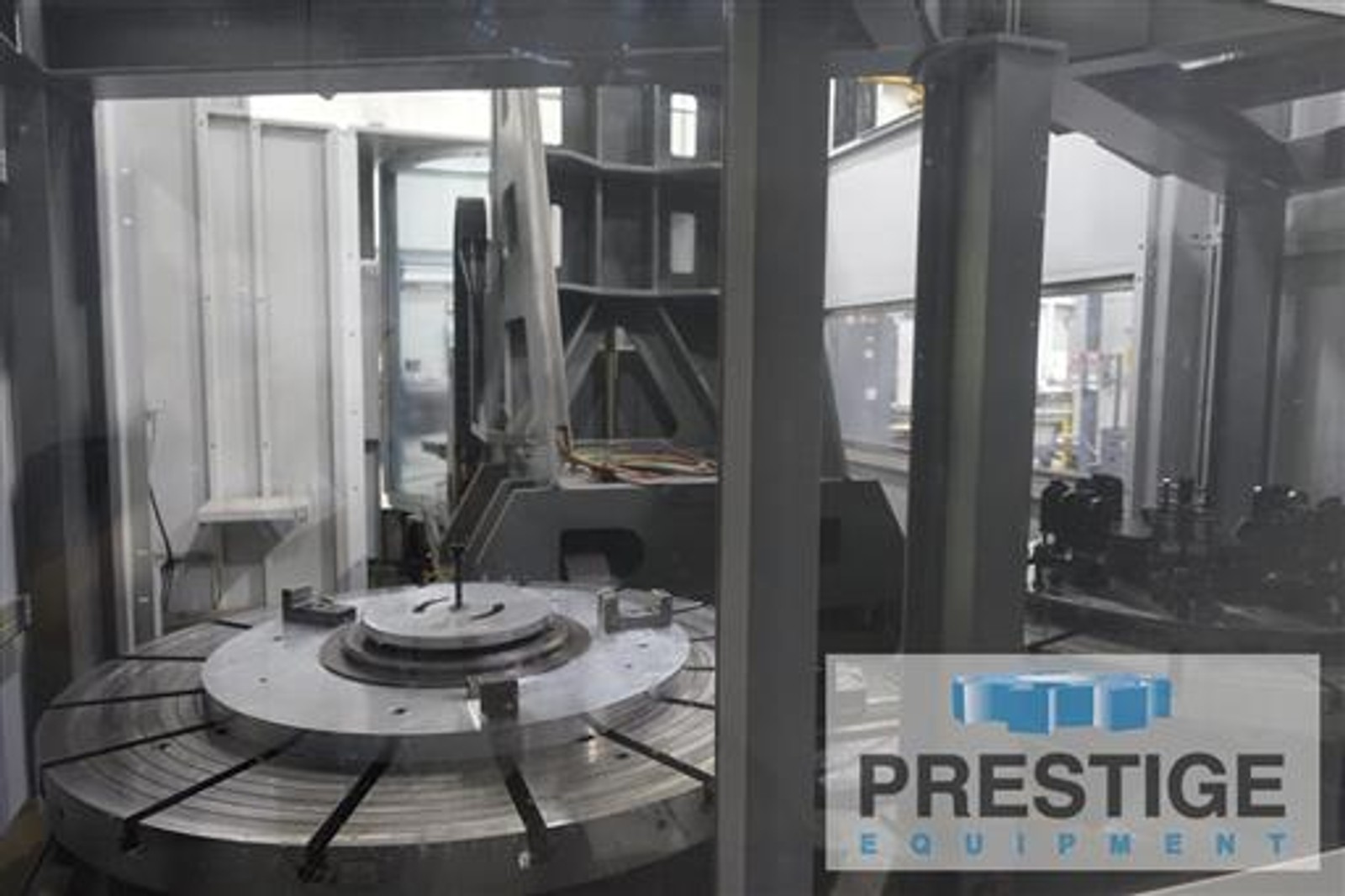

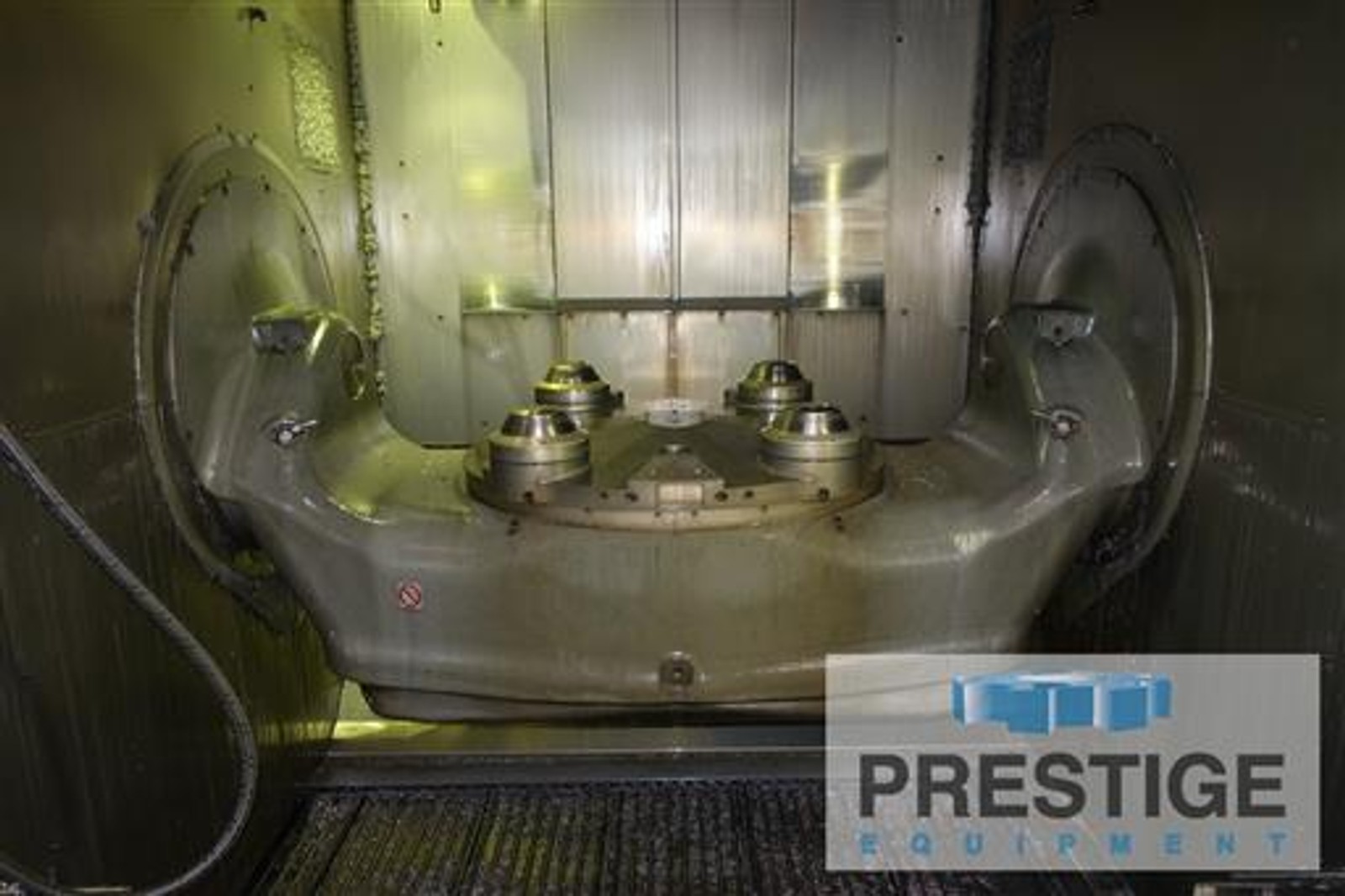

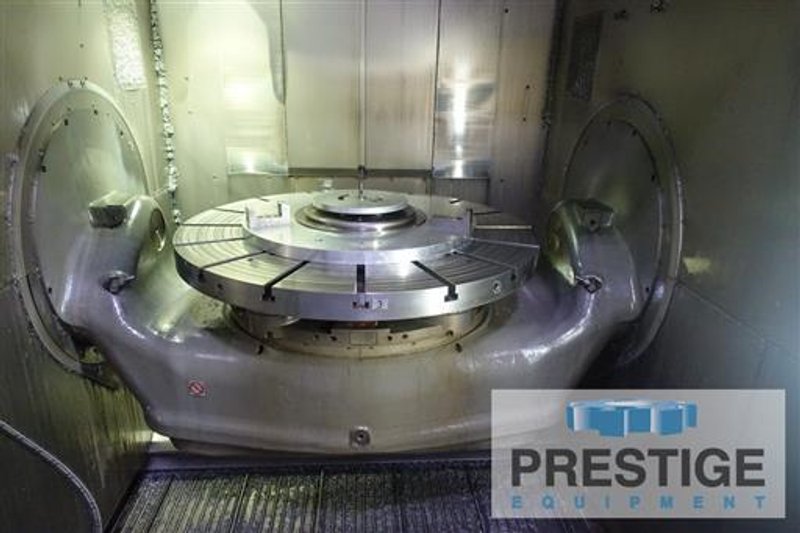

47.24" Full B-Axis Tilting & Contouring Rotary Table
High Pressure Thru Spindle Coolant System

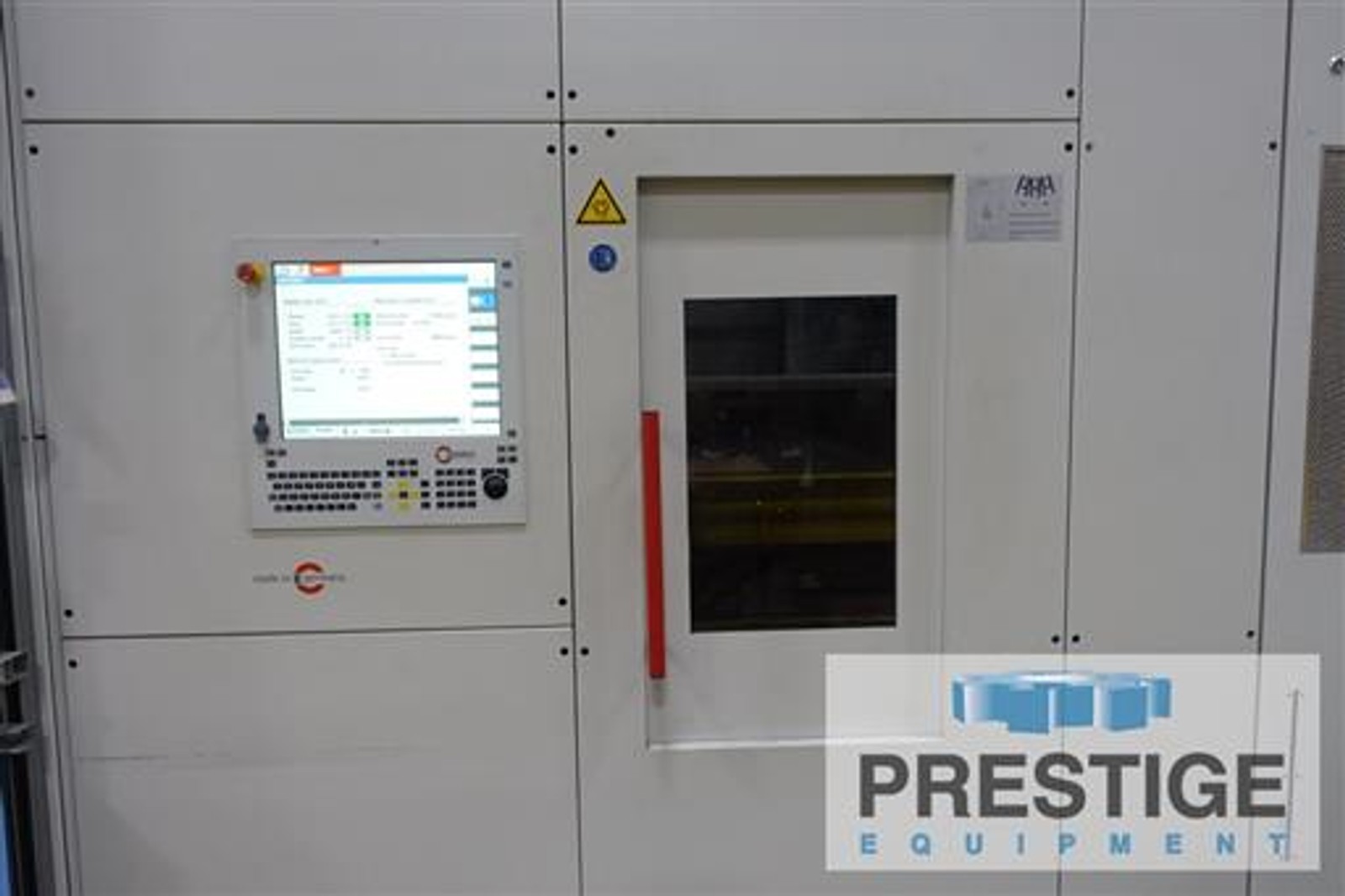

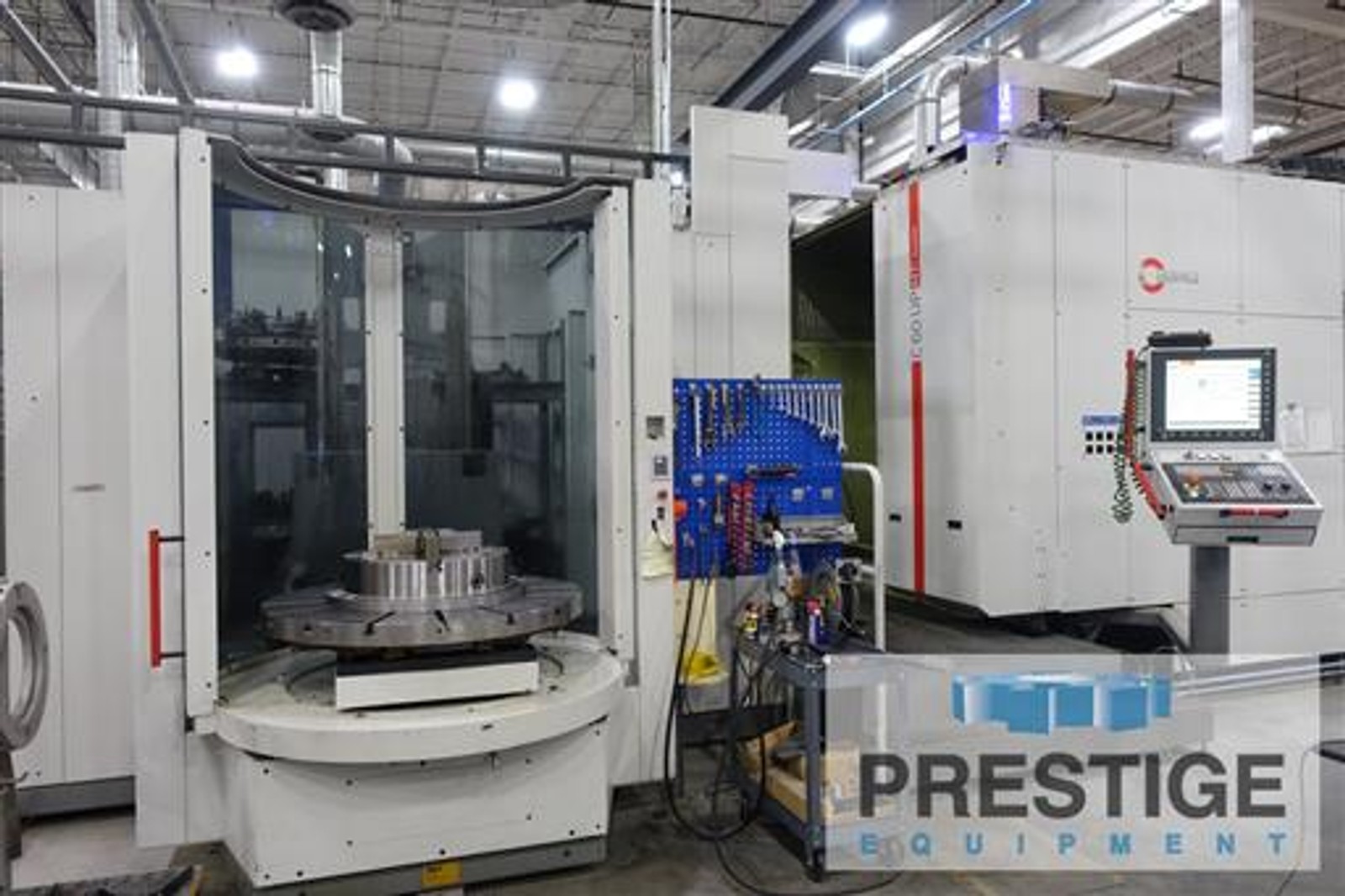

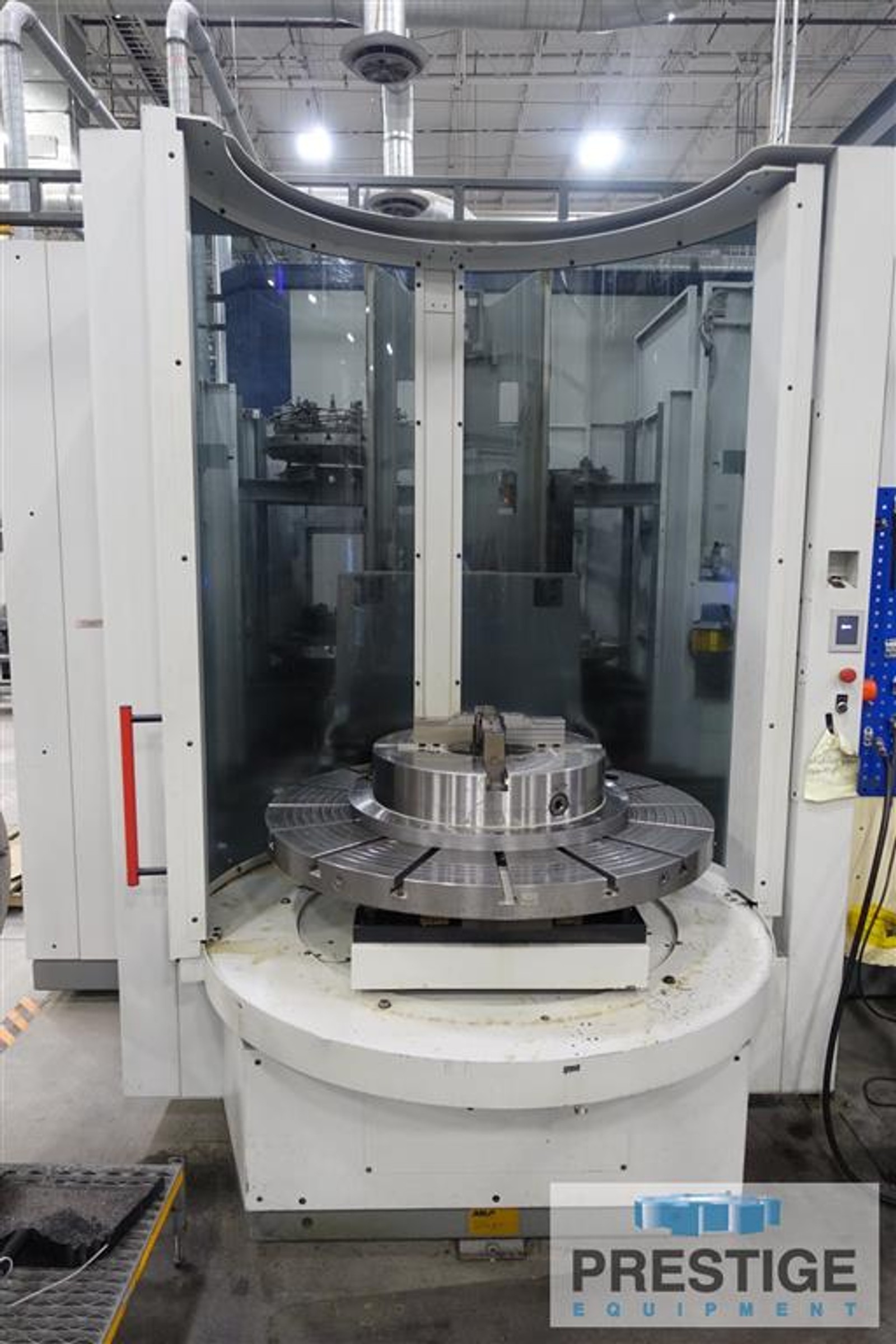

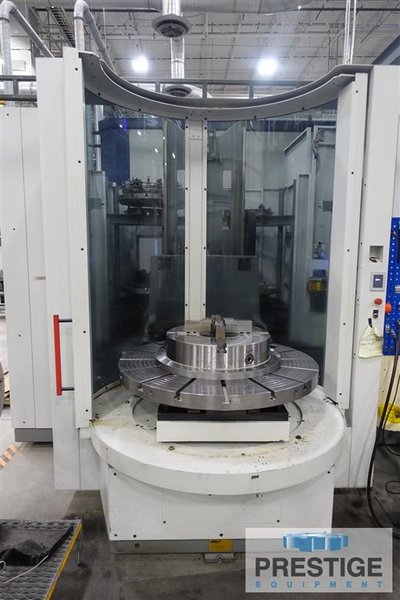

4-Station Integrated Pallet Loading System (PW 3000)

SPECIFICATION:
X-Axis Travel ......................... 47.24"
Y-Axis Travel ......................... 51.18"
Z-Axis Travel ......................... 35.43"
A-Axis, Table Tilt .................... +130/-130 Degree
B-axis, Table Rotation ................ .001 Degrees

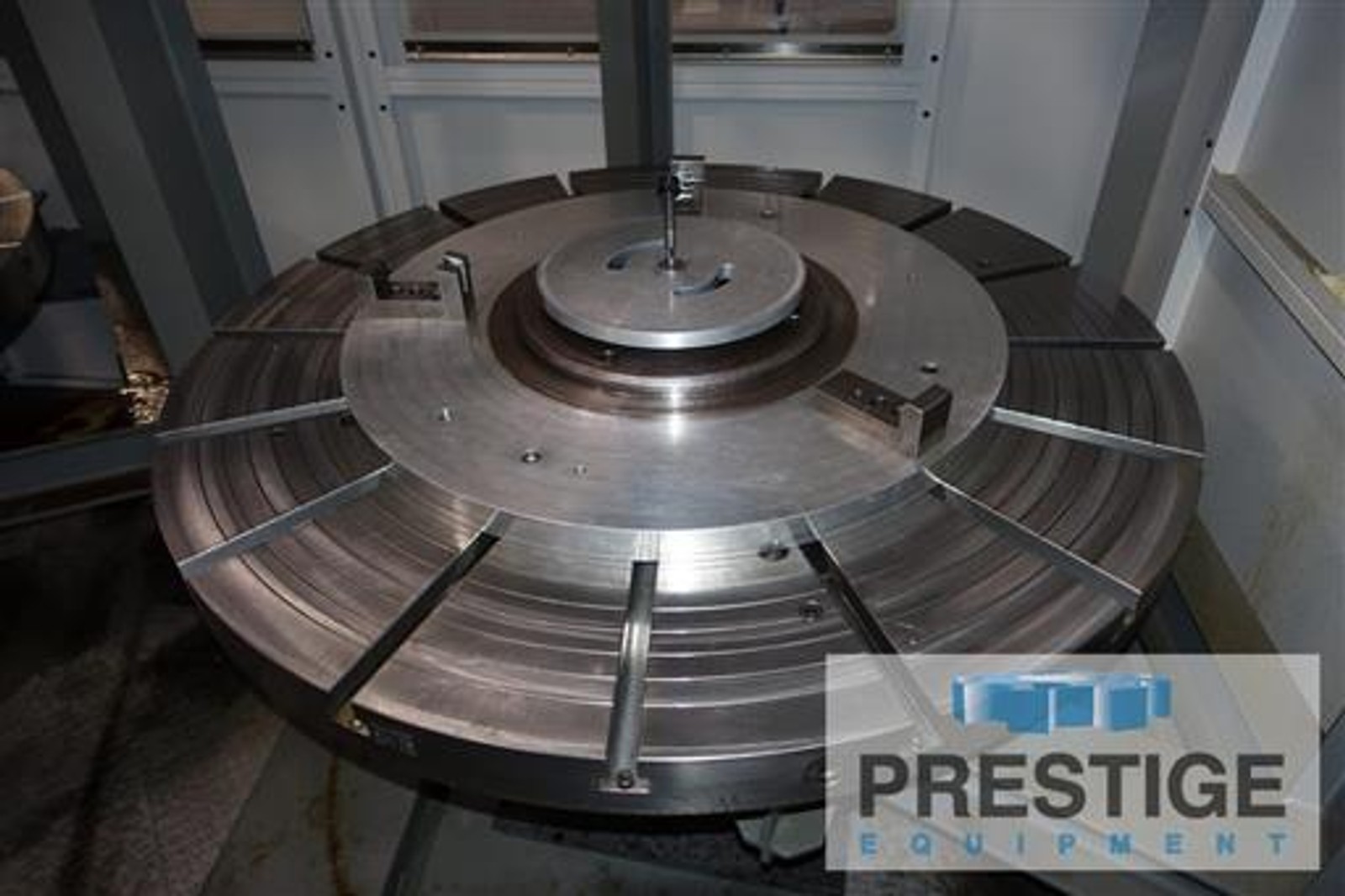

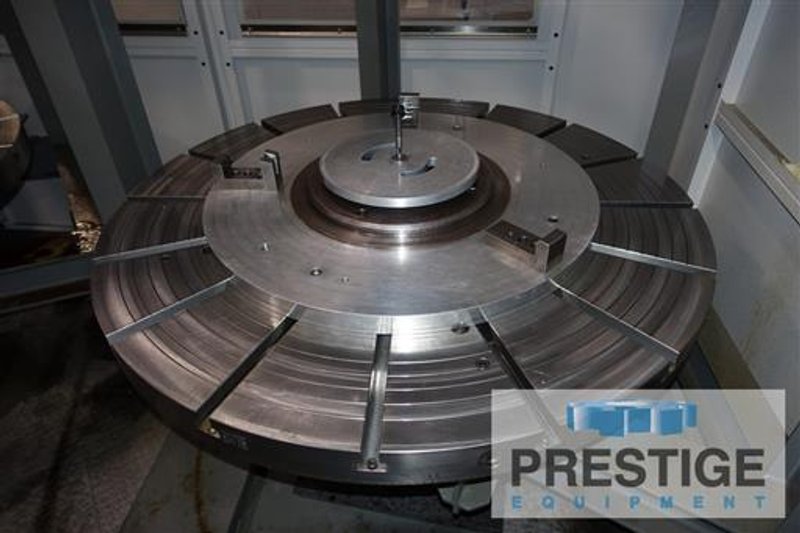

Table Diameter ........................ 47.24"
Table Speeds, Max .................... 400 RPM
Table Capacity ........................ 5,500 Lbs.
Table Motor .......................... 75 HP

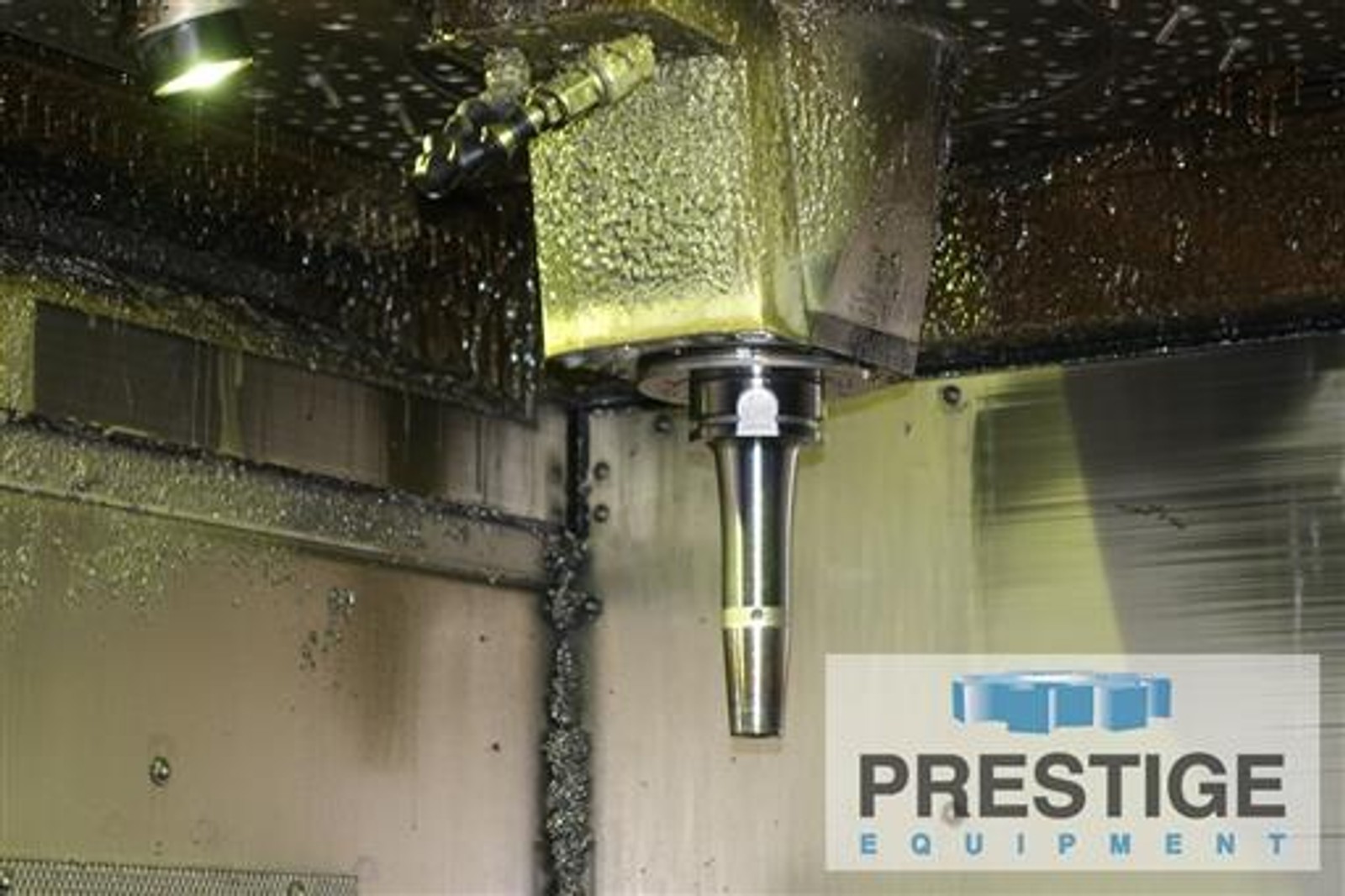

Milling Spindle Speed, Max ........... 18,000 RPM
Milling Spindle Motor ................. 46 HP
Milling Spindle Taper ................. HSK-T63
Automatic Tool Changer ................ 70-Station
Rapid Traverses ....................... 1980 IPM

EQUIPPED WITH:
Siemens 840D sl 5-Axis CNC Control
47.24" Full 5-Axis Tilting & Contouring Rotary Table
Renishaw Spindle Probe
Blum Tool Probe

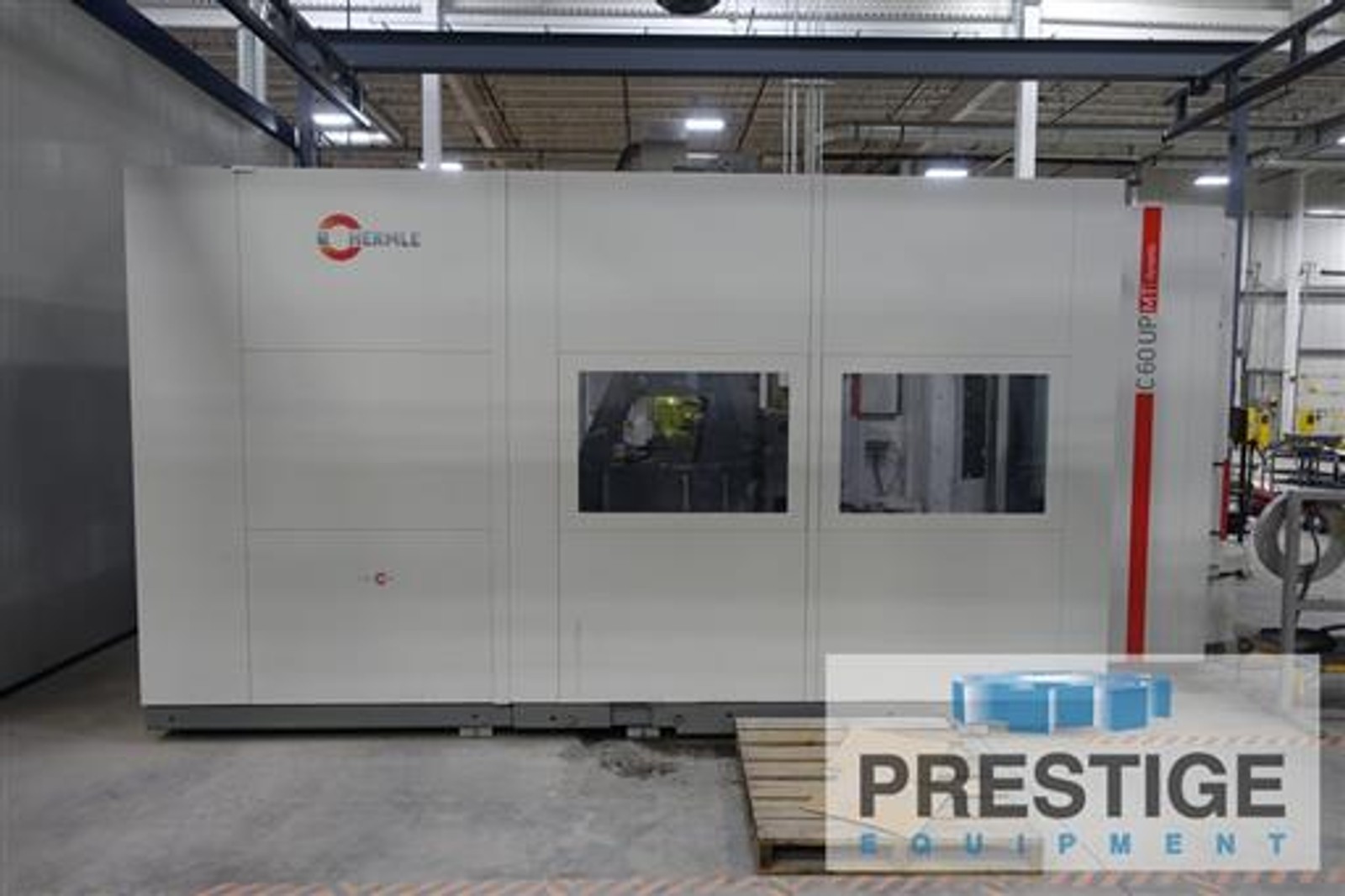

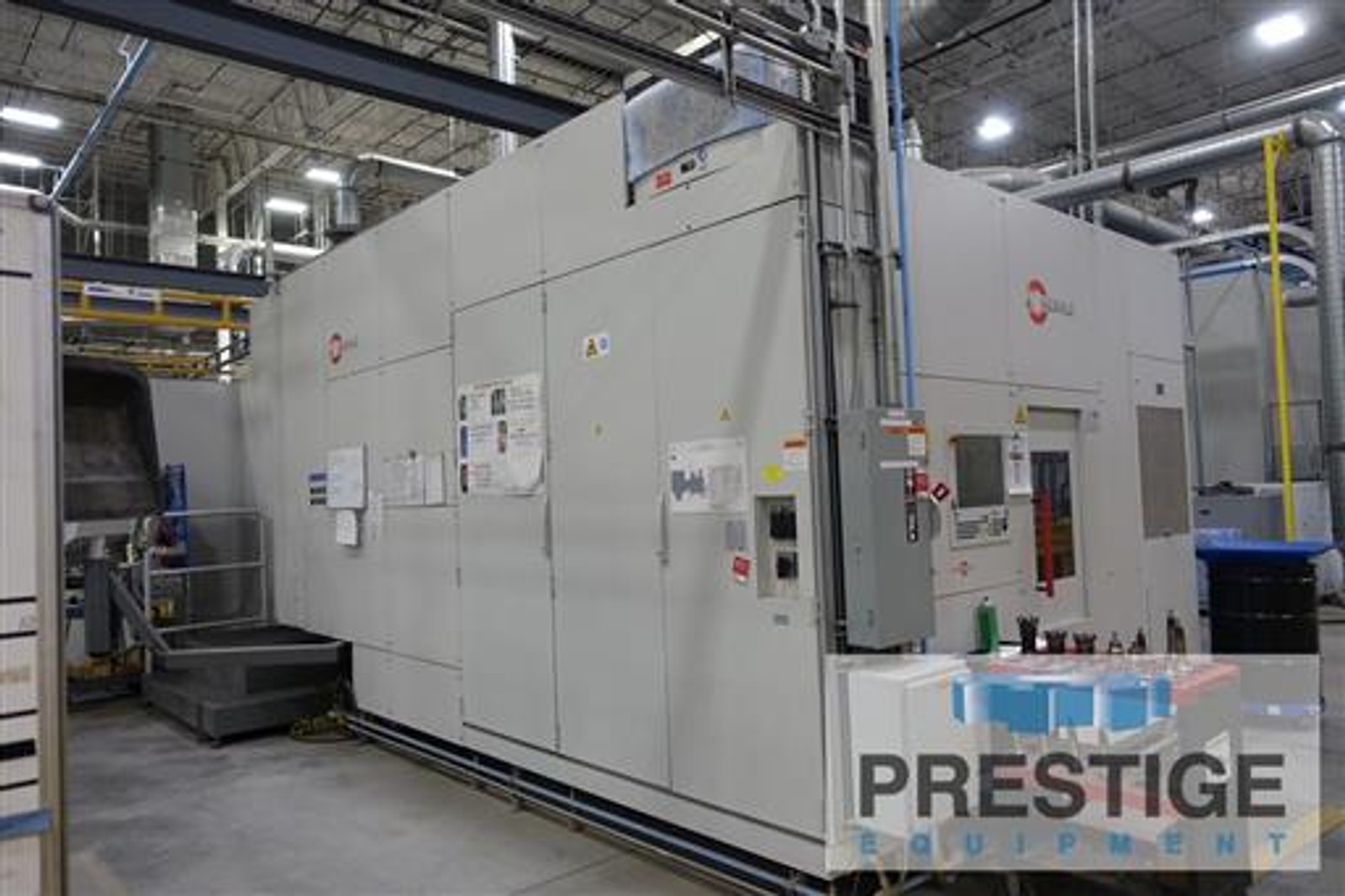

Full Enclosure

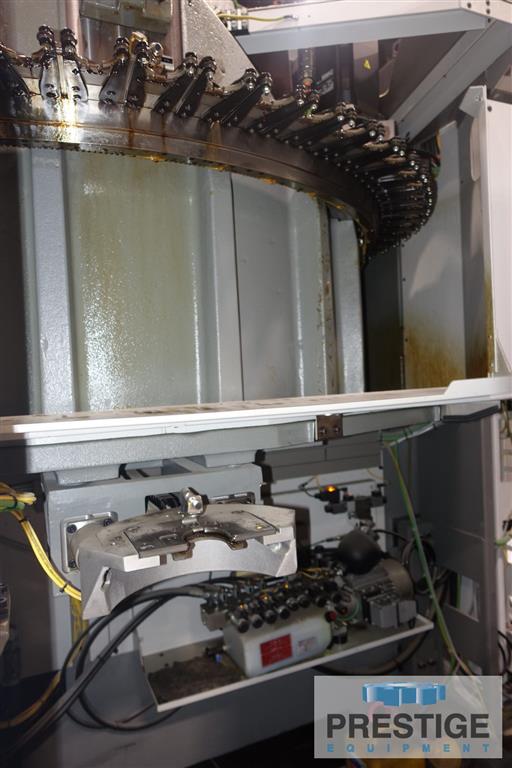

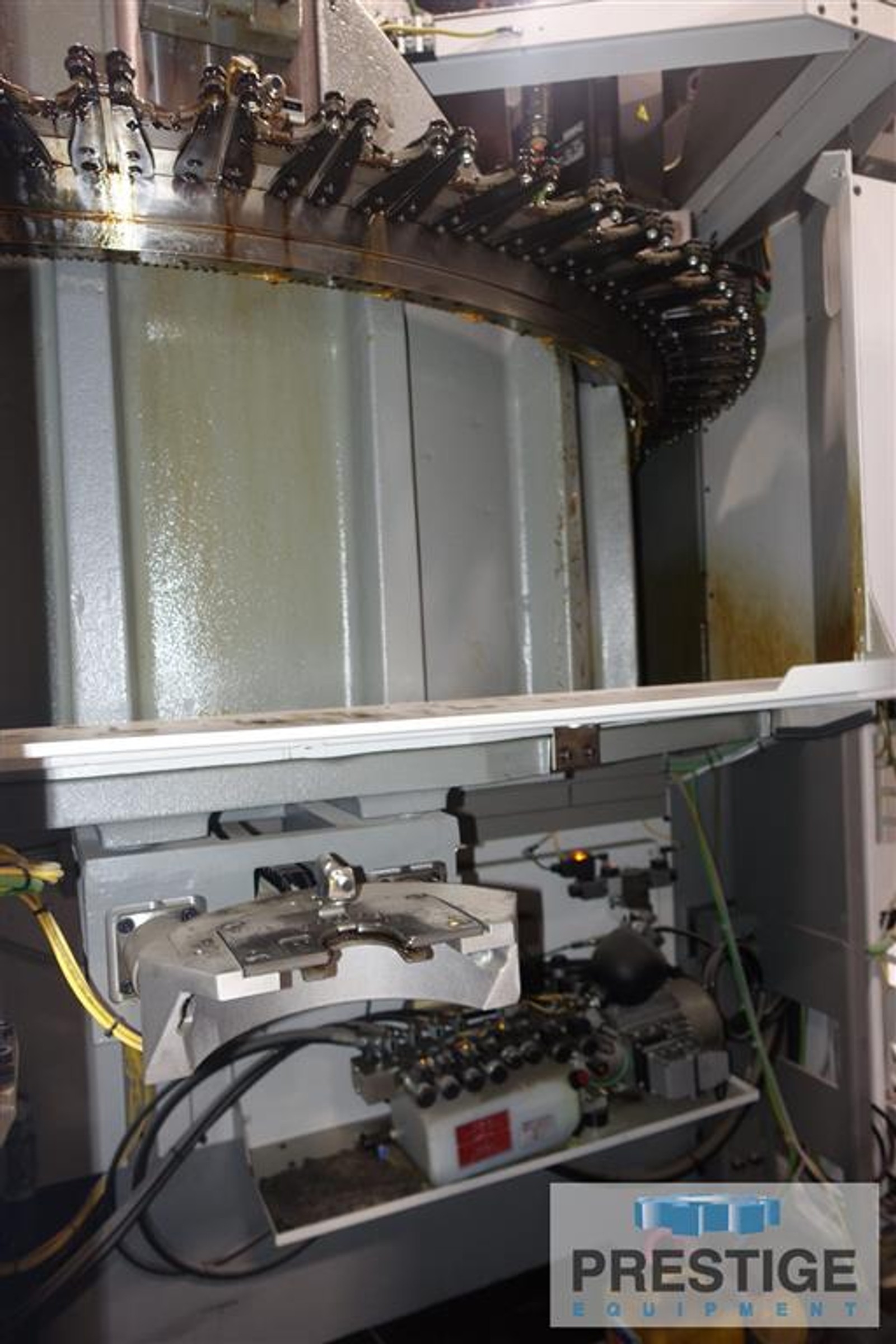

70-Station Automatic Tool Changer
4-Position Integrated Pallet Loading System (PW 3000)

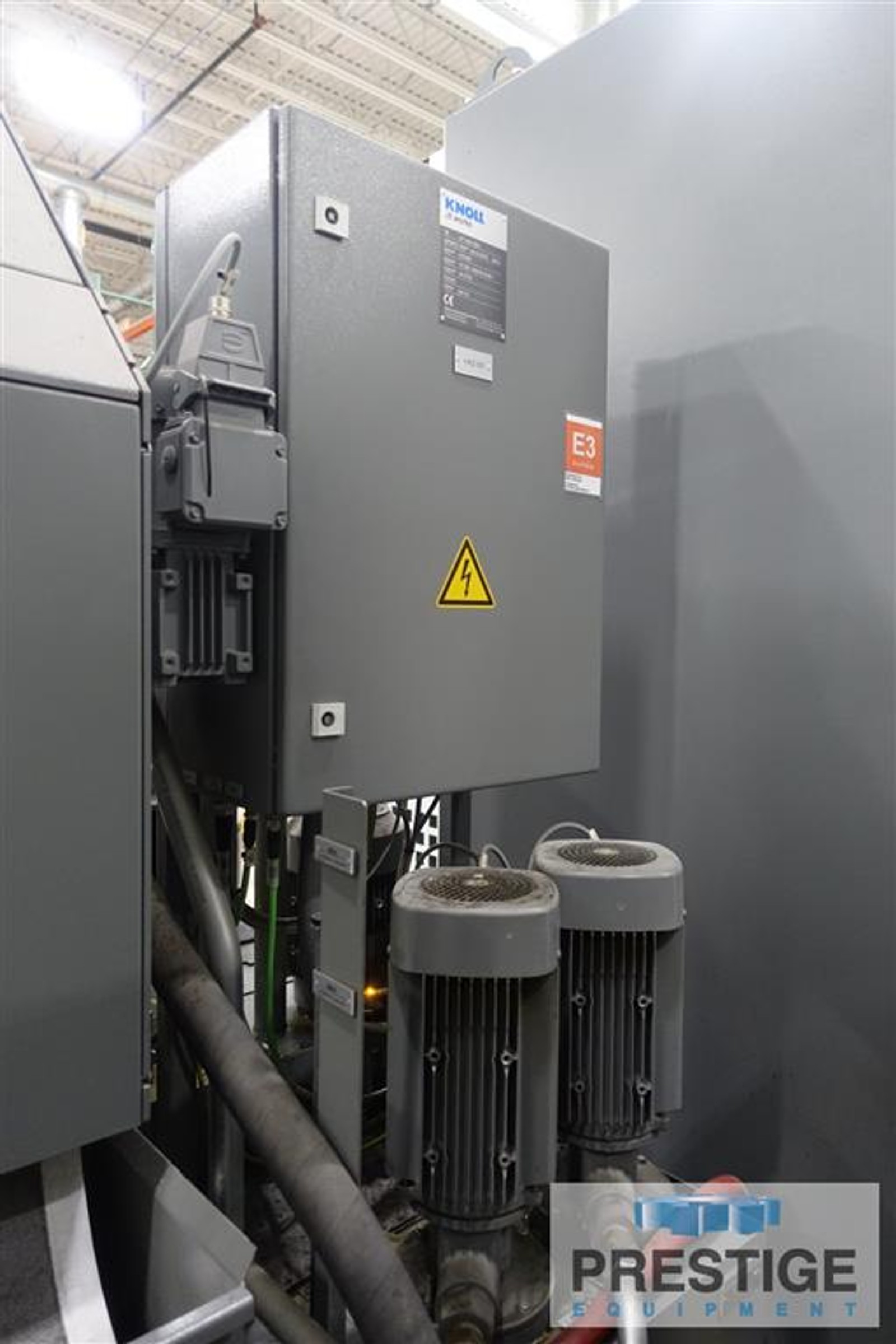

High Pressure Thru Spindle Coolant System: 80 Bar/1000 PSI
Kinematic Opt Software

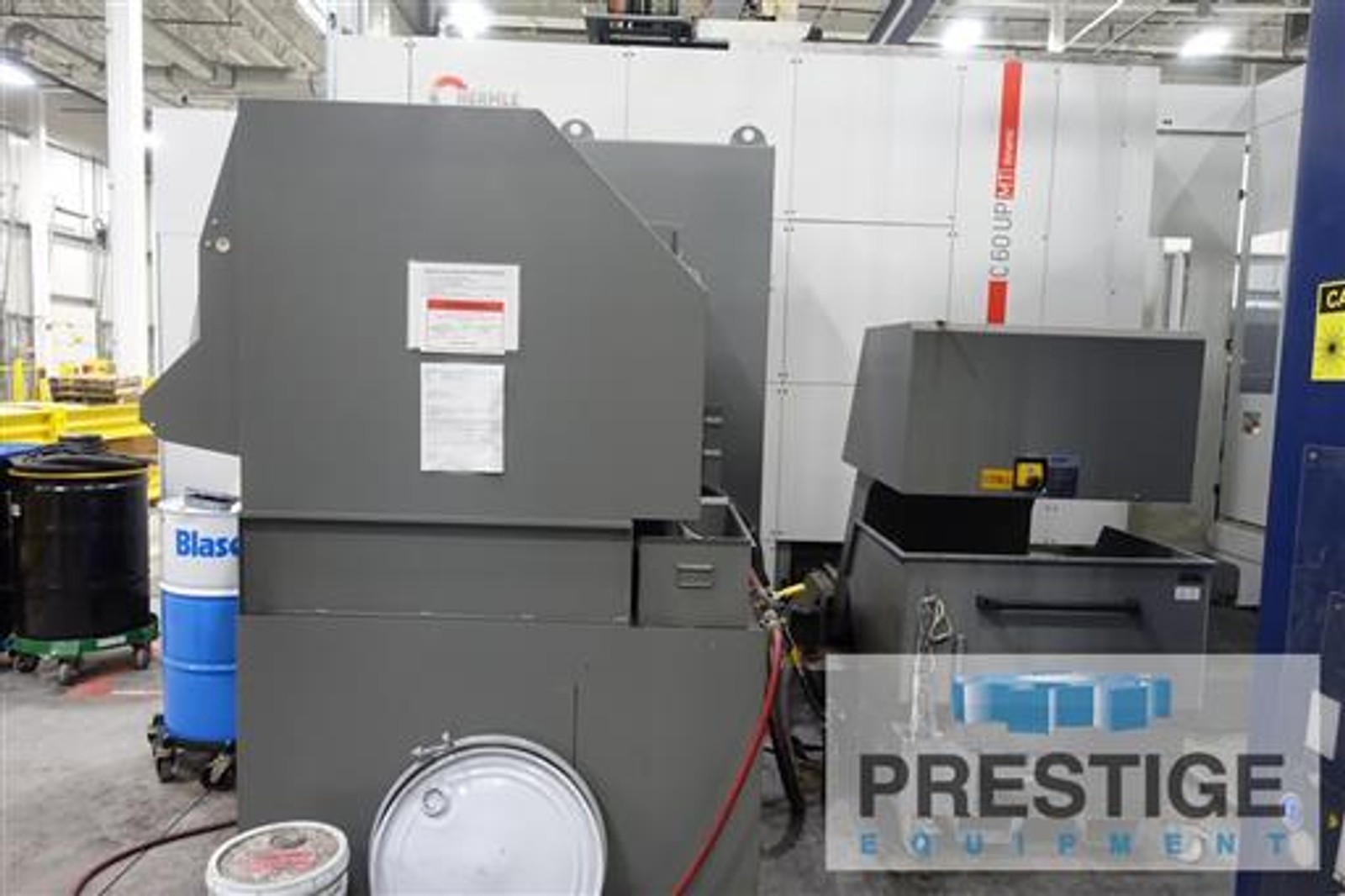

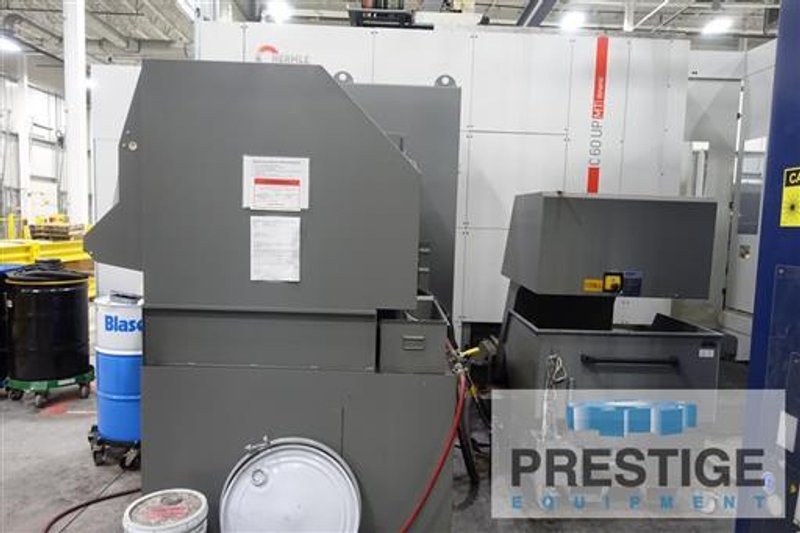

Paper Filtration System
Camfil Mist Filter System
Chip Conveyor
