HNK VTC-16/20, 63" Tbl, 78" Swing, 63" U.R, 9.4" x 9.4" Ram, 12-ATC, 10 Ton Tbl Load, Fanuc 31iA CNC, 2008, #43594

Manufacturer

HNK

Category

Boring Mills

Type

BORING MILLS, VERTICAL, CNC

Stock

43594

Model

VTC-16/20

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43594

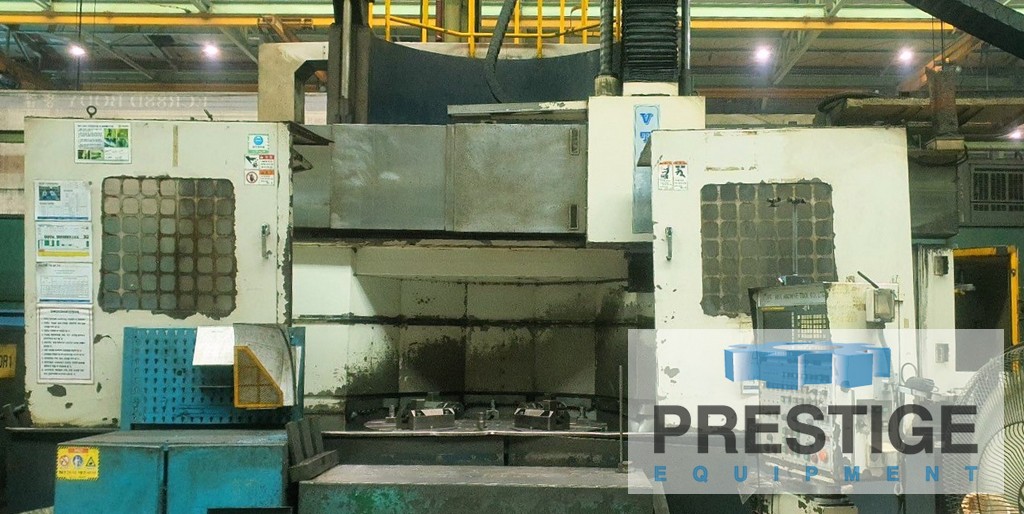

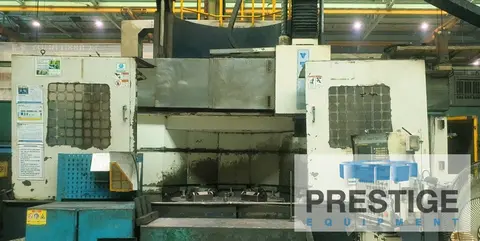

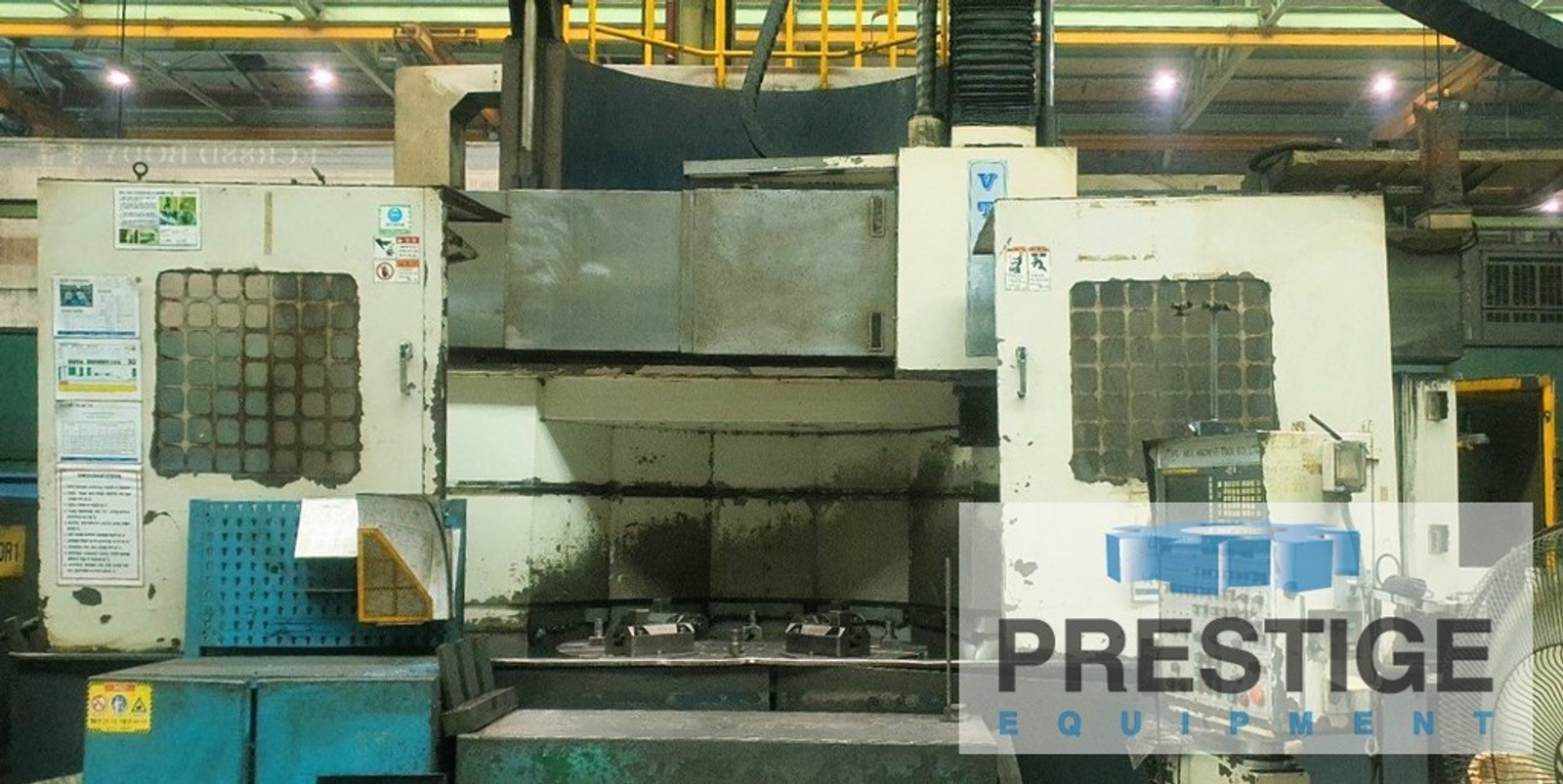

63" HNK VTC-16/20 CNC Vertical Turning & Milling Center

FEATURES:
Fanuc 31iA CNC Control
12-Station Automatic Tool Changer
Milling Spindle
Linear Scales on X/Z Axes

CAPACITY:
Table Diameter ....................... 62.99"
Maximum Swing ........................ 78.74"
Maximum Turning Height ............... 62.99"
Table Speeds ......................... 1-250 RPM
Table Load Capacity .................. 22,046 LBS
Vertical Ram Travel, Z-Axis .......... 35.4"
Ram Cross Section .................... 9.4" x 9.4"
Milling Spindle Speed ................. 1,500 RPM
Table Motor ........................... 60 HP

EQUIPPED WITH:
Fanuc 31iA CNC Control
12-Station Automatic Tool Changer
Milling Spindle
Linear Scales on X/Z Axes

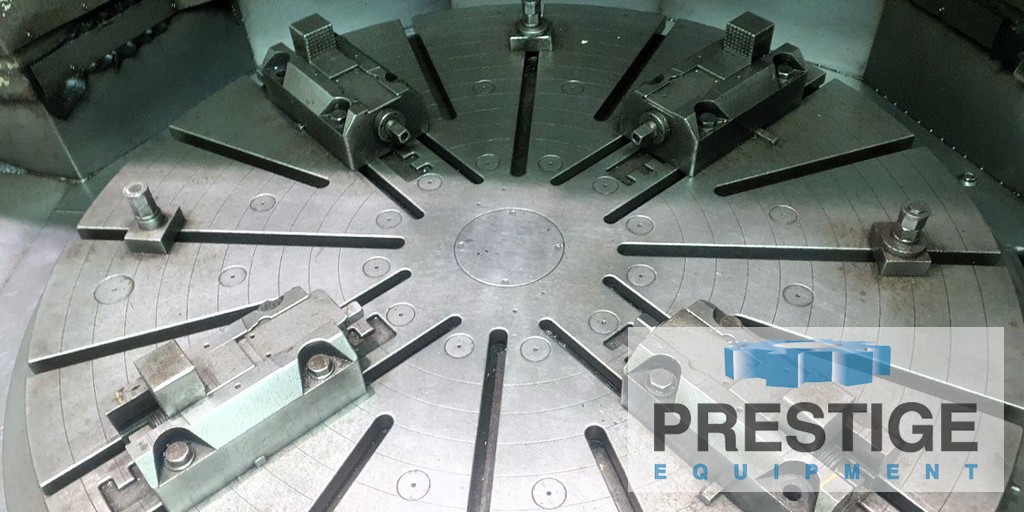

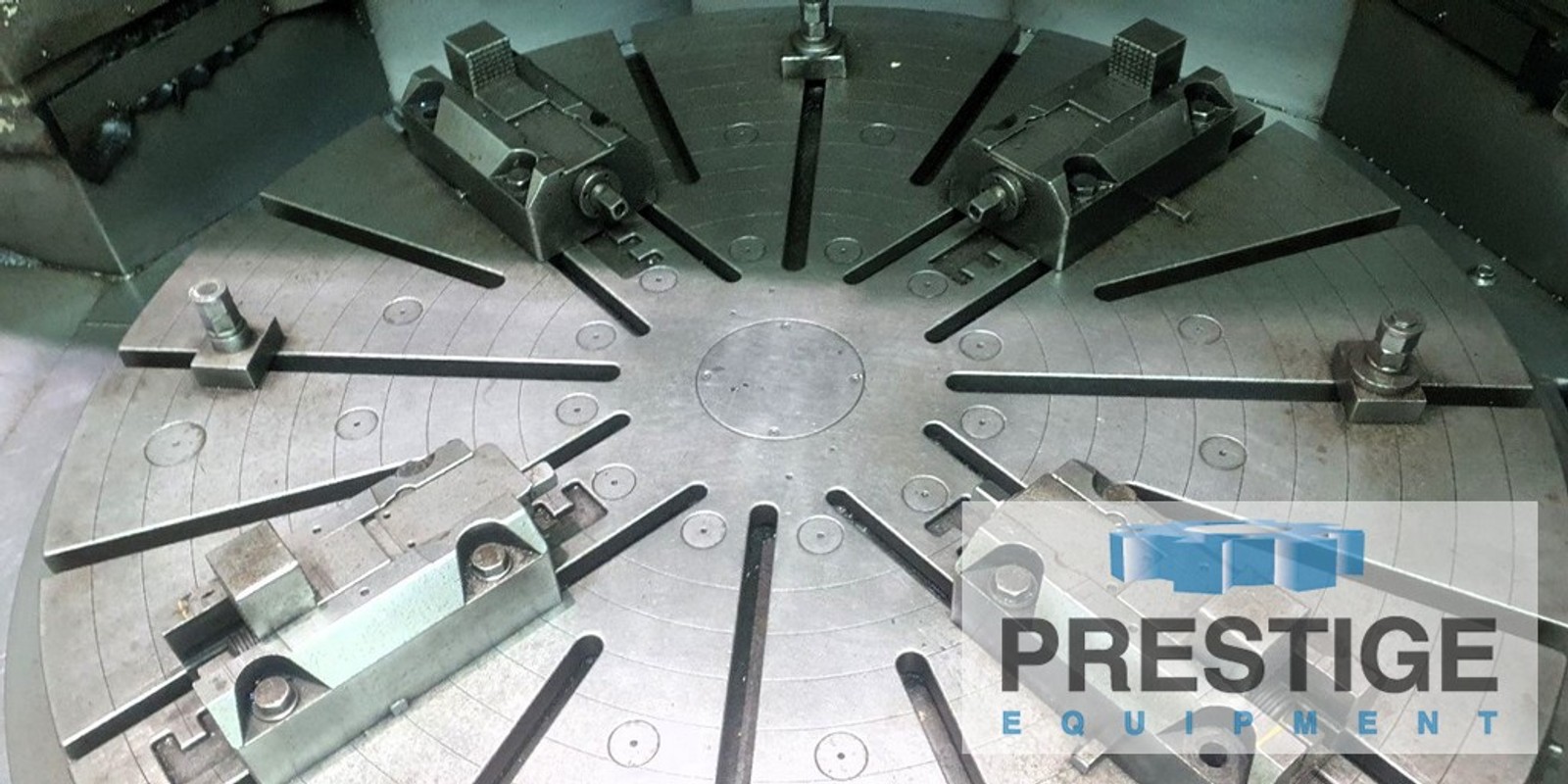

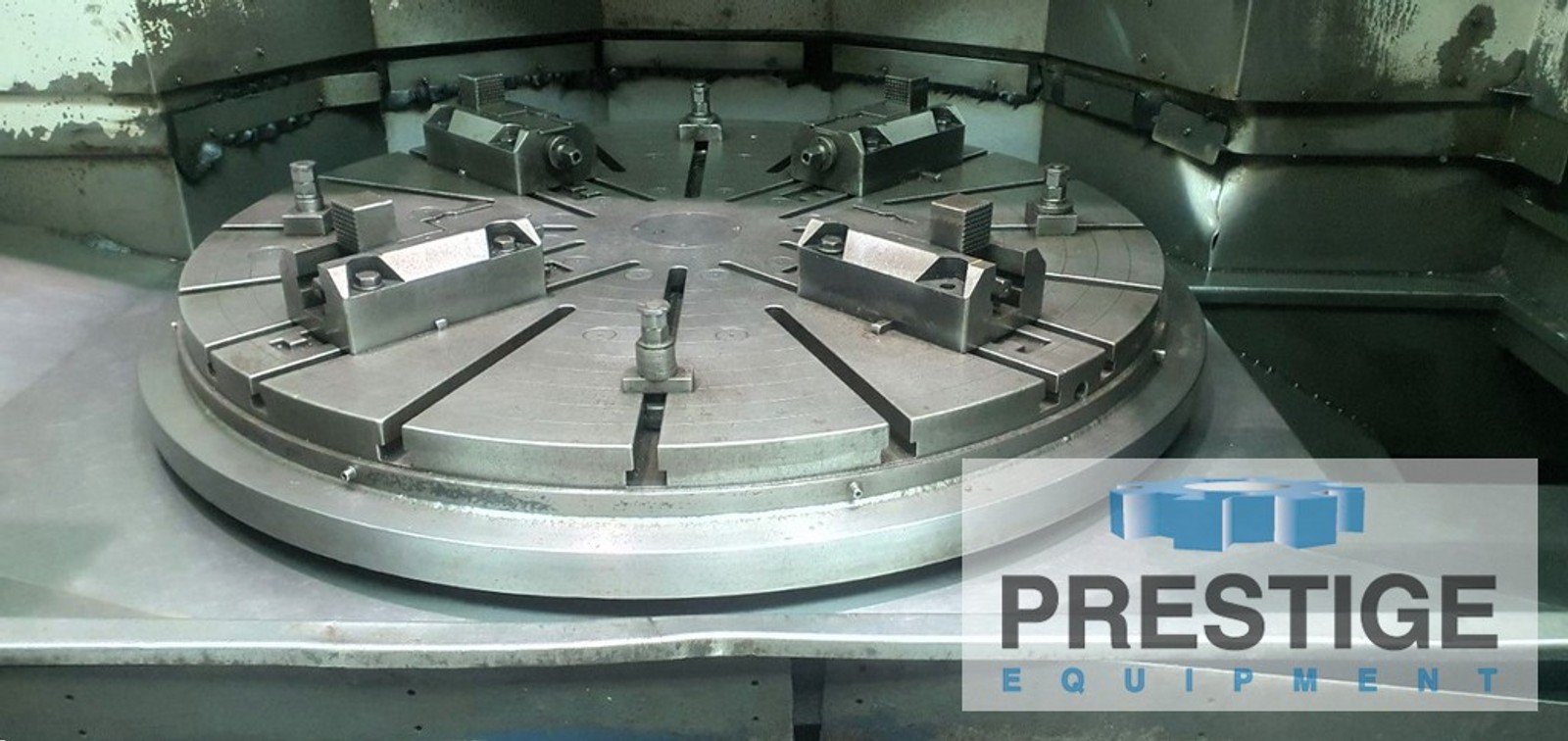

62.99" Face Plate Chuck W/4-Jaws
Coolant System
Full Chip and Splash Enclosure
Chip Conveyor
60 HP Main Motor
