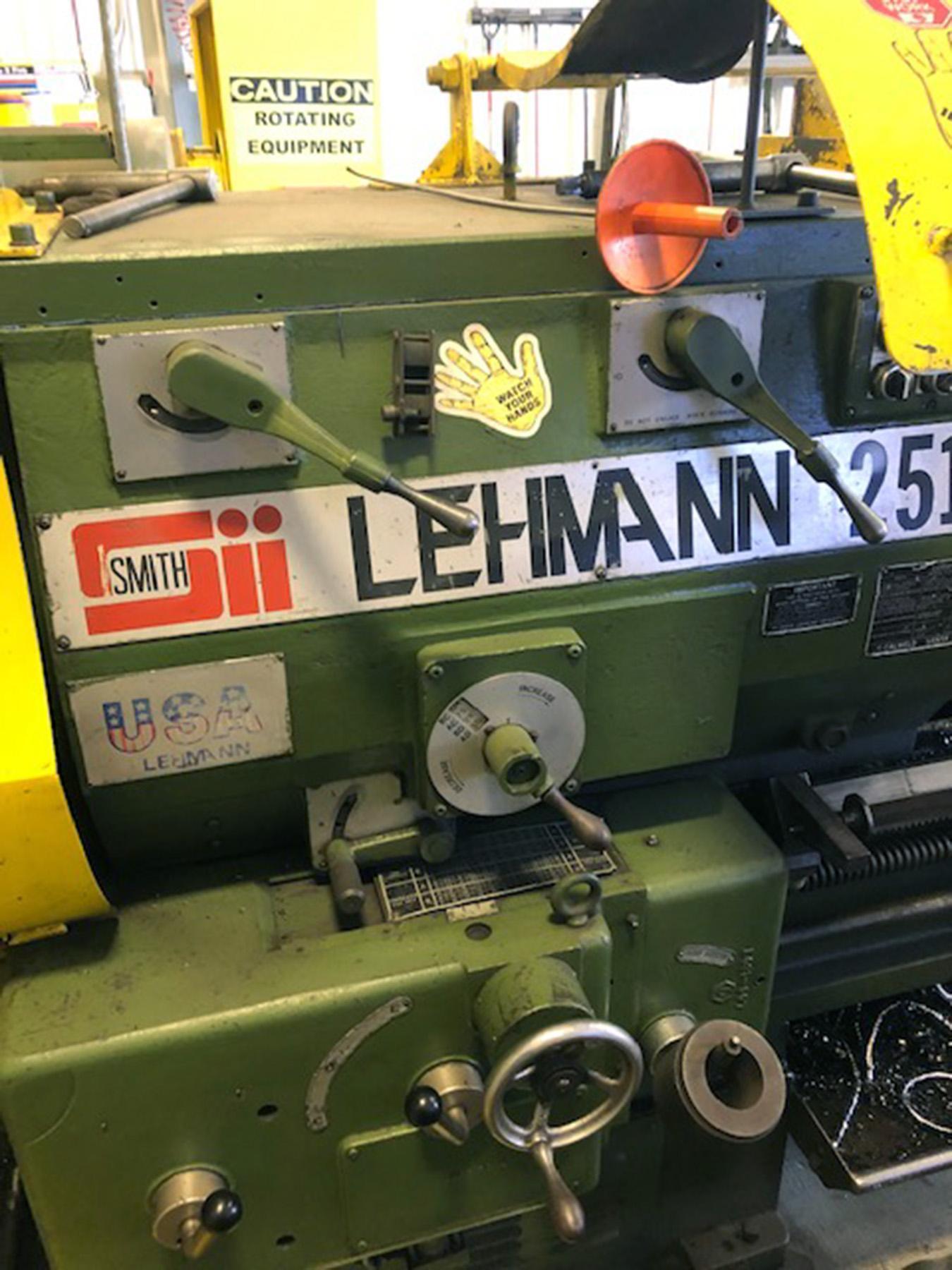

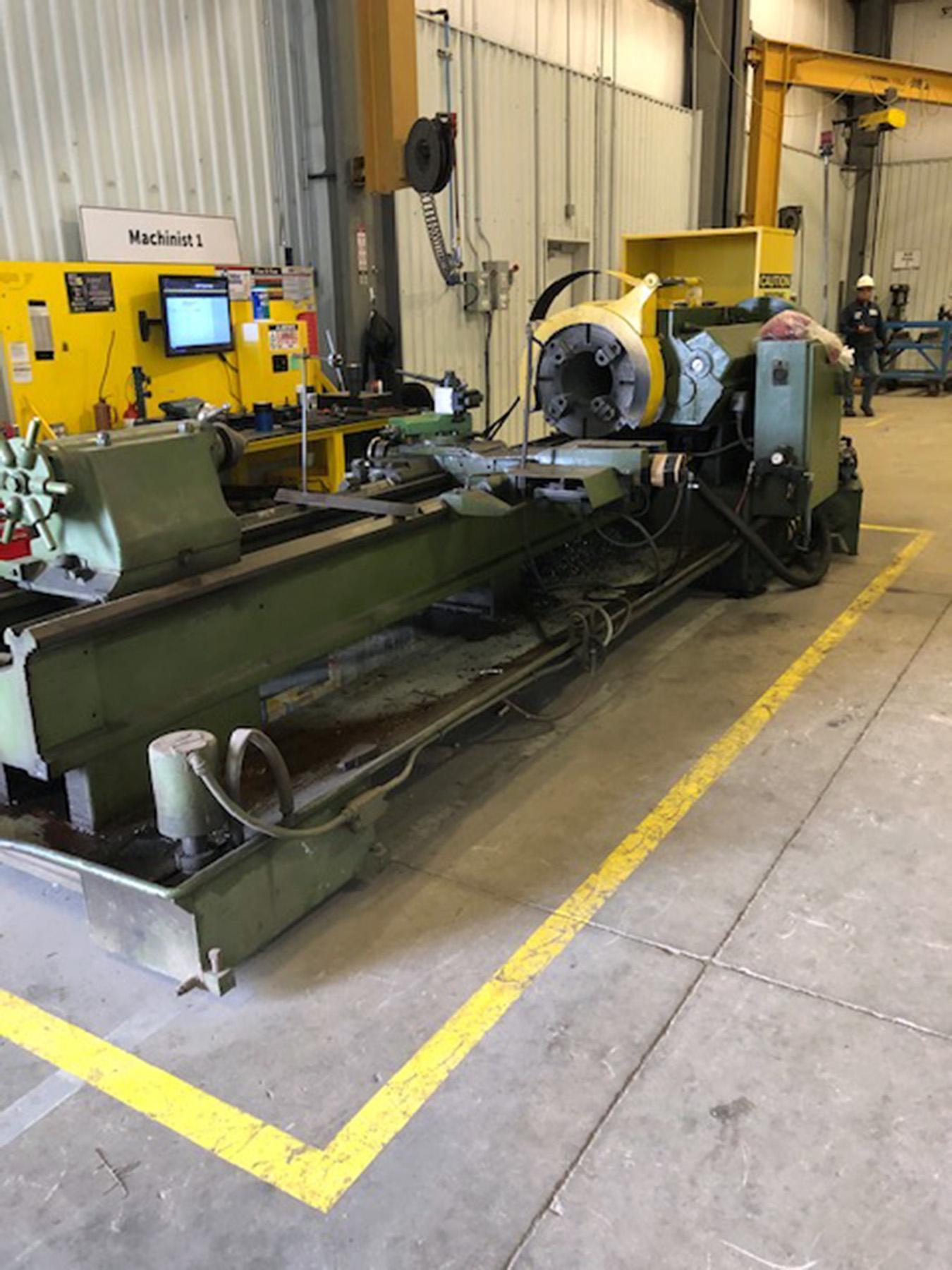

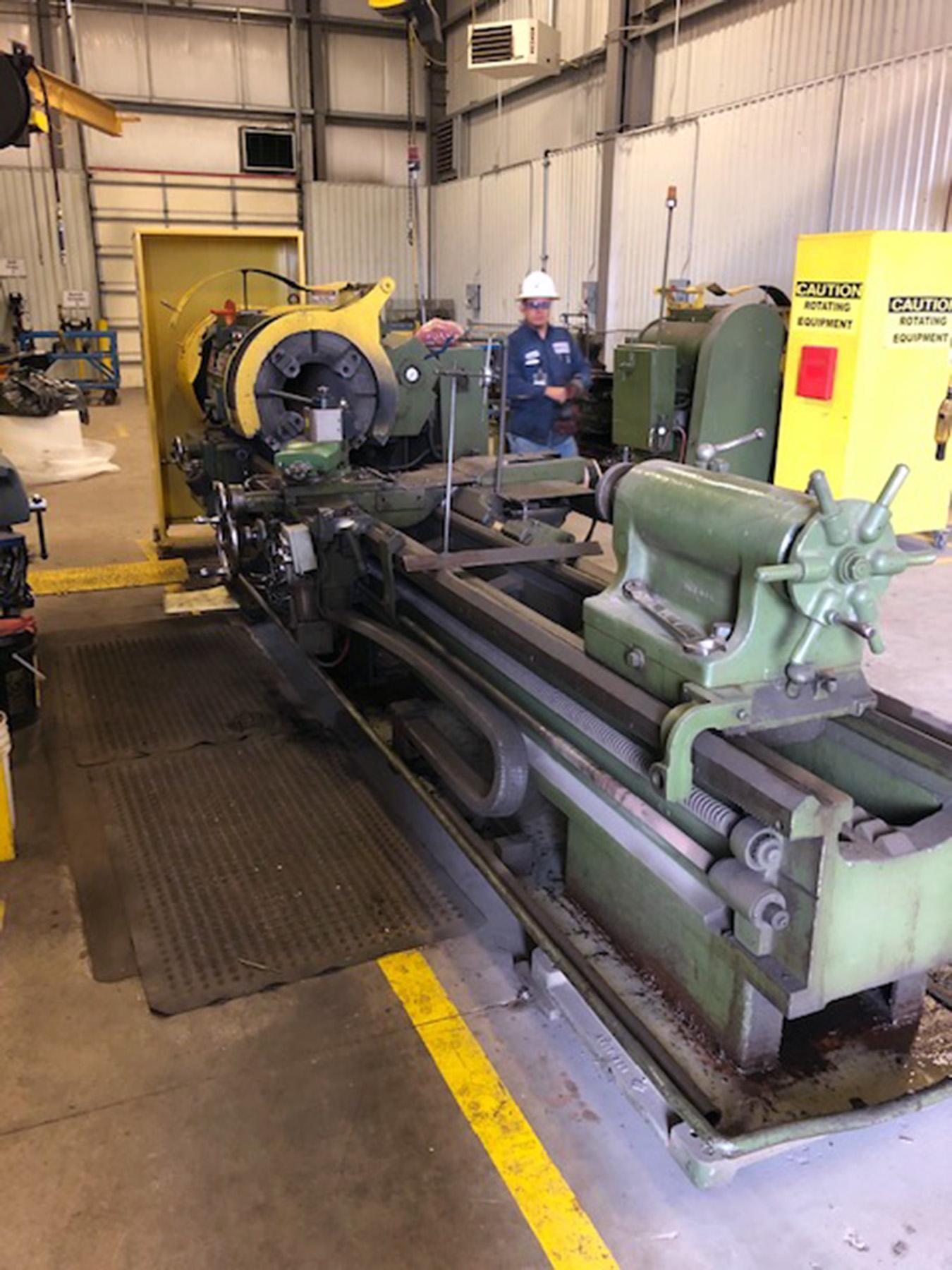

Lehmann 27" x 120" Oil Field and Hollow Spindle Lathe Model 2516

Stock

20399

Model

2516

Dealer Location

Texas

Spec Sheet

Swing - 27.5 inches
Centers - 120 inches
Spindle Bore - 12 inches
Power - 30 horsepower
RPM - 793
CNC Control - yes
Weight - 14000 pounds


SWING OVER BED: 27.5"
SWING OVER CARRIAGE: 18.5"
DISTANCE BETWEEN CENTERS: 120"
SPINDLE SPEED RANGES: 16
SPINDLE SPEEDS: 10 - 397 RPM
SPINDLE MOTOR: 30 HP
SPINDLE BORE: 12"
FEED RATES: (54) 0.005 - 0.326 IPR
THREADING: (54) 36 - 5/8 TPI
TAILSTOCK SPINDLE DIAMETER: 4-7/8"
TAILSTOCK SPINDLE TAPER: MT5
TAILSTOCK SPINDLE TRAVEL: 12"
COOLANT PUMP: 1/4 HP
OAD (APPROXIMATE): 228" X 71" X 62" HIGH
EQUIPPED WITH:
AUTOMATIC THREADING
4-JAW FRONT AND REAR CHUCKS WITH 12" HOLE
TOOL POST
TAILSTOCK
TAPER ATTACHMENT
COOLANT

NOTE:  BEDWAYS ARE LIKE NEW!!  APRON REBUILT!!
