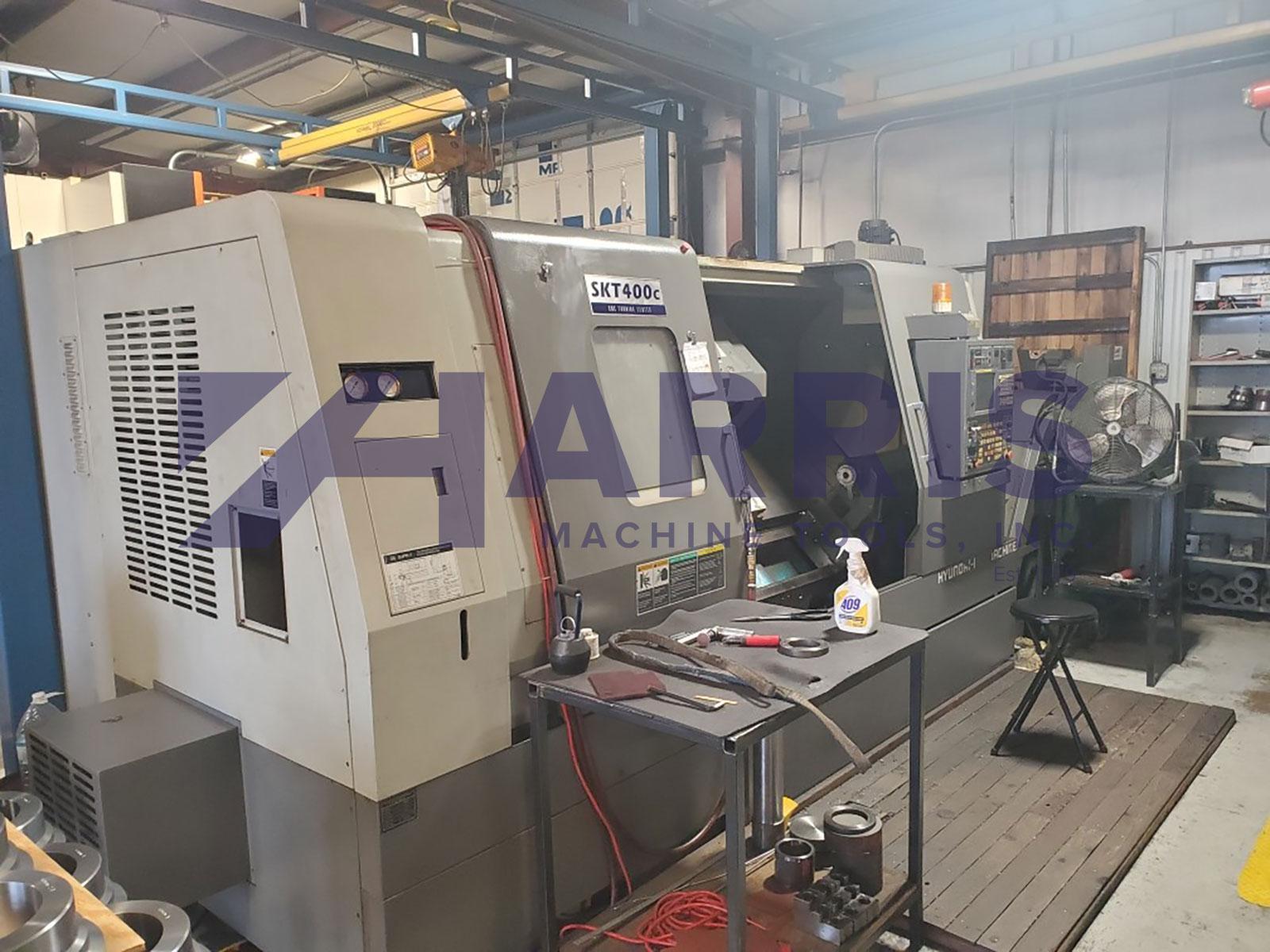

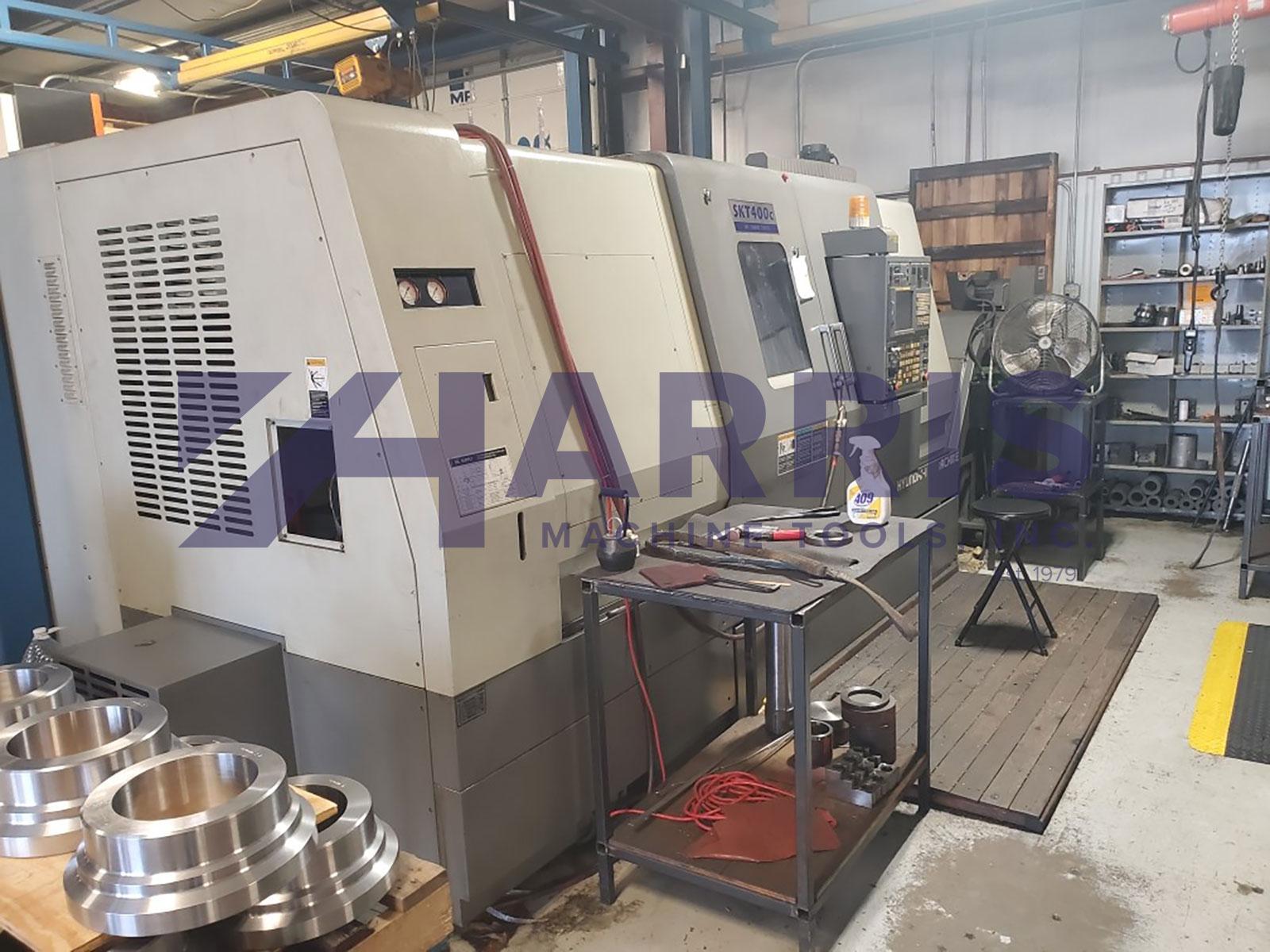

2011 Hyundai Kia SKT 400C

Manufacturer

HYUNDAI KIA

Category

Lathes

Stock

20394

Model

SKT 400C

Dealer Location

Texas

Spec Sheet



Chuck Size15″
Machine Dimensions (L x W x H)158.2″ x 84.9″ x 86.7″
Machine Weight18,739 LBS
Max Diameter Bar Capacity4.6″
Max Swing Over Bed30.7″
Max Turning Length47.2″
Rapid Traverse Rate (X / Z)787 / 984 IPM
Spindle Bore5.12″Spindle Motor 35 / 30 HP
Spindle NoseA2-11Spindle Speed 2000 RPM
Tailstock Quill Diameter 3.9″
Tailstock Quill Travel5.12″
Tailstock TaperMT#4
Tailstock Travel43.3″Tools10

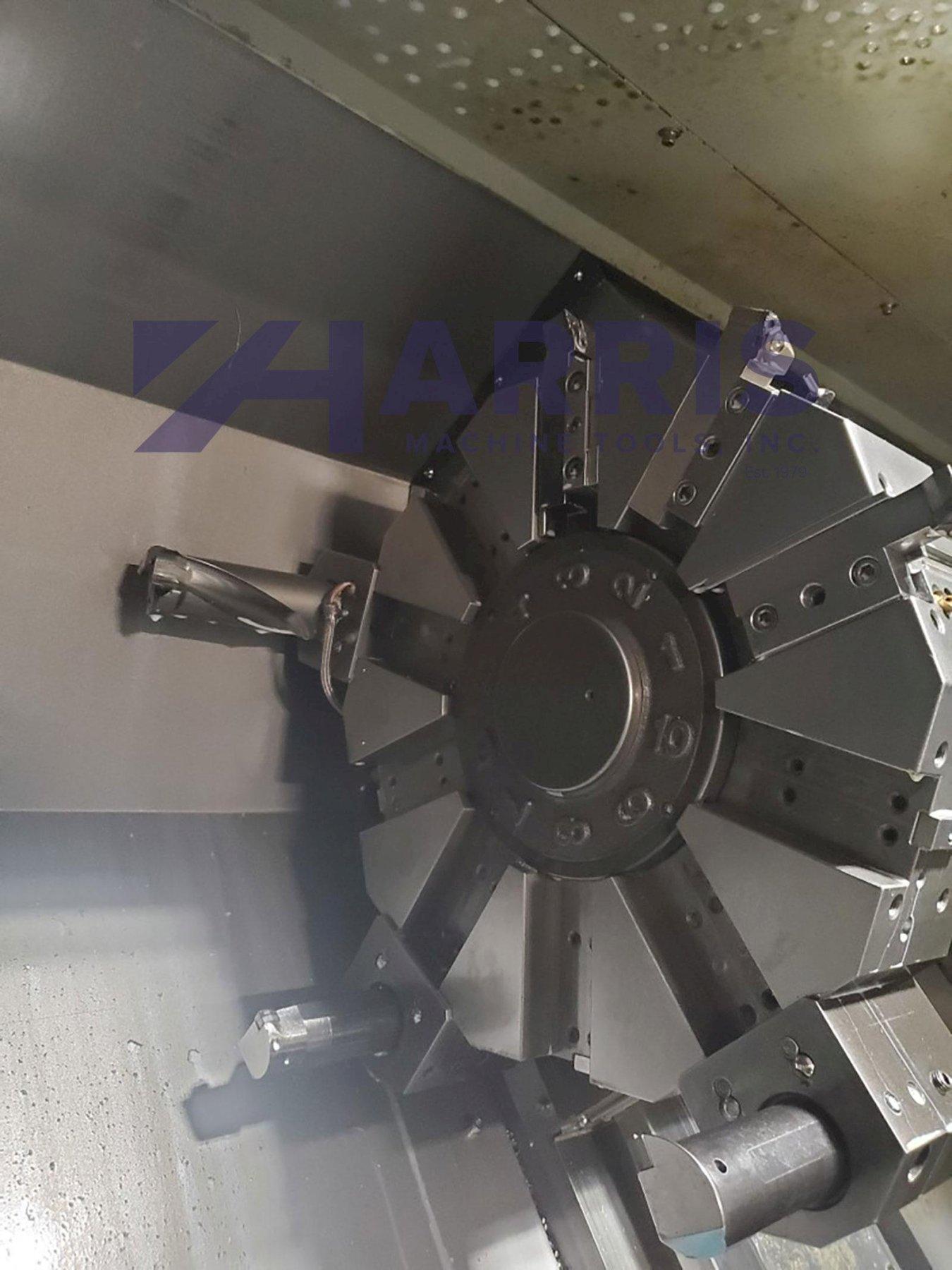

Turret Index (Single Step)0.2 Seconds
X-Axis Travel 12.6″
Z-Axis Travel 47.2″
Features:

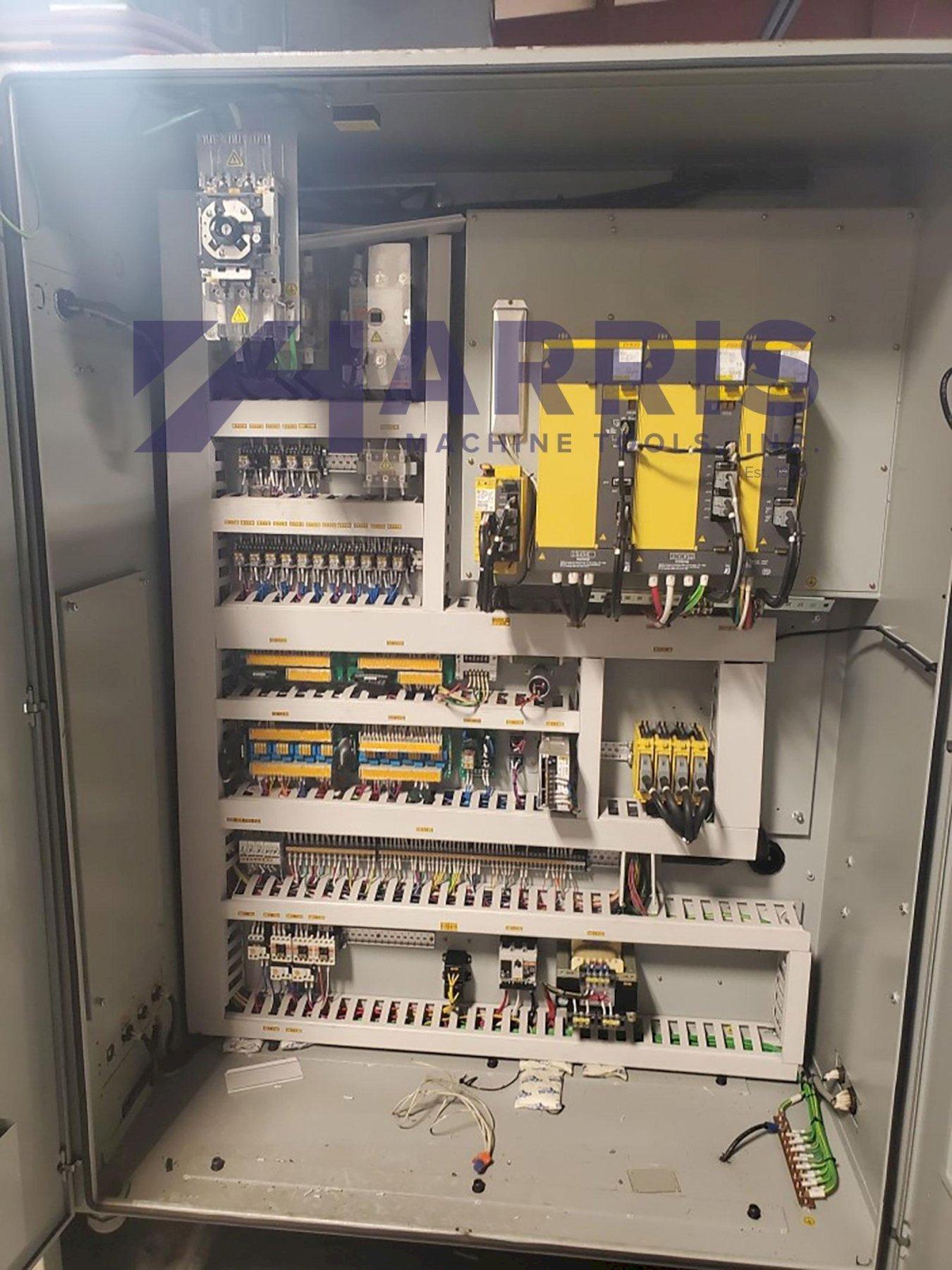

FANUC 21i-TB CNC CONTROL
10.4″ Color LCD

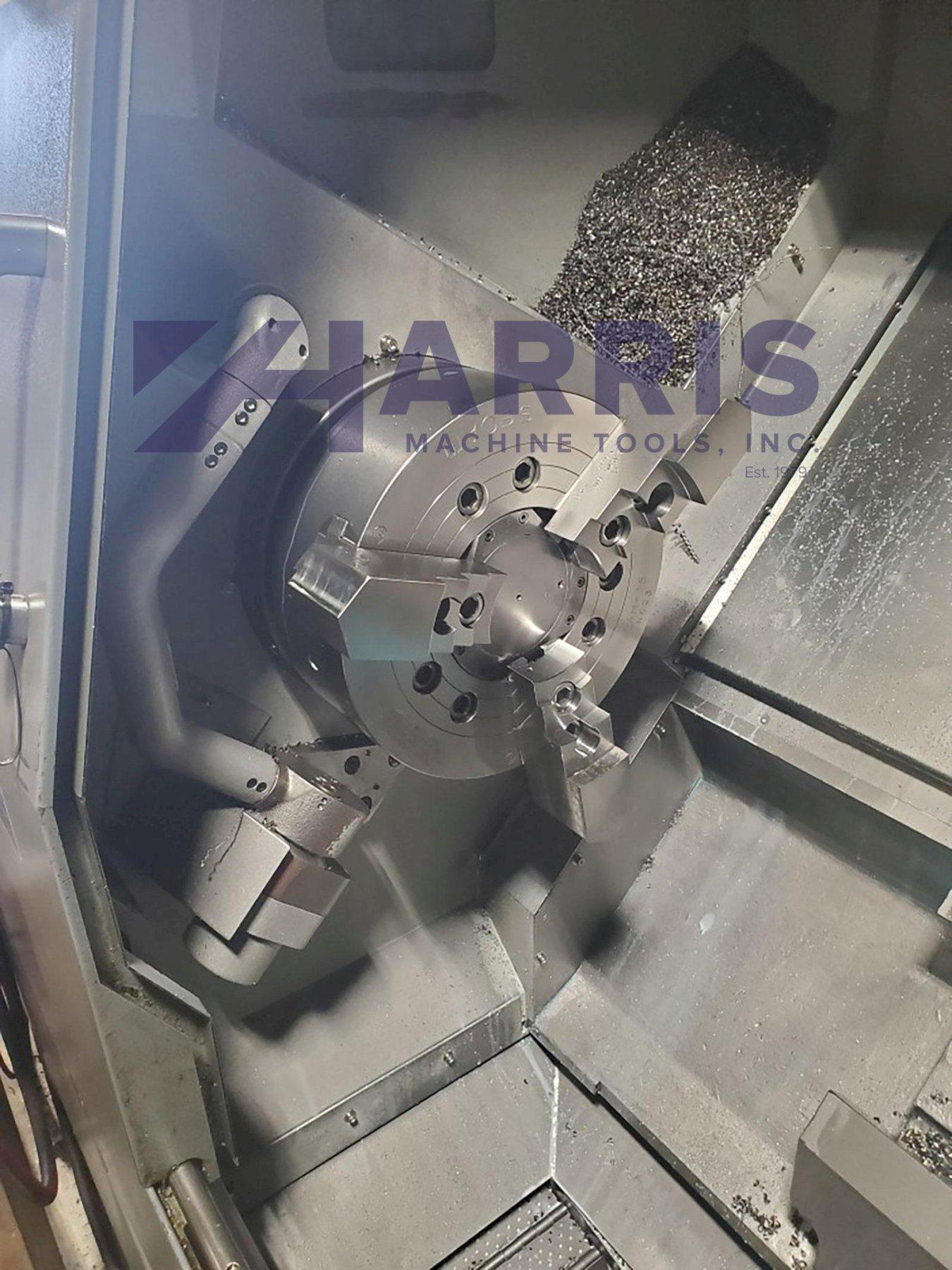

15″ Hydraulic Chuck
Automatic Tool Presetter
Spindle Orientation
Workpiece Coordinate System
Tool Life Management
Chip Conveyor
Coolant System
Work Light Indicator
