3” (76mm) x .120" (3mm) OTO Mills Rafted Tube Mill Line Year 2006

Manufacturer

Category

Tube Machinery

Type

TUBE MILLS, HF/ERW

Stock

102150N

Model

None listed

Dealer Location

Michigan

Request a Quote
View Contact Information

Spec Sheet

Tube Diameter - 3 inches
Max. Wall Thickness - .120 inches


General Specifications:
Tube OD Range: .840"-3" (20mm-76mm)
Wall Thickness Range: .040"-.120" (1mm-3mm)
Max Line Speed: 400 FPM (120m/min)
Tube Length Range: 10'-20' (3000mm-6000mm)
Max Tensile Strength: 90,000 PSI
Max Yield Strength: 65,000 PSI
Coil Width: 1.5"-10" (38.1mm-254mm)
Coil ID: 20"-24" (508mm-610mm)
Coil OD: 45"-78" (1100mm-2000mm)

Elle Tre Electrics

OTO Double End Uncoiler

OTO Automatic Shear End Welder

Miller Power Supply

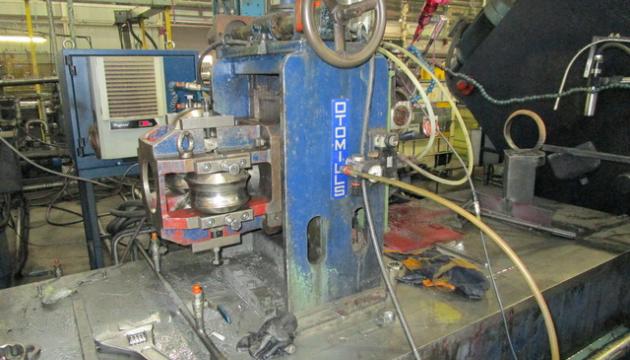

Entry Guides (Ardcor 5 Roll Entry)

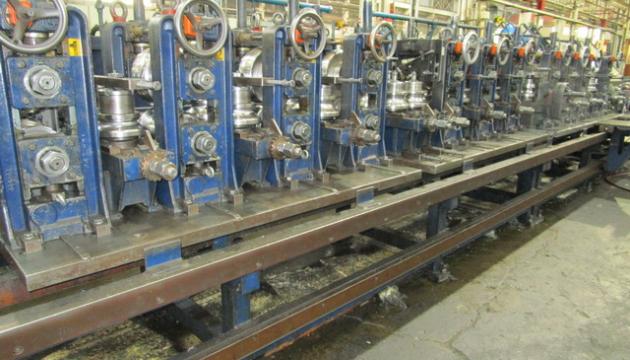

(4) Forming Stands - Single Point Adjustments
75KW AC Motor
Rafted Set of Stands

(3) Fin Stands – Single Point Adjustments
75KW AC Motor
Rafted Set of Stands

Weld Box

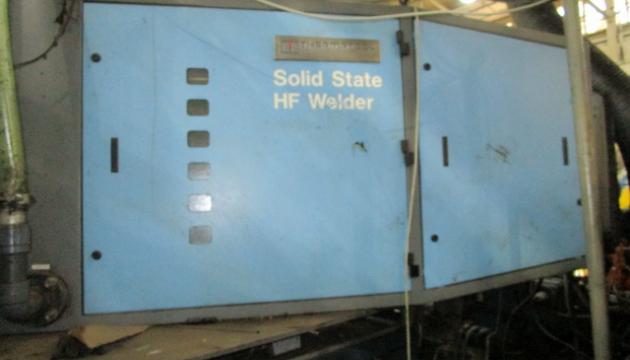

Thermatool Solid State Welder

12’ Cooling Section

Brushing Section

(4) Sizing Stands
Single Point Adjustments
75KW AC Motor
Rafted Set of Stands

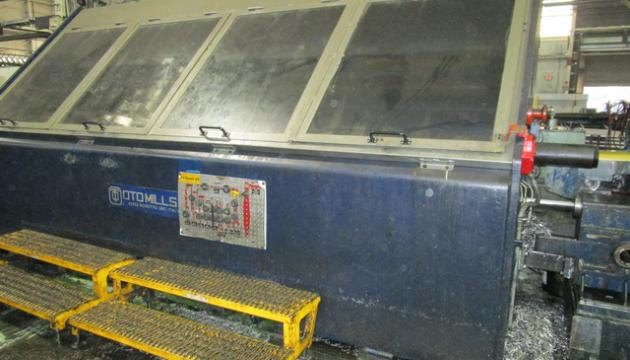

OTO Double Die Cuttoff
N# 8493
2006
Type: OTO Cut 120

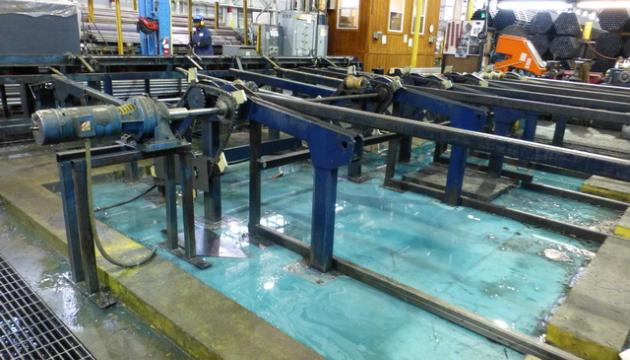

30’ Runout Table

Dump Table

Tooling for Rounds, Squares and Rectaangles

Spare Parts
