1.5" x .128" Oto Mills Laser Stainless Tube Mill Line

Manufacturer

OTO MILLS

Category

Tube Machinery

Type

TUBE MILLS, HF/ERW

Stock

102150A

Model

None listed

Dealer Location

Michigan

Request a Quote
View Contact Information

Spec Sheet

Tube Diameter - 1.5 inches
Max. Wall Thickness - .128 inches


Oto Mills Laser Stainless Tube Mill Line

Tube Diameter:  5/8" - 1.5"
Thickness Range:  .028" - .128"
Max Line Speed: 13 ft/min

Complete Mill With:

Oto Mills Double End Uncoiler
Coil Holder
Drag Brake
Hydraulic Expansion

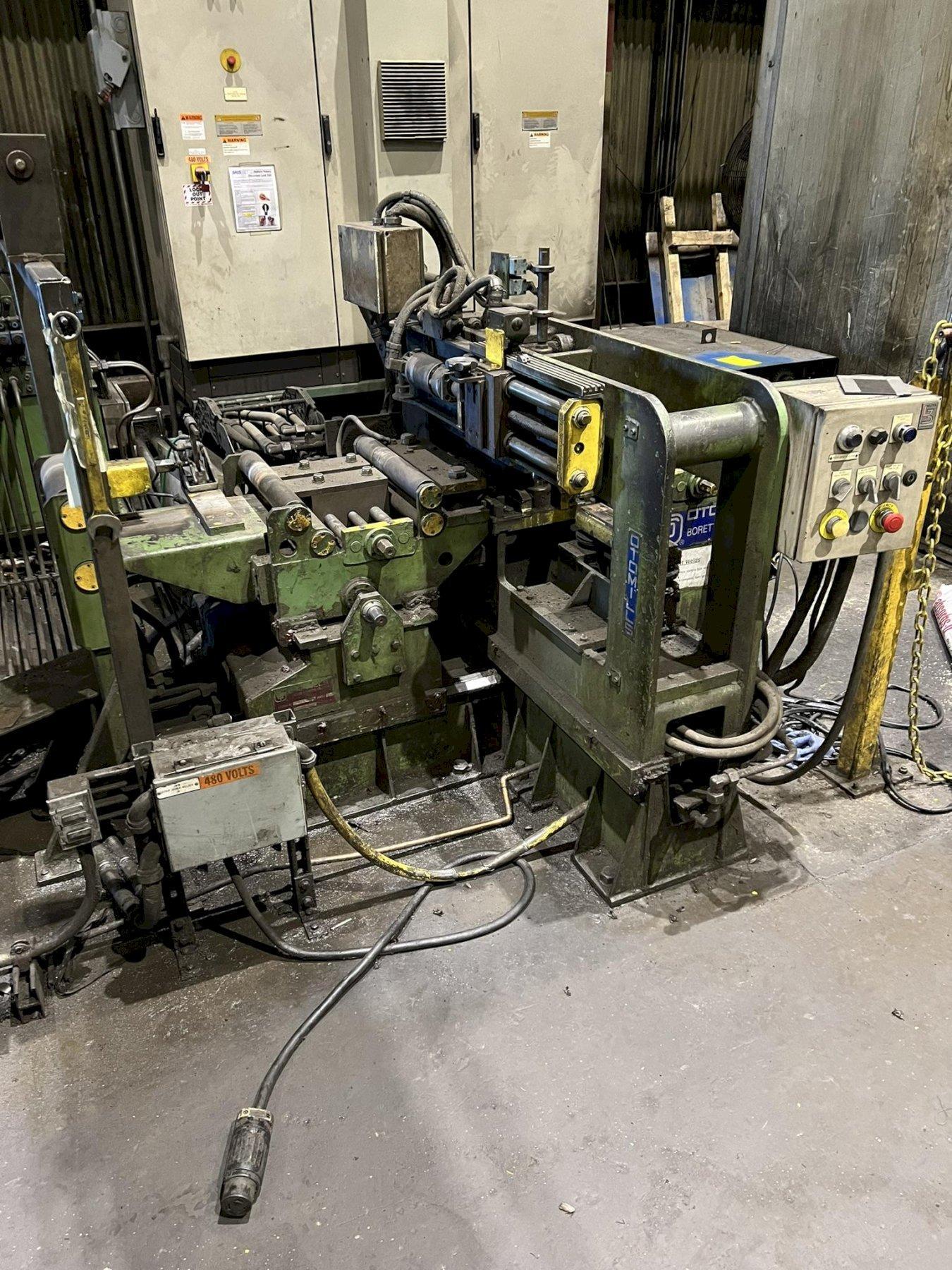

Oto Mills Shear & End Welder

Oto Mill Vertical Floop Accumulator
Year 1999
Model GG-254
Siemens Touch Screen Controls

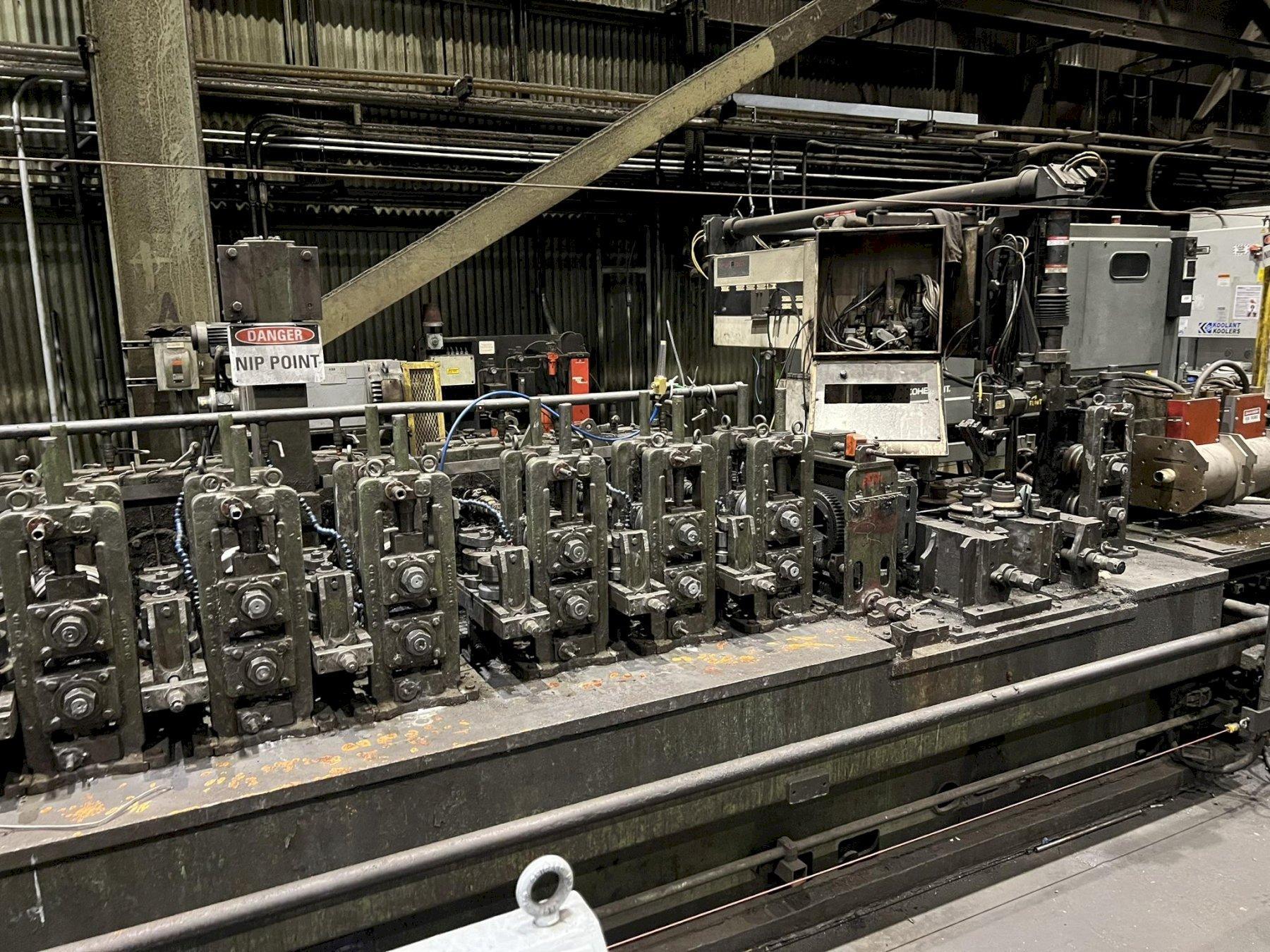

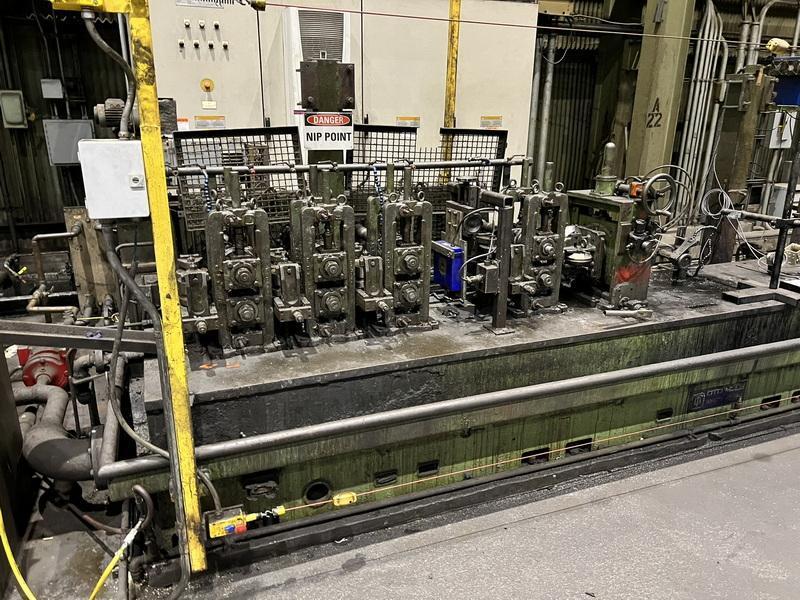

Oto Mills Forming Mill
(2) 16.1 KW Motors
Universal Drive
Single Point Adjustment
6 Roll Entry Edge Guides
4 Forming Stands
4 Side Idler Rolls
3 Finn Pass Stands
3 Side Idler Rolls

Rofin Sinar Laser Welder
Model FH 8000
Koolant Chiller Unit
Digital Readout Controls
Entry Tube Guide Stand
4 Roll Weld Box
Exit Squeeze Stand

2 Induction Heaters

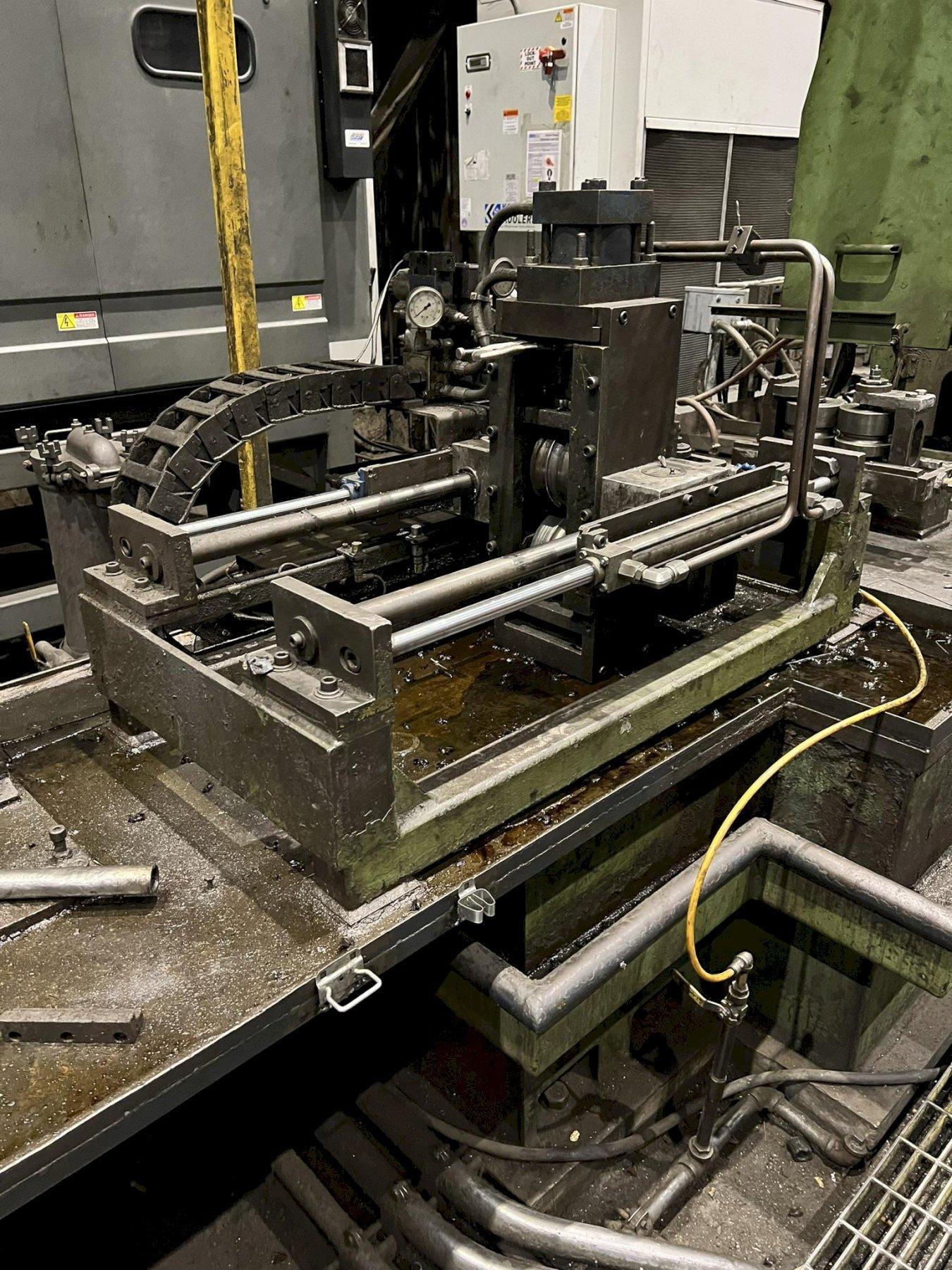

Traversing Bead Rolling Stand

2 Polishing Heads
2 Pre-Sizing Stands
16.1 KW Drive

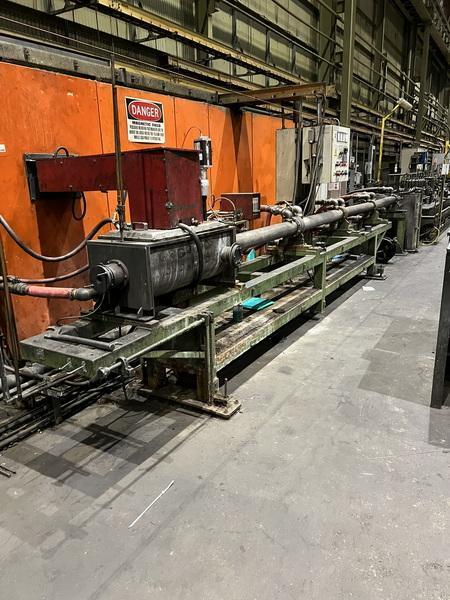

In Line Bright Annealing
Elotherm Power Supply
Nitrogen / Hydrogen Gases
Cooling Chamber

4 Sizing Stands
3 Side Idler Rolls
Universal Drive
Single Point Adjustment

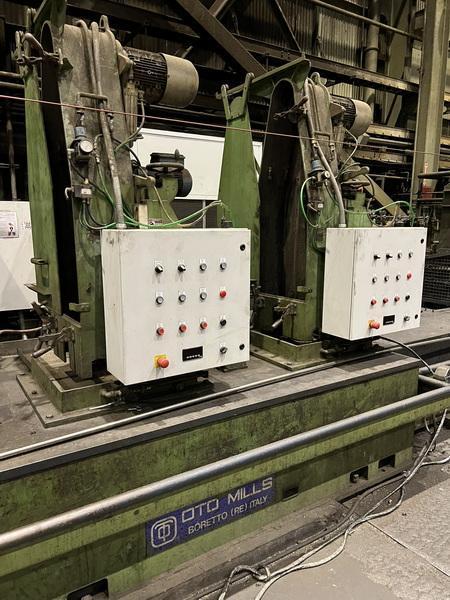

Turks Heads
Multi Mac Eddy Current Tester

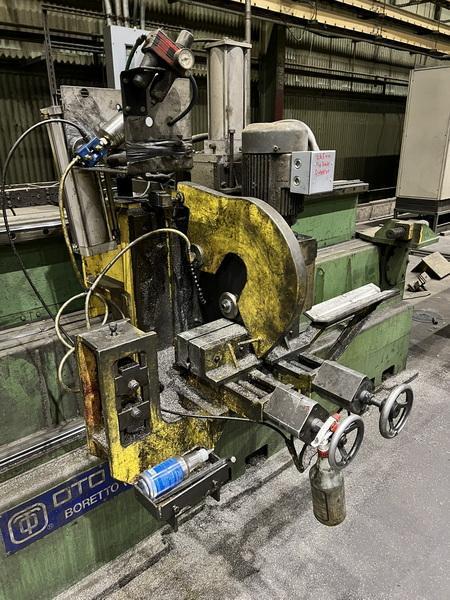

Oto Mills Flying Saw Cut Off
Linear Tracking
DC Accelerator
Run Out Table

Elletre Electrics

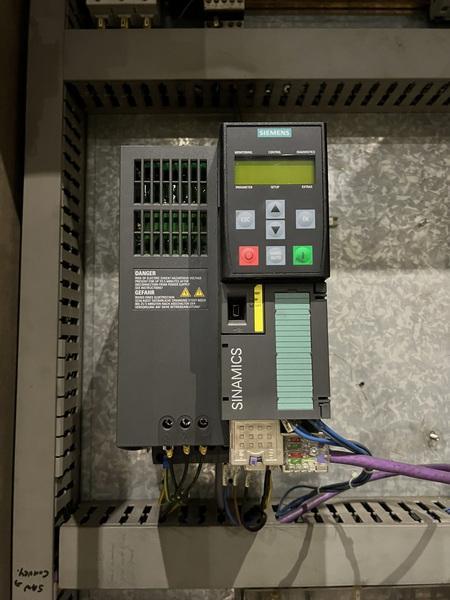

Siemens Sinamics Digital Drive
PLC Controls
Operator Push Button Station with Digital Readouts

Tooling for the following: 0.625, 0.750, 0.840, 1.0, 1.050, 1.250, 1.315, 1.5
