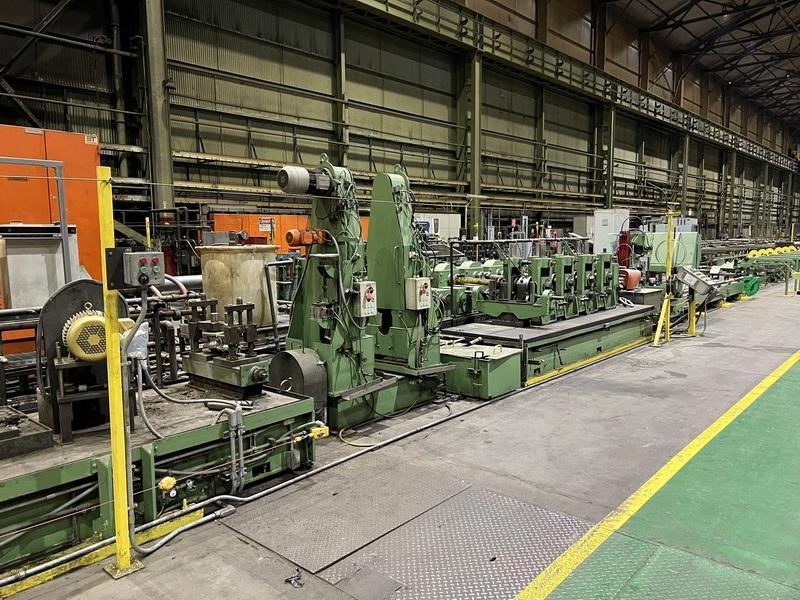

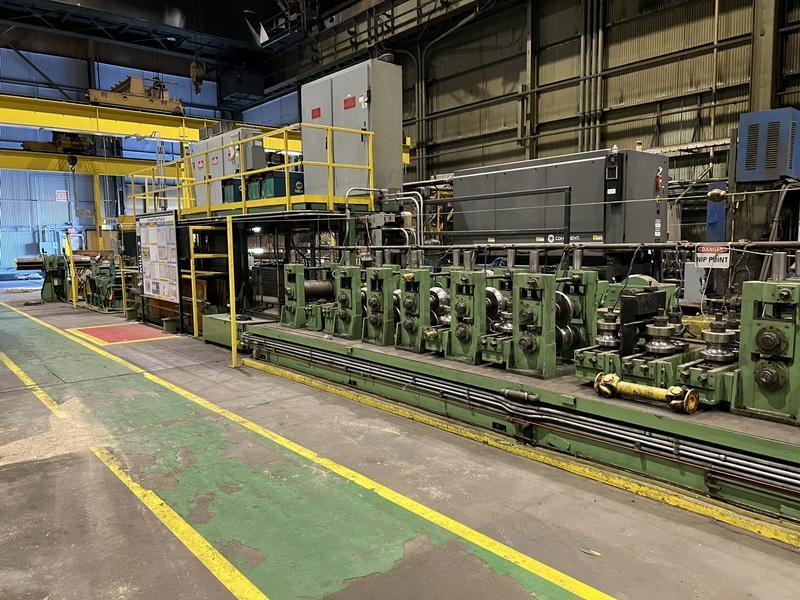

4" x .120" Stainless Tube Mill Line

Manufacturer

Category

Tube Machinery

Type

TUBE MILLS, HF/ERW

Stock

102150C

Model

None listed

Dealer Location

Michigan

Request a Quote
View Contact Information

Spec Sheet

Tube Diameter - 4 inches
Max. Wall Thickness - .120 inches


Tube Diameter:  2" - 4"
Wall Thickness:  .065" - .120"
Max Line Speed: 4 ft/min

Complete Mill With:

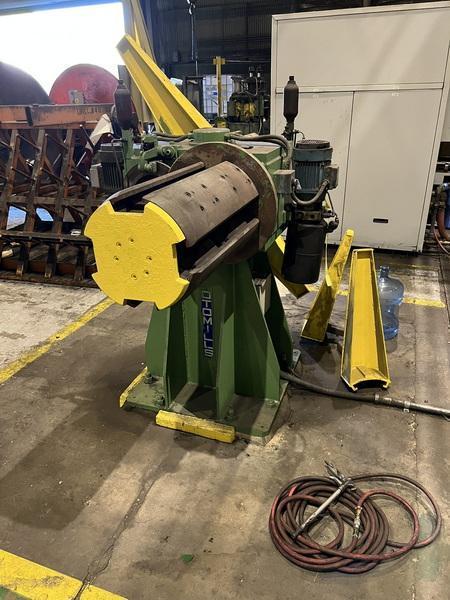

Oto Mills Double End Uncoiler
Hydraulic Expansion
Powered
Drag Brake
Coil Keepers

Cage Type Accumulator

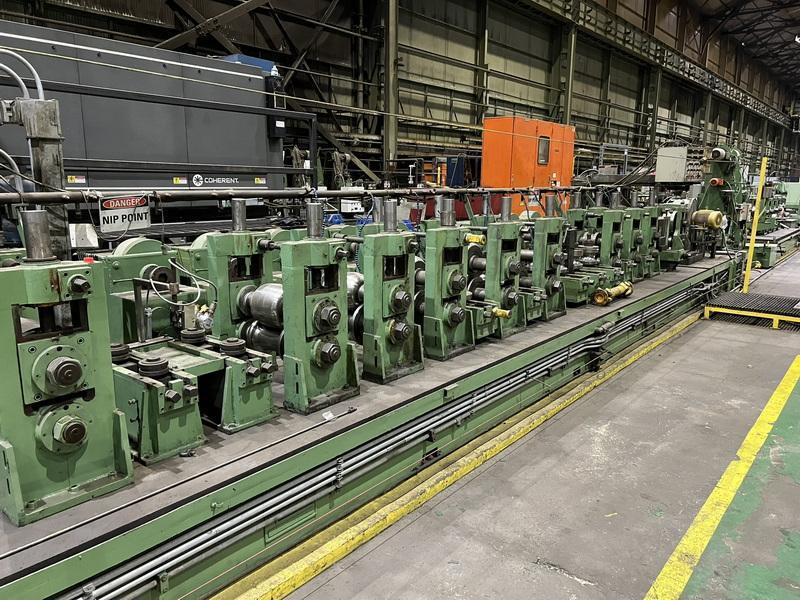

Forming Mill
Universal Drive
Single Point Adjustment
30 HP Forming Drive
Entry Stand
2 Sets of Edge Guides
5 Forming Stands
2 Side Idler Rolls
3 Side Idler Roll Cluster
3 Finn Pass Stands
2 Side Idler Rolls

Weld Box
Tig Welder
Gas Mixers

2 Polishing Heads

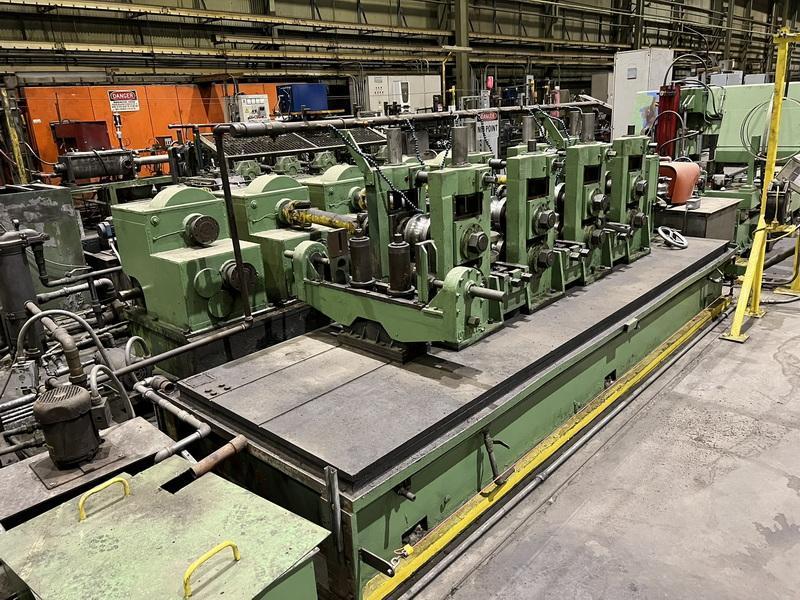

Sizing Mill
Universal Drive
Single Point Adjustment
4 Sizing Stands
3 Side Idler Rolls

Flying Saw Cut-Off
Run Out Table

Panelview 1000 Digital Controls

Tooling for the following: 2.5, 3.0, 3.25, 3.5, 4.0
