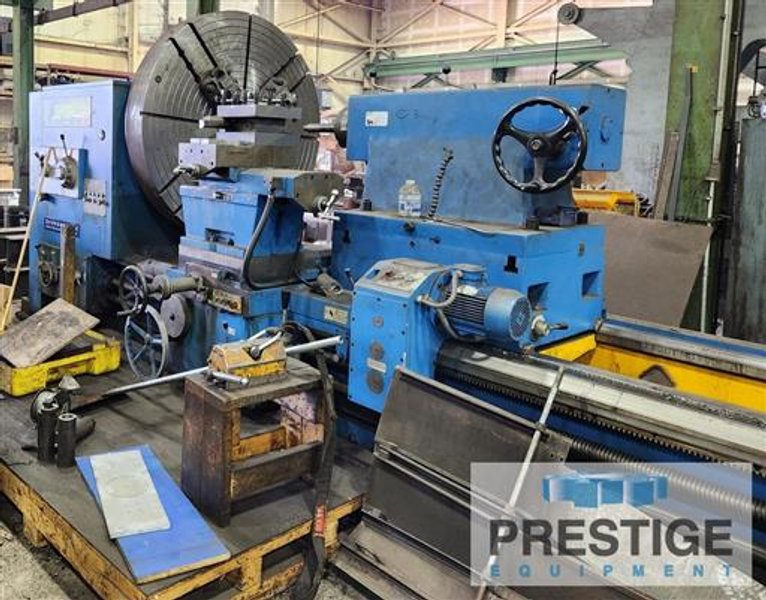

72" x 236" Tru Turn, 57" Over C/S, 315 RPM, Inch/Metric Threading, Steady Rests, 40 HP, 2016 #43565

Manufacturer

TRU TURN

Category

Lathes

Type

LATHES, ENGINE

Stock

43565

Model

CW61180L/6000

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43565
72.44" x 236" Tru Turn CW61180L/6000 Manual Lathe, Brand New

FEATURES:
Low Hours
Inch/Metric Threading
Hardened Ways

SPECIFICATIONS:
Swing Over Bed ....................... 72.44
Swing Over Cross Slide ............... 57"
Width of Guide Way ................... 43.3"
Distance Between Centers ............. 236.22"
Spindle Hole ......................... 5.12"
Spindle Speeds (21 Speeds) ........... 3.15-315 RPM
Tailstock Diameter ................... 10.24"
Tailstock Travel ..................... 7.87"
Weight Capacity ...................... 24,200 Lbs
Machine Weight ....................... 52,000 Lbs
Floor Space L x W x Height ........... 372.3" x 94" x 88"

EQUIPPED WITH:
62.99" Diameter Face Plate with 4-Top Jaws
Flame Hardened Bed Ways
2-Roller Type Steady Rests: 27.5" & 17.71"
Power Drive To Top Slide For Conical Cutting
Swivel Compound & Tool Post
Inch / Metric Threading
Thread Dial
Center With Bushing
6-Way Power Rapid Traverse
Work Light
Pan Bed and Coolant System
Motorized Tailstock
40 HP Drive Motor With Controls
440/3/60 Volt Electrics
