Machitech Platinum Cut 10' x 20' 5-Axis Bevel Head Plasma/Oxy System, Hypertherm XPR300, Drill, New 2021, #43571

Manufacturer

MACHITECH

Category

Fabricating Machines

Type

FLAME CUTTING EQUIPMENT, CNC

Stock

43571

Model

Platinum Cut

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43571

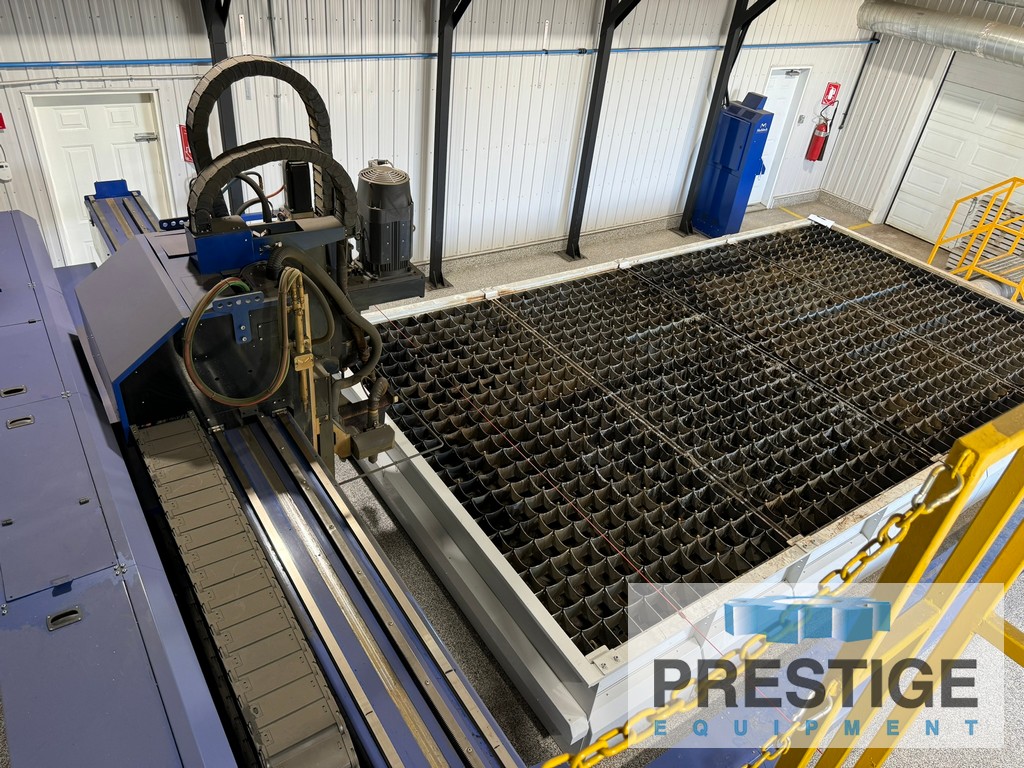

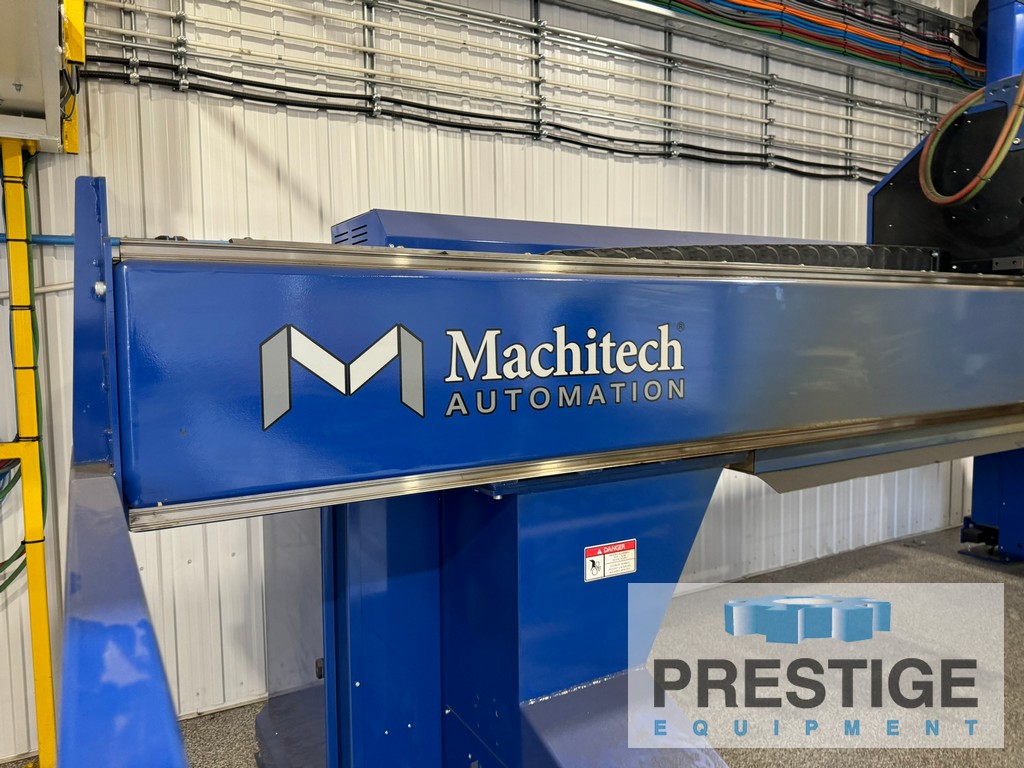

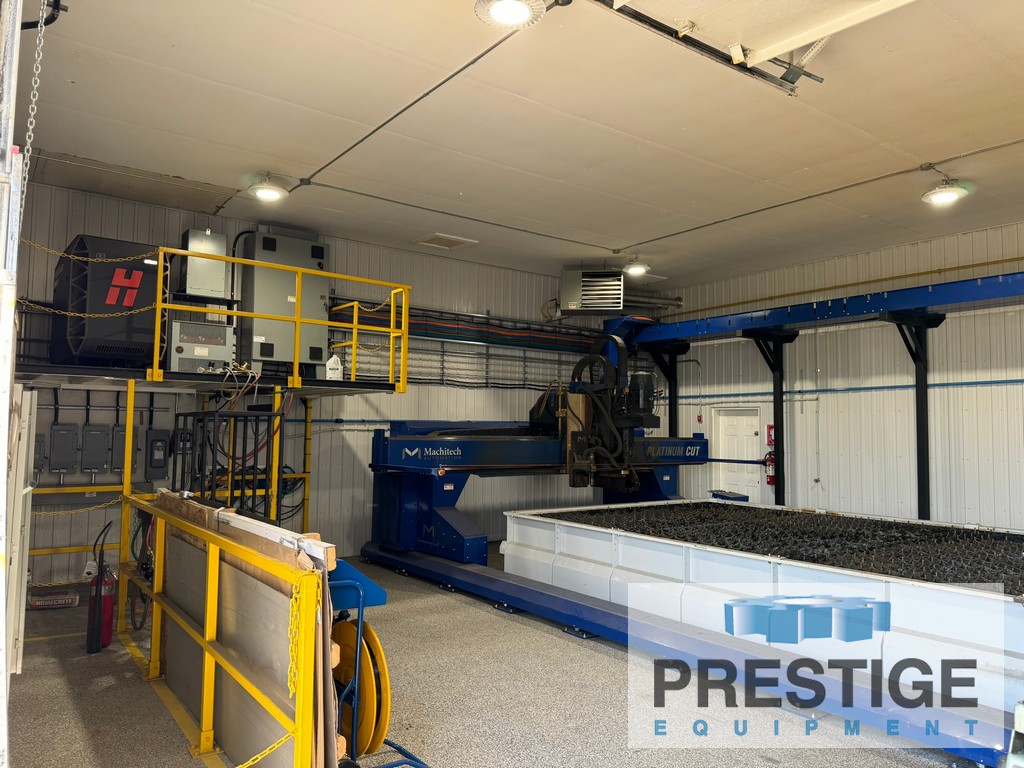

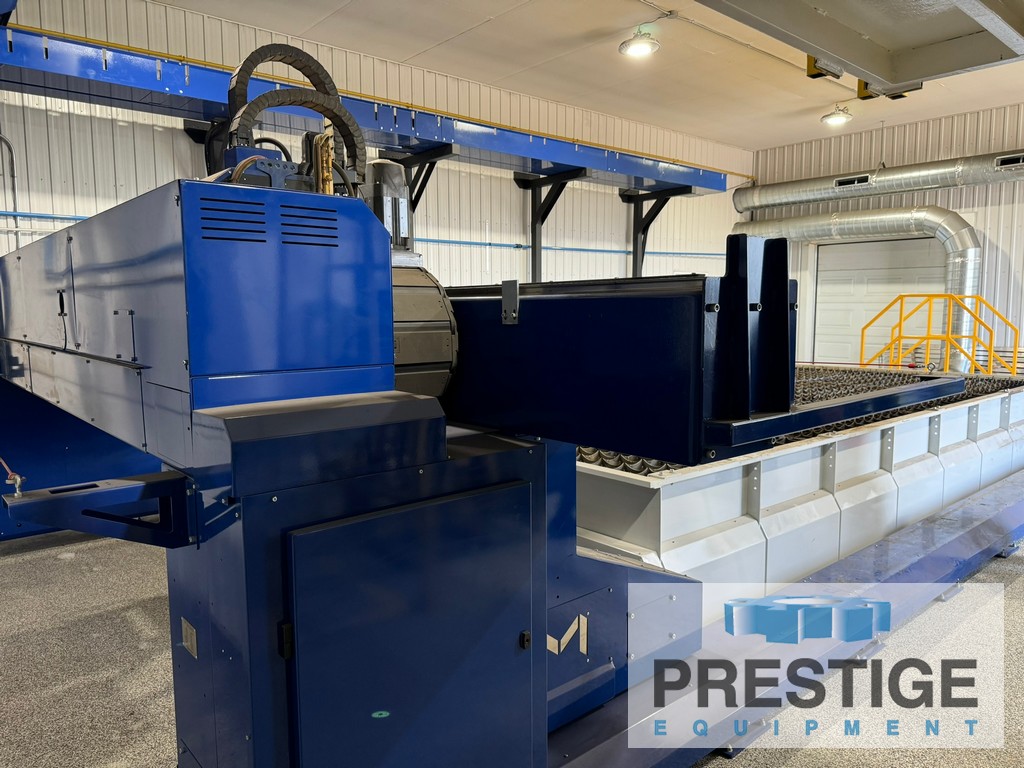

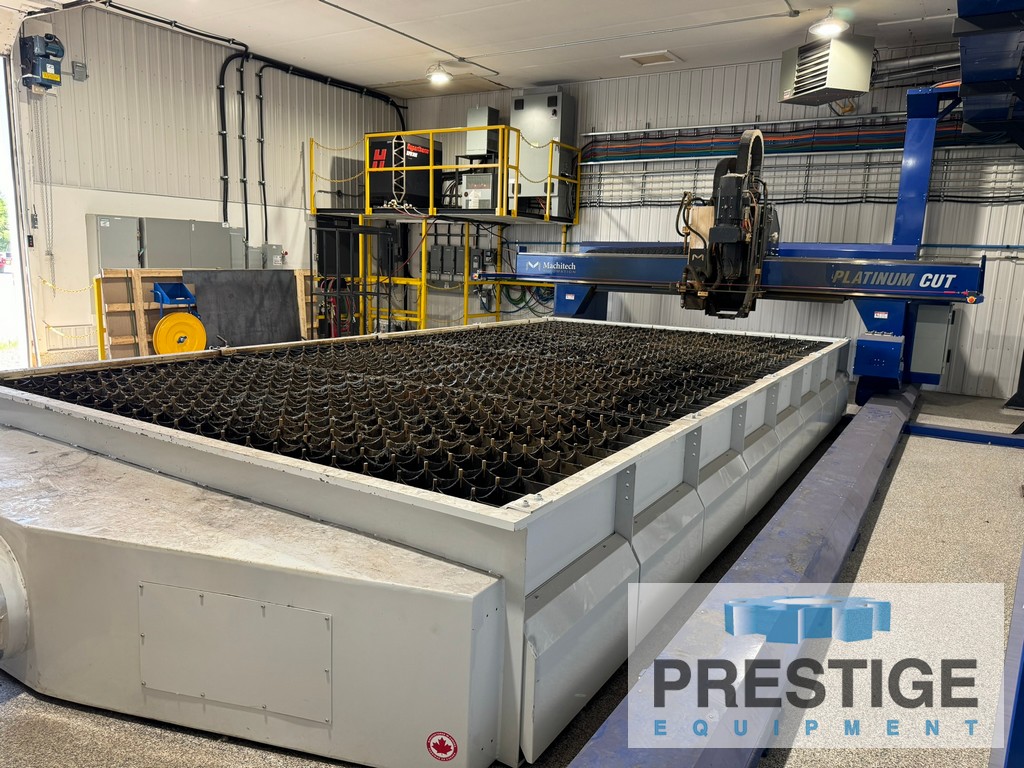

Machitech Platinum Cut 10' x 20' 5-Axis Full Contour Bevel Head Plasma/Oxy System

FEATURES:

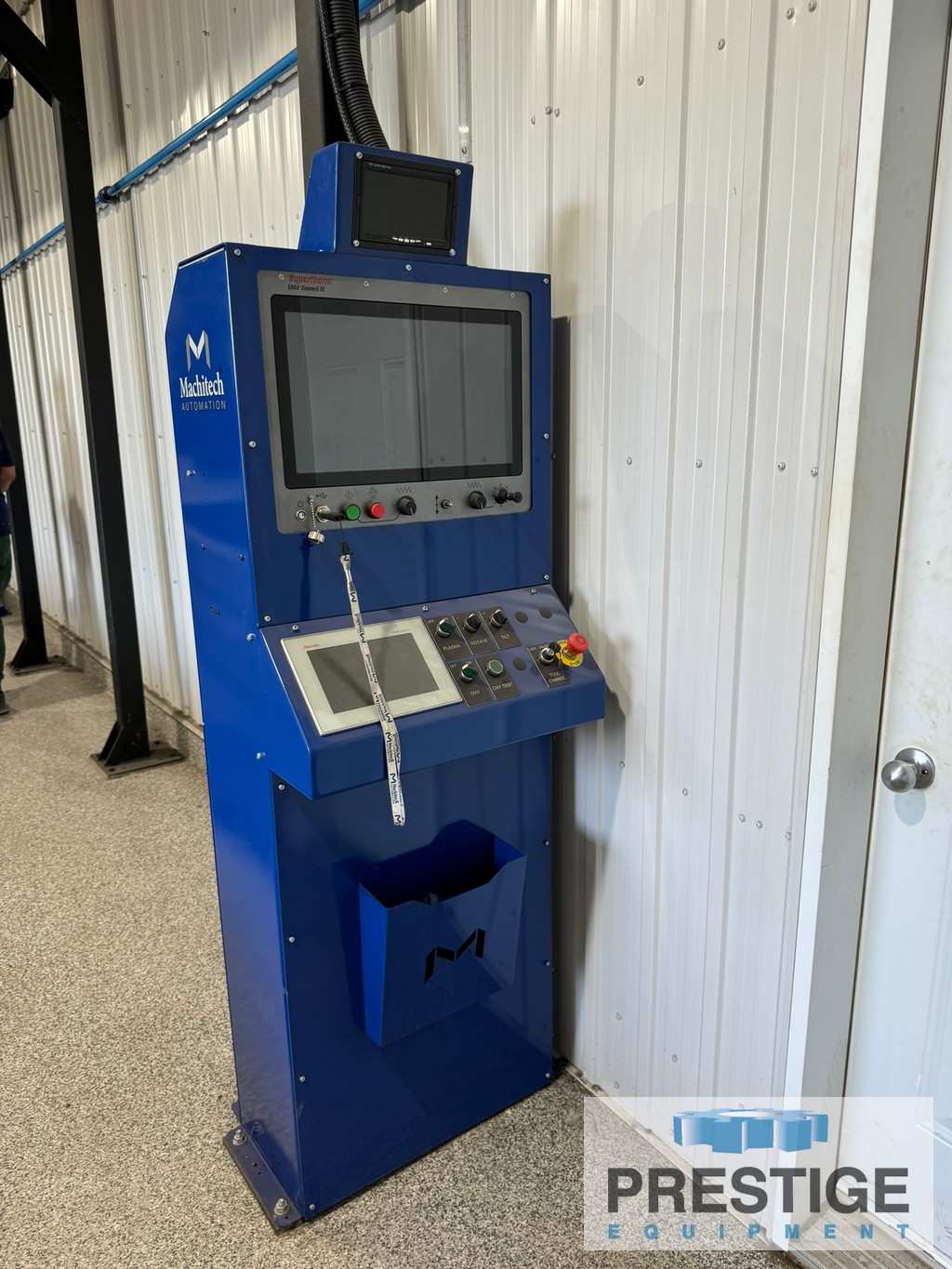

Hypertherm Edge Connect CNC Control
5-Axis Full Contour Bevel Head Plasma
Automatic Torch Height Controller
Magnetic Anti-Collision System
Magnetic Torch Breakaway System

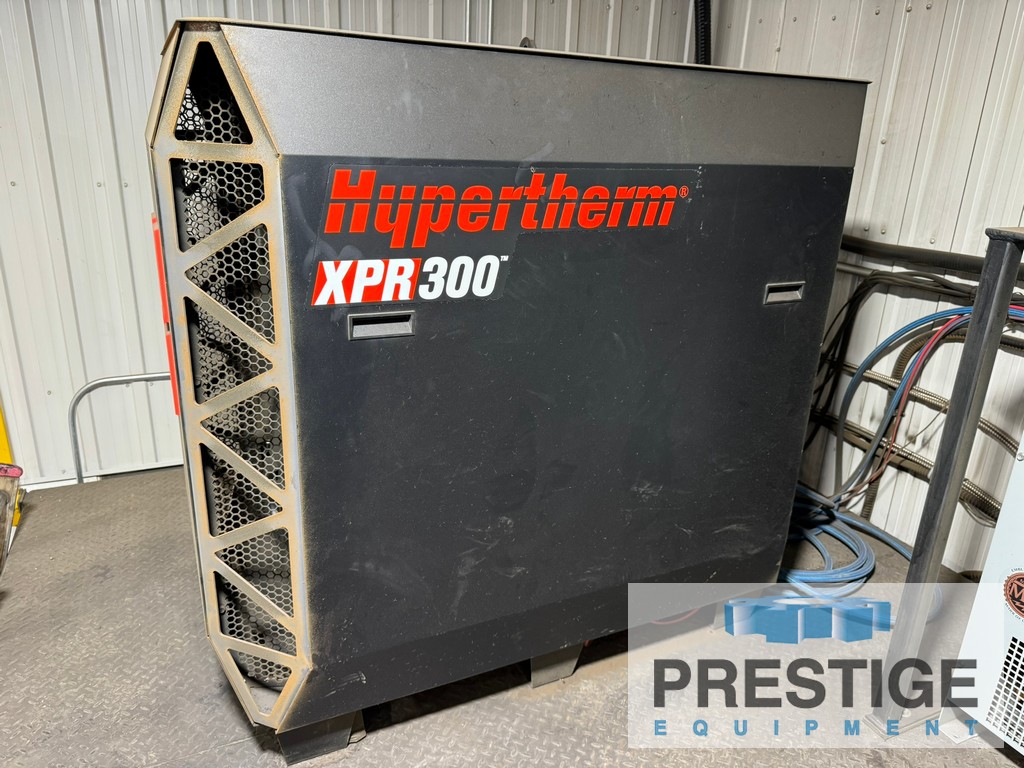

Hypertherm XPR 300 Plasma Unit
Oxygen Cutting Torch on Magnetic System
20 HP Drilling and Tapping Station

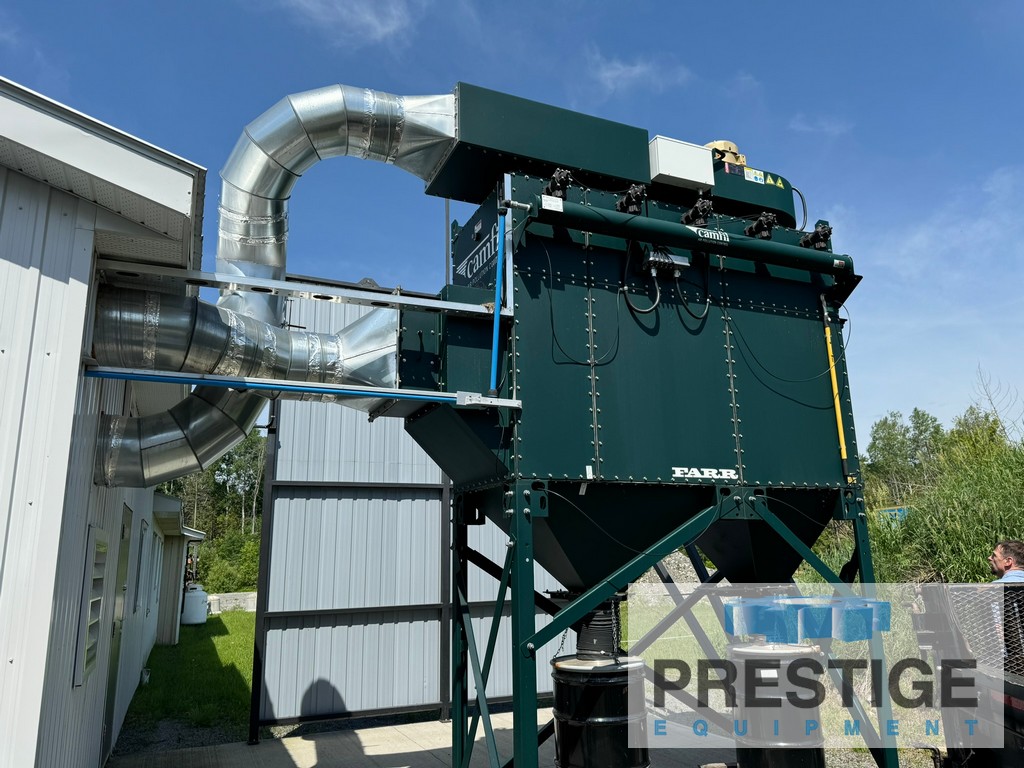

Camfil Gold Series X-Flo Dust Collector

SPECIFICATIONS:
Maximum Cutting Length ................ 120"
Maximum Cutting Width ................. 240"
Maximum Table Capacity ................ 8"
Clearance Under the Bridge ............ 12"
Plasma Power Output ................... 300 AMP
Maximum Traverse Speed ................ 800 IPM
Maximum Cutting Speed ................. 500 IPM
Positioning Accuracy .................. 0.003"
Repeatability ......................... 0.001"
Drill Capacity ........................ 1.5"
Tapping Capacity ...................... 0.75"
Drilling Motor ........................ 20 HP
Table Weight .......................... 10,300 Lbs.
Total Weight .......................... 23,150 Lbs.

EQUIPPED WITH:
Hypertherm Edge Connect CNC Control
5-Axis Full Contour Bevel Head Plasma
Automatic Torch Height Controller
Magnetic Anti-Collision System
Magnetic Torch Breakaway System
Hypertherm XPR 300 Plasma Unit
Oxygen Cutting Torch on Magnetic System
20 HP Drilling and Tapping Station
Camfil Gold Series X-Flo Dust Collector

NOTE:
Project Never Worked Out, Inspect In Plant Under Power

HOURS:
236 Hours

No Video Available
