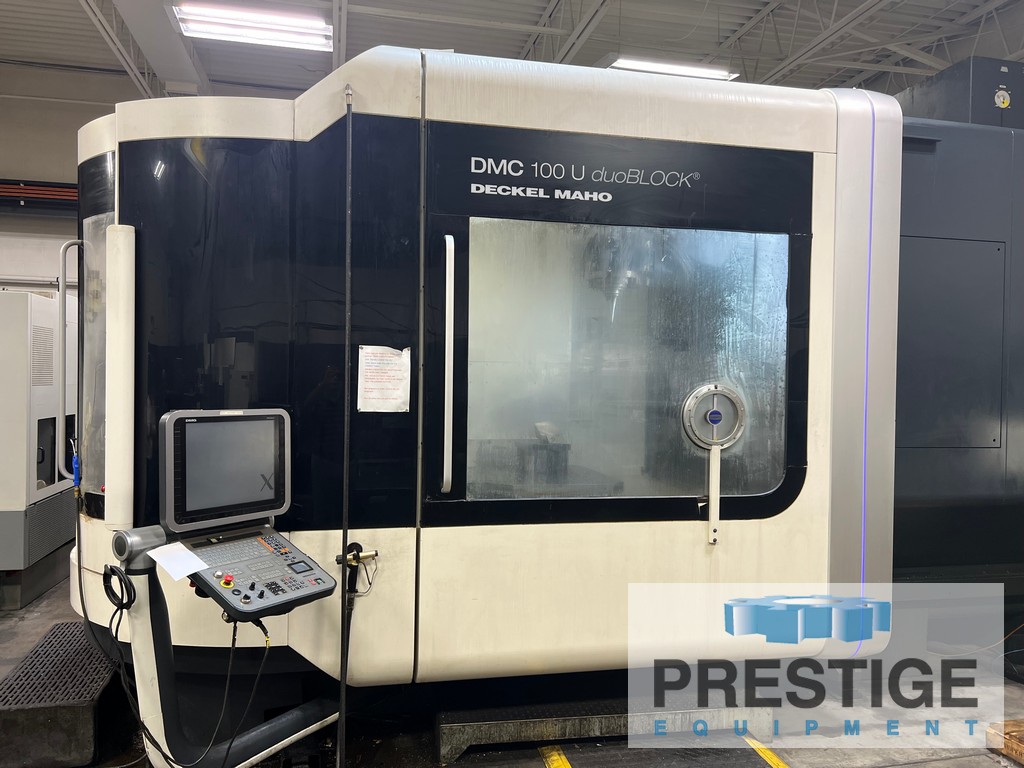

DMG DMC 100U Duo-BLOCK, 5-Axis, X-39", Y-49", 31" x 39" Pallets, Heidenhain 530i, 60 ATC, 2012, #43588

Manufacturer

DMG

Category

Machining Centers

Type

MACHINING CENTERS, VERTICAL, CNC (Incl. Pallet Changers)

Stock

43588

Model

DMC 100U Duo Block

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43588
DMG Deckel Maho DMC100U CNC 5-Axis MAchining Center

Features:

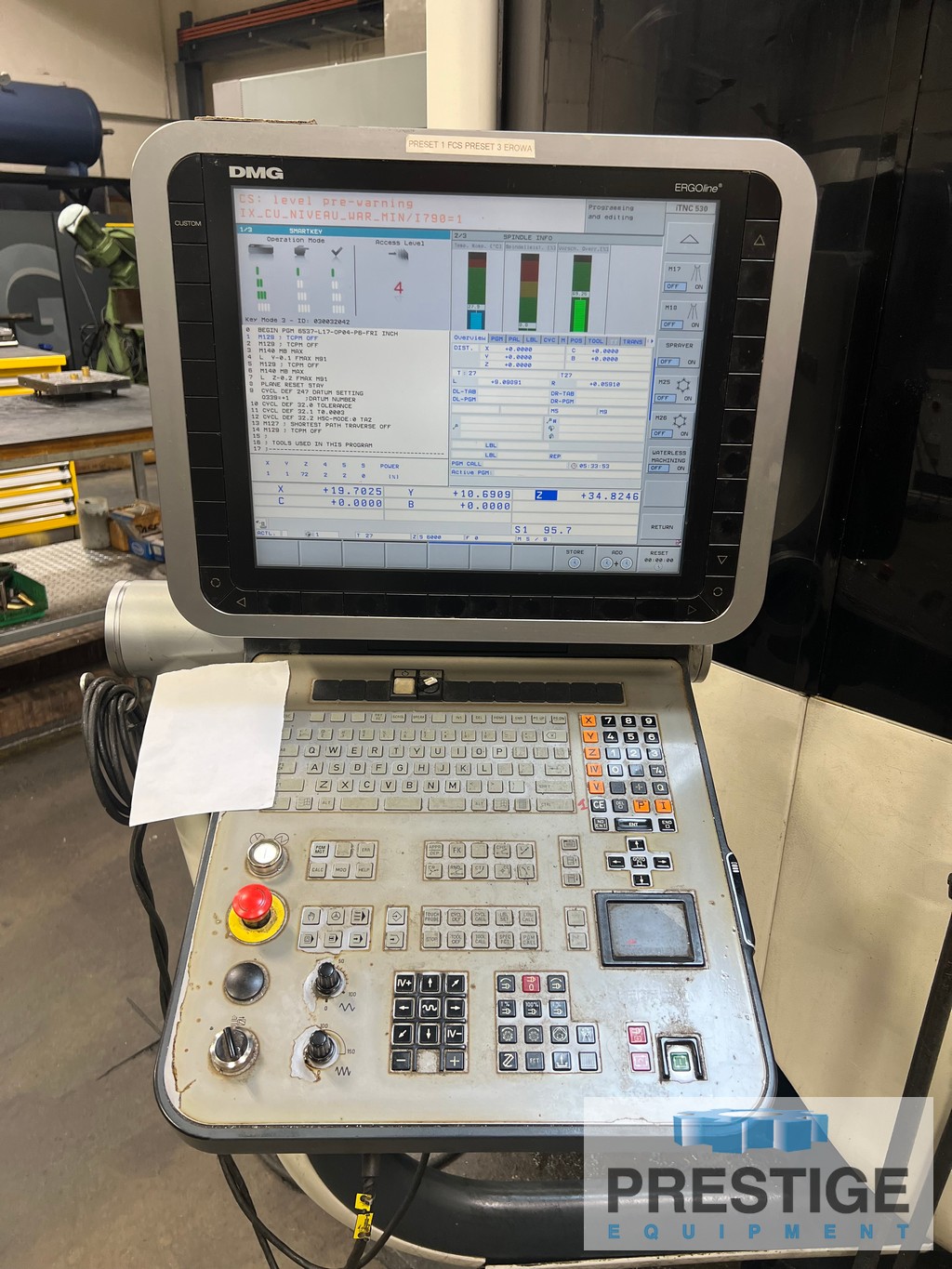

Heidenhain 530i CNC 5-Axis Controls
(2) 43.3" x 35.8" Pallets with Shuttle System
Full B-Axis Contouring Pallets
60-Station Automatic Tool Changer
12,000 RPM & HSK-100 Taper
Blum Laser Measuring System
M&H Probe


SPECIFICATIONS:
X-Axis Travel ......................... 39.37"
Y-Axis Travel ......................... 49.21"
Z-Axis Travel ......................... 39.37"
Pallet Size ........................... 31.49" x 39.37"
Table Weight Capacity ................. 4,300 Lbs.
Table Indexing ....................... .001 dgerees
Table Rotation ........................ 30 RPM
Spindle Taper ......................... HSK-100
Spindle Speeds ........................ 12,000 RPM
Main Motor ............................ 70 HP
Machine Weight ....................... 45,100 lbs

EQUIPPED WITH:
Heidenhain 530i CNC 5-Axis Controls
(2) 43.3" x 35.8" Pallets with Shuttle System
Full B-Axis Contouring Pallets
60-Station Automatic Tool Changer
12,000 RPM & HSK-100 Taper
Blum Laser Measuring System
M&H Probe
