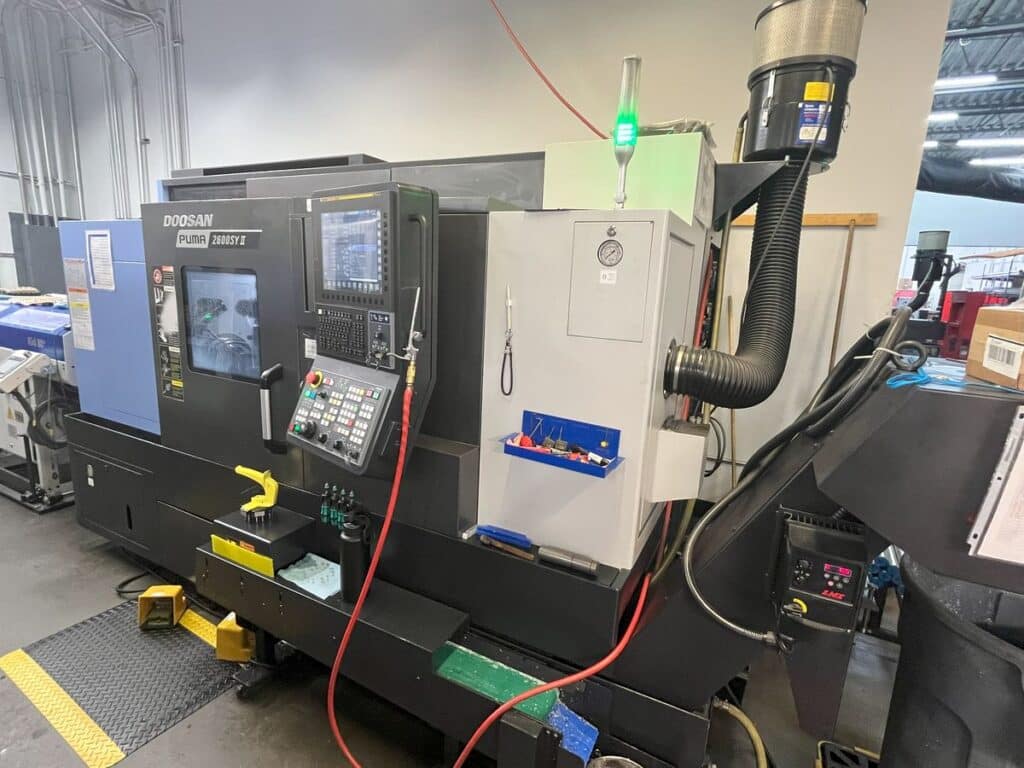

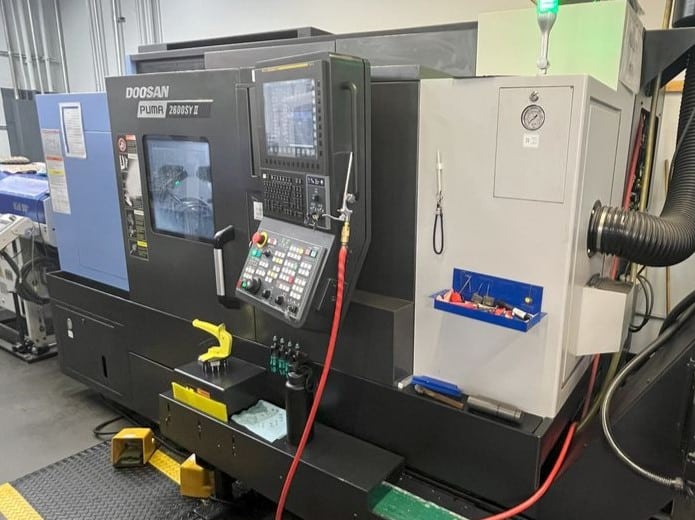

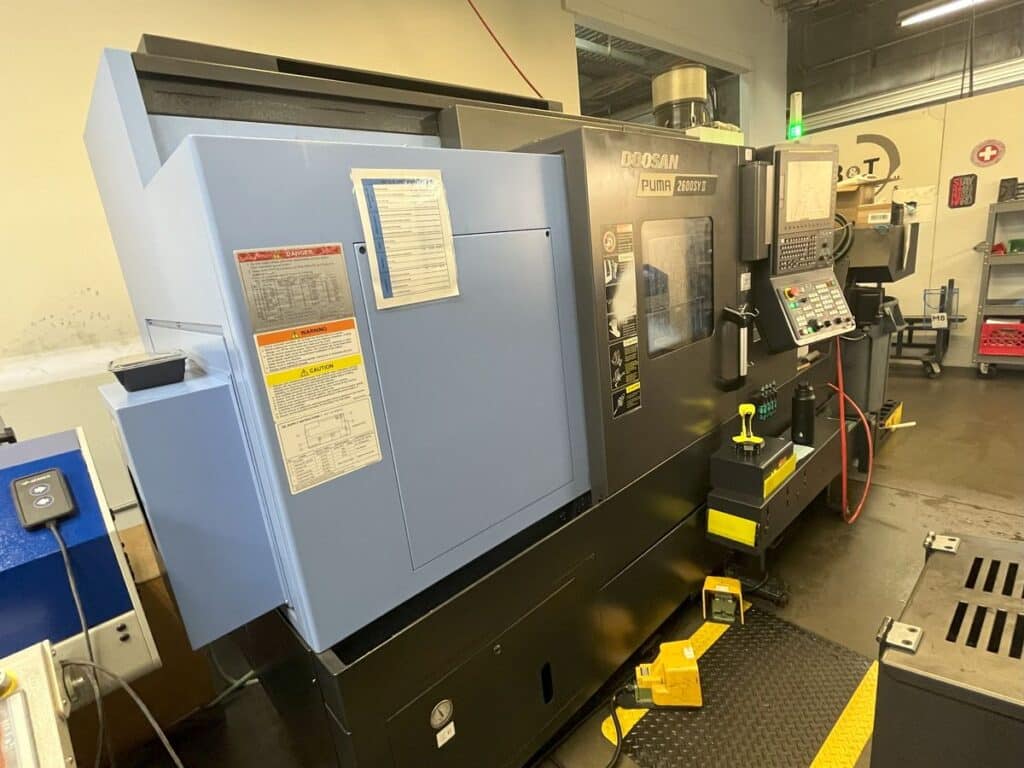

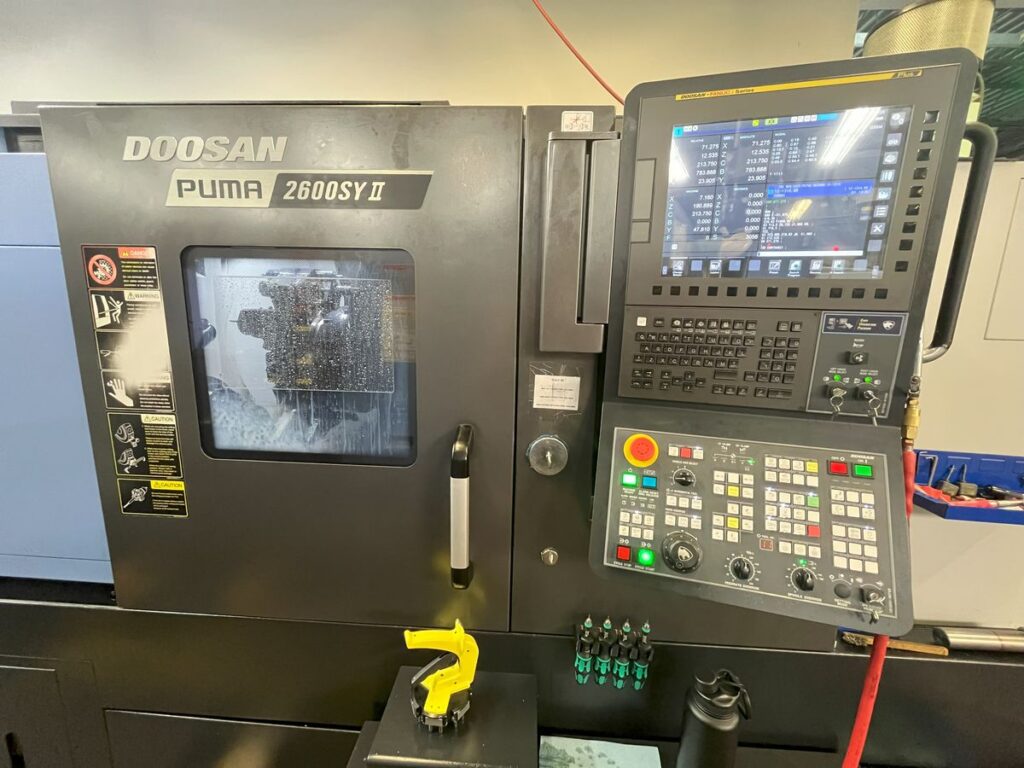

Doosan Puma 2600SY-II Twin Spindle Y-Axis CNC Lathe (2022)

Manufacturer

Doosan

Category

Lathes

Type

LATHES, CNC

Stock

131240046

Model

Puma 2600SY-II

Dealer Location

Georgia

Request a Quote
View Contact Information

Spec Sheet

  • Stock #: 131240046
  • Location: FL
  • Brand: Doosan
  • Model: Puma 2600SY-II
  • Year: 2022
  • Approx. Shipping Weight: 15,000 Lbs.
  • Approx. Shipping Dimensions: 160″ x 80″ x 90″H
  • Loading Fee: Rigging Required

Specifications

  • Main Spindle Chuck: 10″
  • Main Spindle Speed: 4000 RPM
  • Main Spindle Power: HP

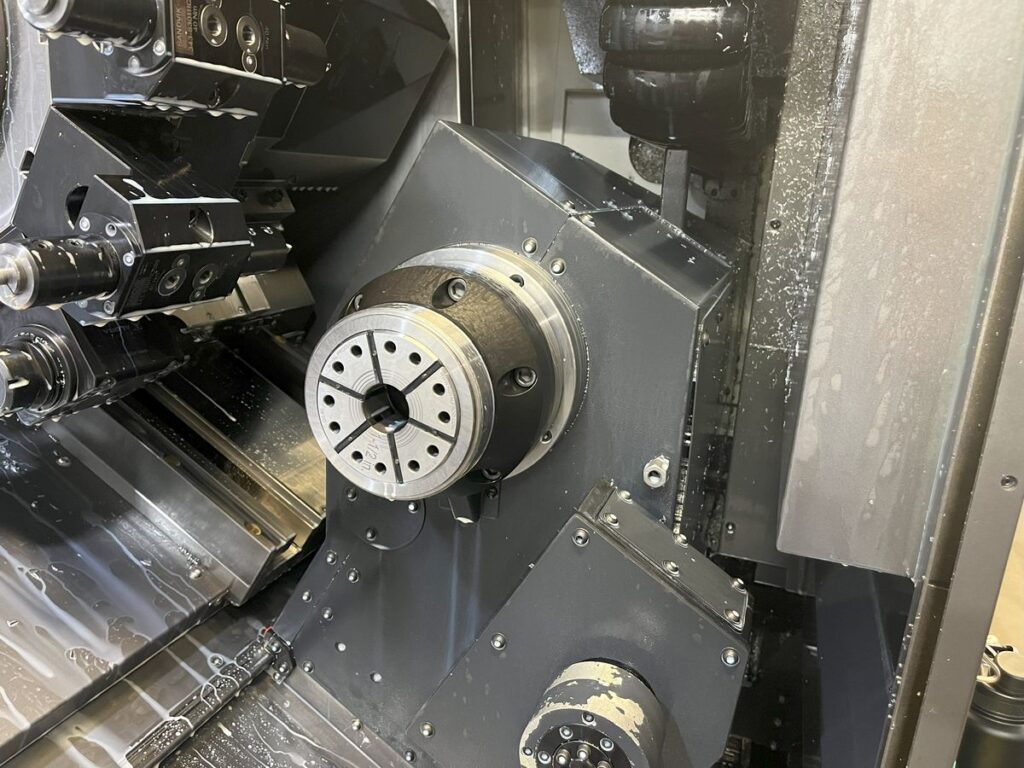

  • Sub Spindle Chuck: 8″
  • Cub Spindle Speed: 6000 RPM
  • Sub Spindle Power: 20 HP
  • Max Turning Diameter: 14.8″
  • Max Turning Length: 29.9″
  • Through Hole Diameter: 3.2″
  • Travel Distance X-Axis: 10.2″
  • Travel Distance Y-Axis: 4.1±2.1″
  • Travel Distance Z-Axis: 32.7″
  • Travel Distance B-Axis: 32.7″
  • Rapid Traverse X-Axis: 1181 in/min
  • Rapid Traverse Y-Axis: 394 in/min
  • Rapid Traverse Z-Axis: 1181 in/min
  • Rapid Traverse C-Axis: 200 RPM
  • Tooling Shank: BMT-65

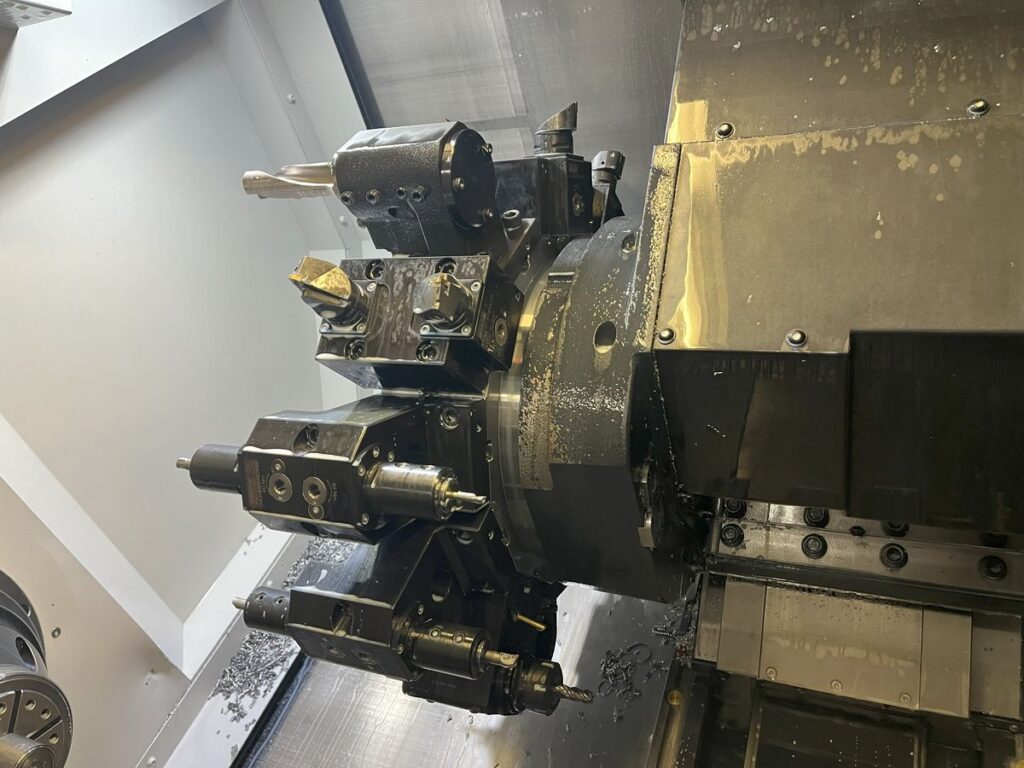

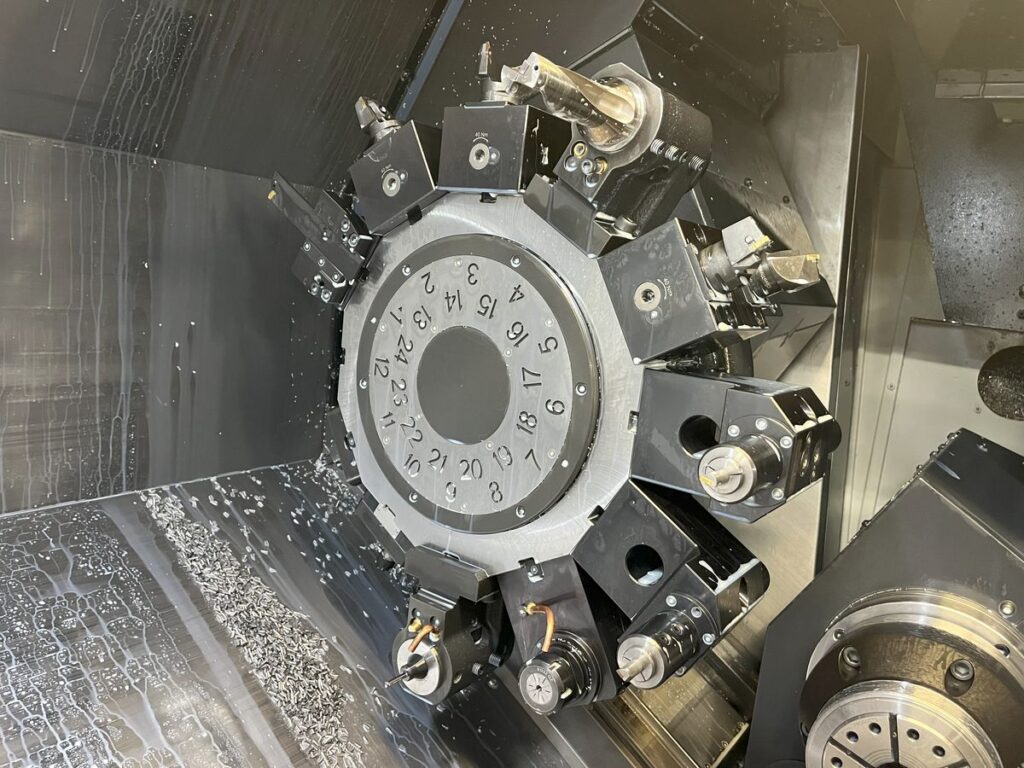

  • Turret: 12 Stations
  • Boring Bar Diameter: 2″
  • Live Milling Rotary Tool Speed: 5000 RPM
  • Live Milling Rotary Tool Power: 10 HP

Equipped With

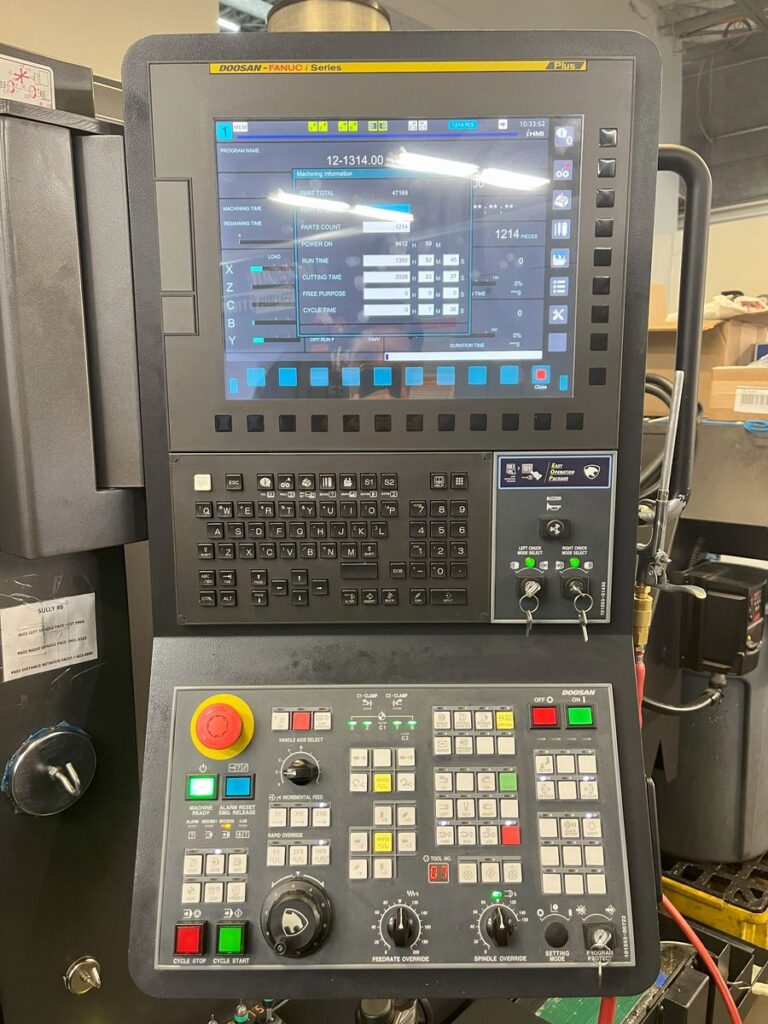

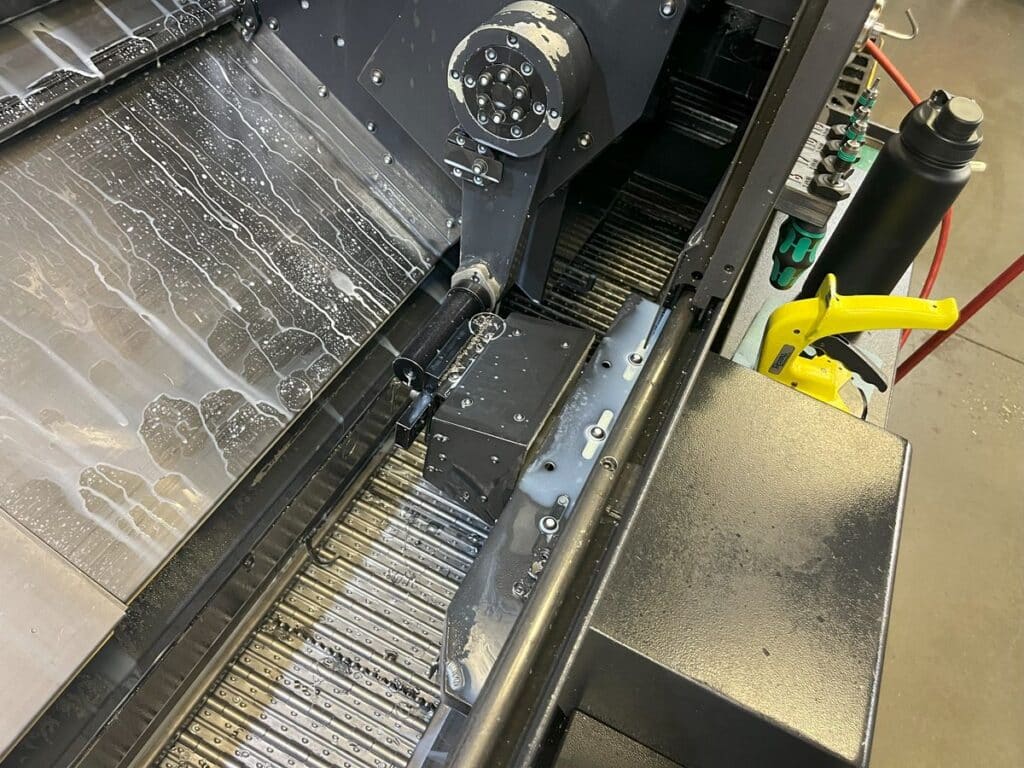

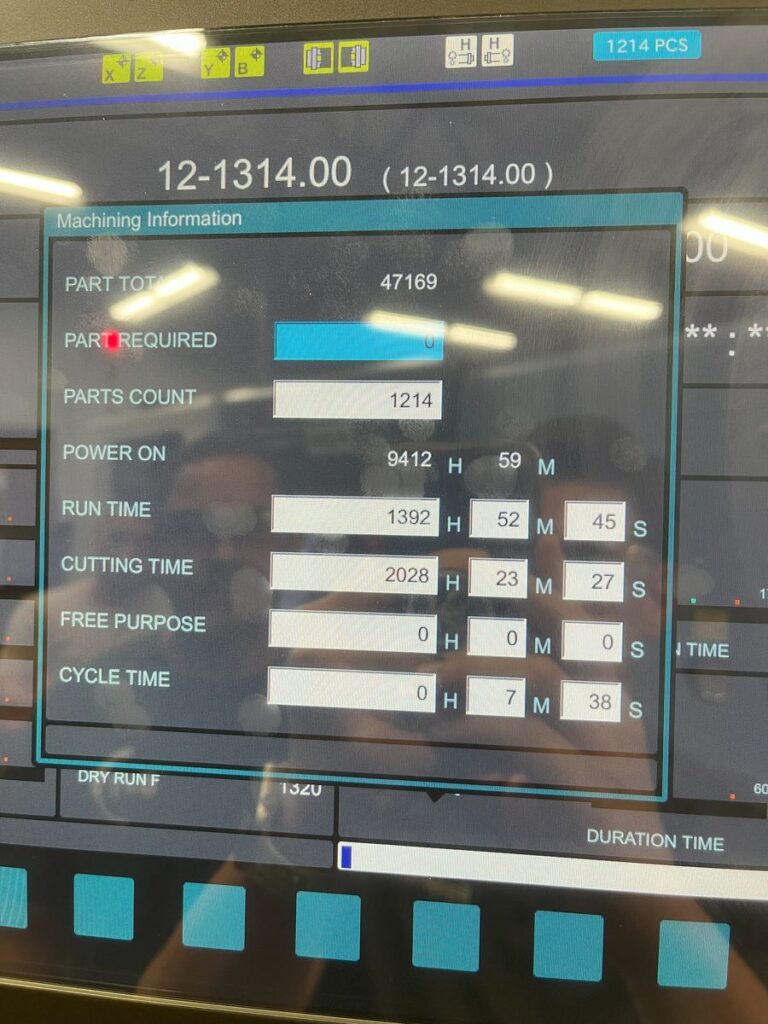

Fanuc i Series Plus CNC Control, Standard Live Tool Holders, Standard Straight Post Holders, 10″ Chuck (Main), 8″ Chuck (Sub), Chip Conveyor, NOT INCLUDED – COLLET CHUCKS, NOT INCLUDED – BAR FEEDER, NOT INCLUDED – MIST COLLECTOR, AVAILABLE FOR ADDITIONAL COST – CAPCO TOOL HOLDERS

Additional Info

Machine can be demonstrated upon request.
