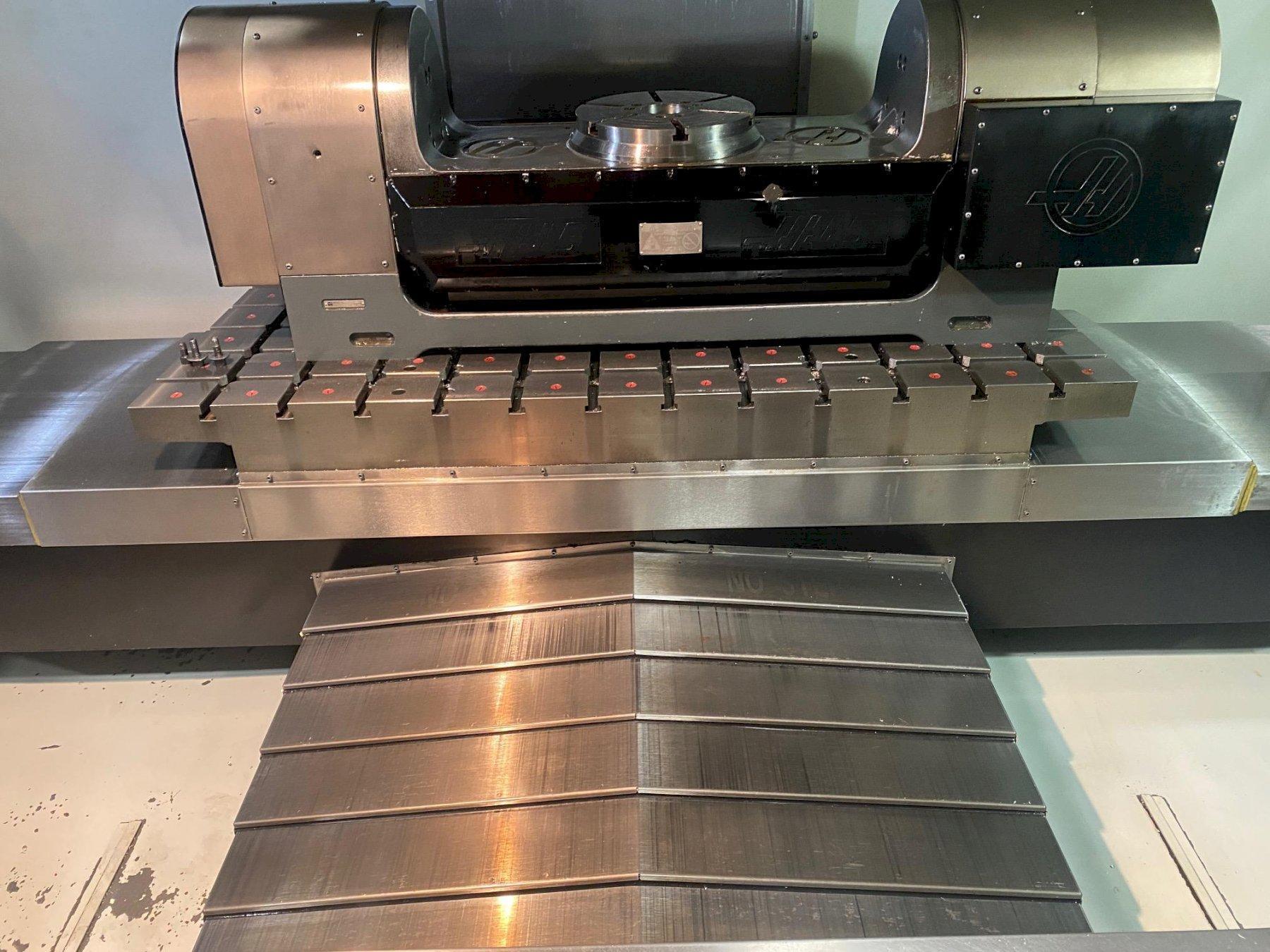

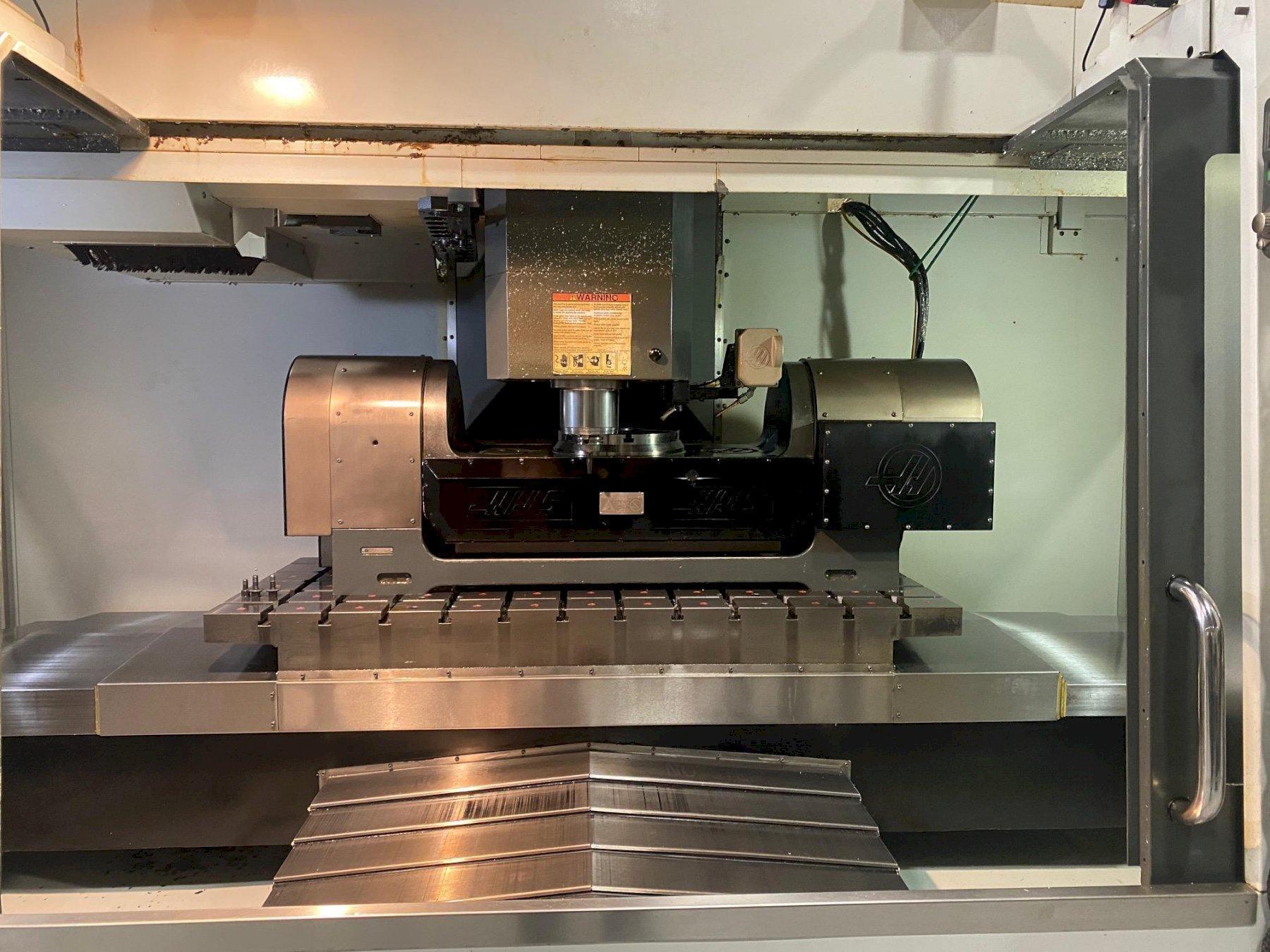

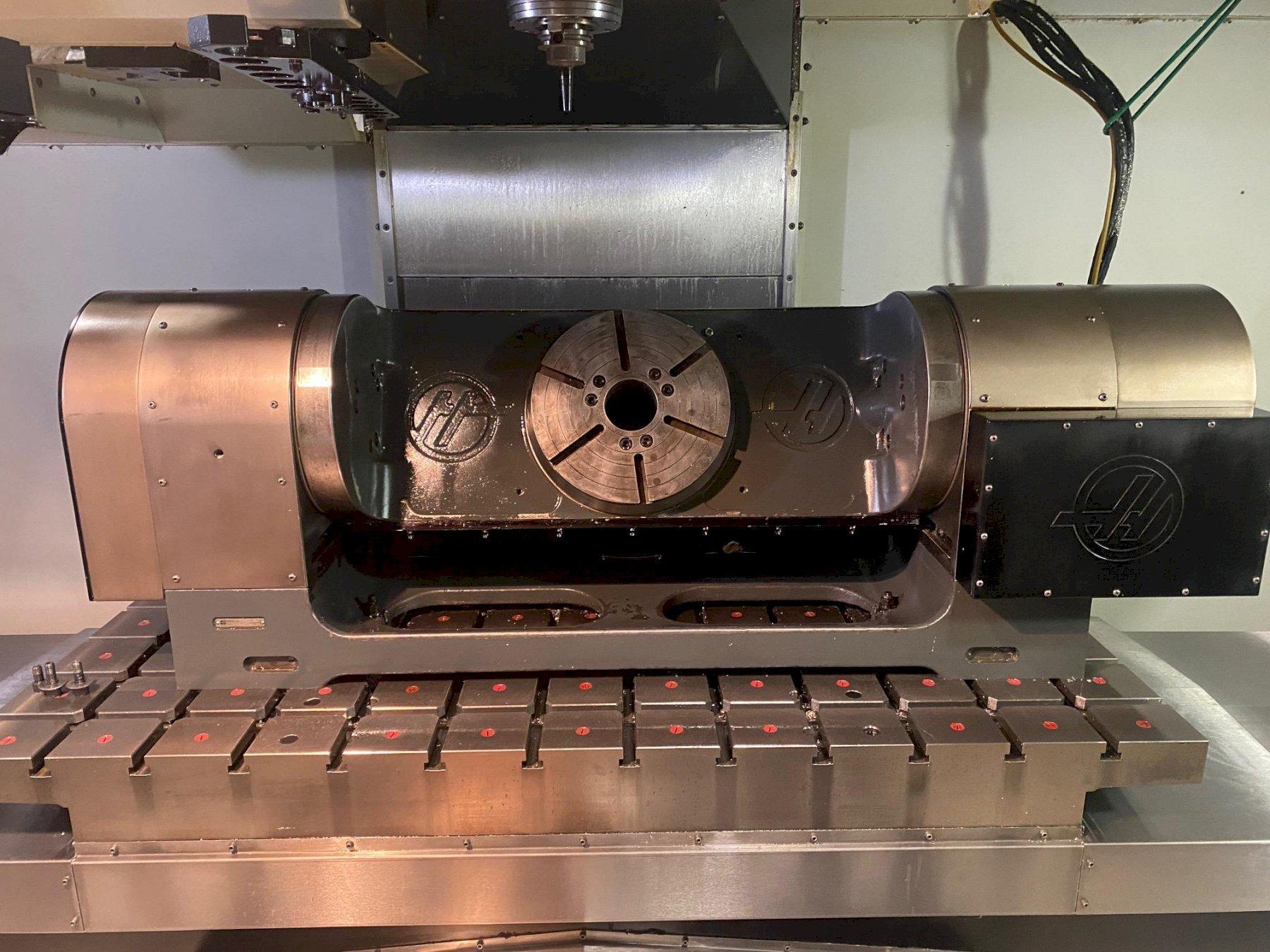

Haas TR310 5-Axis Trunnion Table For Sale - 2012

Manufacturer

HAAS

Category

Tables

Type

TABLES, ROTARY

Stock

13743-1

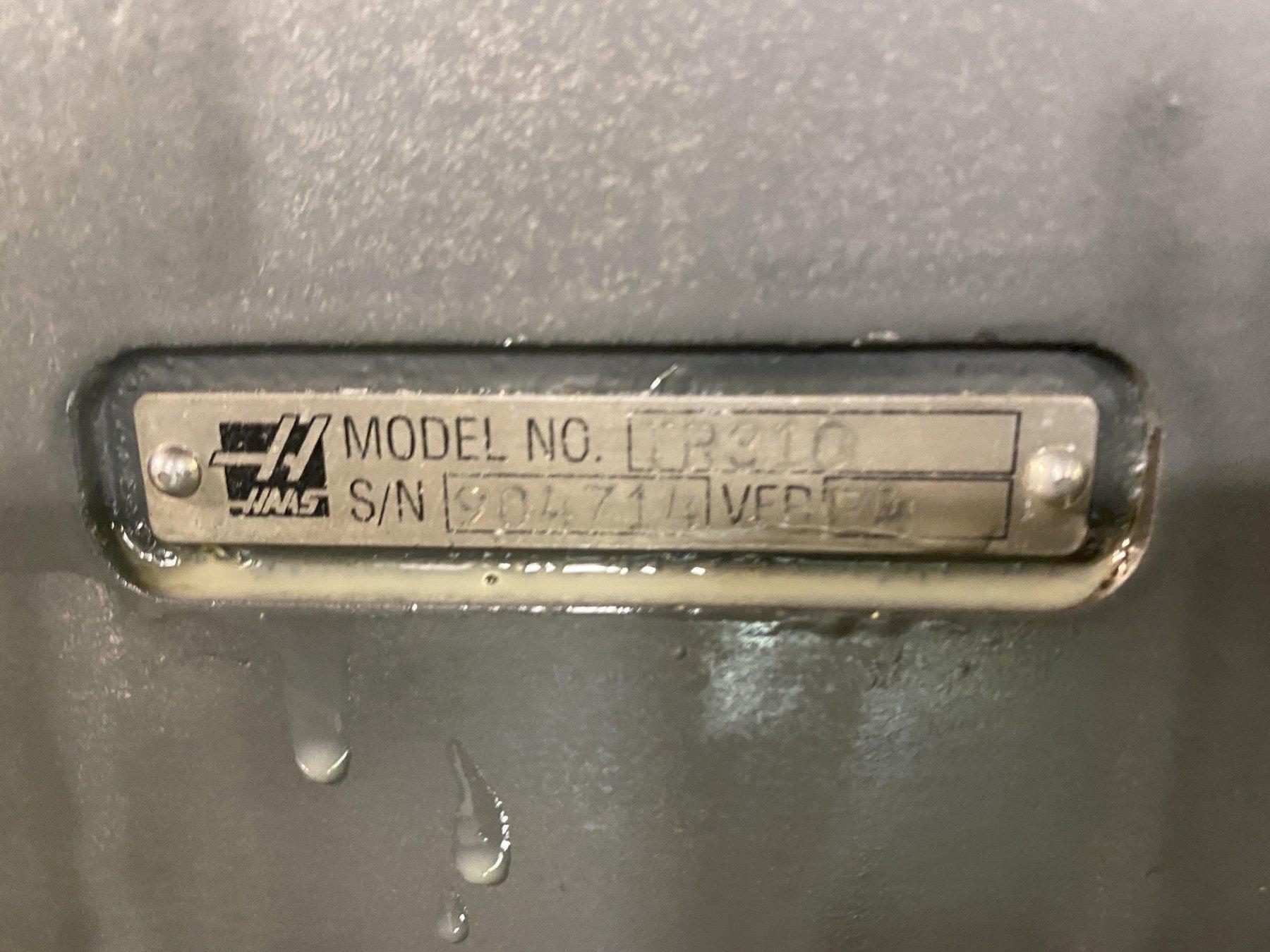

Model

TR310

Dealer Location

Michigan

Request a Quote
View Contact Information

Spec Sheet

CNC Control - yes
Platter Diameter - 12.2 inches
Max Part Swing - 31 inches
Max Table Load - 500 pounds
Table Speeds - 50°/sec
A-Axis Trunnion Tilt Range - ±120°
A-Axis Trunnion Speed - 50°/sec
B-axis Indexing - 999.999°
Weight - 2105 pounds


Specifications
Brand: Haas
Model: TR-310

Specifications:
Platter diameter: 12.20"
Max weight on platter: 500 Lbs.
Part swing max: 31"
Number of T-slots: 6 @ 60 degrees

Spindle A (tilt)
Max speed: 50 degrees per second
Max torque: 300 ft lbs.
Gear ratio: 72:1
Timing: 3:1
Brake torque @ 100 psi: 1,000 ft lbs.

Spindle B (rotary)
Max speed: 50 degrees per second
Max torque: 300 ft lbs.
Runout max: 0.0010"
Gear ratio: 72:1
Timing: 3:1
Brake torque @ 100 psi: 500 ft lbs.

Indexing A (tilt)
Max rotation / step: +/- 120 degrees
Resolution: 0.001 degrees

Indexing B (rotary)
Max rotation / step: 999.999 degrees

Air pressure max: 150 psi.
Weight: 2,105 Lbs.
