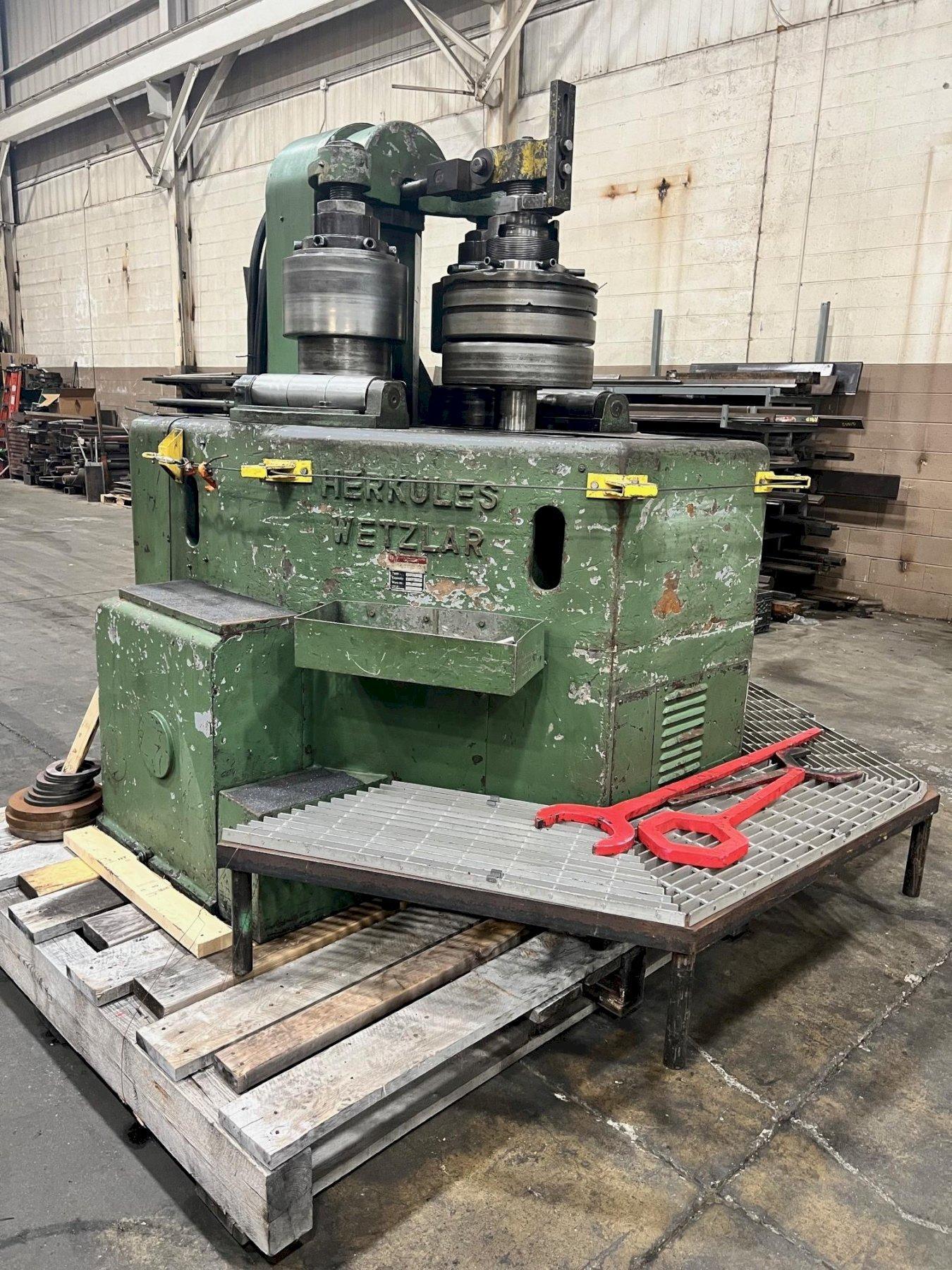

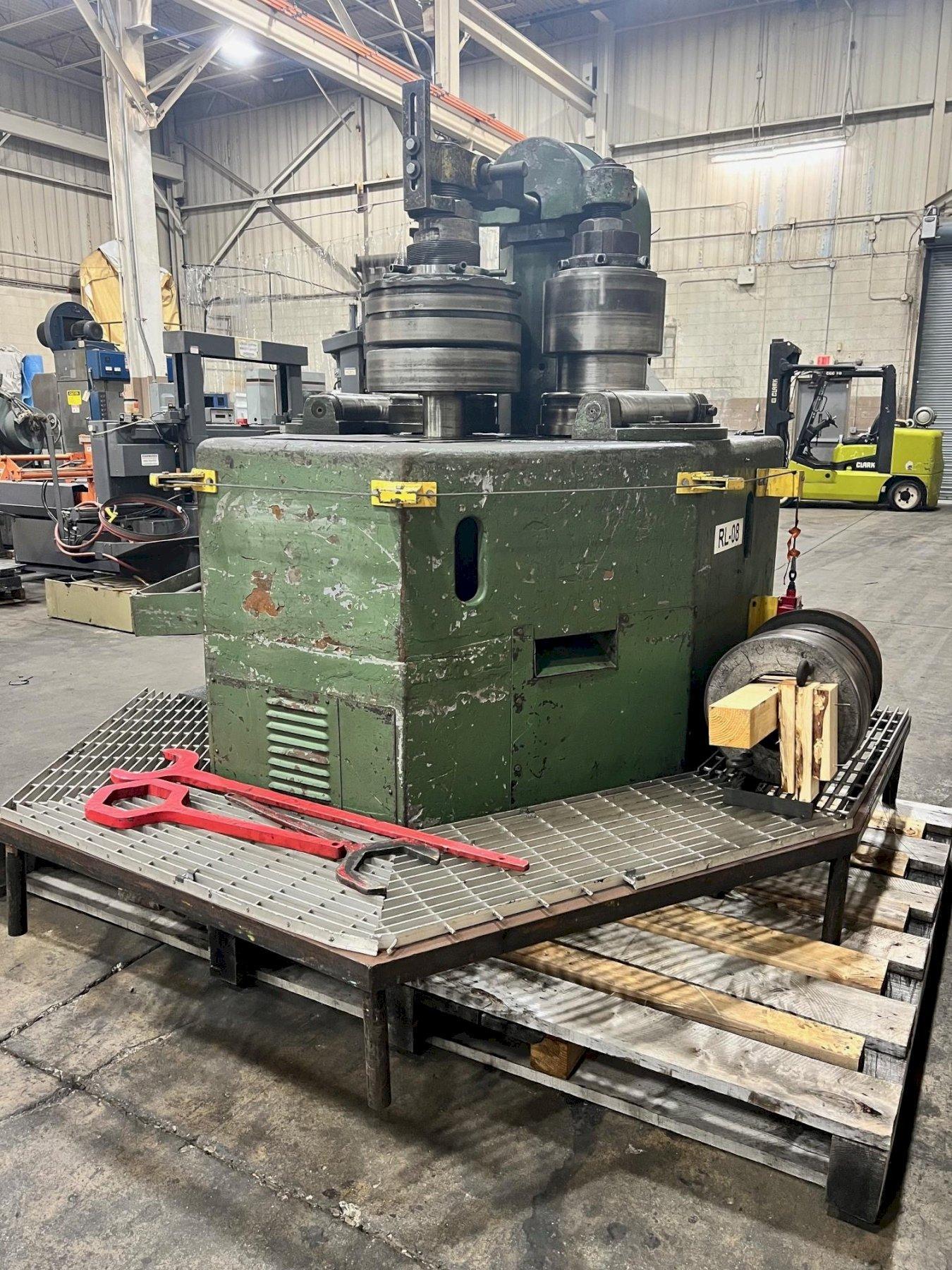

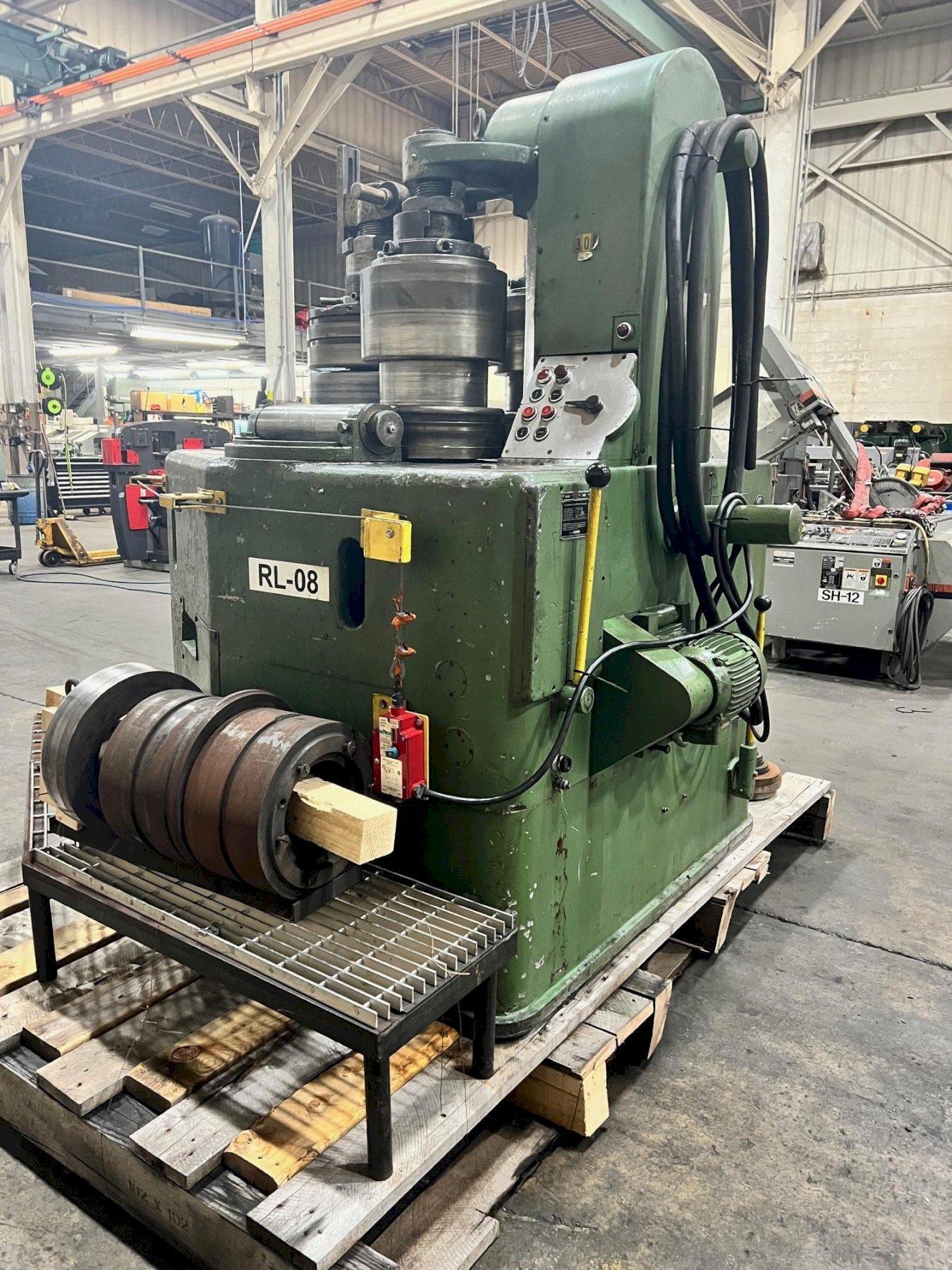

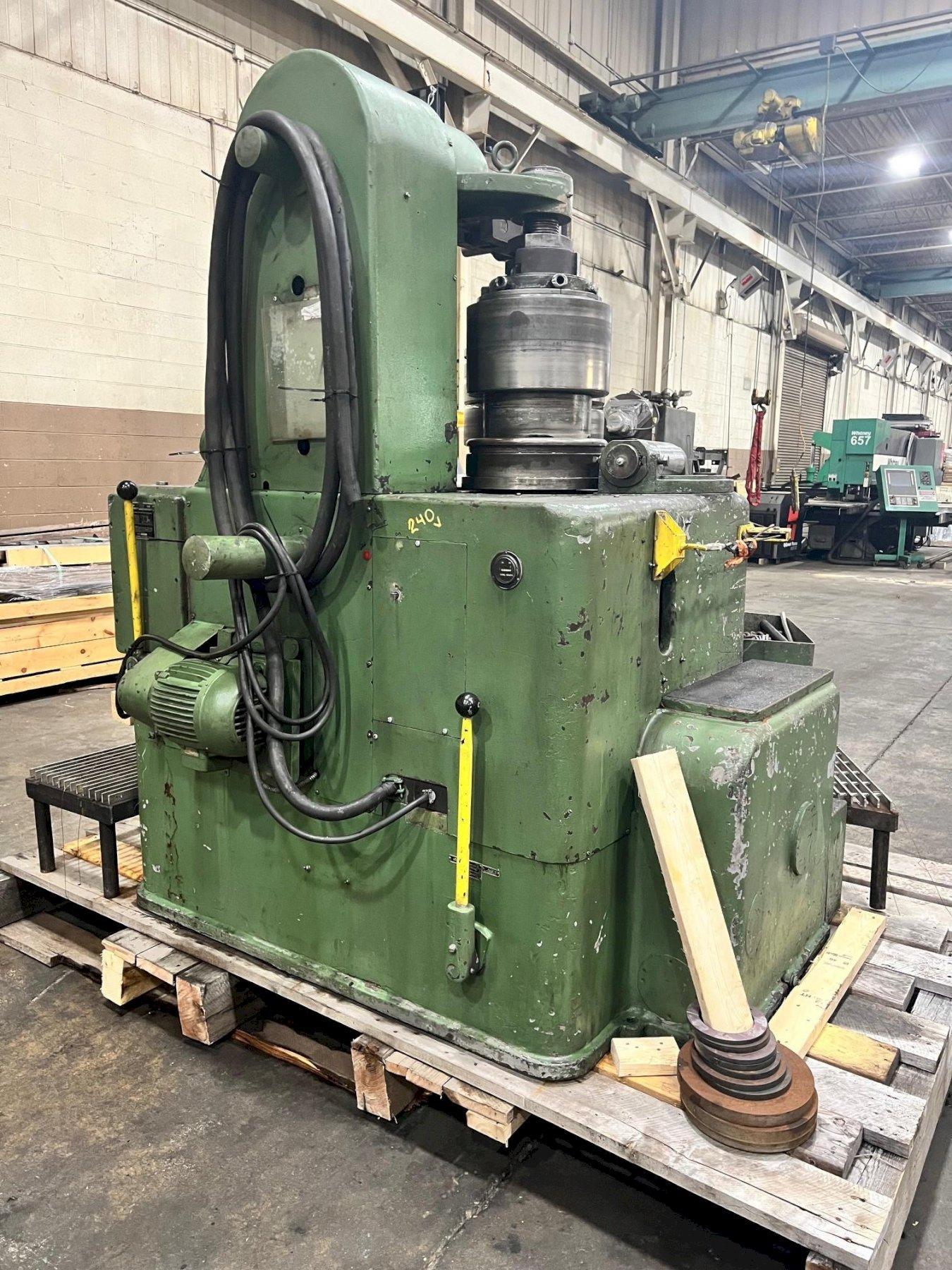

USED HERKULES WETZLAR 5" X 5" X 3/4" MECHNICAL ANGLE ROLL, Stock# 11103, Year: 1966

Manufacturer

HERKULES WETZLAR

Category

Rolls

Type

ROLLS, ANGLE BENDING

Stock

11103

Model

BO232K

Dealer Location

Michigan

Request a Quote
View Contact Information

Spec Sheet



Brand: Herkules
Model: BO232K

Specifications:
Angle leg out: 5" x 5" x 3/4" @70" diameter min.
Smallest angle leg out: 2-1/2" x 2-1/2" x 3/8" @20" diameter
Angle leg in: 4" x 4" x 3/4" 60" diameter min.
Smallest angle leg in: 2" x 2" x 3/8" @43" diameter min.
Tees: 5" x 4"
H-beam on flange: 12" x 5" @60" diameter min.
Channel flange out: 12" x 4" @60" diameter min.
Channel flange in: 10" x 3-1/2" @64" diameter min.
Flat on flat: 8" x 2" @36" diameter min.
Flats on edge: 4-5/16" x 1-3/8" @43" diameter min.
Squares: 3" x 3" @36" diameter min.
Pipes: 4-1/4" x 3/8" @48" diameter min.
Speeds: (2) 14'9" per min / 29'6" per min

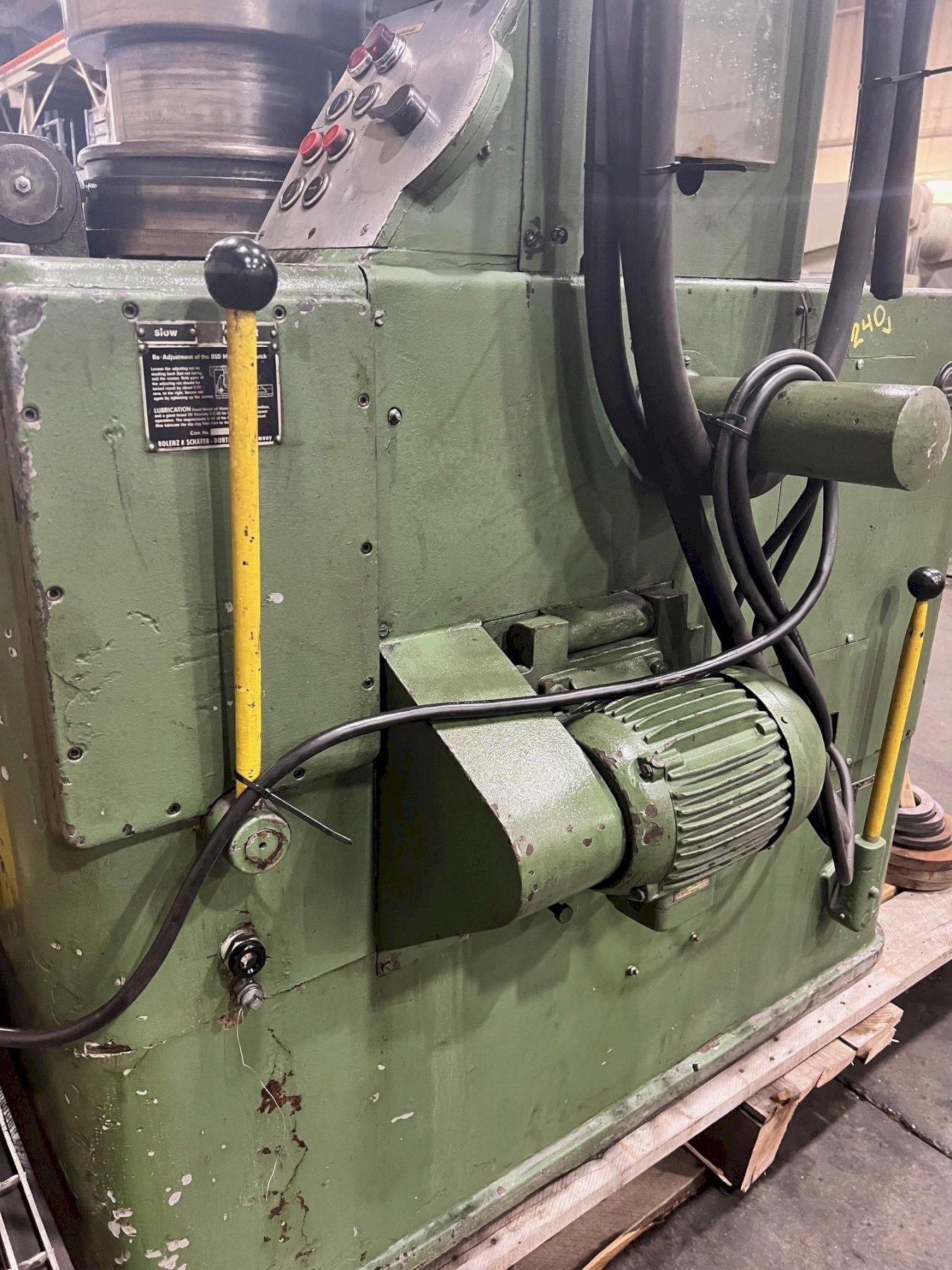

Main motor: 20 H.P.
Voltage: 240 volt 3 phase
Weight: 13,900 Lbs.

Equipped with:

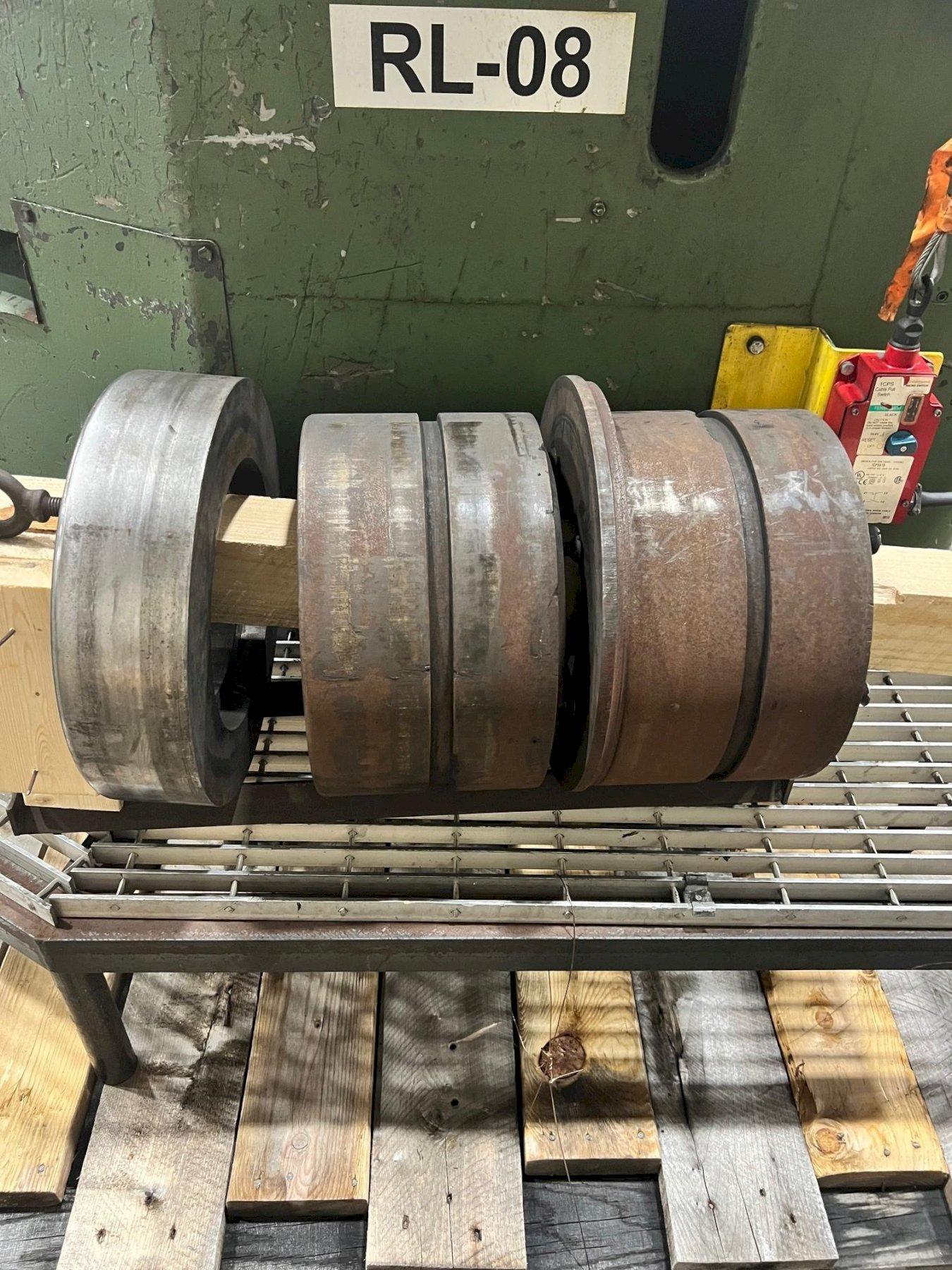

Universal tooling set
2 speed gearbox
Power bending roll adjustment

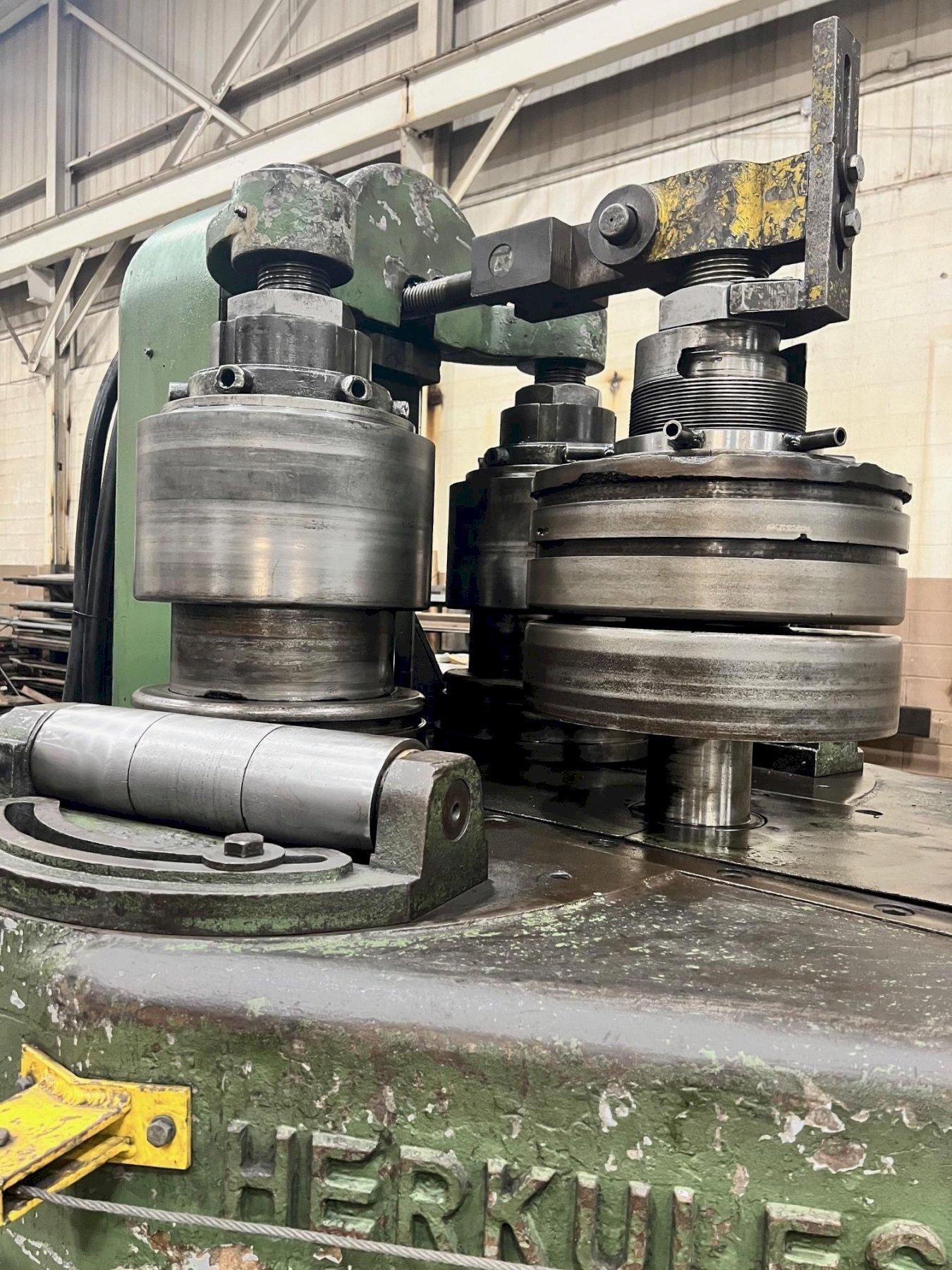

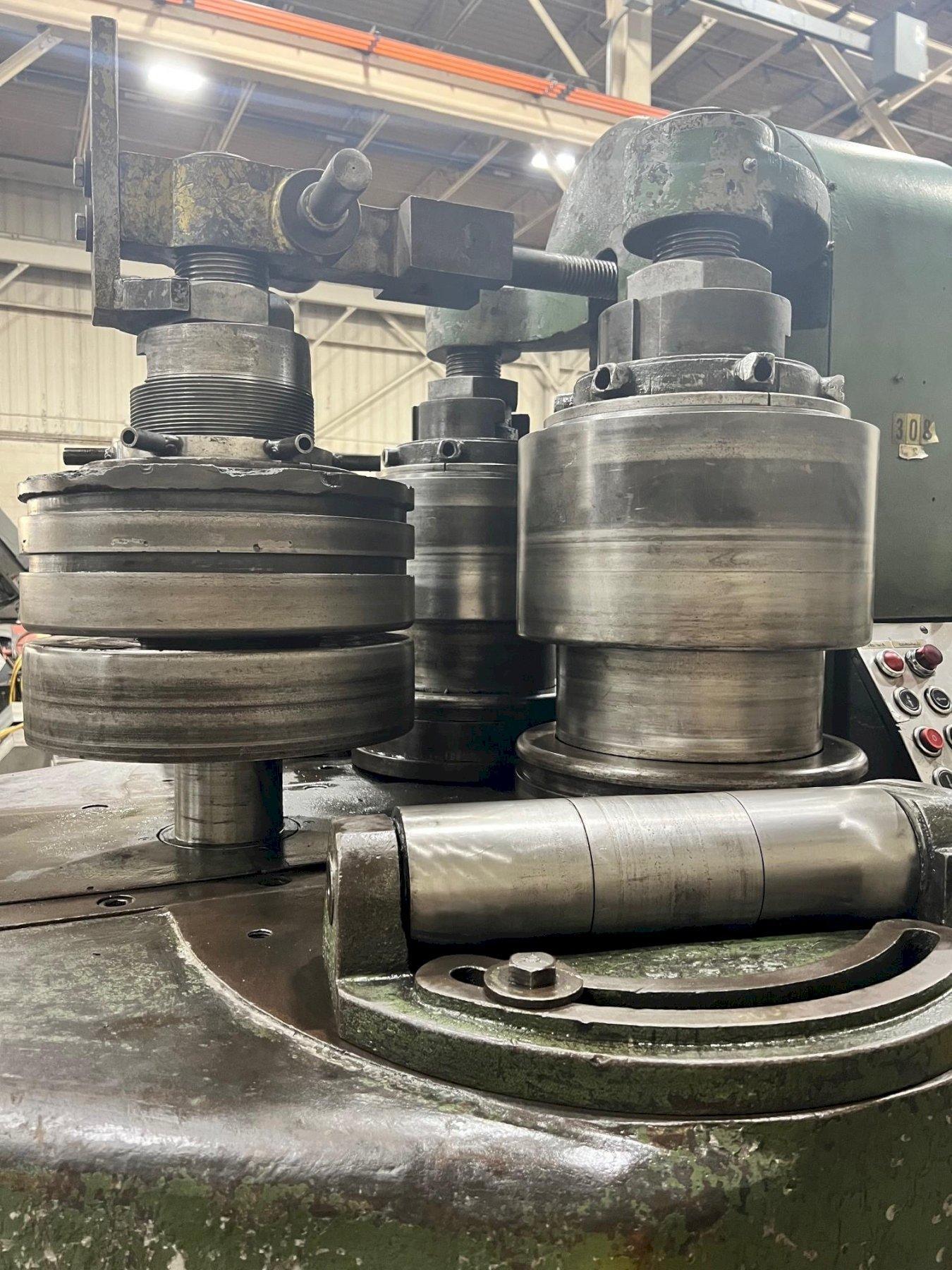

Manually adjusted guide rolls

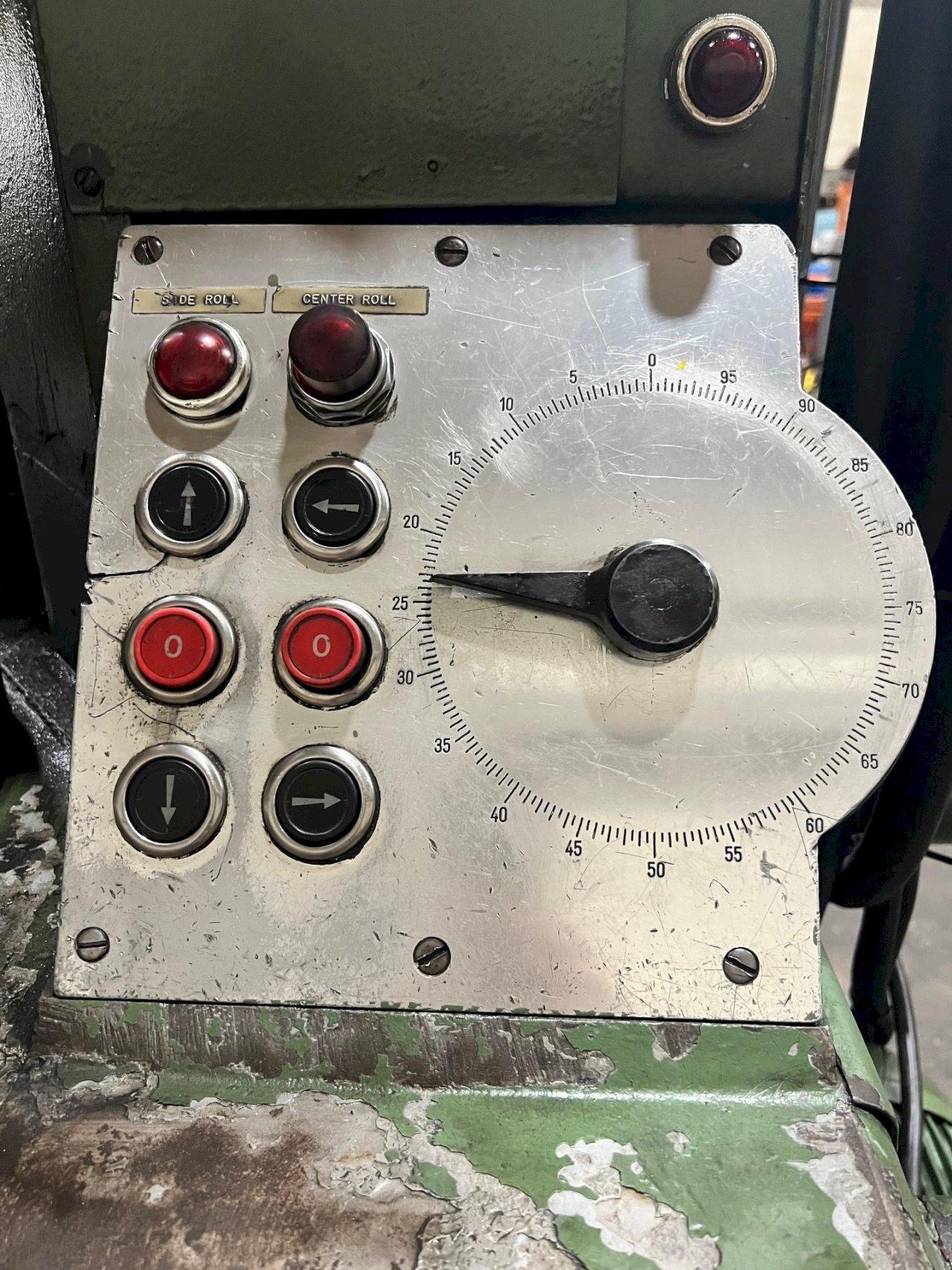

Mechanical readout for roll position
Upper tie rod system for rigidity
