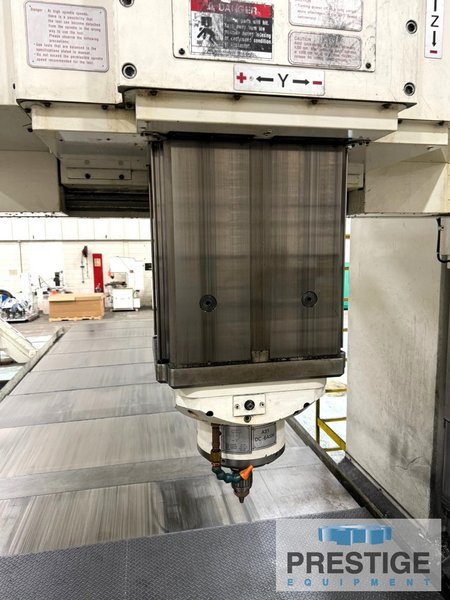

SNK DC-6ASM 60 ATC, AAC, 5-Face, X-285", Y-138", (2) 118" x 275" Tables, 4000 RPM, Right Angle Head, Fanuc 30i-A, #43480

Manufacturer

SNK

Category

Machining Centers

Type

MACHINING CENTERS, VERTICAL, CNC, BRIDGE TYPE

Stock

43480

Model

DC-6ASM

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43480

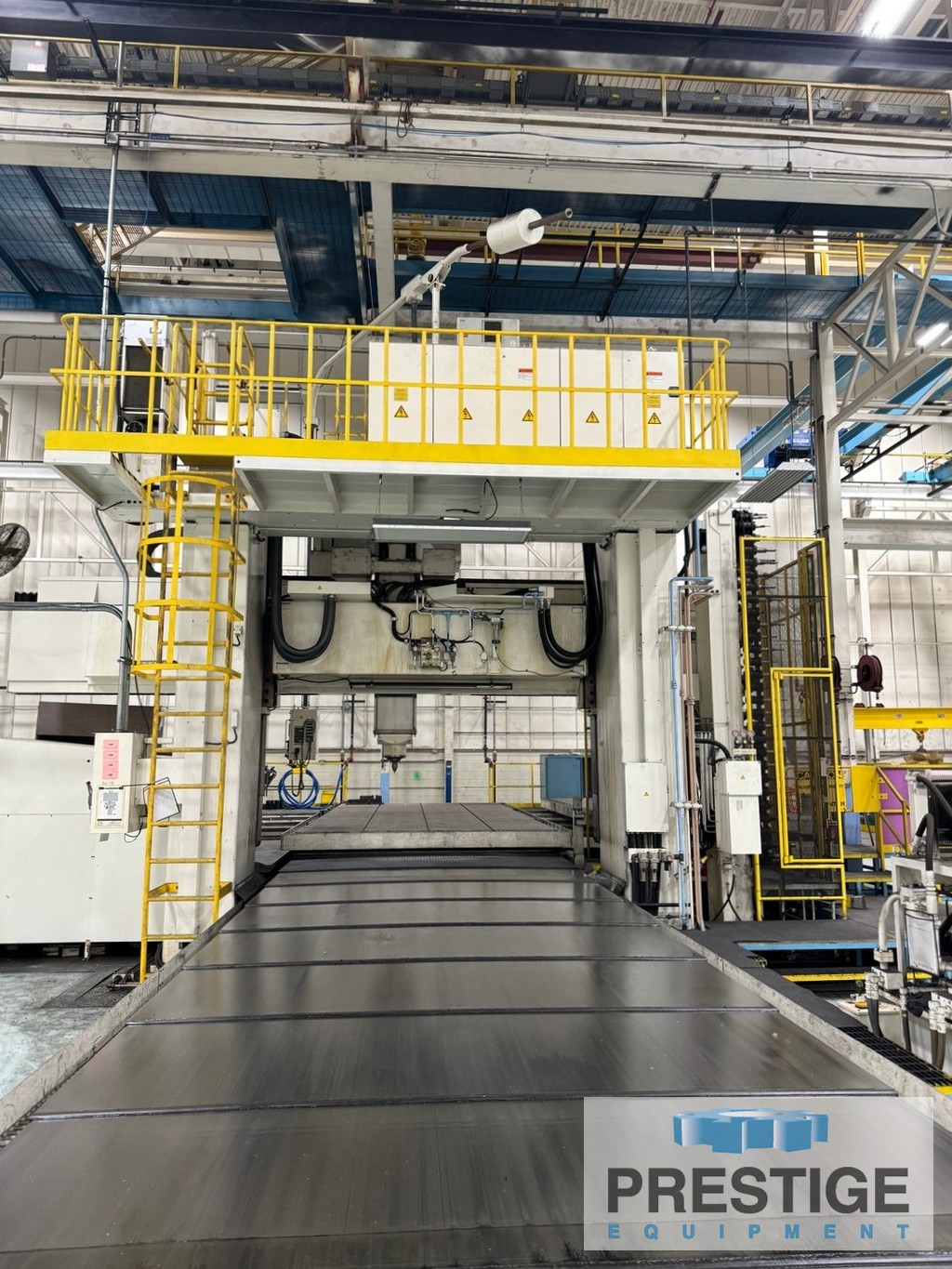

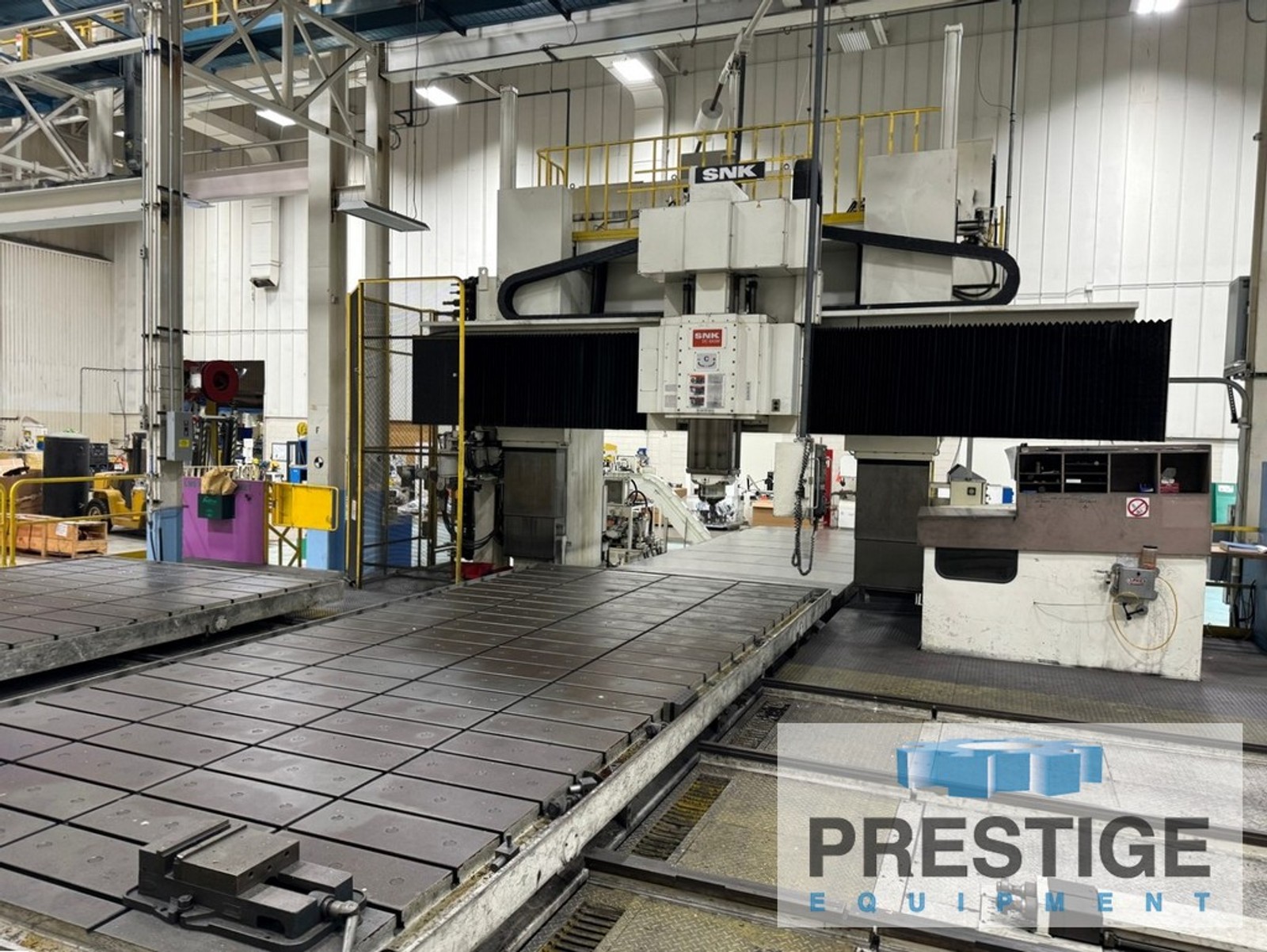

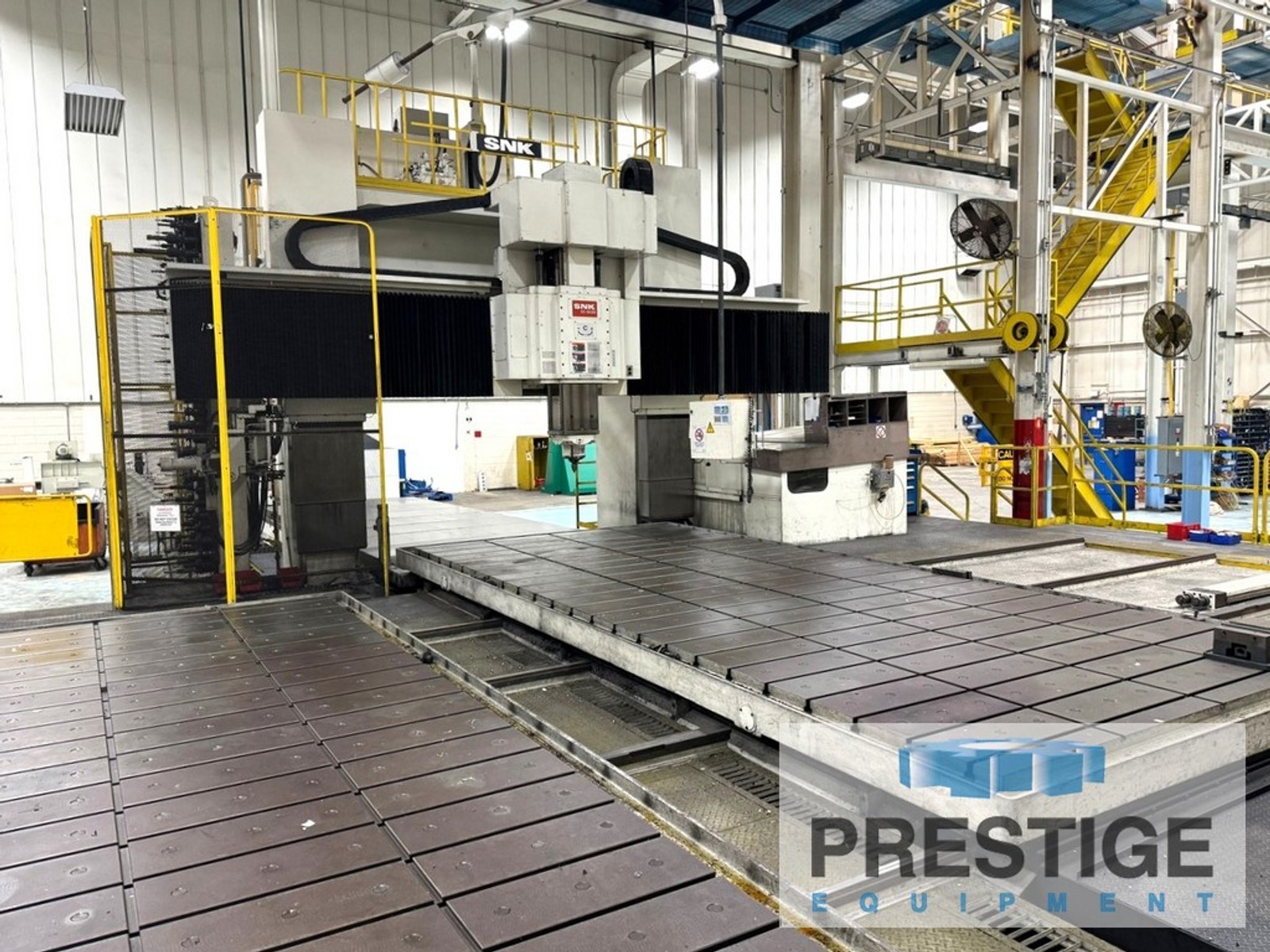

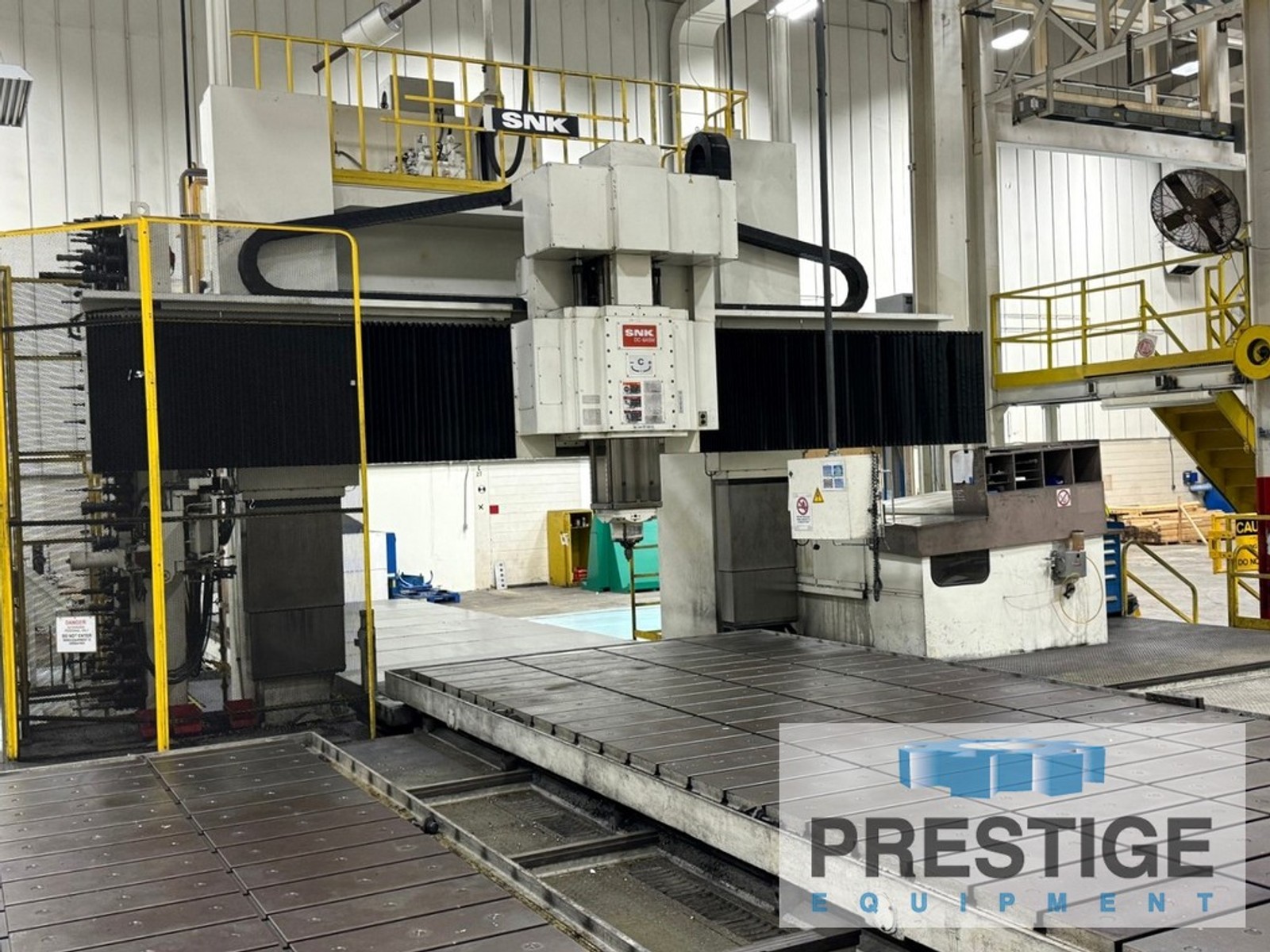

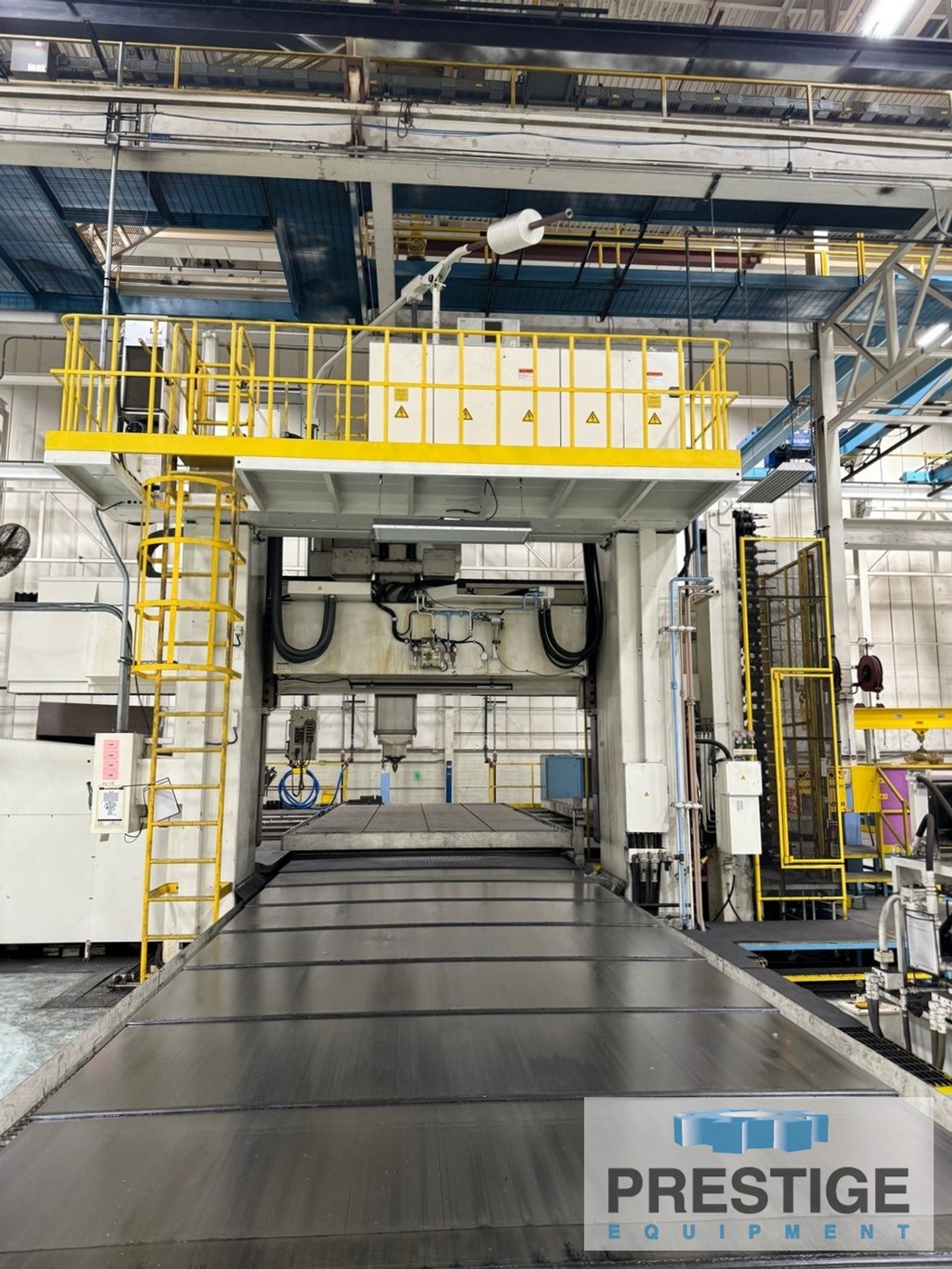

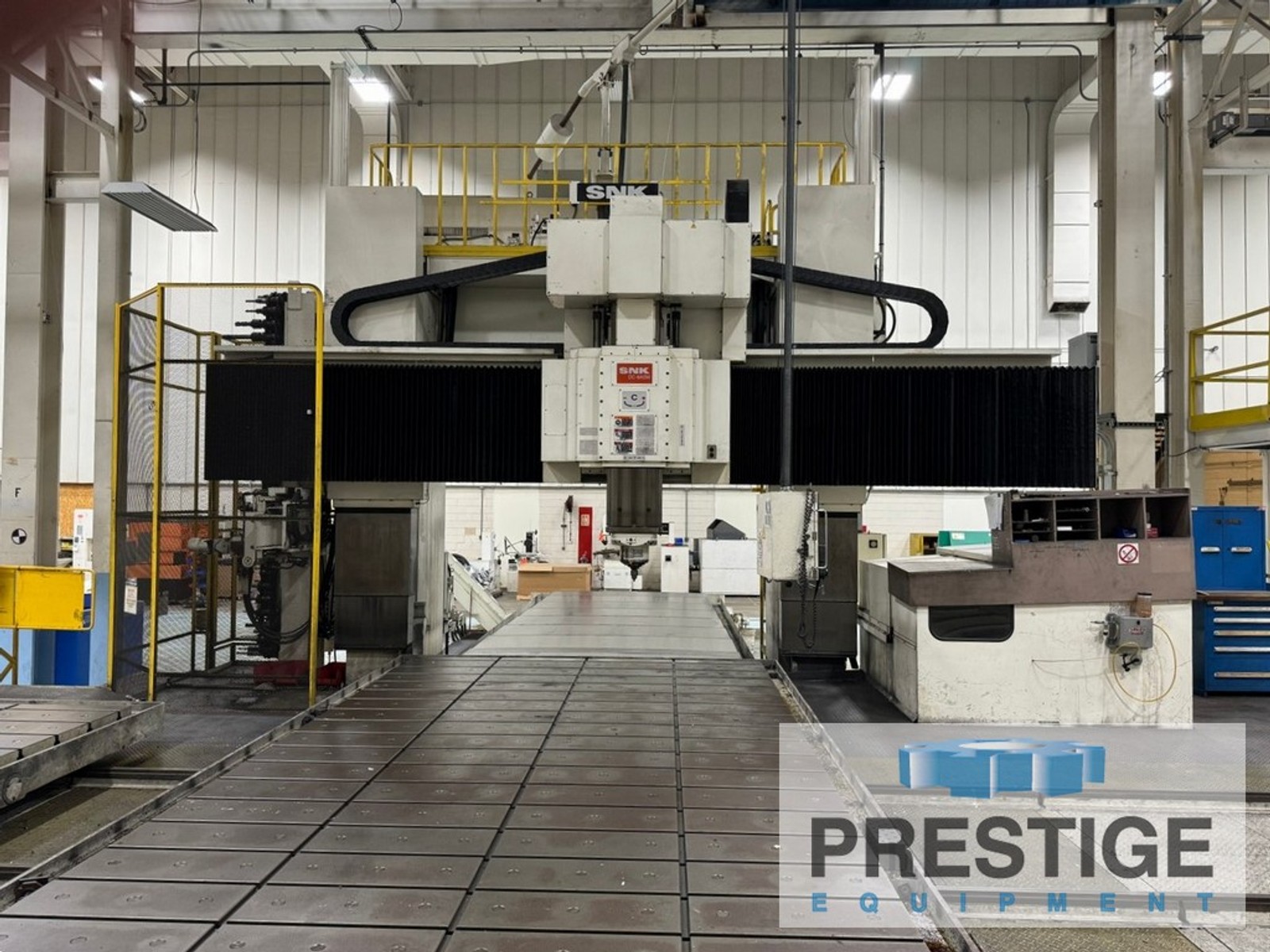

SNK DC-6ASM CNC 5-Face Bridge Mill with 2-Tables

FEATURES:

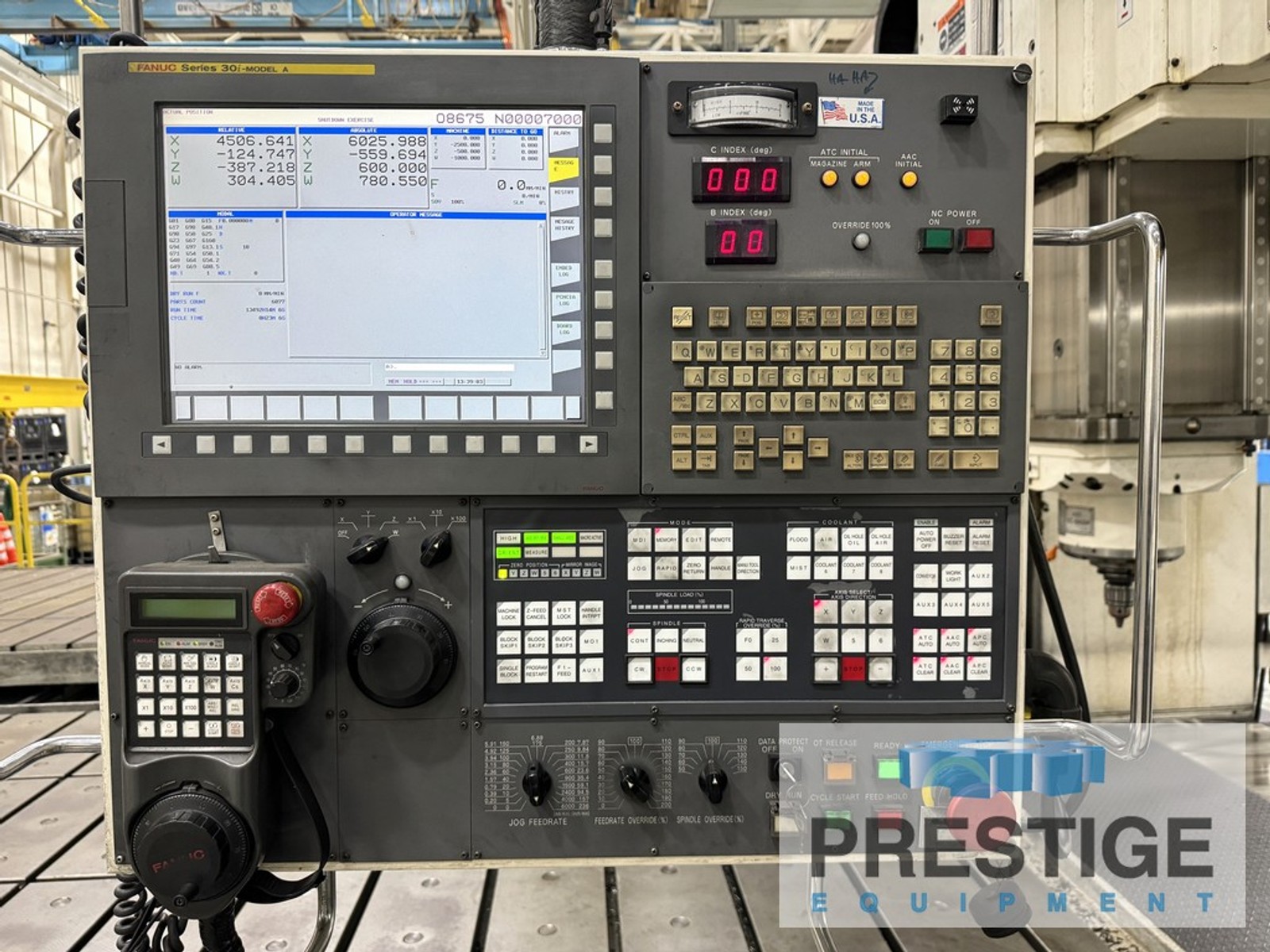

Fanuc 30i-A CNC Control

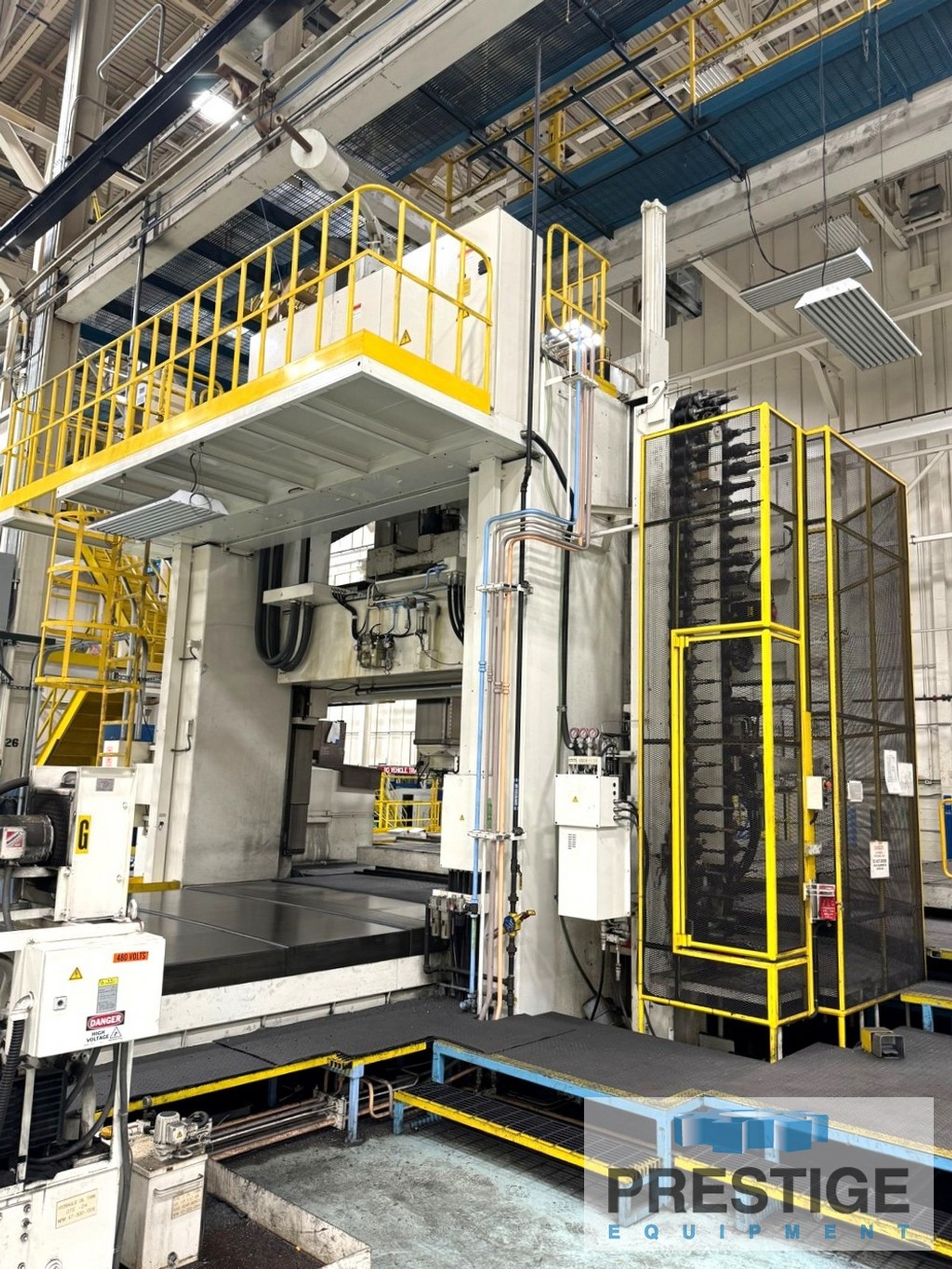

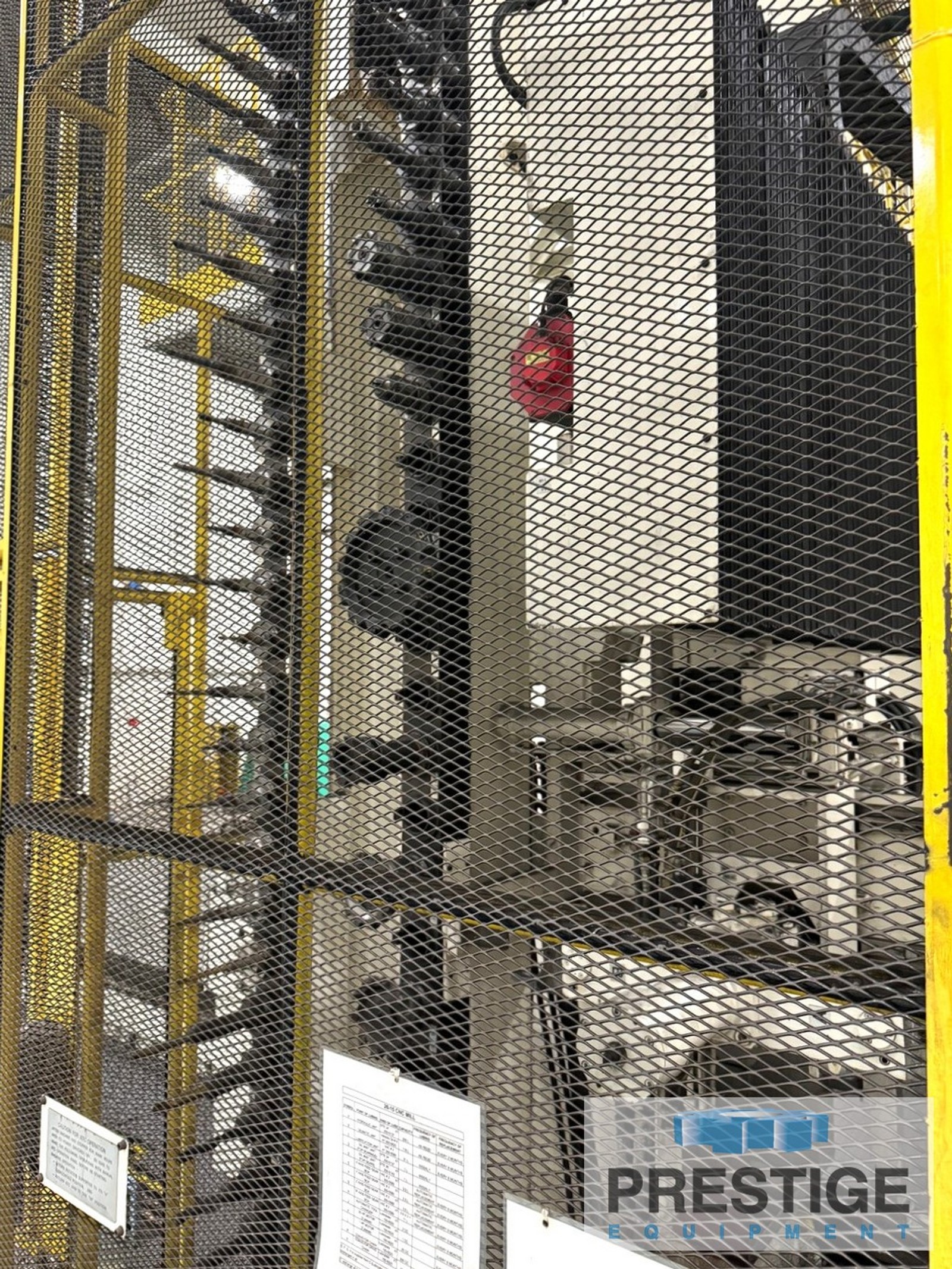

60-Position Automatic Tool Changer

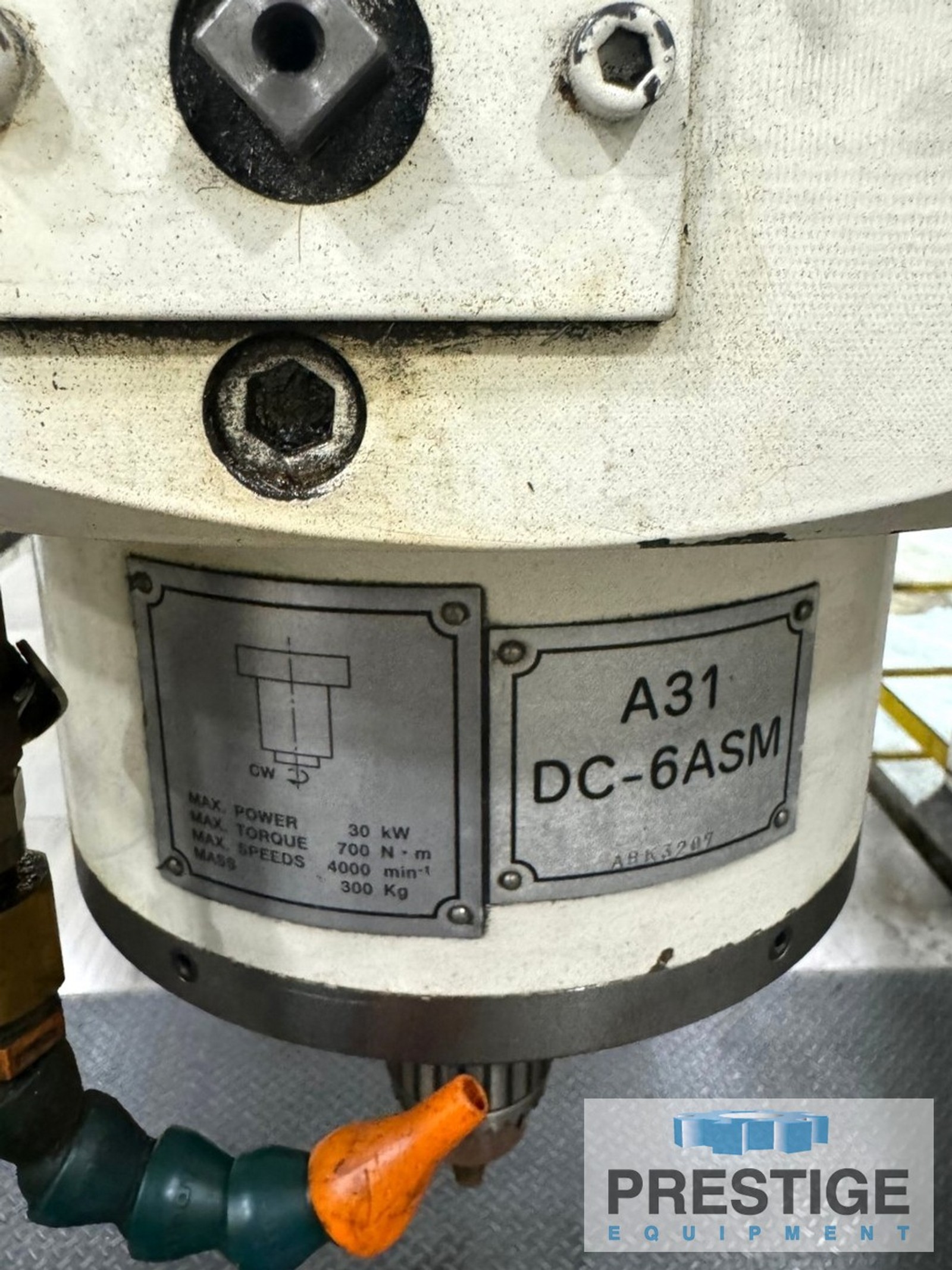

Auto Indexing Right Angle Head for 5-Face Machining
(2) 275.6" x 118" T-Slotted Tables
Pallet Shuttle

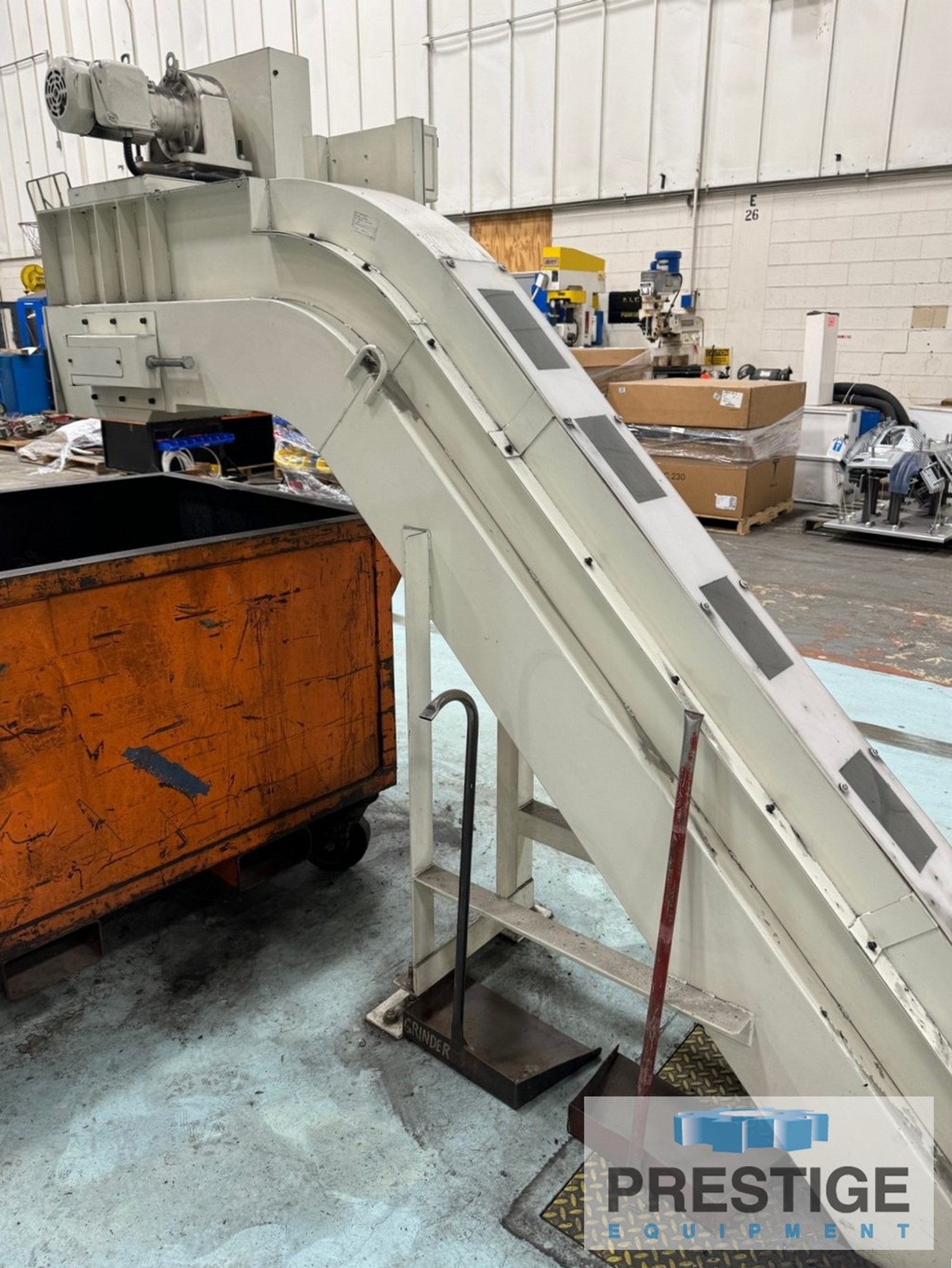

Dual Chip Conveyors


SPECIFICATIONS:
X-Axis Table Longitudinal Travel ...... 285.4"
Y-Axis Spindle Head Transverse ........ 198.8"
Z-Axis Ram Vertical Travel ............ 31.5"
W-Axis Cross Rail Vertical Travel ..... 57.08"
Distance Table to Spindle, Maximum .... 90.55"
Distance Between Columns .............. 137.7"

WORK TABLES:
Pallet Working Surface, T-Slotted ..... 275.6"x 118.1"
Maximum Pallet Workpiece Weight ....... 77,160 lbs.

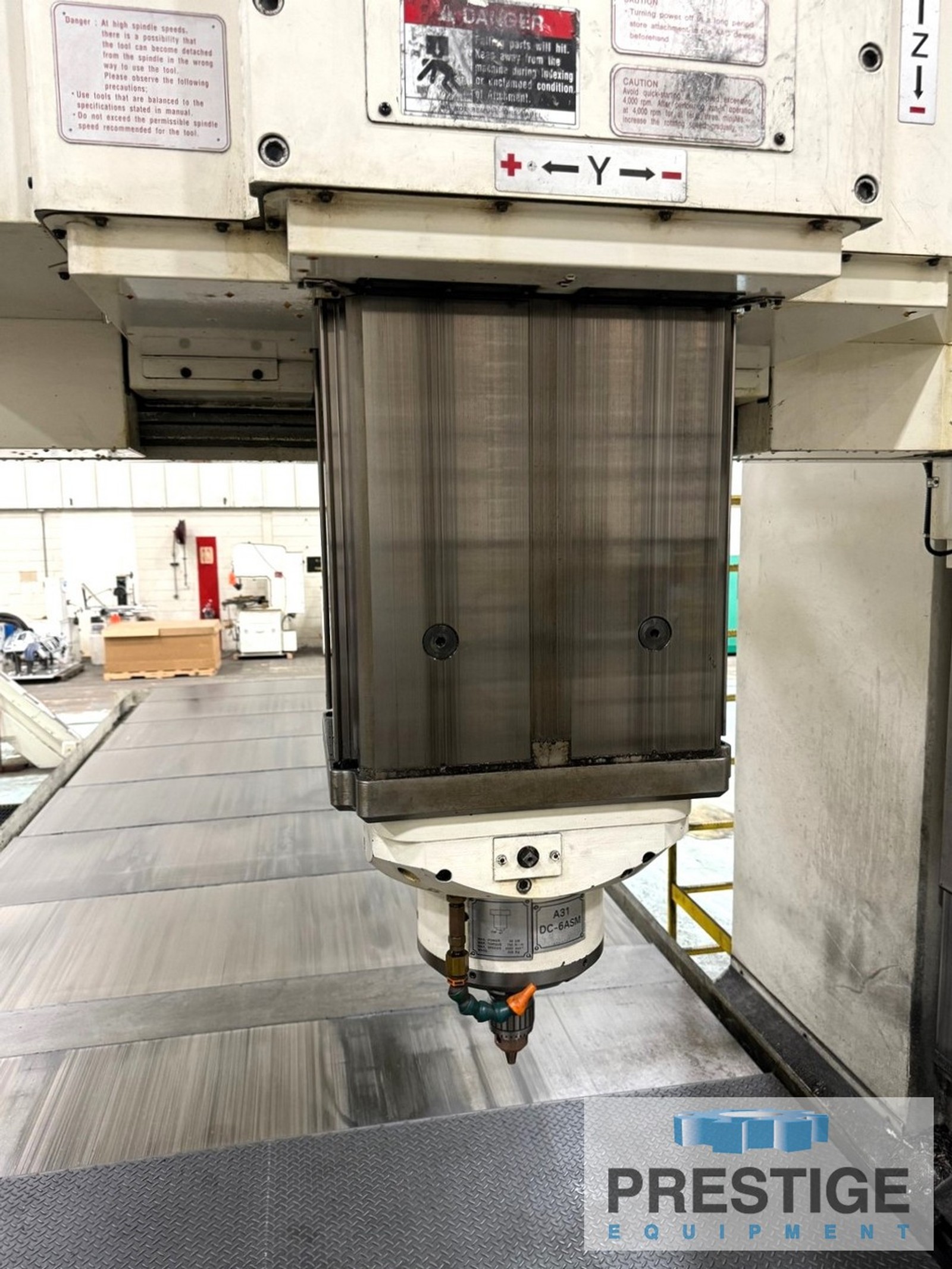

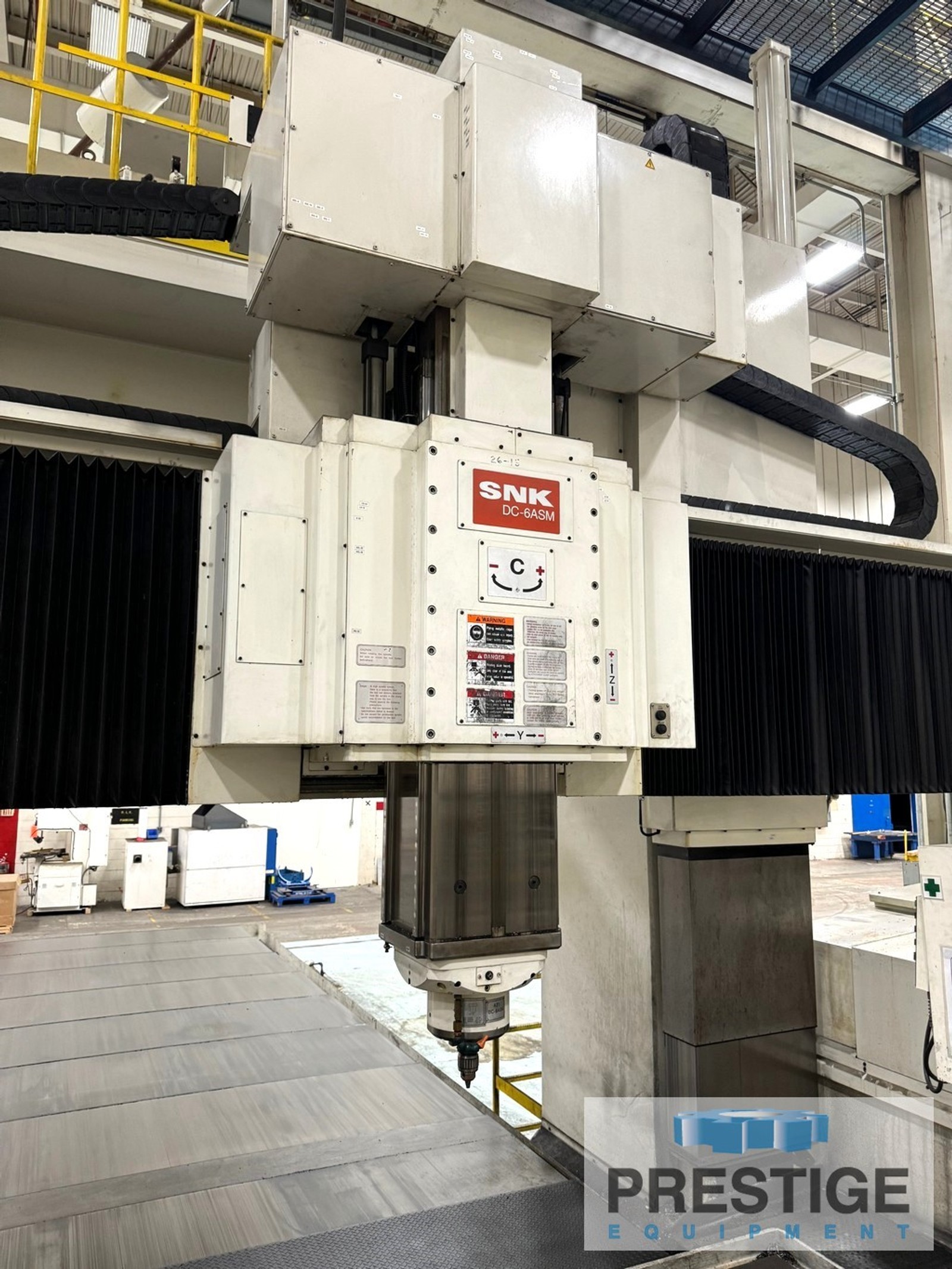

SPINDLE:
Spindle Speed Range ................... 10-4000 RPM
Spindle Taper ......................... CAT 50
Spindle Bearing Inner Diameter ........ 4.72"
Spindle Drive Motor ................... 50 HP/40 HP

FEEDS & SPEEDS:
Rapid Feeds, X,Y-Axes ................. 787.4 IPM
Rapid Feed, Z-Axis .................... 787.4 IPM
Rapid Feed, W-Axis .................... 118.1 IPM
Cutting Feed, X & Y Axes .............. 1-590.5 IPM
Cutting Feed, Z-Axis .................. 1-472.4 IPM
Fine Feed, All Axes.................... 0.001, 0.01, 0.1 mm/pulse

EQUIPPED WITH:
Fanuc 30i-Model A CNC Control
60-Position Automatic Tool Changer
275.6" x 118" T-Slotted Tables (2)
Linear & Circulation
Automatic Pallet Shuttle System
Dual Chip Conveyors
Flood & Mist Coolant
50 HP/40 HP Spindle Drive Motor

NOTES:
Inspect Under Power in Mid-West USA

No Video Available
