Peddinghaus AFPS 623M 6" x 6" x 1/2" CNC Anglemaster Punch & Shear Line, (2010) PC Based CNC Control, 2002 #43558

Manufacturer

PEDDINGHAUS

Category

Punches

Type

PUNCHES, ANGLE

Stock

43558

Model

AFPS 623M

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43558

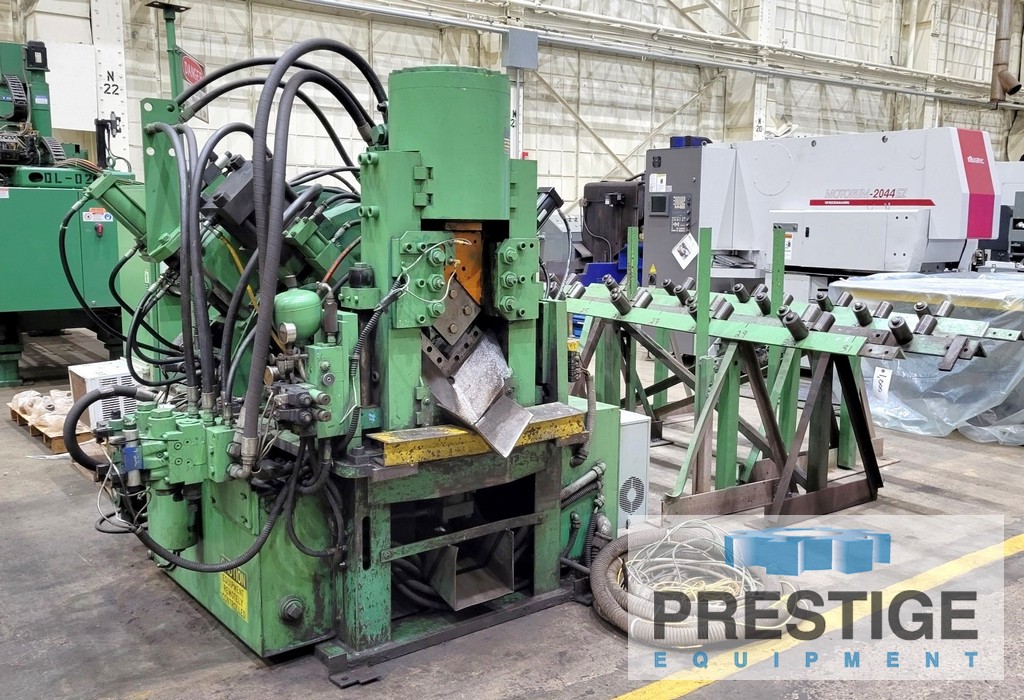

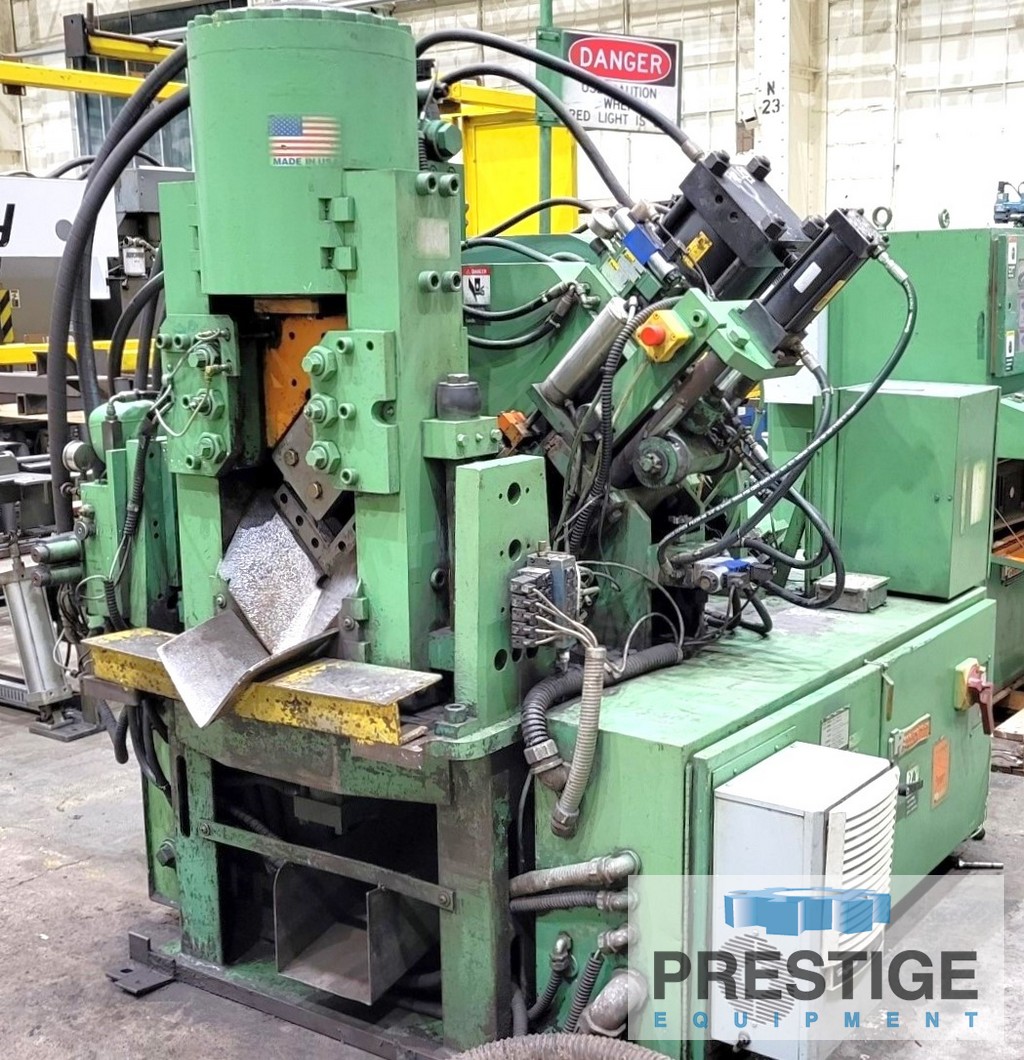

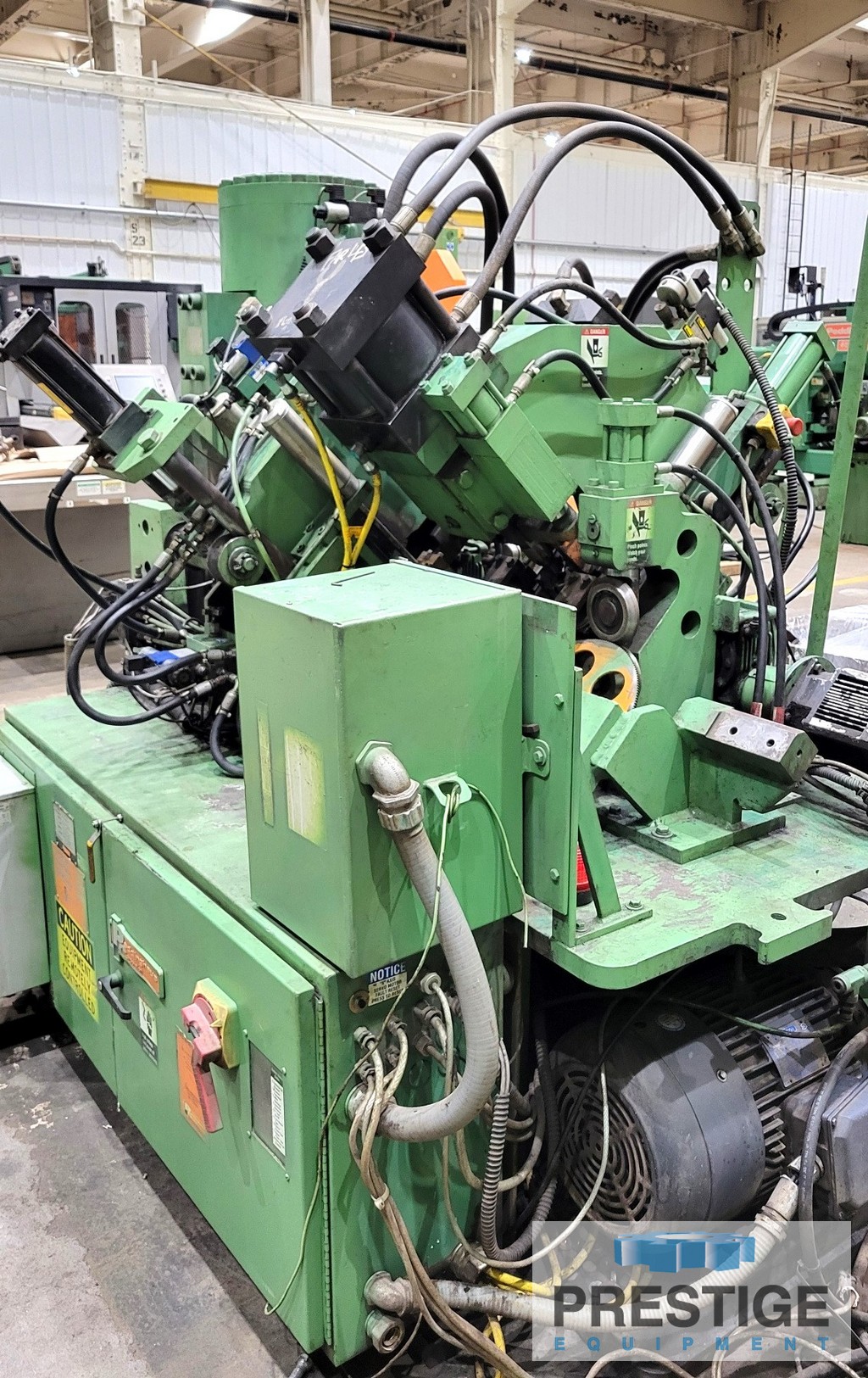

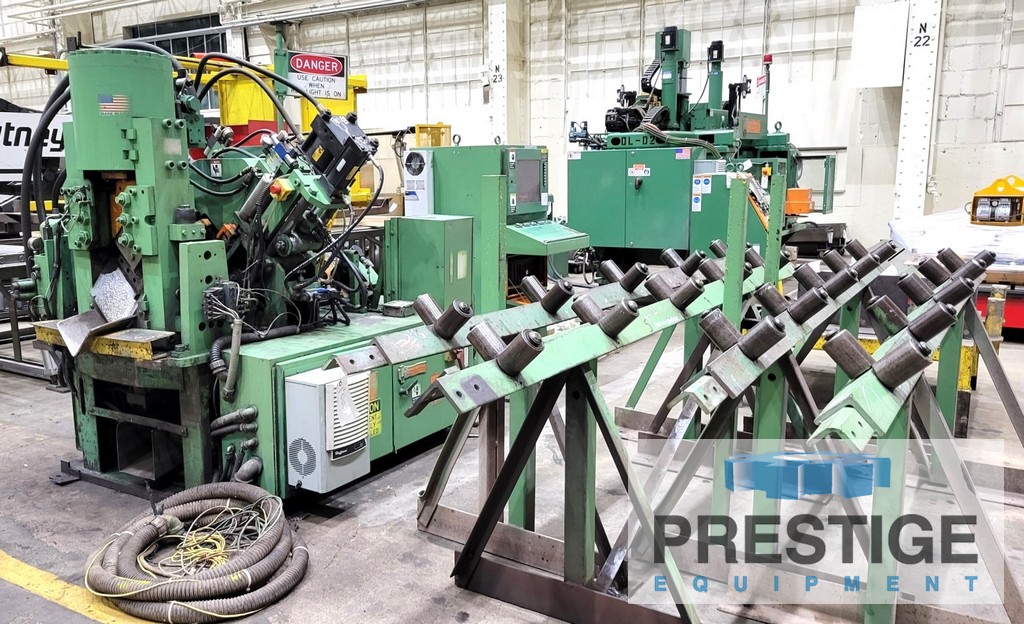

Peddinghaus AFPS 623M 6" x 6" x 1/2" CNC Anglemaster Punch & Shear Line, 2010 Upgraded Control

FEATURES:

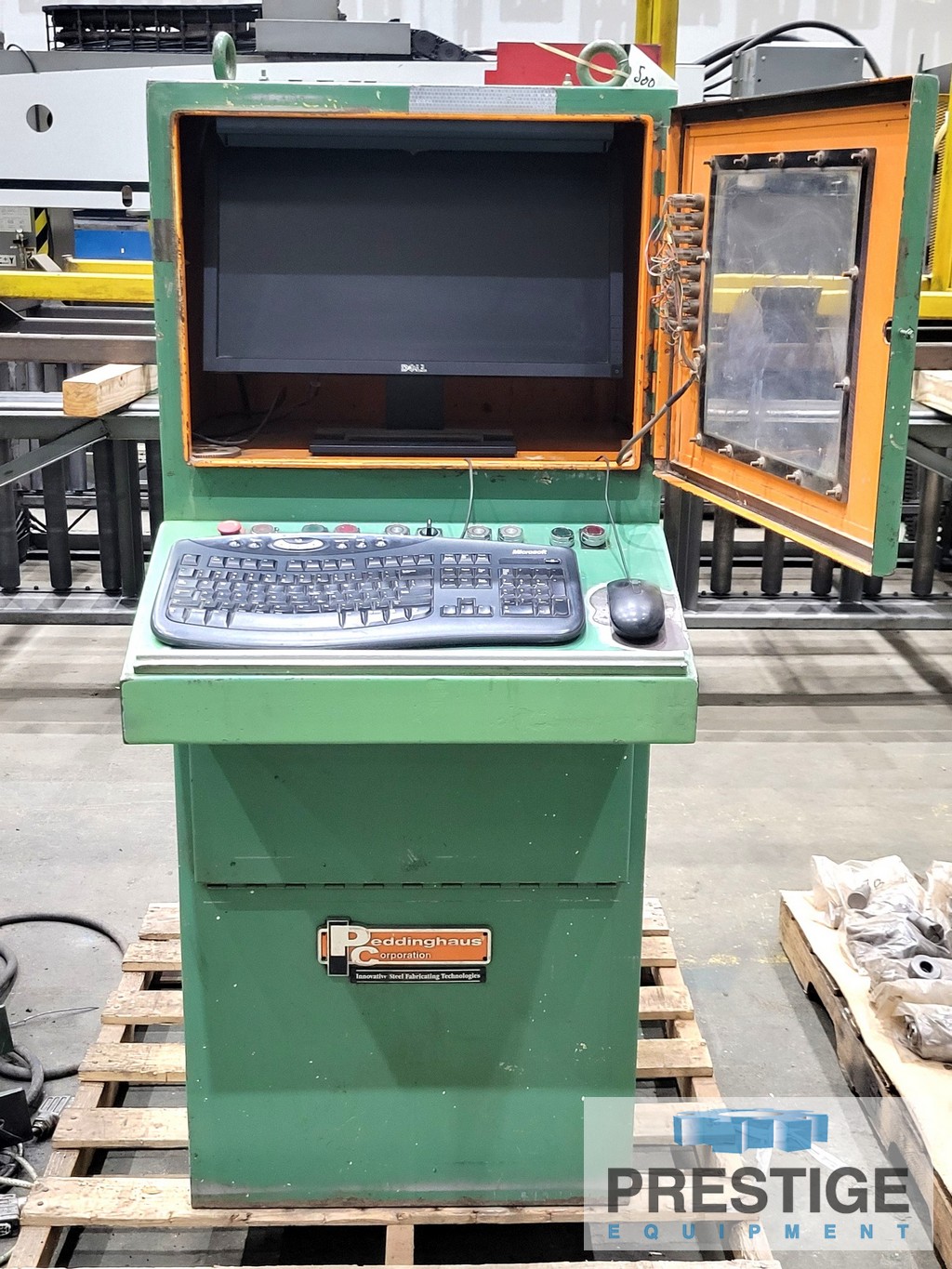

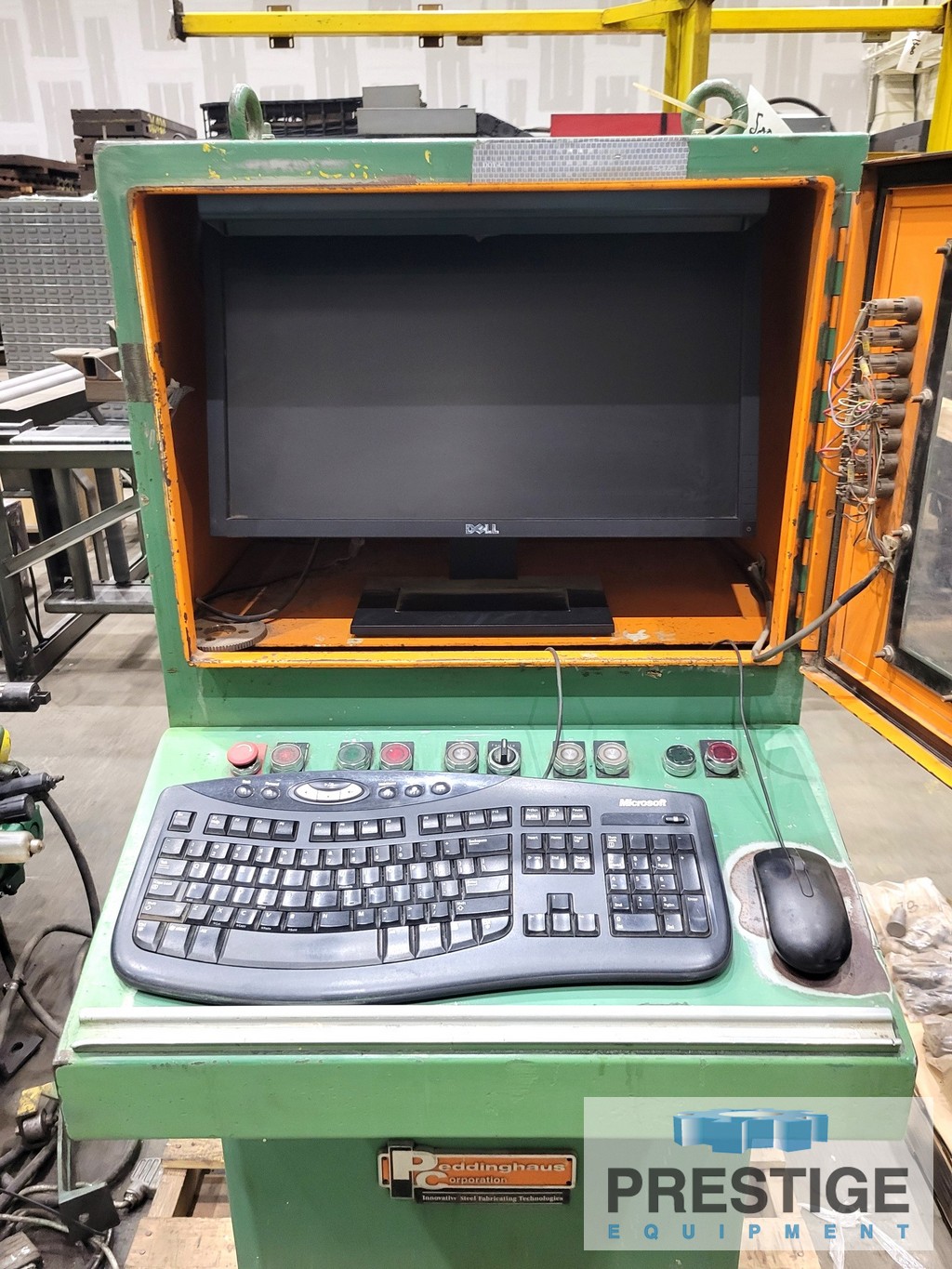

PC Based Windows Based CNC Control (Upgraded in 2010 By Peddinghaus)
Pinch Drive Feed, Pulls Material Through Machine

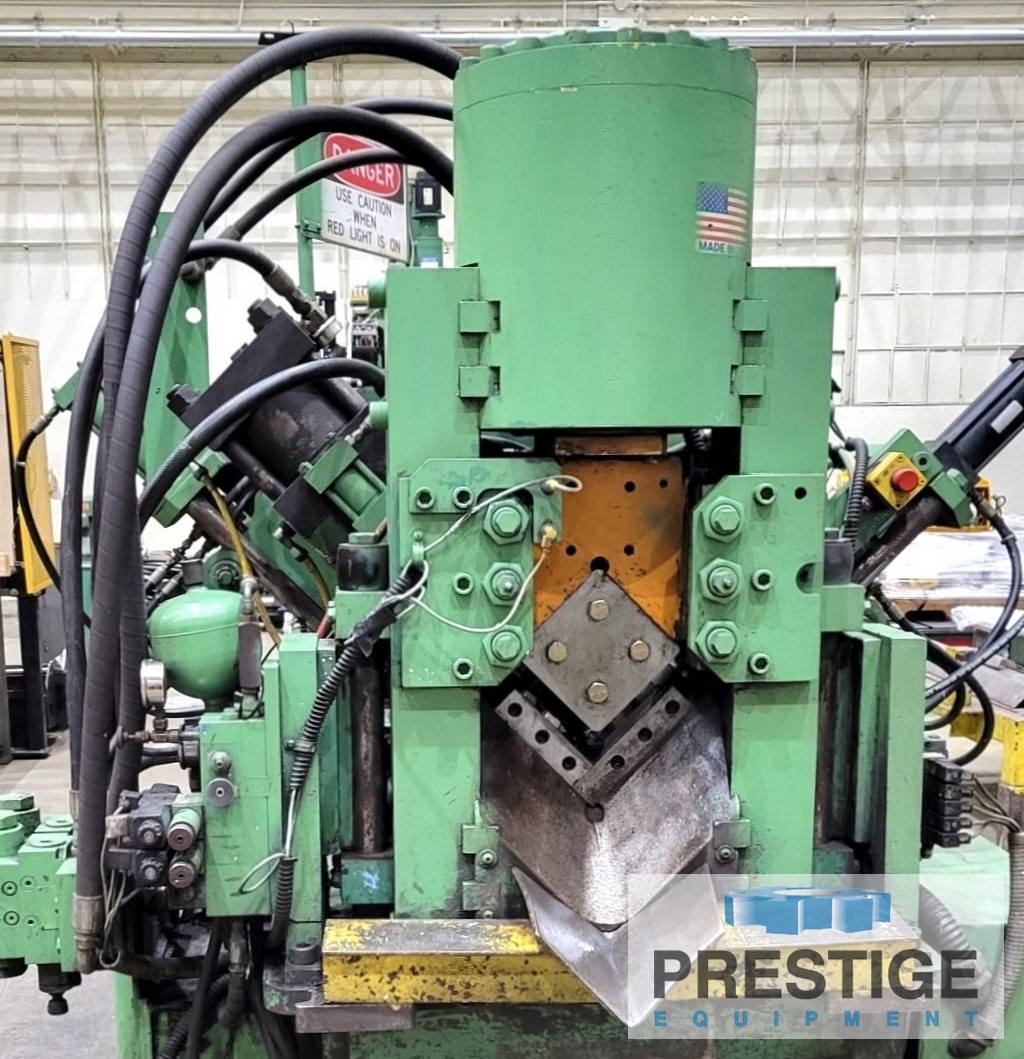

250 Ton Single Cut Shear
40' In-Feed Roller Conveyor

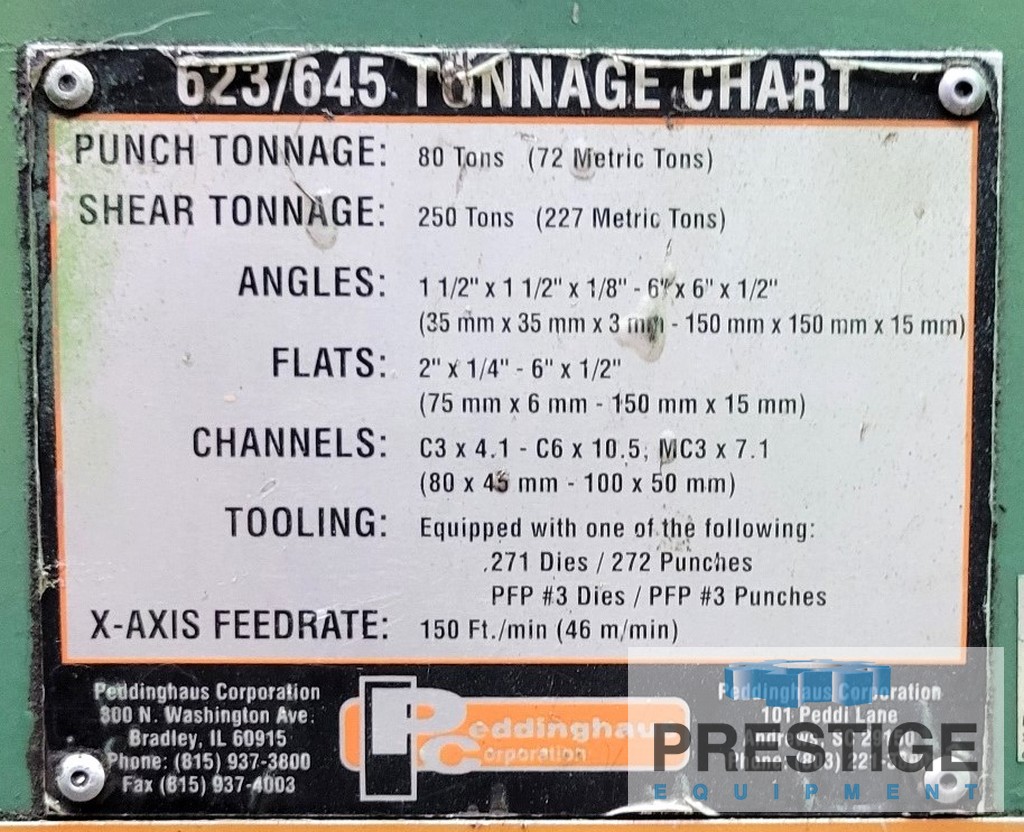

CAPACITY:
Punch Tonnage Capacity ............... 80 Tons
Shear Tonnage Capacity ............... 250 Tons
Max. Angle Size ...................... 6" x 6" x 1/2"
Min. Angle Size ...................... 1-1/2" x 1-1/2" x 1/8"
Flat Maximum ......................... 6" x 5/8"
Flat Minimum ......................... 2" x 1/4"
Max. Flat Bar (Shear & Punch)......... 6" x 1/2"
Throat ............................... 5-1/4"
Stroke ............................... 1-3/4"
Max. Hole Size ....................... 1-1/4"
Material Feed Rate ................... 150 FPM

EQUIPPED WITH:
PC Based Windows Based CNC Control (Upgraded in 2010 By Peddinghaus)
Pinch Drive Feed, Pulls Material Through Machine
250 Ton Single Cut Shear
40' In-Feed Roller Conveyor

NOTE:
Inspect in our Philadelphia PA warehouse
