Roundo R-7-S, 6" x 6" x 1", Hyd. Guide Rolls, Standard Set of Angle Rolls, Pendant Control With DRO, 2006 #43517

Manufacturer

ROUNDO

Category

Rolls

Type

ROLLS, ANGLE BENDING

Stock

43517

Model

R-7-S

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43517

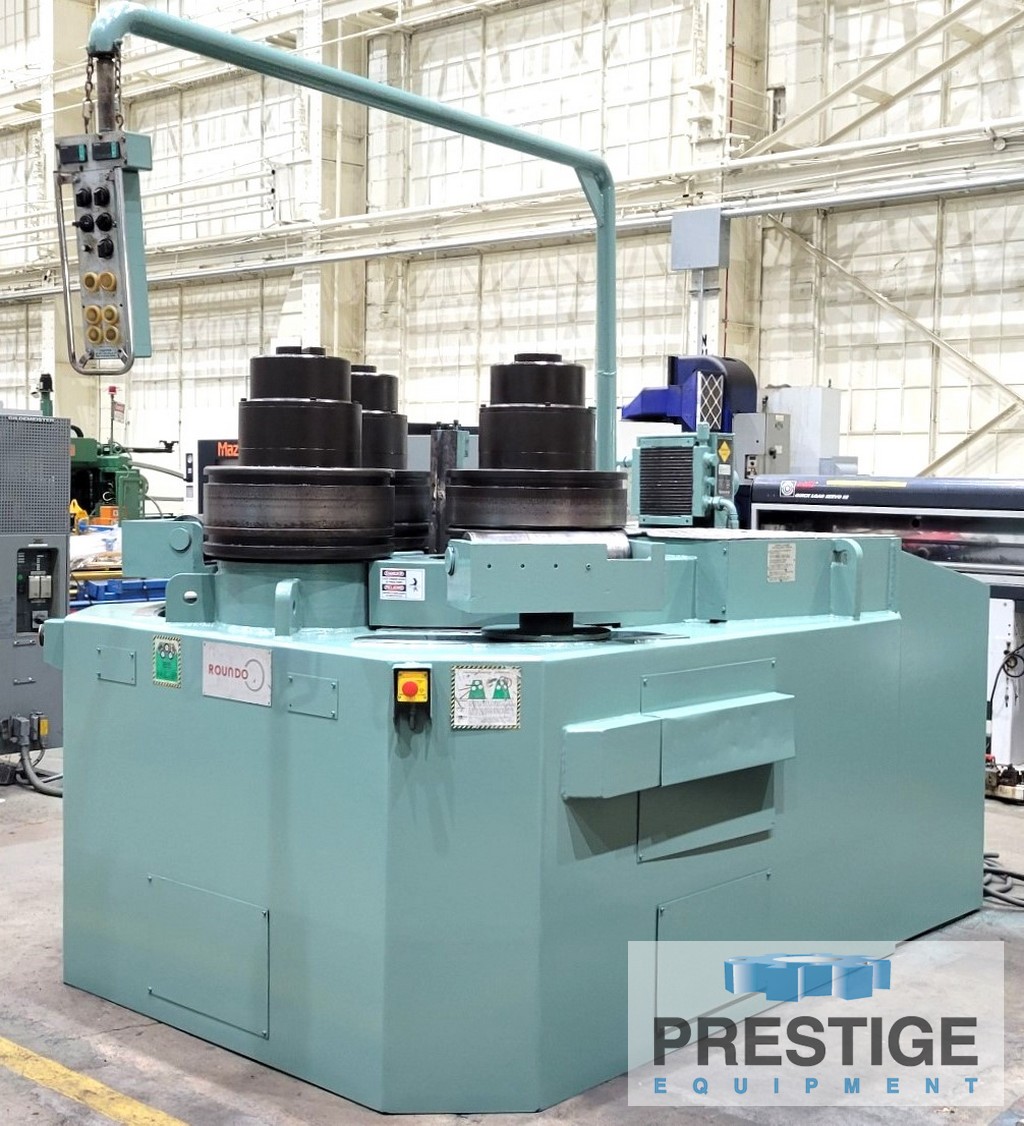

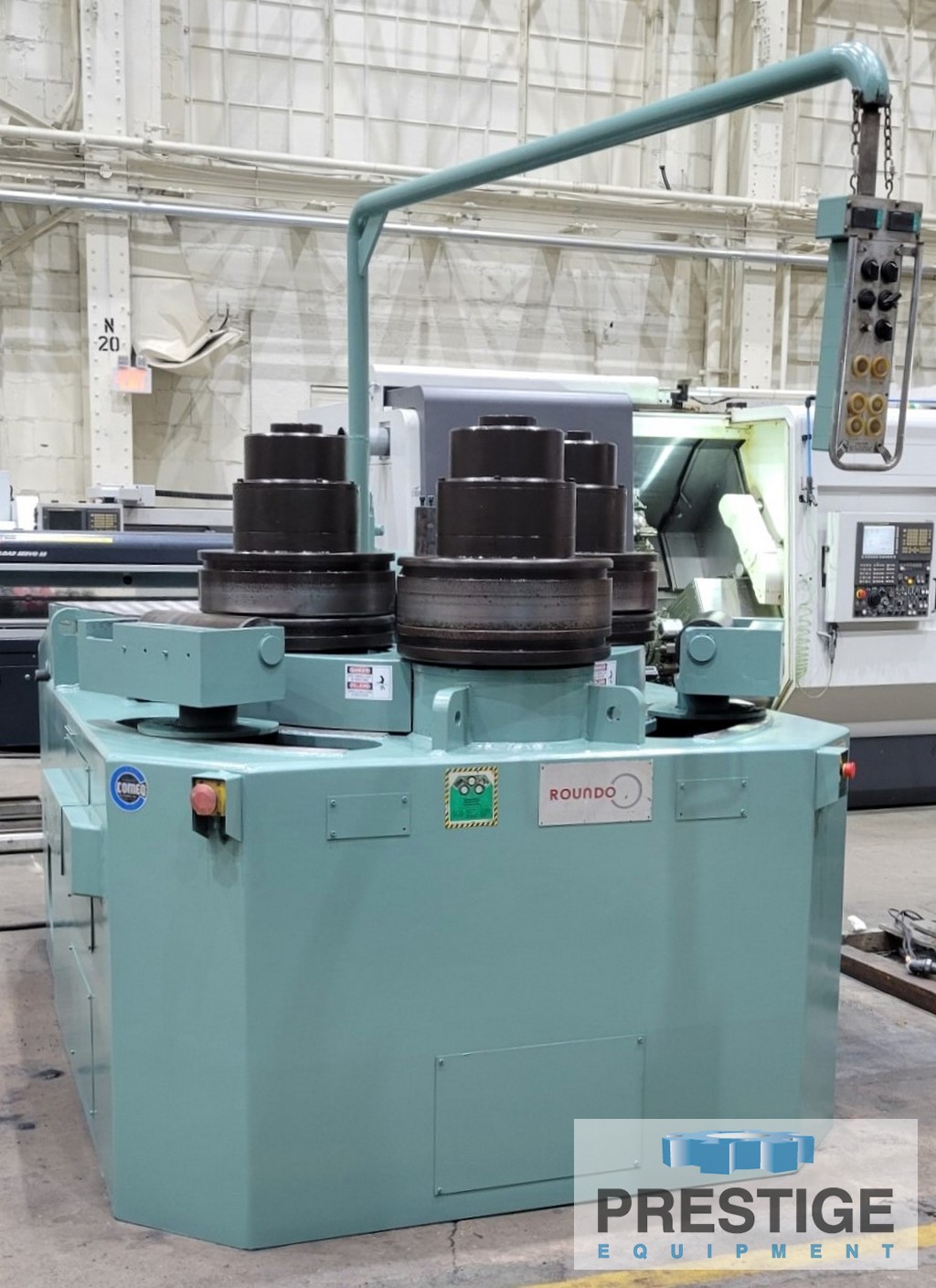

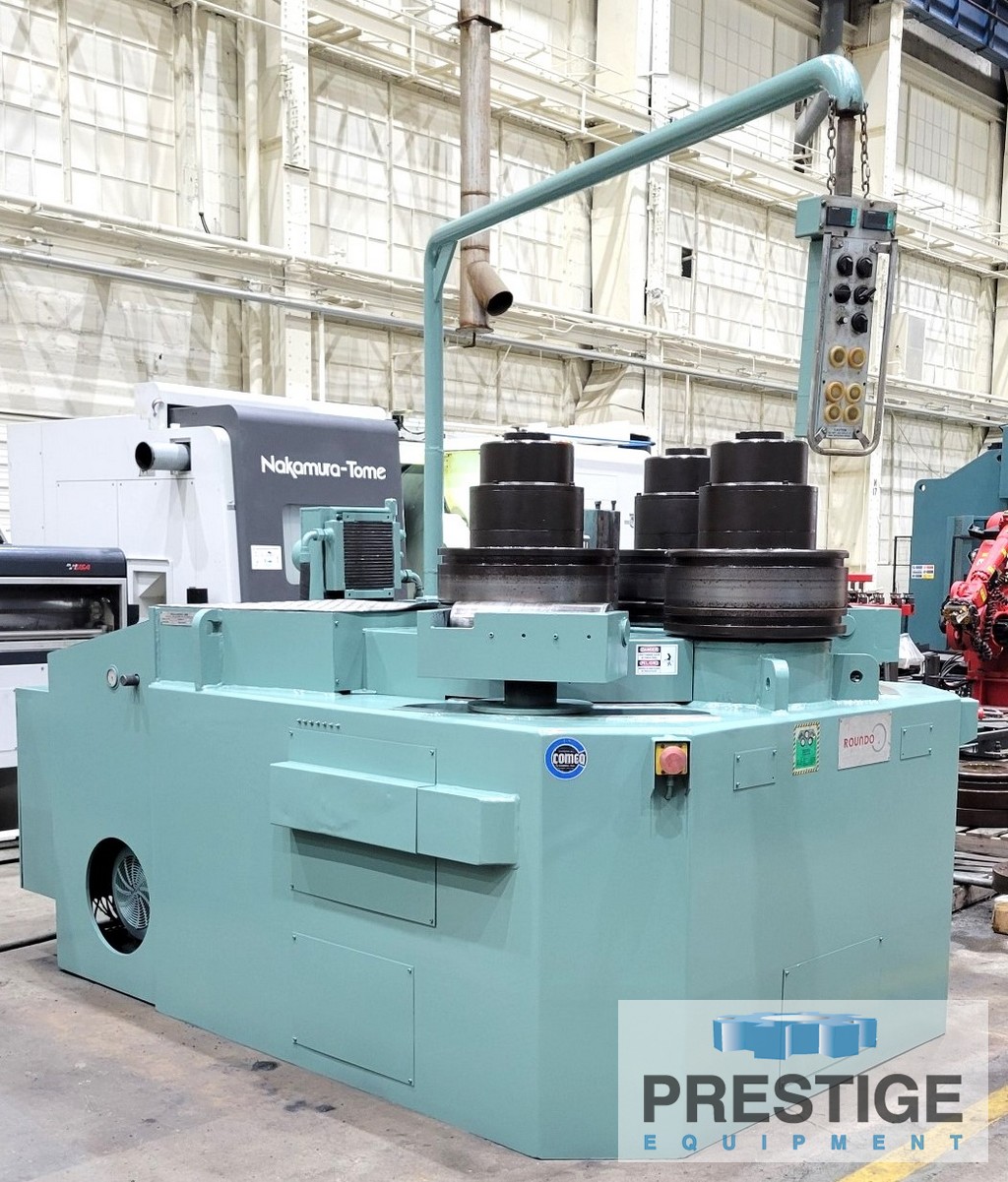

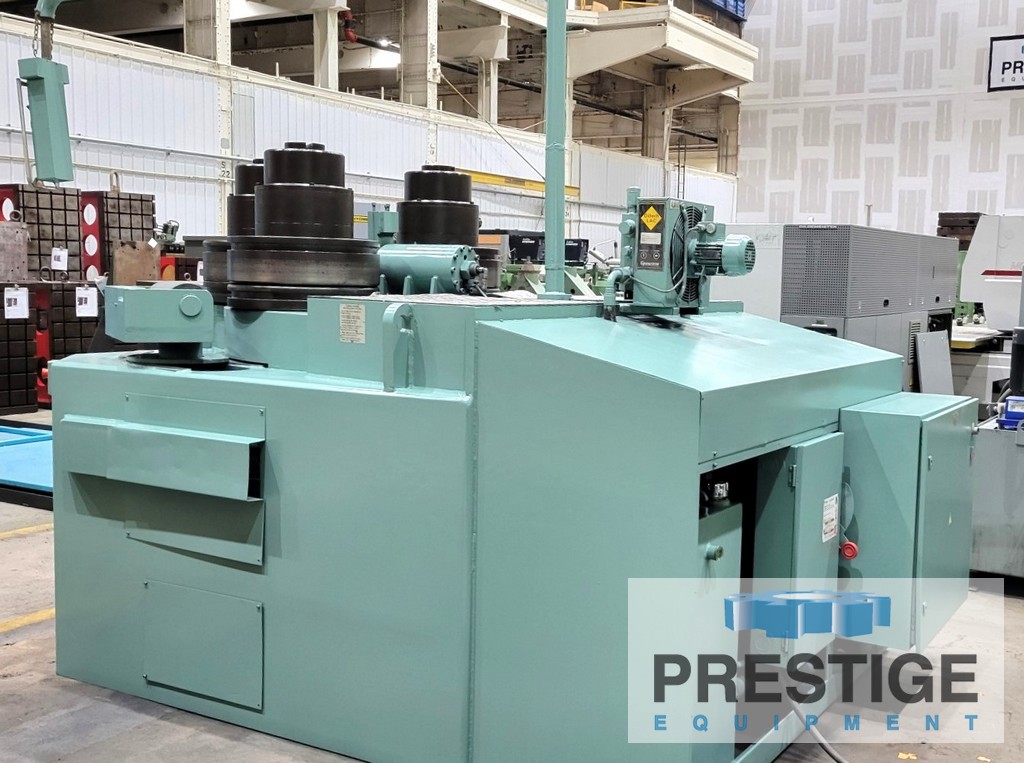

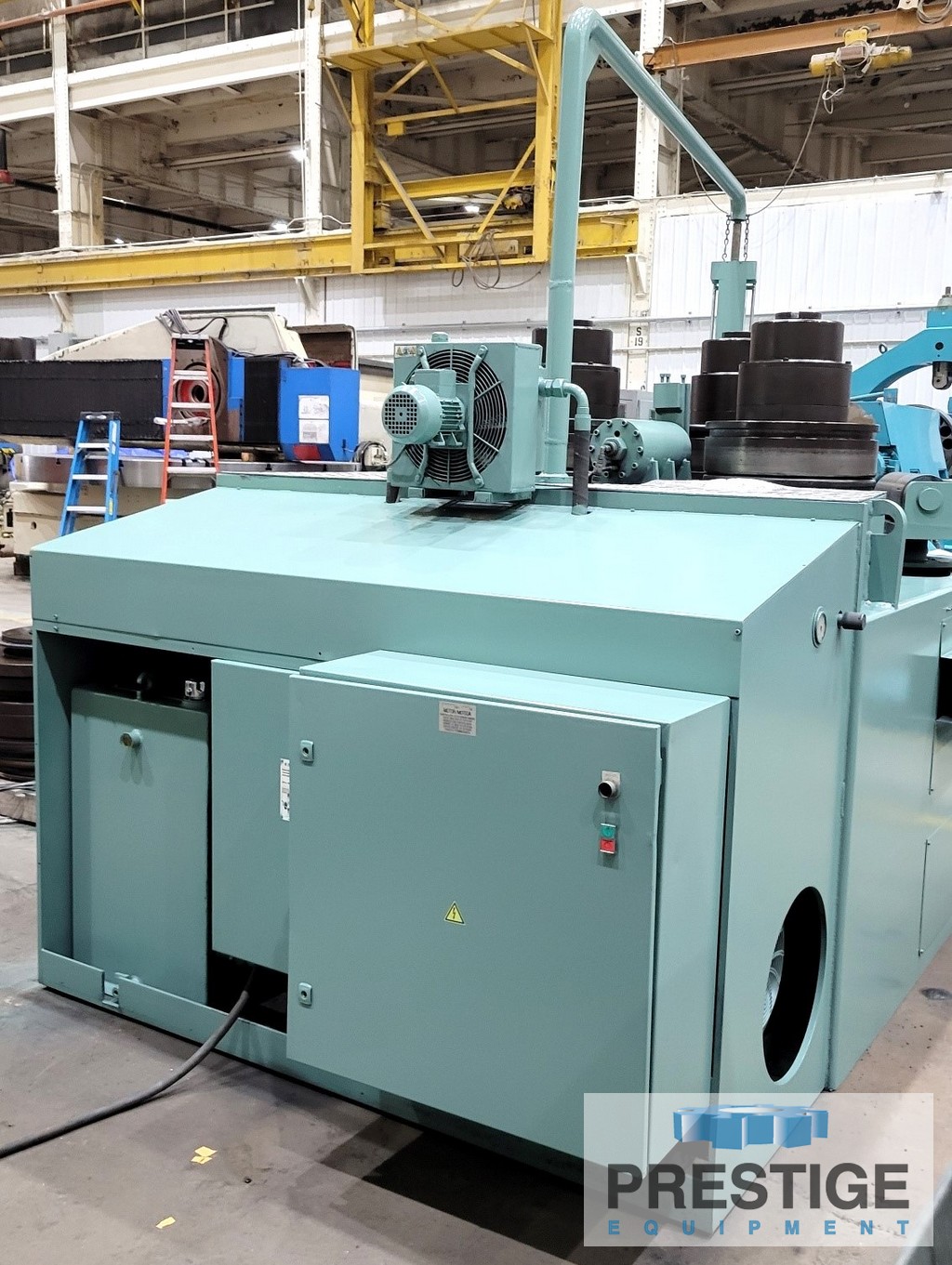

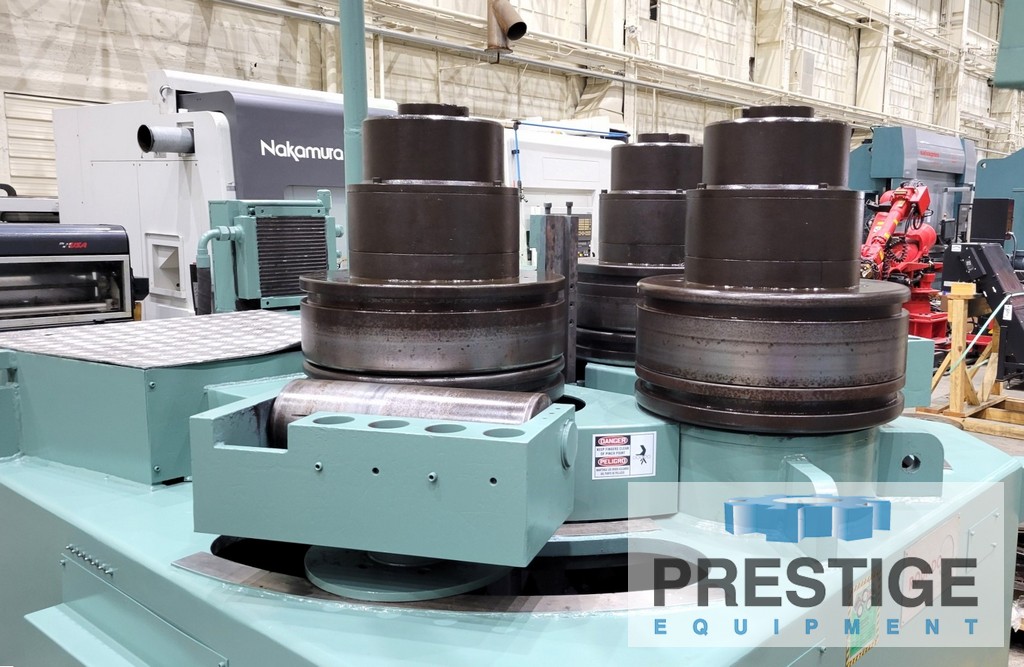

Roundo R-7-S 6" x 6" x 1" Hydraulic Angle Bending Roll

FEATURES:

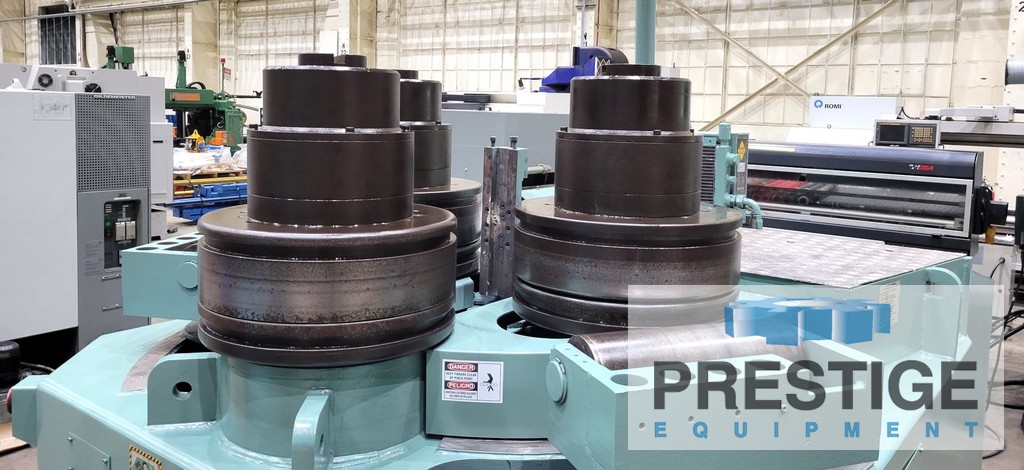

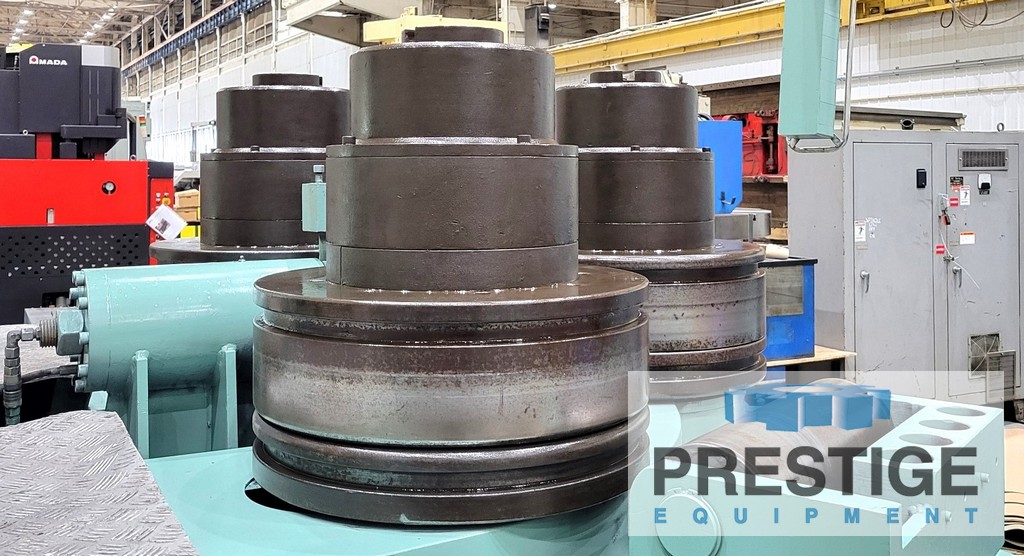

(1) Std Set Of Angle Bending Rolls

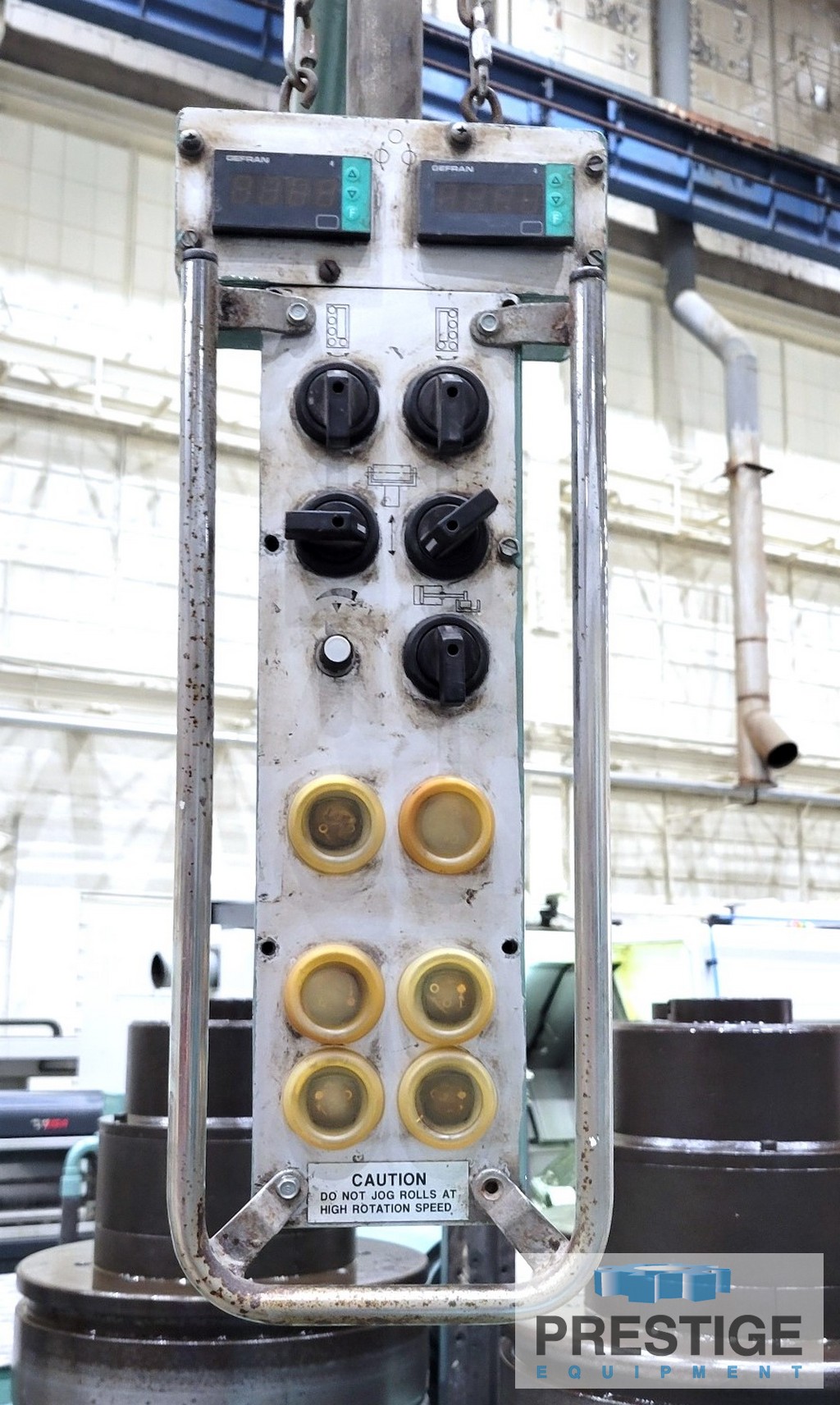

Pendant Control With Digital Roll Readouts
Hydraulic Adjusted Guide Rolls

CAPACITIES:
Angles Leg Out .................... 6" X 6" X 1"
Angles Leg In ..................... 6" X 6" X 3/4"
Schedule 40 Pipe .................. 6"
I Beam & Channel .................. 14
Square Bar ........................ 3-5/8"
Flat Iron ......................... 2-1/4" X 11"
Flat Iron On Edge ................. 1-1/4" X 7"

CATALOG SPECIFICATIONS:
Diameter Of Bending Rolls ......... 22"
Rolling Speeds .................... 0 - 23 FPM
Lower Roll Adjustment Speed ....... 0 - 40 IPM
Main Drive Motor .................. 46 HP
Approx. Machine Weight ............ 27,000 Lbs

EQUIPPED WITH:
(1) Std Set Of Angle Bending Rolls
Pendant Control With Digital Roll Readouts
Hydraulic Adjusted Guide Rolls
Hydraulic pulling roll unit

NOTE:
Inspect In Our Philadelphia Warehouse
