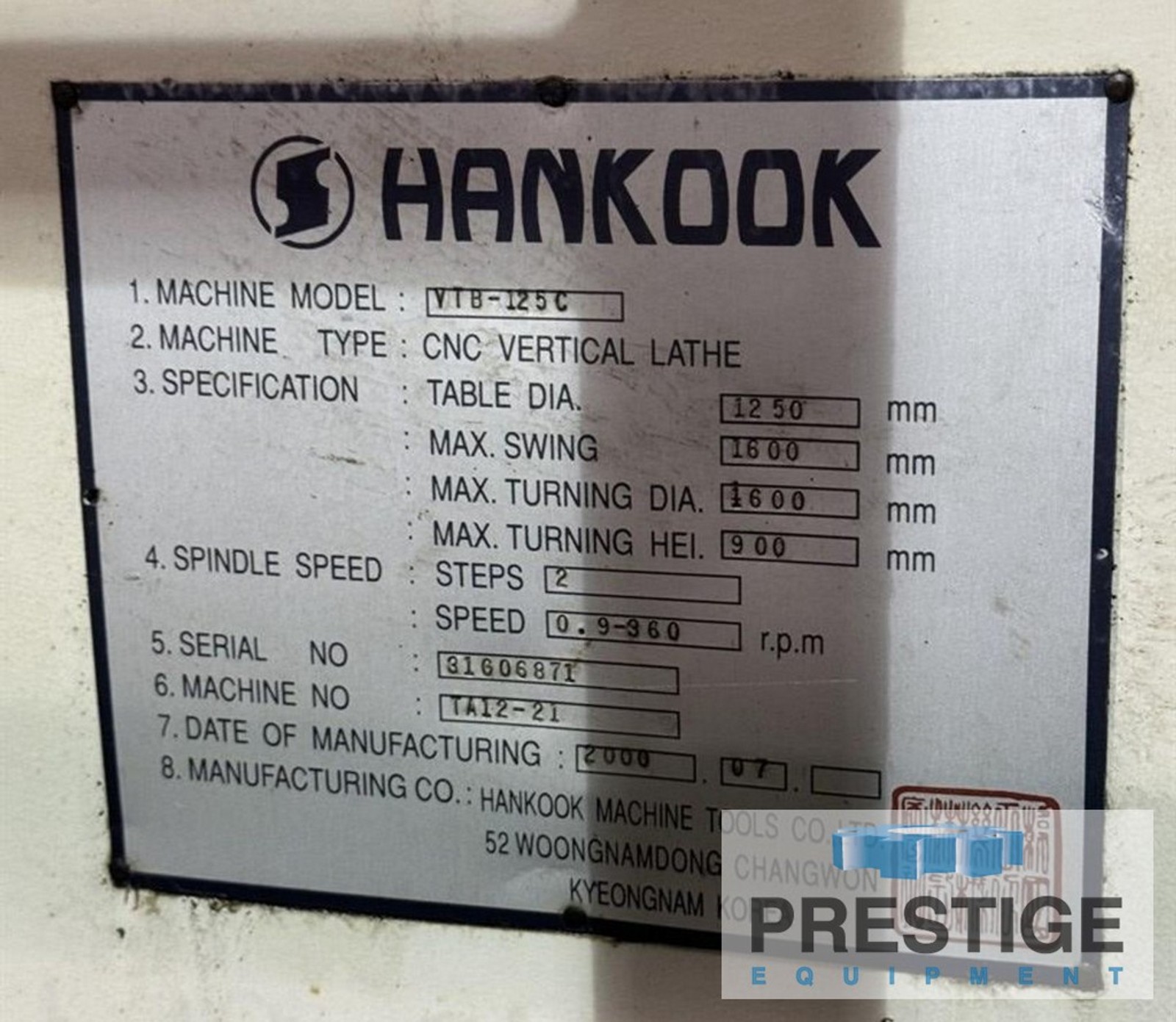

49"/63" Hankook VTB 125C, Pallet Shuttle, Milling, C-Axis, 24 ATC, Fanuc 18T, 2000 #43236

Manufacturer

HANKOOK

Category

Boring Mills

Type

BORING MILLS, VERTICAL, CNC

Stock

43236

Model

VTC125F-APC

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43236

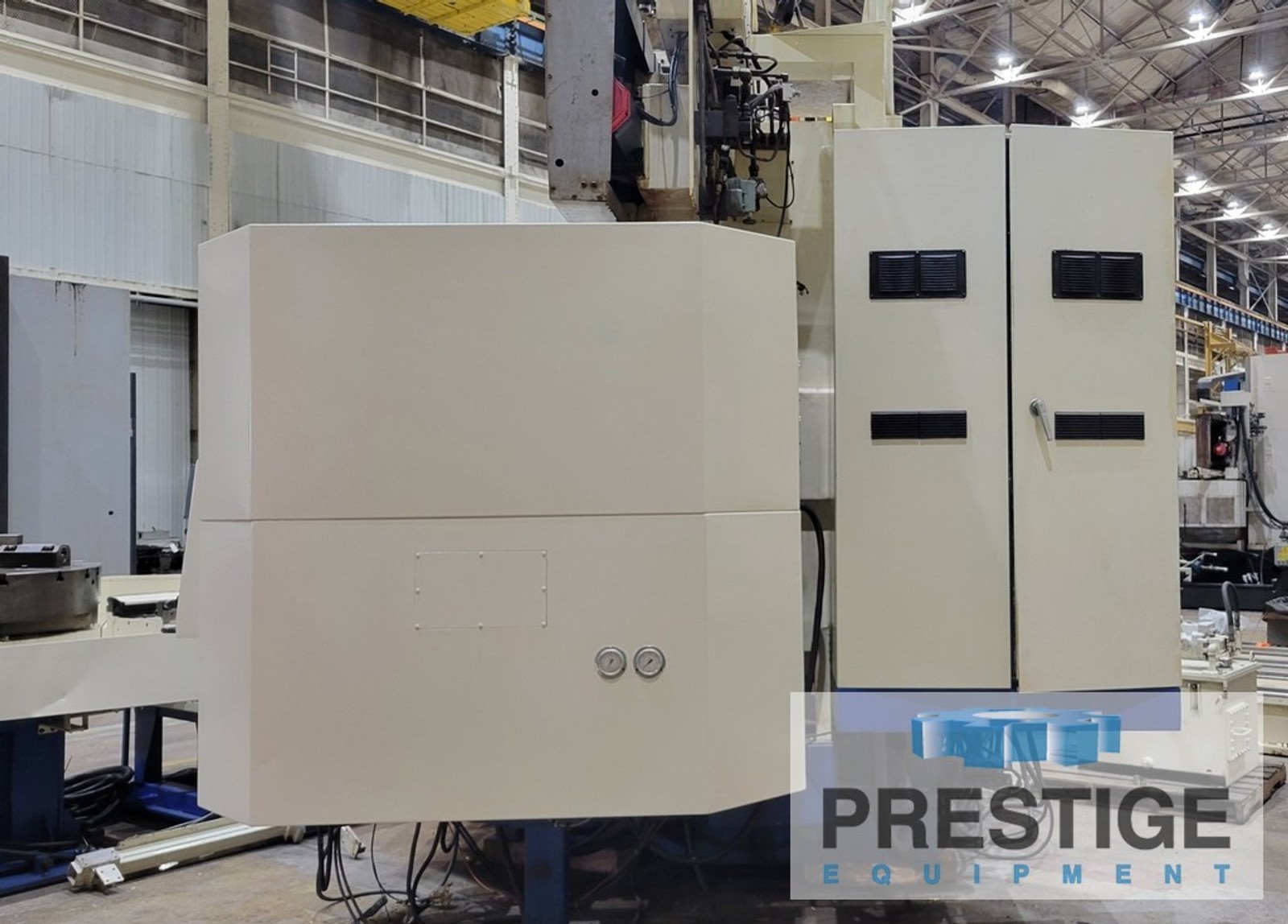

49"/63" Hankook CNC VTC w/ Live Spindle and Pallet Shuttle

FEATURES:
Fanuc 18T CNC Control
Live Milling
2-Pallet Shuttle
24 Station ATC

SPECIFICATIONS:

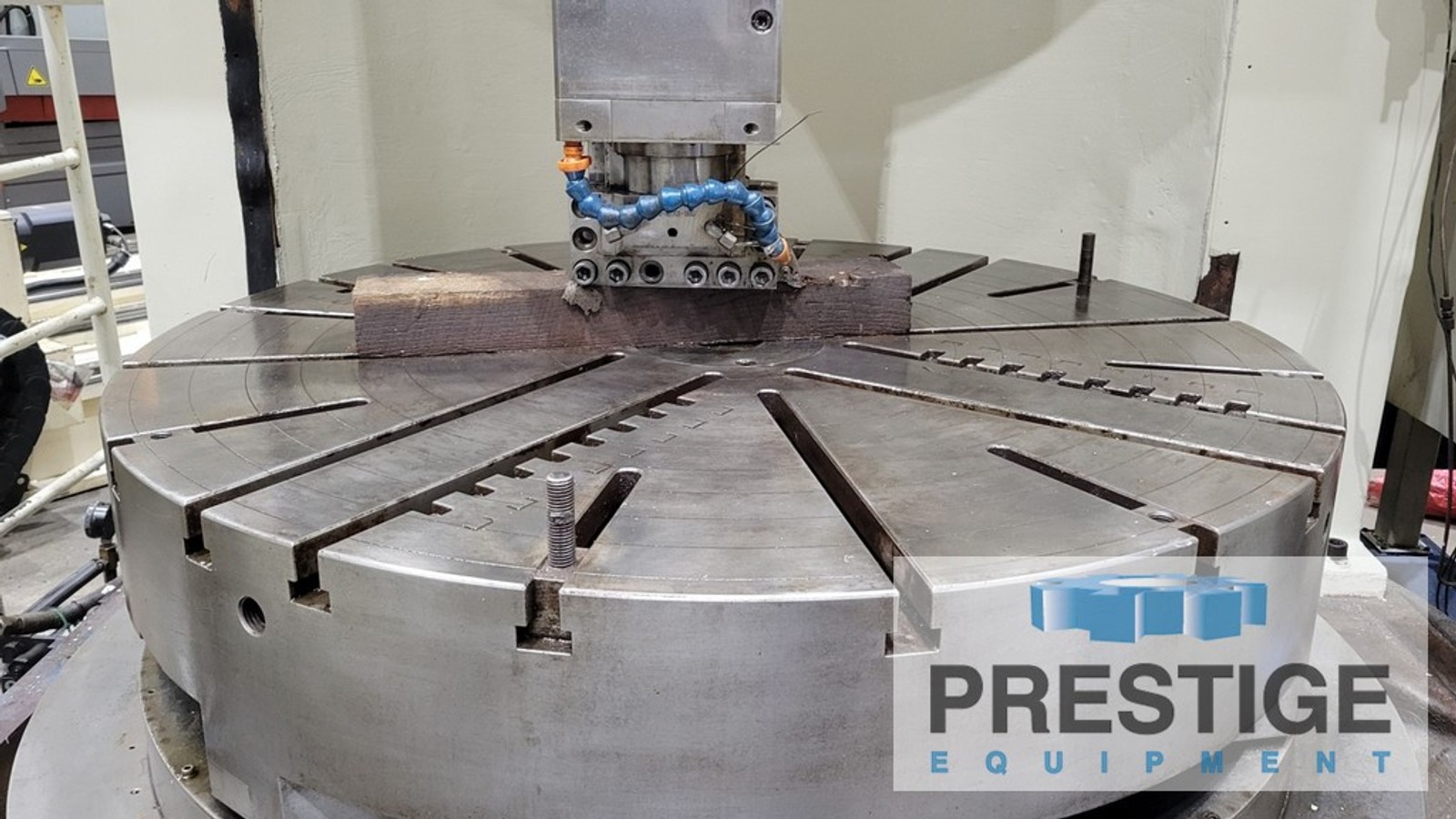

Table Diameter ...................... 49.21"
Maximum Swing ....................... 62.99"
Maximum Turning Diameter ............ 62.99"
Maximum Turning Height .............. 35.43"
Maximum Cutting Force ............... 15,100 Ft Lbs
Maximum Workpiece Weight ............ 17,640 Lbs
Speed Ranges ........................ 2
Speeds .............................. 0.9-360 RPM
Table Indexing ...................... 0.001 Degrees
Cutting Feed ........................ 0-1200 Deg/Min
Table Spindle Motor ................. 60 HP/50 HP

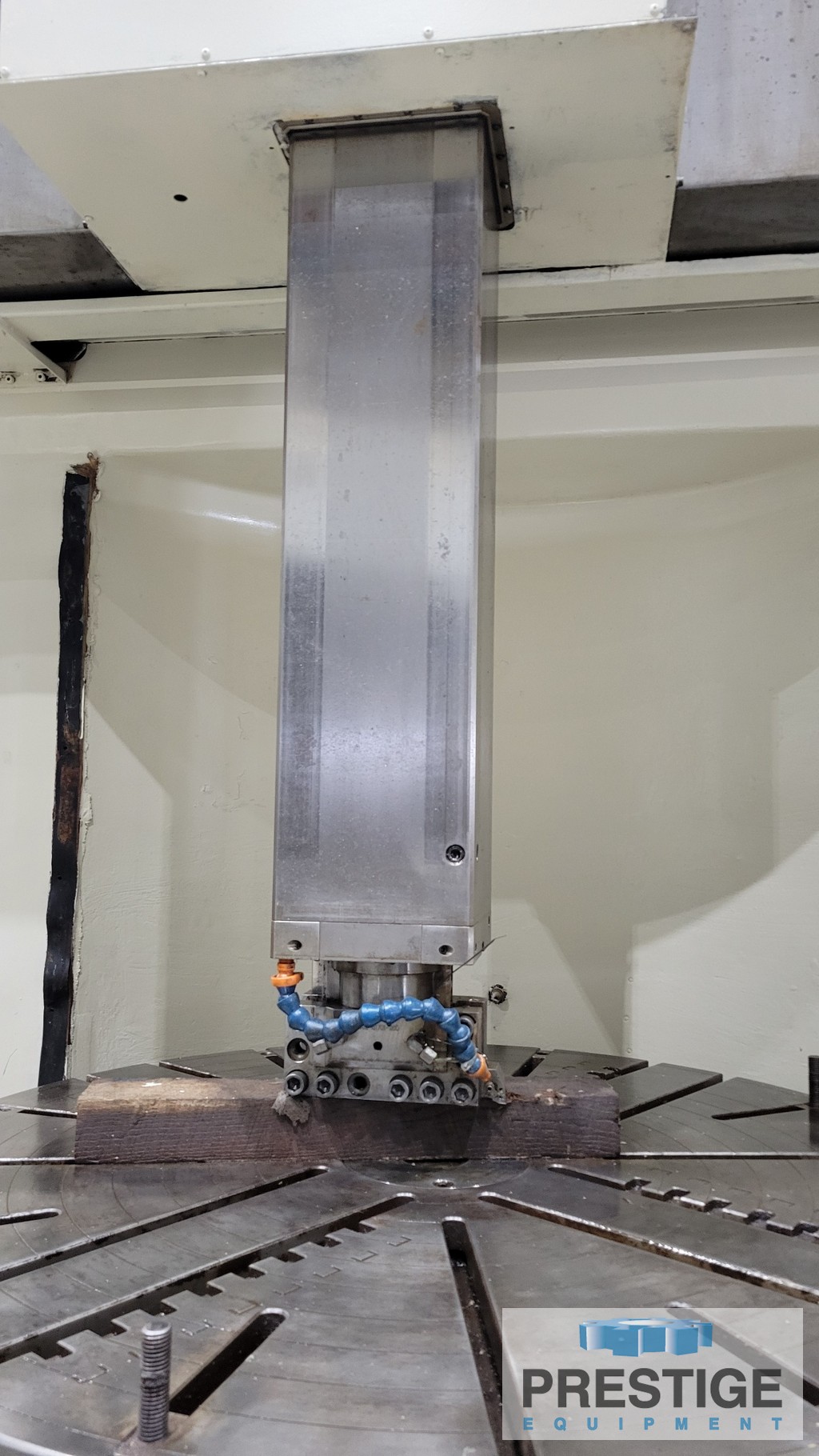

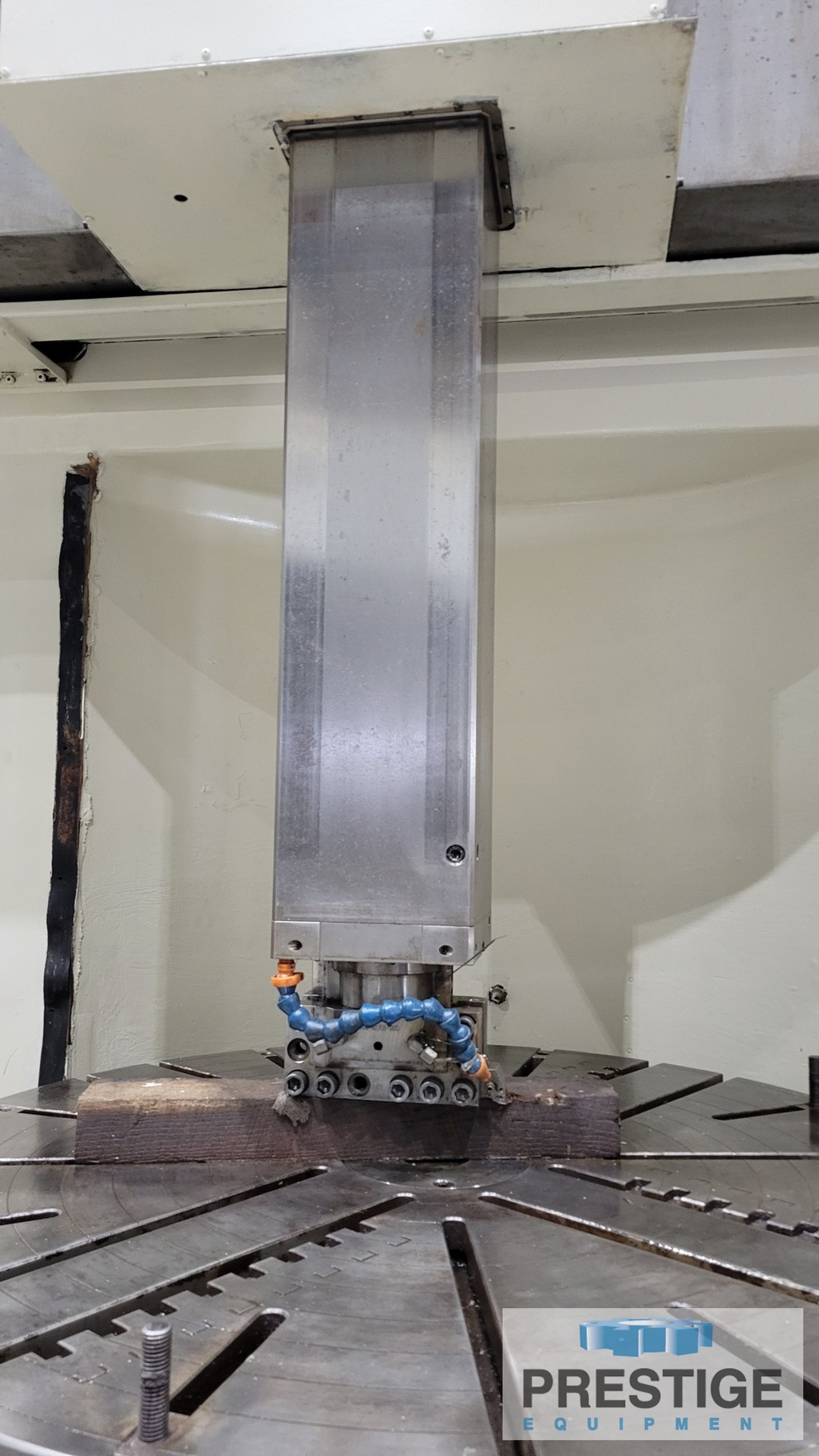

RAM HEAD:
Spindle Taper ....................... ISO No.50
Milling Speeds ...................... 15-1500 RPM
Live Milling Motor .................. 20 HP/25 HP
Ram Cross Section ................... 8.66" x 8.66"
X-Axis Horizontal Travel ............ 62.99"
Z-Axis Vertical Travel .............. 35.43"

FEEDS:
X/Z Axis Cutting Feeds .............. 0.0001-10 IPR
X/Z Axis Rapid Traverse ............. 472 IPM

POWER SOURCE & MACHINE SIZE:
Height .............................. 185"
Floor Space L x W ................... 192" x 153"
Power Source ........................ 200/220V 50/60 HZ

EQUIPPED WITH:

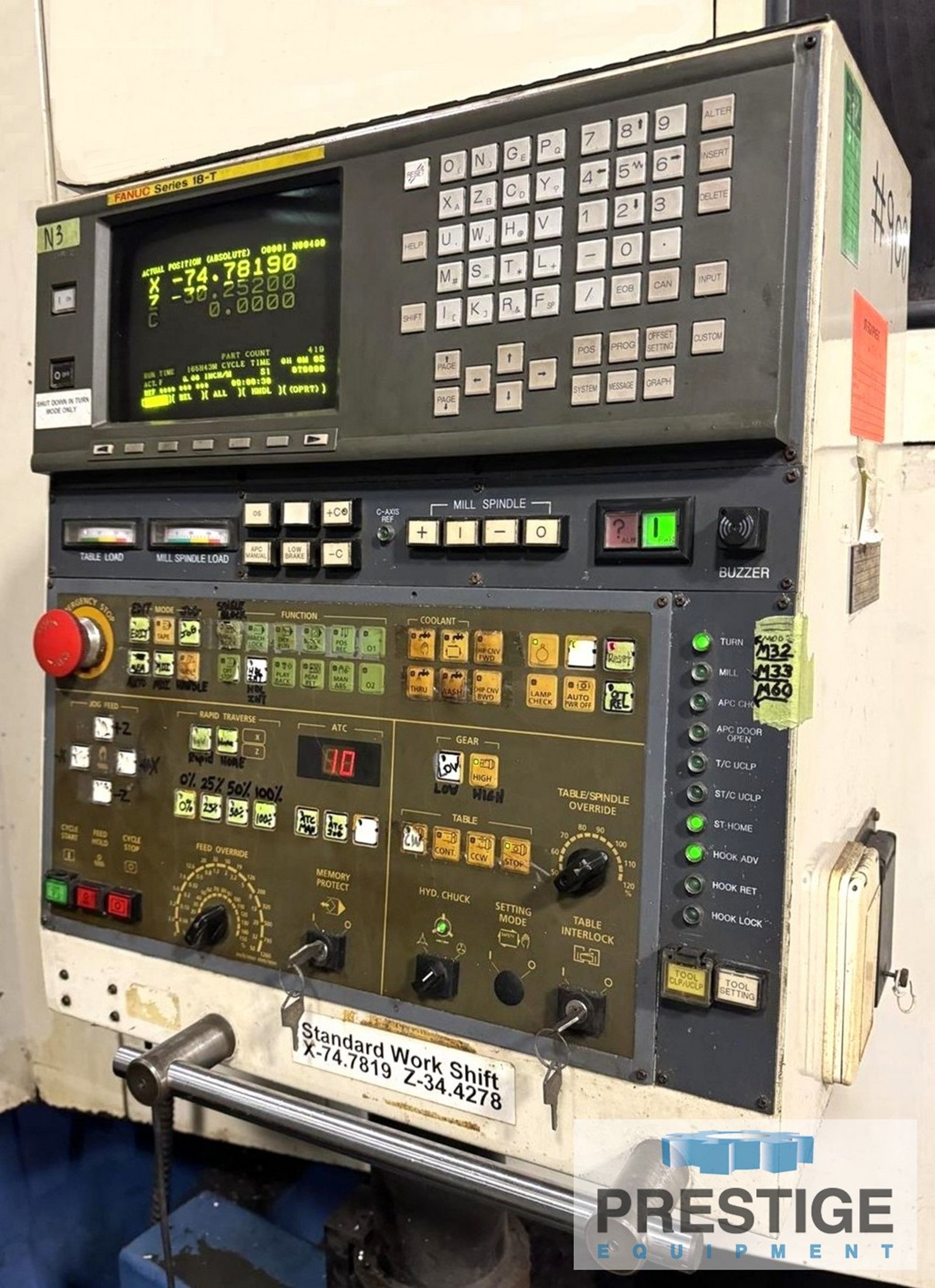

Fanuc 18T CNC Control
24 Position Automatic Tool Changer

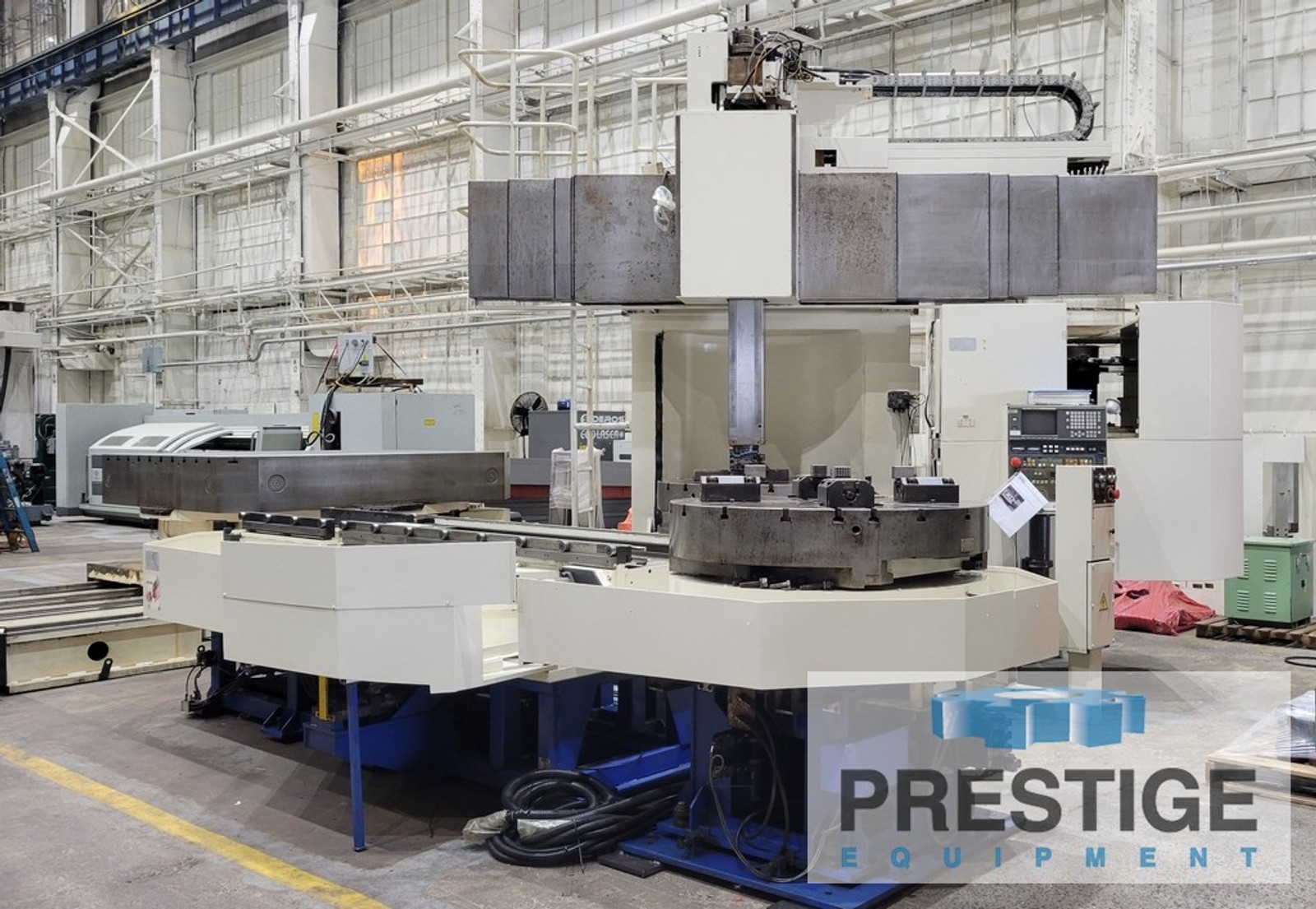

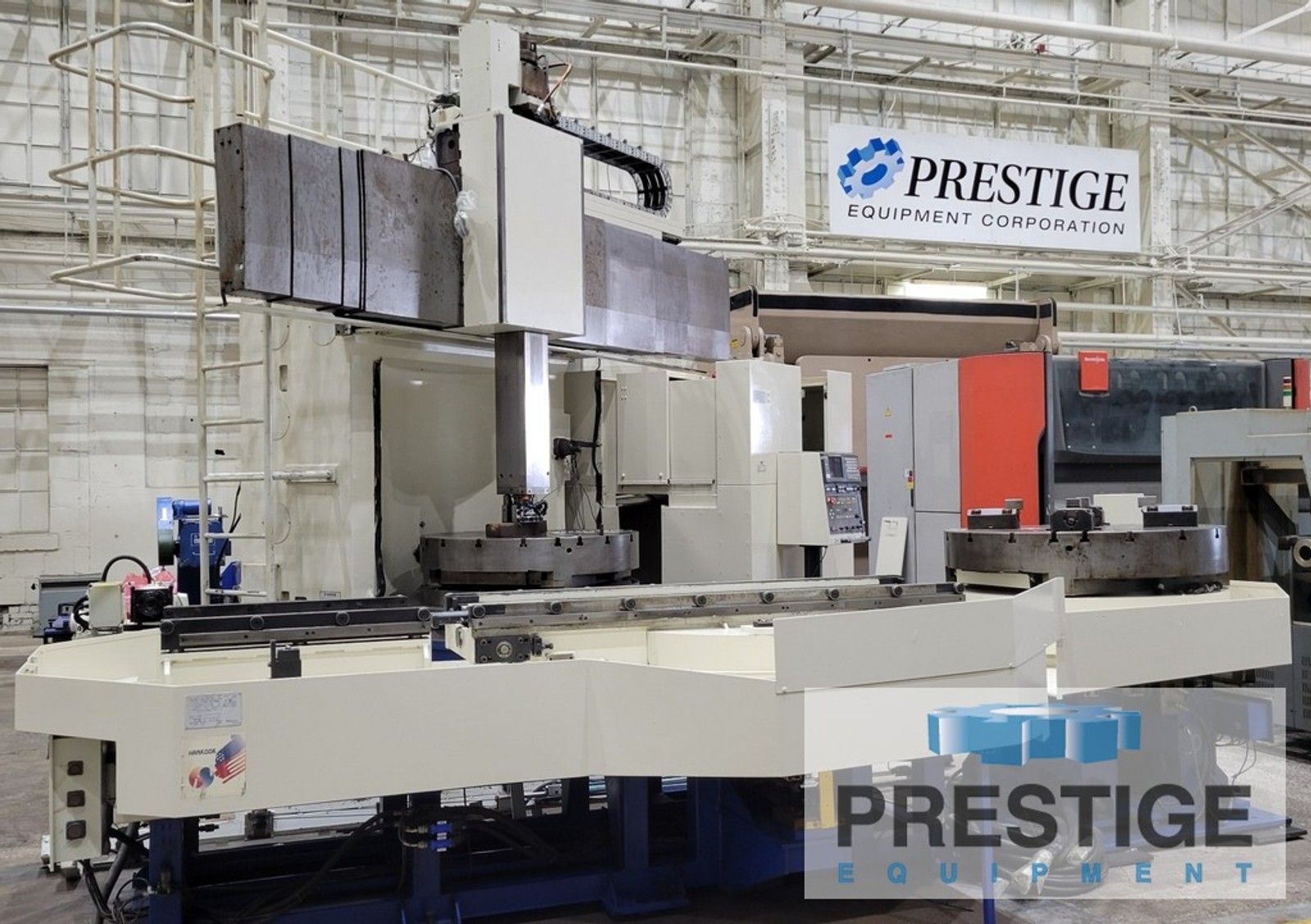

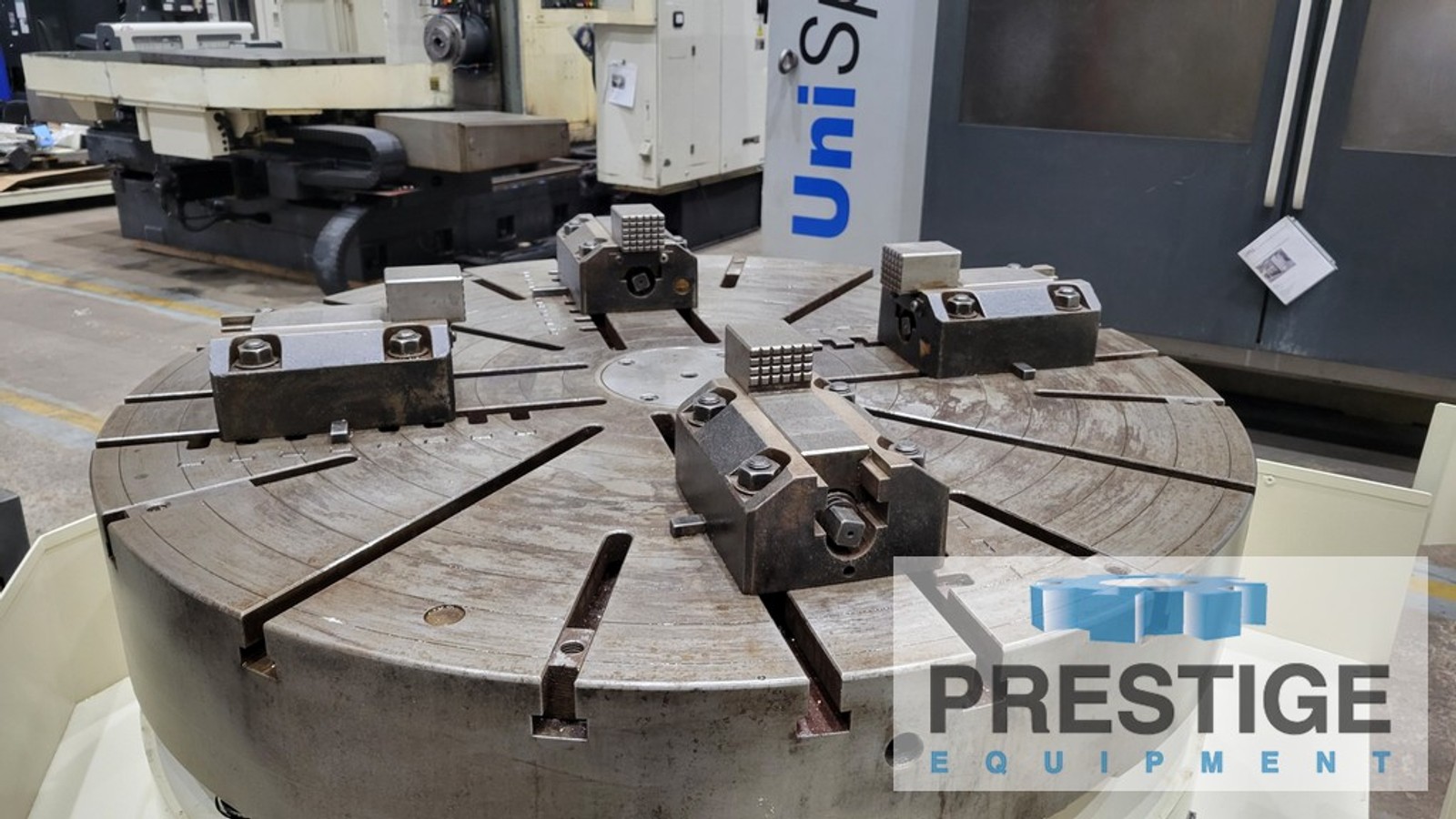

2-Pallet Shuttle W/49" 4-Jaw Chucks
C-Axis Table For Milling & Drilling Operations
Coolant
Full Chip & Coolant Guards
Chip Conveyor
Operator Platform
