200 Ton LVD PPS 200/40, 157" OA, 124" BH, LVD Touch Screen Control, Flush Floor, 29 HP, 2013, #43491

Manufacturer

LVD STRIPPIT

Category

Brakes (including Press Brakes)

Type

BRAKES, PRESS, HYDRAULIC (Inch/Ton)

Stock

43491

Model

PPS 200/40

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43491

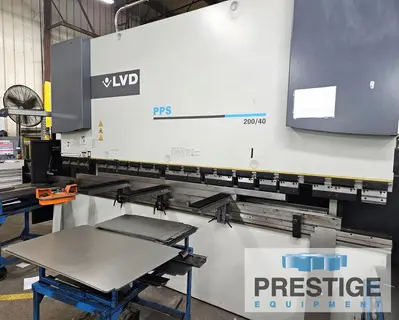

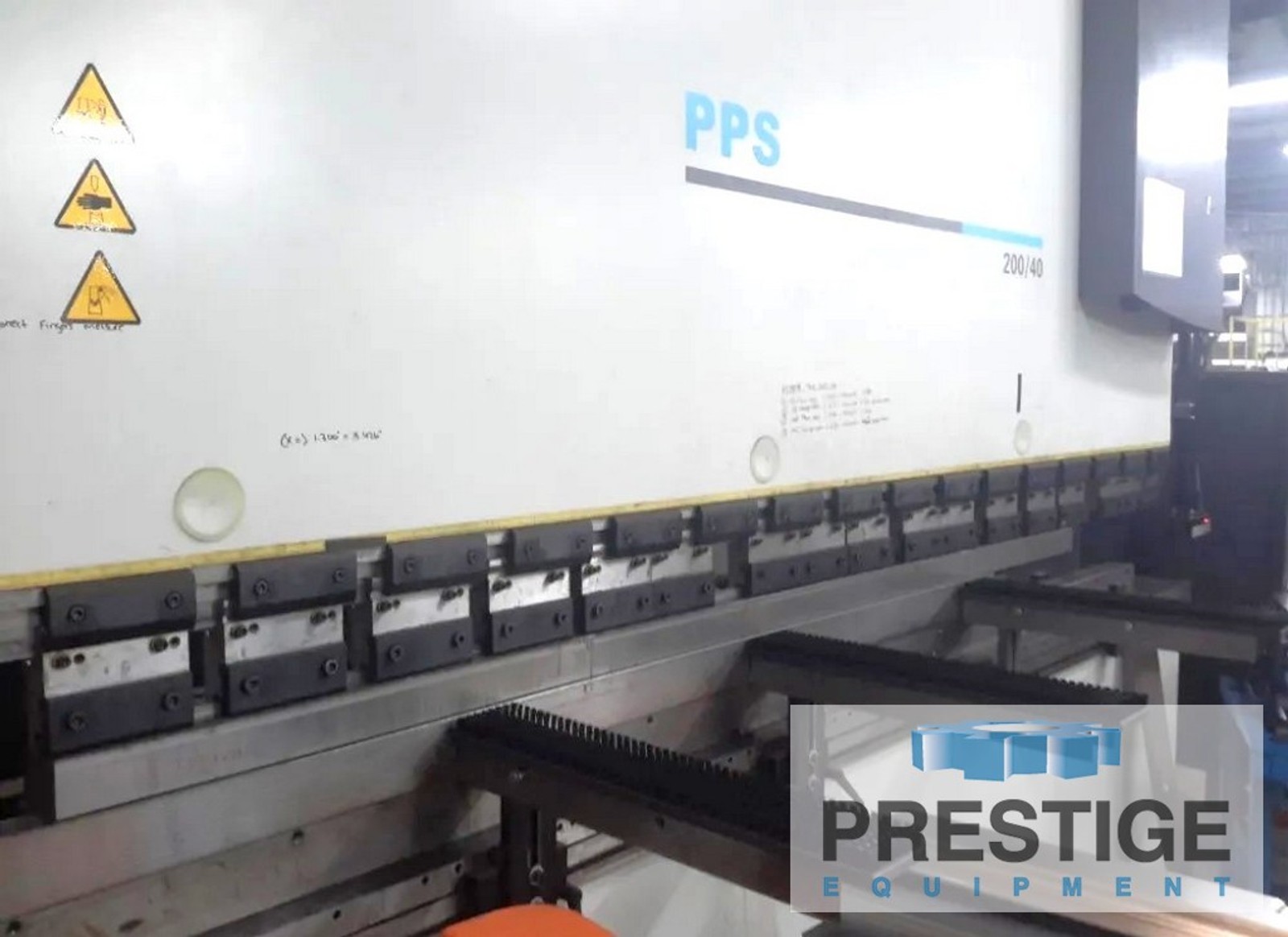

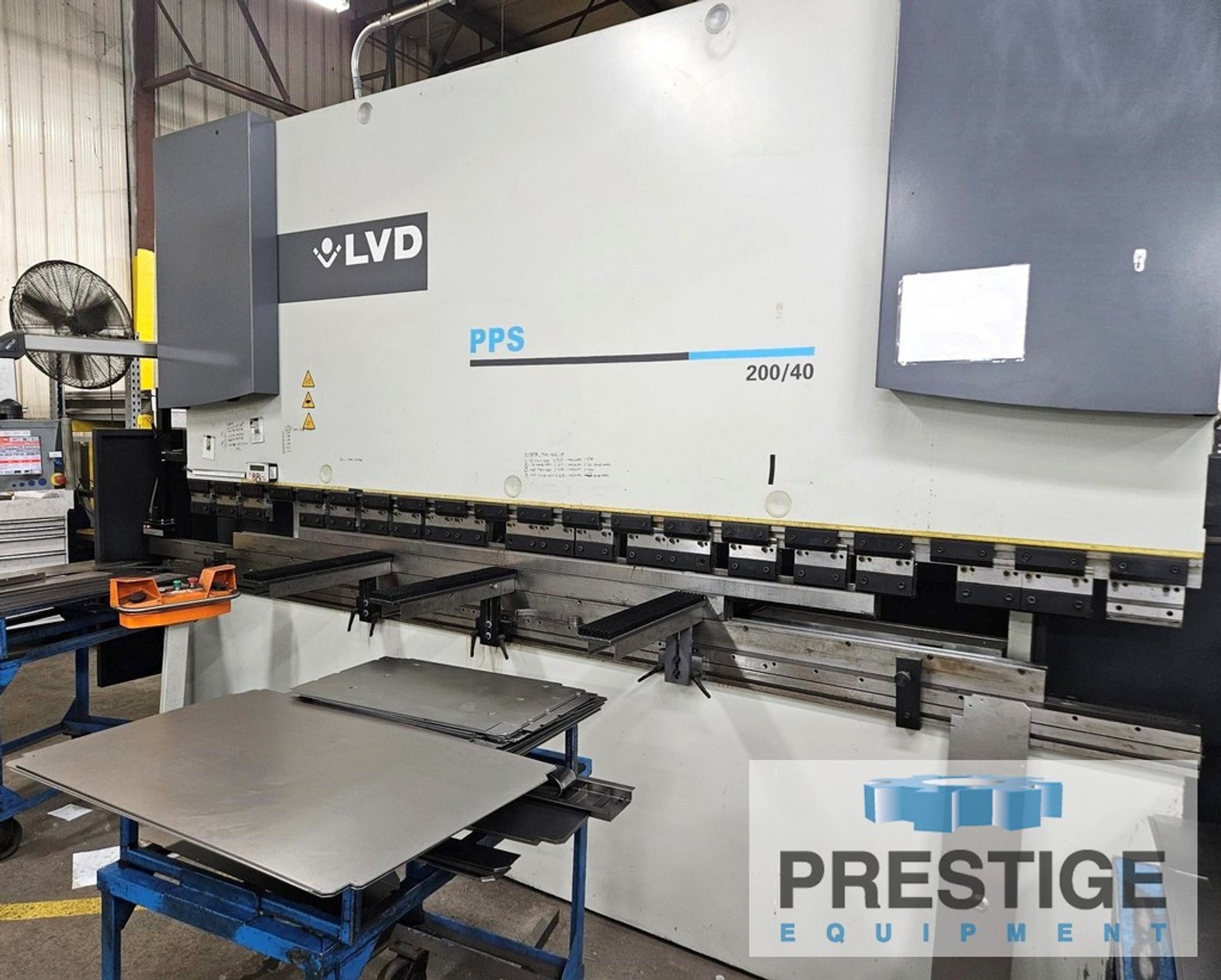

LVD Strippit PPS 200/40 200 Ton x 13' CNC Hydraulic Press Brake

FEATURES:

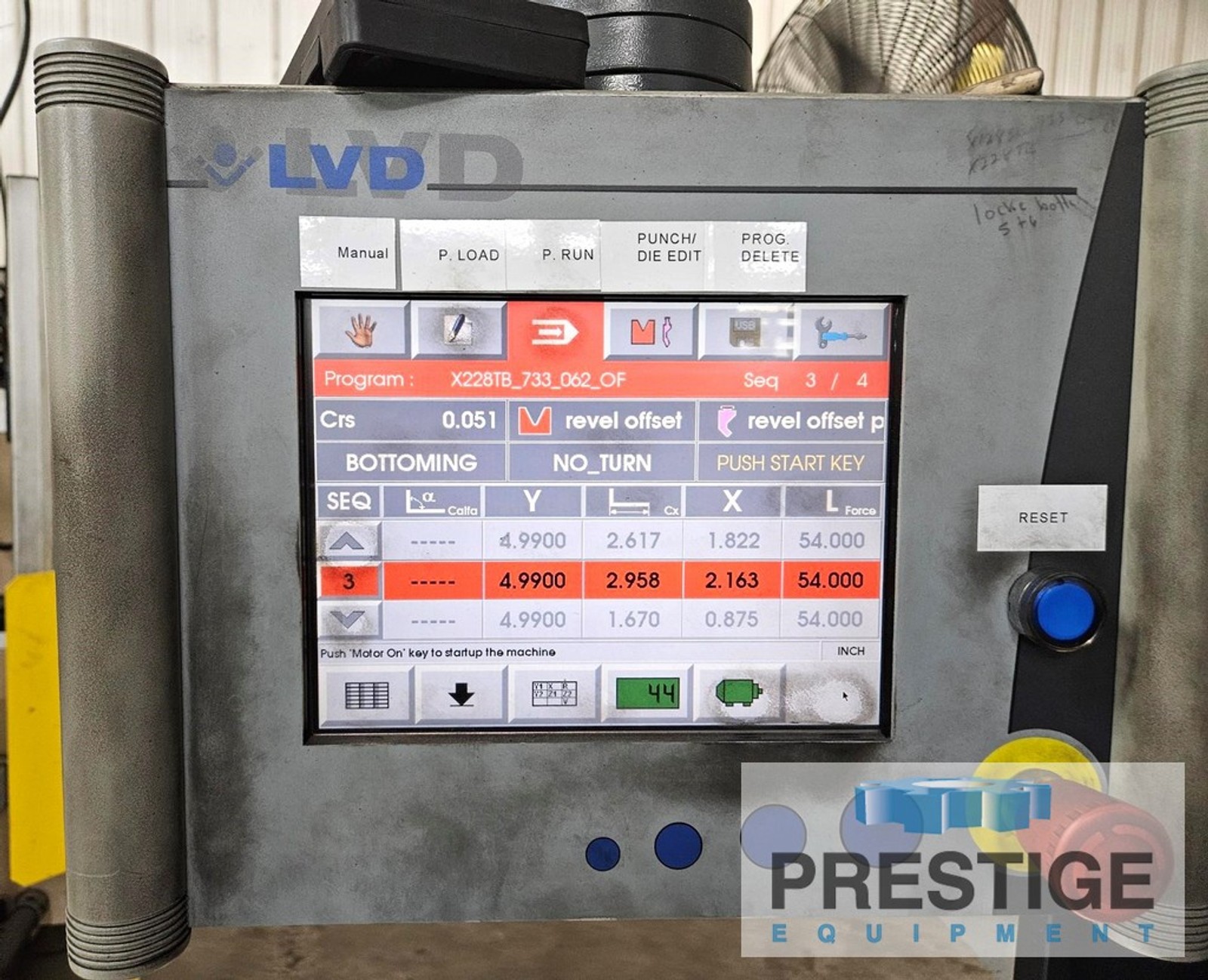

LVD Touch Screen CNC Control
CNC Programmable Y-Axis Ram

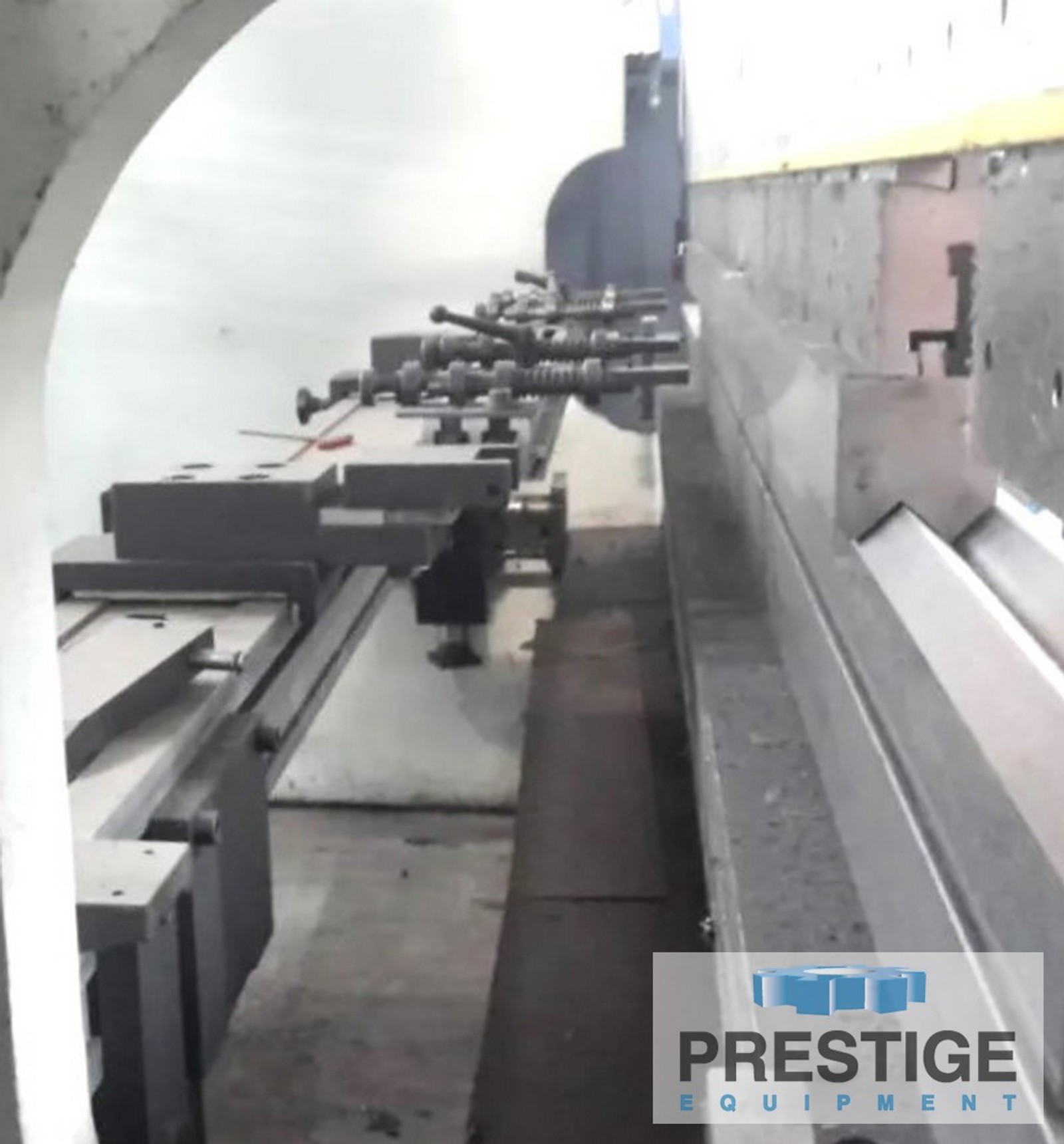

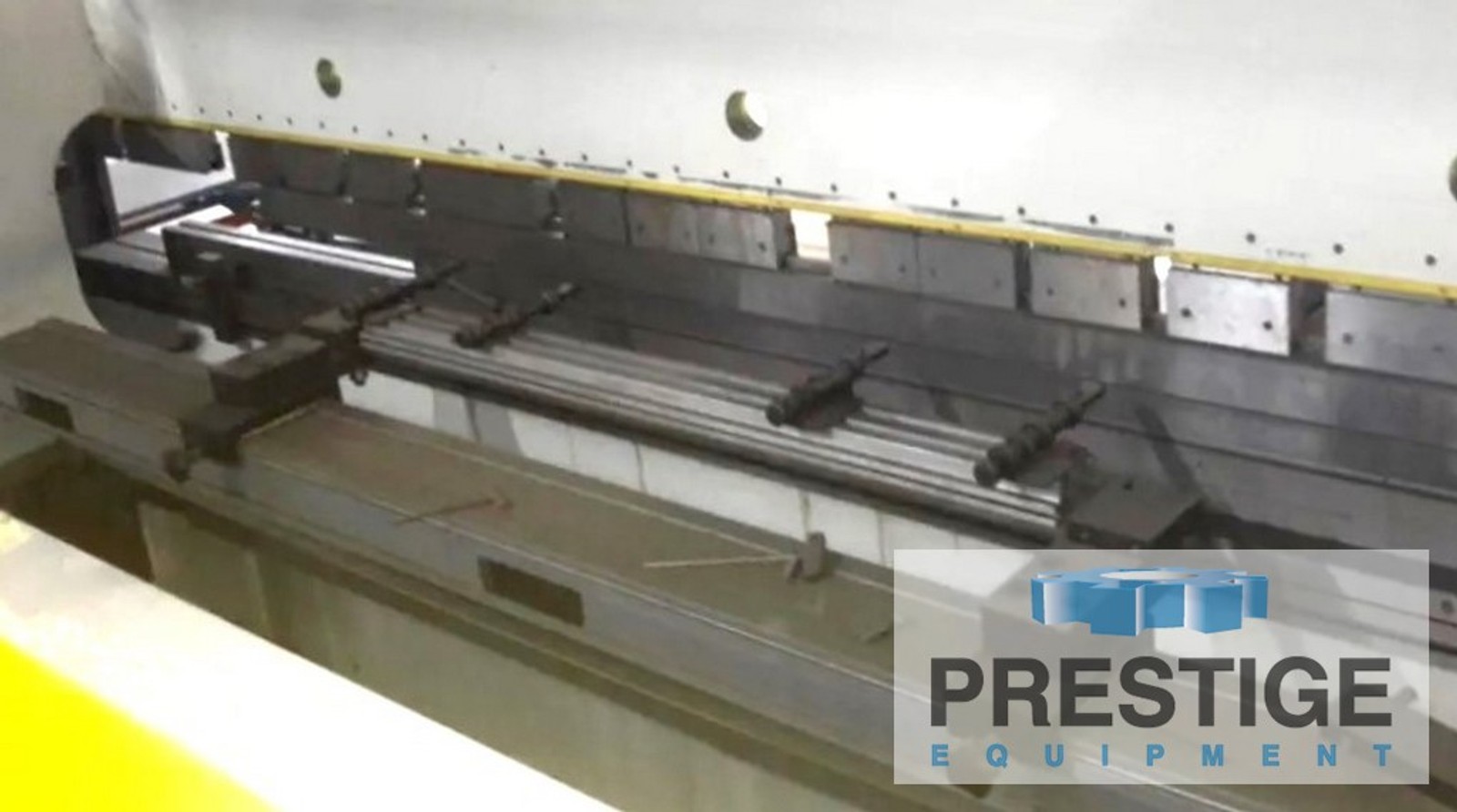

Single X-Axis CNC Back Gauge
(3) Support Arms
Crowning
Flush Floor

SPECIFICATIONS:
Maximum Tonnage Capacity .............. 220 Tons
Overall Length Of Bed & Ram ........... 157"
Distance Between Housings ............. 124"
Throat Depth .......................... 11.8"
Stroke Length ......................... 7.8"
Open Height ........................... 15.7"
Approach Speed ........................ 212
Bending Speed ......................... 22
Return Speed .......................... 255
Motor ................................. 29.5 HP (22 KW)

EQUIPPED WITH:
LVD Touch Screen CNC Control
CNC Programmable Y-Axis Ram
Single X-Axis CNC Back Gauge
(3) Support Arms
Crowning
Foot Pedal
Flush Floor
