36 Ton Trumpf 7036 CNC Electric Servo Press Brake, TASC 6000 CNC, 6-Axis B.G., 2011, #43563

Manufacturer

TRUMPF

Category

Brakes (including Press Brakes)

Type

BRAKES, PRESS, HYDRAULIC (Inch/Ton)

Stock

43563

Model

7036

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43563

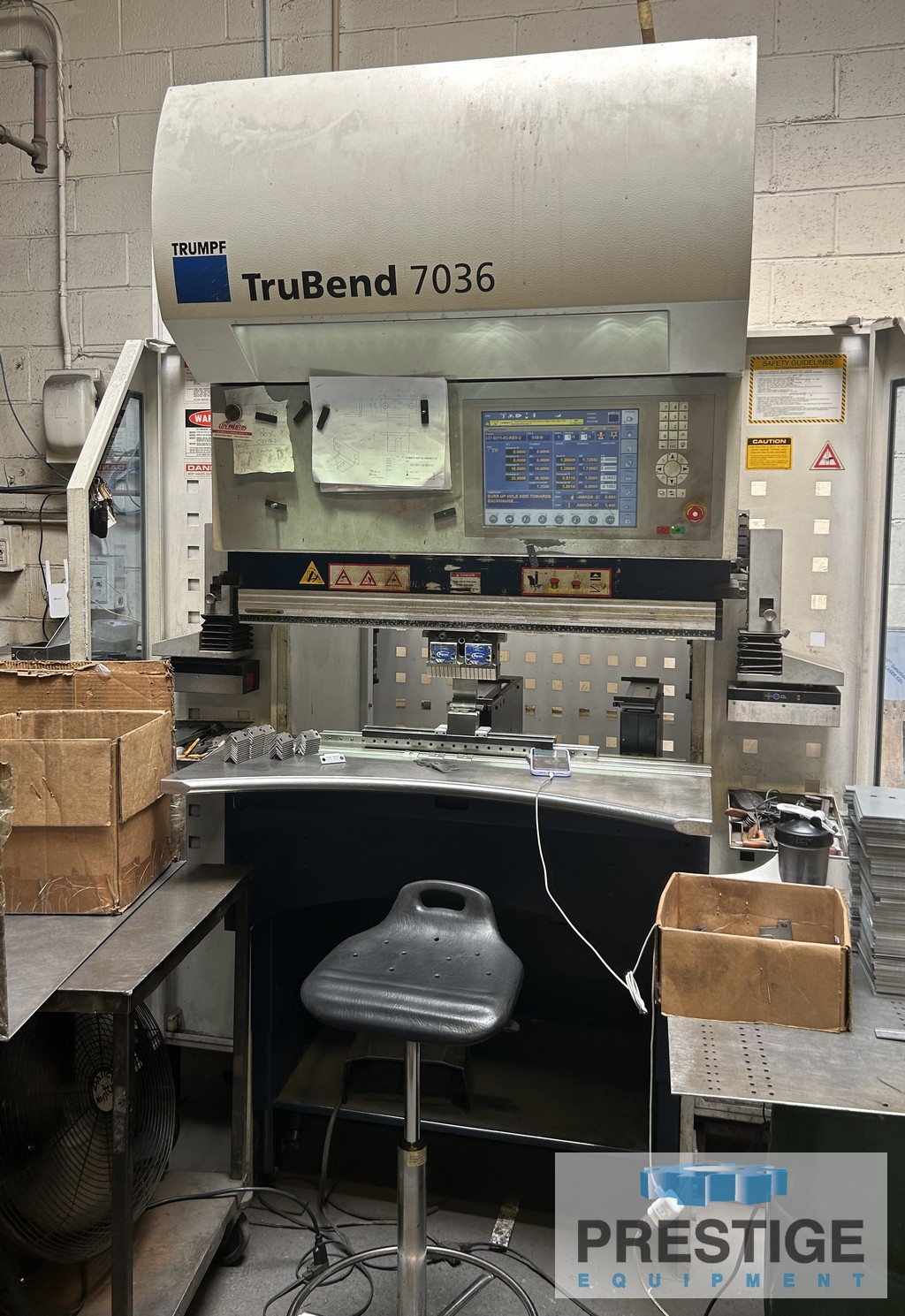

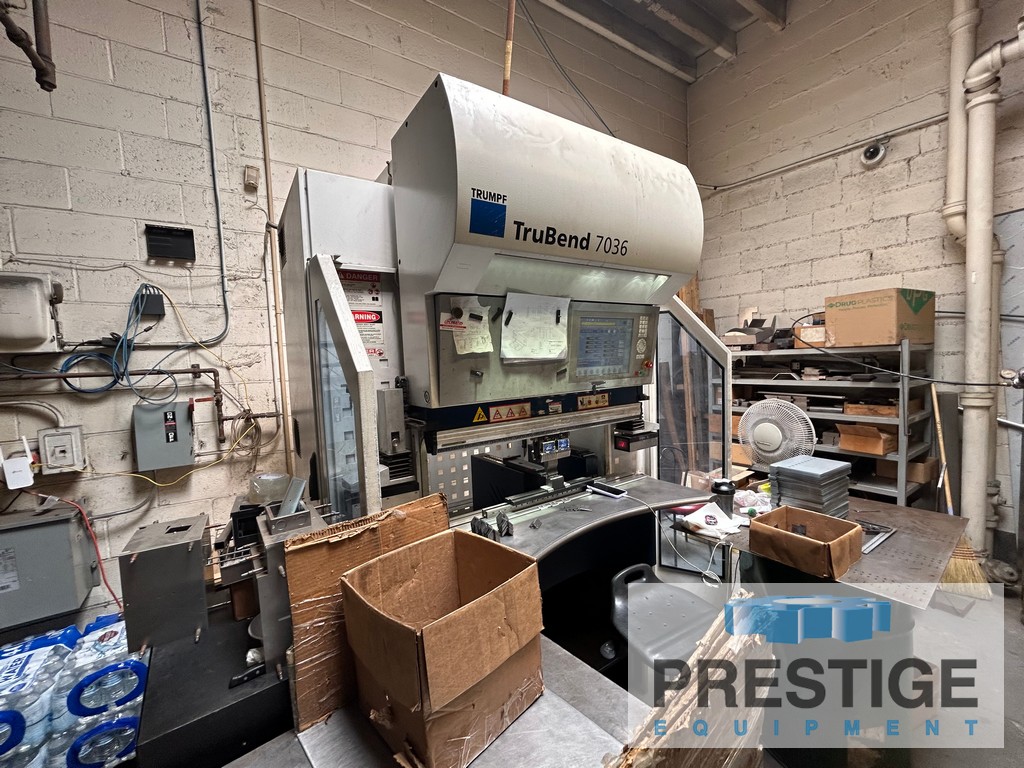

36 Ton Trumpf 7036 CNC Electric Servo Press Brake

FEATURES:

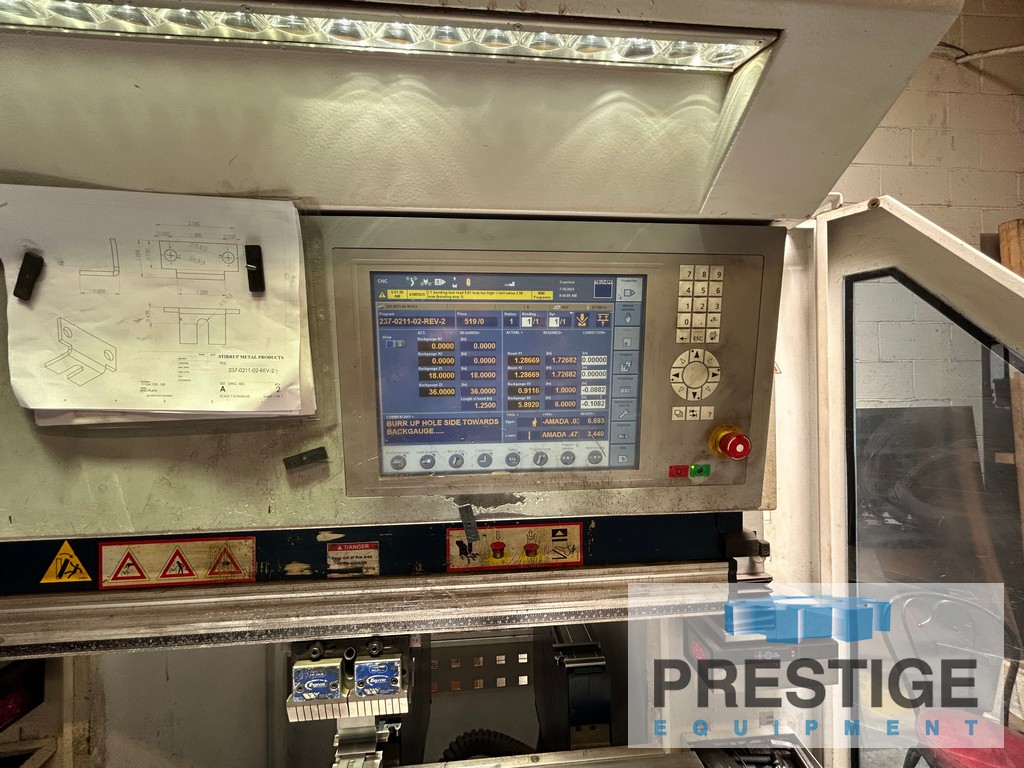

Tasc 6000 CNC Control w/ Operator Swivel Unit

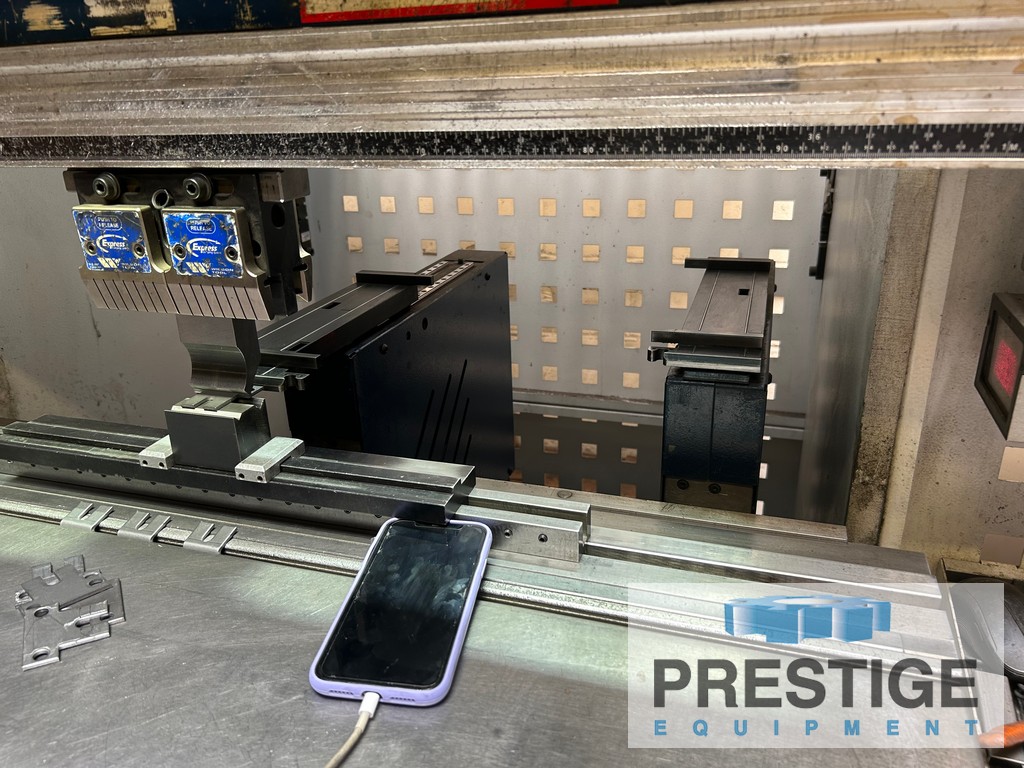

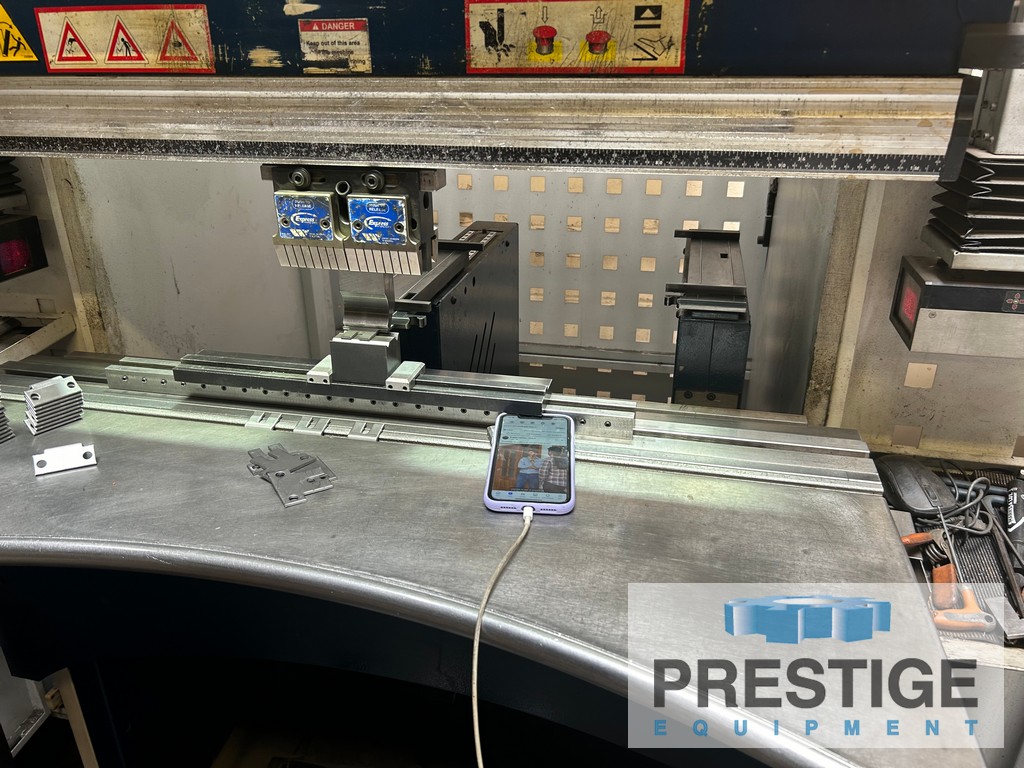

(6) Axis Back Gauge
Hydraulic Tool Clamps
LED Work Area Lighting Front & Rear
Comfort Support Table
Comfort Foot Rest
Laser Safety Curtains

CAPACITY:
Press Force ........................... 36 Ton
Bending Length ........................ 40.15"
Throat Depth .......................... 5.9"
Stroke ................................ 4.72"
Usable Open Height .................... 11.81"
Rapid Ram Speed ....................... 8.7 Inches/Sec.
Max. Working Speed .................... .98" Inches/Sec.
Machine Weight ........................ 5,733 Lbs.

EQUIPPED WITH:
Tasc 6000 CNC Control w/ Operator Swivel Unit
Graphic Workshop Programming
(6) Axis Back Gauge
Hydraulic Tool Clamps
LED Work Area Lighting Front & Rear
Comfort Support Table
Comfort Foot Rest
Laser Safety Curtains
