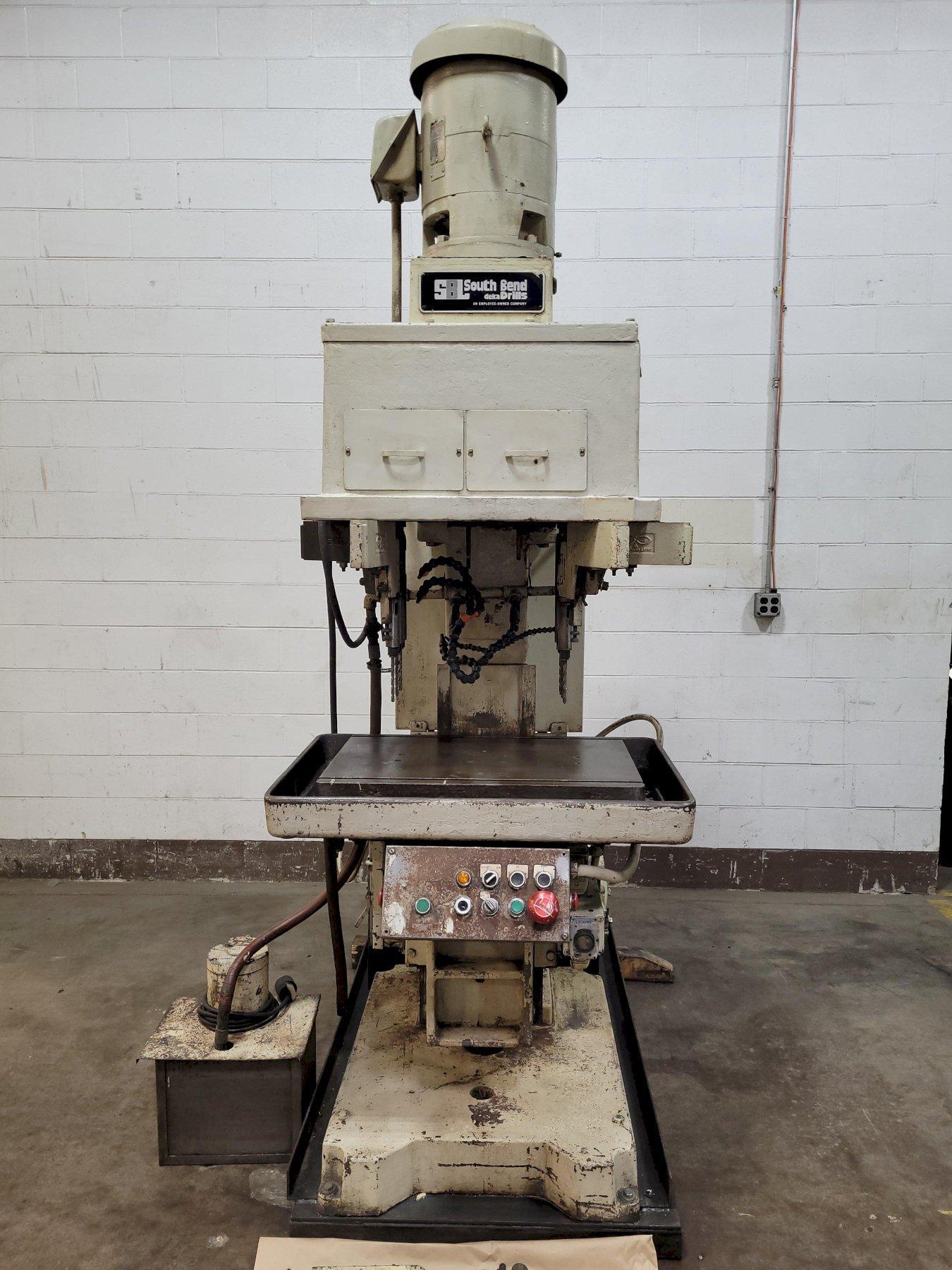

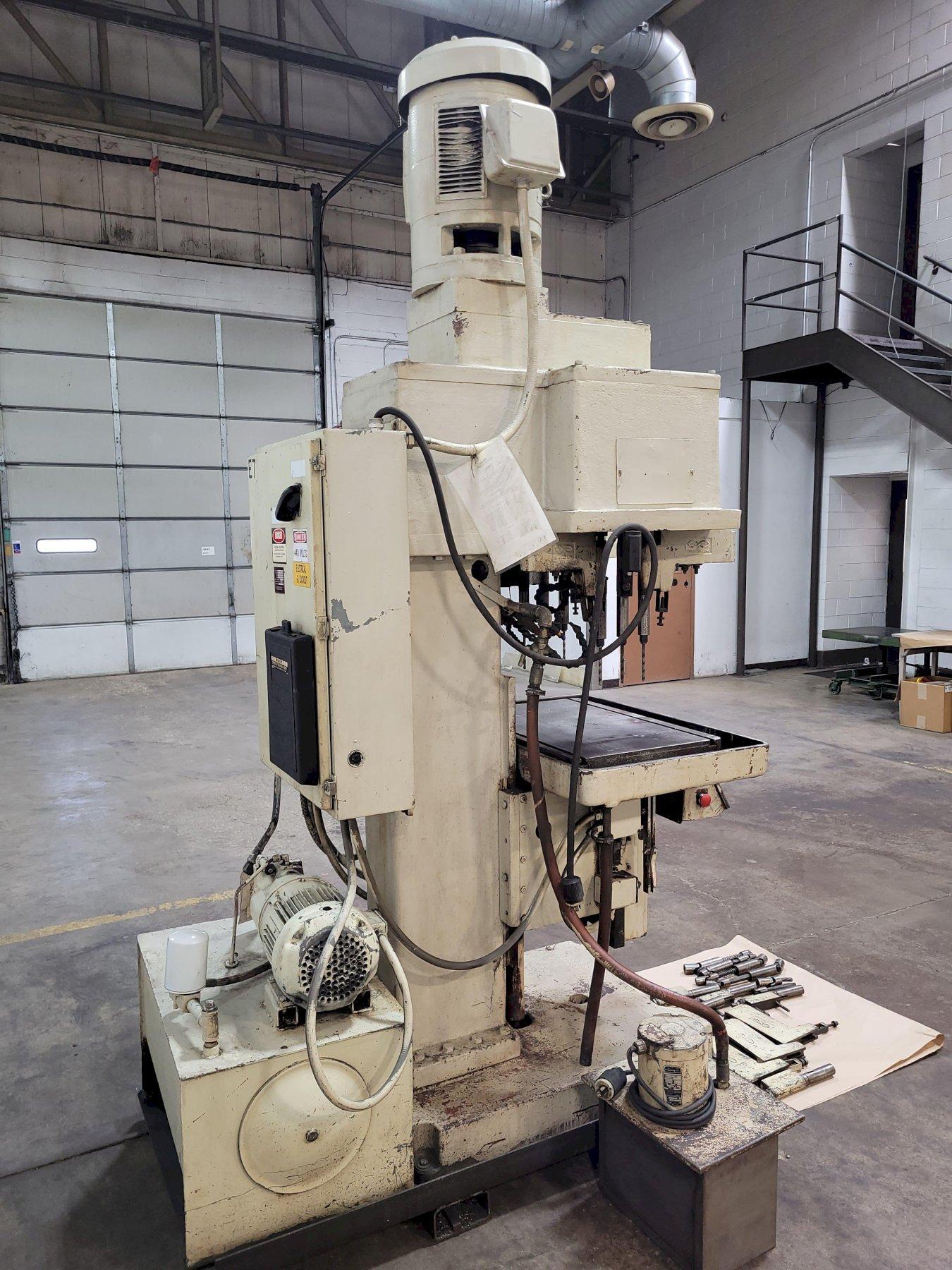

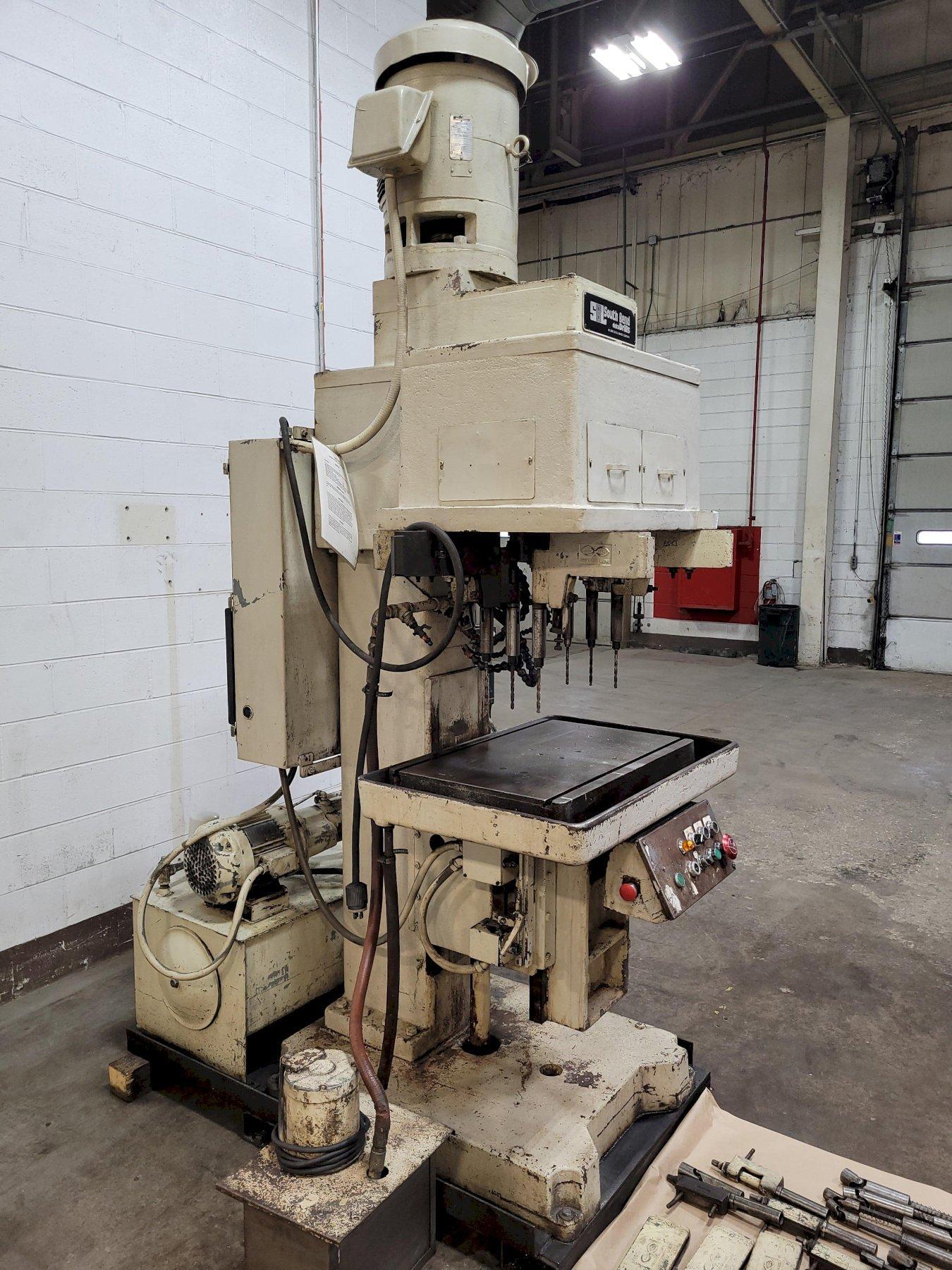

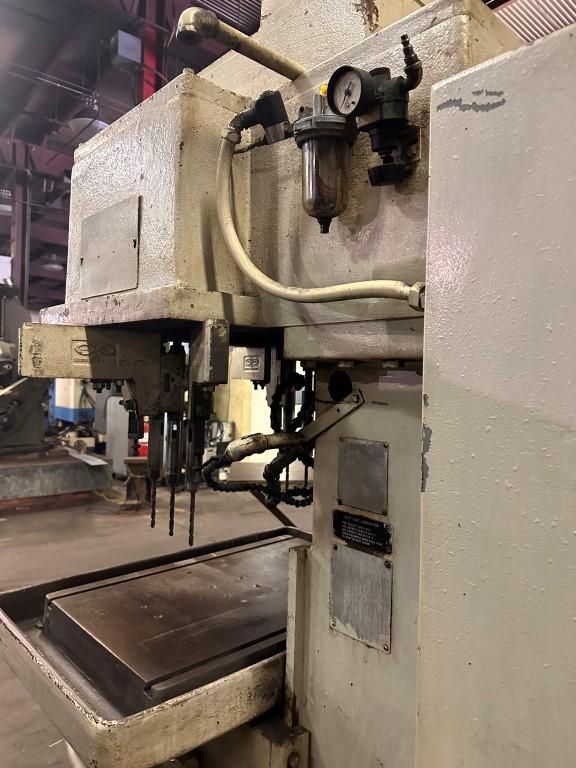

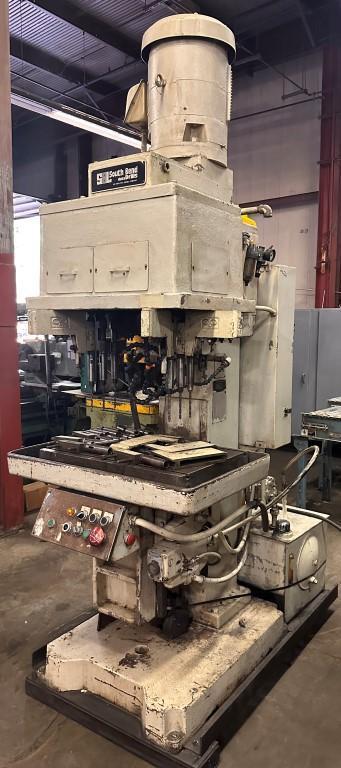

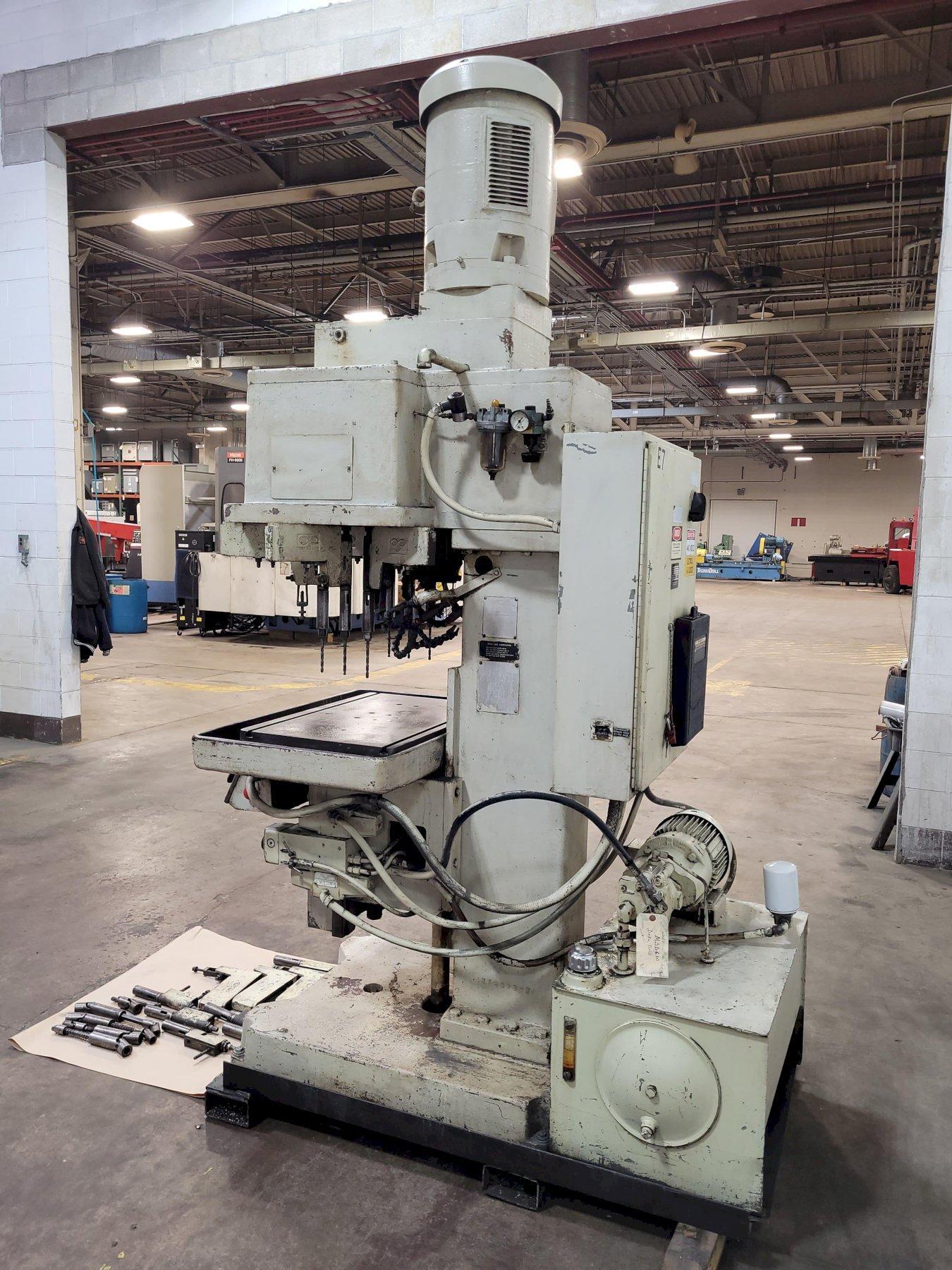

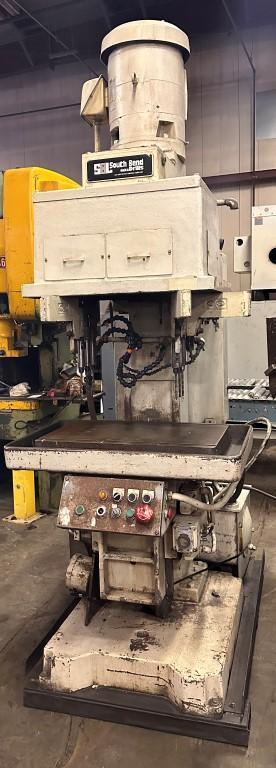

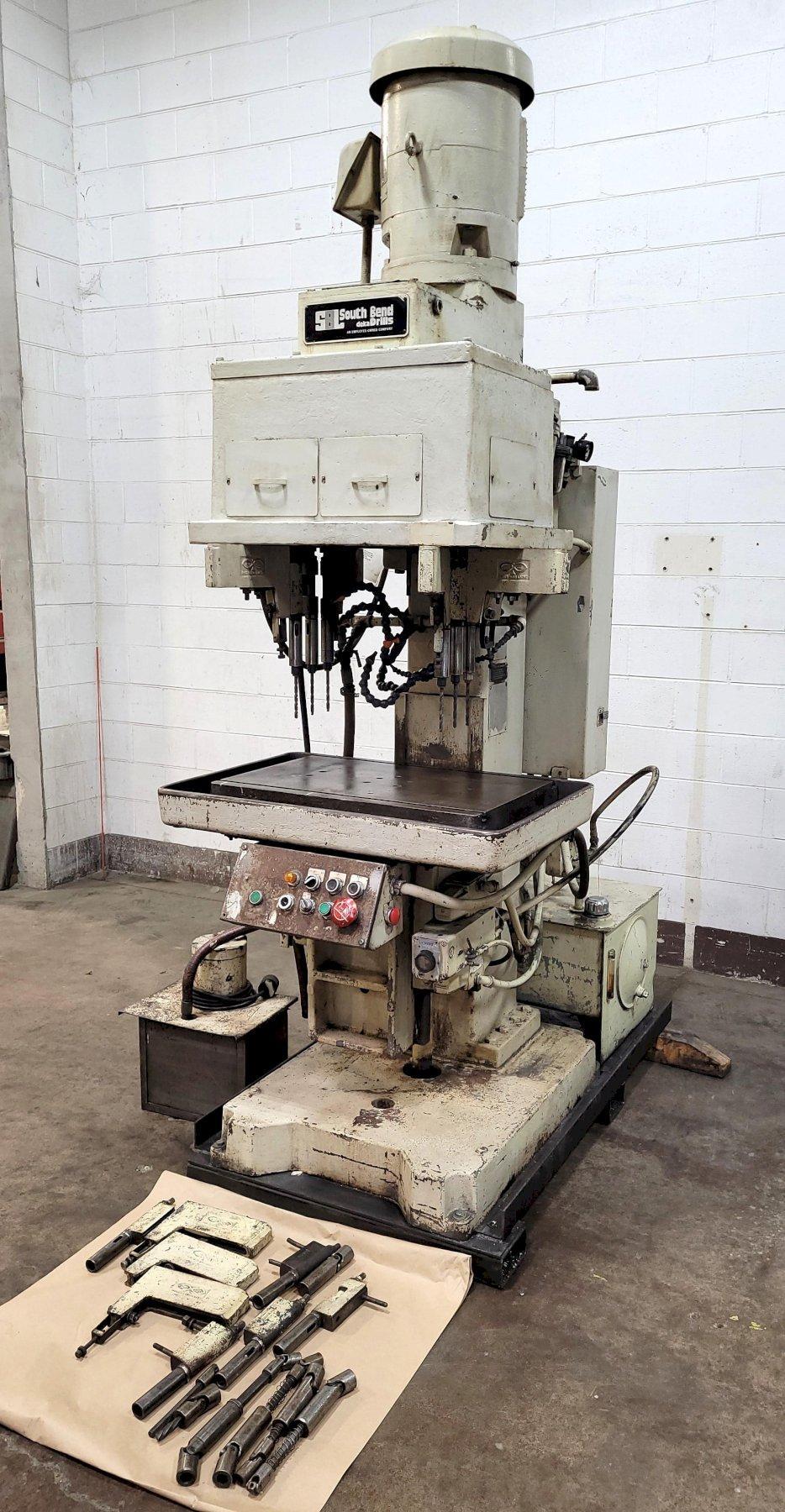

18-Spindle Deka Model HRG 1222-18 Multiple Spindle Drilling & Tapping Machine

Manufacturer

DEKA

Category

Drilling Machines

Type

DRILLING & TAPPING MACHINES, CNC

Stock

MSD630

Model

HRG 1222-18

Dealer Location

Illinois

Request a Quote
View Contact Information

Spec Sheet

Number of Spindles - 18
Drilling Area (Opening of Head) - 14 ½” FB x 22 ¾” LR
Center of Head to Face Ways on Column - 12”
Feed Stroke of Table - 6"
Range of Feeding - 0 to 90 IPM
Rapid Traverse Rate - 120 IPM
Distance Between Head Flange and Table Top - 28” Maximum/14” Minimum

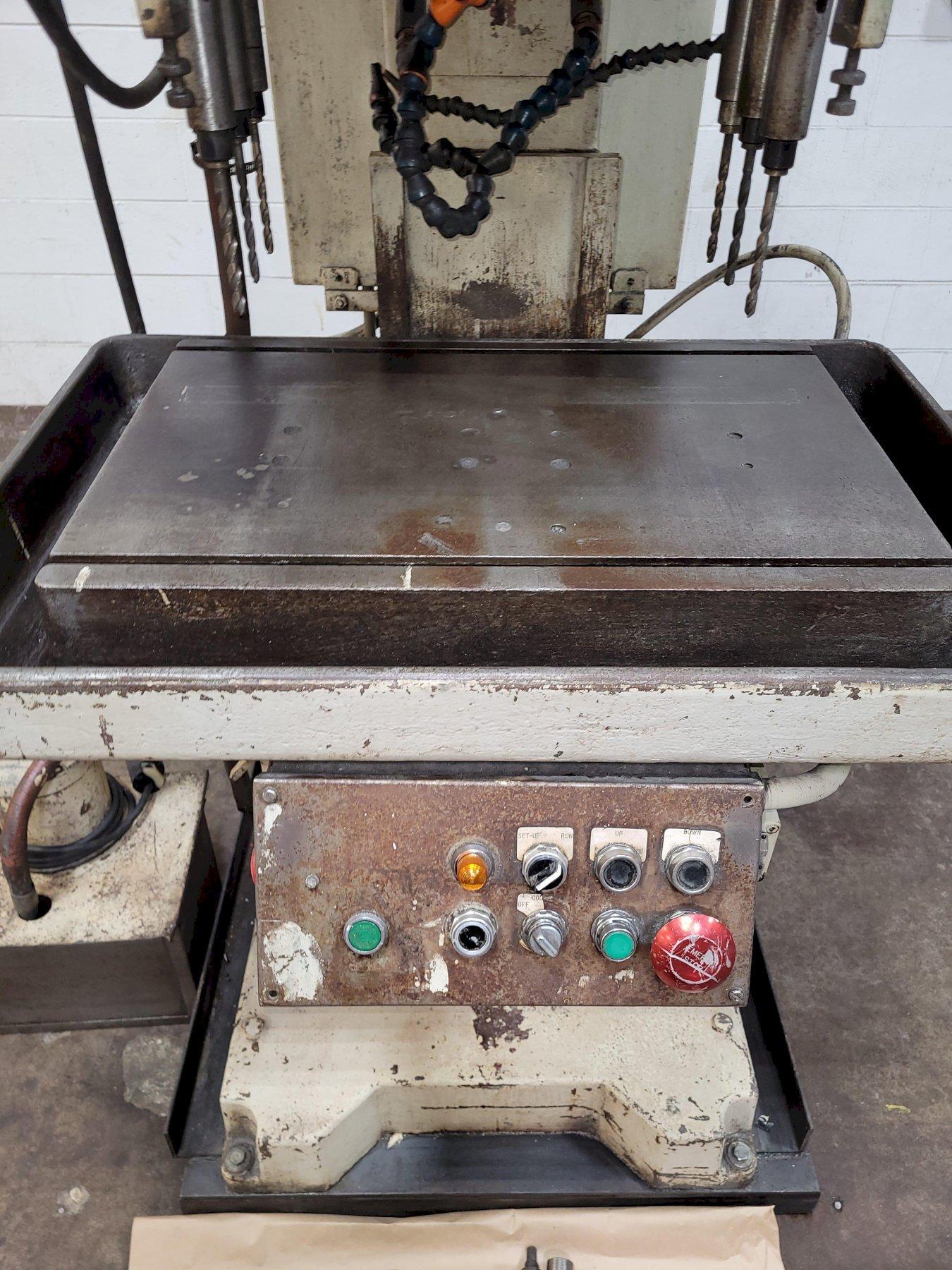

Working Surface of Table - 19-3/4” FB x 29 ½” LR
Head Drive Motor (875 RPM) - 15 HP
Size of Hex Drives - ¾”
18 Spindles - 9/16”
10 Spindles - 25/32”
8 Spindles - 7/8”
18 Spindles - ½ - 20NF
11 Spindles - ¾ - 16NF
9 Spindles - 1” – 12NF
Spindle Speed Range (with Change Gears) - 173-1561 RPM

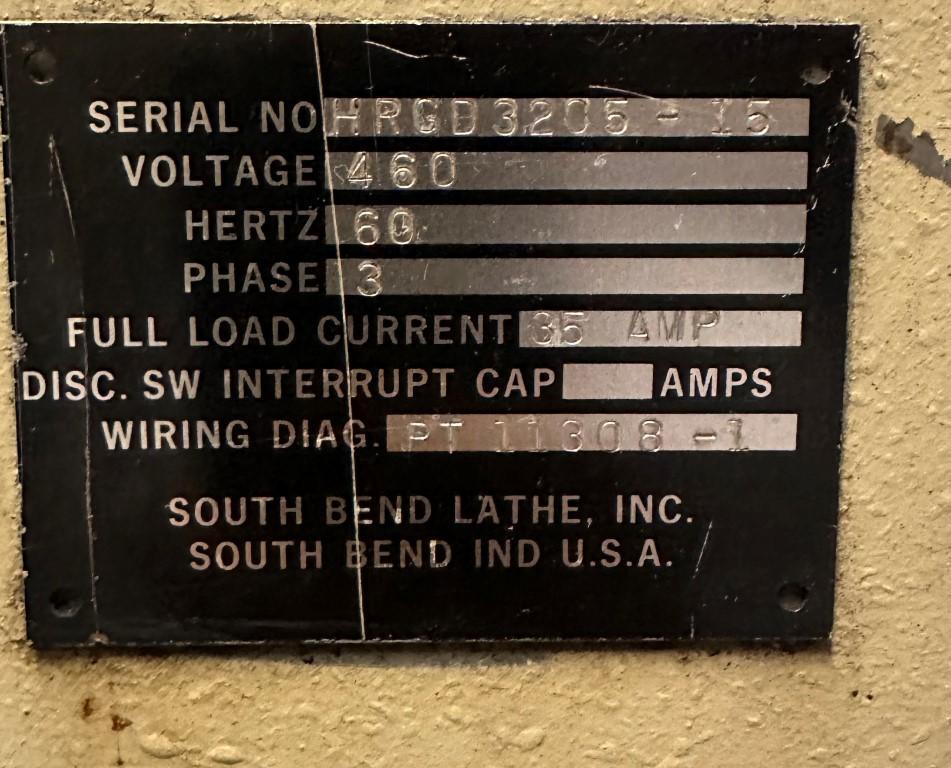

Electrics - 3/60/230-460V
Presently Wired for - 3/60/460V
Approximate Dimensions - 46” LR x 58” FB x 115” Height
Approximate Weight - 4,500 Lbs.


EQUIPPED WITH:

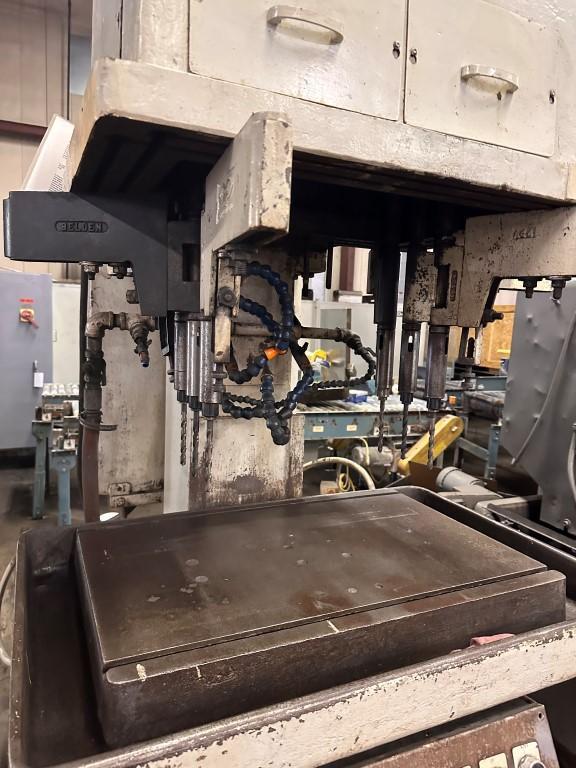

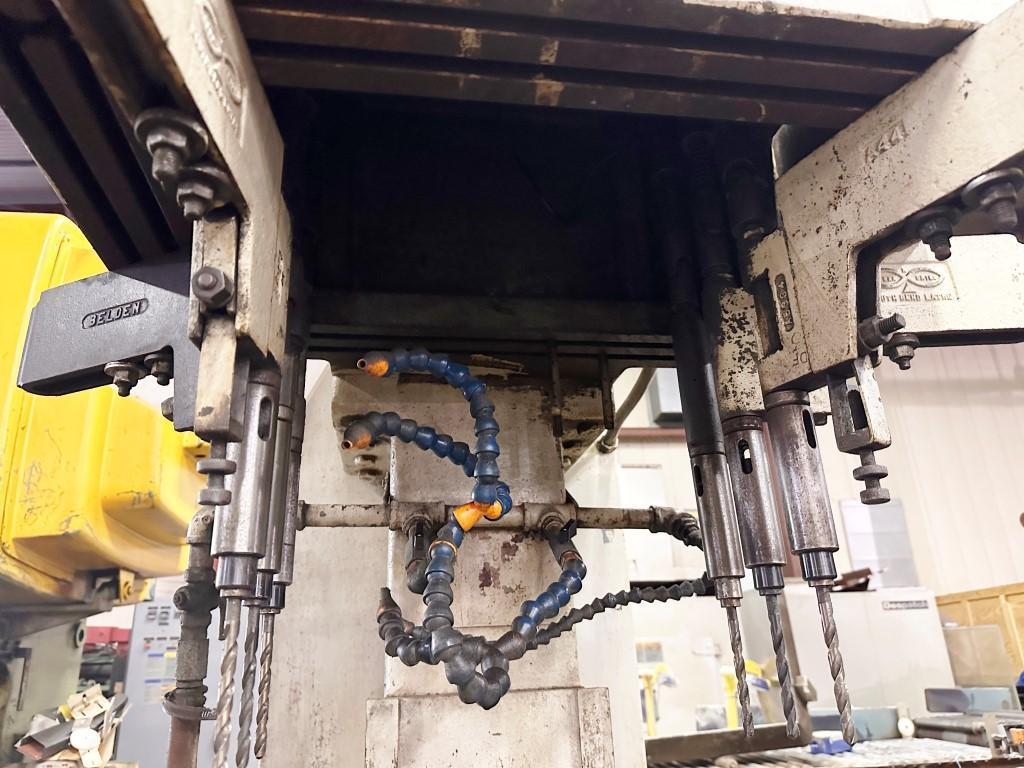

(9) Complete Spindles with the Adjustable Arms, Upper Universal Joints, and Lower Spindles.
Tapping.
Step Drilling.

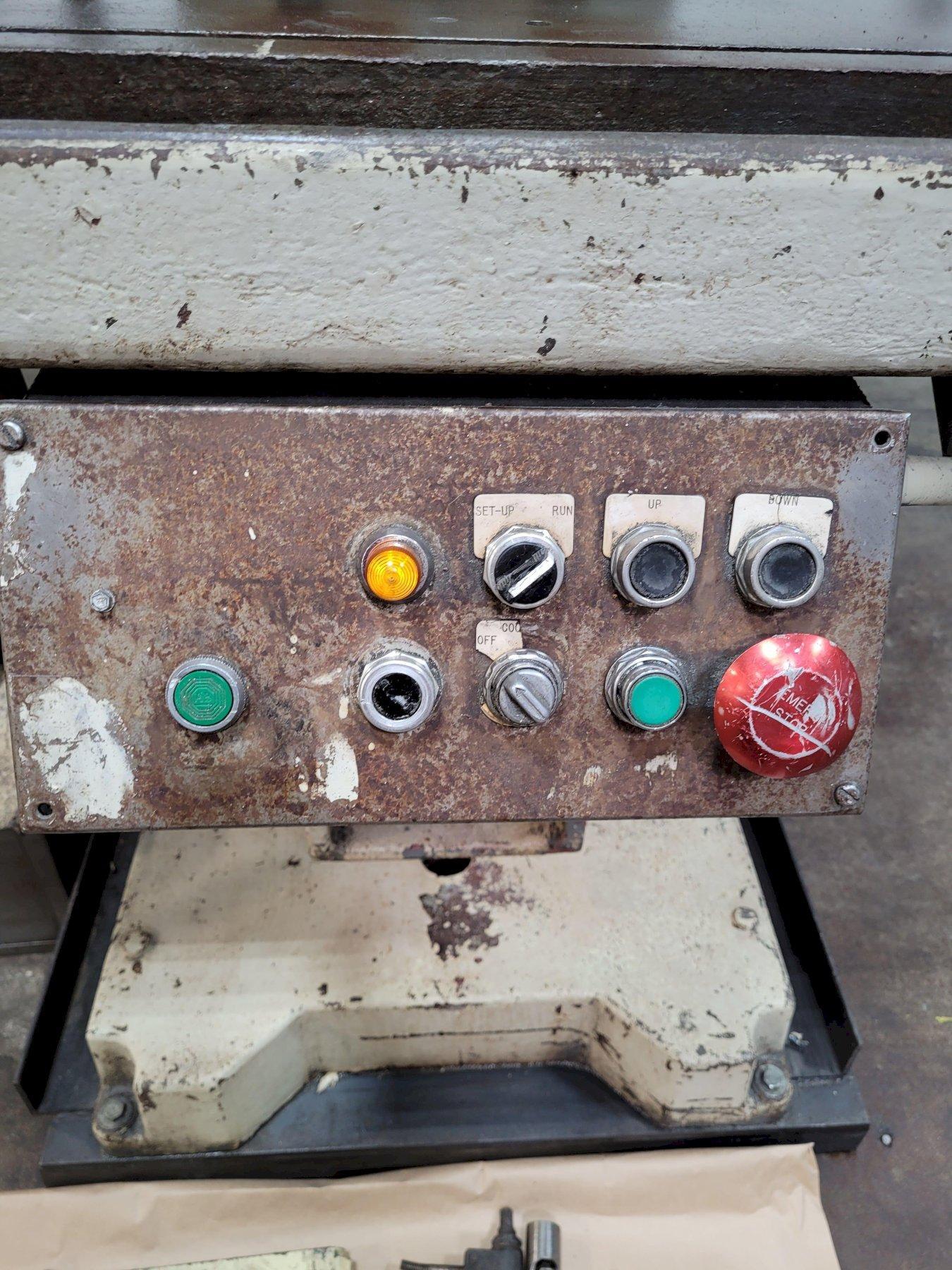

Allen Bradley PLC Control.

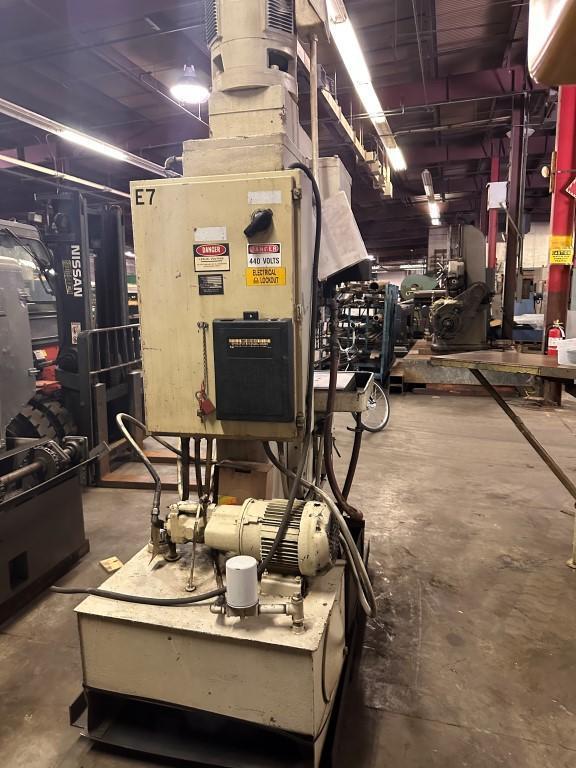

3 HP Hydraulic Power Unit.
Coolant Pump and Tank.

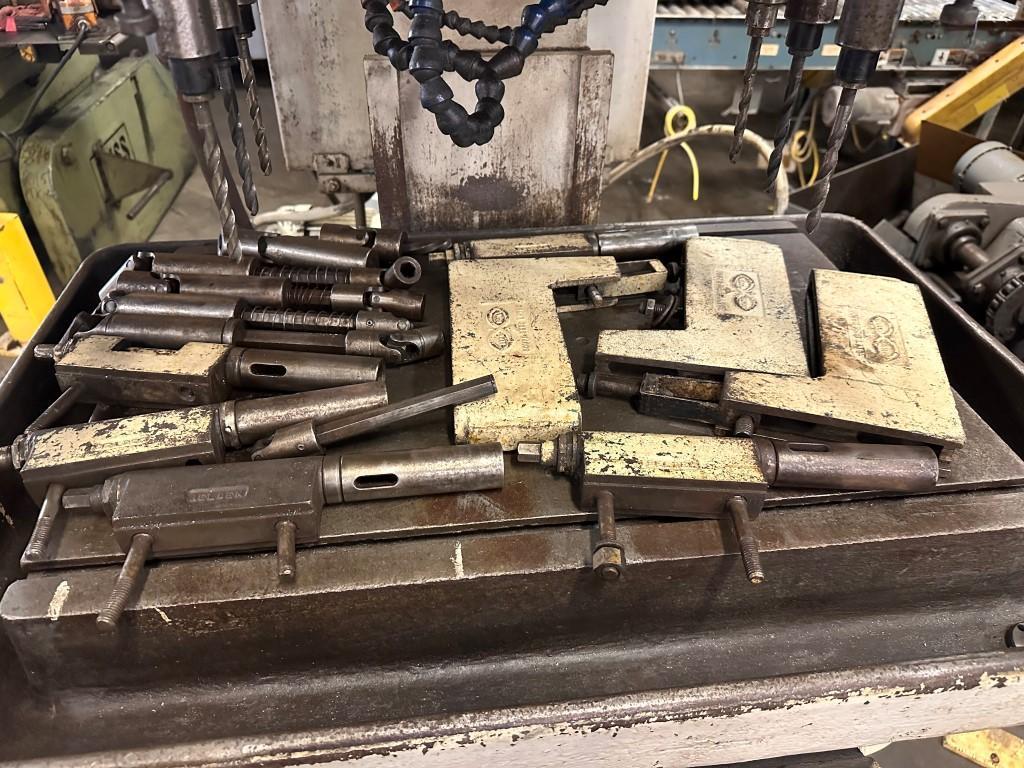

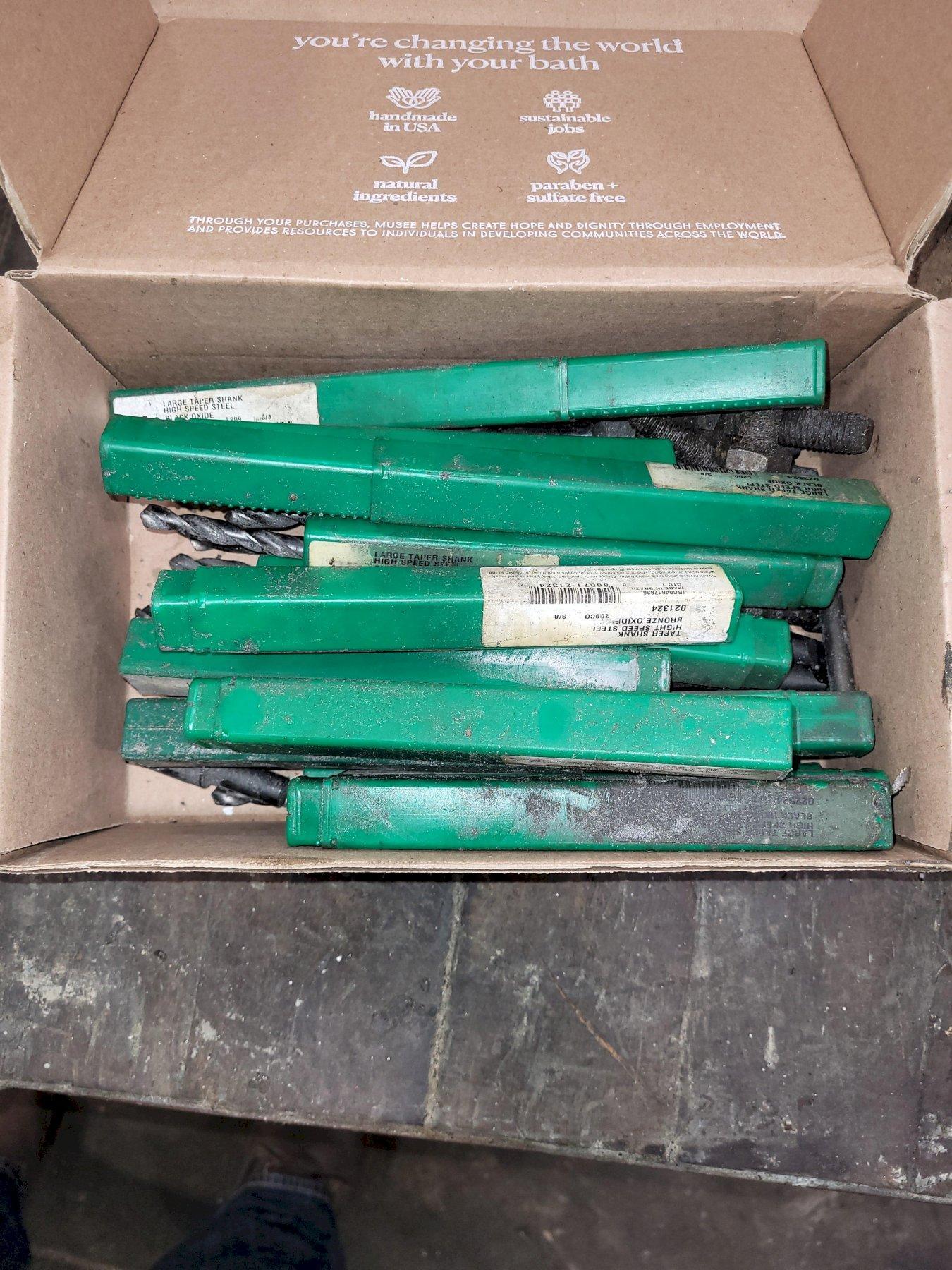

Miscellaneous Tooling.
