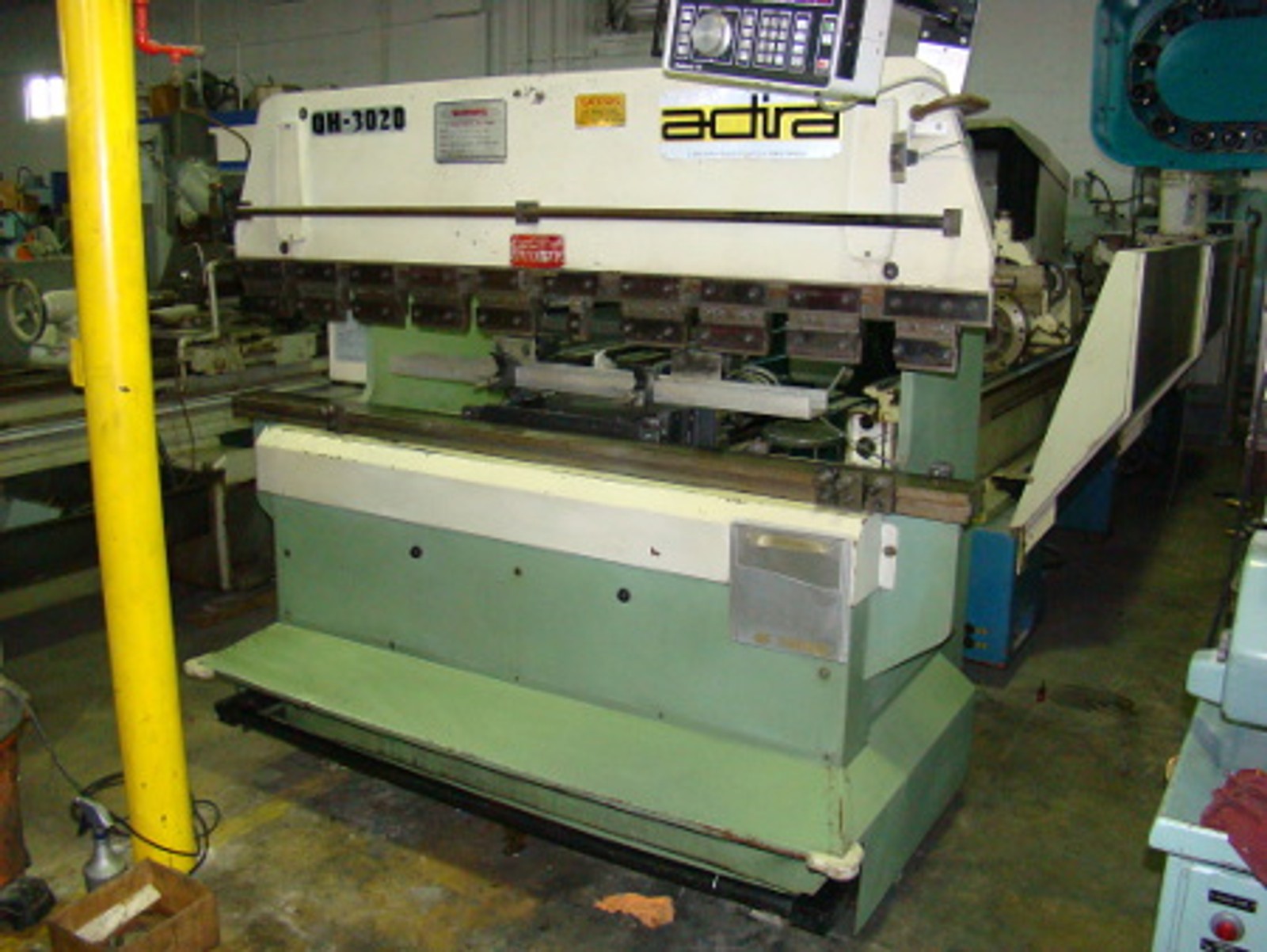

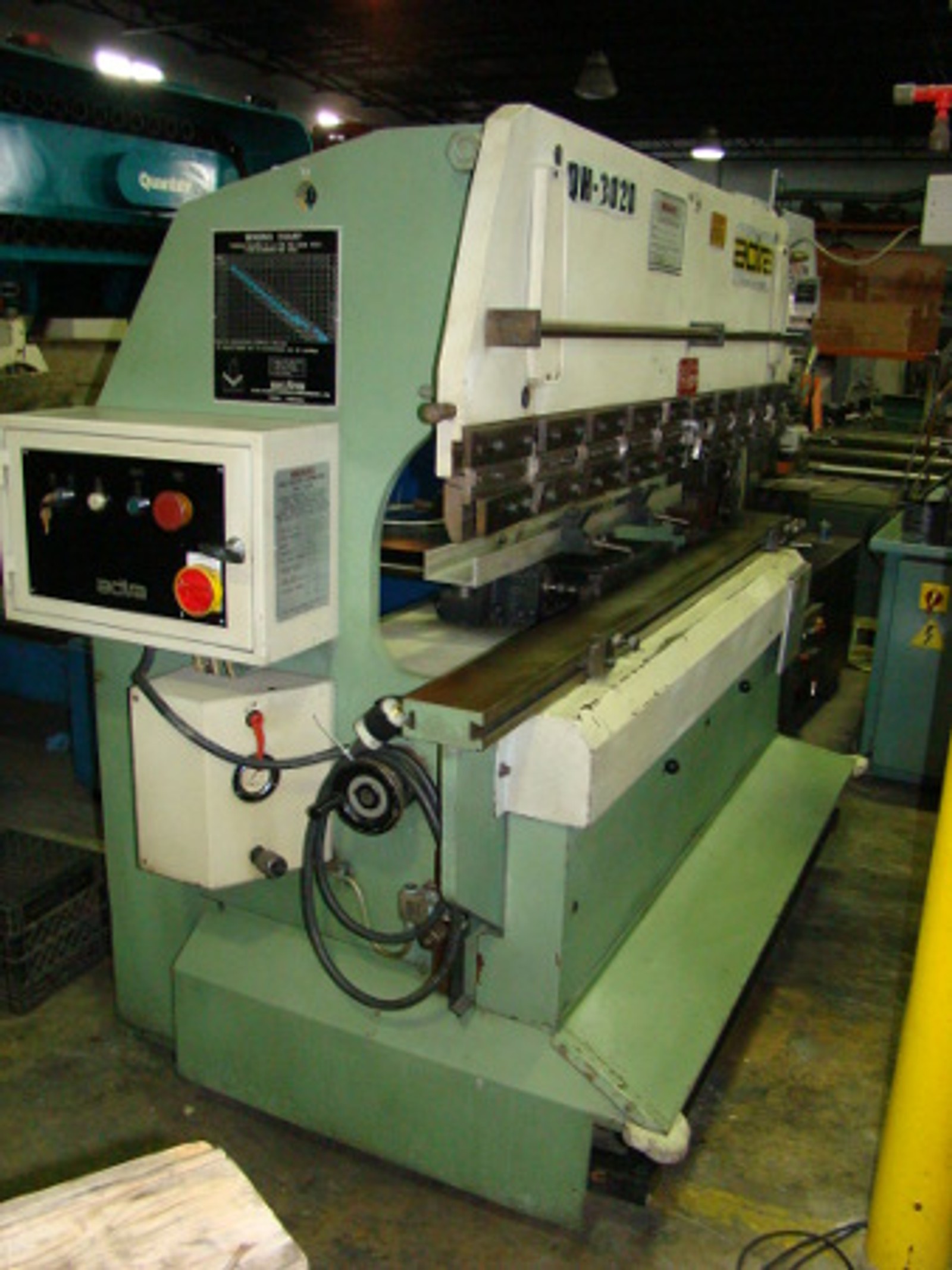

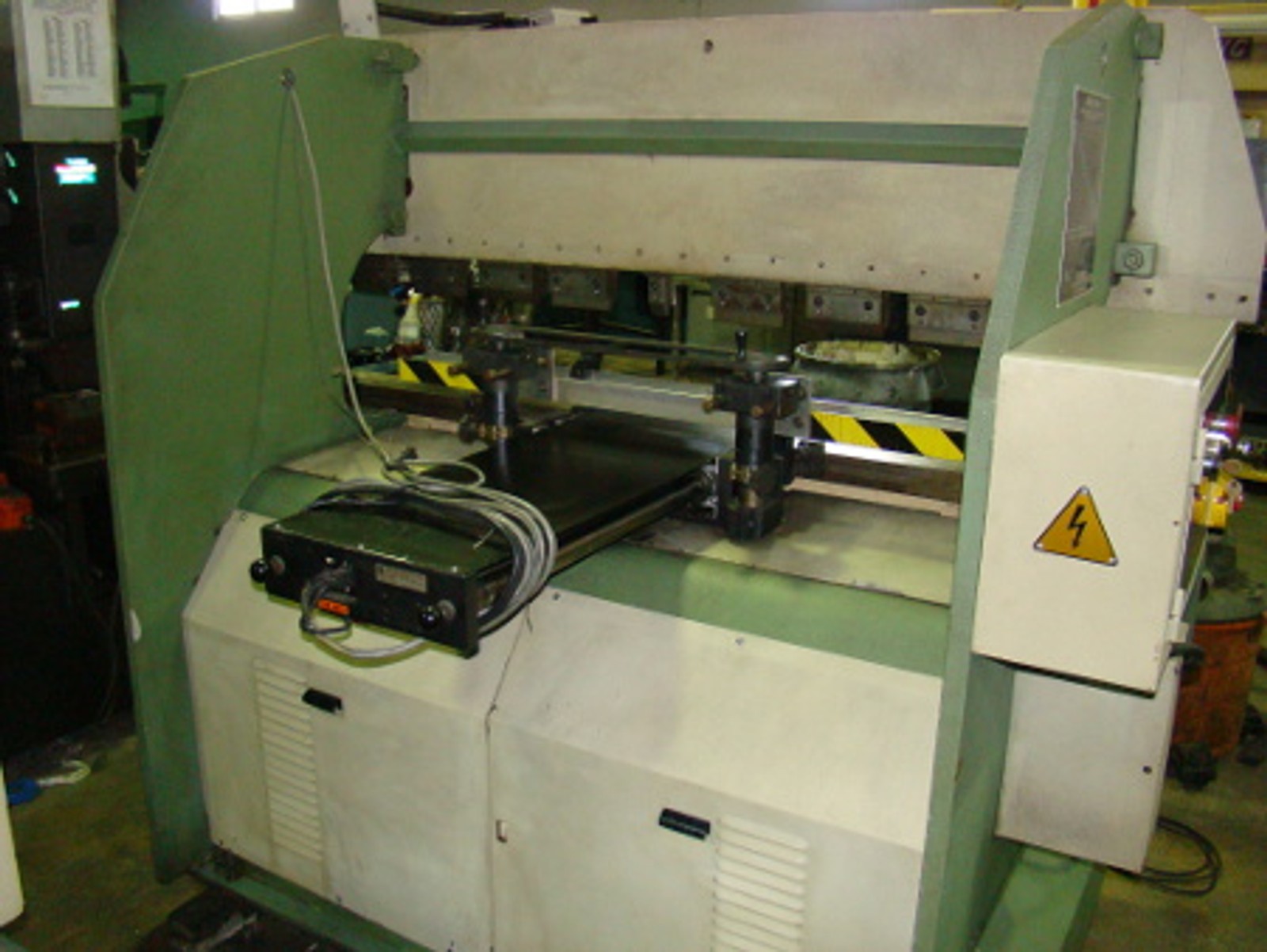

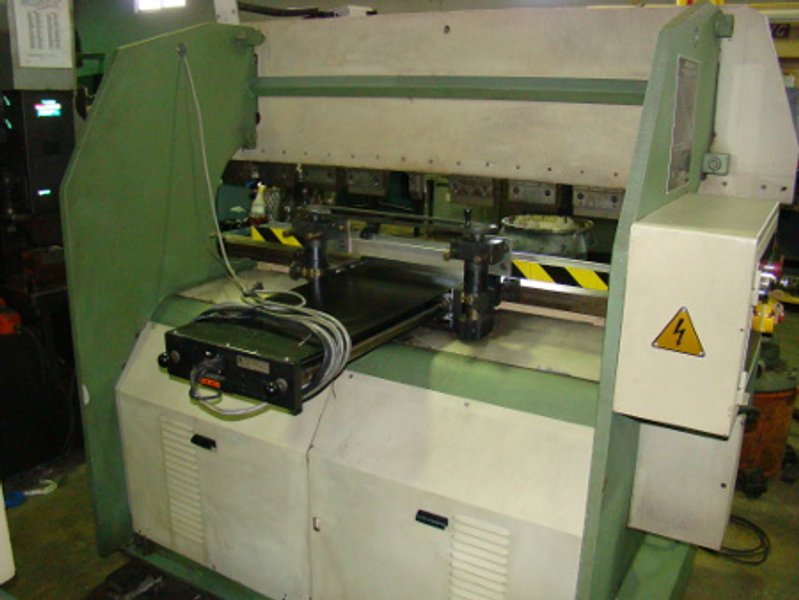

35 Ton, ADIRA, No. QH-3020, upacting, 80"OA, Hurco CNC, 1985

Manufacturer

Adira

Category

Brakes (including Press Brakes)

Type

BRAKES, PRESS, HYDRAULIC (Inch/Ton)

Stock

6603

Model

QH-3020

Dealer Location

Florida

Request a Quote
View Contact Information

Spec Sheet

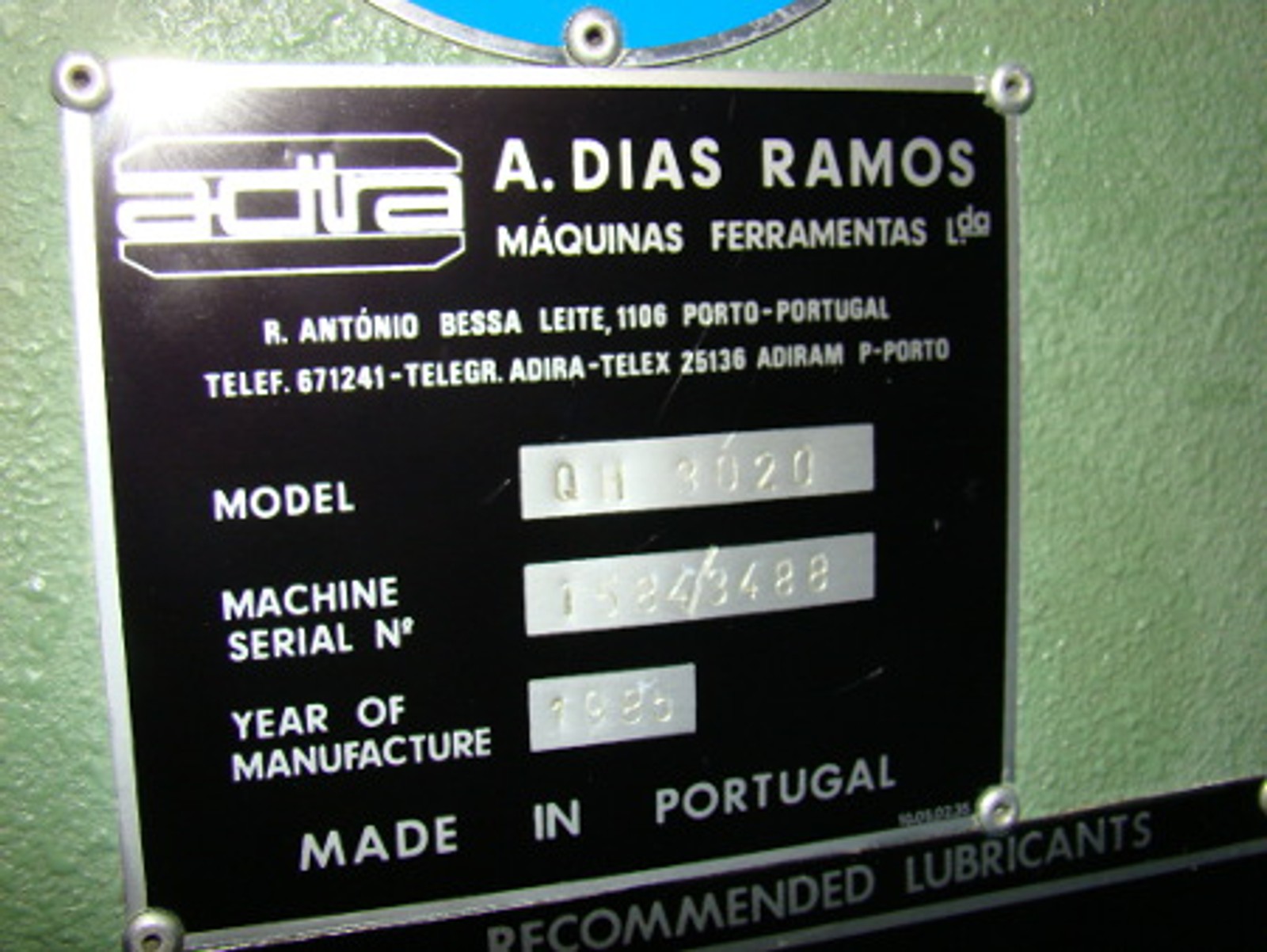

Model number QH-3020
Year of manufacture 1985

SPECIFICATIONS:
Capacity at bottom stroke 35 tons
Overall bending length 80"
Distance between housings 61"
Throat 9.84"
Stroke 4"
Open height w/o intermediates 12.2"
Open height with intermediates 8.6"
Approach speed 132 ipm
Working speed 25 ipm
Return speed 162 ipm
Main motor 3.6 HP
Electrics 220/440/3/60
Overall dimensions (L x W x H) 84" x 58" x 80"
Shipping weight 5,290 lbs.

EQUIPPED WITH:

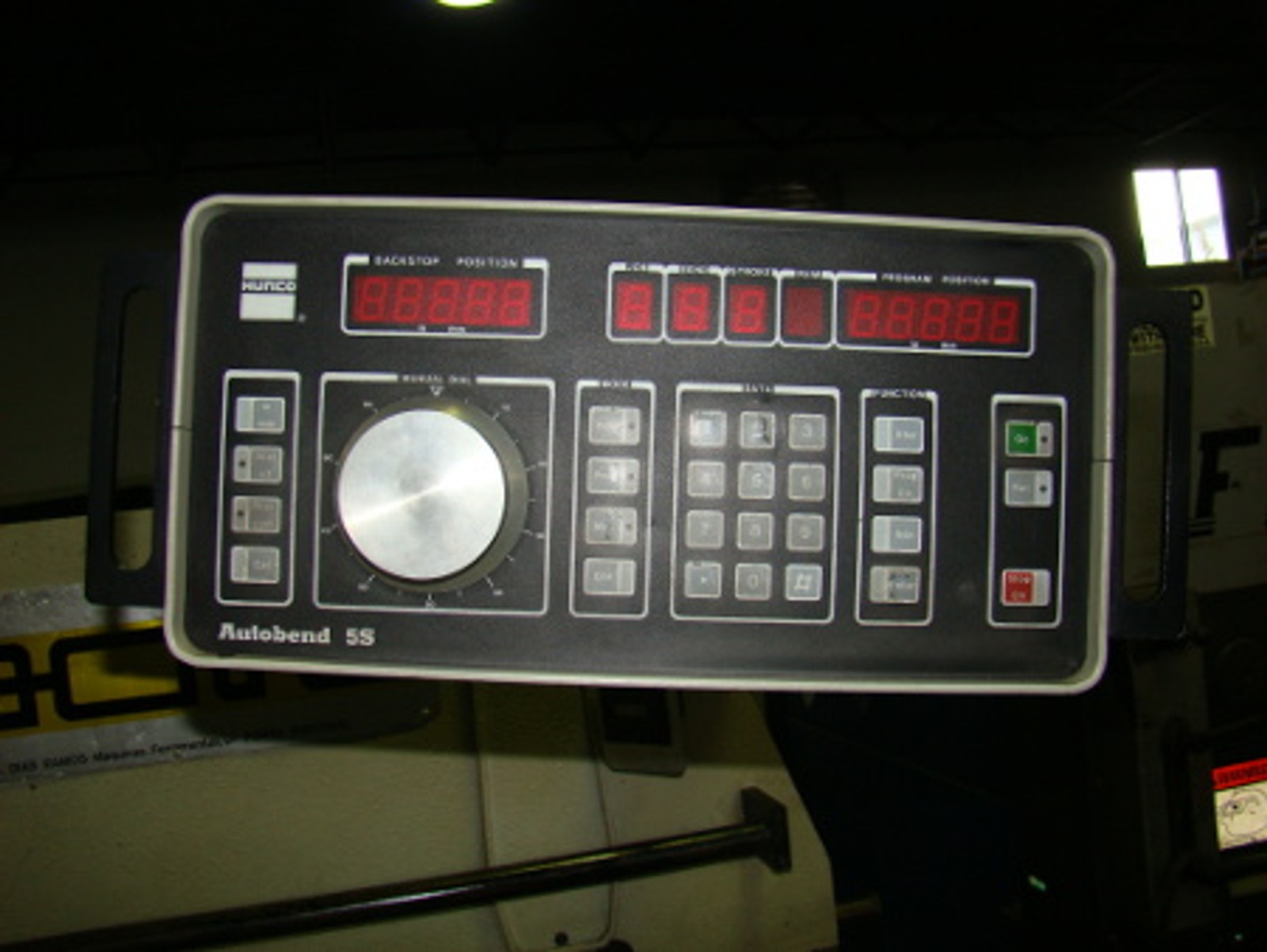

Hurco Autobend 5S CNC back gauge
Pressure gage, Full length foot threadle
Hydraulic adjustment of the open height
