Trumpf TruBend 5085, 95 Ton, 87" OA, 69" BH, 8-Axis CNC, 6-Axis BG , Clamping/Crowning, 2007, #43564

Manufacturer

TRUMPF

Category

Brakes (including Press Brakes)

Type

BRAKES, PRESS, HYDRAULIC (Inch/Ton)

Stock

43564

Model

TruBend 5085

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43564

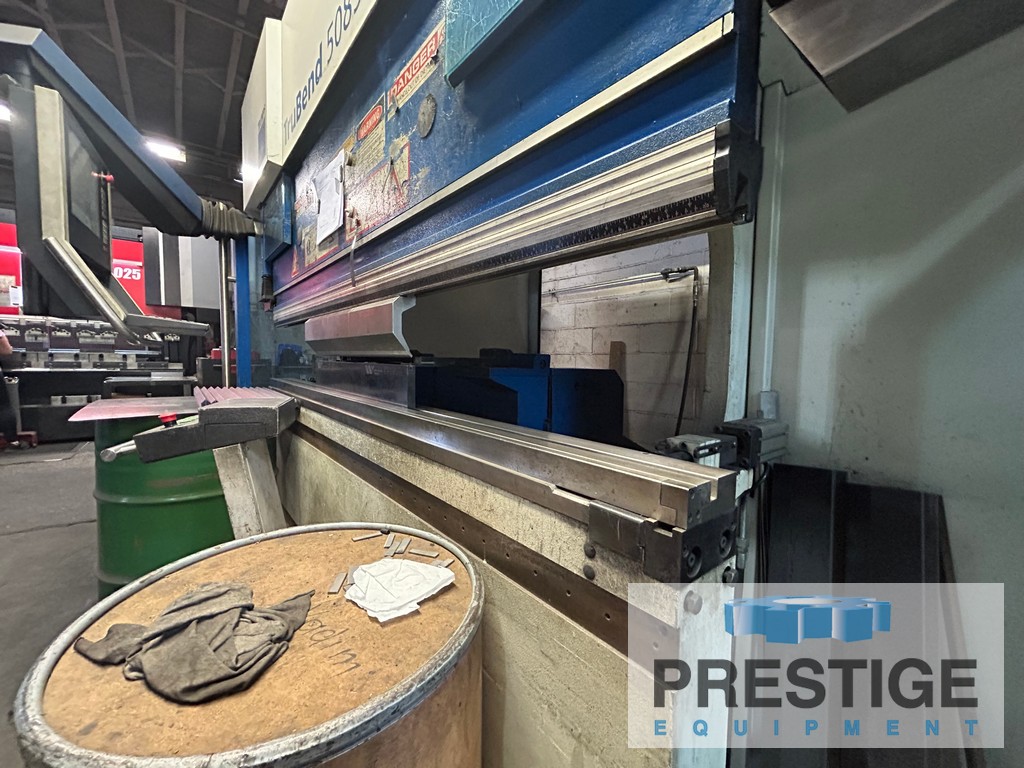

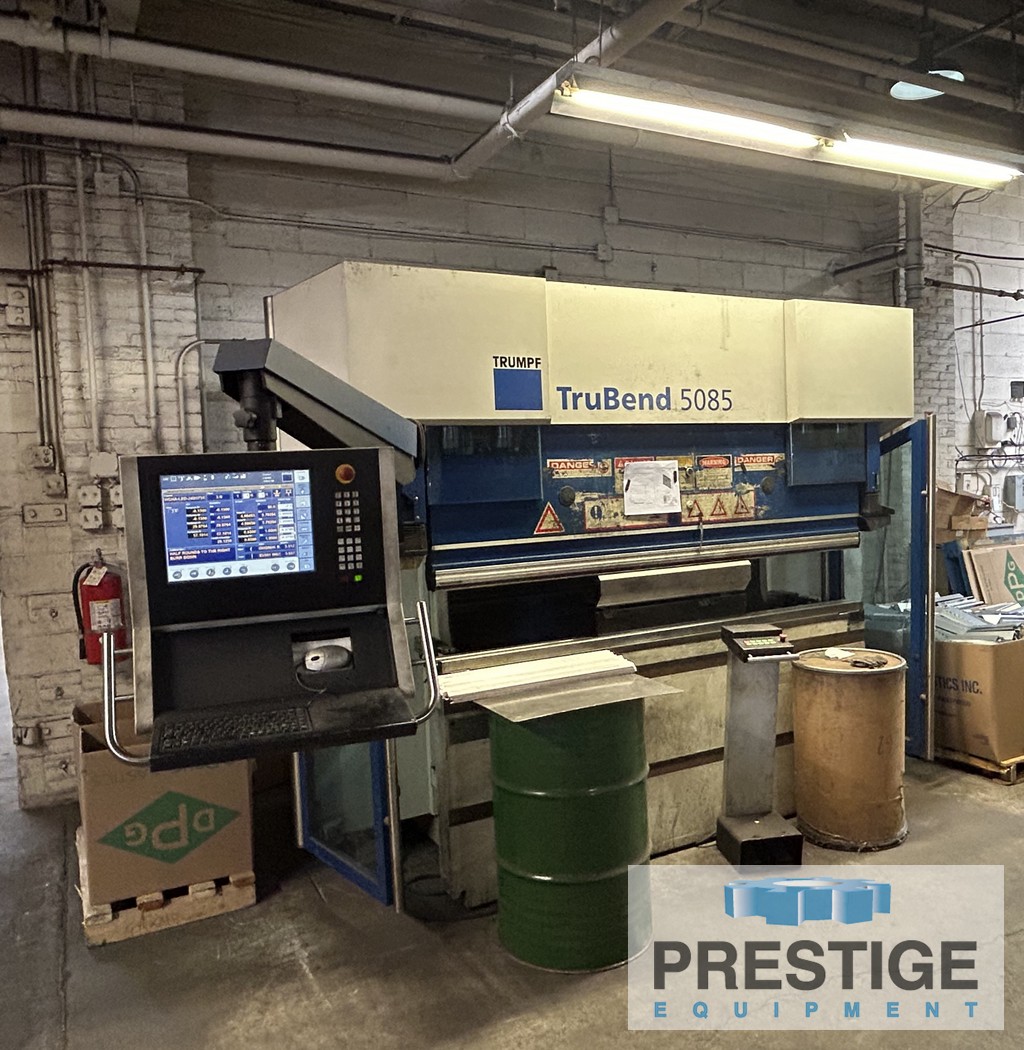

Trumpf TruBend 5085 8-Axis CNC Hydraulic Press Brake

FEATURES:

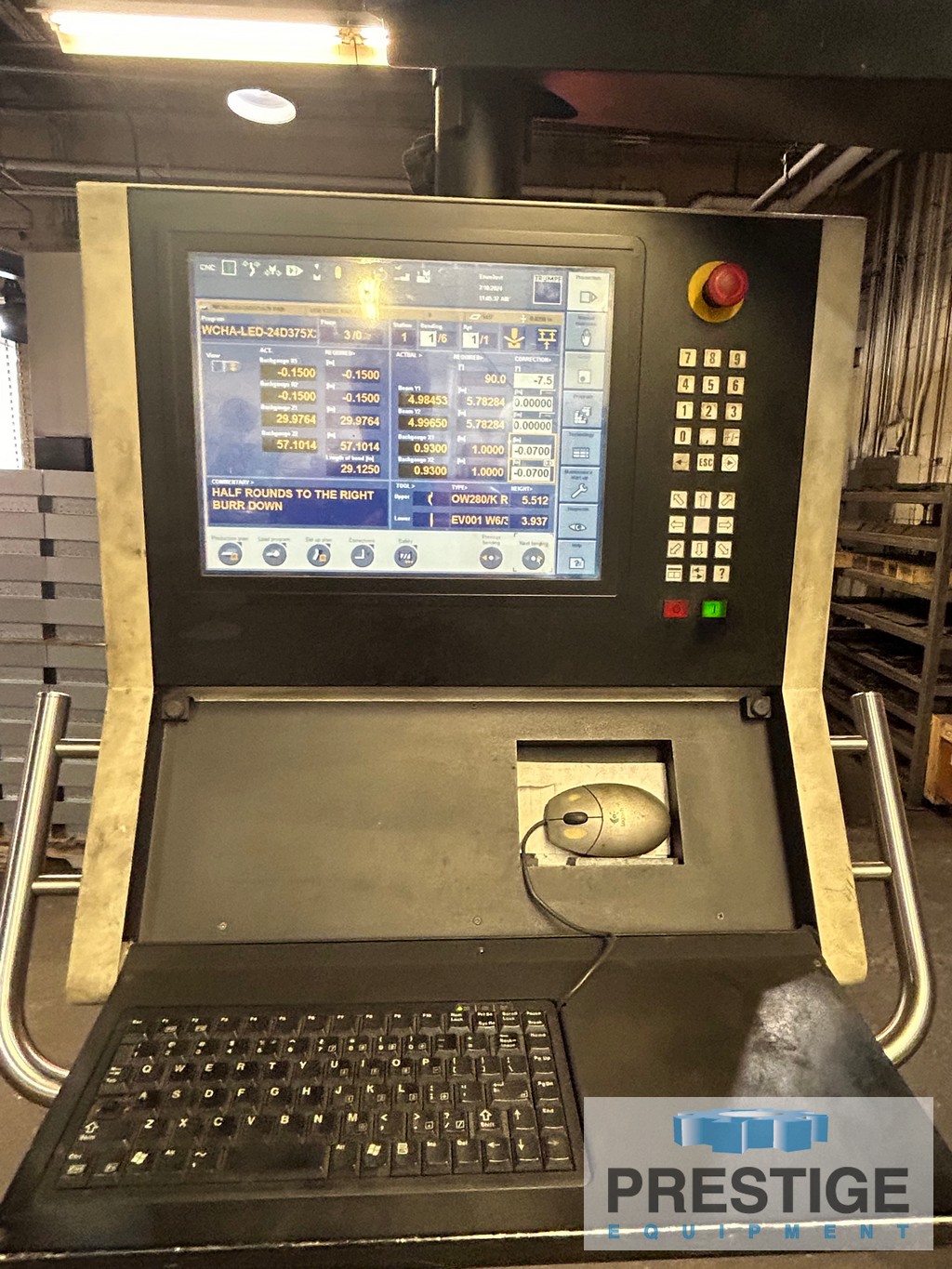

TASC 6000 8-Axis CNC Control
6-Axis Back Gauge
CNC Programmable Crowning
CNC Programmable Die Shift

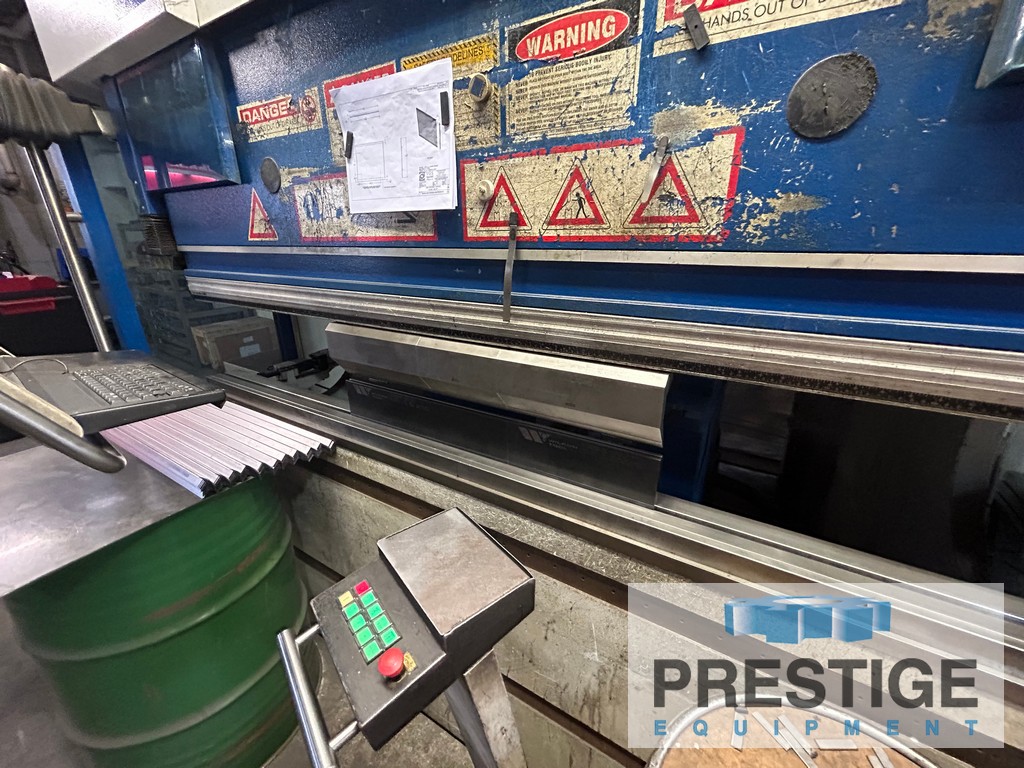

Power Punch And Die Clamping
Electric Foot Switch
Laser Light Curtains

CAPACITY:
Tonnage Capacity ...................... 95 Tons
Maximum Bending Length ................ 87"
Distance Between Housings ............. 68.89"
Stroke Length ......................... 8.46"
Throat Depth .......................... 16.53"
Travel In X-Axis (Back Gauge In/Out) .. 23.6"
Travel In R-Axis (Back Gauge Up/Down) . 10"
Y-Axis Operating Speed ................ 2 - 23.5 IPM
X-Axis Operating Speed ................ 2362 IPM
R-Axis Operating Speed ................ 780 IPM
Drive Motor ........................... 15 H.P.
Approximate Weight .................... 18,960 Lbs.

EQUIPPED WITH:
TASC 6000 8-Axis CNC Control
6-Axis Back Gauge
CNC Programmable Crowning
CNC Programmable Die Shift
Power Punch And Die Clamping
Electric Foot Switch
Laser Light Curtains
