Nakamura Tome WY250L, Fanuc 31iA CNC, 2-Spindles, 2-Turrets, Milling, X/Y/Z/C/B-Axes, Bar Feed, Chip Conv, 2012, #32284

Manufacturer

NAKAMURA TOME

Category

Lathes

Type

LATHES, COMBINATION, CNC, (3-Axis Or More)

Stock

32284

Model

Super-Mill WY-250L

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #32284

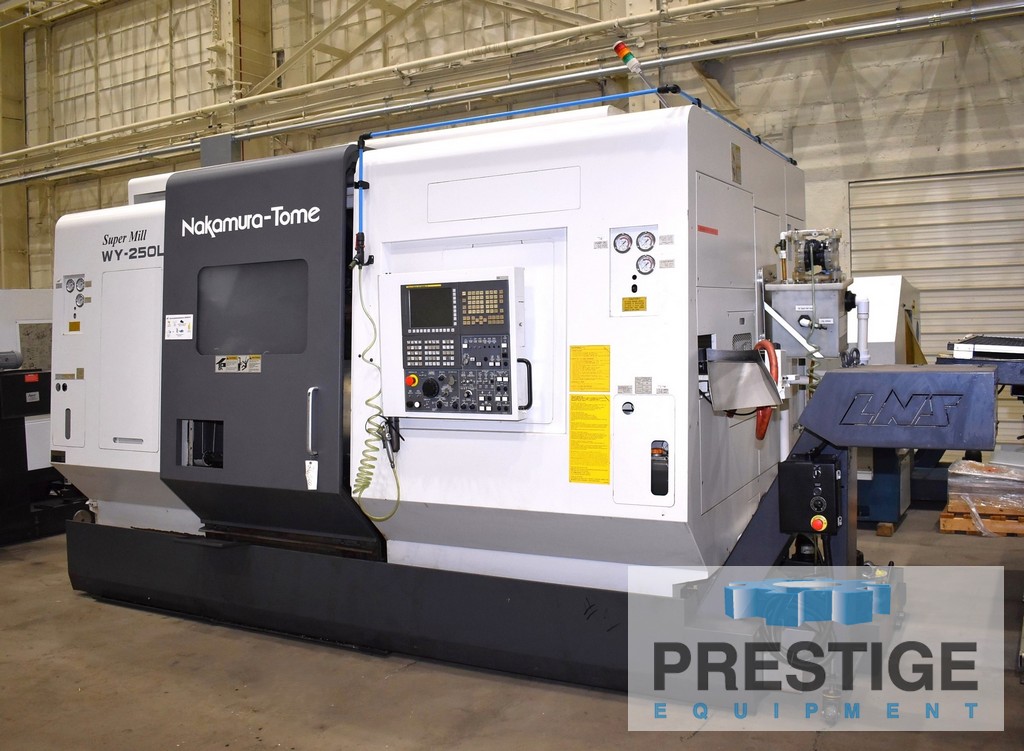

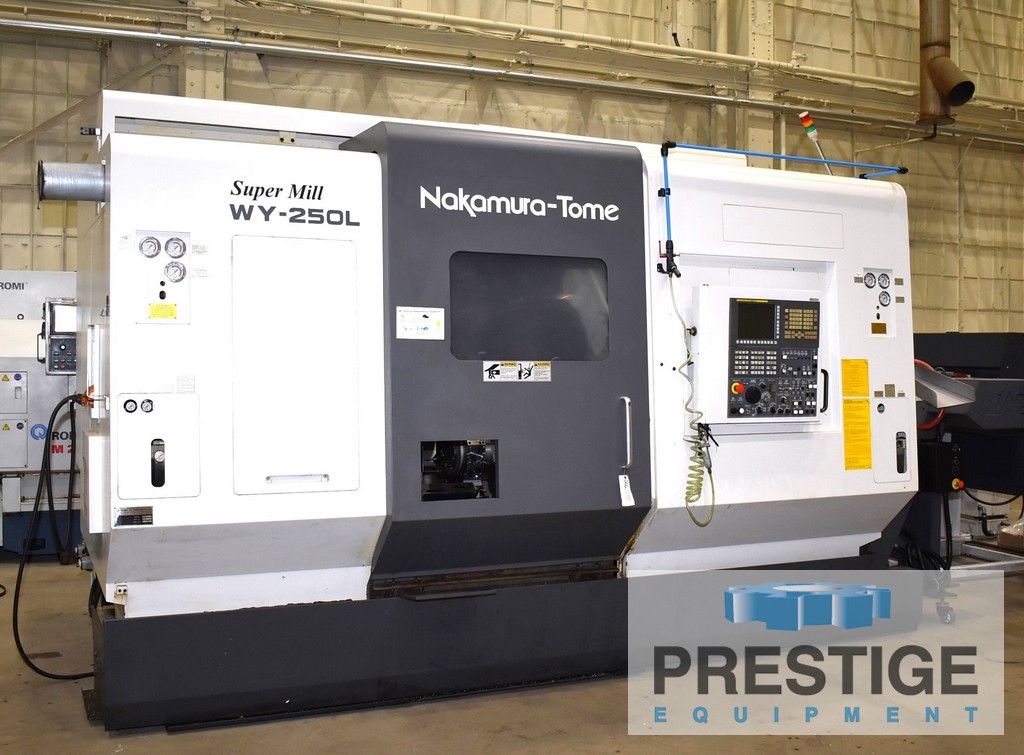

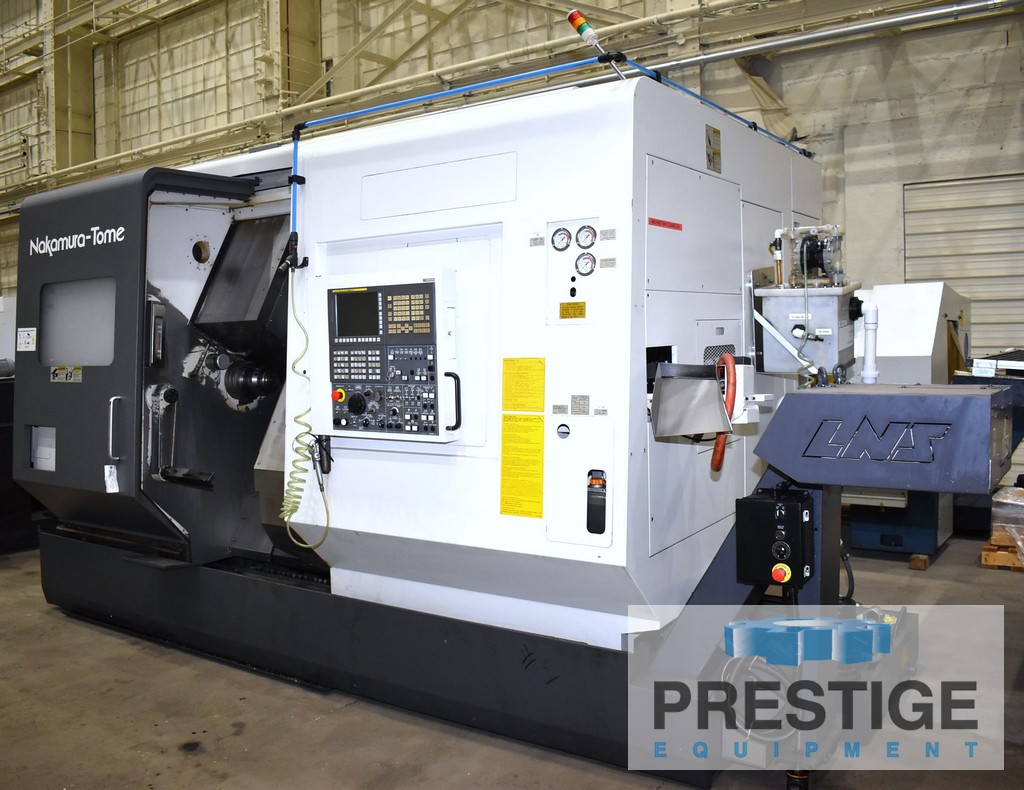

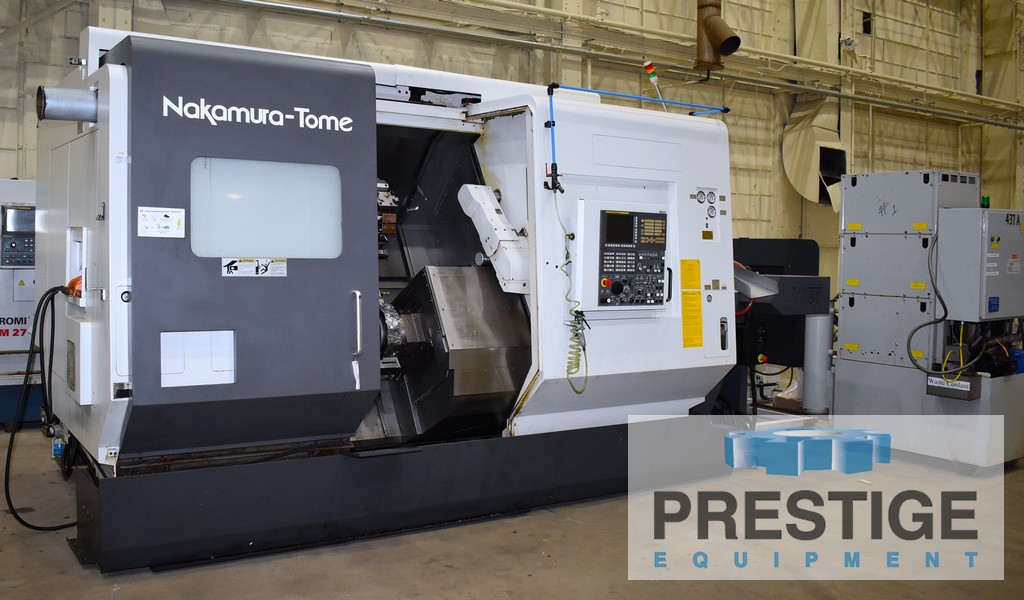

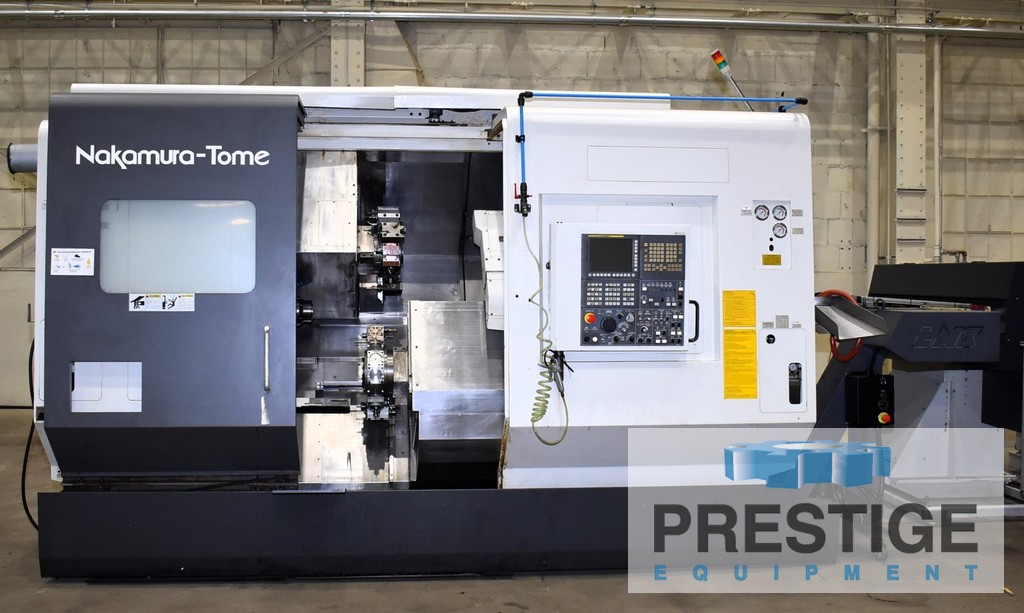

Nakamura Tome Super-Mill WY-250L CNC Multi-Axis Turning/Milling Center

FEATURES:

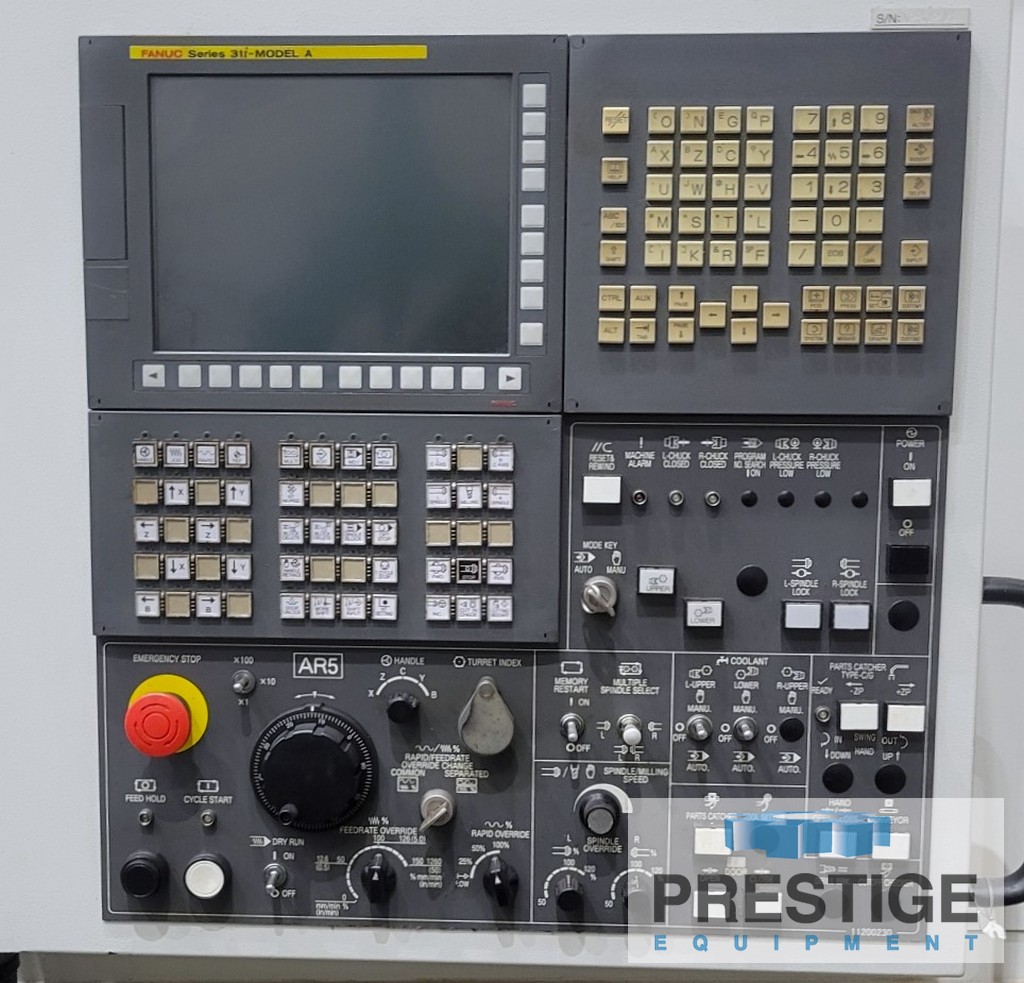

Fanuc 31i-A CNC Control
Dual Opposed Spindles With C-Axis

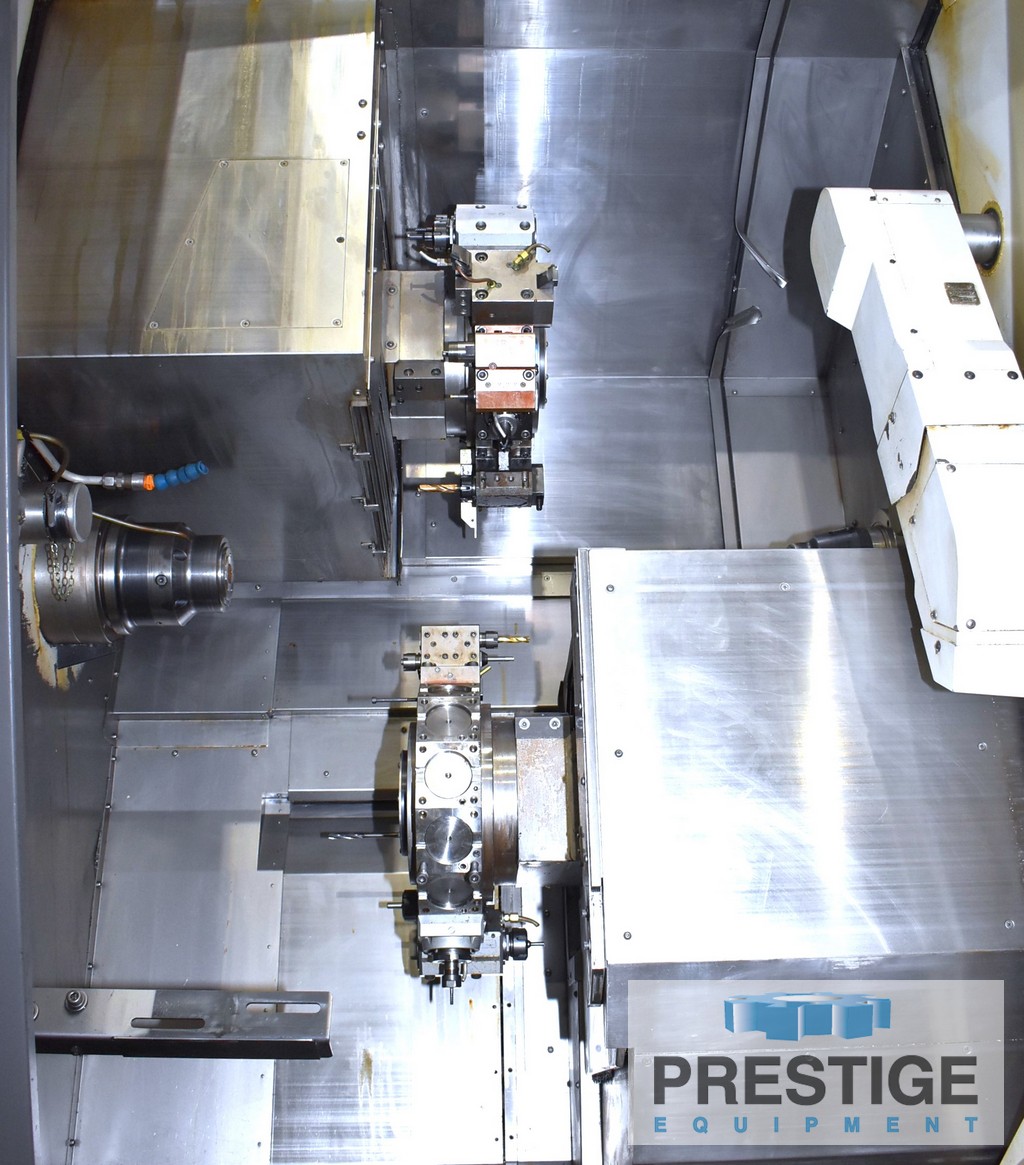

Upper & Lower Turrets With Y-Axis
Live Milling On Both Turrets
Chip Blaster
LNS QL Servo S3 Bar Loader
Chip Conveyor

SPECIFICATIONS:
Distance Between Spindles ............. 47.24"
Maximum Turning Diameter .............. 8.9"
Maximum Turning Length ................ 35.8"
X-Axis Travel, X1/X2 .................. 6.3" / 6.5
Z-Axis Travel, Z1/Z2 .................. 35.8"
Bar Capacity, Main Spindle ............ 2.55"

MAIN SPINDLE:
Main Spindle Speed .................... 3500 RPM
Main Spindle Motor .................... 25 HP
Main Spindle Bore ..................... 2.6"
Main Spindle Nose ..................... A2-8
C-Axis Rotation ....................... 0.001 Degree

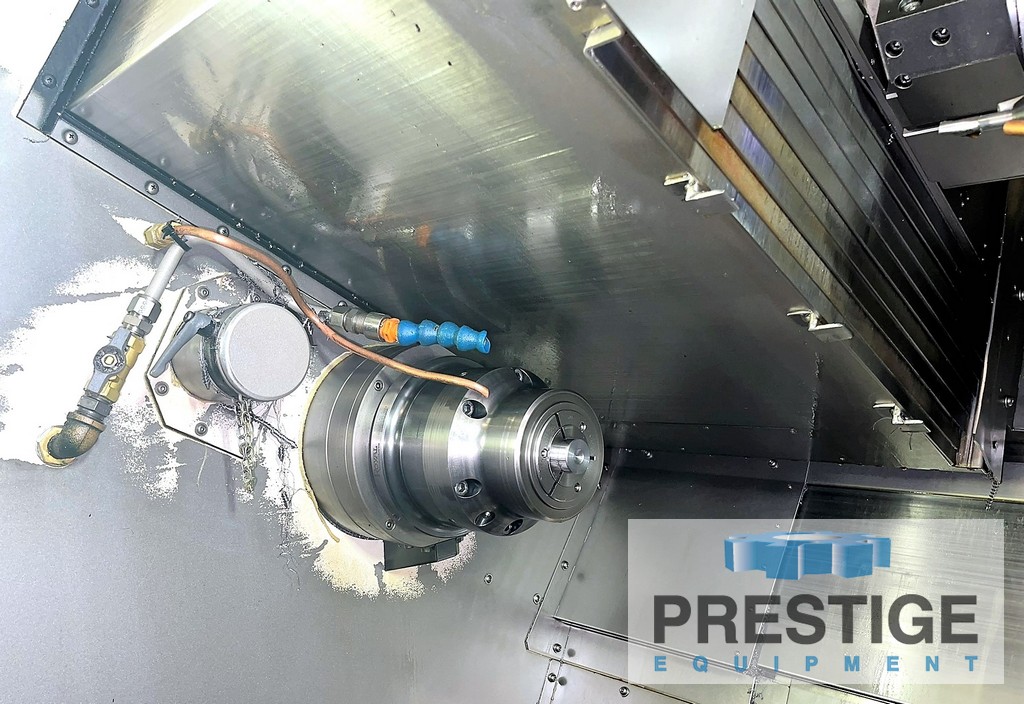

SUB-SPINDLE:
Sub Spindle Speed ..................... 4500 RPM
Sub Spindle Bore ...................... 2.05"
Sub Spindle Motor ..................... 20 HP
Sub-Spindle Nose ...................... A2-6
C-Axis Rotation ....................... 0.001 Degree
B-Axis Travel ......................... 37.2"

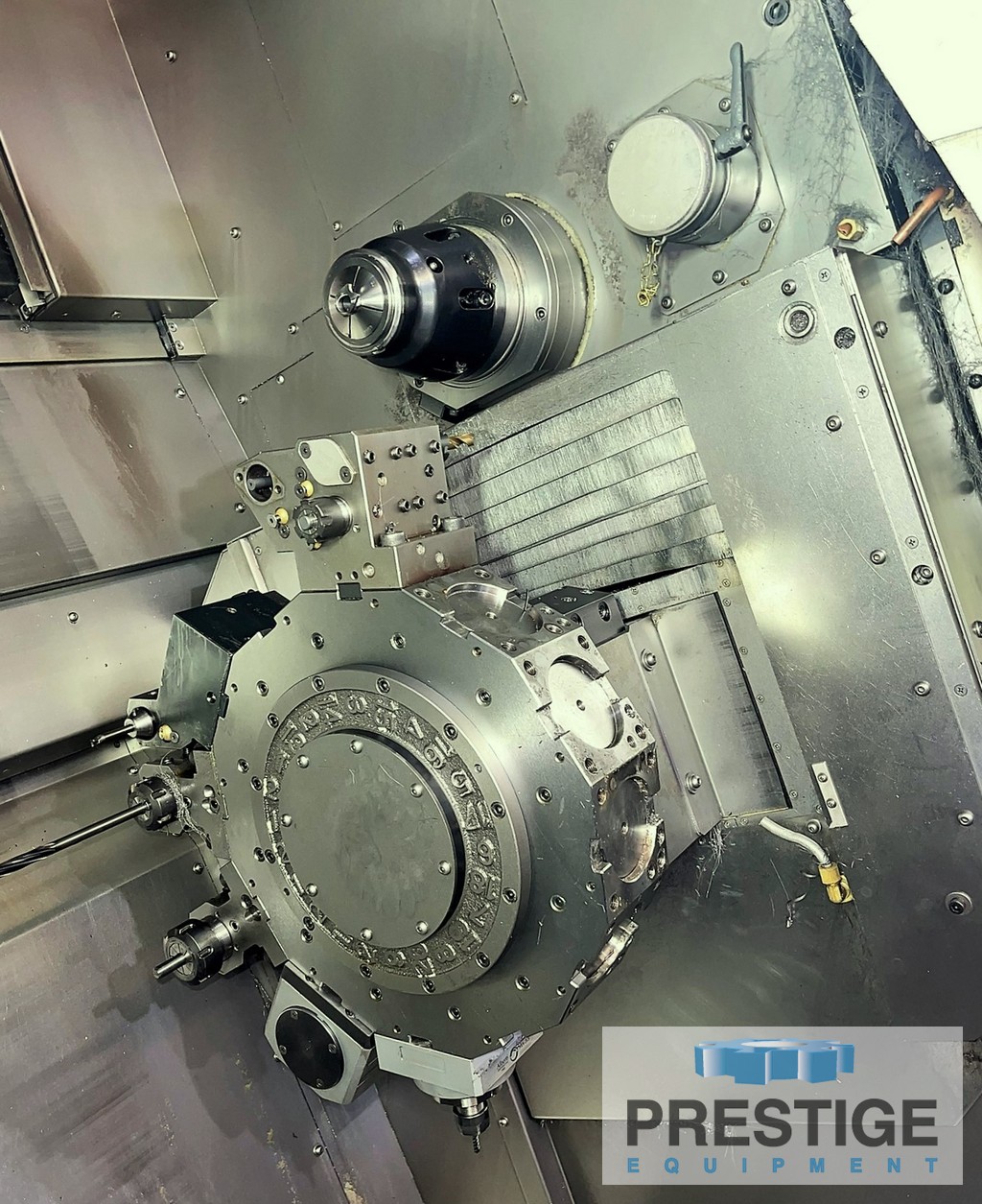

UPPER & LOWER TURRETS:
Driven Tool Speeds .................... 6000 RPM
Driven Tool Motor ..................... 7.5 HP
Y-Axis Movement ....................... 4"/2"

EQUIPPED WITH:
Fanuc 31i-A CNC Control
Twin Opposed Spindles With C-Axis
Upper Turret With 12-Turning & 12-Rotary Stations
Lower Turret With 12-Turning & 12-Rotary Stations
C-Axis On Both Spindles
Y-Axis On Upper & Lower Turrets
Tool Setter
Parts Catcher
Parts Conveyor

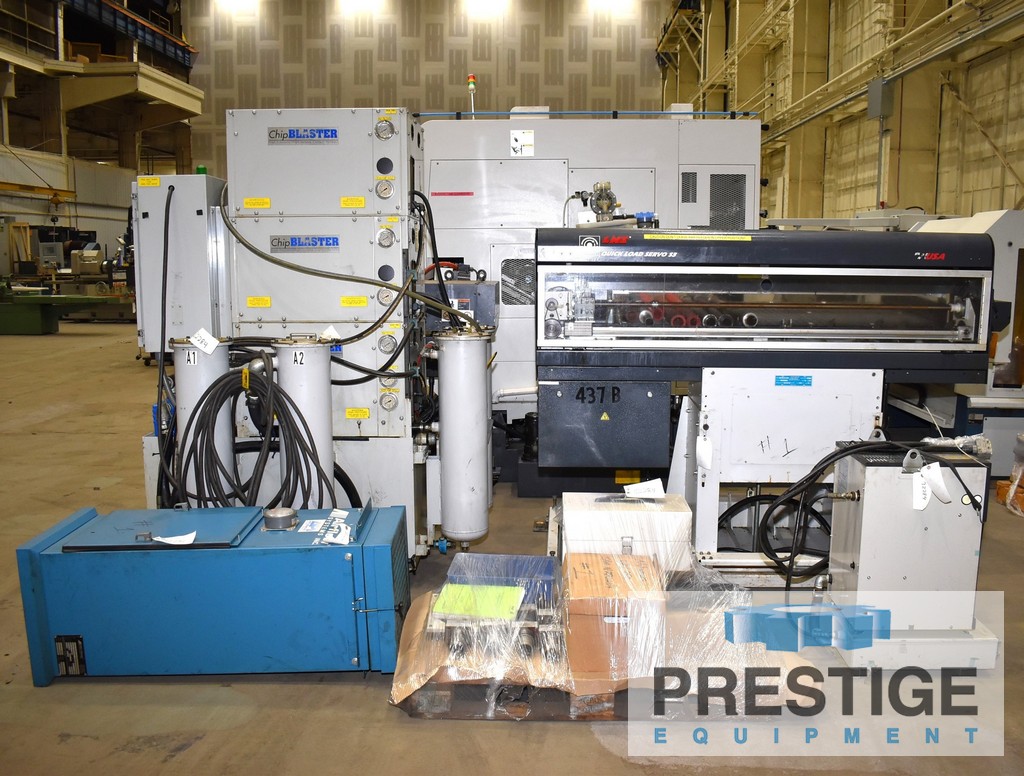

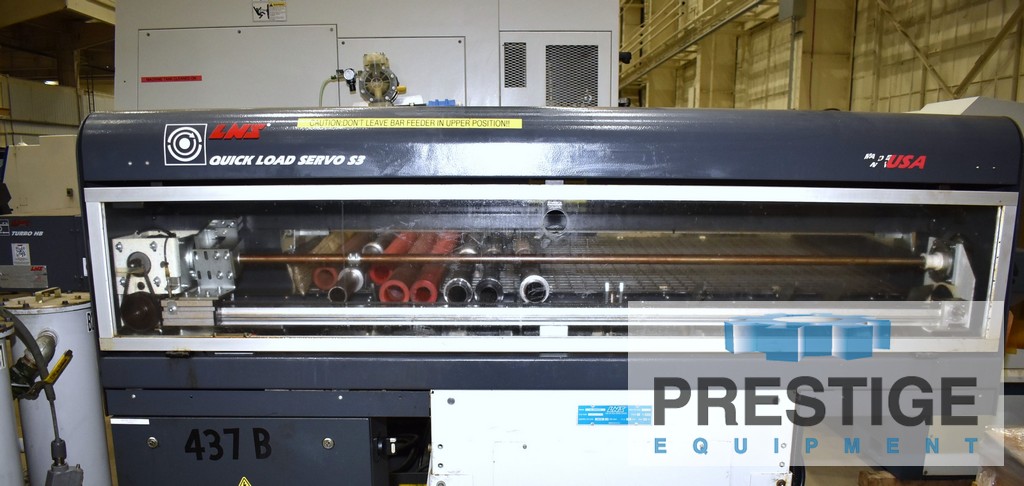

LNS QL Servo S3 Magazine Bar Feed
LNS Chip Conveyor

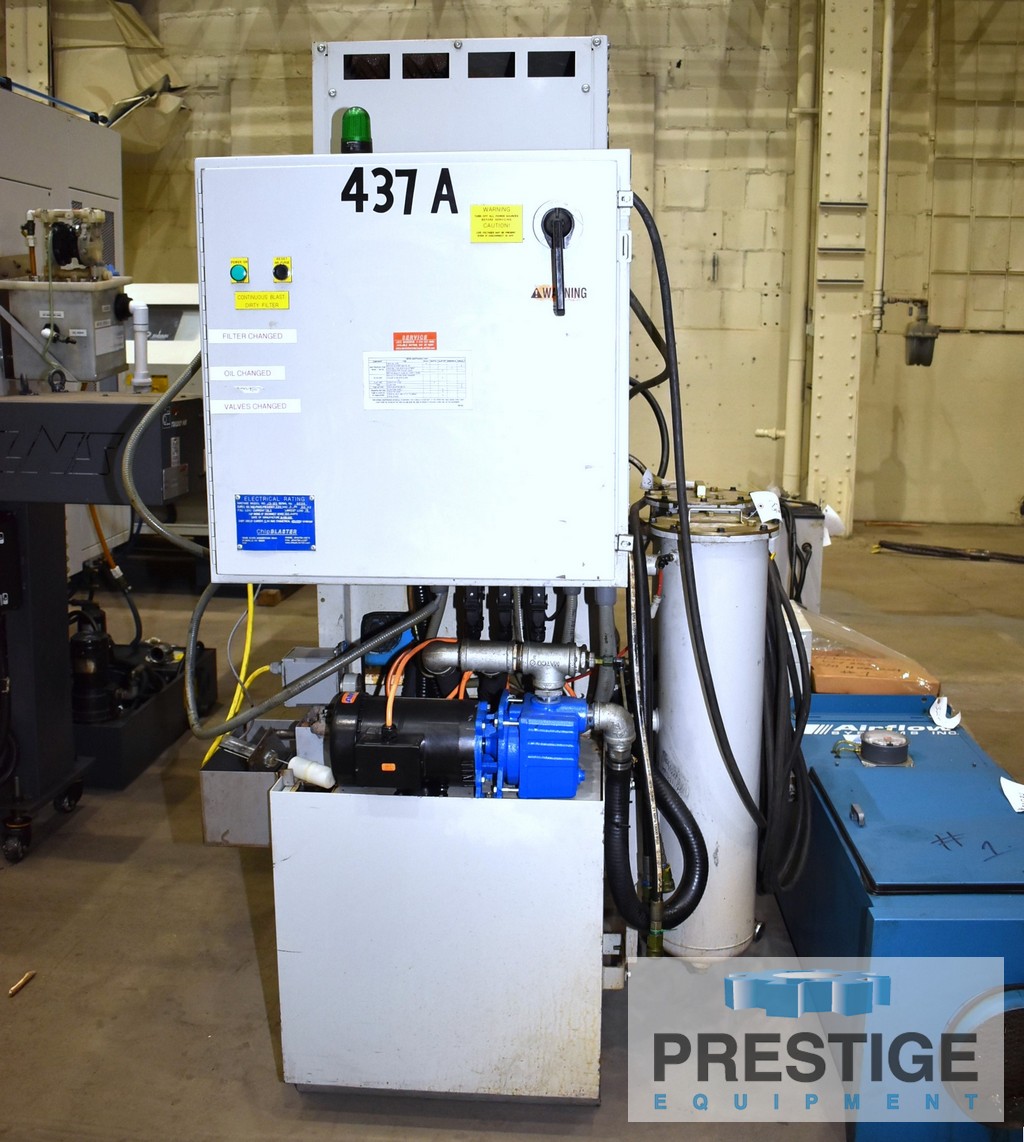

Chip Blaster High Pressure Coolant
Airflow Mist Collector
