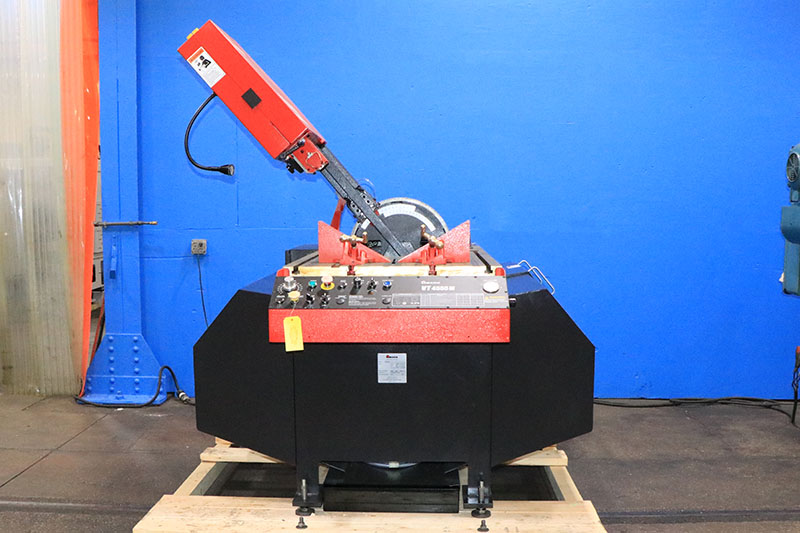

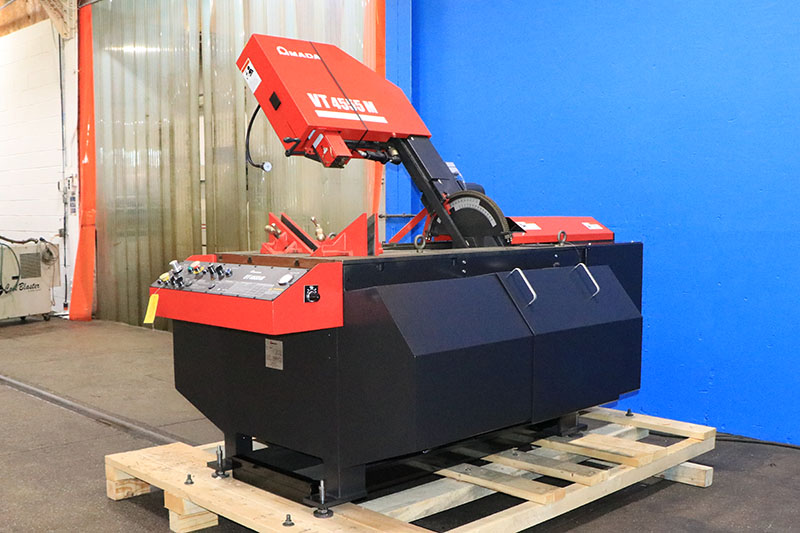

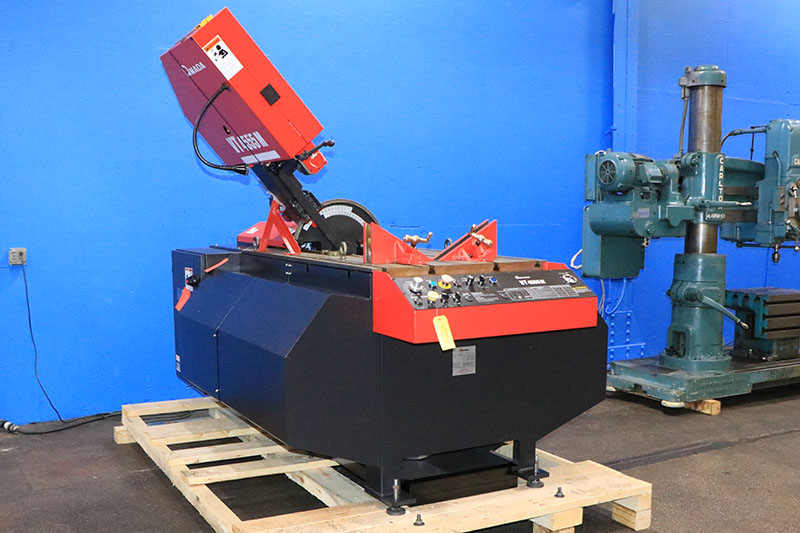

18" x 22", MARVEL, VT4555M (8-Mark-III), 60 deg tilting column, 1" blade, New
7114
Vt4555 (8-Mark-III)
Florida
Spec Sheet
Rectangular Capacity Standard Capacity M6 High Column Capacity (Optional)
Blade at 90° 18” x 22” (457 mm x 560 mm) Vertical 18” x 28” (457 mm x 711 mm) Vertical
Blade at 45° Right 18” x 14.5” (457 mm x 368 mm) Vertical 18” x 18.75” (457 mm x 476 mm) Vertical
Blade at 45° Left 18” x 13” (457 mm x 330 mm) Vertical 18” x 17.3” (457 mm x 439 mm) Vertical
Blade at 60° Right 18” x 9.7” (457 mm x 246 mm) Vertical 18” x 12.5” (457 mm x 317 mm) Vertical
Blade at 60° Left 18” x 7.3” (457 mm x 185 mm) Vertical 18” x 10.25” (457 mm x 260 mm) Vertical
Column in 3° Forward Cant (optional) at 90® 17.5” x 22” (445 mm x 558 mm) Vertical 17.5” x 27.5” (445 mm x 698.5 mm) Vertical
Speed Range 50 – 450 fpm (15 – 137 m/min) infinitely variable speed drive system.

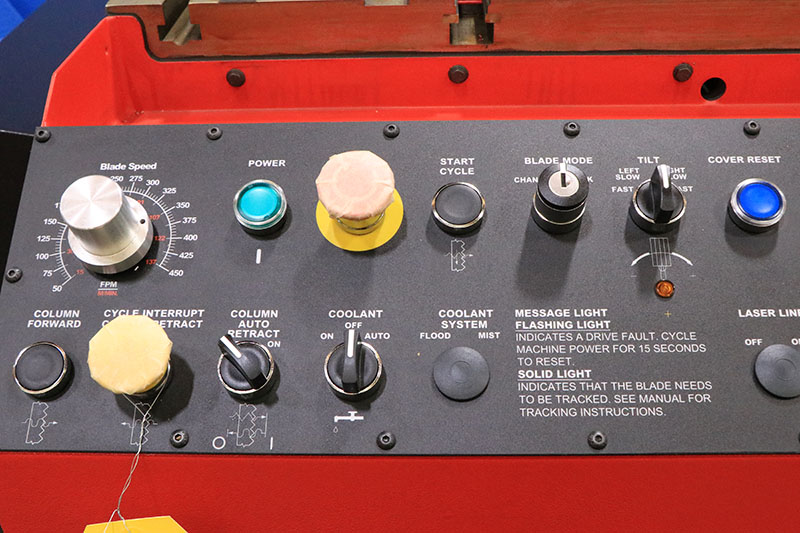

Front-Mounted Speed Control Allows blade speed to be adjusted from operator’s control station.

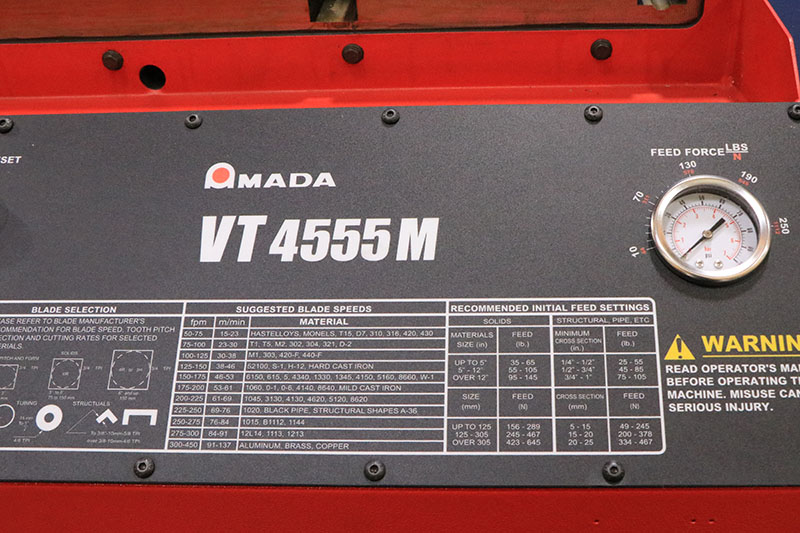

Feed Range 0 – 250 lbs. (113 kgf) infinitely variable with control on operator’s panel and Automatic Column Return. Column feed is mechanical with Amada Machinery America, Inc. clutch power feed.
T-Slotted Worktable Work area 24.25” x 33” (616 mm x 838 mm); Table height 38” (965 mm); Two machined T-slots.
Wheel Diameter 19” (482 mm), cast iron wheels.
Blade Break/Stall Detection Standard equipment shuts off machine in the event of blade breaking or stalling.
Miter Cutting Column and blade tilt up to 60° right and left of vertical; work always stationary. Manual tilt is standard with Sure-Lock and Built-in protractor. Electric Power tilt is optional.
Saw Column Amada Machinery America, Inc. patent pending Quick Change Column is standard on all machines. Allows column to be set either non-canted (default) or at a 3° forward cant (as requested). Column travels on re-circulating linear ball bearing rails.

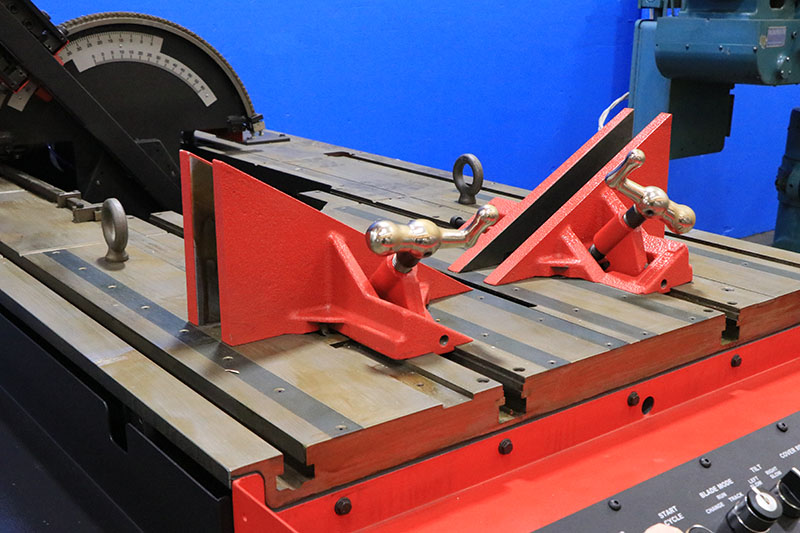

Quick-Action Vise Maximum opening 18” (457 mm). Jaws can be shifted to either right or left side of blade. Jaws are 6” (152 mm) high, 12” (305 mm) wide. Please specify if standard left hand, or right-hand entry by request.
Saw Feed Stops Adjustable stops can be pre-set to stop advance of the saw head and return of blade and to stop motor at any location within the 18” (457 mm) travel of the blade.
Coolant System Built in with Flood system, available with added optional drop lubrication system. (Requires compressed air connection - Option Code ML2). Controlled by on-off selector switch at operator’s station. Tank capacity 21 gallons (79 liters).
Flushing Hose Washes chips from hard-to-get-at places reducing clean-up time.
Power Chip Brush Together with blade wipers and flood coolant keep blade teeth free of chips.
Carbide Guide System Solid carbide post design equipped with Patent Pending Amada Machinery America, Inc. Easy Load Guide Blocks. Upper and lower guides have preloaded carbide faced back-up blocks to support back edge of blade.
Blade 15' 4" (4674 mm) long x 1.25" (32 mm) wide, .042" (1.07 mm) thick.
Blade Tension Blade tension ratchet stops automatically at factory pre-set, 40,000 psi (A compressed air
Motors Main; 5 H.P. (3.75 kW), 1800 RPM, totally enclosed fan cooled. Coolant Pump; 1/8 H.P.
(.1 kW) totally enclosed motor-built-in integrally. Available voltage: 208-volt, 230 volts, or
460, 3 phase, 60 Hz. Voltage must be specified when ordering.
Controls IEC fused disconnect switch and magnetic motor starters with overload and low-voltage protection. Power supply provides low voltage (24 volts DC) control to all push buttons at operator’s control panel and machine lighting circuits. PLC control and drives mounted in moisture-tight compartment with vibration isolation mountings. Electrical Equipment conforms to National Electrical Code NFPA 79. The Electrical Control Panel is U.L. Labeled E56388.
Powered Column Tilt Provides powered tilting of saw column up to 60° to both right and left sides. Tilt control switch is located on the operator’s control panel.
*PLEASE CHECK HERE IF YOU WOULD LIKE THE 3° FORWARD CANT OPTION:
COMPRESSED AIR REQUIRED: 5 cfm, 80 psi minimum.
OPTION DESCRIPTIONS
Product Short Description Product Description
VT4555M
(8-Mark-III) Metal Cutting Band Saw ALL-MECHANICAL, UNIVERSAL, METAL CUTTING, BANDSAW MACHINE
Marvel Classic Color Scheme Also available in “Marvel Classic” color scheme for additional charge (see options sheet).
Blade Eagle Beak VTR Eagle Beak VTR blade 15' 4" long x 1.25" wide, 3/6 tooth pitch. This is the standard blade that is included with machine purchase, and you have the option to order more. Note: if M6 High Column option is selected blade price needs to be adjusted.
M6 High Column Column 6” (150 mm) longer than standard, providing increased vertical capacity to 28” (711 mm) at vertical position. High frame machines require a 16’ 4” (498 mm) blade. Note: Includes Option Code 8/M3M Powered Column Tilt.
E4 Second Standard Vise- COMPLETE Standard set includes 6” high x 12” wide (152mm x 305mm) jaws and clamping hardware. PERMITS MITER CUTTING. PN: (00092)
M7 High Jaws 10” high x 12” wide (254 mm x 305 mm) in place of standard jaws provided with machine. Jaws use the same clamping hardware provided with machine. DO NOT PERMIT MITER CUTTING.
M8 45° High Jaws In place of standard jaws provided with machine. Jaws use the same clamping hardware provided with machine. One Front Jaw and one Rear Jaw, both mitered 45°, 10” high x 12” wide.
E14 Air Powered Vise Only for use with standard or high jaw vise supplied with machine. This can be used in place of the standard hand crank ratchet nut. *Air supply not included. PN: (10843)
M9A
Variable vise pressure Controls and connections are added to enable the machine to operate with air controlled variable vise pressure for one or two vises and utilizes the optional E14 (sold separately) Pneumatic Vise. PN: (8AB01507)
ML2 Mist Lube- Automatic Drop Lubrication System. (Requires compressed air connection 60-120psi). PN: (00036)
CL2210 Unist Coolube 2210 Unist Coolube 2210 is the cutting oil and lubricant that is shipped within your ML2 (Mist drop lubrication system). It is formulated as a metal cutting oil and lubricant for metals, wood, rubber, and most plastics. It is 100% natural, non-toxic, non-staining, and will not oxidize (become sticky or leave a residue). Coolube 2210 cutting fluid does not contain any ingredients currently recognized as hazardous by OSHA, IARC or NIP. Coolube 2210 machining oil will never cause dermatitis and is formulated from cosmetic grade raw materials, which makes it entirely worker and environmentally safe. Coolube 2210 is a USDA certified biobased product.
LAL Laser Alignment Light Laser projector for quick spotting of the cut. PN: (00099)
SUPPLEMENTARY MATERIAL HANDLING EQUIPMENT
E5 High Jaw Vise- Complete High jaw set including 10” high x 12” wide (542 mm x 305 mm) jaws and clamping hardware. DOES NOT PERMIT MITER CUTTING.
E6 High Jaws - Jaws Only 10” high x 12” wide (254 mm x 305 mm). Will interchange with standard 6” high x 12” wide (152 mm x 305 mm). Jaws use the same clamping hardware provided with machine. DO NOT PERMIT MITER CUTTING.
E8 Length Gauge For gauging work pieces from .062” to 10.5” (1.6 mm x 267 mm) long. Fits T-slots in machine table.
E15 45° High Jaw Vise - COMPLETE includes one Front Jaw and one Rear Jaw, both mitered 45°, 10” high x 12” wide (254 mm x 305 mm) and clamping hardware. PERMITS MITER CUTTING. PN: (00093)
E16 45° High Jaws Only Includes one Front Jaw and one Rear Jaw, both mitered 45°, 10” high x 12” wide (254 mm x 305 mm) for use where machine is already equipped with clamping hardware. PERMITS MITER CUTTING. PN: (00088)
MATERIAL HANDLING EQUIPMENT
Note: Maximum Load Capacity 500 Pounds/foot.
DRO Digital Tilt Readout Electronic digital display mounted on the saw column and visible from the operator’s control station. Displays the angle of the column tilt from 0 to 60 degrees left and right in increments down to one half degree. Readout is tied into low voltage control power supply. PN: (00047)
8/F055 First Section Dead Roller Conveyor 5’0” (1524 mm) LONG, with five ball bearing rollers, 2.5” (64 mm) diameter, spaced on 12” (305 mm) centers, two stands, one end stop, and mounting bracket. Used as first section on either loading or discharge side of machine. PN: (00043)
8/X055 Extension Dead Roller Conveyor 5’ 0” (1524 mm) LONG, five ball bearing rollers, 2.5” (64 mm) diameter, spaced on 12” (305 mm) centers, one stand, attached to an 8/F055, an SP1118, or another X055 for use on either loading or discharge side of machine to extend the length of the roller tables needed. PN: (00044)
E10 Length Gauge Manual light-duty length gauge. Securely mounts on roller conveyor. Gauging is limited by length of roller conveyor.
E11 Coolant Pan Will fit F055 and X055 roller conveyors. Collects and returns coolant back to machine. Includes pan, V-trough and hangers.
E12 Eccentric Lift Roller May be mounted on roller conveyor for either load or discharge sides; manually operated to raise roller and material slightly above machine table. Lift capacity 1,000 pounds.
E13 Additional Rollers For added support, can be installed between standard rollers.
SP1118 First Section Free Standing, Dead Roller Conveyor 5’0” (1524 mm) LONG, with five ball bearing rollers, 2.5” (64 mm) diameter, spaced on 12” (305 mm) centers, two stands, one end stop, and mounting bracket. Used as first section free standing roller table after a gap in roller tables. PN: (00053)
SP1040 First Section Dead Roller Conveyor with Manual Length Gauge 10’ 0” (3048 mm) LONG, ten ball bearing rollers, 2.5” (64 mm) diameter, spaced on 12” (305 mm) centers, includes Dead Stop, Tilting Type Gauge; manually operated. Runs along tape and rail fastened to front side of Roller Table. Gauge can be locked in place for gauging and tilted out of the way to permit work passage. Indicate Left or Right configuration.
SP1097 Extension Dead Roller Conveyor with Gauge Rail 5’ 0” (1524 mm) LONG, five ball bearing rollers, 2.5” (64 mm) diameter, spaced on 12” (305 mm) centers, similar to X055, but also equipped with gauge rail and measuring tape extensions. For use with and as an EXTENSION to SP1040. Indicate Left or Right configuration.
8SP00420 Remote Push Button Station
575-3-60 VOLT OPTION If ordering the 575-volt machine, it will be wired for 480-volt operation and a transformer will be provided with the machine. A qualified electrician will be needed to install the transformer between the power supply and the machine.
VOLTAGE OPTIONS
Please select ONLY one of the following voltage choices below:
208-3-60 Volt 230-3-60 Volt 460-3-60 Volt 575-3-60 Volt ($1,335)
