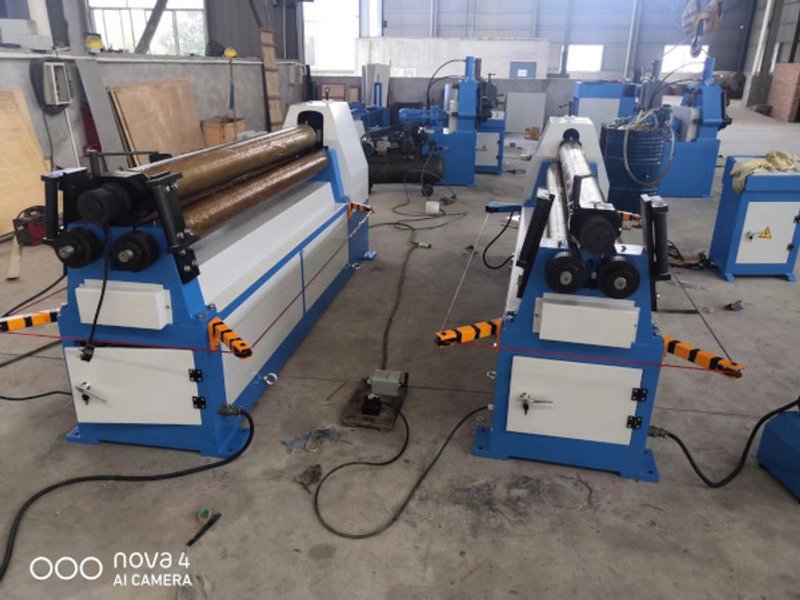

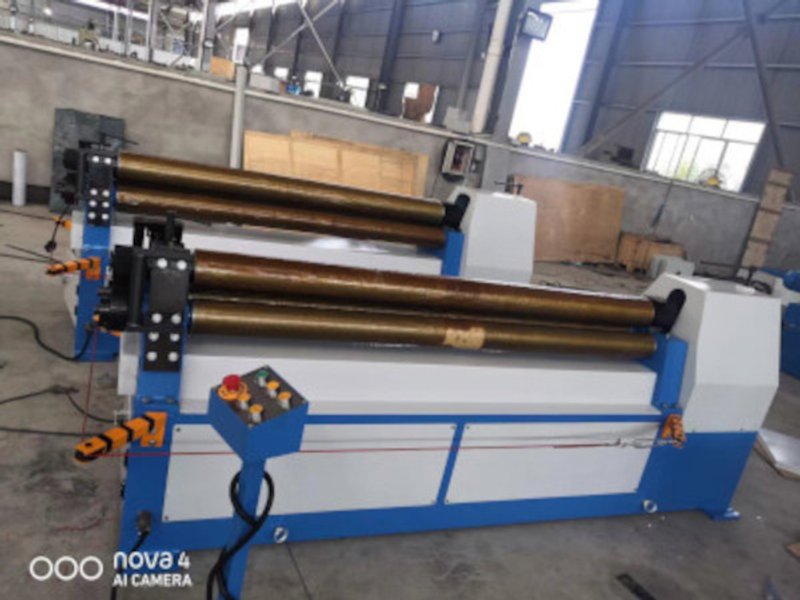

5' x 10 ga., FICOM, #W11-3x1600, initial pinch, mech., 4 HP, angle rolls, NEW

Manufacturer

Ficom

Category

Rolls

Type

ROLLS, PLATE BENDING, INIT & DBL PINCH TYPE, (Incl Sheet Metal)

Stock

7157

Model

W/11-3 X 1600

Dealer Location

Florida

Request a Quote
View Contact Information

Spec Sheet

EQUIPPED WITH:
Set of angle bending rolls at open end of machine
Remote electrical stand with forward/reverse, E-stop and top roll control

FEATURES:
Top mounted handle to lift upper roll for easy workpiece removal
Safety line all around the machine for emergency stop

Powered bottom rolls--run forward and reverse
All three rolls are made of high grade allow steel
Top roll position controlled by independent motor


SPECIFICATIONS:
Overall rolling length 63" (1600mm)
Rolling capacity--mild steel 10 gauge (3mm)
--stainless steel 14 ga.
Motor 4 HP, three phase
Electrics 230/460/3/60
Diameter of top roll 5.4" (137mm)
Diameter of lower rolls 4.67" (118mm)
Dimensions (L x W x H) 100" x 28" x 48"
Weight, approx. 2,615 lbs. (1189 kg)
