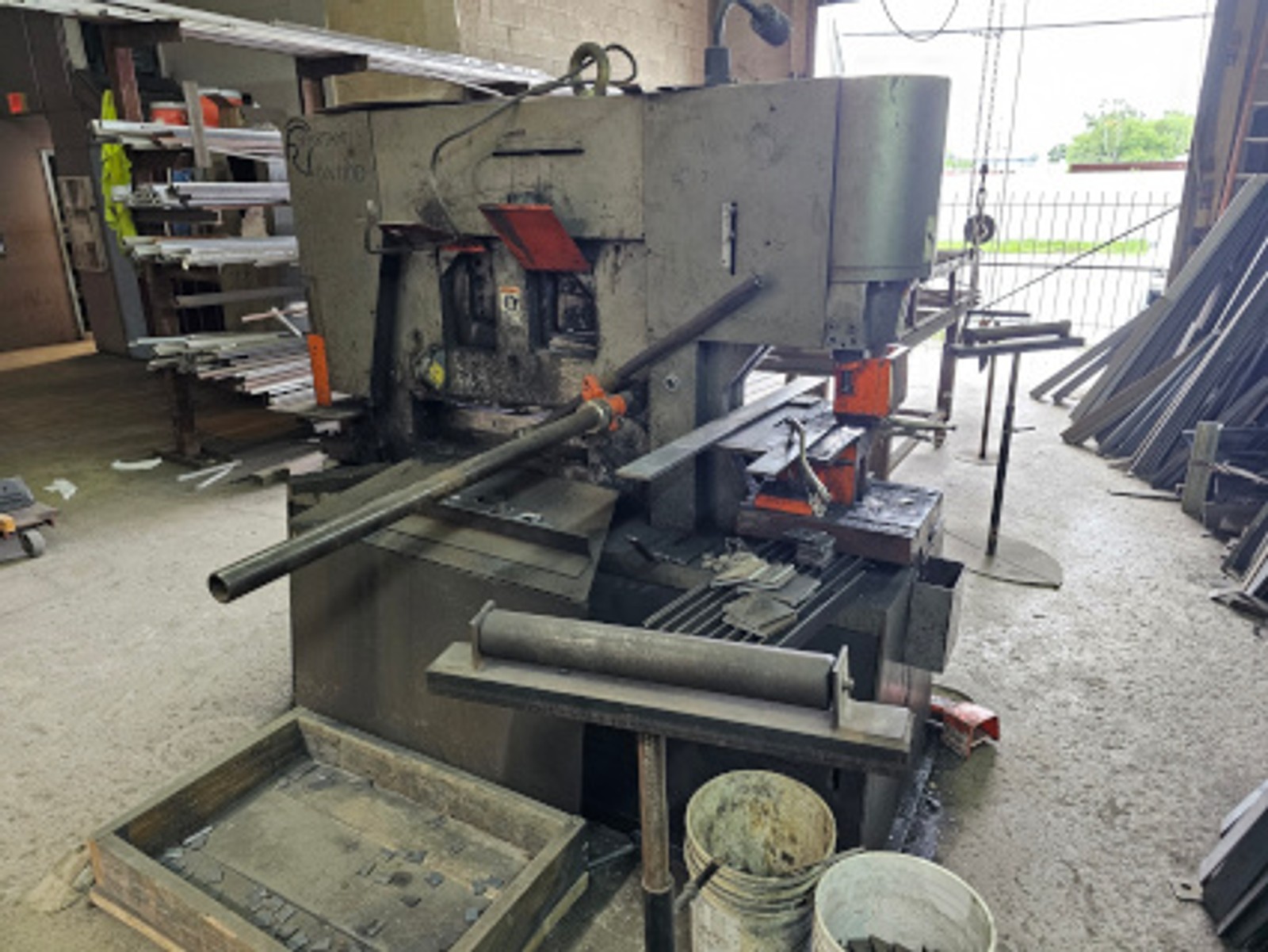

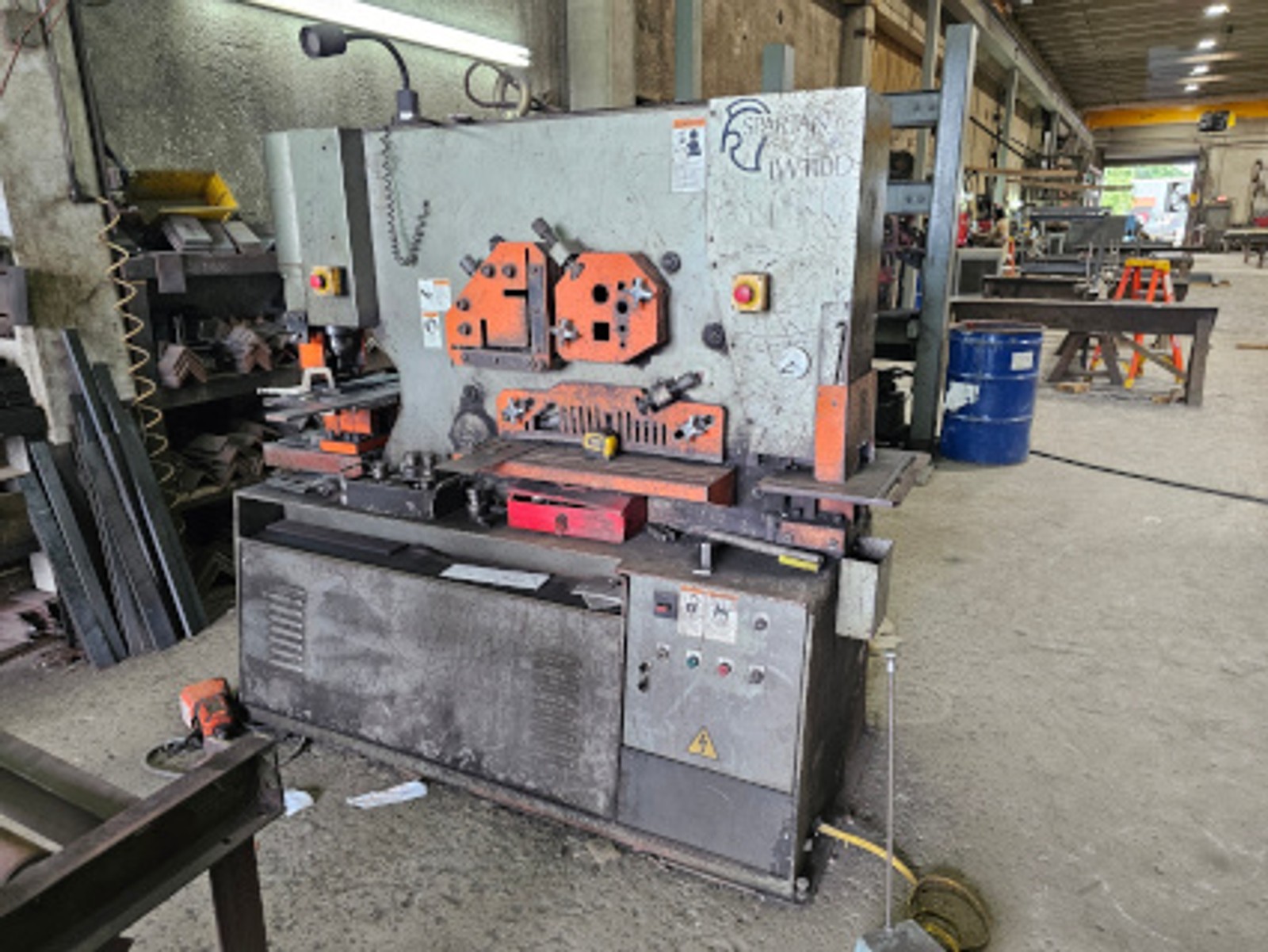

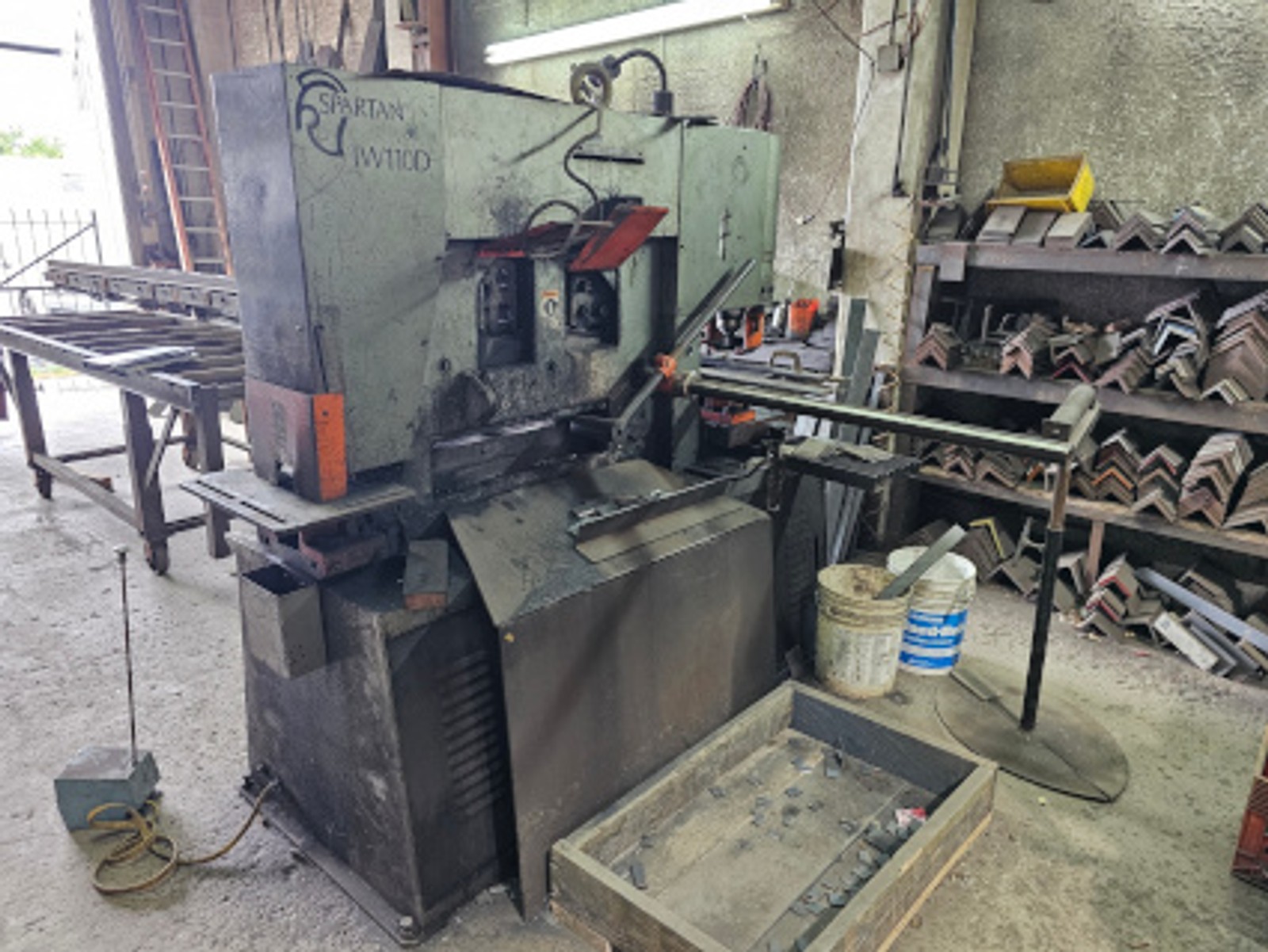

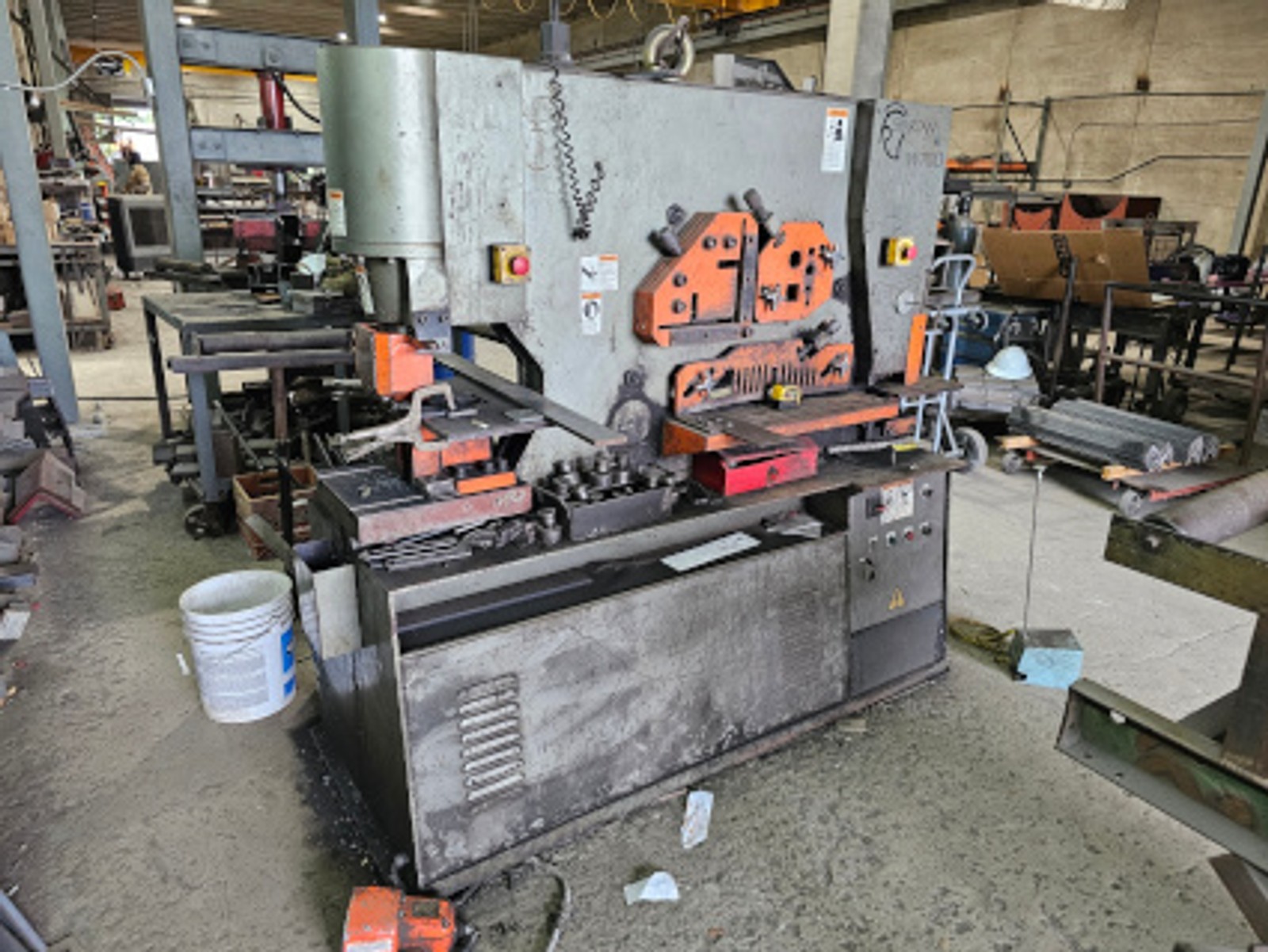

SPARTAN, #IW110D/2, 110 tons, 6" X 6" X 1/2", 12" throat, 10 HP, tooling, '03

Manufacturer

Spartan

Category

Punches

Type

PUNCH-SHEARS, IRONWORKERS

Stock

7178

Model

None listed

Dealer Location

Florida

Request a Quote
View Contact Information

Spec Sheet

Model number IW110D/2
Year of Manufacture 2003

SPECIFICATIONS:
PUNCHING:
Tonnage 110
Stroke length 3-15/16"
Diameter x thickness (approx) 2" thru 1/2"
Throat depth 12"

PLATE SHEARING:
Blade cutting length 24"
Plate capacities 24" x 5/8"
Angle @ 90 degrees 6" x 6" x 1/2"
Angle @ 45 degrees 3-1/8" x 3-1/8" x 3/8"
Round bar 1-3/4"
Square bar 1-3/4" x 1-3/4"


RECTANGULAR NOTCHER:
Maximum capacity 1/2" X 3-1/2" X 2-1/2"


MISCELLANEOUS:
Main motor 10 HP
Electrics 230/460/3/60
Approximate net weight 6,505 lbs
Machine dimensions (L x W x H) 74" x 33" x 72"

EQUIPPED WITH:
Electronic foot pedals, Adjustable stroke, Assorted punches and dies
Twin cylinders enables you to operate the machine from both sides
40" electronic material length stop, Worklight, Gage table on punch station
