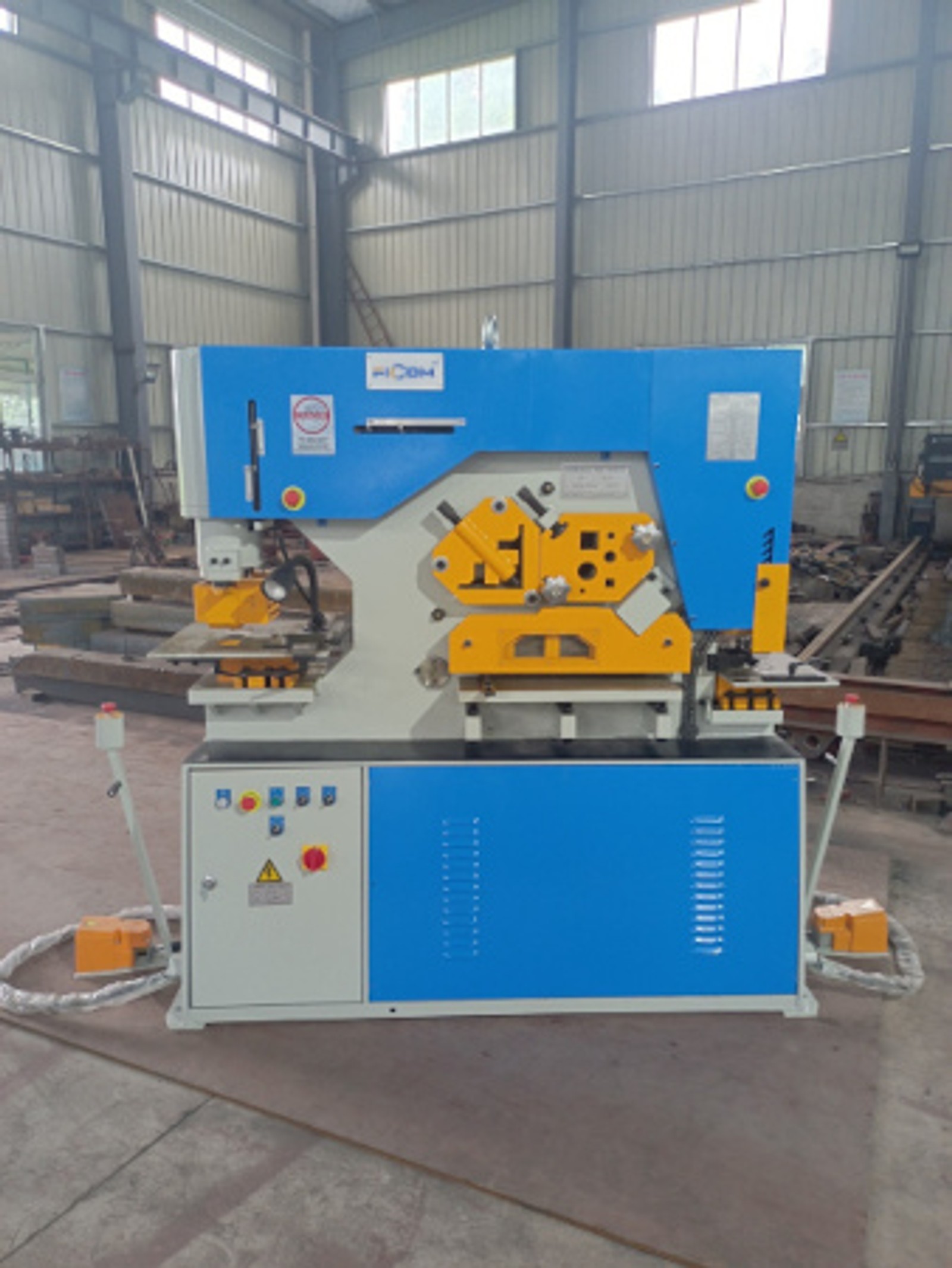

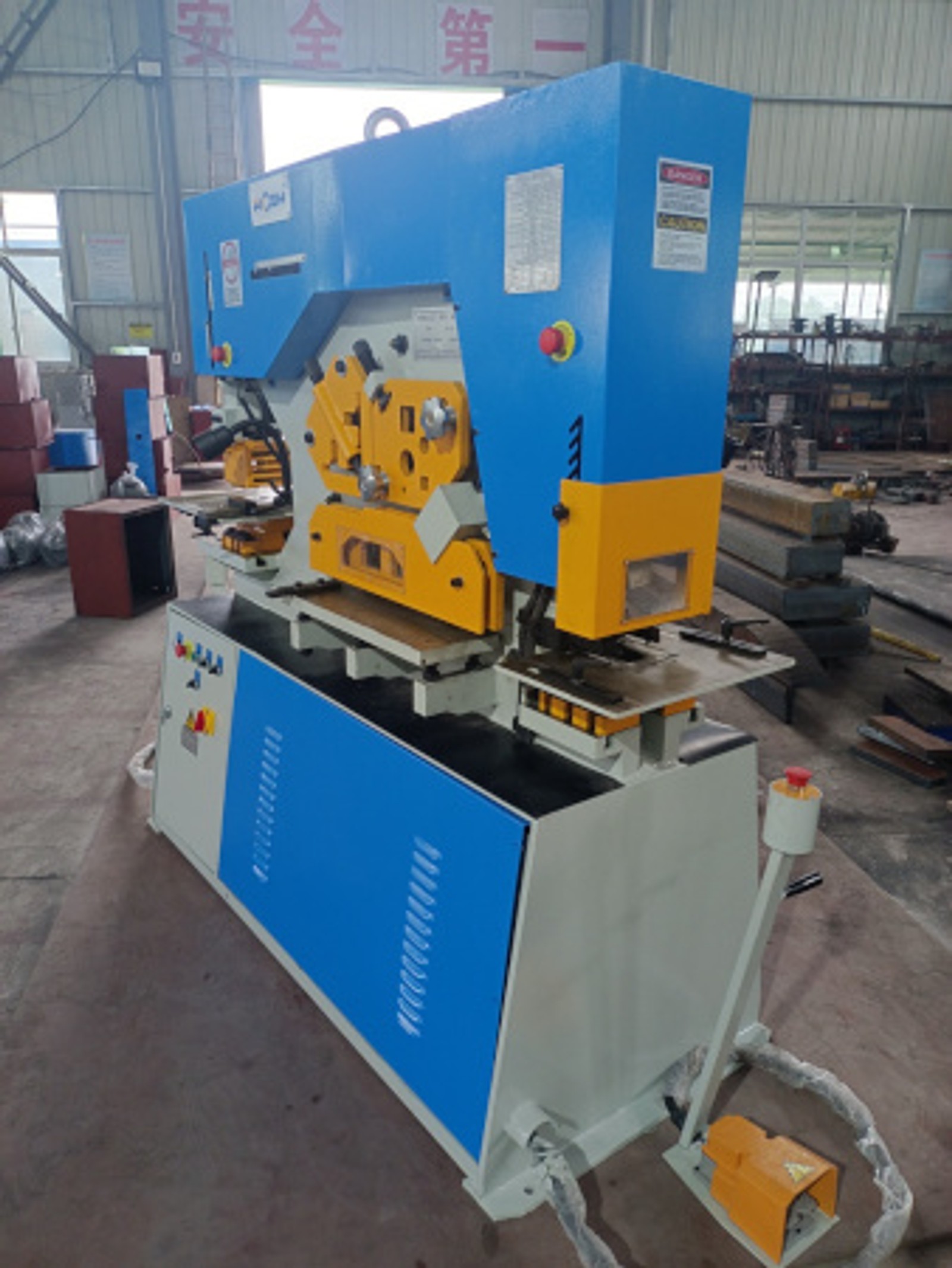

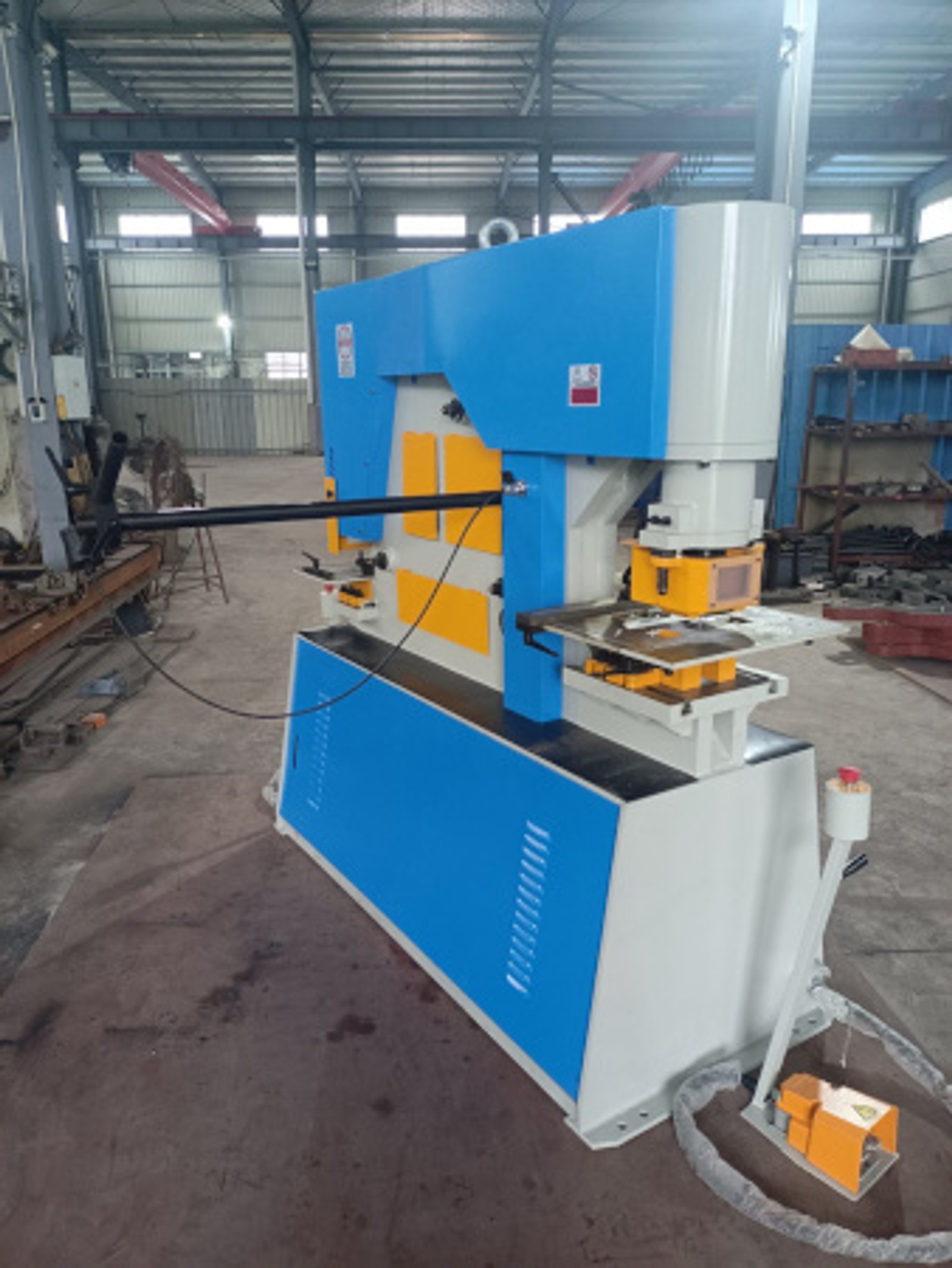

FICOM, #H-90, 90 ton, dual station, 7.5 HP, 5 stations, NEW

Manufacturer

Ficom

Category

Punches

Type

PUNCH-SHEARS, IRONWORKERS

Stock

7155

Model

H-90

Dealer Location

Florida

Request a Quote
View Contact Information

Spec Sheet

Dual hydraulic cylinders for two man operation with two moveable foot pedals

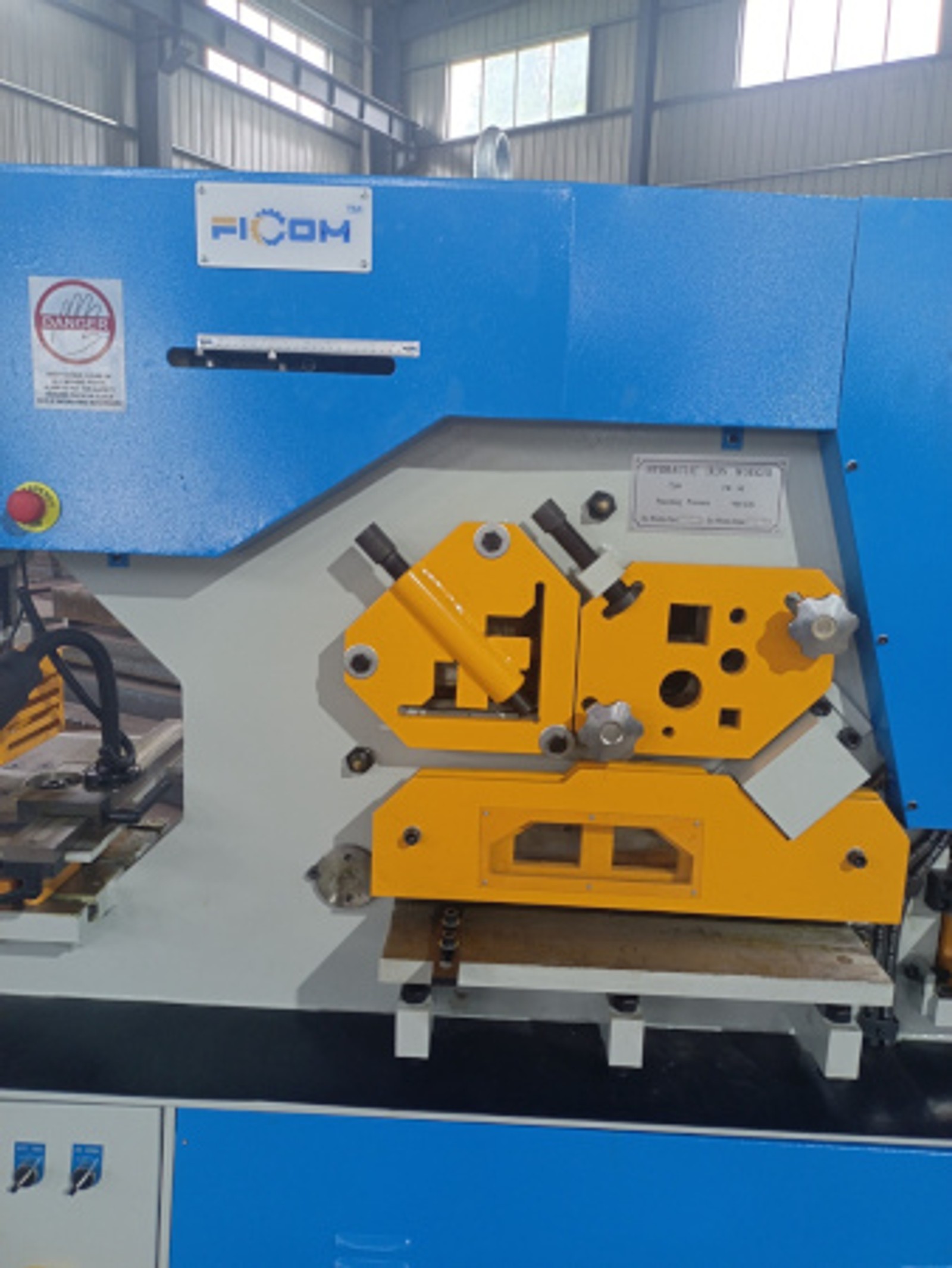

Five workstations: punch, plate shear, angle shear, rod shear and notcher

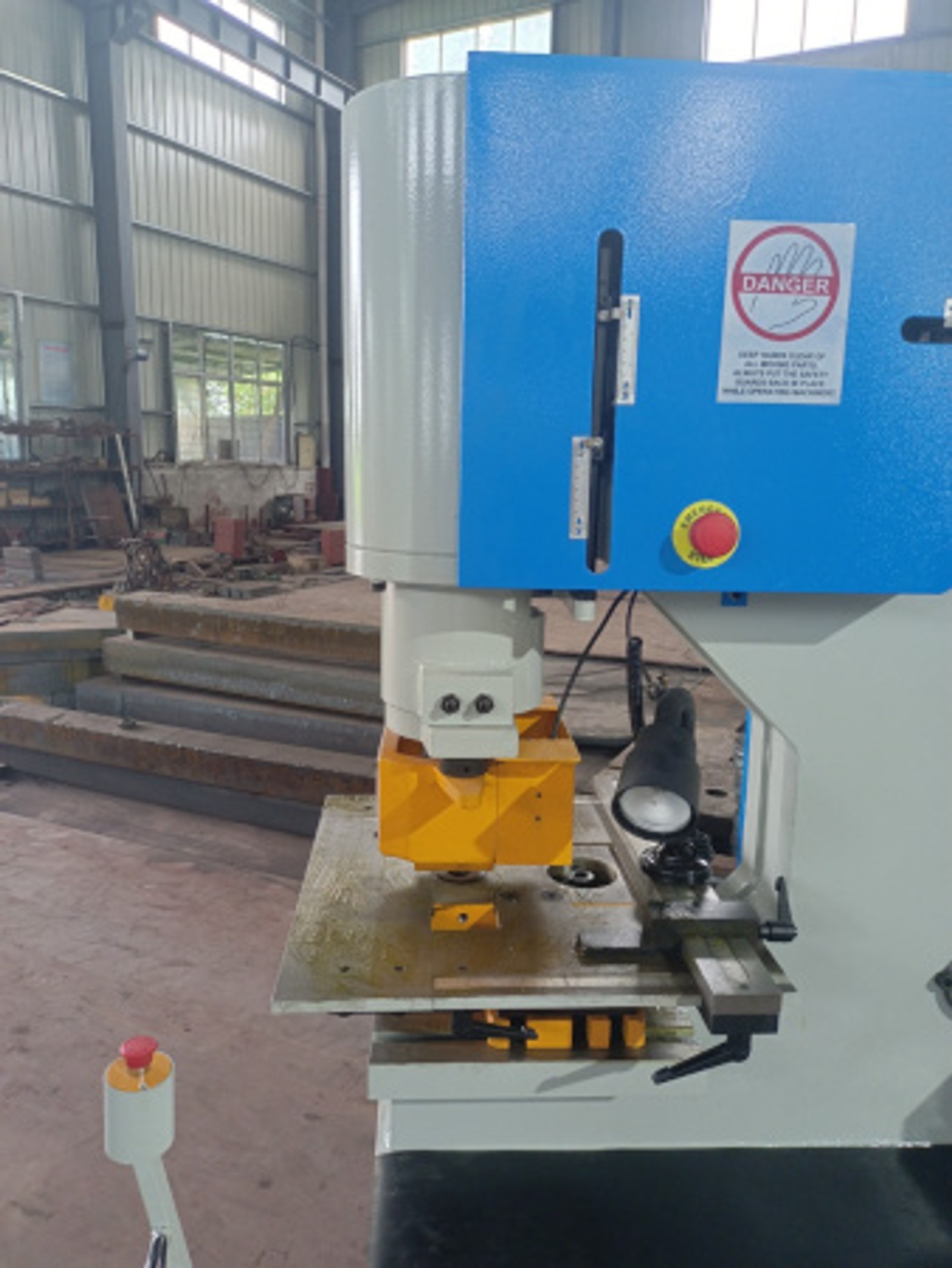

Punch station has large two-piece gauging table with fence
Punch station is quick acting swing away stripper with safety microswitch
Punch station has removable sections for punch leg of channel and/or I-beams
Quick change coupling nut and sleeve for punch
Electric backguage, 3' long, for automatic operation
Electrically interlocked safety guard for notching station
Movable workstation light with magnetic base
Includes 12" press brake attachment
Includes 6 sets of punch and die
Includes spare parts, tools and manaul

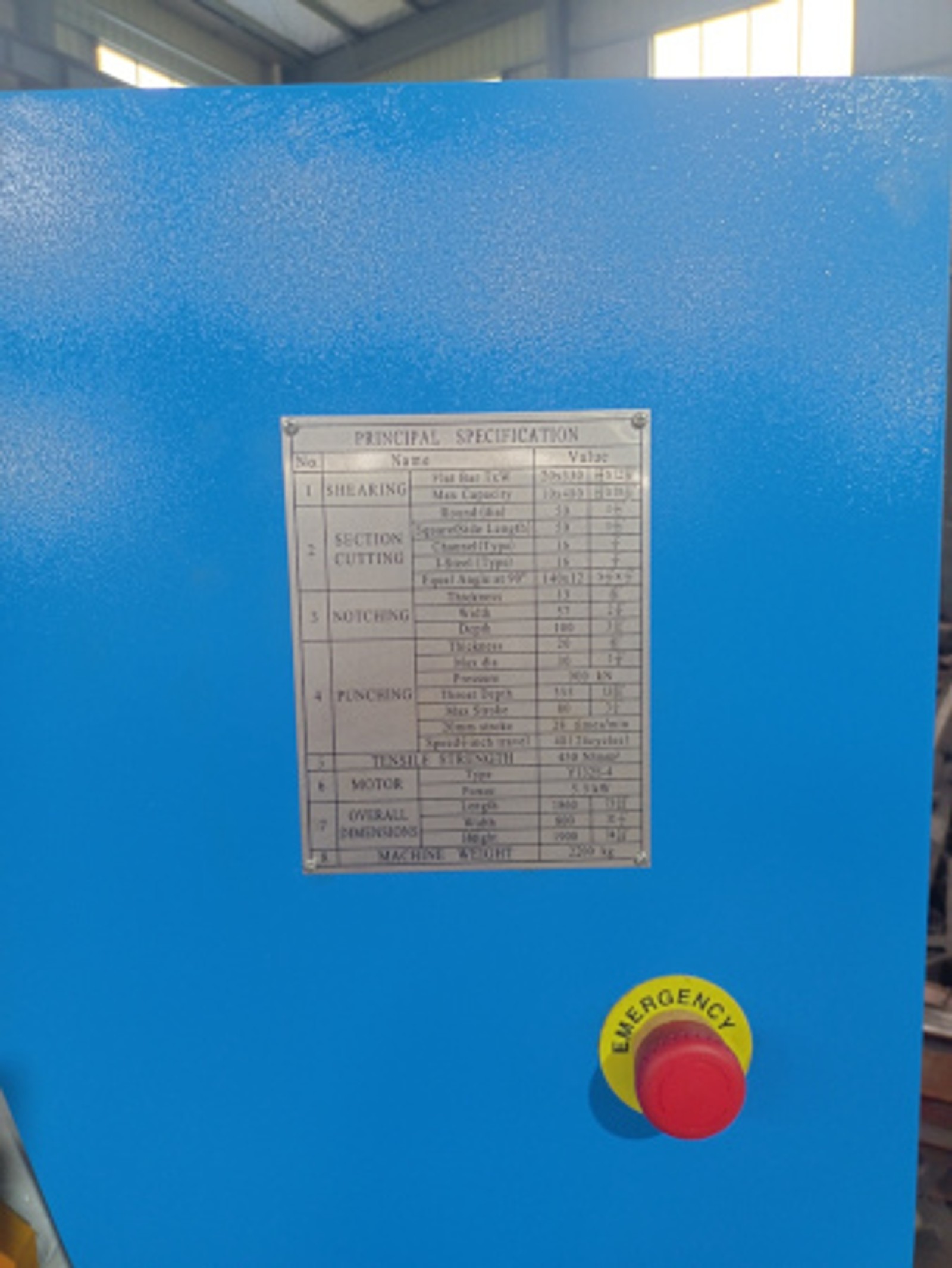

SPECIFICATIONS:
PUNCH STATION:
Tonnage 90 tons
Throat 14" (355mm)
Capacity 1-3/8" hole thru 3/4" plate

(30mm thru 20mm)
Stroke 3-1/8" (80mm)

BAR SHEAR:
Cutting capacity--maximum width 25/64" x 18-57/64" (10mm x 480mm)
--maximum thickness 25/32" x 12-63/64" (20mm x 330mm)

SECTION CUTTING:
Round--solid 1-31/32" (50mm)
Square--solid 1-31/32" (50mm)
Channel 5/8" (16mm)
Angle 5-1/2" x 1/2" (140mm x 12mm)


RECTANGULAR NOTCHING:
Maximum cut (W x D x thickness) 2-1/4" x 3-15/16" x 1/2"
(57mm x 100mm x 13mm)

MOTOR & ELECTRICS
Motor power 7.5 HP
Electrics--standard 230/460/3/60

DIMENSIONS
Length x width x height 74" x 32" x 75"
(1860mm x 800mm x 1900mm)

Machine weight 4,840 lbs (2200 Kg)
