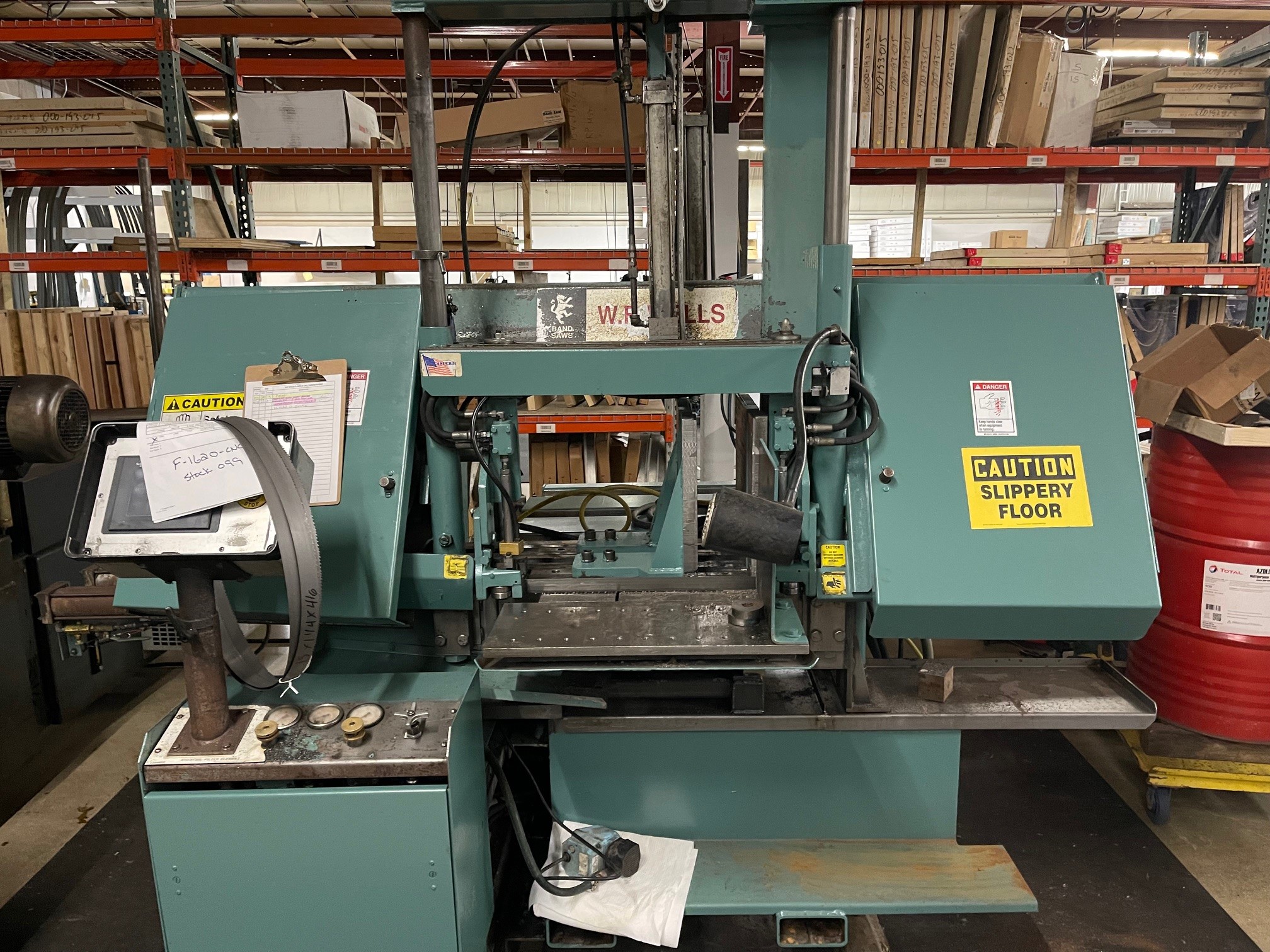

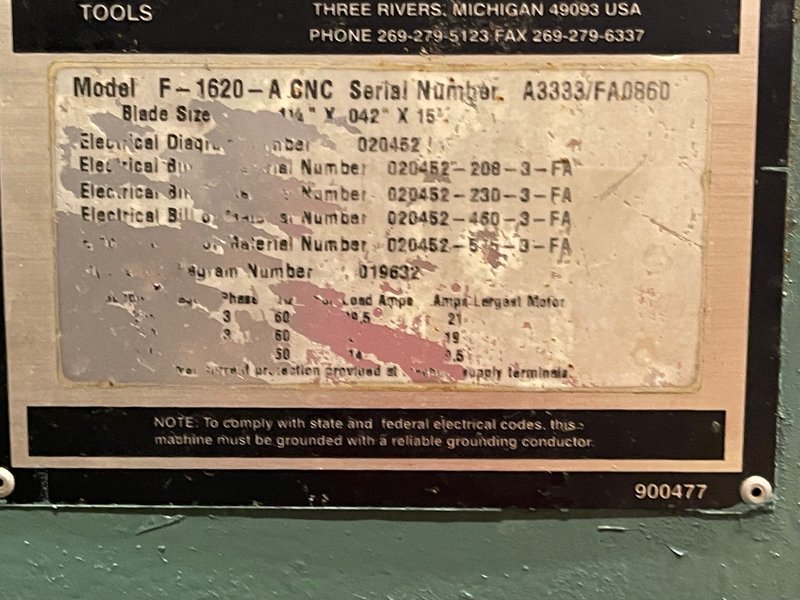

IN PROCESS - EXPECTED FINISH END OF SEPTEMBER F-1620-A CNC 208V / 3PHASE

Manufacturer

W.F. WELLS

Category

Saws

Type

SAWS, BAND, HORIZONTAL

Stock

099

Model

F-1620-A CNC

Dealer Location

Michigan

Price

$37,500.00

Request a Quote
View Contact Information

Spec Sheet

Features:

Capacity: Rectangular at 90º 16″ High x 20″ Wide, Round 16″ Diameter
Weight Capacity: 5,000 lbs
Blade Speed: 60-500 SFPM
Blade Size: 1¼” X .042″ X 15′
Blade Guide: Roller Guides with Carbide Inserts
Vise: Hydraulic, Full Stroke, 15″ High
Bandwheel Size: 20″
Blade Tension: Hydraulic
Blade Drive: 7½ HP, AC Vector Drive
Sawing Force: 0-750 lbs
Coolant Capacity: 15 Gallons
Hydraulic Capacity: 20 Gallons
Hydraulic Drive: 2 HP Motor
Work Height: 35″
Barfeed Projection: 0 – 25″ CNC Controlled
Shuttle Indexes: Unlimited
Projection Accuracy: +/-.002″
Remnant End: 4″
CNC Programmable Controller with Color Touch Screen
500+ Job Selection
Automatic Kerf Compensation
Blade Break/Stall Switch
Bed and Vise Wear Strips
Shipping Weight: 4,000 lbs
Electrics: Wired to NFPA 79 Machine Tool Standards
Machine Dimensions: 104″ Length x 101″ Width x 88″ Height
Included Options
Chip Conveyor
Barfeed Hold down
Saw Vise Hold down
