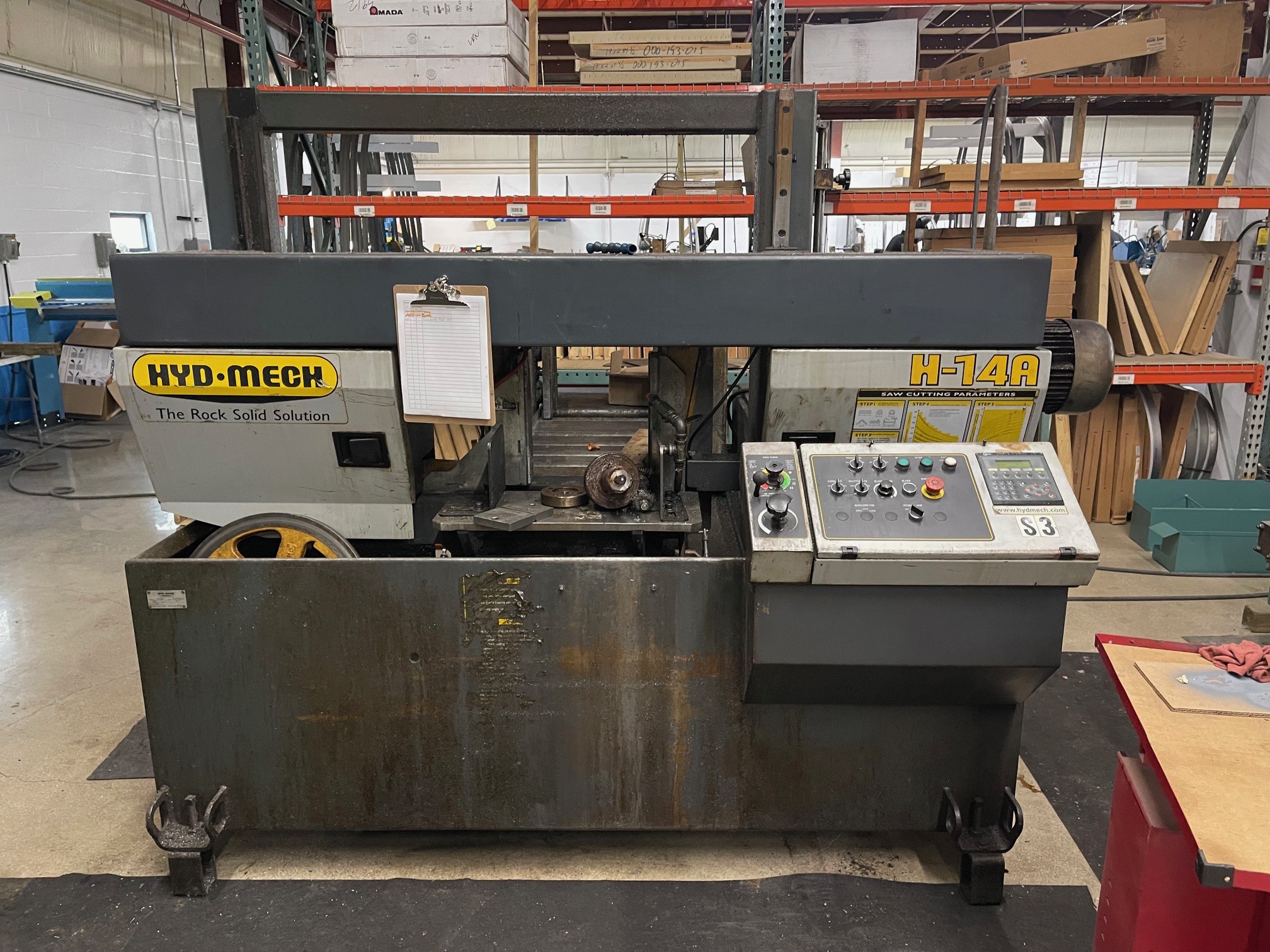

IN PROCESS - EXPECTED FINISH END OF SEPTEMBER H14 A - Dual Column - 480V / 3 Phase

Manufacturer

HYDMECH

Category

Saws

Stock

101

Model

H-14A

Dealer Location

Michigan

Price

None listed

Spec Sheet

Features:

Capacity round 14” dia
rectangular 14”x14”
Length Control Programmable up to 99 jobs
Blade length 15’4”
width 1 1/4 “
thickness .042”
Blade Tension hydraulic 27,000 psi
Blade Speed VFD 50-350 SFM
Blade Guides carbide (coolant lubricated)
Blade Wheel Diameter 19” diameter
Motors blade drive 7.5 HP
hydraulic pump drive 2 HP
Pumps Hydraulic Pump 6 1/2 gpm (pressure compensated)
Coolant Pump 3 1/2 gpm
Hydraulic Tank 7.5 US Gallons
Hydraulic System Pressure 700 psi
Vise Control Hydraulic Full Stroke
Shuttle Stoke 0-34” (single stroke, multi-shuttle capability)
Table Height 31”
Machine Weight 5500 lbs.
Maximum Workload 6000 lbs.
Overall Dimensions 97” Wide x 92” Long x 72” High

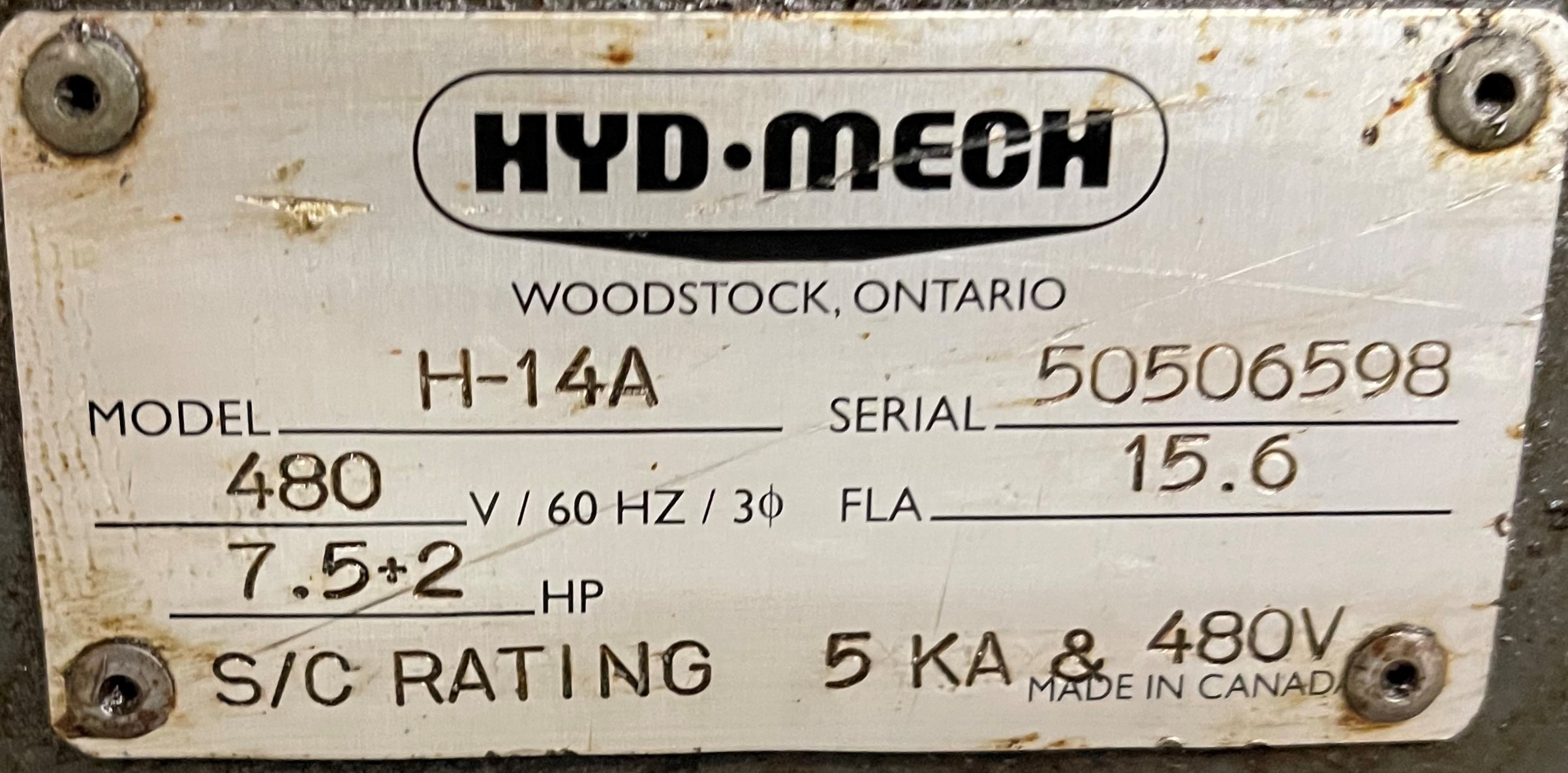

480V/3PH Electrical Motor Requirement
