100

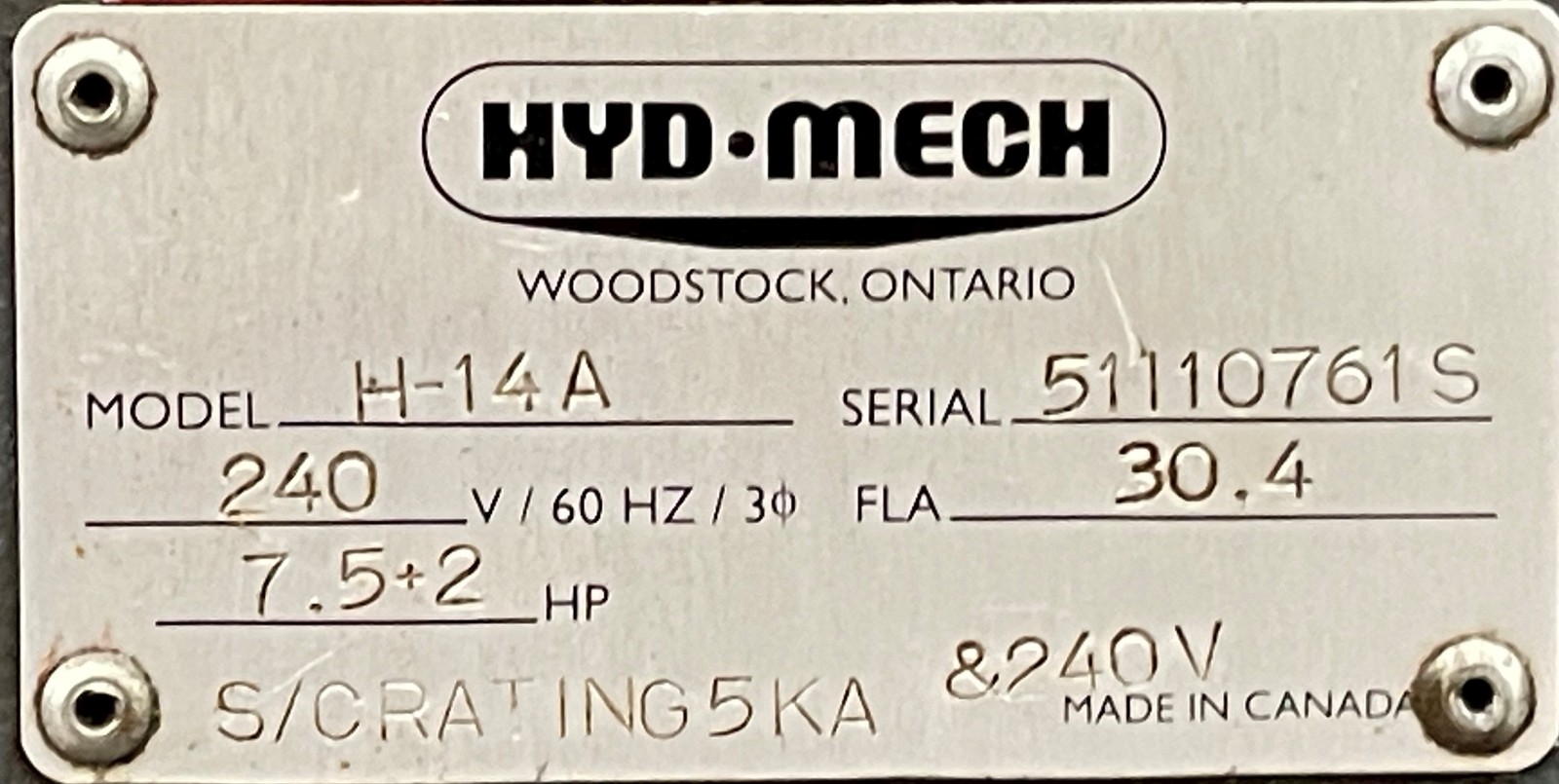

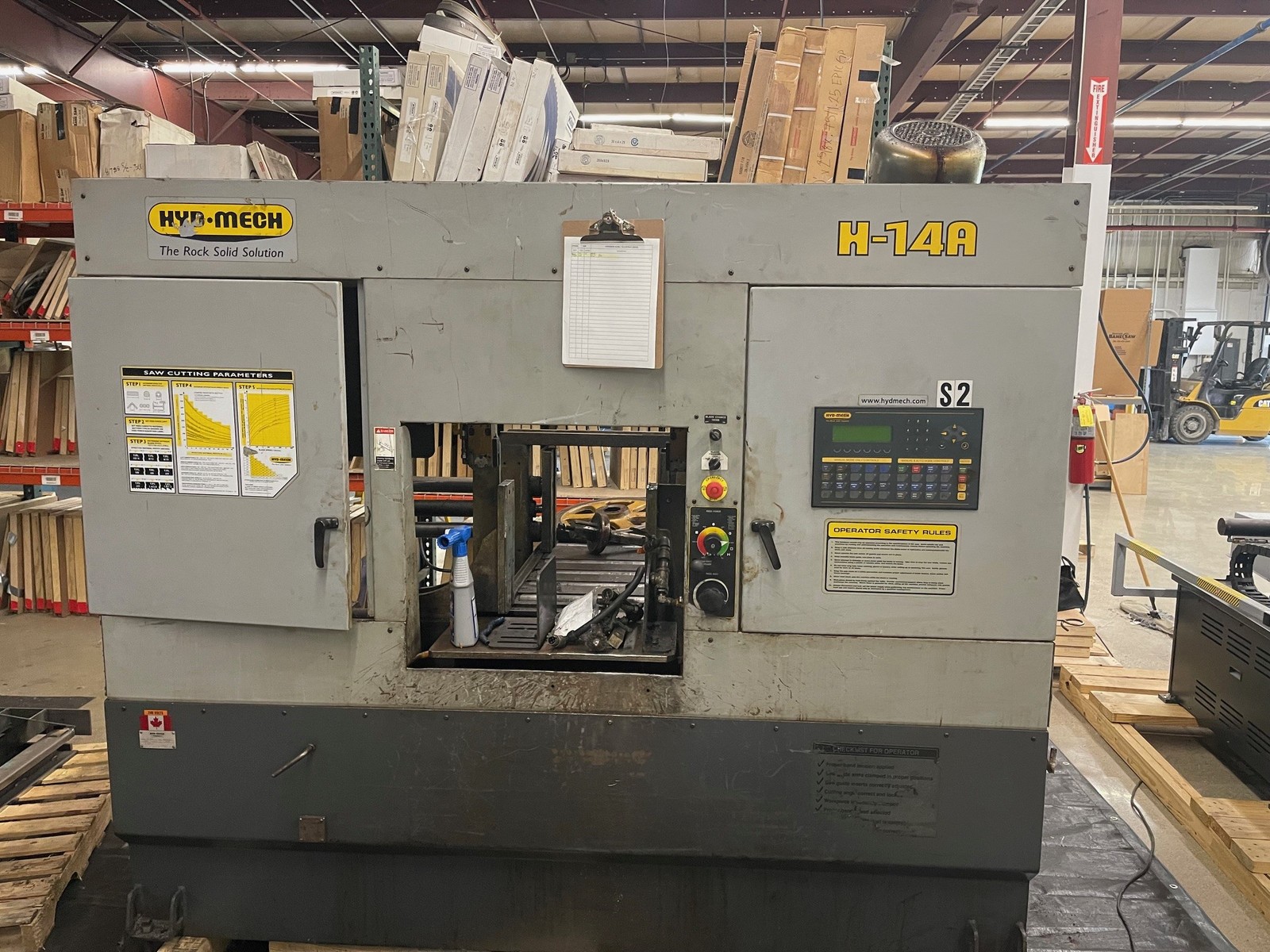

H-14A
Michigan
None listed
IMPERIAL METRIC
Capacity 14” x 14” 356mm x 356mm
Blade Size 1.25” x .042” x 15’ 4” 32mm x 1.1mm x 4674mm
Blade Guides Carbide (Coolant Lubricated)
Blade Tension Hydraulic
Blade Speed Variable VFD 70 – 350 SFPM Variable VFD 21-107 m/min
Band Wheels 19” 483mm diameter
Blade Drive 7.5 HP 5.6 kw
Hydraulic Drive 2 HP 1.5 kw
Hydraulic System Pressure 700 psi 4826 kPa
Hydraulic Tank Capacity 7.5 US gallons 28 litres
Coolant Tank 6.6 US gallons 25 litres
Vises Full Stroke Hydraulic
Shuttle Stroke 0-34”single stroke multi-indexing standard 0-864mm single stroke multi-indexing standard
Discharge Table 10” 254 mm
Table Height 31” 787 mm
OVERALL DIMENSIONS
Shipping Weight 4700 lbs 2132 kg
Dimensions W x L x H 89” wide x 81” long x 74” high 2261mm wide x 2057mm long x 1880mm high
