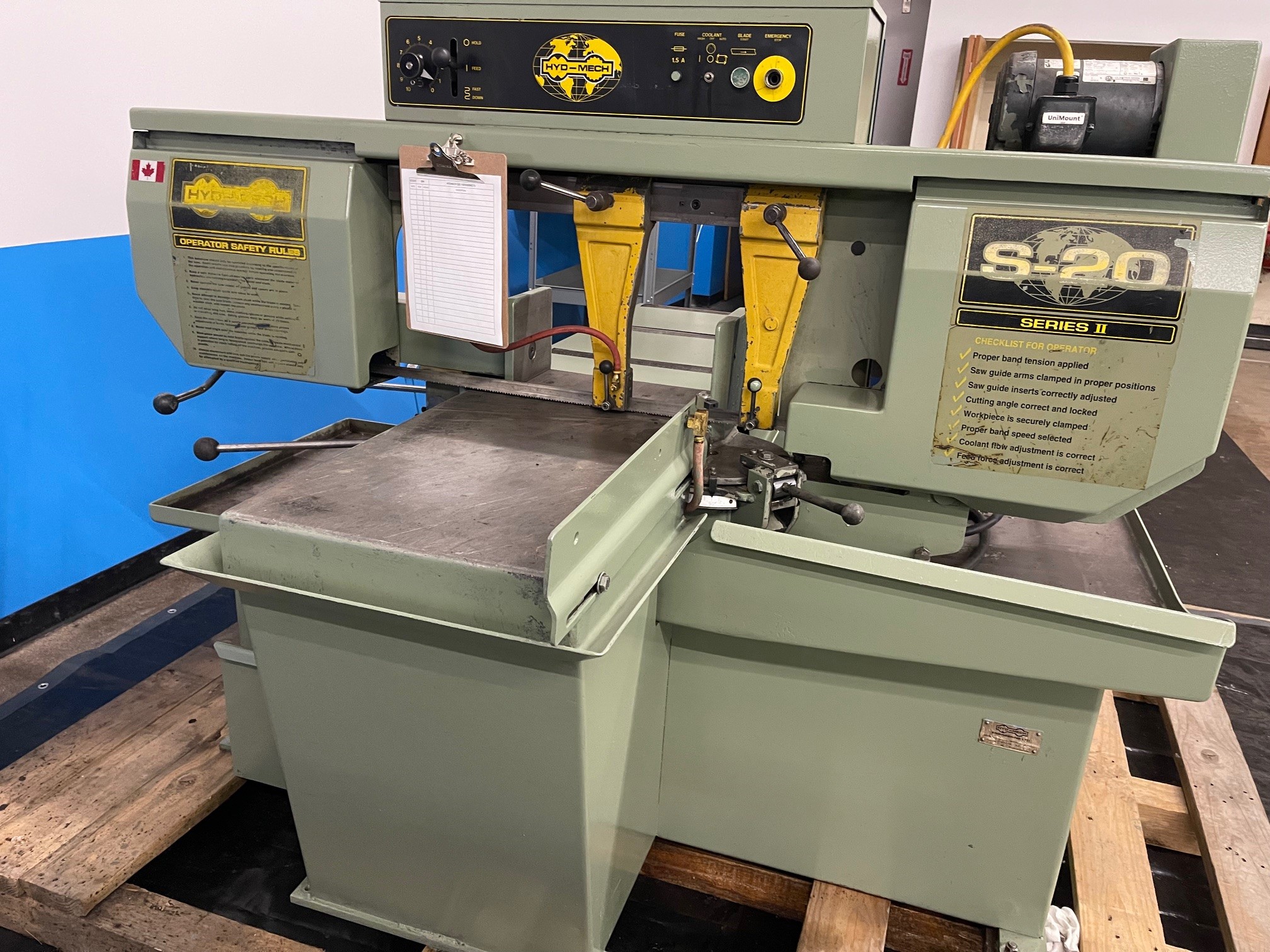

IN PROCESS - EXPECTED FINISH END OF SEPTEMBER S-20 manual mitering horizontal pivot band saw

Manufacturer

HYDMECH

Category

Saws

Type

SAWS, MITER

Stock

094

Model

S-20 Series II

Dealer Location

Michigan

Price

$8,500.00

Request a Quote
View Contact Information

Spec Sheet

Features:

IMPERIAL DIMENSIONS METRIC DIMENSIONS
Cutting Capacity
Rectangular 13″ High x 18″ Wide 325mm x 450mm
Round 12″ dia @ 45 deg 300mm dia @ 45 deg
Blade length 13′ 6″ 4115mm
Width 1 ” (1.075″ including teeth) 25mm (27.3mm including teeth)
Thickness 0.032″ 0.8mm
Blade speed
Standard step pulley 90/140/220/370 Surface Feet/Minute
Blade speed (with 50Hz, 1450 RPM motor)
Standard step pulley 22/34/58/90 m/min
Blade guides Carbide Inserts
Blade wheel diameter 16″ 400 mm
Motors
Standard 2 HP 1.5 kW 2HP 1.5 kW
Coolant pump 2.4 US Gal/min 9 L/min
Coolant reservoir 6 Gallons 23 Litre
Table height 30 ” High 762 mm
Machine weight 1800 pounds 810 kg
Overall Dimensions 80″ W x 80.5″ L x 55.5″ H 2037mm W x 2046mm L x 1408mm H

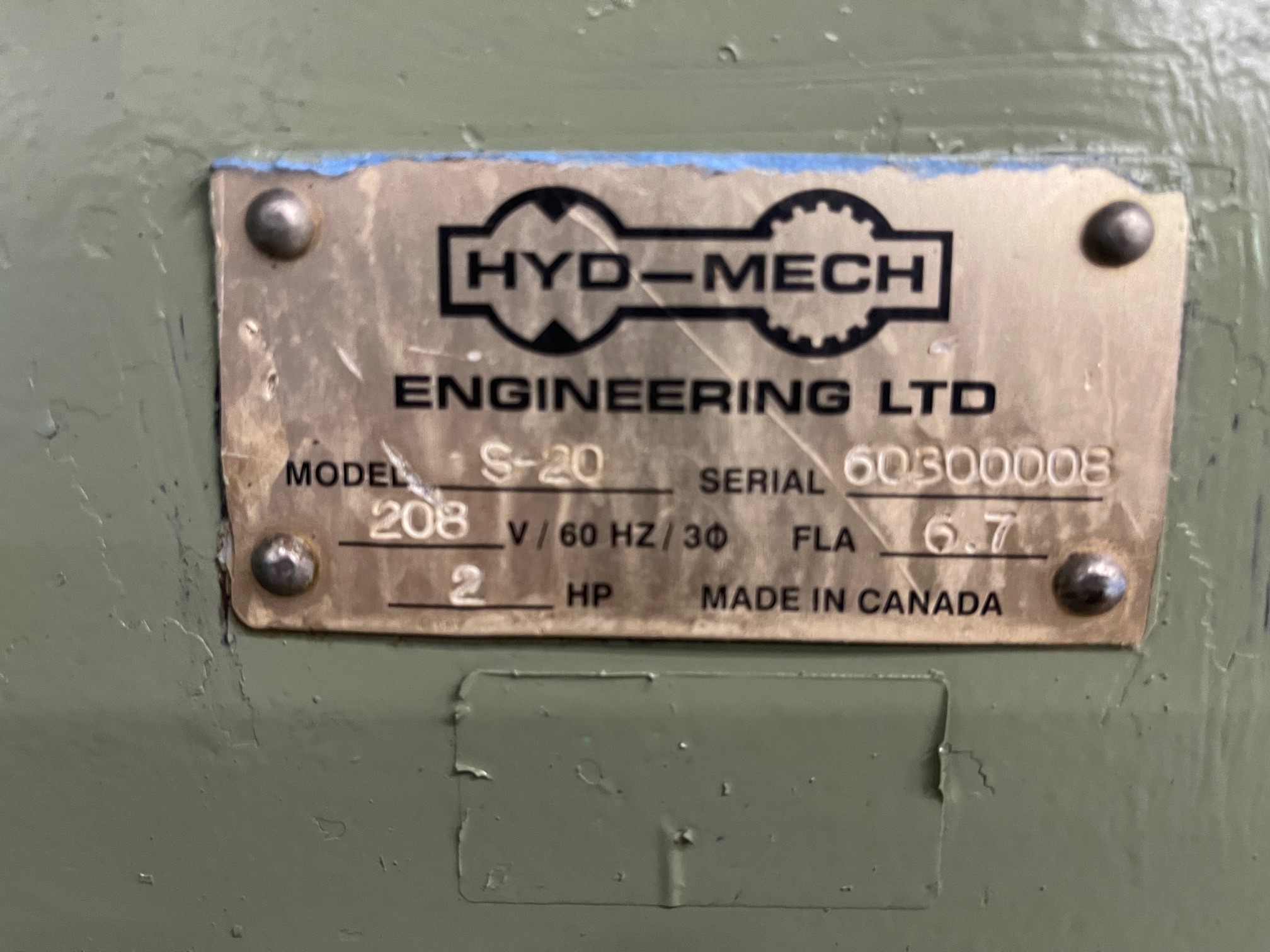

208V/3PH Electrical Motor Requirement
