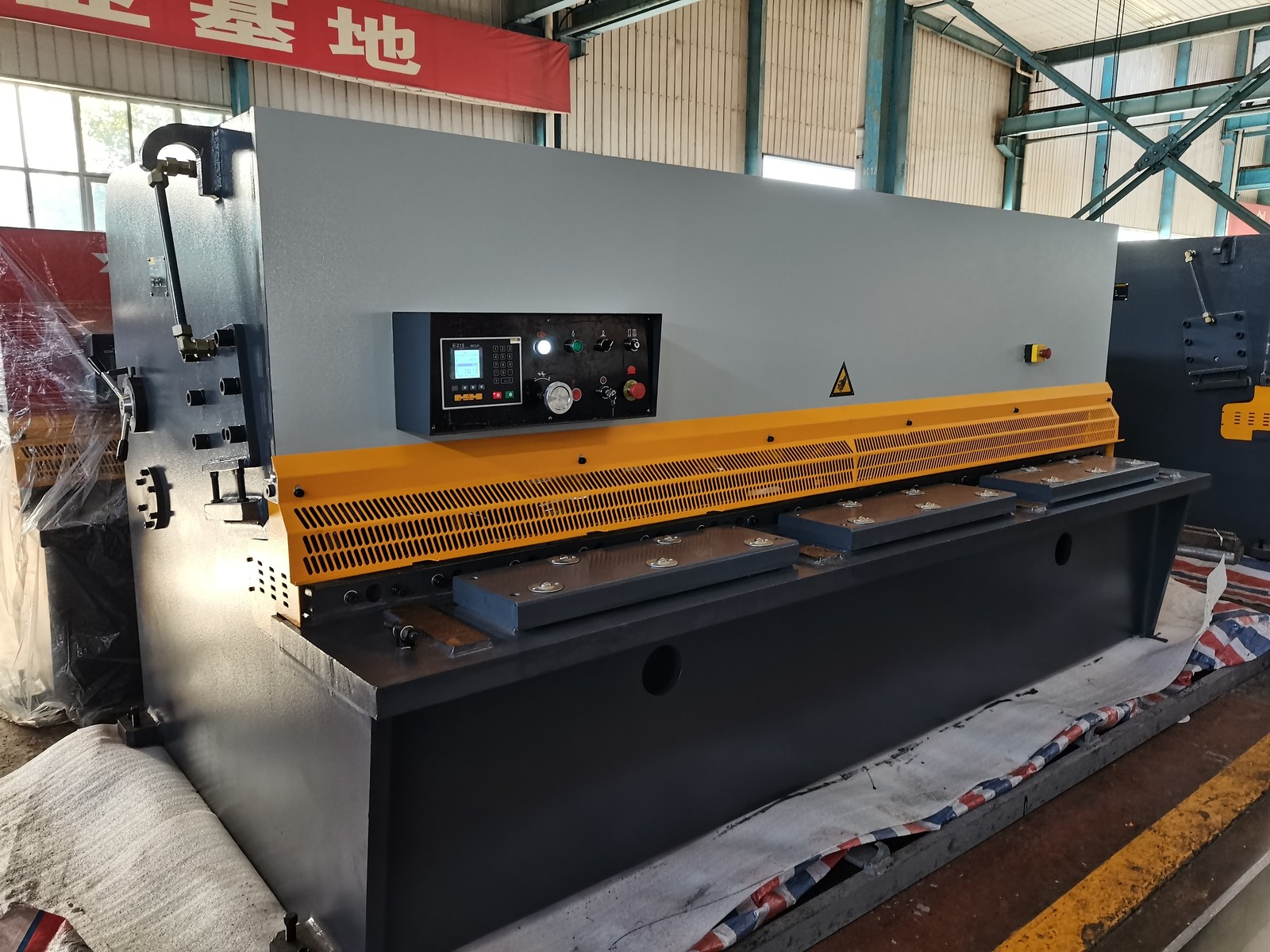

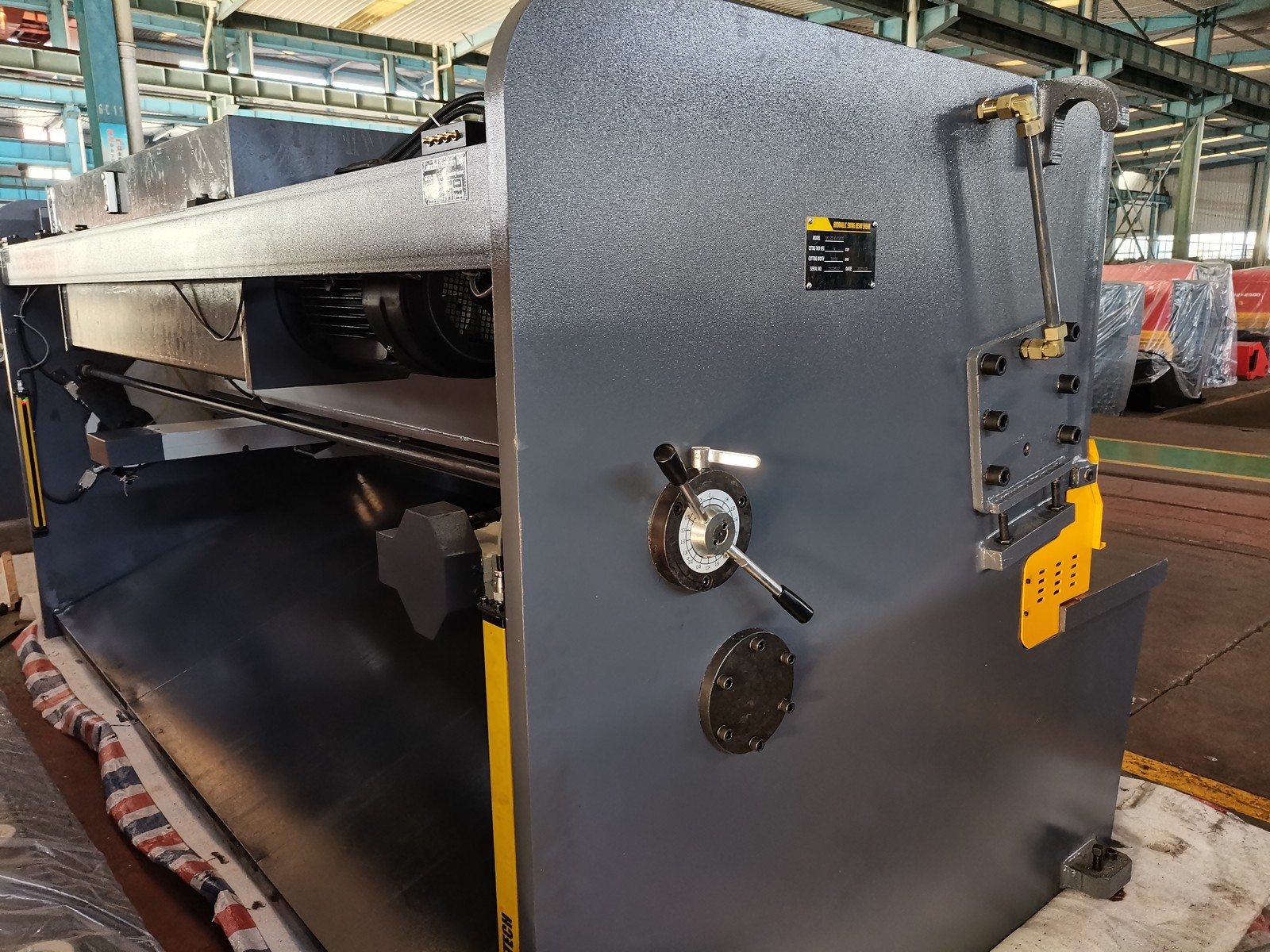

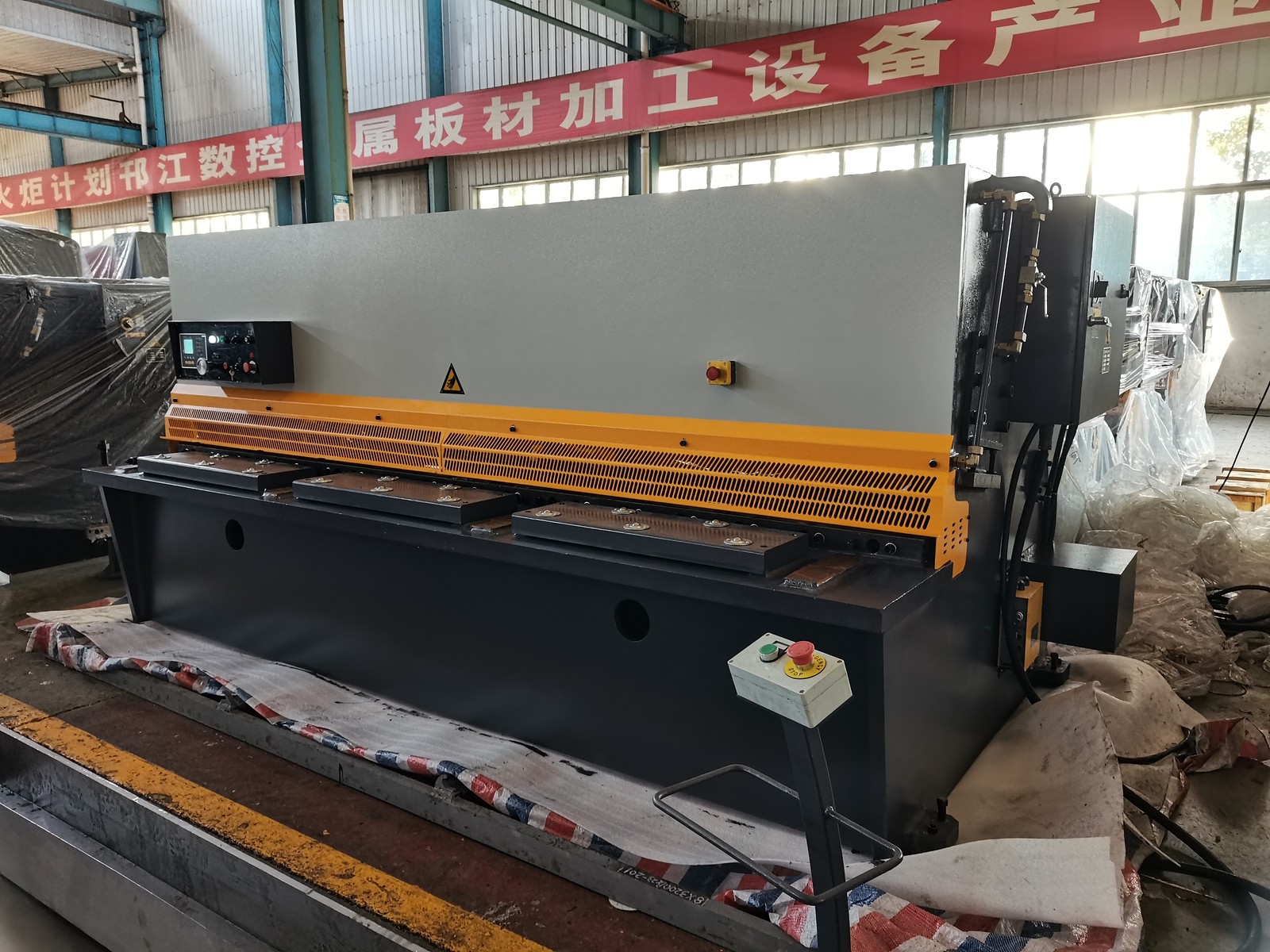

1/4" x 10', FICOM, #QC12Y-8x3200, 20 HP, hydraulic, Estun E21S BG, NEW

Manufacturer

Ficom

Category

Shears

Stock

7143

Model

8X3200

Dealer Location

Florida

Spec Sheet

Maximum cutting length 126" (3200mm)
Maximum shearing capacity, mild steel 1/4" (8mm)
Throat depth 5.7" (145mm)
Number of strokes per minute 20
Backguage length 24" (600mm)
Number of holddowns 13
Blade rake 1 degree 30 minutes
Main motor power 20 HP (15 KW)
Electrics 230/3/60 or 460/3/60
Dimensions (L x W x H) 150" x 72" x 68"
Net weight 16,192 lbs (7360 kg)

STANDARD FEATURES & ACCESSORIES:

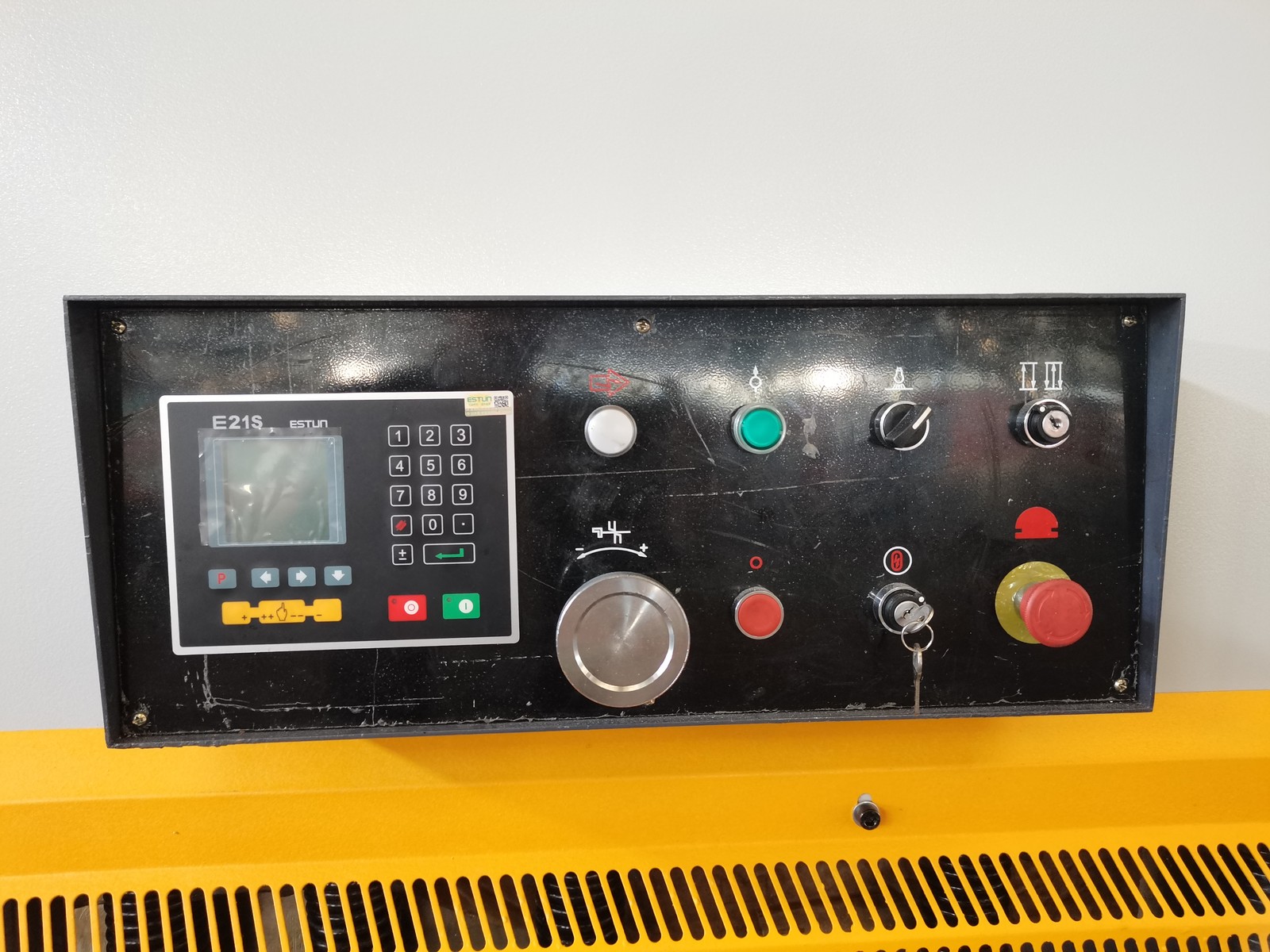

Estun E21S "Go-To" front operated power back gauge with 24" travel
Foot pedal with emergency stop, Squaring arm, Front arm supports
Hydraulic system manufactured by Bosch-Rexroth
Seals manufactured by Valqua (Japan) and Fietz (Germany)
Most electrical parts are manufactured by Schneider and/or Telemecanique
Nitrogen filled counter balance accumulators
Manual gap adjustment, Shadow light
Single or continuous operation, Cycle counter
LNTech rear light curtain
