7179
125X3200
Florida
Table length 126" (3200mm)
Distance between housing 106" (2700mm)
Throat depth 19-5/8" (500mm)
Ram stroke 7.8" (200mm)
Maximum open height 19.29" (490mm)
Stoke adjustment 5.9" (150mm)
Bending speeds--rapid approach 4.53 ips
--bending 0.35 ips
--return 4.33 ips
Maximum stroke rate 6 spm
Motor 15 HP (11KW)
Electrics 230/3/60 or 460/3/60
Dimensions (L x W x H) 133" x 80" x 101"
Weight, approx. 19,140 lbs (8,700 Kgs)
STANDARD FEATURES & ACCESSORIES:

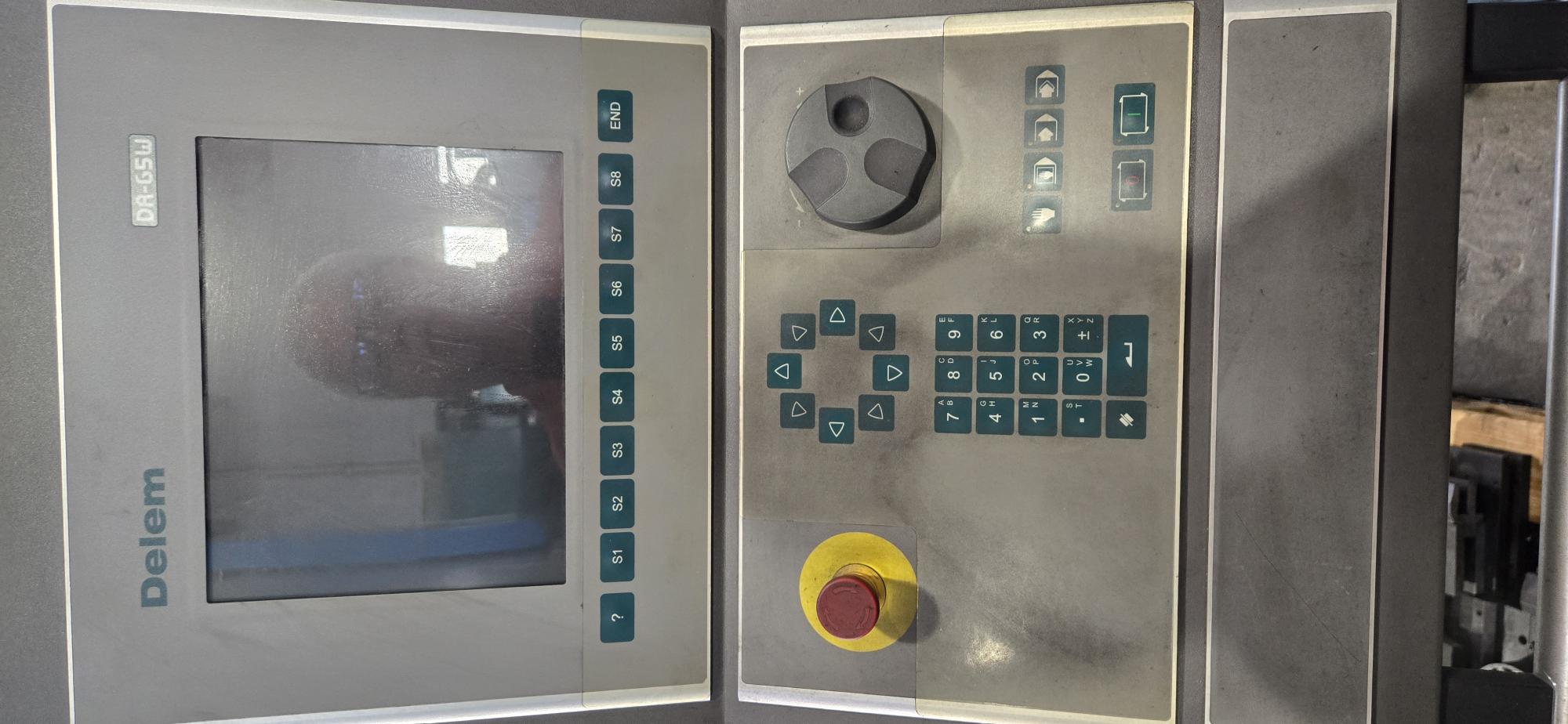

Delem DA 65W 4 axes controled Y1, Y2, X, V axis Deflection Compensation
Hydrualic valves manufactured by Bosch-Rexroth
Seals manufactured by (SKF) Sweden
Synchronization control valve by Bosch-Rexroth
Main electronic components: Shneider, Telemecanique

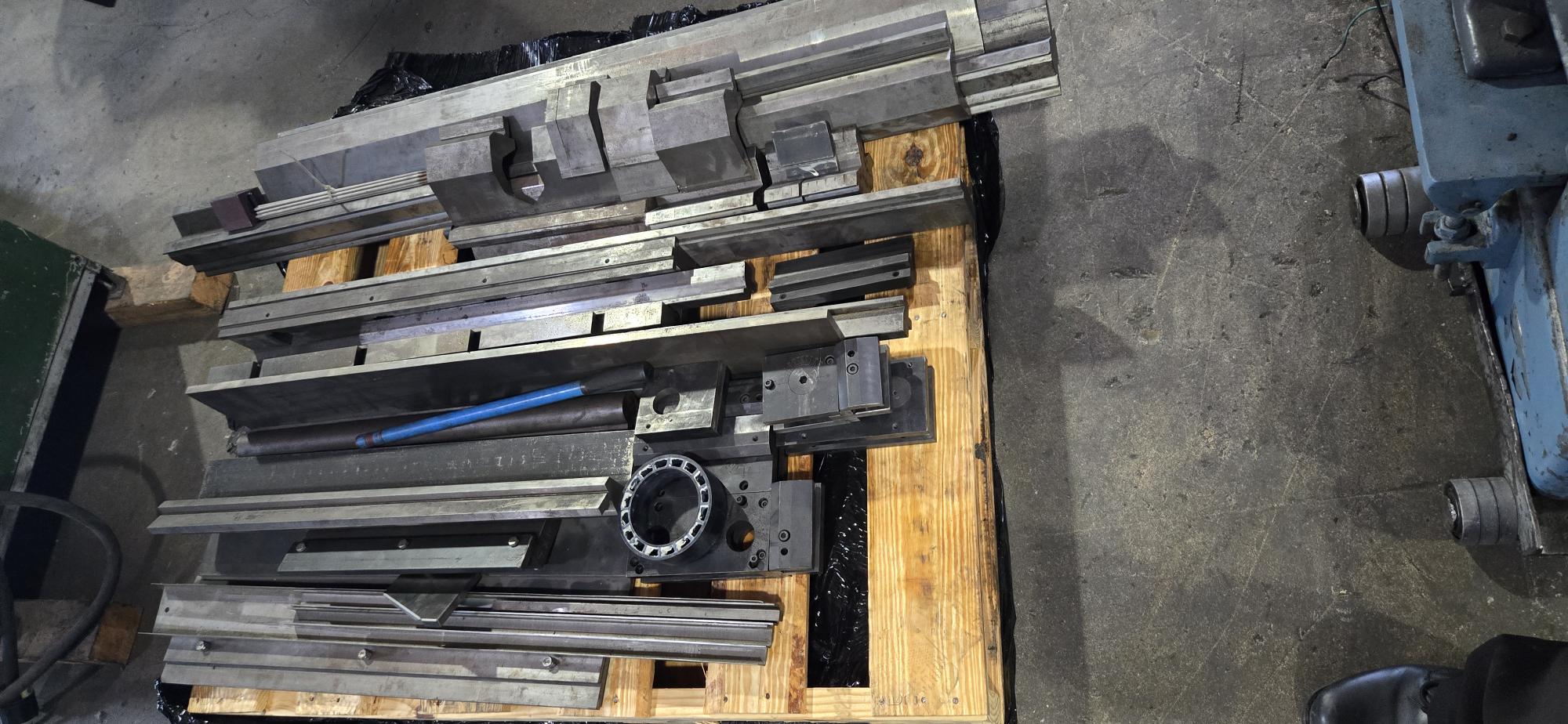

Full length gooseneck punch and 8 way die sectional
Includes full length filler block European style
