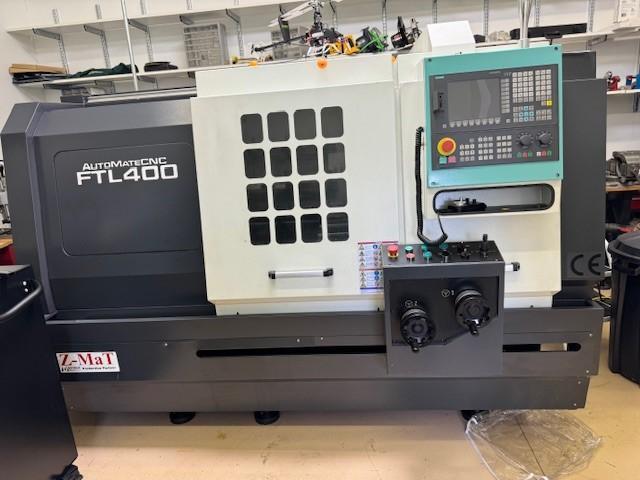

USED AUTOMATE CNC 20" X 33" FLATBED CNC TOOL ROOM LATHE MODEL FTL400T, Stock# 11099, Year: 2018

Manufacturer

AutoMateCNC

Category

Lathes

Stock

11099

Model

FTL 400T

Dealer Location

Michigan

Spec Sheet



Brand: AutoMateCNC
Model: FTL 400T

Max swing over bed: 20"
Max swing over carriage: 6.5" over gang plate, 9" with gang plate removed
Max length of workpiece: 33" center to center
X axis travel: 11"
Z axis travel: 28"
X axis rapids: 750 IPM
Z axis rapids: 750 IPM
Max cutting speed: 315 IPM
Spindle motor: 10 H.P. Siemens servo motor
RPM range: 50 - 3,500
Spindle bore: 2.44"
Spindle nose taper: A2-6
Tailstock quill travel: 4"
Tailstock quill taper: MT4
Coolant capacity: 17.2 gallons
Voltage: transformer for 240 volt 3 phase
Dimensions: 105" x 63" x 70"
Weight: 5,850 Lbs.

Equipped with:

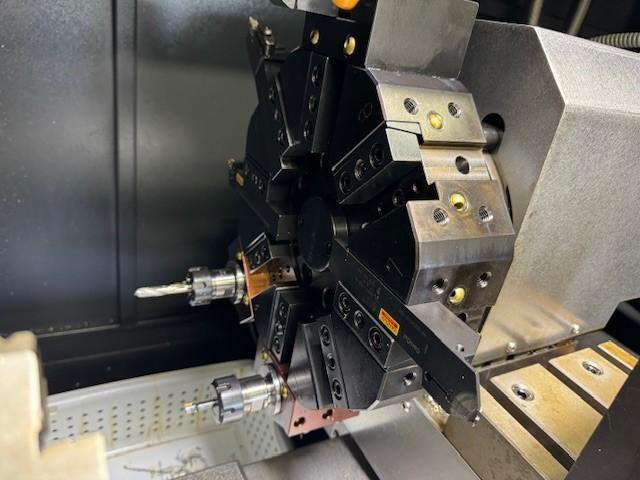

8 position turret

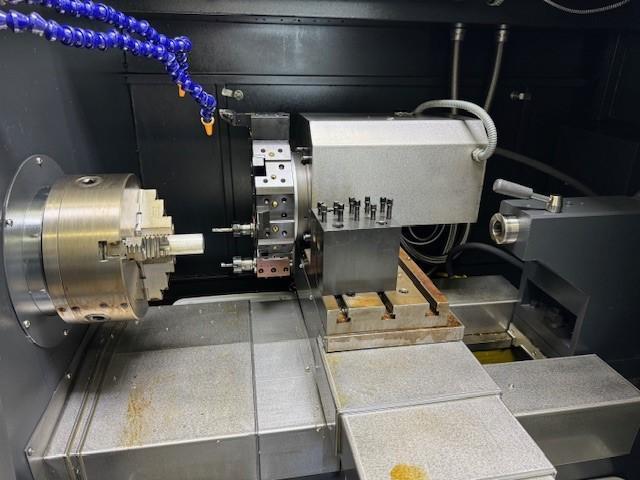

10" manual 3 jaw chuck

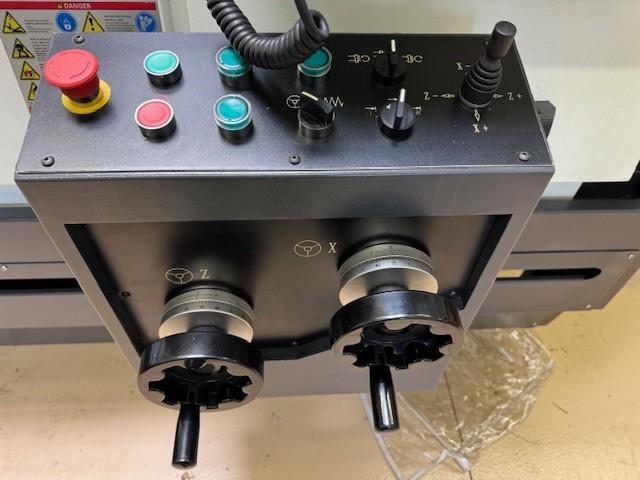

Manual MPG pendent

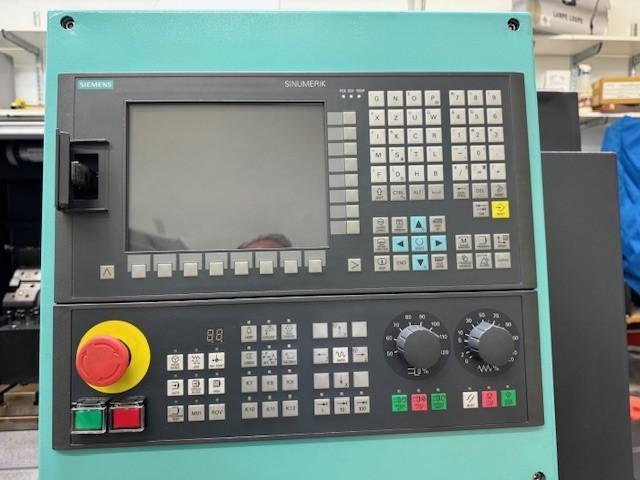

Siemens Sinumerik CNC control
Manual tailstock
Flood coolant
Live tooling set-up
