80" x 118" Tru-Turn, 2040/3M, 64" Over C/S, 315 RPM, 15 Ton Cap, Steady Rests, Inch/Metric Thread, 40 HP, 2023, #43316

Manufacturer

TRU-TURN

Category

Lathes

Type

LATHES, ENGINE

Stock

43316

Model

2040/3M

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43316

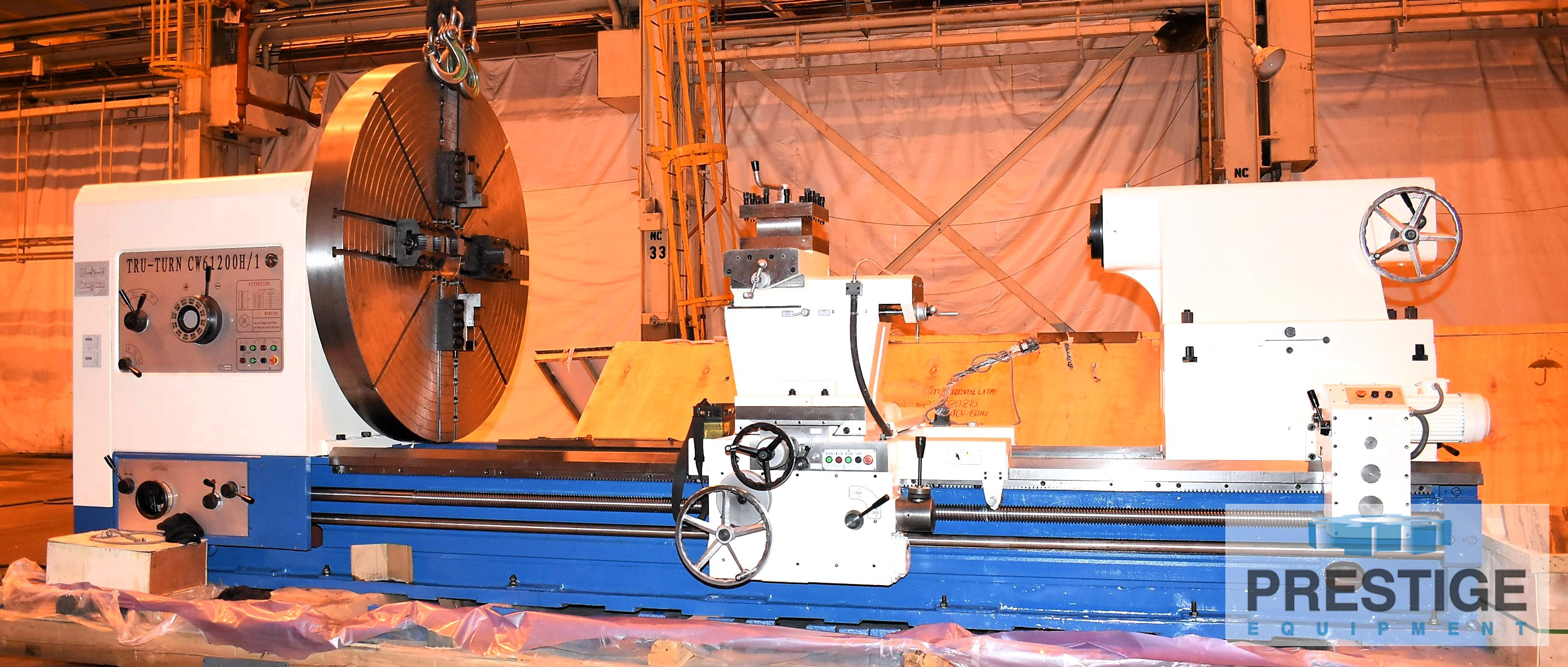

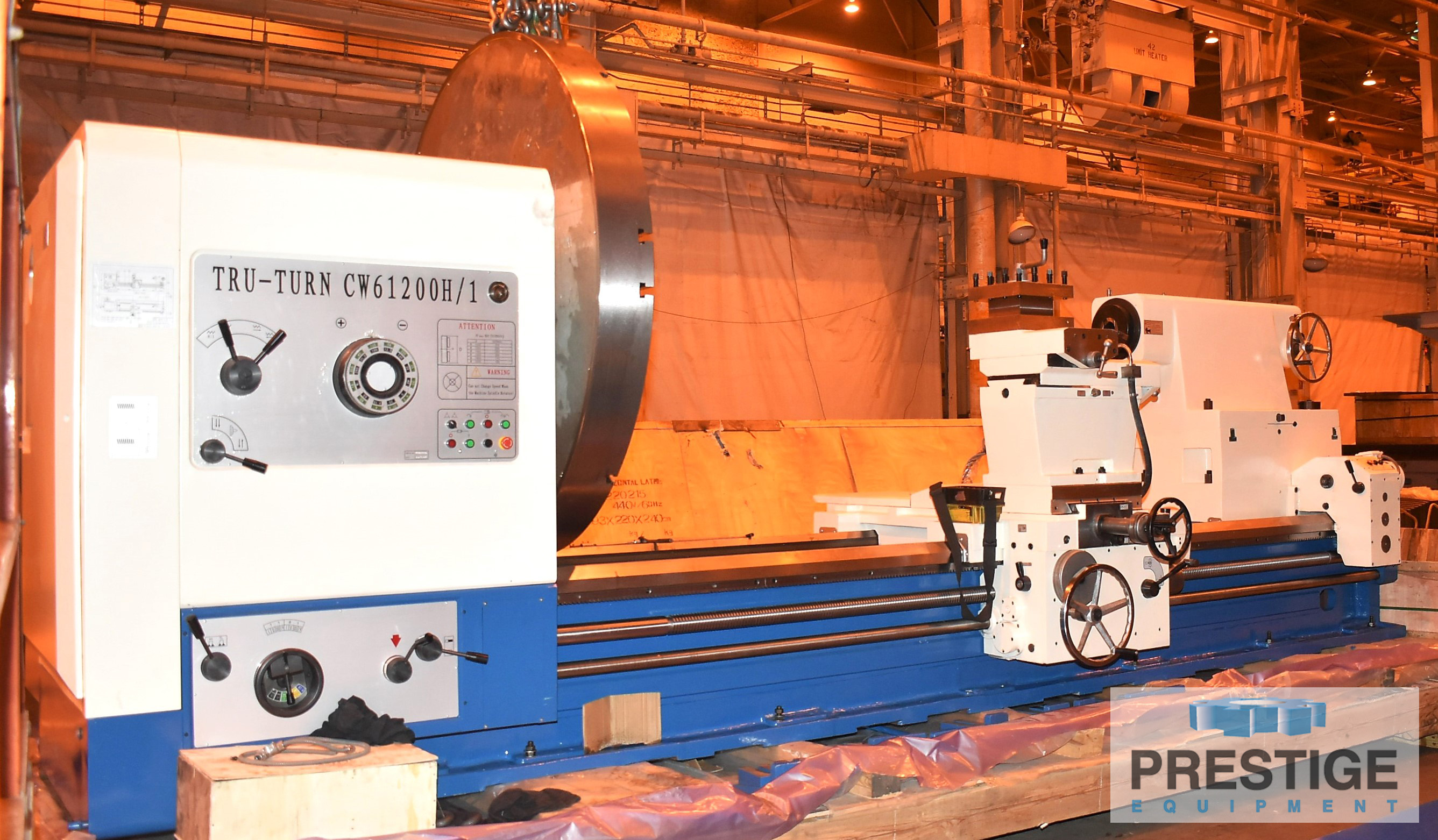

Tru Turn 80.31" x 118" Manual Lathe, Brand New

FEATURES:
78.74" Diameter Face Plate with 4-Top Jaws
Hardened Bed Ways
Power Drive To Top Slide For Conical Cutting
Swivel Compound
Inch / Metric Threading
NSK Headstock Spindle Bearings
NSK Tailstock Quill Bearings
4-Way Tool Post
Live Quill in Tailstock

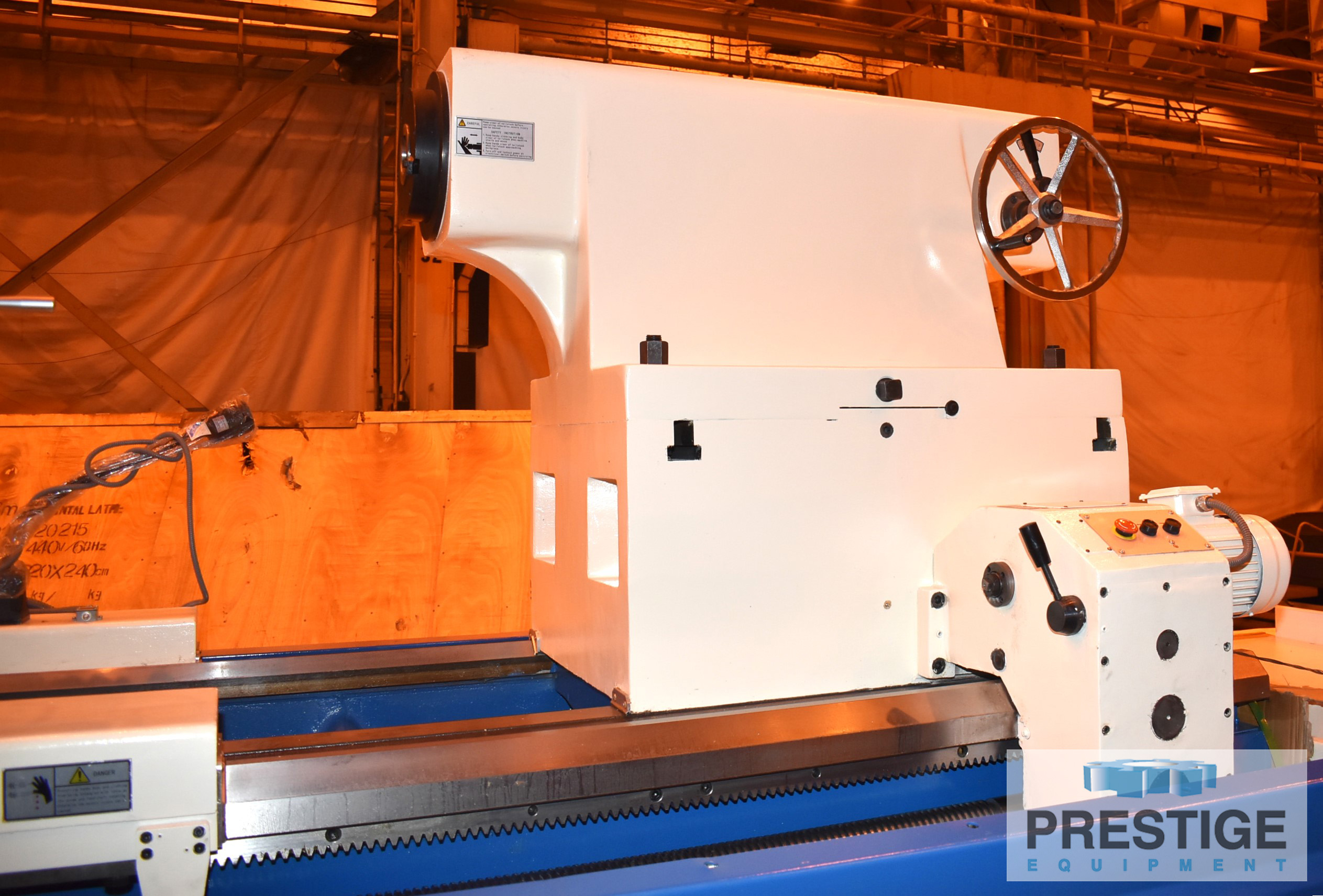

Motorized Tailstock

SPECIFICATION:
Swing Over Bed ....................... 80.31"
Swing Over Cross Slide ............... 64.96"
Width of Guide Way ................... 43.30"
Distance Between Centers ............. 118.11"
Spindle Speeds (21 Speeds) ........... 3.15-315 RPM
Spindle Bore ......................... 5.12"
Spindle Nose ......................... A-15
Tailstock Diameter ................... 11.02"
Tailstock Travel ..................... 11.81"
Taper of Tailstock Bore .............. 140 Metric
Weight Capacity ...................... 33,000 lbs

EQUIPPED WITH:
78.74" Diameter Face Plate with 4-Top Jaws
Hardened Bed Ways
Power Drive To Top Slide For Conical Cutting
Swivel Compound
Inch / Metric Threading
4-Way Tool Post
NSK Headstock Spindle Bearings
NSK Tailstock Quill Bearings
Live Quill in Tailstock
Motorized Tailstock
Chip Pans

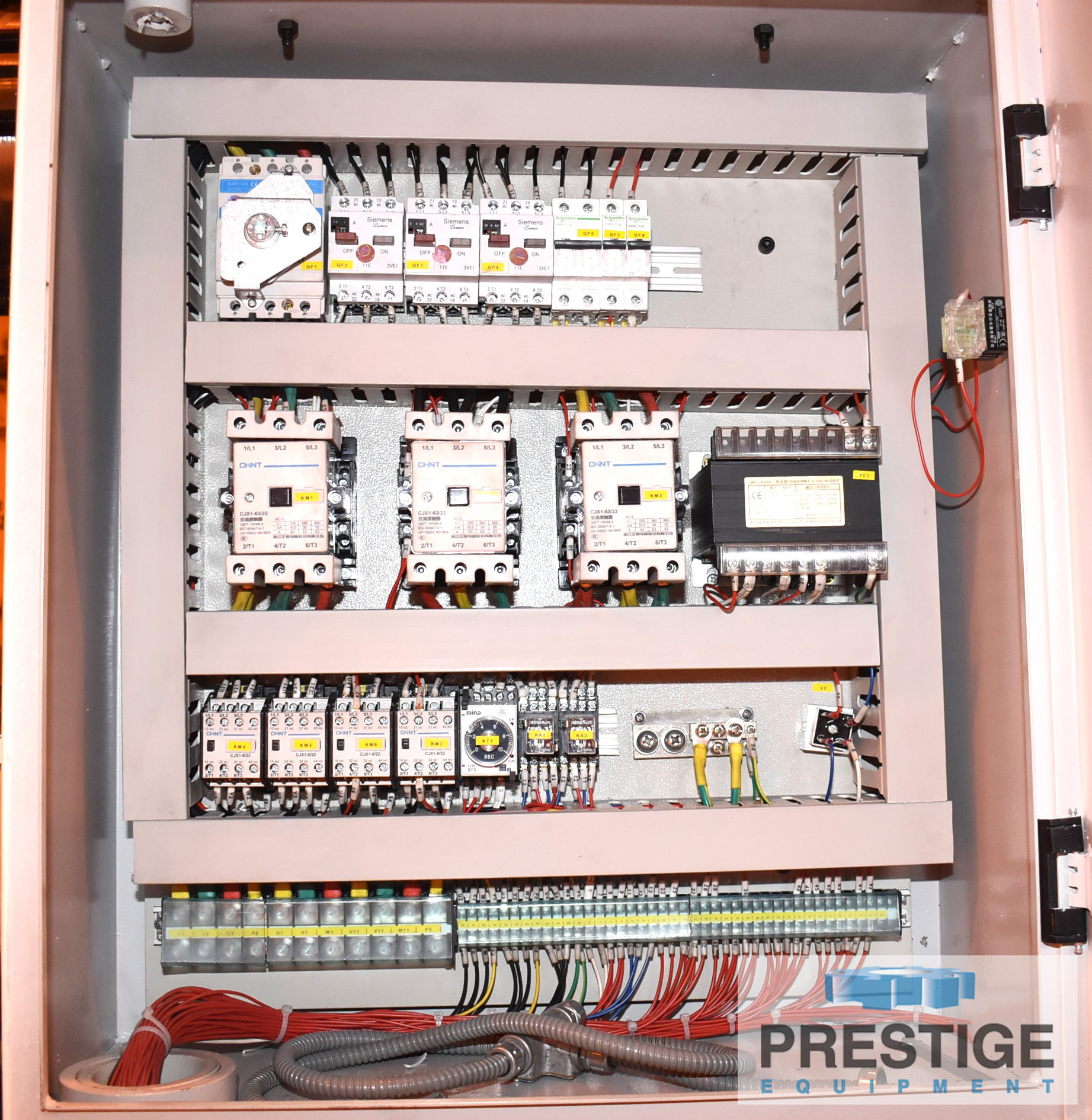

40 HP Drive Motor With Controls
3/60/440 Volt Electrics

NOTE:
Machine is NEW. Order Canceled. Please Call for Special Price
