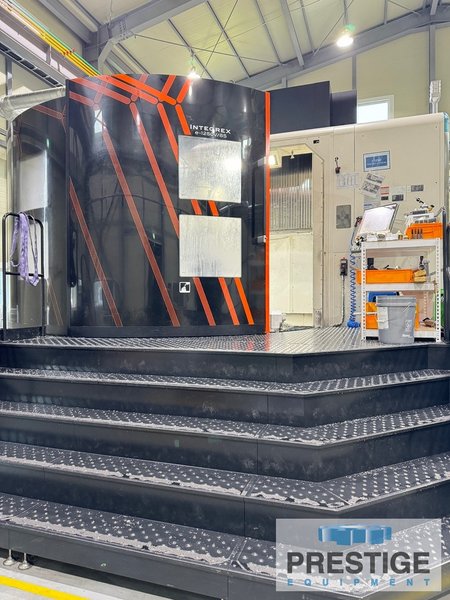

Mazak Integrex E-1250V/8S 5-Axis, Mazatrol Smooth CNC, 84 ATC, TSC, Low Hours, New 2020, #43556

Manufacturer

MAZAK

Category

Boring Mills

Type

BORING MILLS, VERTICAL, CNC

Stock

43556

Model

Integrex E-1250V/8S 5-Axis

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43556

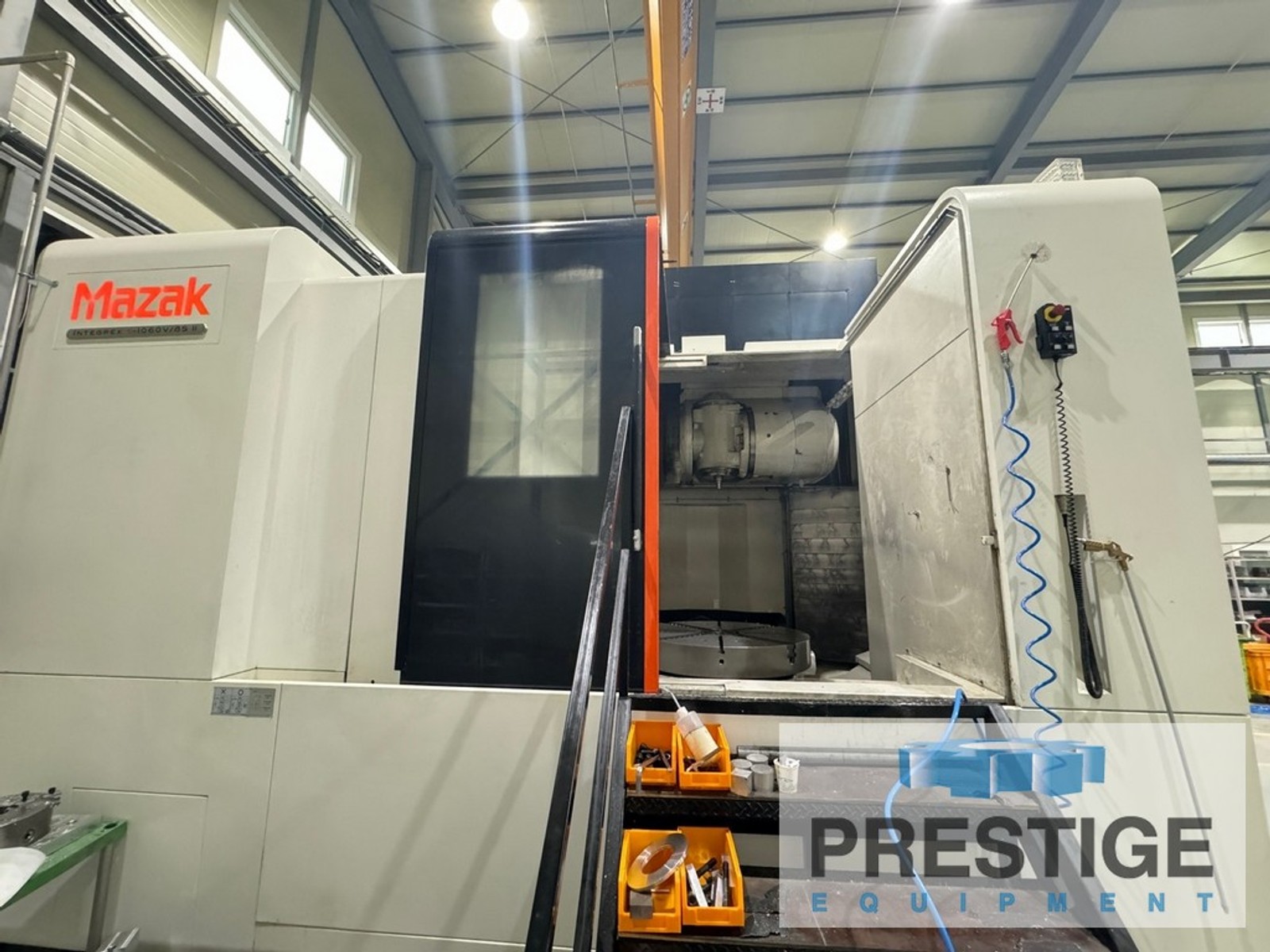

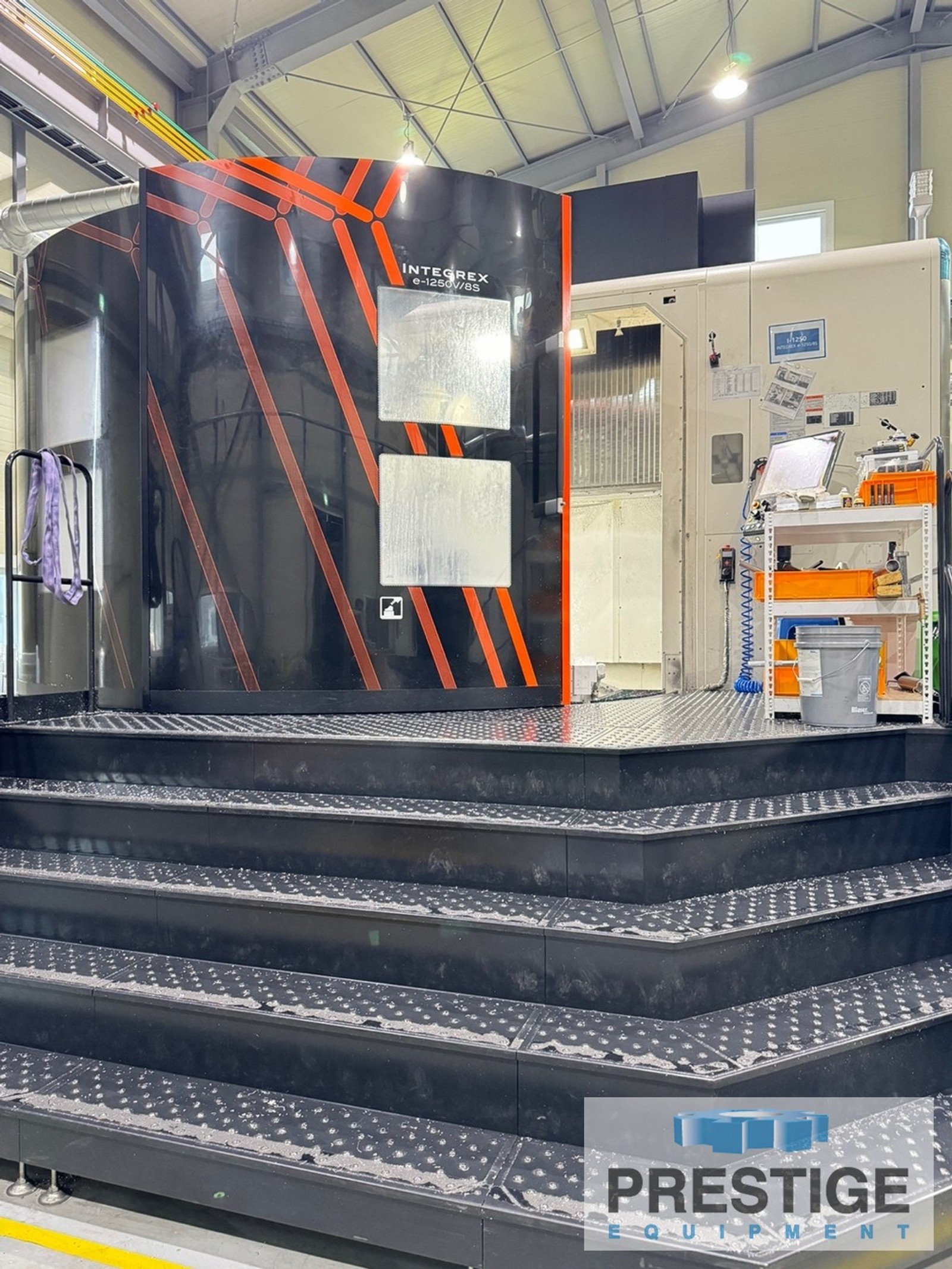

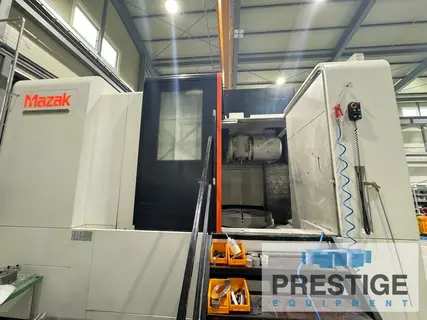

Mazak Integrex E-1250V/8S 5-Axis Combination

FEATURES:
MAZATROL Matrix Control
Combination 5-Axis CNC
Thru-Spindle Coolant
84 Station Automatic Tool Changer

TRAVELS & SPECIFICATIONS:
X-Axis, Table Forward/Backward ........ 73.81"
Y-Axis, Spindle Head, Left/Right ...... 49.21"
Z-Axis, Spindle Head Up/Down .......... 52.95"

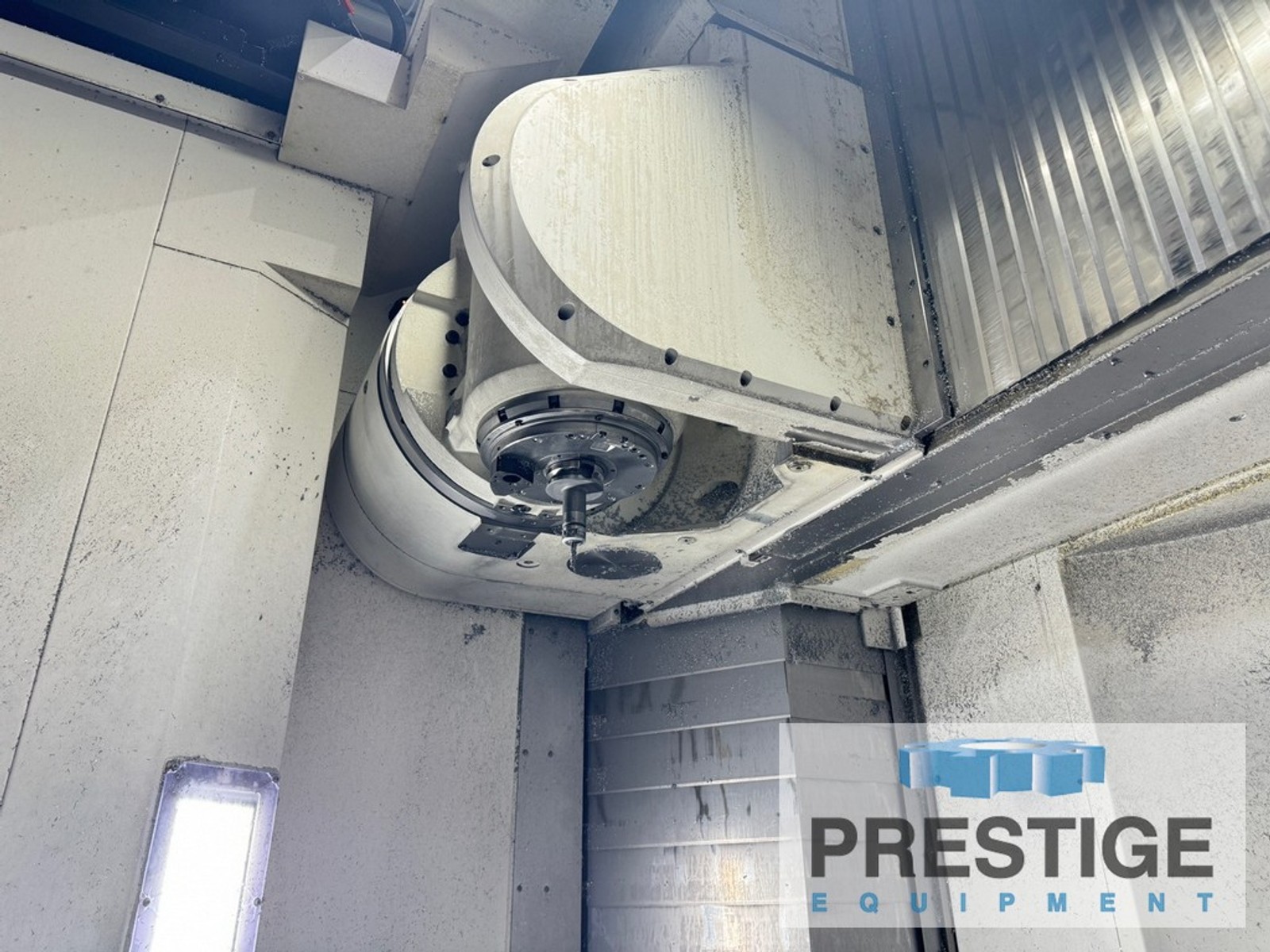

B-Axis, Spindle Head Tilt ............. -30/+120 (150 Deg.)
C-Axis, Table Rotation ................ 360,000 Position

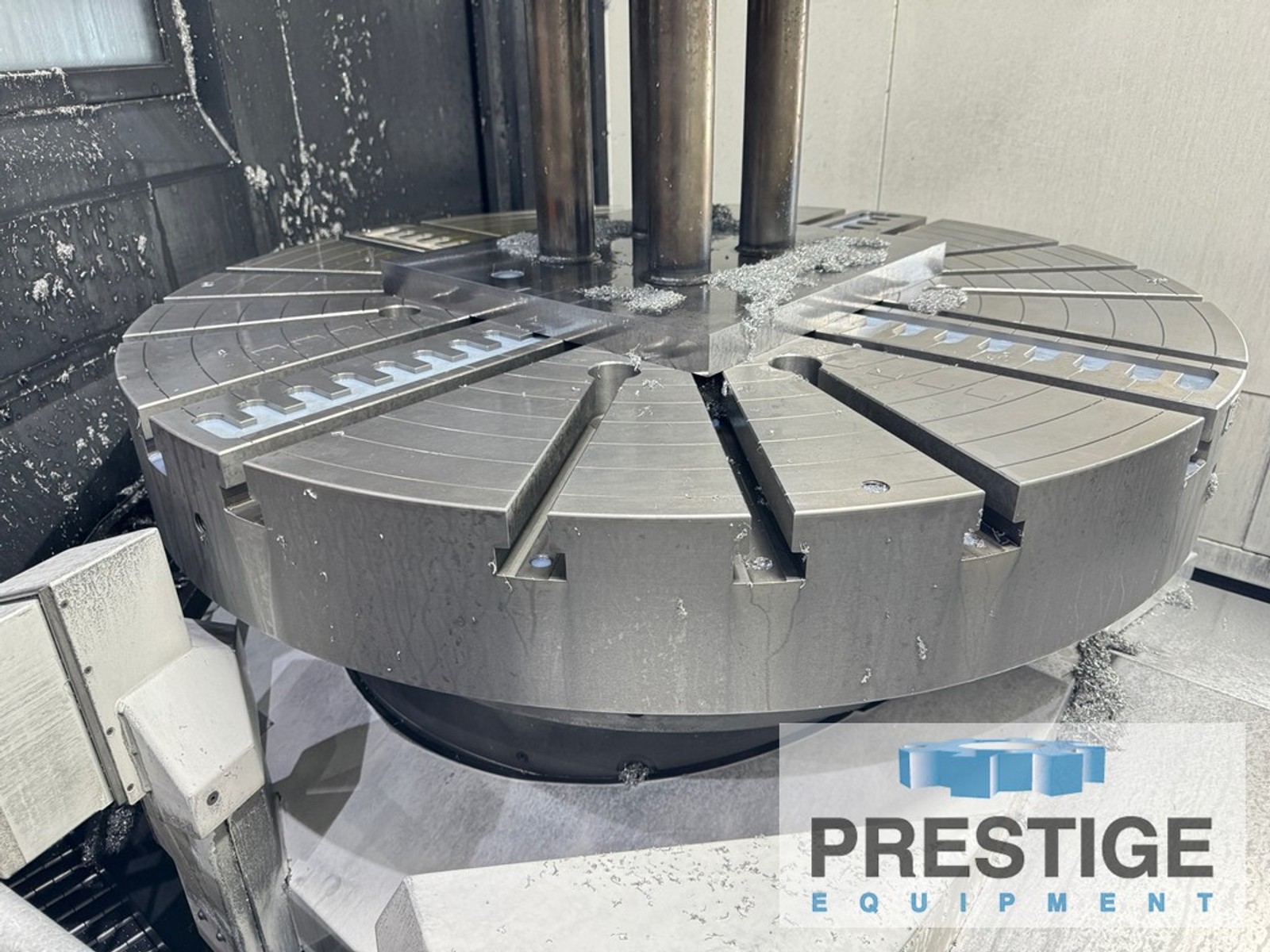

Table Diameter ........................ 39.37"
Maximum Workpiece Diameter ............ 57.08" x 62.99"
Workpiece Pallet Weight ............... 5,940 Lbs.
Maximum Machining Diameter ............ 67.09"
Maximum Machining Length .............. 62.99"
Milling Spindle Speed Range ........... 25-10,000 RPM
Turning Speed Range ................... 5-500 RPM
Spindle Taper ......................... BT 50
Spindle Motor ......................... 50 HP / 40 HP
Machine Weight ........................ 101,200 Lbs


EQUIPPED WITH:

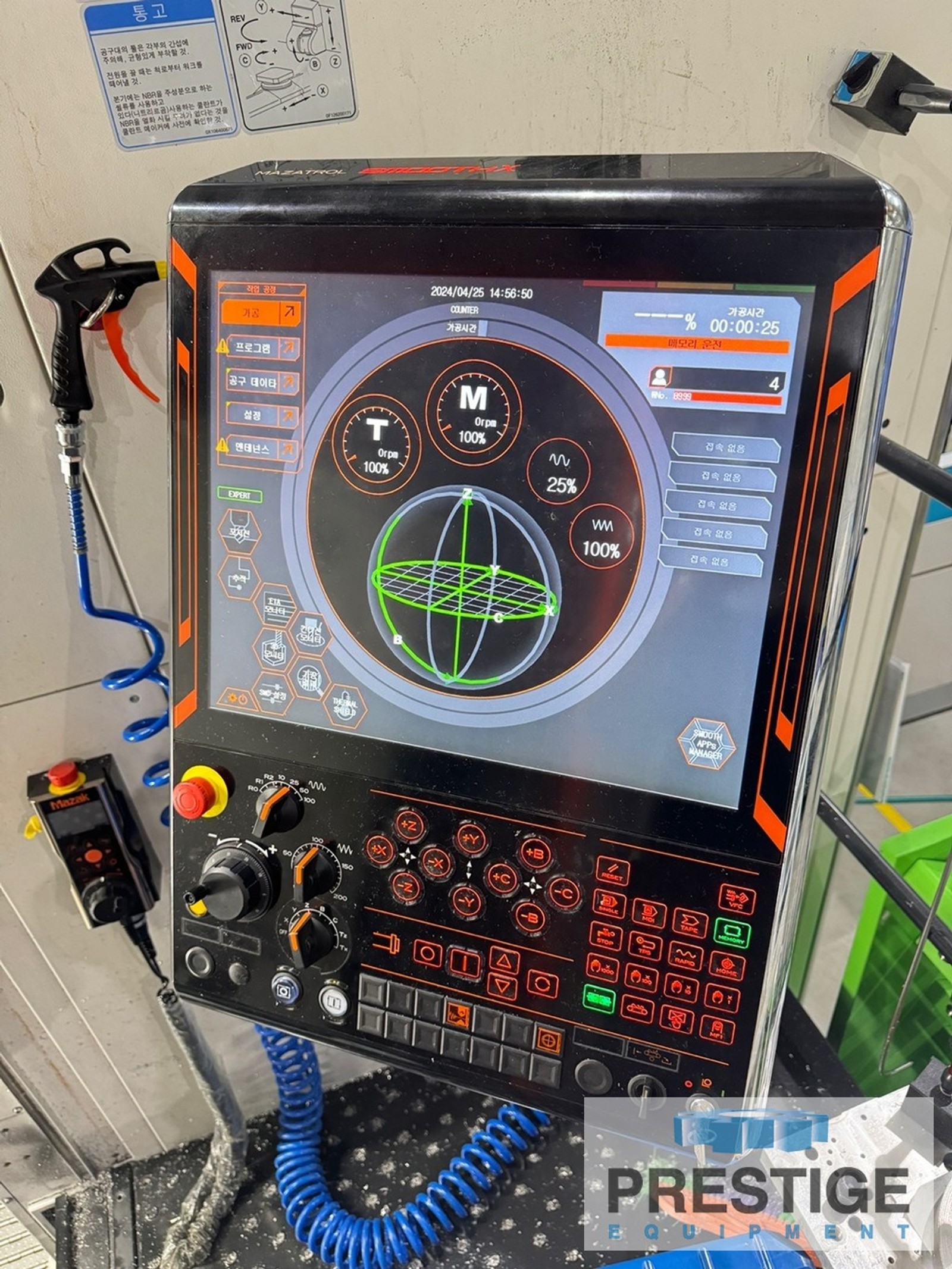

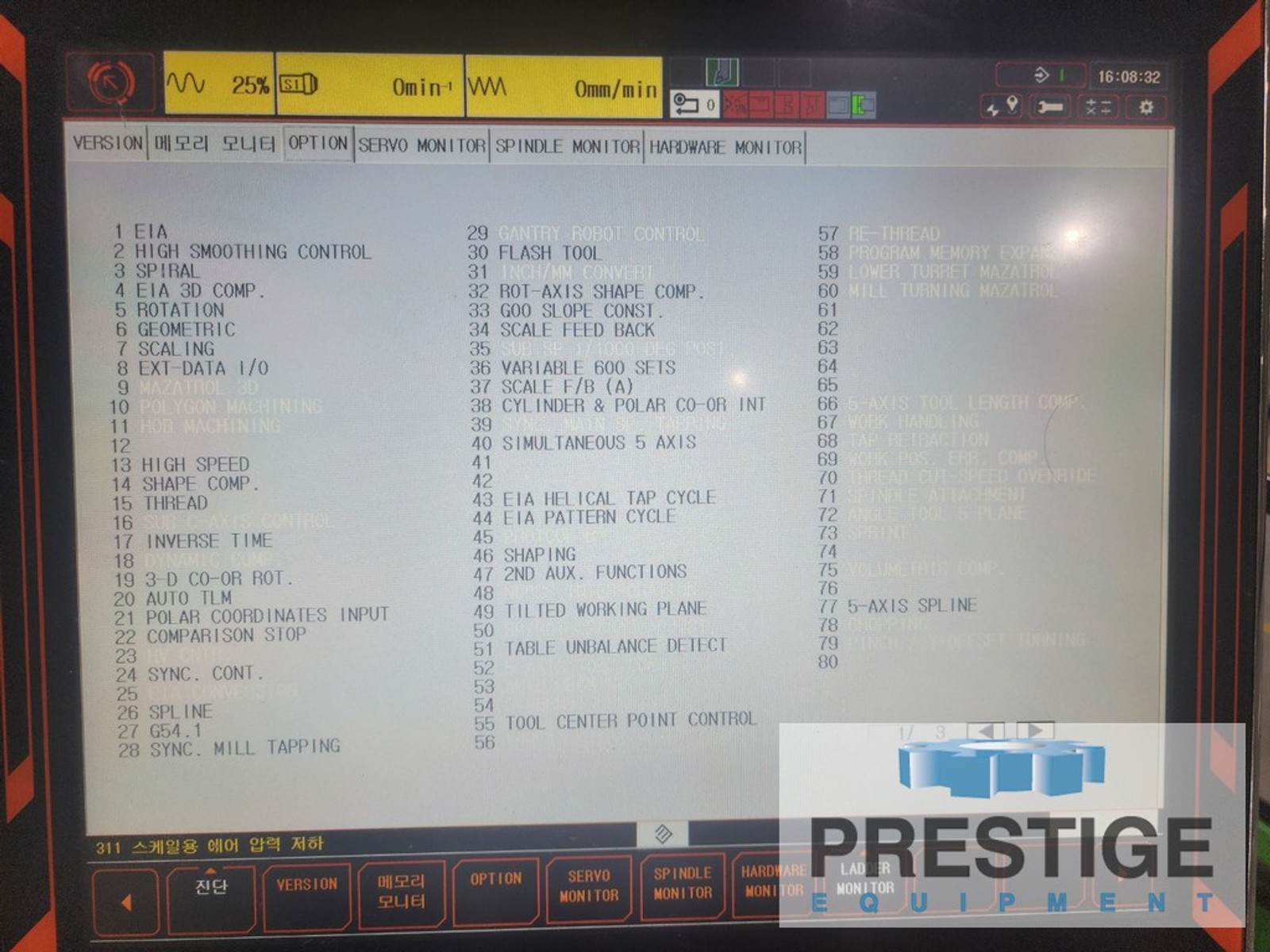

Mazatrol Smooth X Control

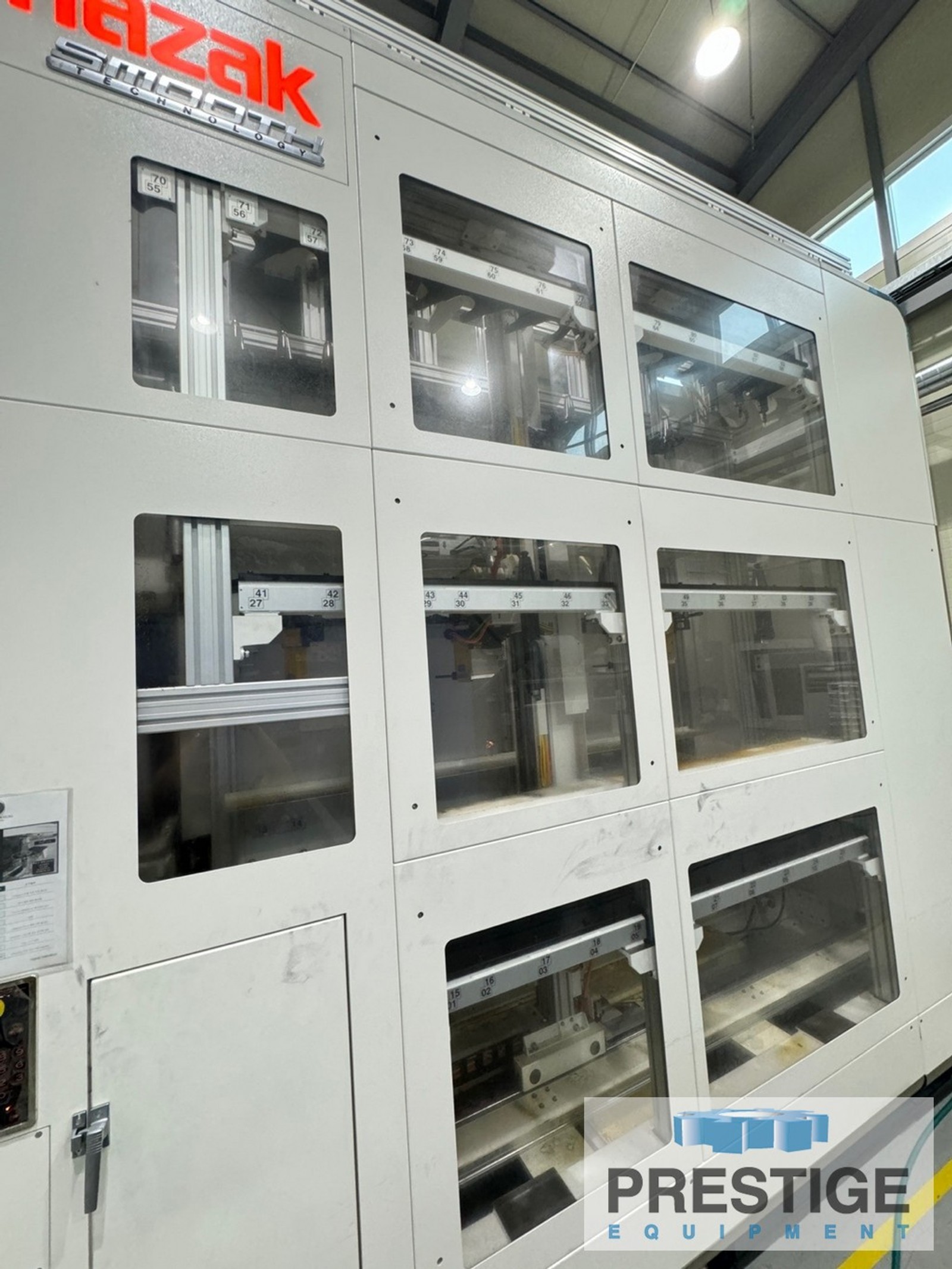

84-Station Automatic Tool Changer
Coolant Thru Spindle
Scales
Chip Conveyor

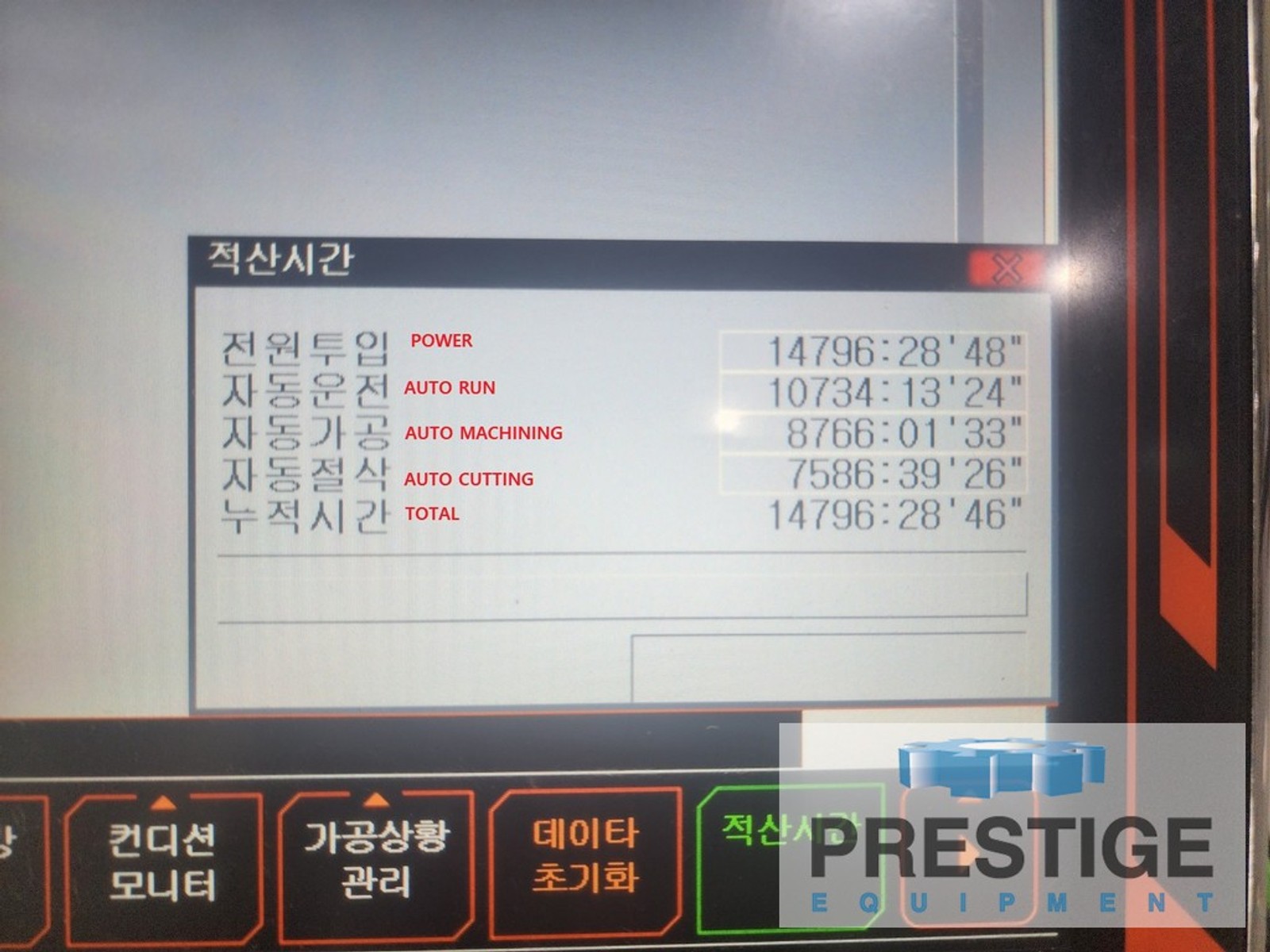

HOURS:
Power On: 14,796
Machining Hours: 8,766

NOTE:
Inspect Under Power in Plant

No Video Available
