Okuma 800VH, 5-Axis, Okuma OSP200M CNC, X-40", Y-40", Z-40", 32" x 32" 2APC, 80 ATC, 10K RPM, TSC, #43550

Manufacturer

OKUMA

Category

Machining Centers

Type

MACHINING CENTERS, HORIZONTAL, CNC (Incl. Pallet Changers)

Stock

43550

Model

Millac 800VH

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #43550

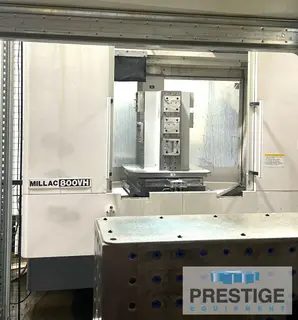

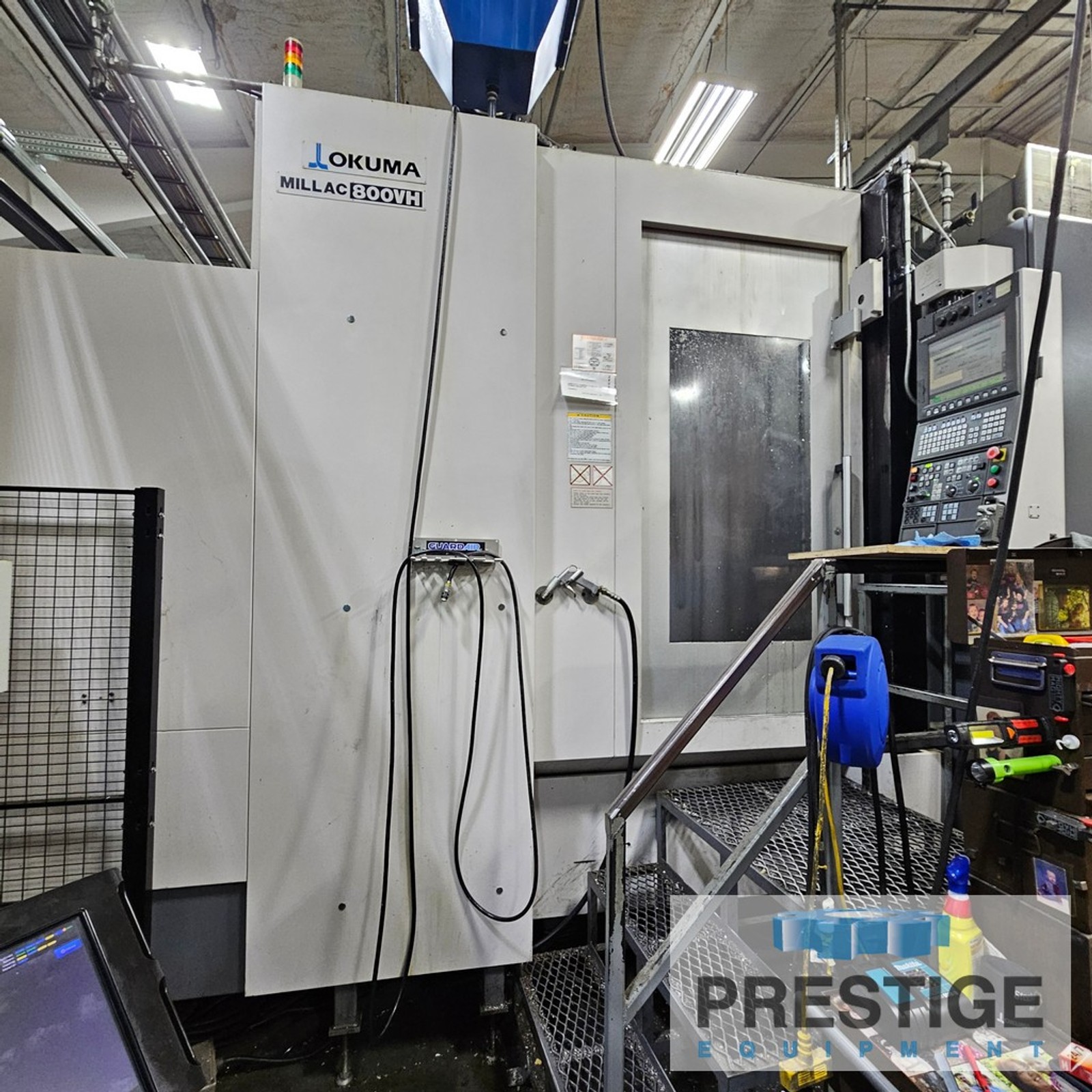

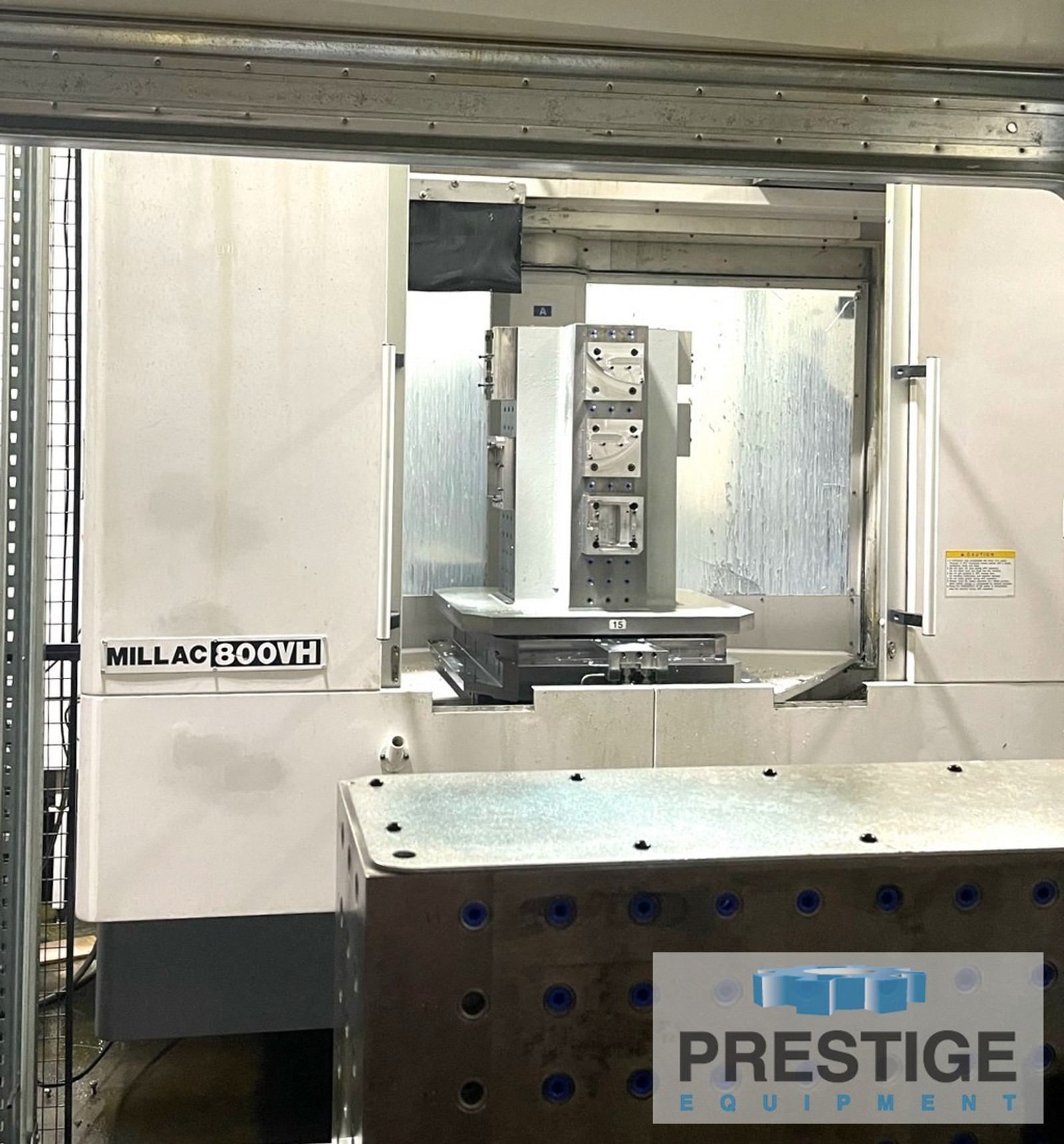

Okuma Millac 800VH CNC 5-Axis Horizontal Machining Center

FEATURES:
Okuma OSP-200M CNC Control
80 Station Automatic Tool Changer
2-Station Automatic Pallet Shuttle System

Specifications:
X-Axis Travel ......................... 40.16"
Y-Axis Travel ......................... 40.16"
Z-Axis Travel ......................... 40.16"
Pallet Size (2)........................ 31.5" x 31.5"
Pallet Indexing ....................... 360.000 Degrees
Max. Weight on Table .................. 2,205Lbs.
Spindle Speed Max. .................... 10,000 RPM
Spindle Drive Motor ................... 30 HP / 40 HP
Spindle Taper ......................... CAT 50
Rapid Traverse (X-Y-Z) ................ 1,200 IPM

EQUIPPED WITH:
Okuma OSP-200M CNC Control
80 Station Automatic Tool Changer
2-Station Automatic Pallet Shuttle System
Thru Spindle Coolant
Thinc Hi-Content Control System
High Speed Shape Smoothing
Chip Conveyor


NOTE:
Inspect In Plant Under Power!
Two Machines Available. Cost is Per Machine, Each
Multi Pallet Fastem Shuttle System is Not included.
